Home All Products Large Floor Base
Metric Imperial

BT4002

Large Floor Base

With Cover Plate

BT4002/B V2

Large Floor Base

With Cover Plate

Enquire Today View Downloads

Overview

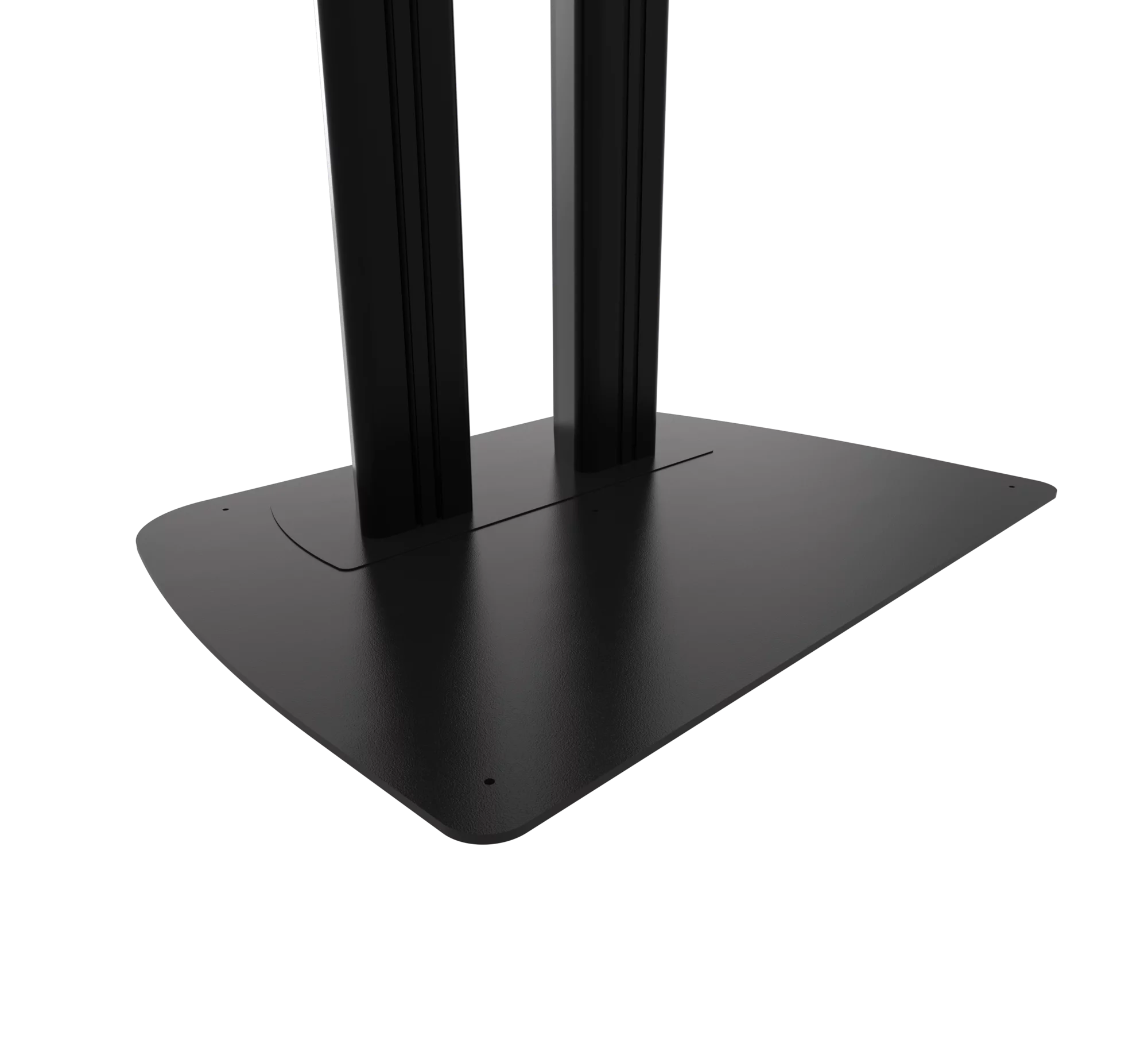

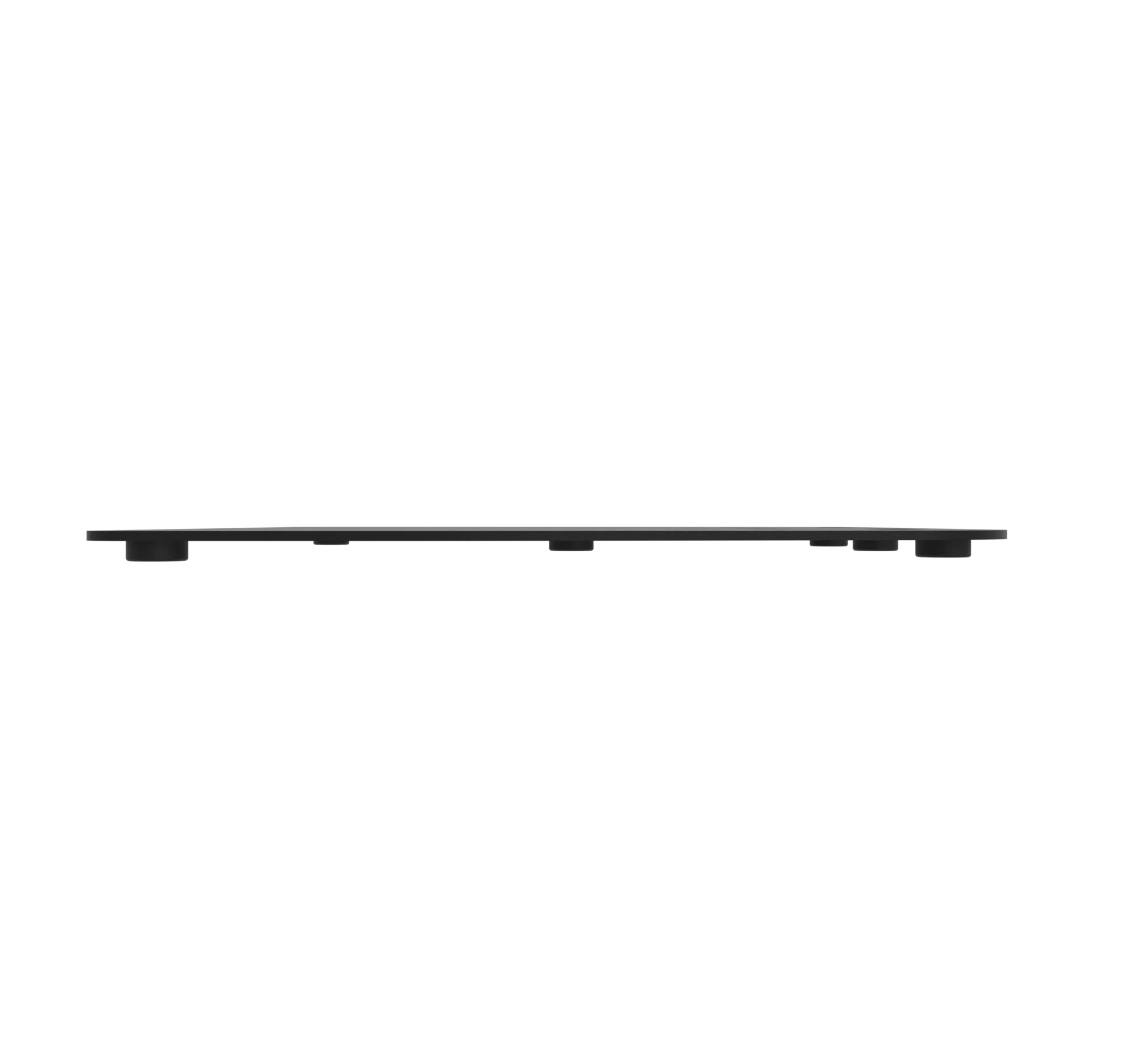

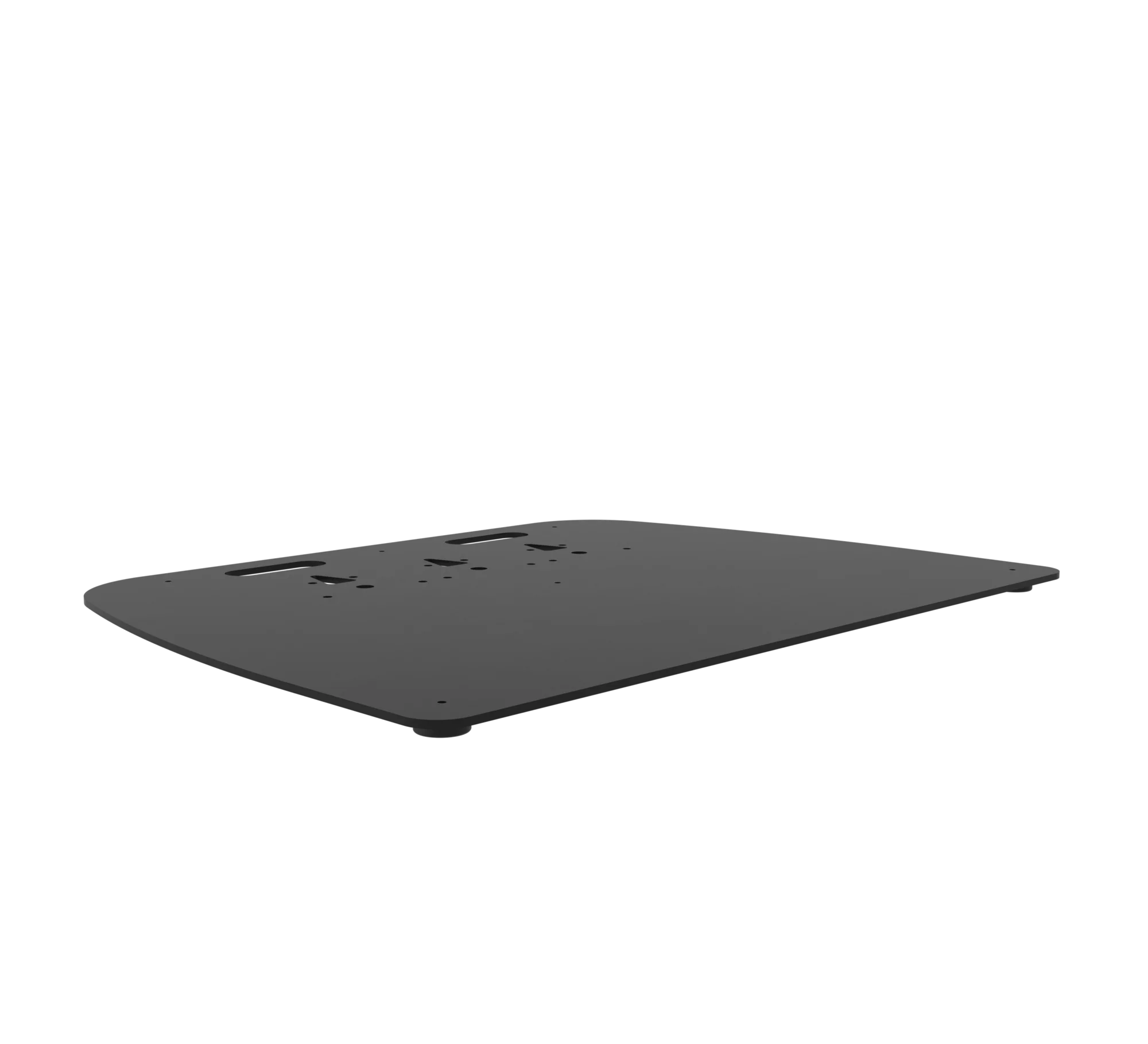

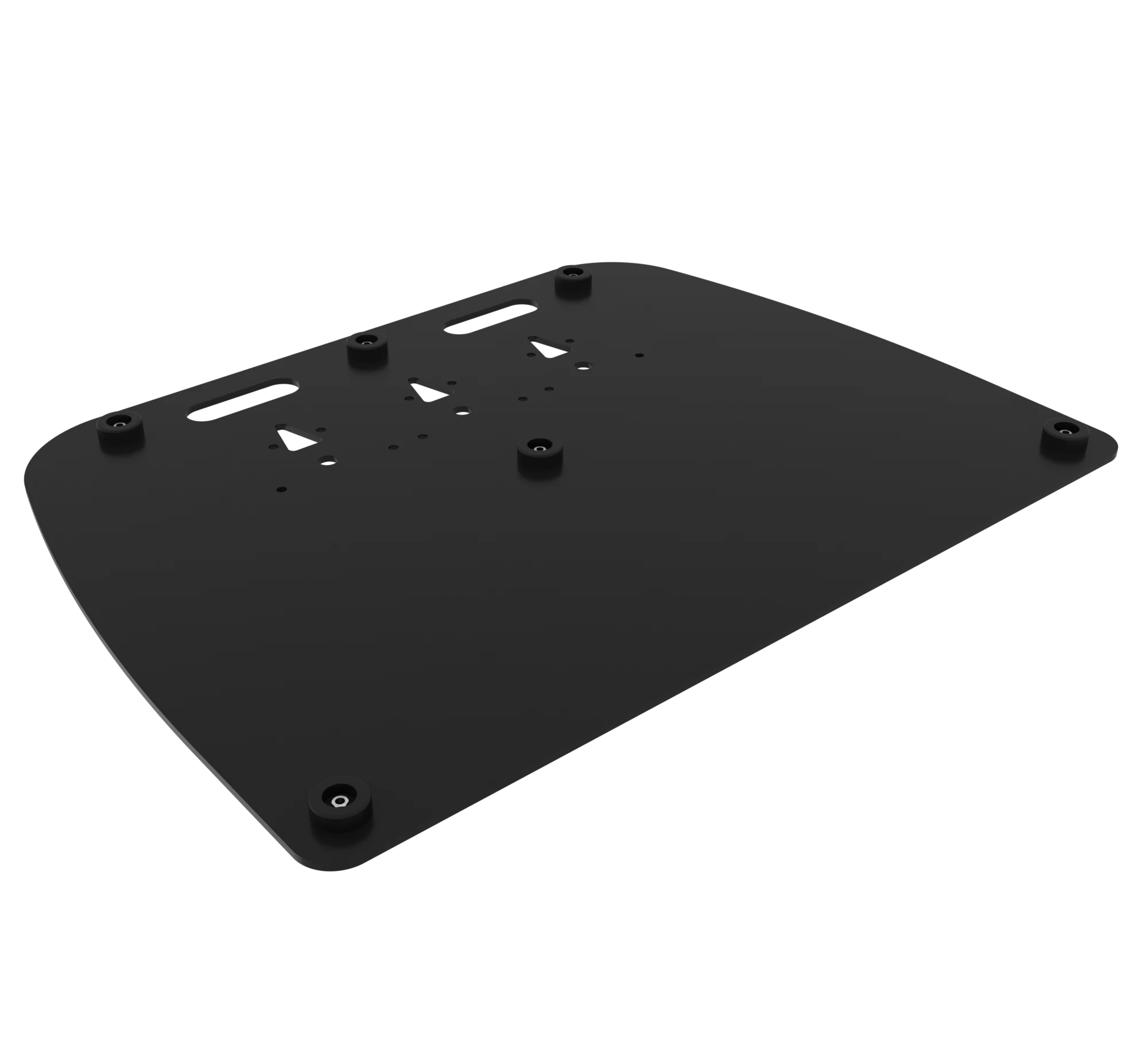

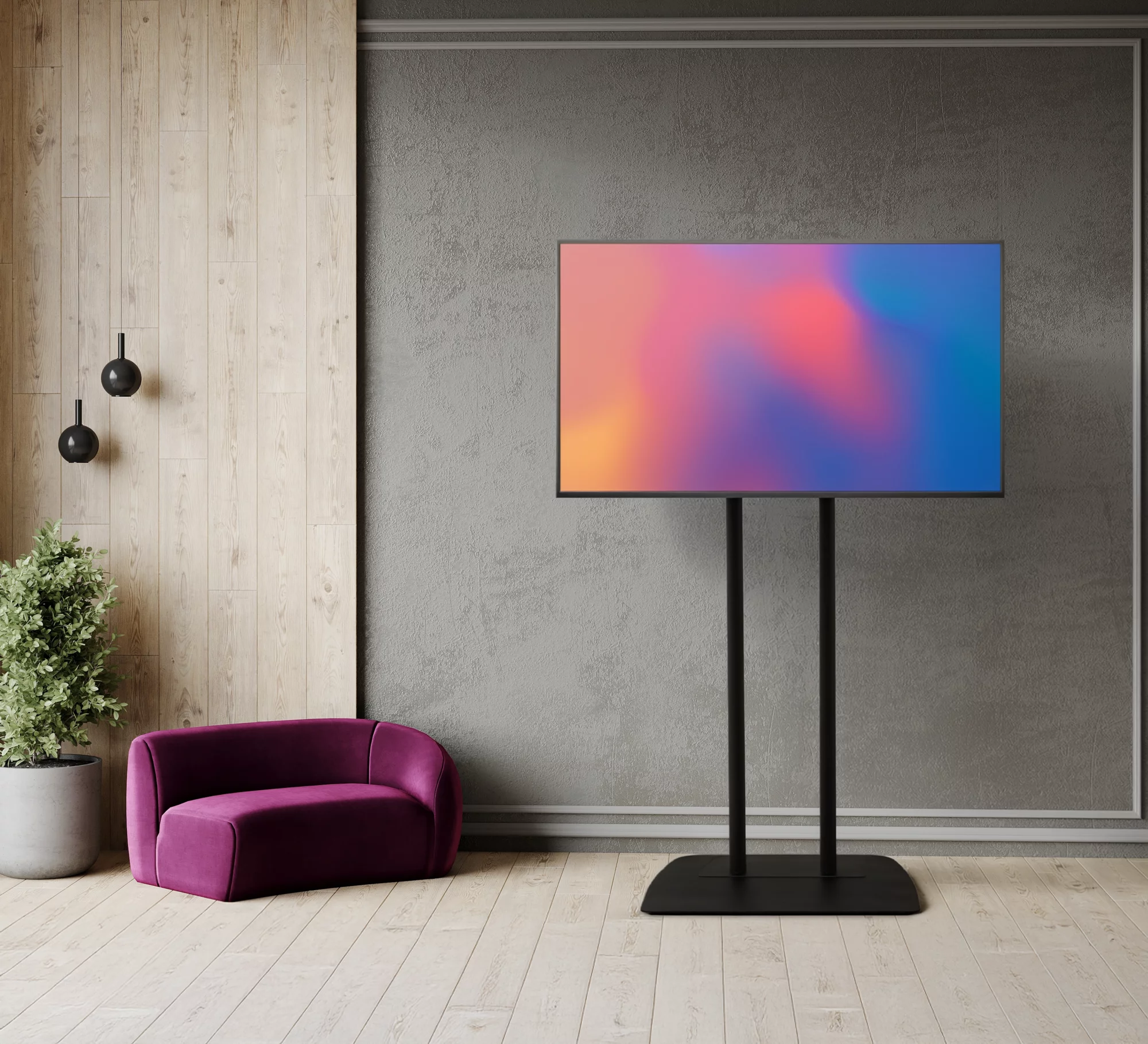

BT4002 is a stylish, large floor base designed for use with B-Tech's Ø50mm Floor Stand Poles or BT8381 Vertical Support Columns, enabling the creation of custom flat screen floor stands tailored to the user's requirements. The base supports either a single or dual pole/column configuration, providing flexibility for different applications. Additional features include non-marking rubber feet and integrated grab handles for easy handling, while optional cover plates (sold separately) conceal the grab handles and any unused fixing points for a clean, professional finish.
BT4002 is a stylish, large floor base designed for use with B-Tech's Ø50mm Floor Stand Poles or BT8381 Vertical Support Columns, enabling the creation of custom flat screen floor stands tailored to the user's requirements. The base supports either a single or dual pole/column configuration, providing flexibility for different applications. Additional features include non-marking rubber feet and integrated grab handles for easy handling, while optional cover plates (sold separately) conceal the grab handles and any unused fixing points for a clean, professional finish.

Product Features

  • Floor base designed for use with single or dual B-Tech Floor Stand Poles or BT8381 Vertical Support Columns
  • Heavy-duty thick steel construction
  • Non-marking rubber feet for stability and floor protection
  • Integrated grab handles for easy handling and transport
  • Optional cover plate conceals grab handles and unused fixing points for a clean, professional finish
  • Pole, screen interface kit, and accessories sold separately
  • Floor base designed for use with single or dual B-Tech Floor Stand Poles or BT8381 Vertical Support Columns
  • Heavy-duty thick steel construction
  • Non-marking rubber feet for stability and floor protection
  • Integrated grab handles for easy handling and transport
  • Optional cover plate conceals grab handles and unused fixing points for a clean, professional finish
  • Pole, screen interface kit, and accessories sold separately

Product Specifications

  • Max load when used with single column, pole: 40kg *
  • Max load when used with twin columns, poles: 70kg *
  • Product width: 800mm
  • Product depth: 600mm
  • Product height: 19mm
  • No. of Ø50mm Poles, Columns required: up to 2
  • Colour: Black
  • *Max weight also dependent on the height of the installed mount
  • Max load when used with single column, pole: 40kg*
  • Max load when used with twin columns, poles: 70kg*
  • Product width: 800mm
  • Product depth: 600mm
  • Product height: 19mm
  • No. of Ø50mm Poles, Columns required: up to 2
  • Colour: Black
  • *Max weight also dependent on the height of the installed mount

Ordering & Box Information

Order Code: BT4002/B V2

Barcode: 5019318077166

HS Code: 94032080

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 23.20kg

Order Code: BT4002/B V2

Barcode: 5019318077166

HS Code: 94032080

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 23.20kg
