CCTV Ceiling Mount with Tilt Adjustment

BT5963

System V

CCTV Ceiling Mount with Tilt Adjustment

For a small screen & dome camera

BT5963-FD100/B

System V

CCTV Ceiling Mount with Tilt Adjustment

For a small screen & dome camera

BT5963-FD200/B

System V

CCTV Ceiling Mount with Tilt Adjustment

For a small screen & dome camera

BT5963-FD200/W

System V

CCTV Ceiling Mount with Tilt Adjustment

For a small screen & dome camera

BT5963-FD100/W

System V

CCTV Ceiling Mount with Tilt Adjustment

For a small screen & dome camera

Product variations available. Choose from the below options:

Pole Length (m)

Colour

Black

White

The BT5963 is a CCTV ceiling mount designed for a small to medium-sized dome security camera and a small, tilted flat screen display. Available with a 1 or 2 metre ceiling drop, the BT5963 features integrated cable management allowing cables to run through the centre of the pole and out through either the top or side of the ceiling mount, ensuring finished installations are neat and tidy. For longer drops, the pole length can be extended with a joiner (BT5924) and additional poles (BT5935) from the System V Range, whilst accessories such as a flat screen can be added with the use of a Ø38mm accessory collar (BT5952) and compatible screen mount.

The BT5963-FD100 is a CCTV ceiling mount designed for a small to medium-sized dome security camera and a small, tilted flat screen display, providing a 1-metre ceiling drop. The BT5963 features integrated cable management allowing cables to run through the centre of the pole and out through either the top or side of the ceiling mount, ensuring finished installations are neat and tidy. For longer drops, the pole length can be extended with a joiner (BT5924) and additional poles (BT5935) from the System V Range, whilst accessories such as a flat screen can be added with the use of a Ø38mm accessory collar (BT5952) and compatible screen mount.

The BT5963-FD200 is a CCTV ceiling mount designed for a small to medium-sized dome security camera and a small, tilted flat screen display, providing a 2-metre ceiling drop. The BT5963 features integrated cable management allowing cables to run through the centre of the pole and out through either the top or side of the ceiling mount, ensuring finished installations are neat and tidy. For longer drops, the pole length can be extended with a joiner (BT5924) and additional poles (BT5935) from the System V Range, whilst accessories such as a flat screen can be added with the use of a Ø38mm accessory collar (BT5952) and compatible screen mount.

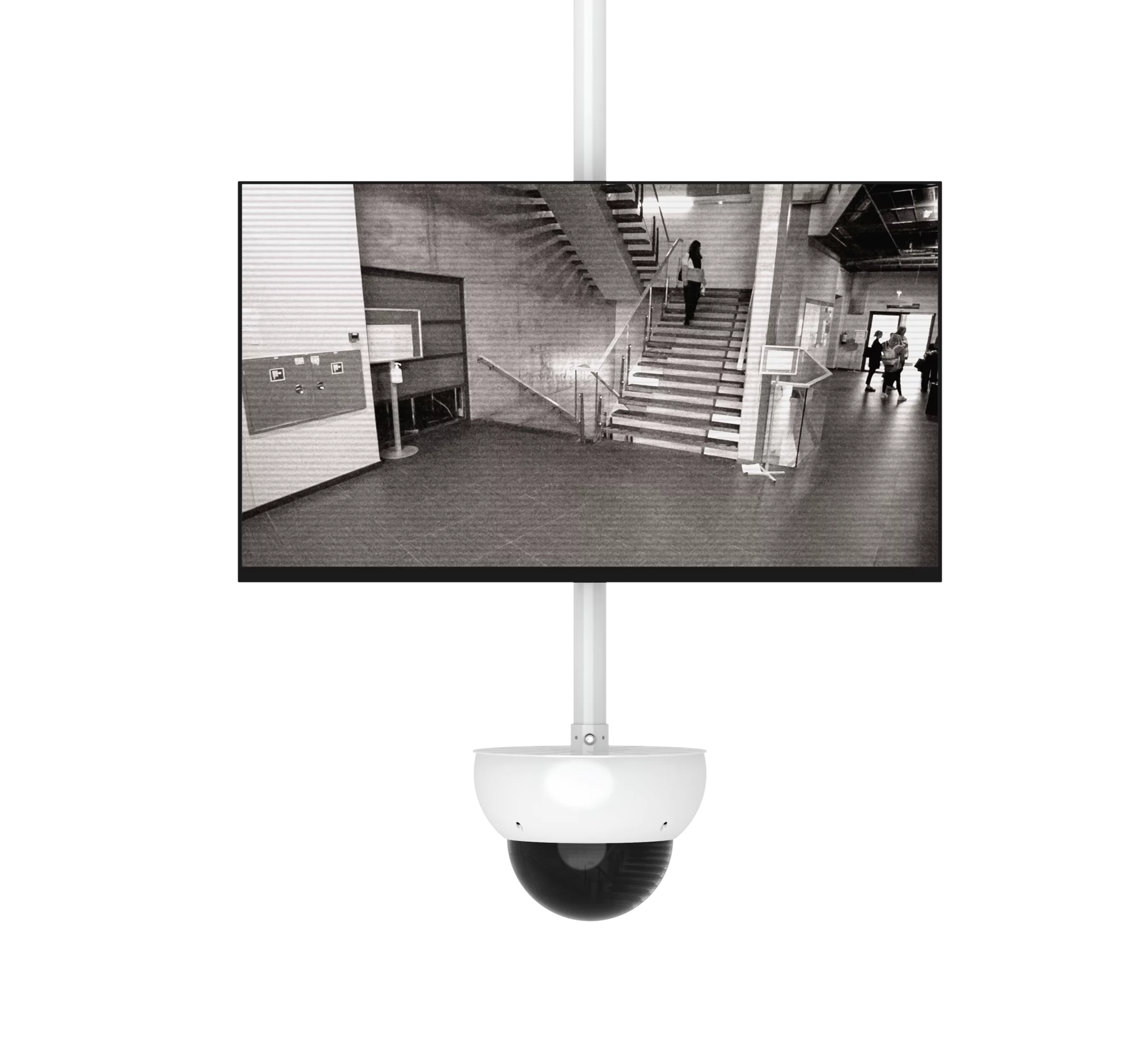

Mounts a dome camera and small flat screen to the ceiling
Available in a choice of two different drop lengths

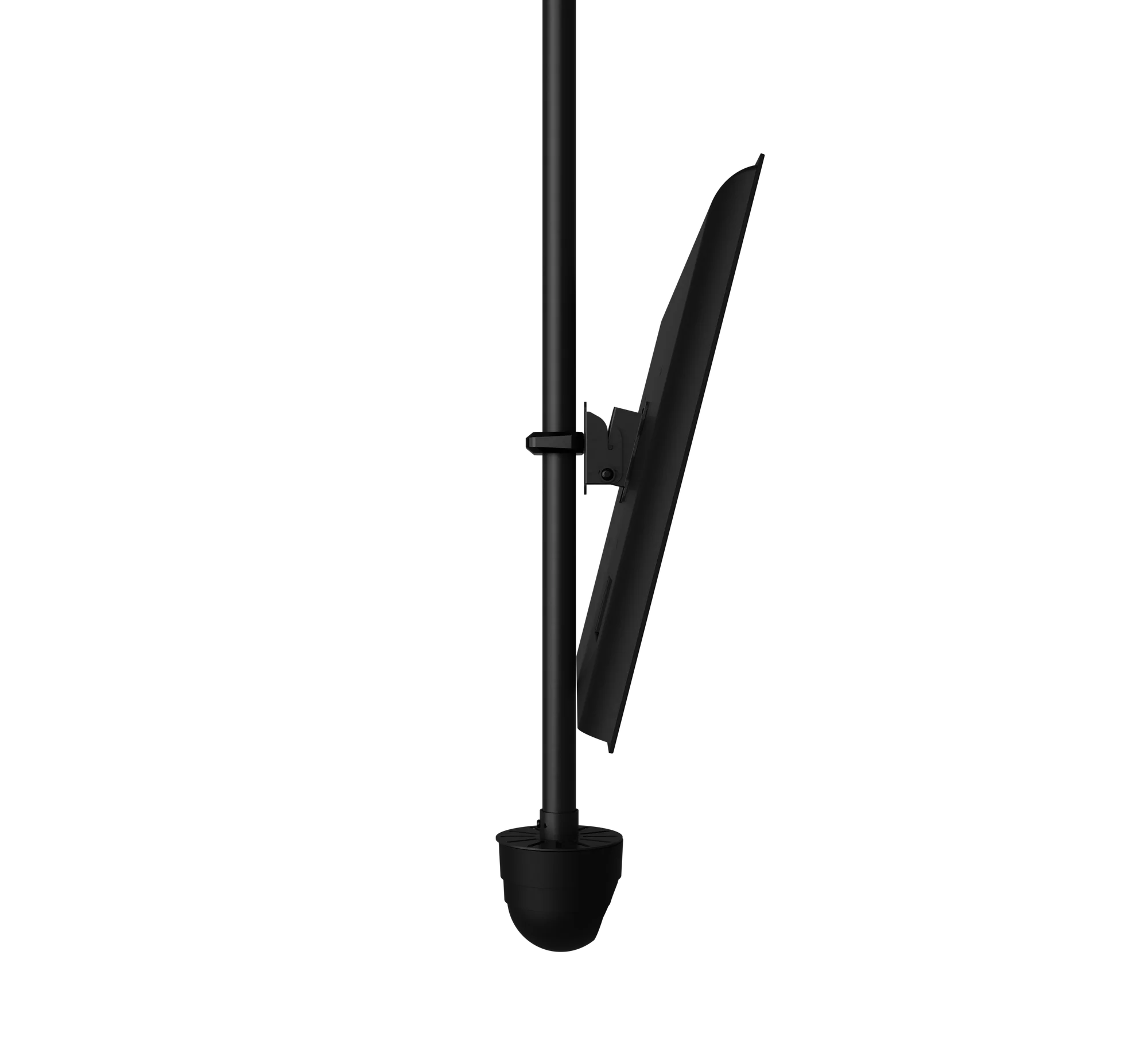

Easy tilt adjustment of screen
Multiple grub screws allow micro-adjustment of the pole to ensure a perfectly angled drop
Safety bolts ensure pole and mount are securely joined
Integrated cable management allows cables to pass through the centre of the pole to a screen and out through the top or side of the ceiling mount

Mounts a dome camera and small flat screen to the ceiling
Easy tilt adjustment of screen
Multiple grub screws allow micro-adjustment of the pole to ensure a perfectly angled drop
Safety bolts ensure pole and mount are securely joined
Integrated cable management allows cables to pass through the centre of the pole to a screen and out through the top or side of the ceiling mount
100% plastic free packaging

Mounts a dome camera and small flat screen to the ceiling
Easy tilt adjustment of screen
Multiple grub screws allow micro-adjustment of the pole to ensure a perfectly angled drop
Safety bolts ensure pole and mount are securely joined
Integrated cable management allows cables to pass through the centre of the pole to a screen and out through the top or side of the ceiling mount
100% plastic free packaging

Mounts a dome camera and small flat screen to the ceiling
Easy tilt adjustment of screen
Multiple grub screws allow micro-adjustment of the pole to ensure a perfectly angled drop
Safety bolts ensure pole and mount are securely joined
Integrated cable management allows cables to pass through the centre of the pole to a screen and out through the top or side of the ceiling mount
100% plastic free packaging

Mounts a dome camera and small flat screen to the ceiling
Easy tilt adjustment of screen
Multiple grub screws allow micro-adjustment of the pole to ensure a perfectly angled drop
Safety bolts ensure pole and mount are securely joined
Integrated cable management allows cables to pass through the centre of the pole to a screen and out through the top or side of the ceiling mount
100% plastic free packaging

Recommended display size: 10" up to 28"
Max screen load: 20kg
Max camera load: 5kg
Tilt of screen: +17 / -10°
VESA fixings: up to 100mm x 100mm
BT5963-FD100mm pole length: 1036mm
BT5963-FD200mm pole length: 2036mm
Camera fixing dimensions: 51mm - 127.5mm
Colour options: Black, White

Recommended display size: 10" up to 28"
Max screen load: 20kg
Max camera load: 5kg
Tilt of screen: +17 / -10°
VESA fixings: up to 100mm x 100mm
BT5963-FD100mm pole length: 1036mm
Camera fixing dimensions: 51mm - 127.5mm
Colour: Black

Recommended display size: 10" up to 28"
Max screen load: 20kg
Max camera load: 5kg
Tilt of screen: +17 / -10°
VESA fixings: up to 100mm x 100mm
BT5963-FD200mm pole length: 2036mm
Camera fixing dimensions: 51mm - 127.5mm
Colour: Black

Recommended display size: 10" up to 28"
Max screen load: 20kg
Max camera load: 5kg
Tilt of screen: +17 / -10°
VESA fixings: up to 100mm x 100mm
BT5963-FD200mm pole length: 2036mm
Camera fixing dimensions: 51mm - 127.5mm
Colour: White

Recommended display size: 10" up to 28"
Max screen load: 20kg
Max camera load: 5kg
Tilt of screen: +17 / -10°
VESA fixings: up to 100mm x 100mm
BT5963-FD100mm pole length: 1036mm
Camera fixing dimensions: 51mm - 127.5mm
Colour: White

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): Select a product variation to see its total boxed weight.

Order Code: BT5963-FD100/B

Barcode: 5019318312977

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 2.89kg

Order Code: BT5963-FD200/B

Barcode: 5019318312984

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 3.89kg

Order Code: BT5963-FD200/W

Barcode: 5019318304965

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 3.89kg

Order Code: BT5963-FD100/W

Barcode: 5019318304958

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 2.89kg
