Home All Products Single Screen Digital Signage Kiosk
Metric Imperial

BT7000

Single Screen Digital Signage Kiosk

High-end aesthetic quality

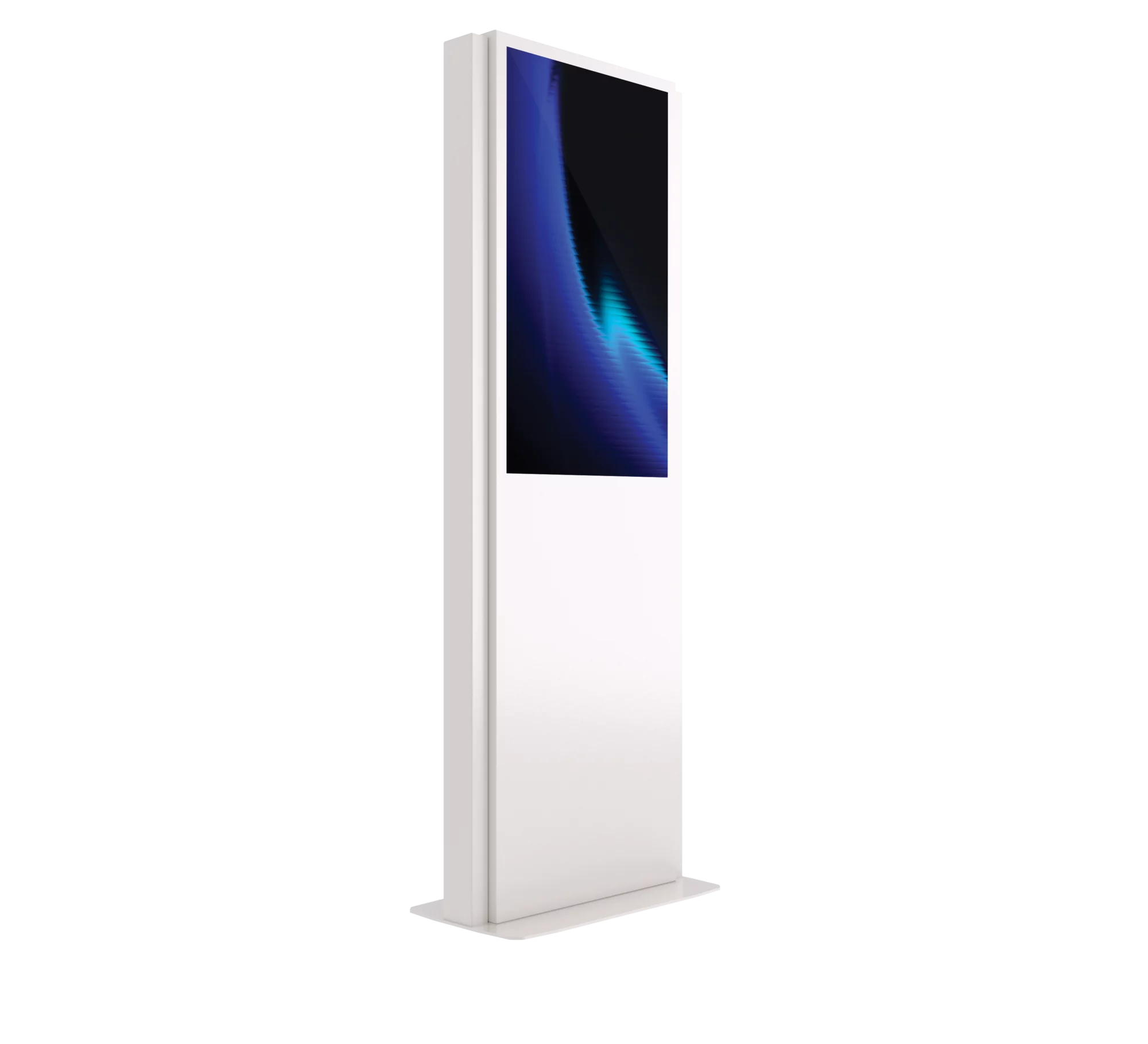

BT7000/W

Single Screen Digital Signage Kiosk

High-end aesthetic quality

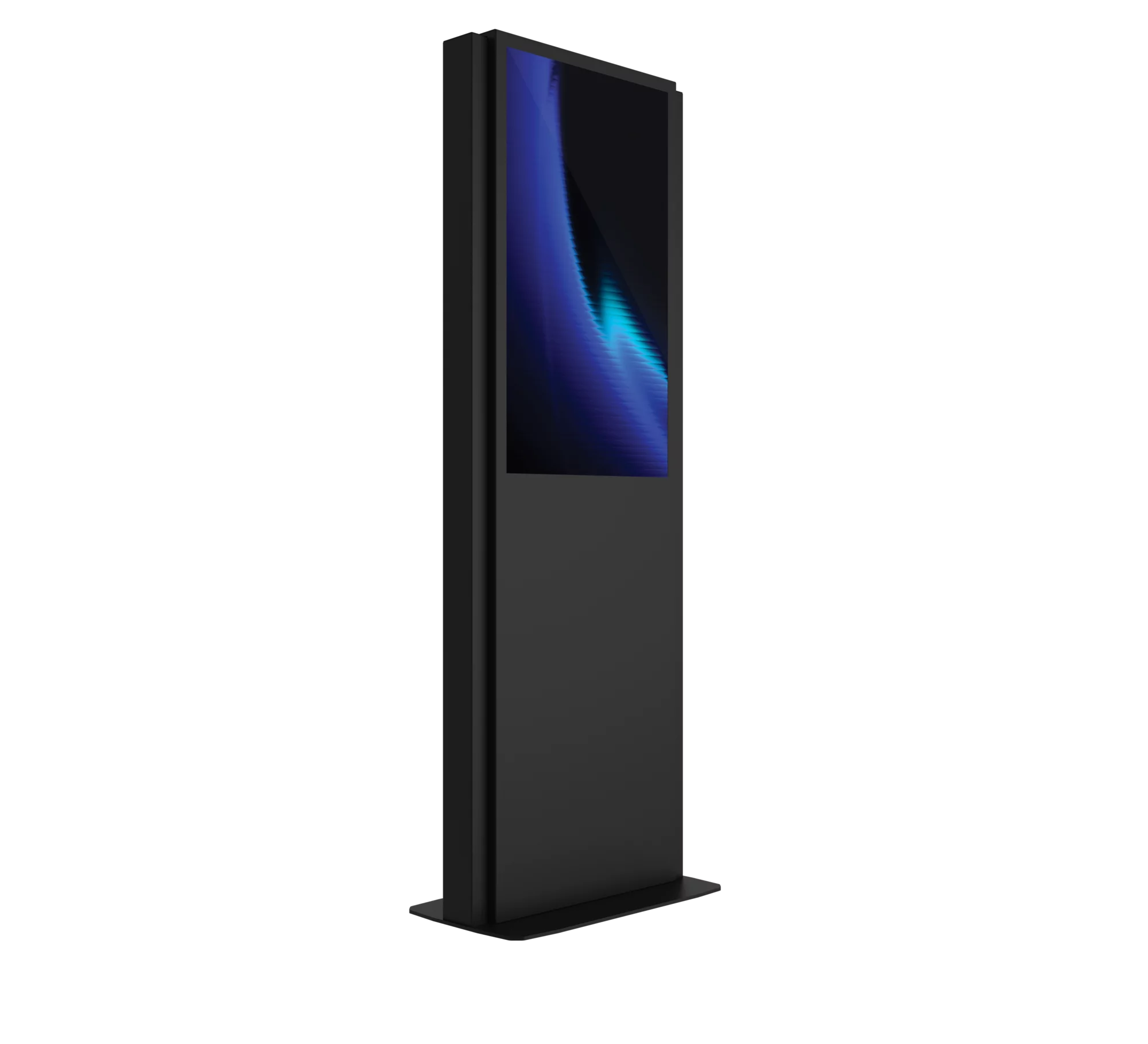

BT7000/B

Single Screen Digital Signage Kiosk

High-end aesthetic quality

Product variations available. Choose from the below options:

Colour

White

Black

Enquire Today View Downloads

Overview

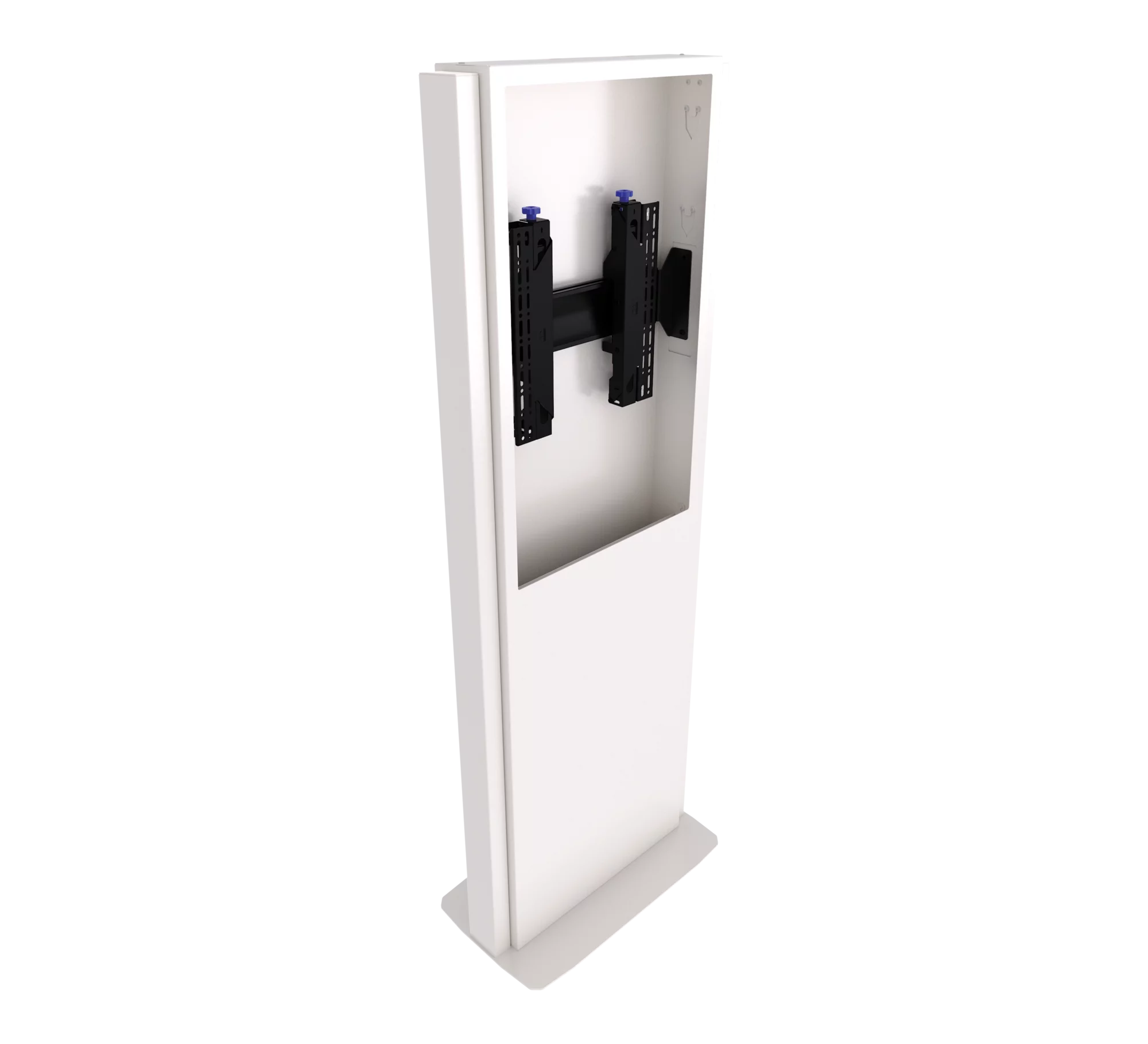

The BT7000 is a display kiosk designed to portrait mount a single digital signage screen. A rigid chassis is fixed to a heavy duty steel base which can be used freestanding or bolted to the floor and is finished stylishly with satin black or white outer covers. The internal mounting system is made up of parts from our System X range, allowing 8-point micro-adjustment to ensure the mounted screen sits perfectly level and flush with the front opening of the kiosk, which is laser cut to match your screen size.
The BT7000 is a display kiosk designed to portrait mount a single digital signage screen. A rigid chassis is fixed to a heavy duty steel base which can be used freestanding or bolted to the floor and is finished stylishly with satin black or white outer covers. The internal mounting system is made up of parts from our System X range, allowing 8-point micro-adjustment to ensure the mounted screen sits perfectly level and flush with the front opening of the kiosk, which is laser cut to match your screen size.
The BT7000 is a display kiosk designed to portrait mount a single digital signage screen. A rigid chassis is fixed to a heavy duty steel base which can be used freestanding or bolted to the floor and is finished stylishly with satin black or white outer covers. The internal mounting system is made up of parts from our System X range, allowing 8-point micro-adjustment to ensure the mounted screen sits perfectly level and flush with the front opening of the kiosk, which is laser cut to match your screen size.

Product Features

  • High-end aesthetic quality with a premium high satin finish
  • Tool-less micro-adjustments at 8 points for seamless screen alignment
  • Suitable for portrait mounting
  • Integrated cable management
  • 8mm thick heavy duty steel base
  • Can be used freestanding or bolted to the floor
  • Simple 'hook-on' screen installation
  • Lockable top panel helps prevent unauthorised removal of the screen
  • Removable front and rear panels for easy installation and maintenance
  • Includes internal storage area in lower section for media players and devices
  • Vented top and rear panels allow airflow to and from the device
  • Kiosks can be branded with your company logo if required
  • All mounting hardware included
  • For indoor use only
  • High-end aesthetic quality with a premium high satin finish
  • Tool-less micro-adjustments at 8 points for seamless screen alignment
  • Suitable for portrait mounting
  • Integrated cable management
  • 8mm thick heavy duty steel base
  • Can be used freestanding or bolted to the floor
  • Simple 'hook-on' screen installation
  • Lockable top panel helps prevent unauthorised removal of the screen
  • Removable front and rear panels for easy installation and maintenance
  • Includes internal storage area in lower section for media players and devices
  • Vented top and rear panels allow airflow to and from the device
  • Kiosks can be branded with your company logo if required
  • All mounting hardware included
  • For indoor use only
  • High-end aesthetic quality with a premium high satin finish
  • Tool-less micro-adjustments at 8 points for seamless screen alignment
  • Suitable for portrait mounting
  • Integrated cable management
  • 8mm thick heavy duty steel base
  • Can be used freestanding or bolted to the floor
  • Simple 'hook-on' screen installation
  • Lockable top panel helps prevent unauthorised removal of the screen
  • Removable front and rear panels for easy installation and maintenance
  • Includes internal storage area in lower section for media players and devices
  • Vented top and rear panels allow airflow to and from the device
  • Kiosks can be branded with your company logo if required
  • All mounting hardware included
  • For indoor use only

Product Specifications

  • Minimum display size: 27"
  • Maximum display size: 86"
  • Max load: 50kg
  • VESA & Non-VESA fixings: 200mm x 200mm up to 600mm x 400mm
  • Kiosk dimensions: W: 770mm D: 172mm H: 1850mm*
  • Base dimensions: W: 520mm D: 790mm H: 8mm*
  • Orientation: Portrait
  • Colour options: Black, White
  • *Please note this dimension applies to screens 40" - 65". Kiosk dimensions for other screen sizes may differ please ask for details
  • Minimum display size: 27"
  • Maximum display size: 86"
  • Max load: 50kg
  • VESA & Non-VESA fixings: 200mm x 200mm up to 600mm x 400mm
  • Kiosk dimensions: W: 770mm D: 172mm H: 1850mm*
  • Base dimensions: W: 520mm D: 790mm H: 8mm*
  • Orientation: Portrait
  • Colour: White
  • *Please note this dimension applies to screens 40" - 65". Kiosk dimensions for other screen sizes may differ please ask for details
  • Minimum display size: 27"
  • Maximum display size: 86"
  • Max load: 50kg
  • VESA & Non-VESA fixings: 200mm x 200mm up to 600mm x 400mm
  • Kiosk dimensions: W: 770mm D: 172mm H: 1850mm*
  • Base dimensions: W: 520mm D: 790mm H: 8mm*
  • Orientation: Portrait
  • Colour: Black
  • *Please note this dimension applies to screens 40" - 65". Kiosk dimensions for other screen sizes may differ please ask for details

Ordering & Box Information

HS Code: 94032080

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): Weight dependent on order

Order Code: BT7000/W

Barcode: 5019318087820

HS Code: 94032080

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): Weight dependent on order

Order Code: BT7000/B

Barcode: 5019318089909

HS Code: 94032080

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): Weight dependent on order

Downloads

BT7000 - Product Specification Sheet - English

pdf 1.74 MB

BT7000 - Product Specification Sheet - French

pdf 1.55 MB

BT7000 - Installation Guide

pdf 3.00 MB

BT7000-1

png 19.73 KB

BT7000-B-1-Screen

png 19.53 KB

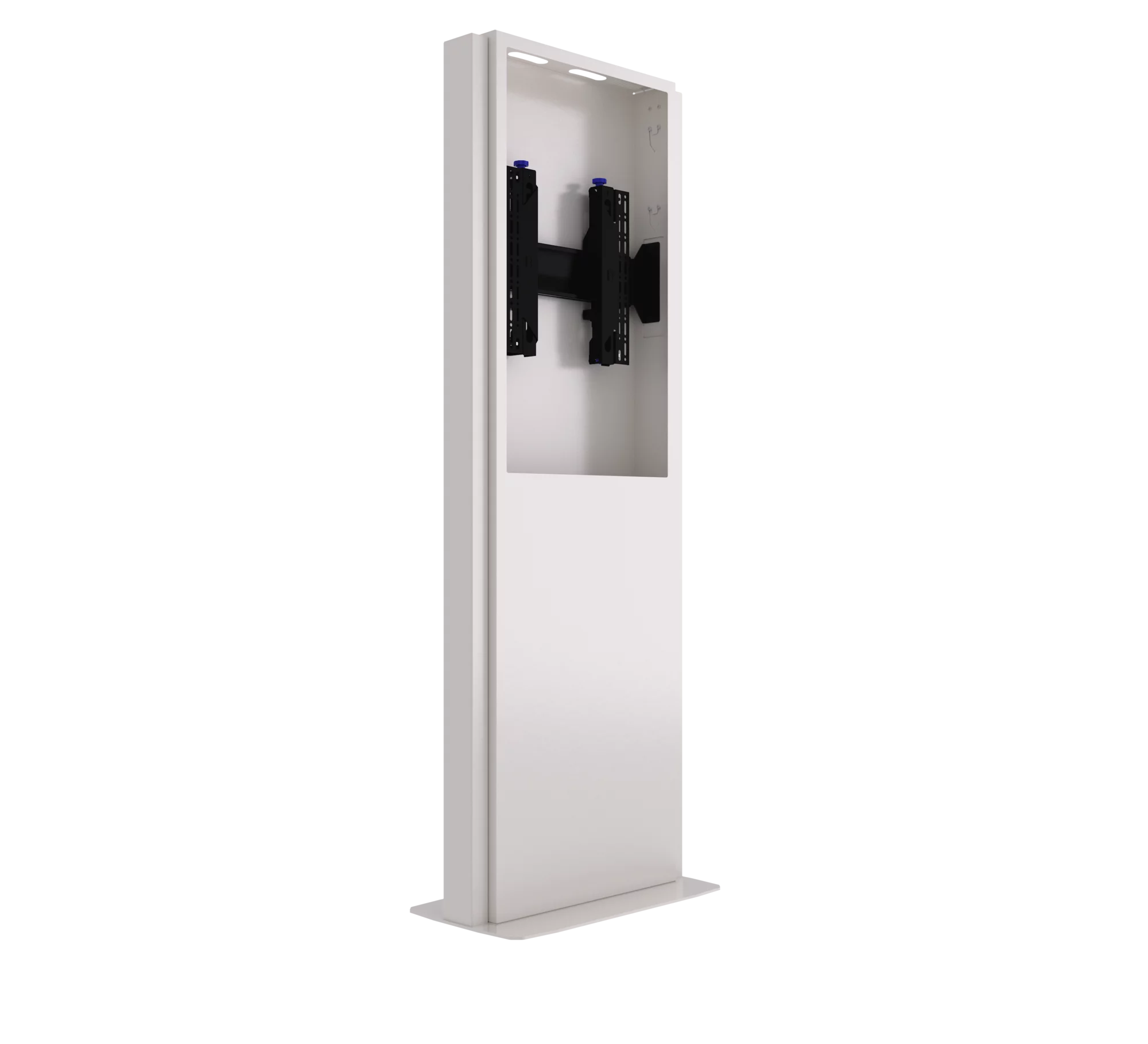

BT7000-2

png 21.16 KB

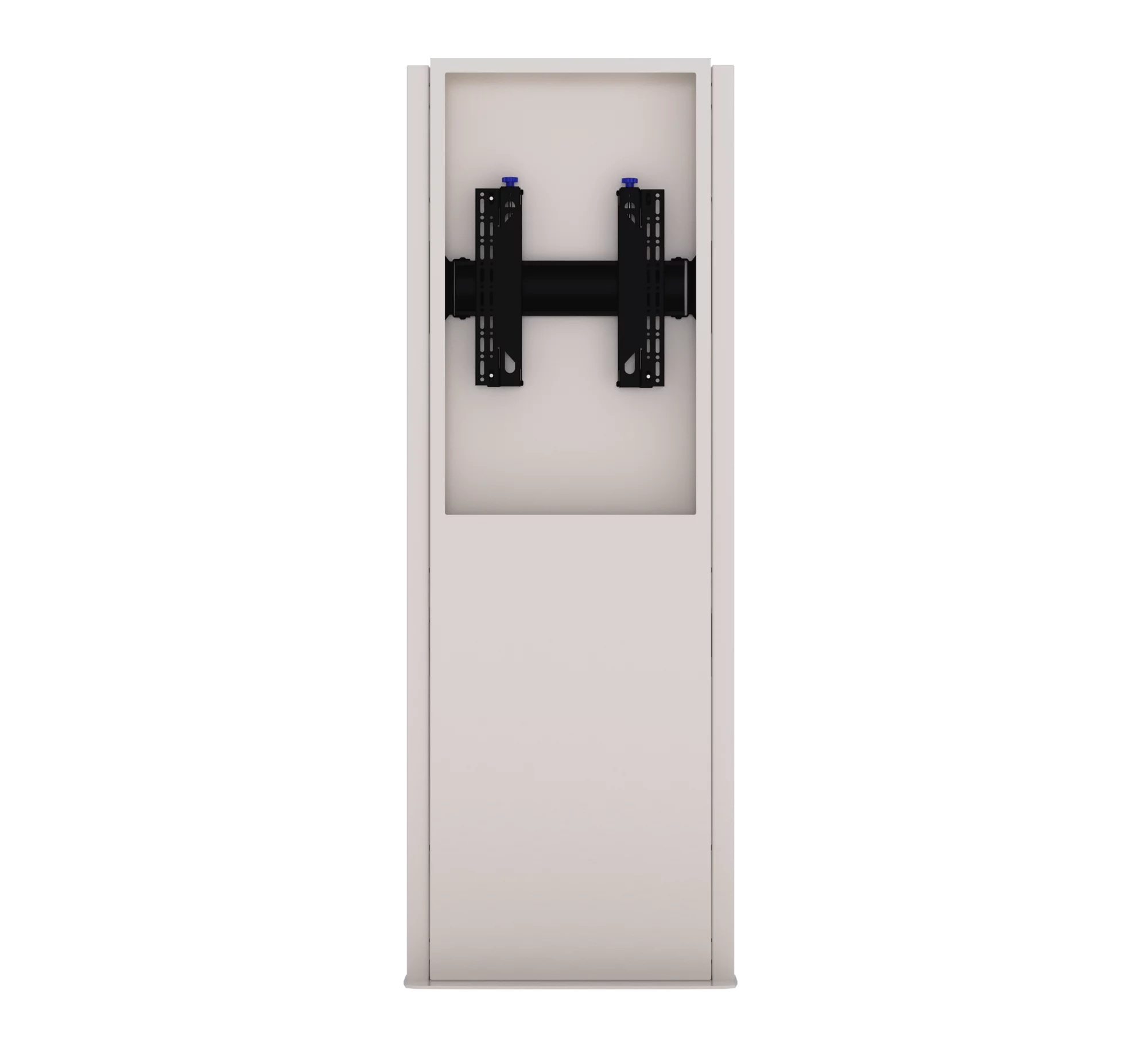

BT7000-4

png 18.42 KB

BT7000-5

png 11.94 KB

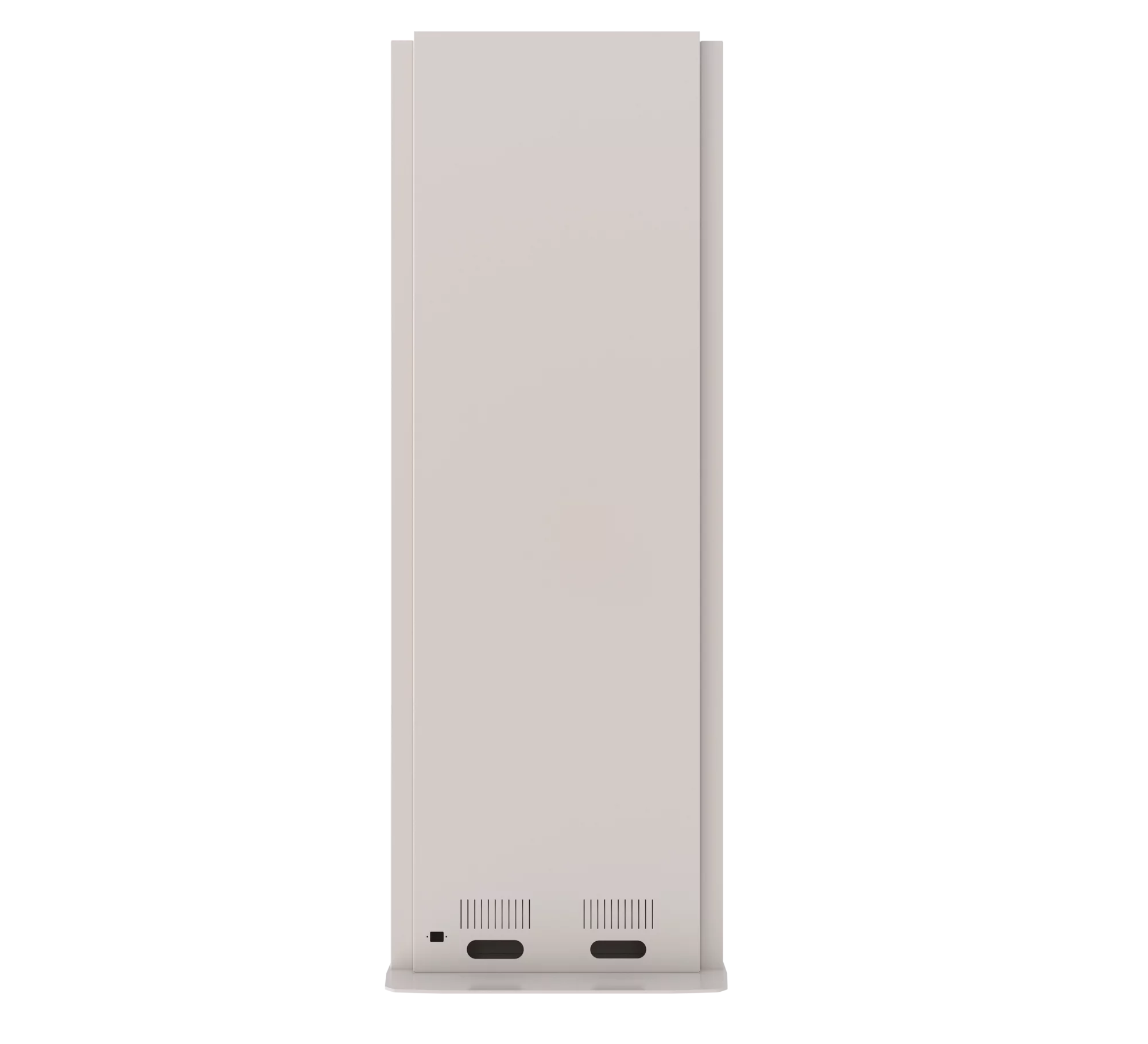

BT7000-8

png 13.25 KB

BT7000-W-5

png 34.70 KB

BT7000-3

png 251.97 KB

Downloads

BT7000 - Product Specification Sheet - English

pdf 1.74 MB

BT7000 - Product Specification Sheet - French

pdf 1.55 MB

BT7000 - Installation Guide

pdf 3.00 MB

BT7000-W-1

png 21.16 KB

BT7000-W-1-Screen

png 20.18 KB

BT7000-W-2

png 18.42 KB

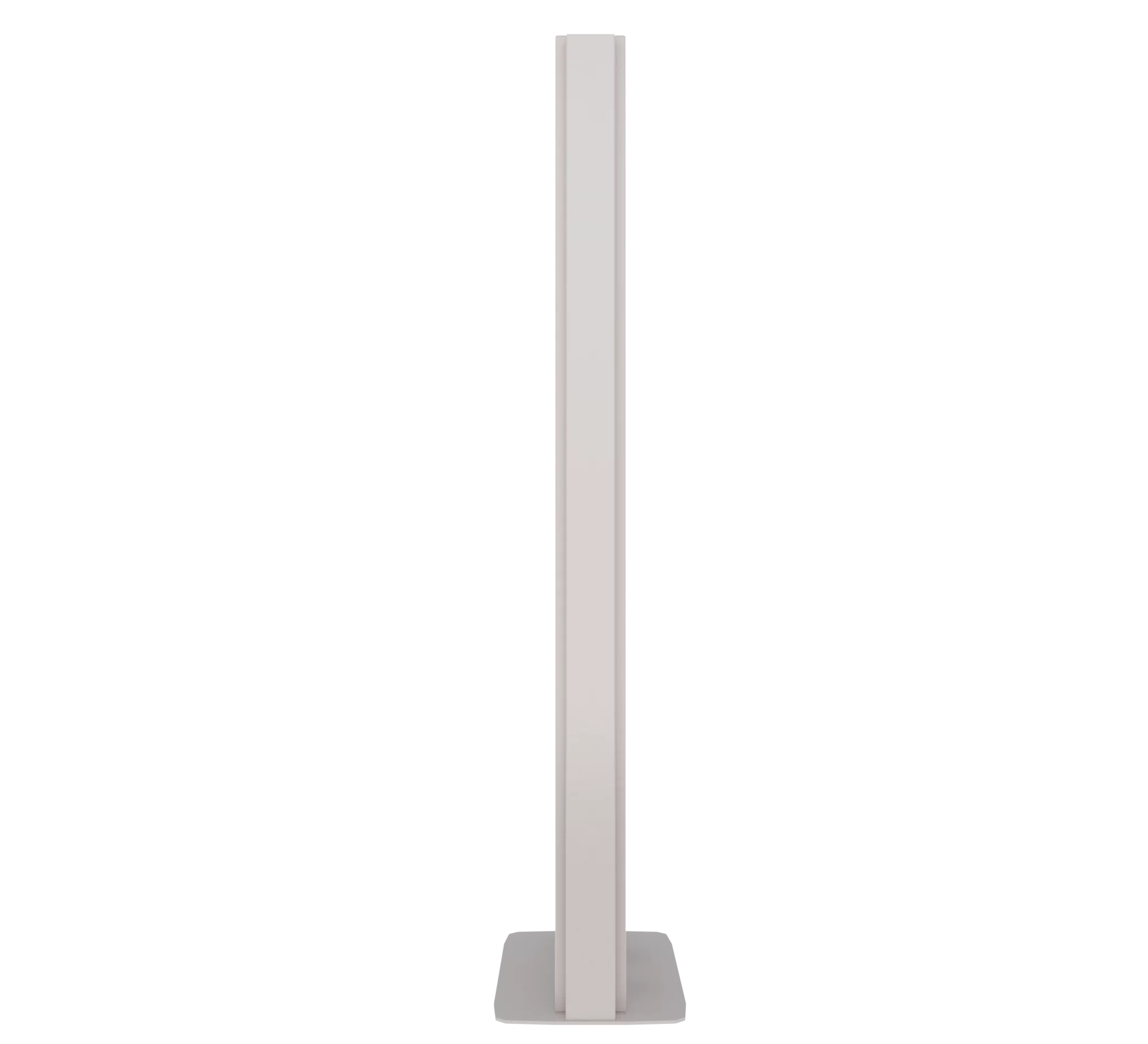

BT7000-W-3

png 11.94 KB

BT7000-W-7

png 13.25 KB

BT7000-W-5

png 34.70 KB

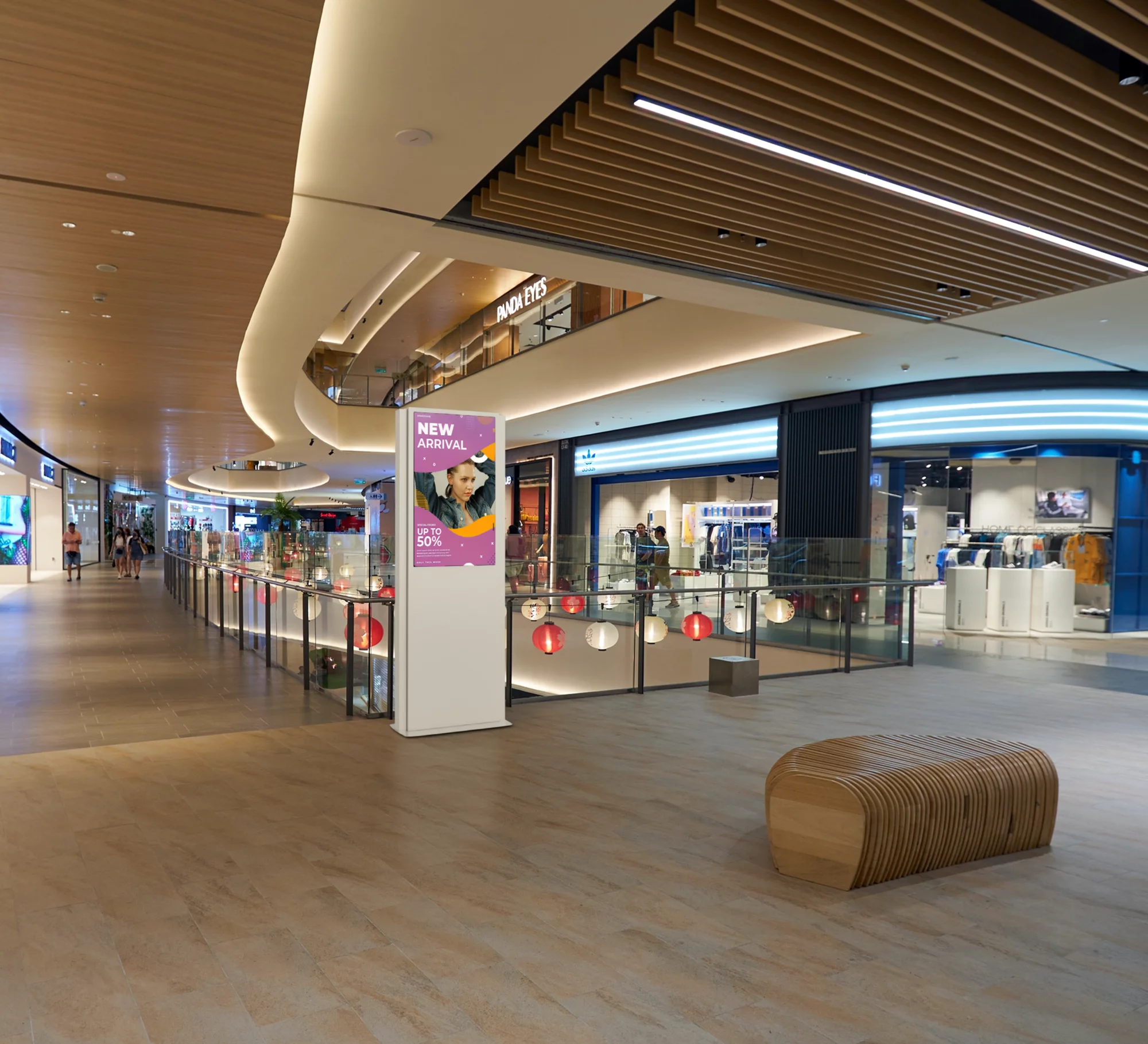

BT7000-W-6

png 260.36 KB

Downloads

BT7000 - Product Specification Sheet - English

pdf 1.74 MB

BT7000 - Product Specification Sheet - French

pdf 1.55 MB

BT7000 - Installation Guide

pdf 3.00 MB

BT7000-B-1

png 19.73 KB

BT7000-B-1-Screen

png 19.53 KB

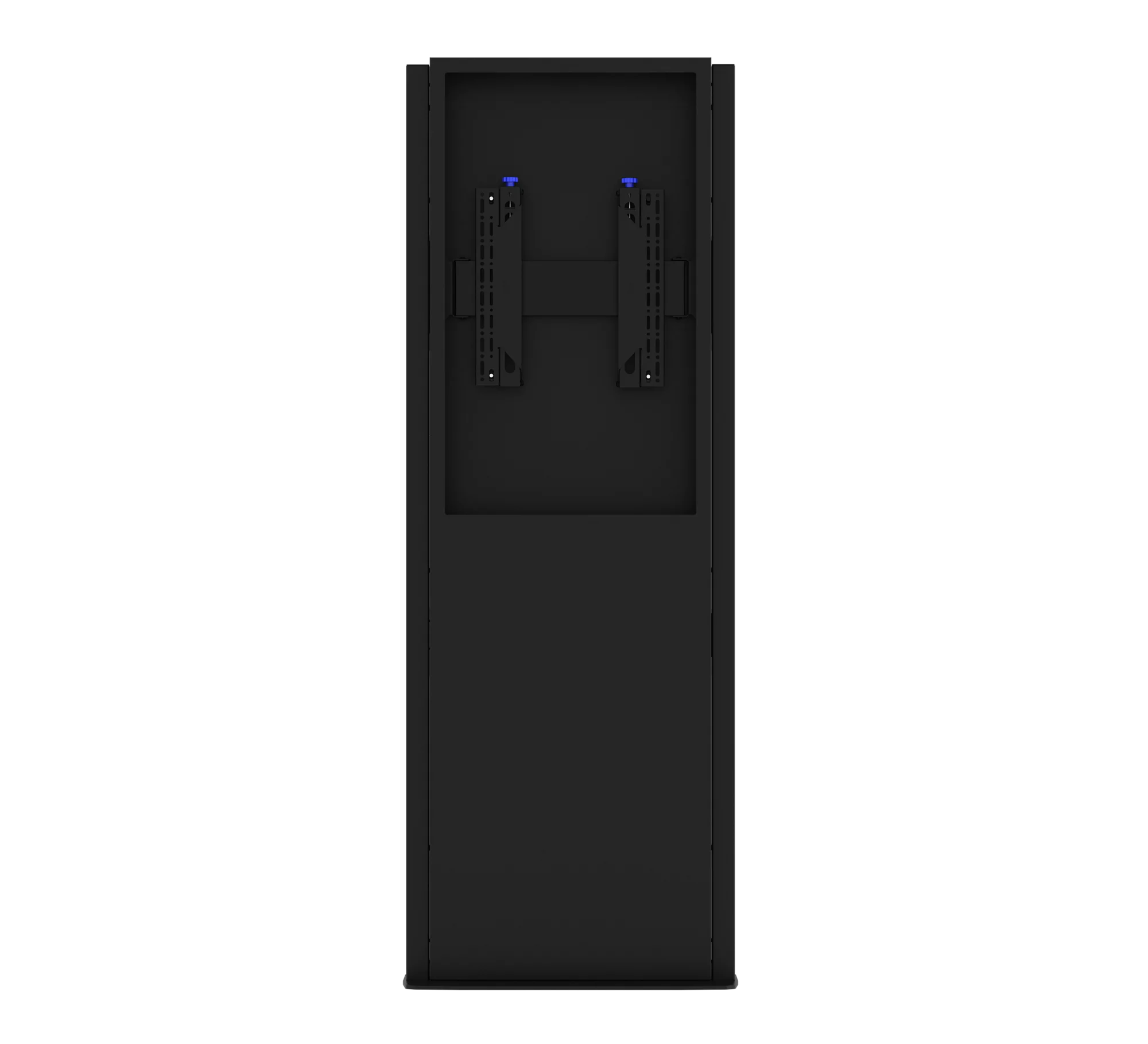

BT7000-B-2

png 14.36 KB

BT7000-B-3

png 12.61 KB

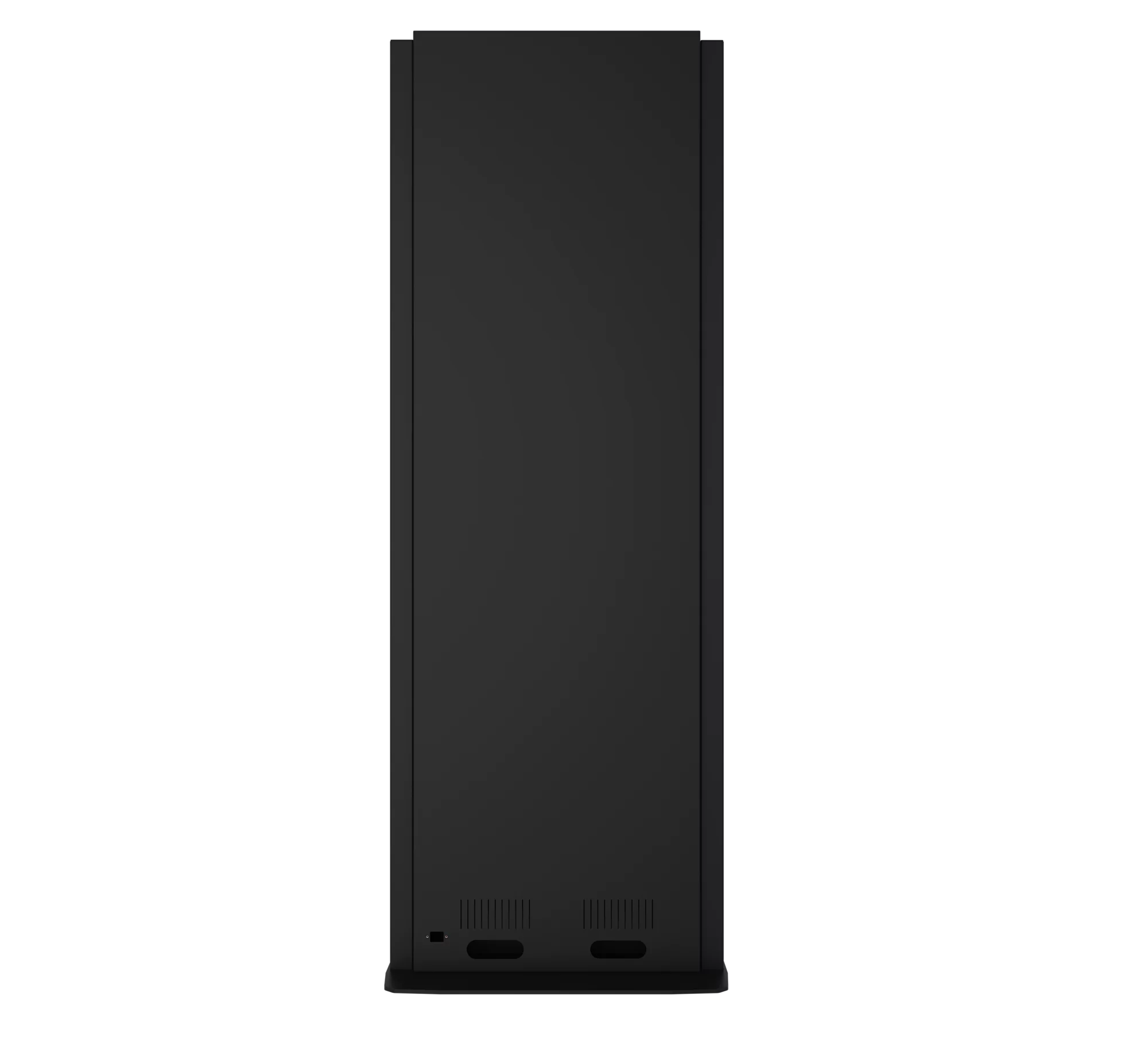

BT7000-B-5

png 11.77 KB

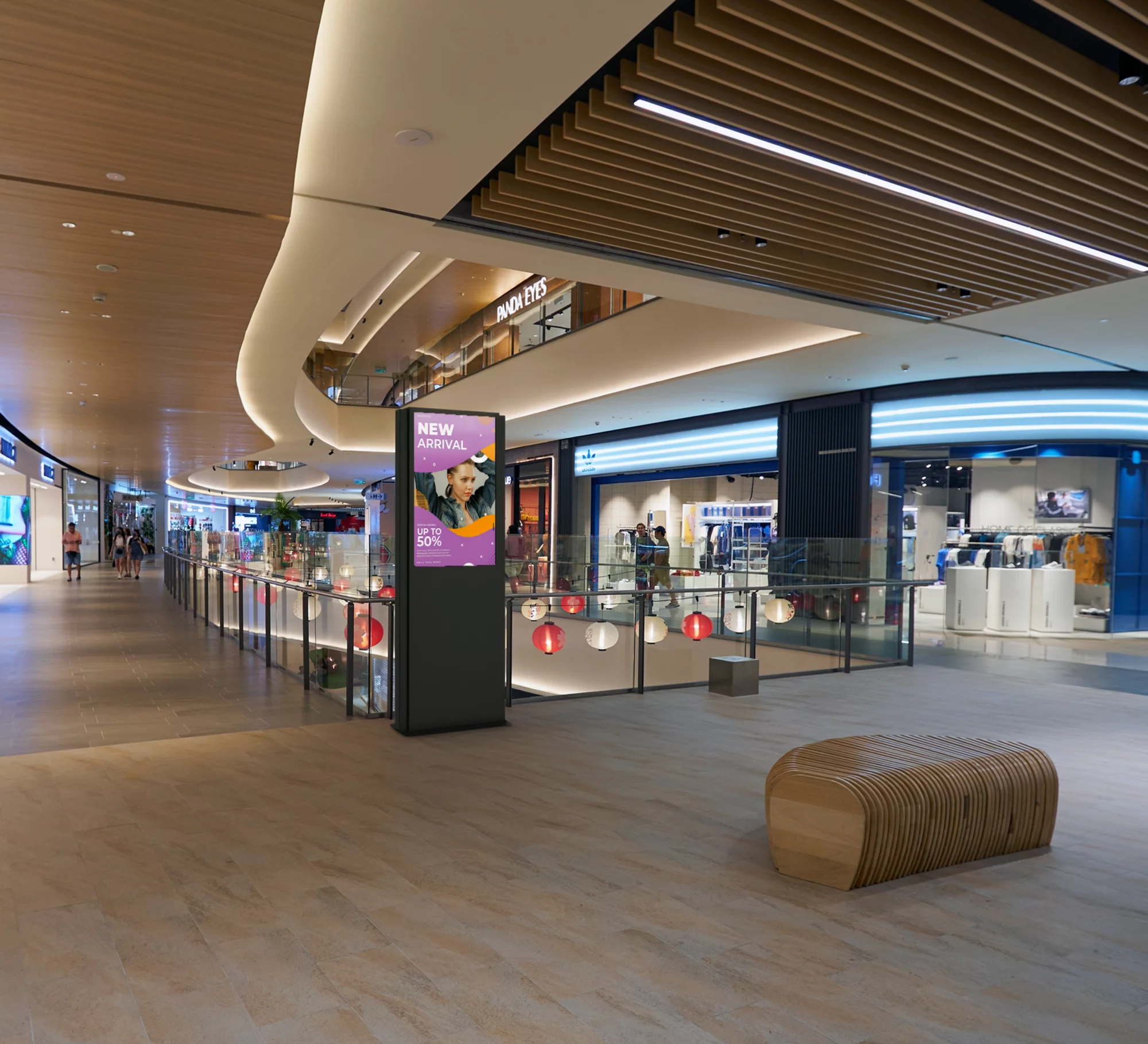

BT7000-B-6

png 251.97 KB
