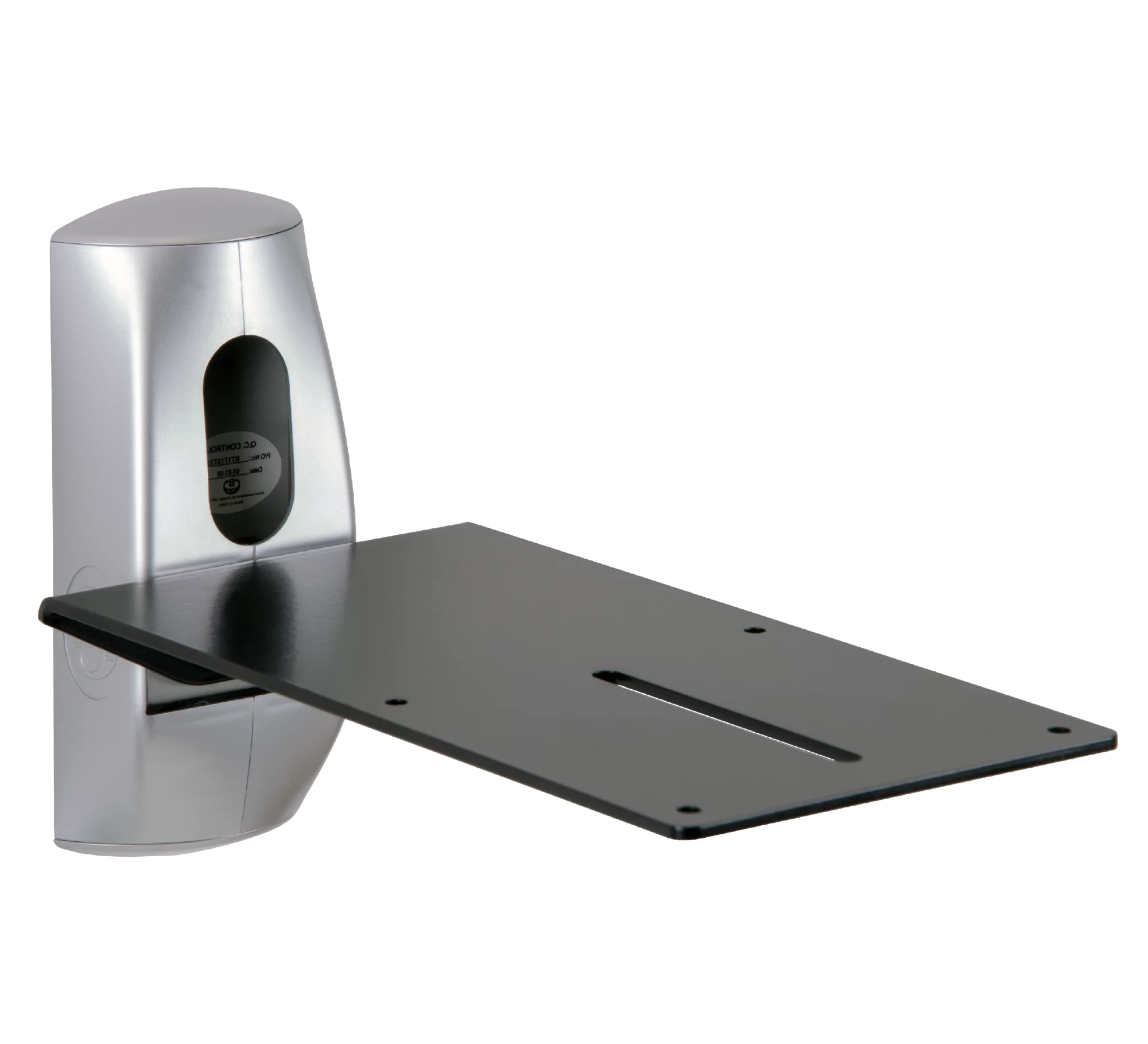

The BT7075 Modular Wall Plate provides a neat and versatile mounting solution for B-Tech flat screen wall mounts and AV component shelves. Designed for use with the BT7070 Cable Manager, it creates a clean, integrated installation by allowing displays and AV equipment to be securely mounted while concealing cables within the cable management system. The wall plate can also be used as a standalone mounting solution where a cable manager is not required. Featuring a cable pass-through opening for discreet cable routing, the BT7075 helps achieve a professional finish in commercial, educational and residential AV installations. Supplied with all necessary mounting hardware, it offers quick and straightforward installation and is compatible with a range of B-Tech flat screen mounts and AV shelves.

• Wall plate designed to hold B-Tech flat screen mounts & AV shelves when used with the cable manager range
• Can be used in conjunction with B-Tech’s BT7070 Cable Manager or as a standalone mount
• Cable can pass up / down the wall plate hole (40mm x 20mm) (1.6” x 0.8”)
• Simple installation with all mounting hardware included
• Designed for use with BT7510, BT7511, BT7521 and BT7522 flat screen mounts or BT7030, BT7036, BT7037, BT7038 and BT7040 component AV shelves
• *Cable manager & flat screen mount available separately

• Max Weight with Shelf: 10kg (22lbs)
• Max Weight with Screen Mount: 25kg (55lbs)
• Colour: Silver
• Cable Hole: 40mm x 20mm (1.6” x 0.8”)
• Registered Design Number: 4010384

Order Code: BT7075/S

Barcode: 5019318759062

HS Code: 83025000

Country of Origin:

• China

Single or Multi-Box Item: Single Box Item

Total Boxed Weight (kg): 0.4kg
