BT7512

Vantage

Single Arm Flat Screen Wall Mount with Tilt & Swivel

Ideal for small screens

BT7512/B V2

Vantage

Single Arm Flat Screen Wall Mount with Tilt & Swivel

Ideal for small screens

Enquire Today View Downloads

Overview

Designed to mount small flat screens, the BT7512 features a single swivel arm with easy tilt adjustment and a full 360° screen rotation for easy portrait or landscape mounting. The wall plate features keyhole mounting for an easy and smart installation. The BT7512 is also compatible with B-Tech's range of poles and collars, increasing the number of different ways it can be mounted, ideal for commercial applications as well as home installations. Security screws are are provided to help prevent unauthorized removal of the screen.
Designed to mount small flat screens, the BT7512 features a single swivel arm with easy tilt adjustment and a full 360° screen rotation for easy portrait or landscape mounting. The wall plate features keyhole mounting for an easy and smart installation. The BT7512 is also compatible with B-Tech's range of poles and collars, increasing the number of different ways it can be mounted, ideal for commercial applications as well as home installations. Security screws are are provided to help prevent unauthorized removal of the screen.

Product Features

  • Easy tilt and swivel adjustment
  • Screen rotation allows screen to mounted in landscape or portrait orientation

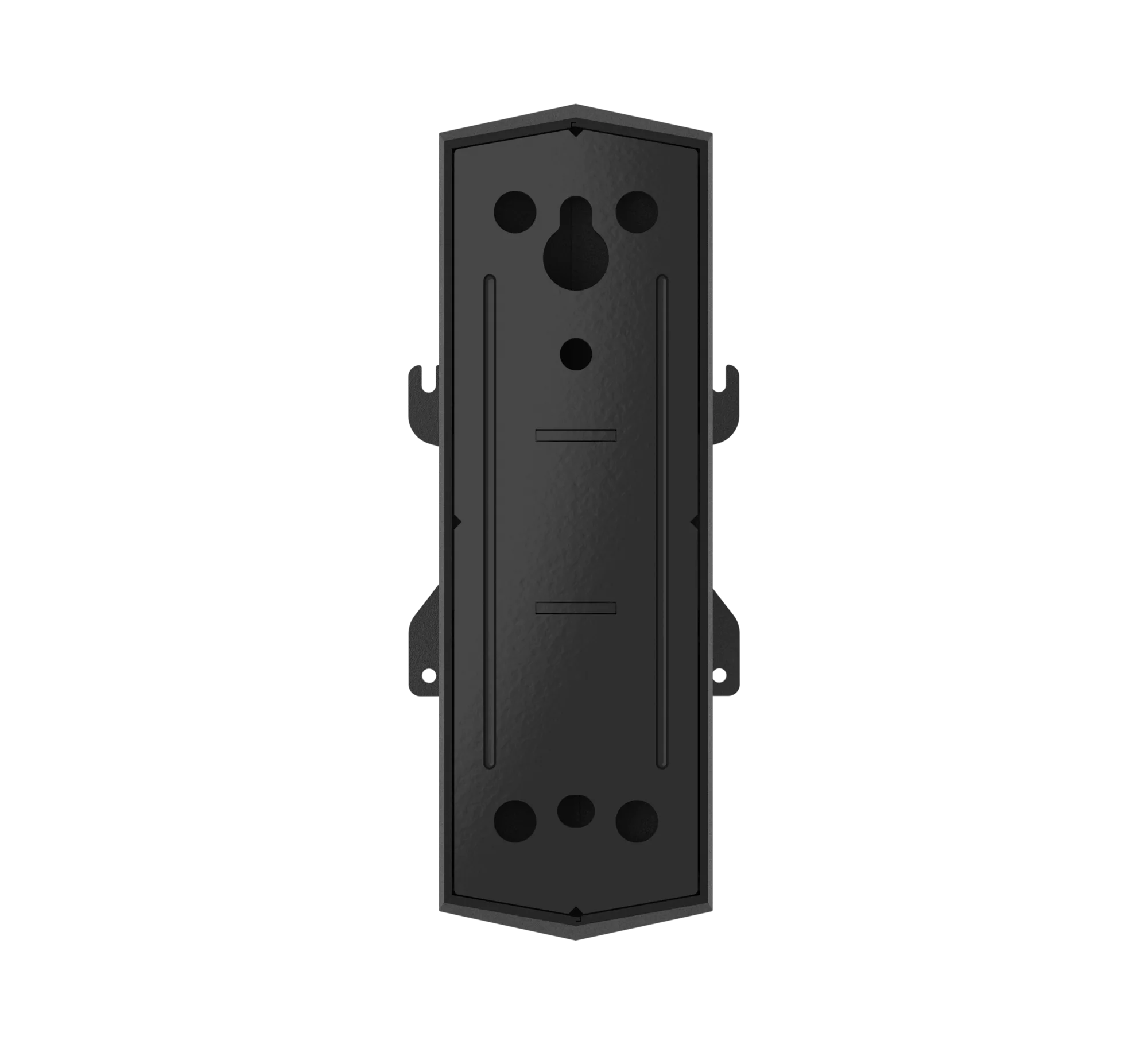

  • Keyhole wall mounting
  • UltraGlide Tilt
  • Compatible with B-Tech System 2 professional range

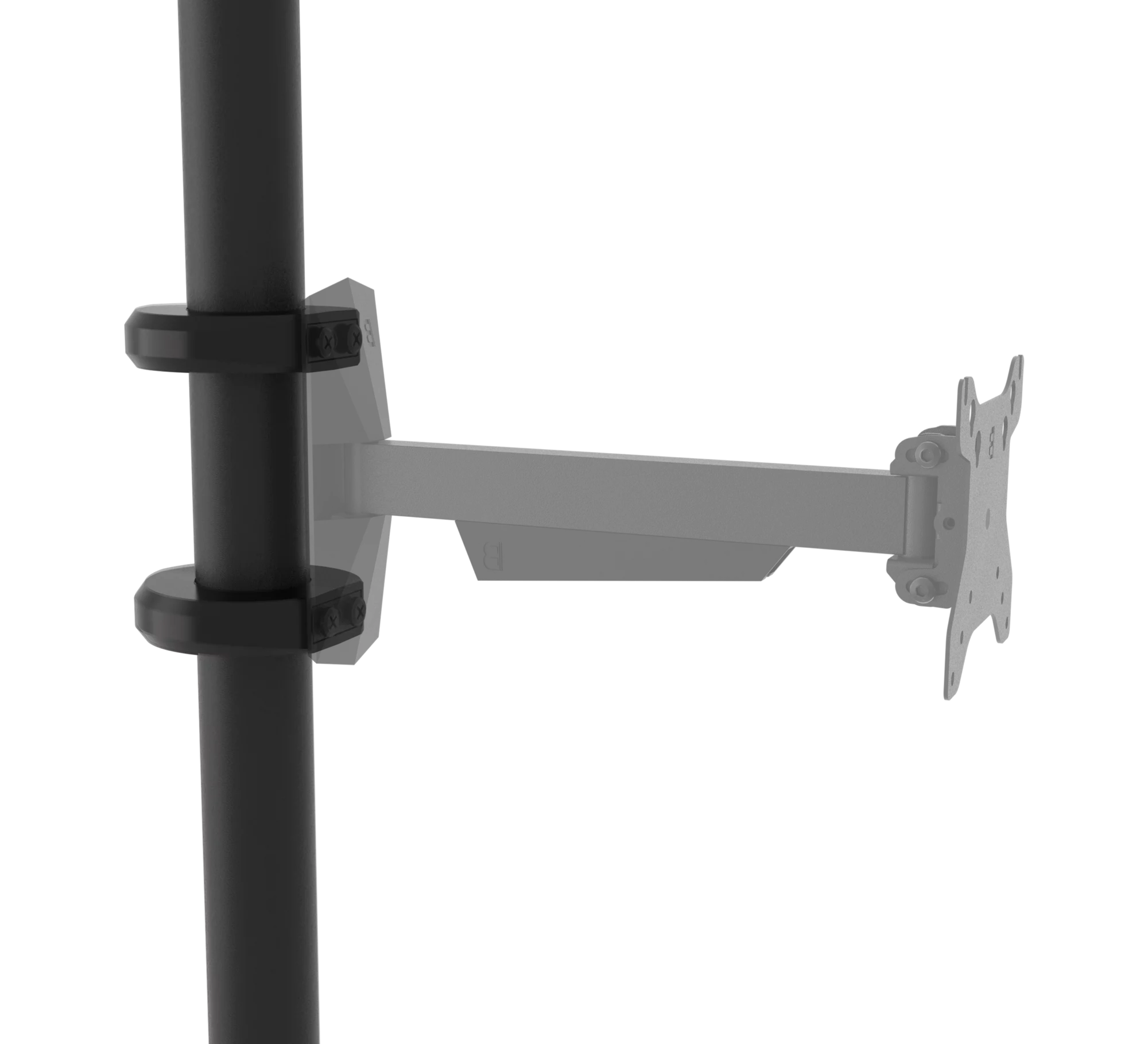

  • Mounts to B-Tech BT7850 poles using x2 BT7841 / BT7052 Collars
  • Security locking screws and Allen key provided help prevent unauthorised removal of the screen
  • Simple 'hook-on' installation

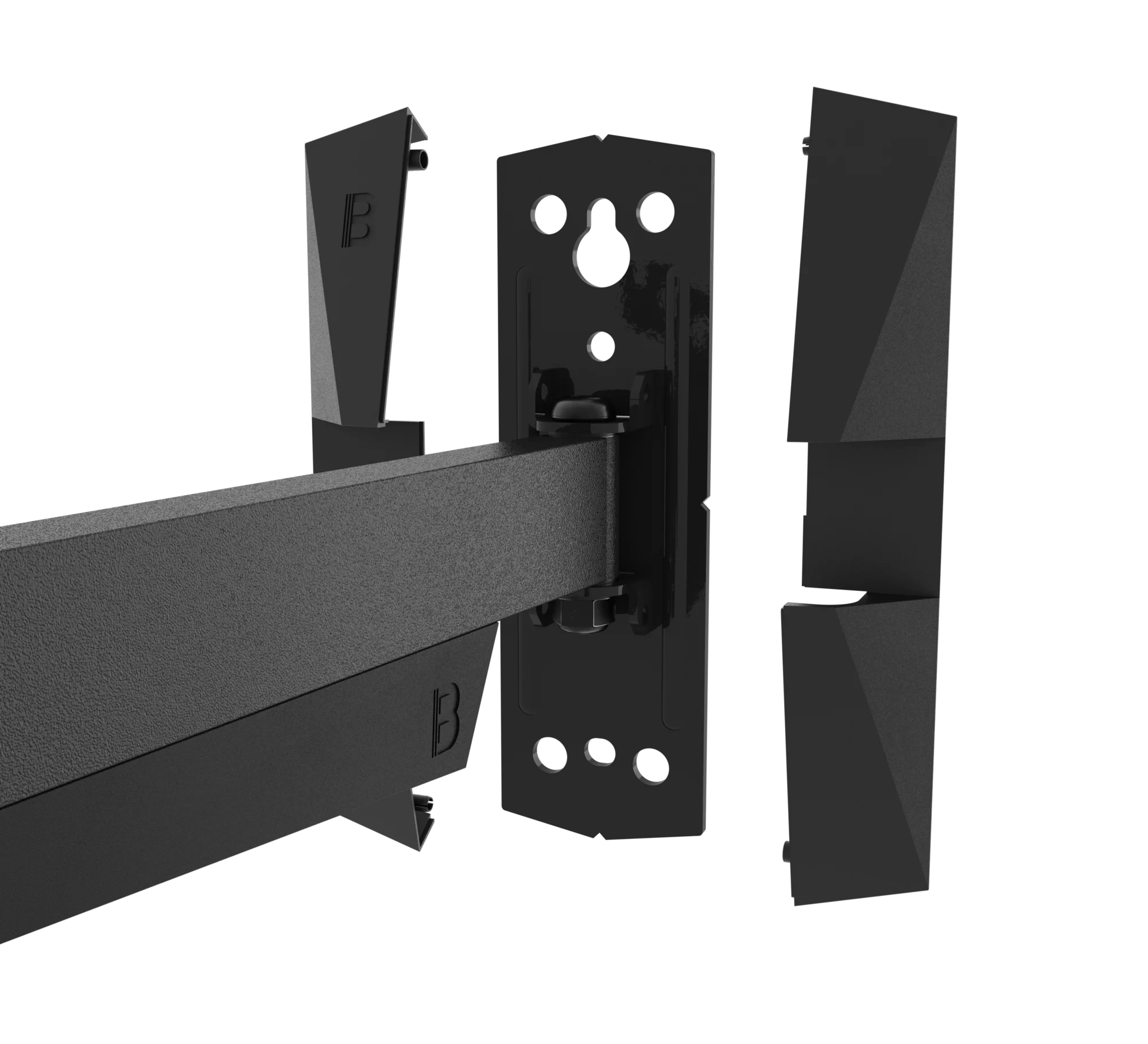

  • Coverplates included for a neat and tidy installation
  • All mounting hardware included
  • Cable management clip
  • Easy tilt and swivel adjustment
  • Screen rotation allows screen to mounted in landscape or portrait orientation
  • Keyhole wall mounting
  • UltraGlide Tilt
  • Compatible with B-Tech System 2 professional range
  • Mounts to B-Tech BT7850 poles using x2 BT7841 / BT7052 Collars
  • Security locking screws and Allen key provided help prevent unauthorised removal of the screen
  • Simple 'hook-on' installation
  • Coverplates included for a neat and tidy installation
  • All mounting hardware included
  • Cable management

Product Specifications

  • Recommended display size: 10" up to 28"
  • Max load: 10kg

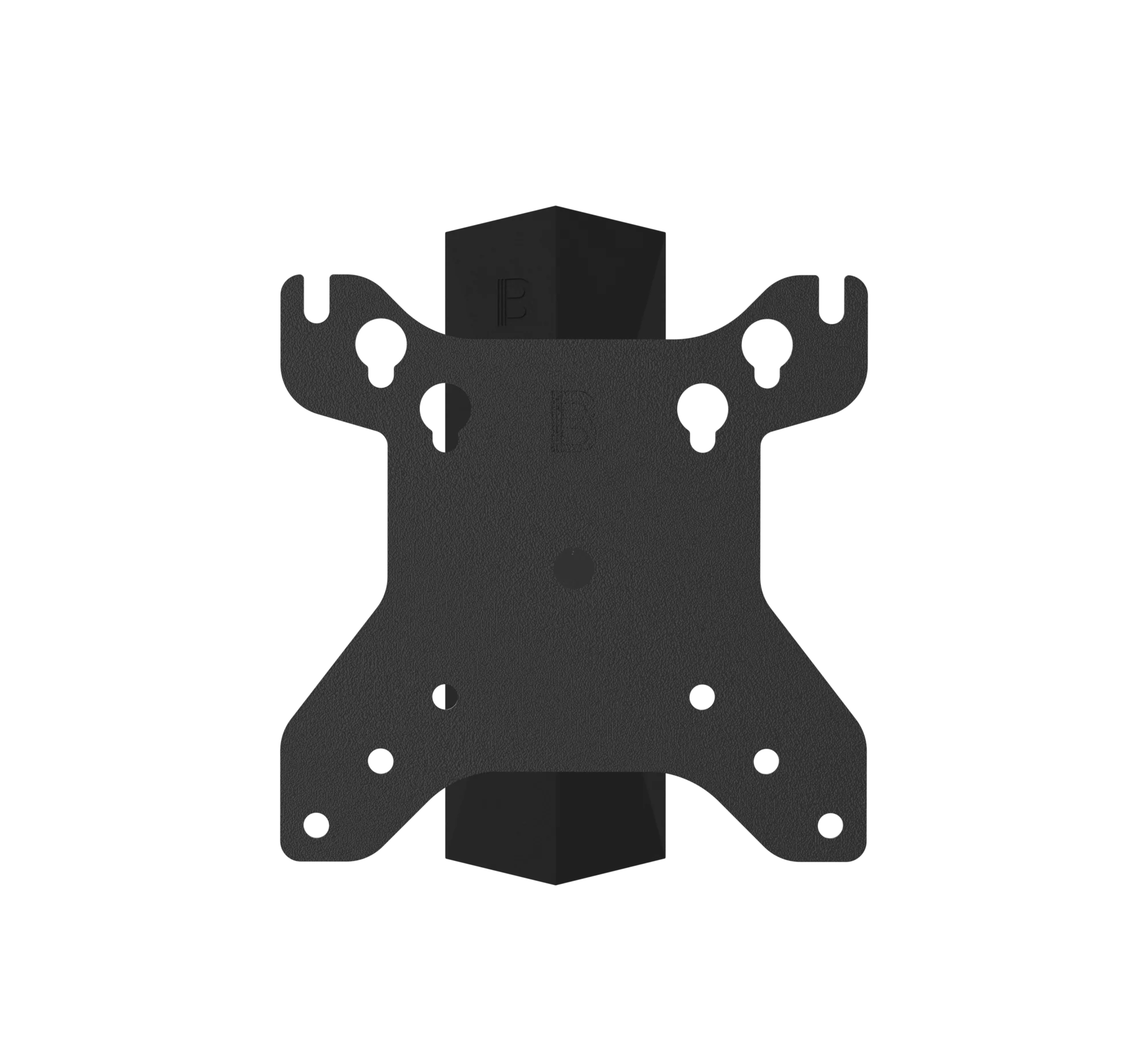

  • VESA fixings: up to 100mm x 100mm

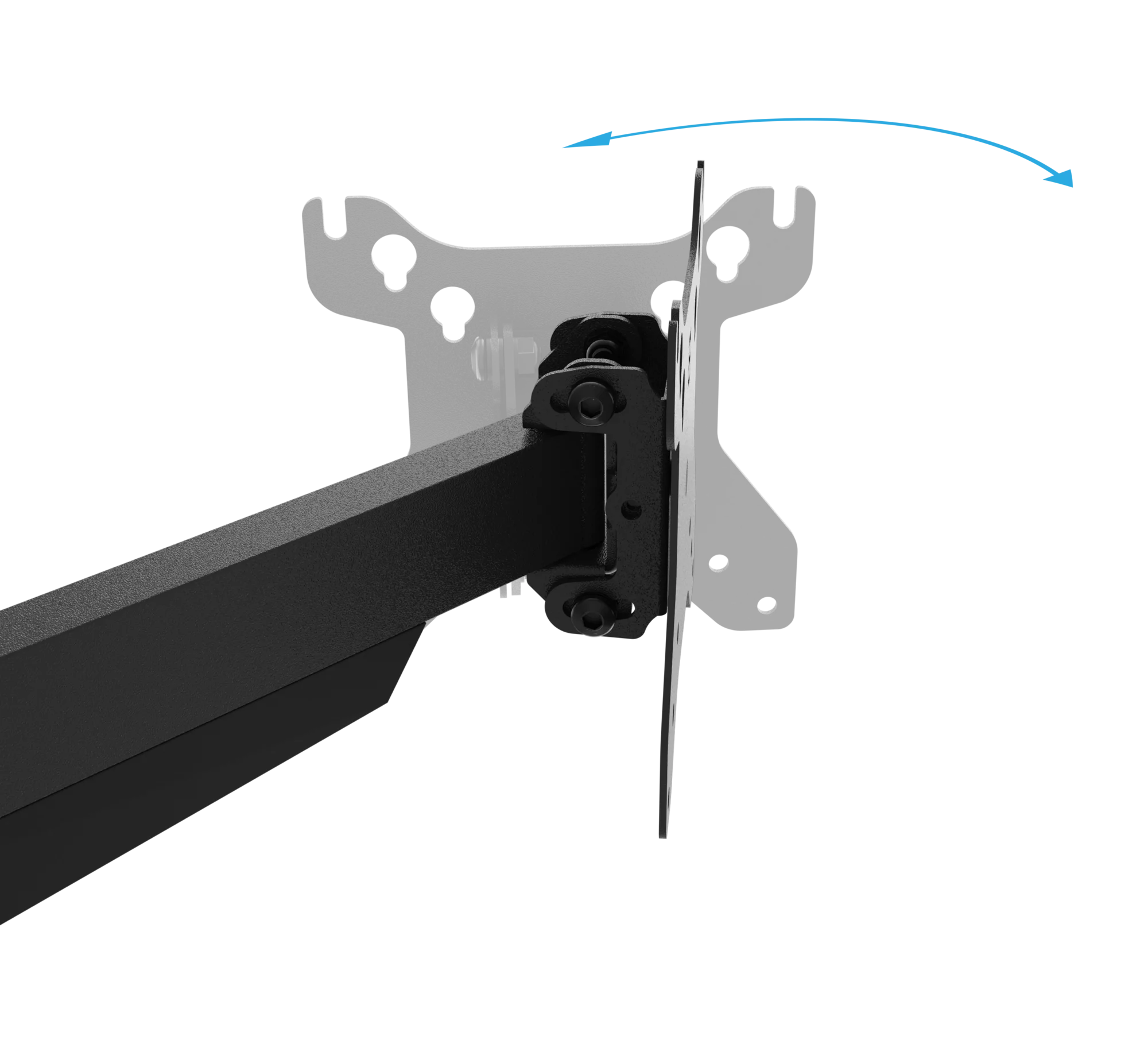

  • Tilt: +15° / -10°

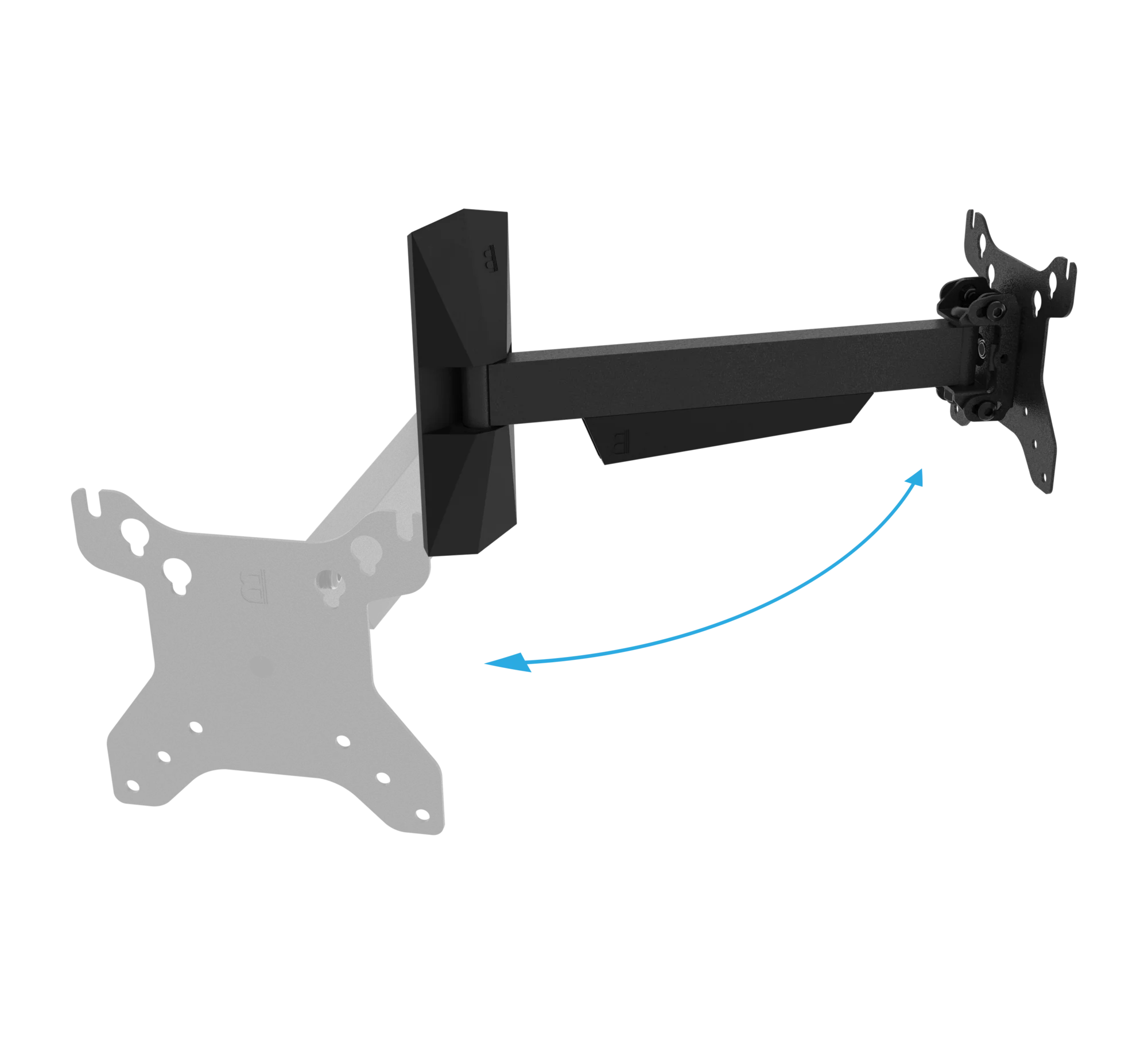

  • Swivel: 180°
  • Rotation: 360°
  • Distance from wall: min. 40mm
  • Distance from wall: max. 280mm
  • Orientation: Landscape, Portrait
  • Colour: Black
  • Recommended display size: 10" up to 28"
  • Max load: 10kg
  • VESA fixings: up to 100mm x 100mm
  • Tilt: +15° / -10°
  • Swivel: 180°
  • Rotation: 360°
  • Distance from wall: min. 40mm
  • Distance from wall: max. 280mm
  • Orientation: Landscape, Portrait
  • Colour: Black

Ordering & Box Information

Order Code: BT7512/B V2

Barcode: 5019318751226

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 1.1kg

Order Code: BT7512/B V2

Barcode: 5019318751226

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 1.1kg

Downloads

BT7512 - Product Specification Sheet - English

pdf 1.62 MB

BT7512 - Product Specification Sheet - French

pdf 1.62 MB

BT7512 - Product Specification Sheet - Spanish

pdf 2.69 MB

BT7512 - Product Specification Sheet - US

pdf 2.69 MB

BT7512 - Installation Guide

pdf 3.20 MB

BT7512 - Technical Drawings - (DXF)

DXF 28.43 MB

BT7512 - Technical Drawings - (PDF)

pdf 167.36 KB

BT7512-B-1

png 68.56 KB

BT7512-B-13

png 47.42 KB

BT7512-B-2

png 134.99 KB

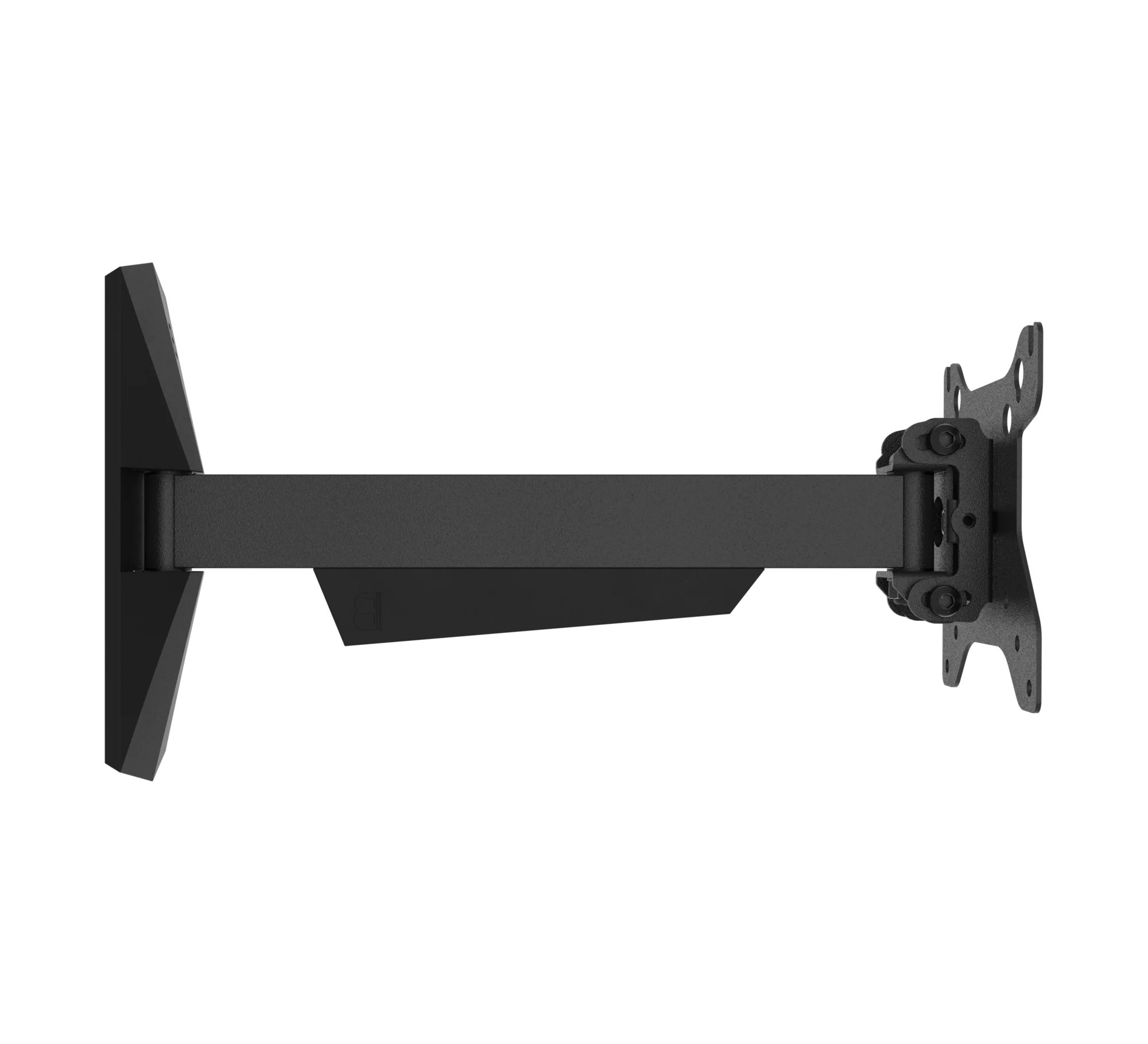

BT7512-B-3

png 62.25 KB

BT7512-B-7

png 30.37 KB

BT7512-B-8

png 66.88 KB

BT7512-B-9

png 82.14 KB

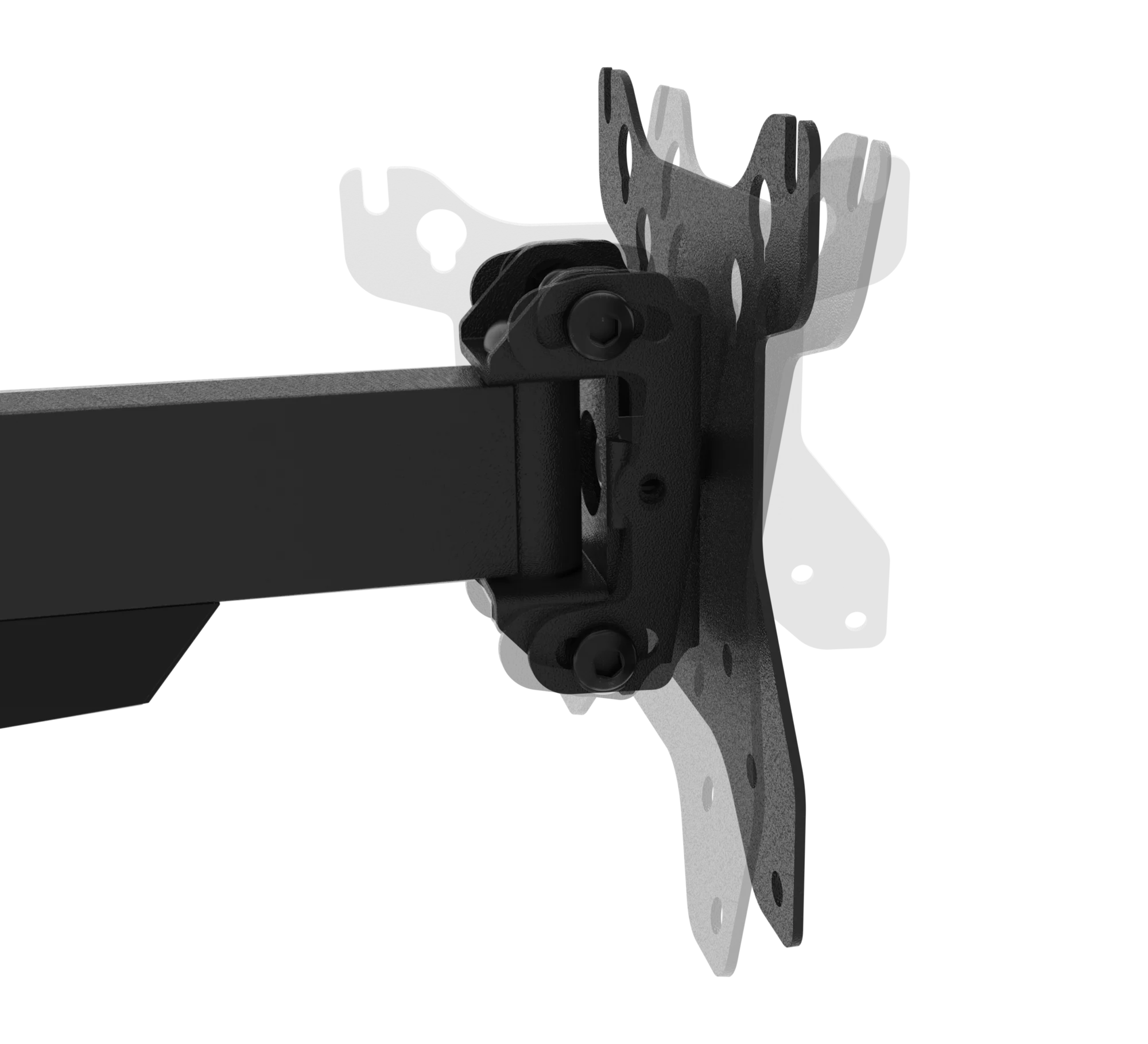

BT7512-B-10

png 141.89 KB

BT7512-B-11

png 118.98 KB

BT7512-B-12

png 168.16 KB

BT7512-B-6

png 175.39 KB

BT7512 - Green Sheet

pdf 377.48 KB
