BT7515

Vantage

Double Arm Flat Screen Wall Mount with Tilt & Swivel

Ideal for screens up to 47"

BT7515/B V2

Vantage

Double Arm Flat Screen Wall Mount with Tilt & Swivel

Ideal for screens up to 47"

Enquire Today View Downloads

Overview

Designed to mount medium sized flat screens, the BT7515 features a double articulated arm with easy tilt adjustment. The wall plate features keyhole fixings and coverplate to ensure a simple and smart installation. The BT7515 is also compatible with B-Tech's range of poles and collars, increasing the number of different ways it can be mounted, ideal for commercial applications as well as home installations. Security screws are are provided to help prevent unauthorized removal of the screen.
Designed to mount medium sized flat screens, the BT7515 features a double articulated arm with easy tilt adjustment. The wall plate features keyhole fixings and coverplate to ensure a simple and smart installation. The BT7515 is also compatible with B-Tech's range of poles and collars, increasing the number of different ways it can be mounted, ideal for commercial applications as well as home installations. Security screws are are provided to help prevent unauthorized removal of the screen.

Product Features

  • Easy tilt and swivel adjustment
  • Features three swivel points: 180° at wall, 360° at central pivot and 240° at interface
  • Folds flat to the wall
  • Features UltraGlide tilt
  • Includes Security locking screws and Allen key to prevent unauthorised removal of the screen
  • Simple 'hook-on' installation with all mounting hardware included
  • Includes cover plates and cable management clips
  • Easy tilt and swivel adjustment
  • Features three swivel points: 180° at wall, 360° at central pivot and 240° at interface
  • Folds flat to the wall
  • Features UltraGlide tilt
  • Includes Security locking screws and Allen key to prevent unauthorised removal of the screen
  • Simple 'hook-on' installation with all mounting hardware included
  • Includes cover plates and cable management clips

Product Specifications

  • Recommended display size: 22" up to 47"
  • Max load: 25kg
  • VESA fixings: up to 200mm x 200mm
  • Tilt: +17° / -10°
  • Min product width: 220mm
  • Min product depth: 48mm
  • Max product depth: 475mm
  • Product height: 310mm
  • Distance from wall - min: 48mm
  • Distance from wall - max: 475mm
  • Orientation: Landscape, Portrait
  • Colour: Black
  • Recommended display size: 22" up to 47"
  • Max load: 25kg
  • VESA fixings: up to 200mm x 200mm
  • Tilt: +17° / -10°
  • Min product width: 220mm
  • Min product depth: 48mm
  • Max product depth: 475mm
  • Product height: 310mm
  • Distance from wall - min: 48mm
  • Distance from wall - max: 475mm
  • Orientation: Landscape, Portrait
  • Colour: Black

Ordering & Box Information

Order Code: BT7515/B V2

Barcode: 5019318750151

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 4.6kg

Order Code: BT7515/B V2

Barcode: 5019318750151

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 4.6kg

Downloads

BT7515 - Product Specification Sheet - English

pdf 1.49 MB

BT7515 - Product Specification Sheet - US

pdf 1.76 MB

BT7515 - Installation Guide

pdf 4.25 MB

BT7515 - Technical Drawings - (DXF)

DXF 29.55 MB

BT7515 - Technical Drawings - (PDF)

pdf 283.02 KB

BT7515-B-1

png 45.08 KB

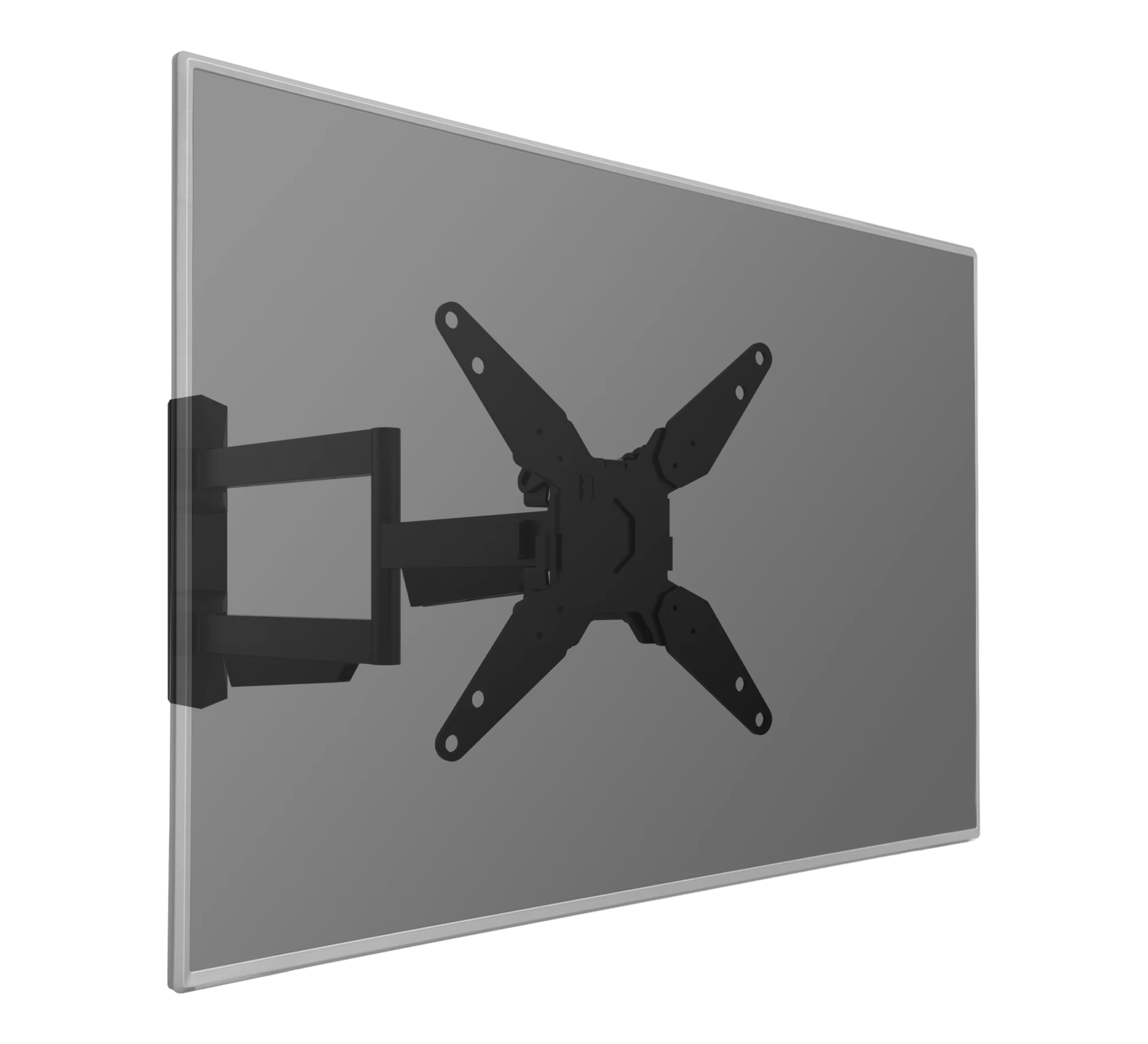

BT7515-B-12

png 56.78 KB

BT7515-B-2

png 35.89 KB

BT7515-B-4

png 48.99 KB

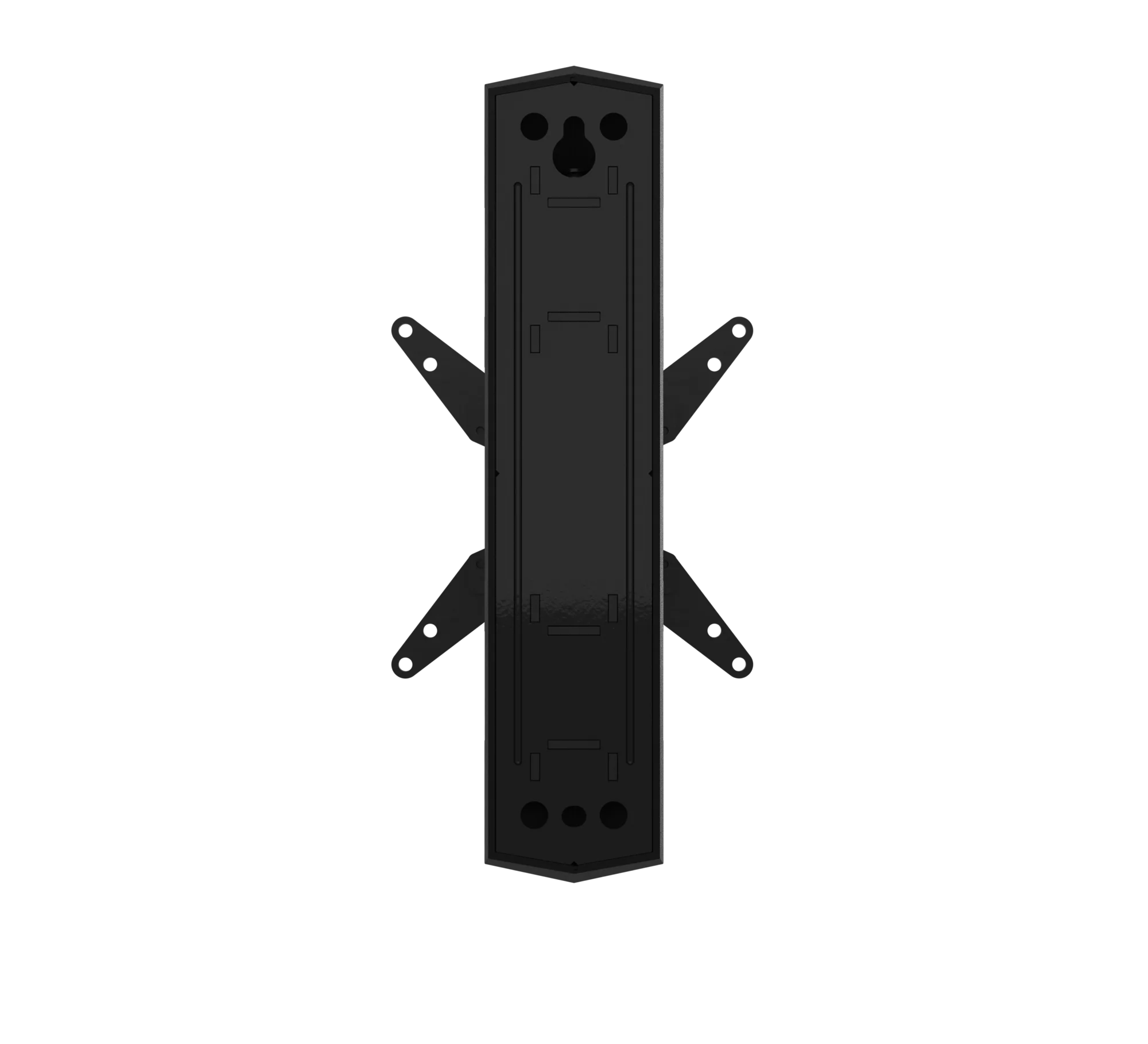

BT7515-B-6

png 29.09 KB

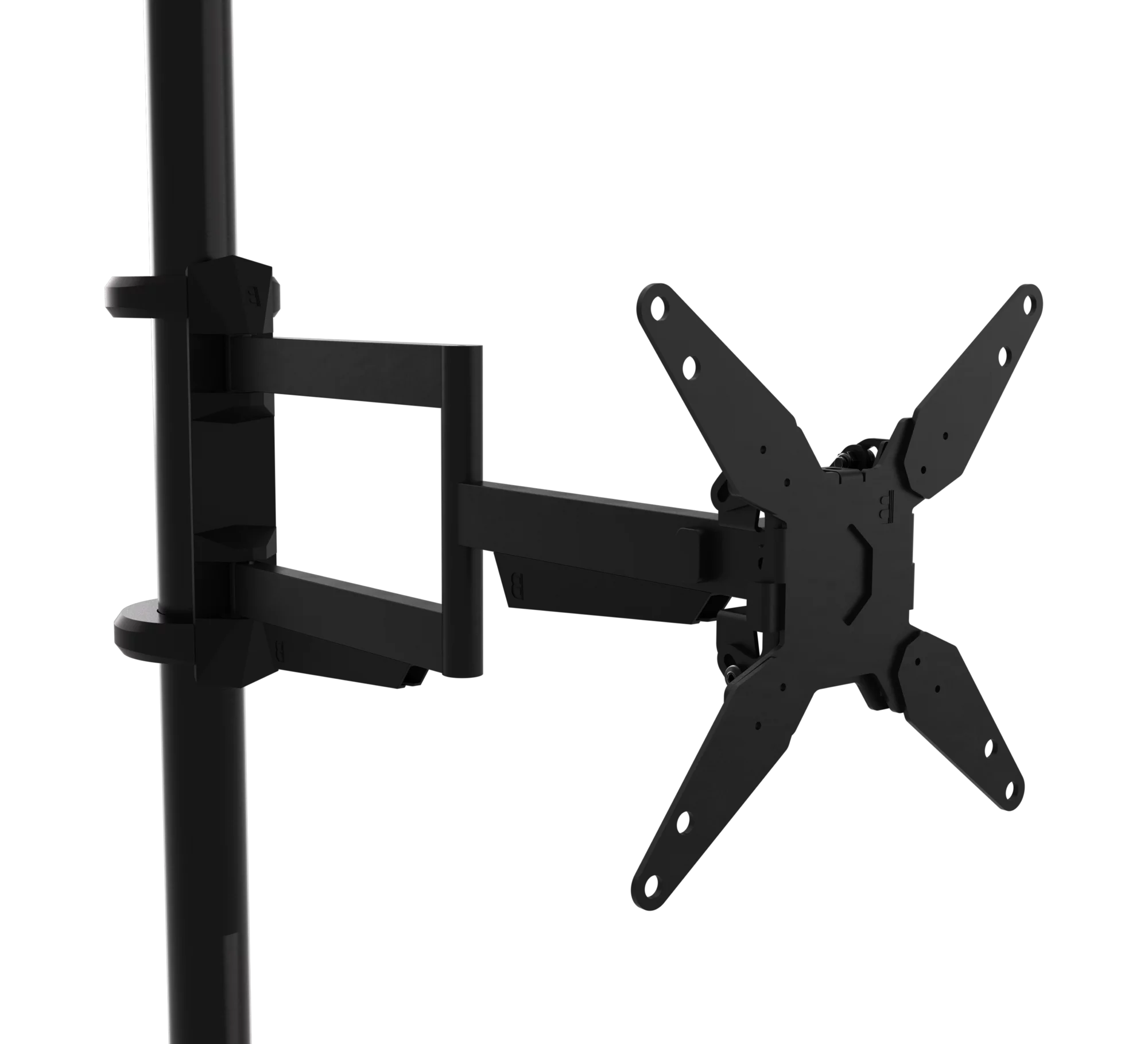

BT7515-B-7

png 67.35 KB

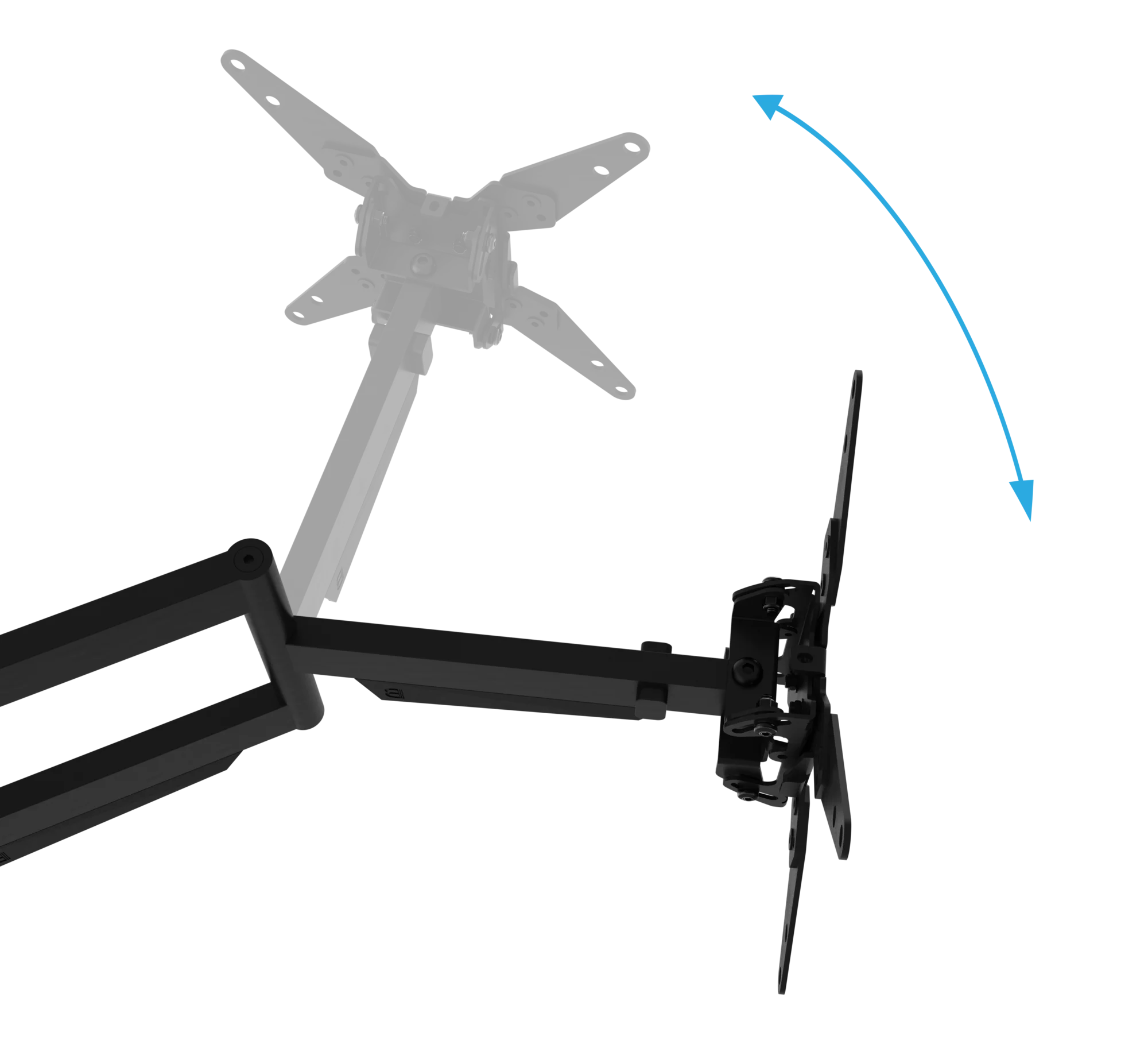

BT7515-B-9

png 82.90 KB

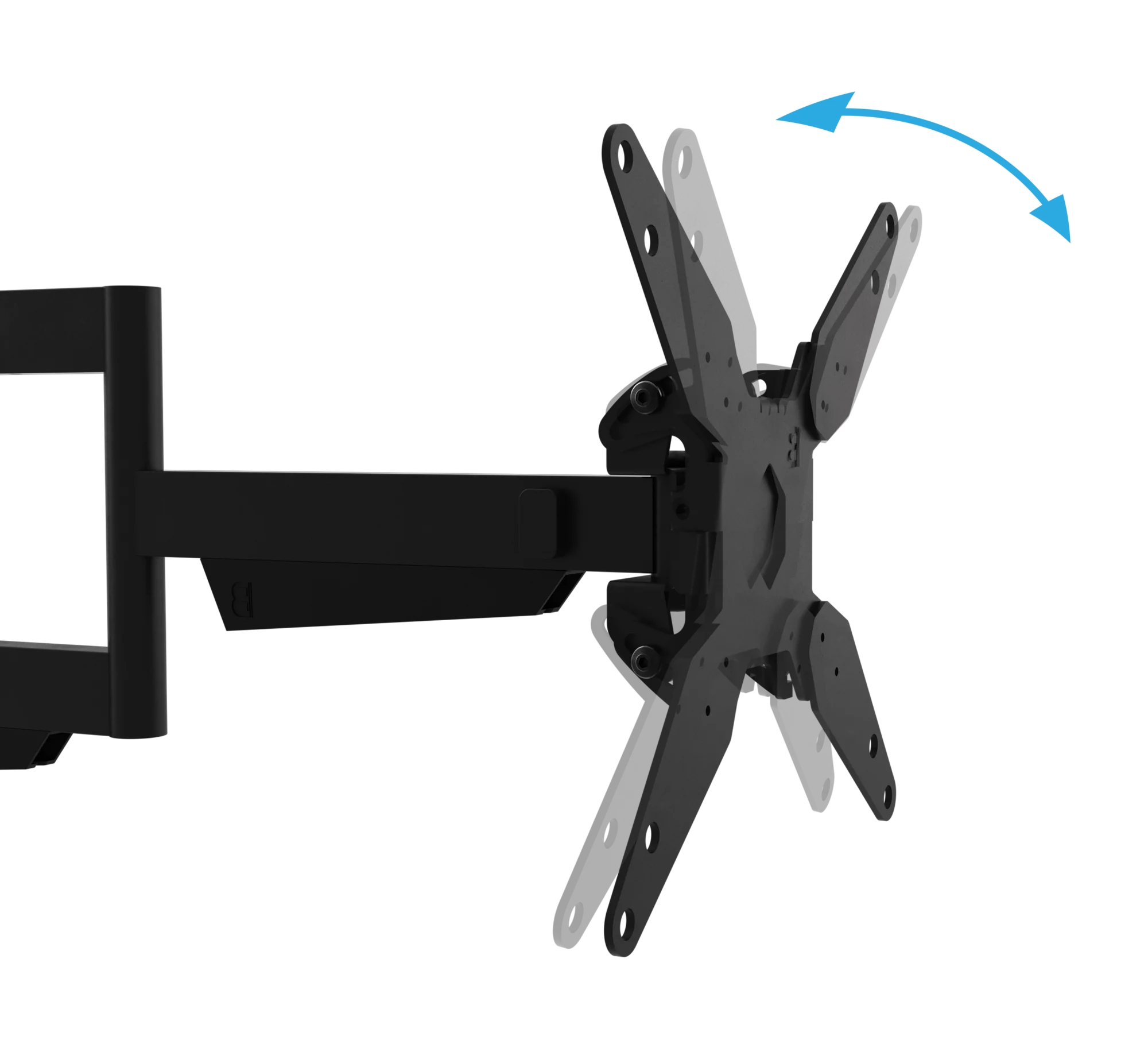

BT7515-B-10

png 79.56 KB

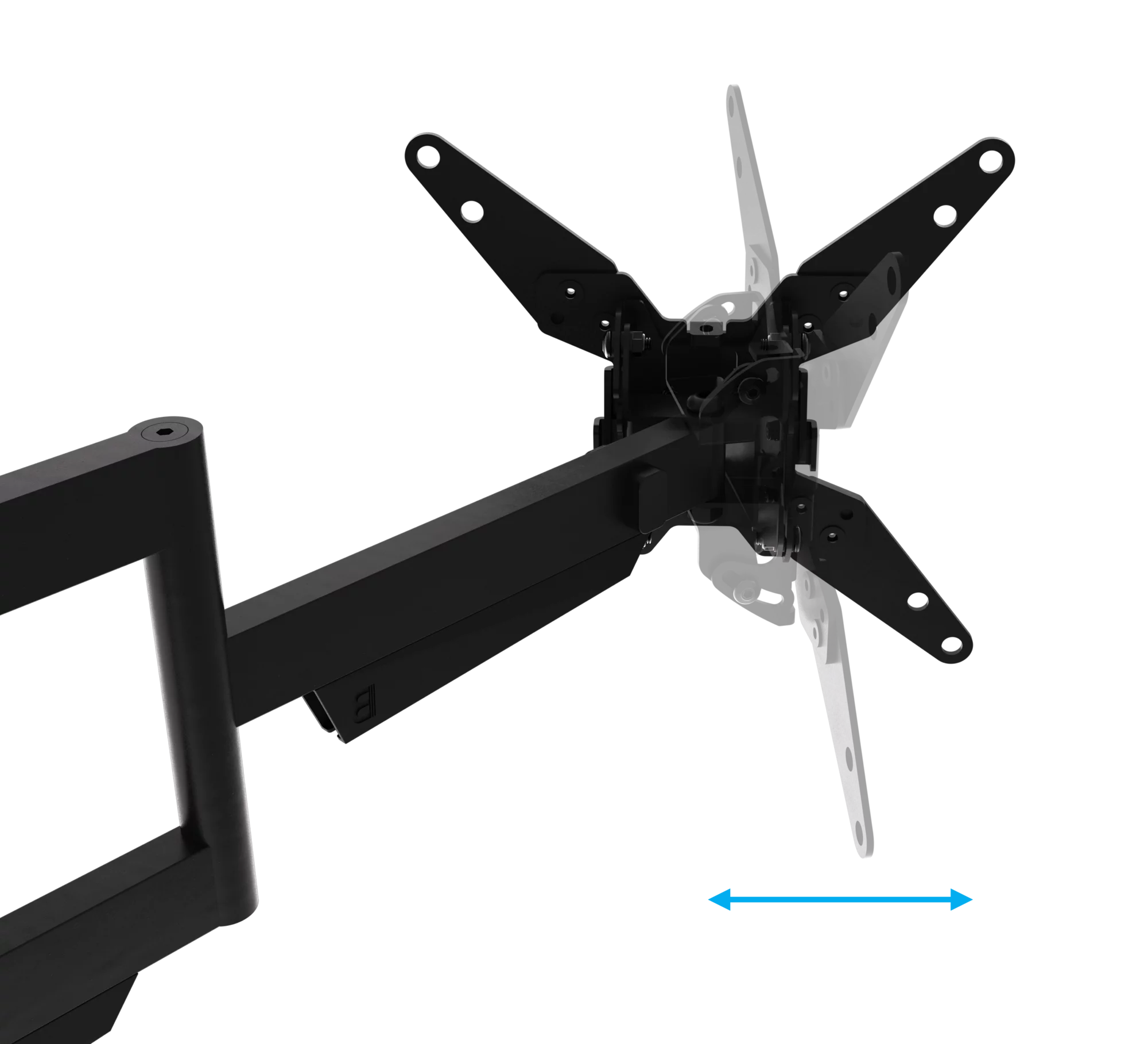

BT7515-B-11

png 89.43 KB

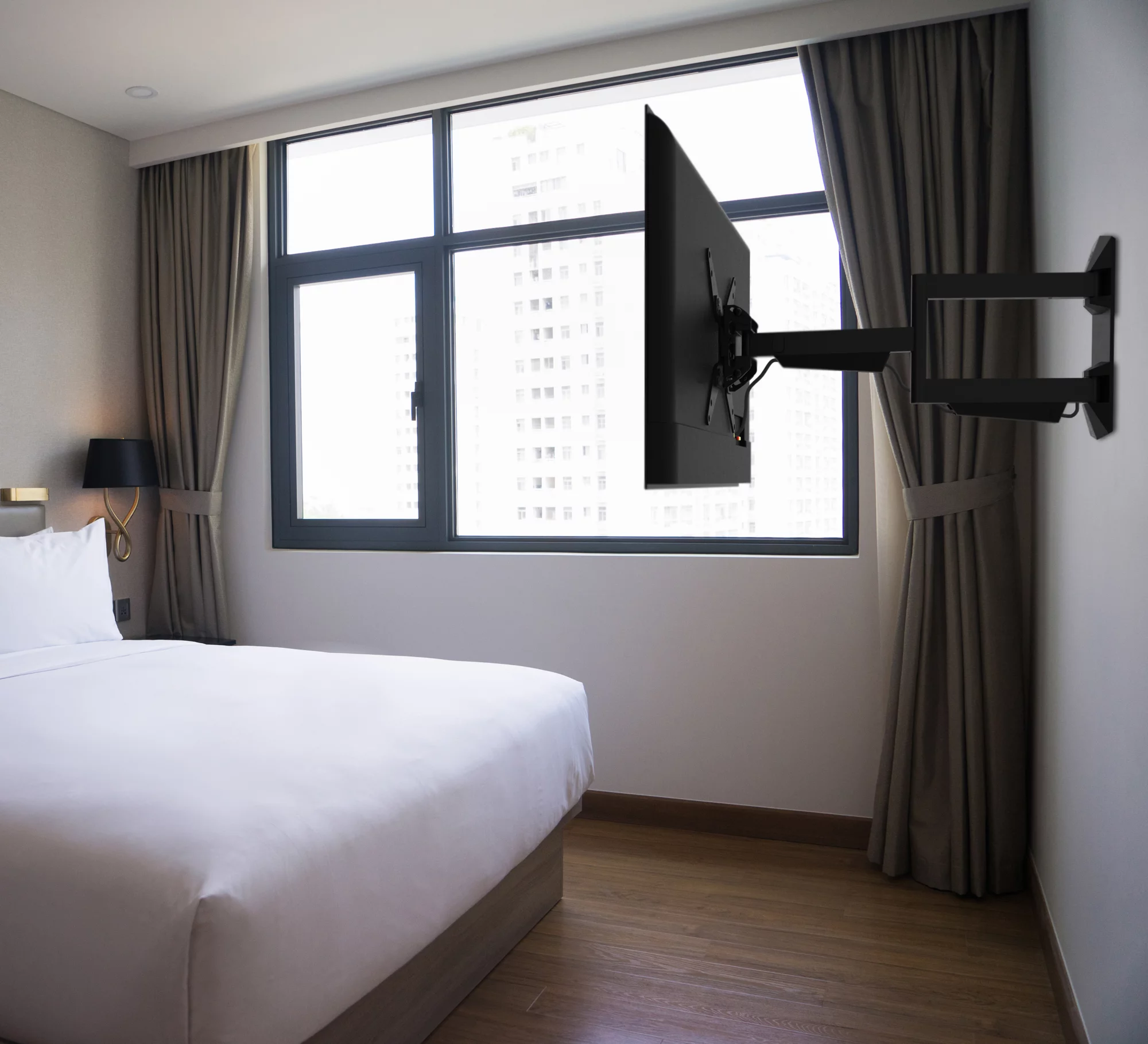

BT7515-B-5

png 136.84 KB

BT7515 - Green Sheet

pdf 387.37 KB
