Home All Products Flat Screen Wall Mount With Tilt & Swivel
Metric Imperial
Vantage - Blue - 170x24px
Vantage - Blue - 170x24px

BT7519

Vantage

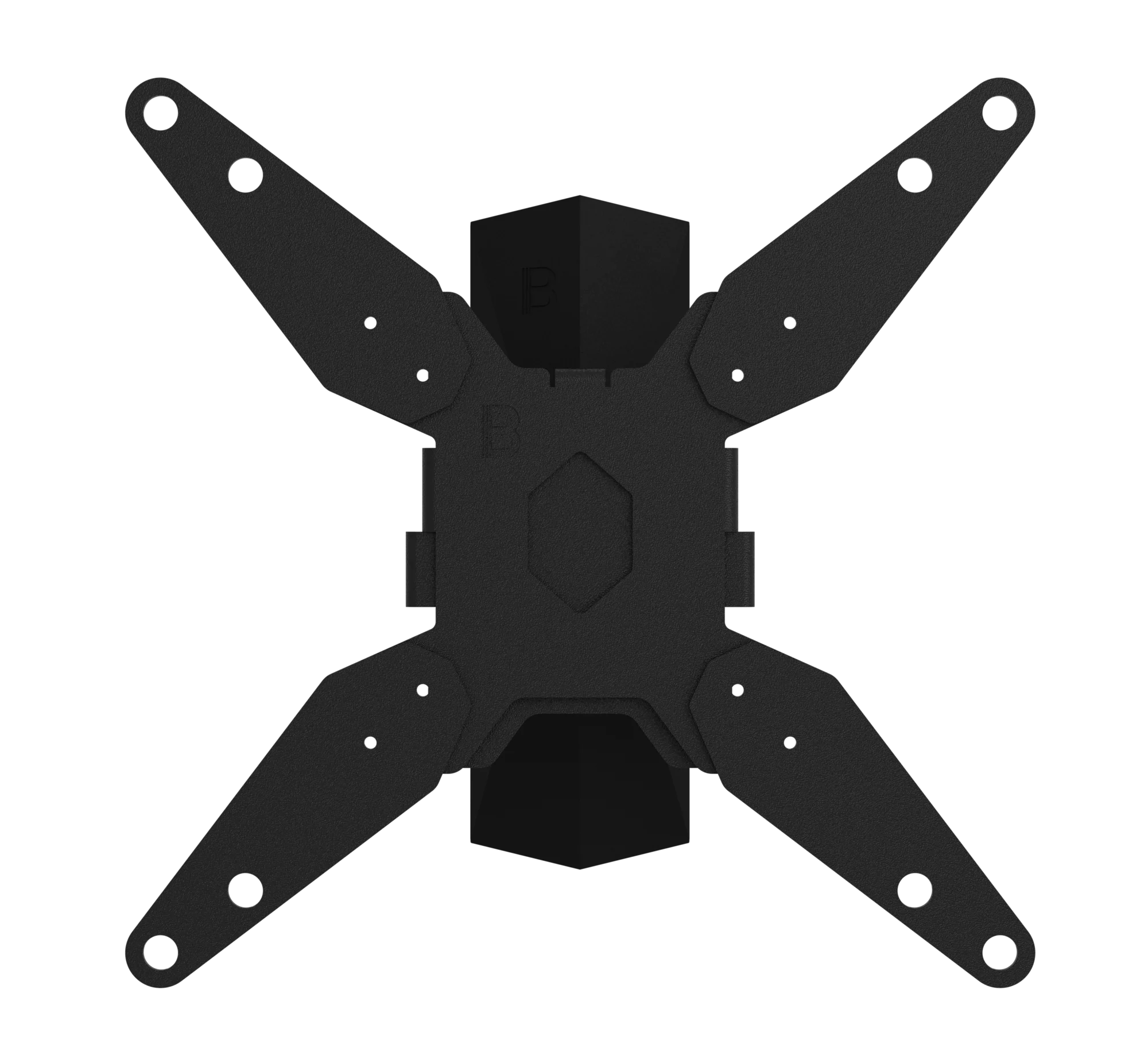

Flat Screen Wall Mount With Tilt & Swivel

For screens up to 47"

BT7519/B V2

Vantage

Flat Screen Wall Mount With Tilt & Swivel

For screens up to 47"

Enquire Today View Downloads

Overview

The BT7519 is a versatile wall mount that allows flat screen displays to be securely installed just 70mm from the wall while still providing smooth tilt adjustment for optimal viewing. Featuring B-Tech's UltraGlide Tilt technology, the screen angle can be adjusted easily without the need for tools. Cover plates are included to conceal fixings and create a clean, professional finish. Suitable for both commercial and home installations, the BT7519 can also be used with B-Tech's System 2 poles and collars, offering additional mounting flexibility when required.
The BT7519 is a versatile wall mount that allows flat screen displays to be securely installed just 70mm from the wall while still providing smooth tilt adjustment for optimal viewing. Featuring B-Tech's UltraGlide Tilt technology, the screen angle can be adjusted easily without the need for tools. Cover plates are included to conceal fixings and create a clean, professional finish. Suitable for both commercial and home installations, the BT7519 can also be used with B-Tech's System 2 poles and collars, offering additional mounting flexibility when required.

Product Features

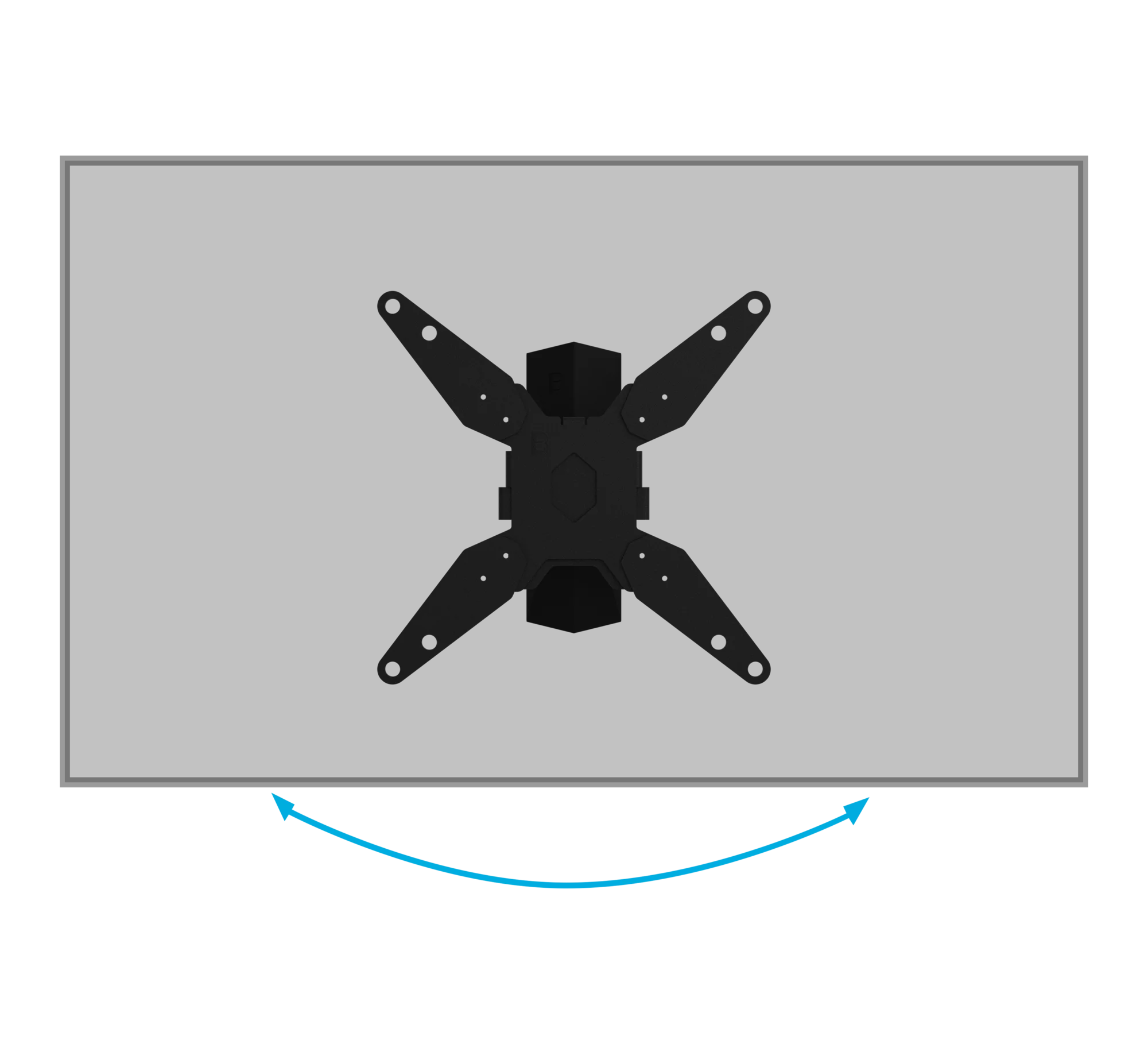

  • B-Tech's UltraGlide Tilt & Swivel technology provides smooth, tool-free tilt adjustment, allowing quick and easy changes to the viewing angle
  • Screen levelling after installation enables small adjustments to correct screen alignment once mounted

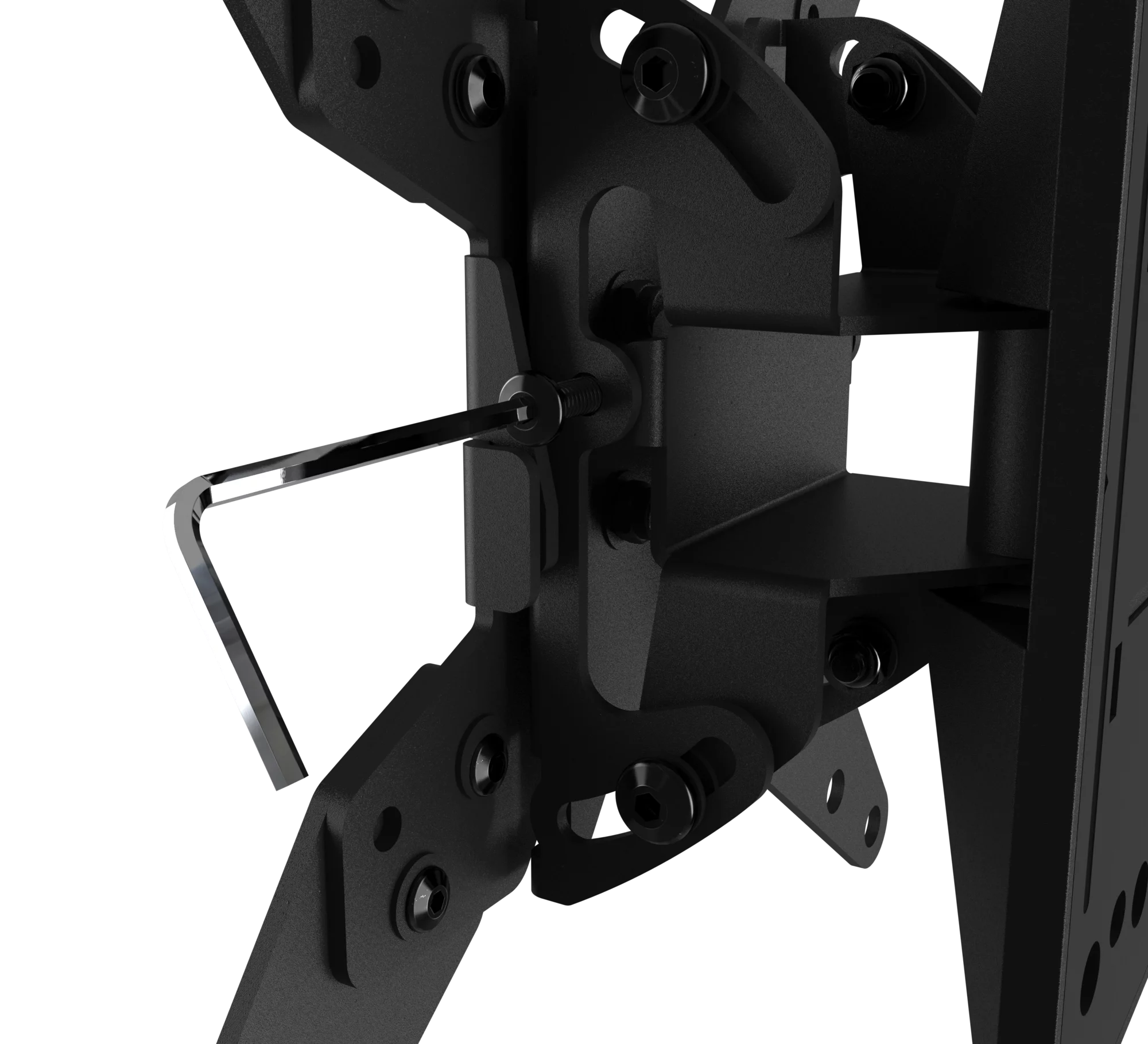

  • Security locking screws & Allen key provided for a secure installation

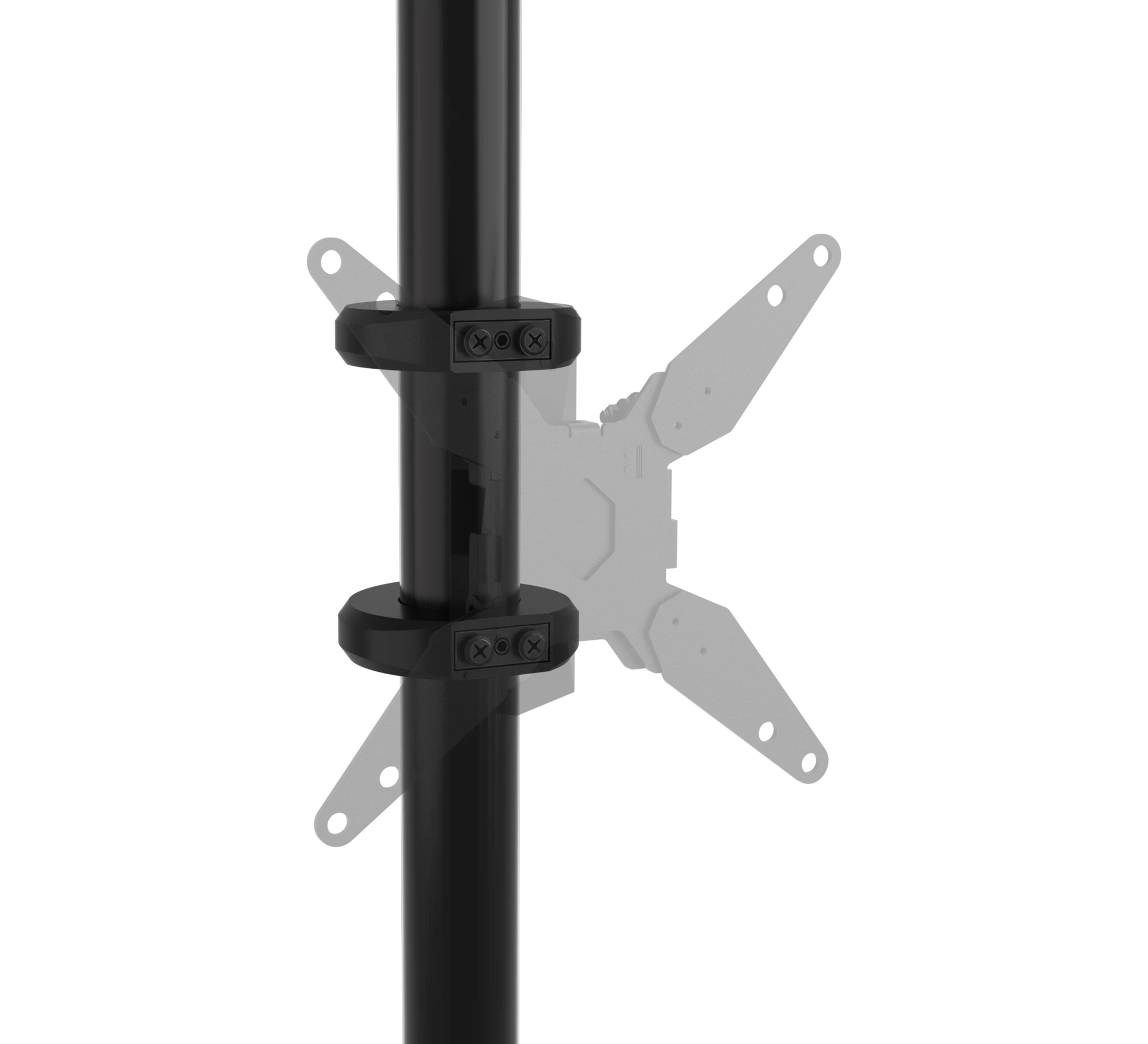

  • Compatible with B-Tech's System 2 range, including direct mounting to BT7052 Collars for pole-mounted installations
  • Modern slimline design with cover plates included that conceal all fixings for a smart finish

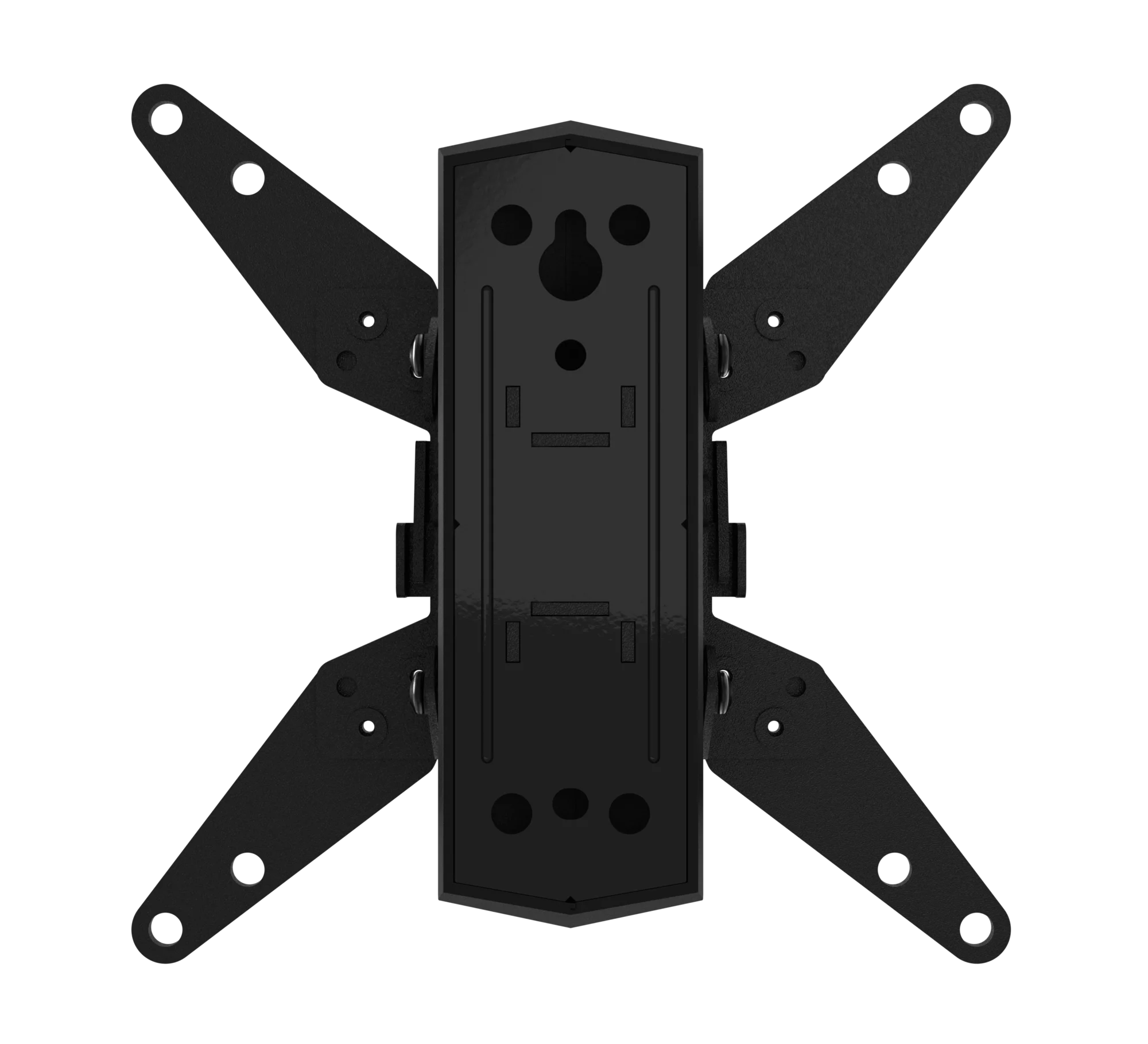

  • Keyhole wall plate fixings allow single-screw hanging for easy positioning before fixing into place with additional screws
  • Wall plate designed with a flat edge for easy spirit-level alignment during installation
  • Simple 'hook-on' installation
  • All mounting hardware included
  • 100% plastic free packaging
  • B-Tech's UltraGlide Tilt & Swivel technology provides smooth, tool-free tilt adjustment, allowing quick and easy changes to the viewing angle
  • Screen levelling after installation enables small adjustments to correct screen alignment once mounted
  • Security locking screws & Allen key provided for a secure installation
  • Compatible with B-Tech's System 2 range, including direct mounting to BT7052 Collars for pole-mounted installations
  • Modern slimline design with cover plates included that conceal all fixings for a smart finish
  • Keyhole wall plate fixings allow single-screw hanging for easy positioning before fixing into place with additional screws
  • Wall plate designed with a flat edge for easy spirit-level alignment during installation
  • Simple 'hook-on' installation
  • All mounting hardware included
  • 100% plastic free packaging

Product Specifications

  • Recommended screen size: up to 47"
  • Max load: 30kg
  • VESA compatibility: up to 200 x 200

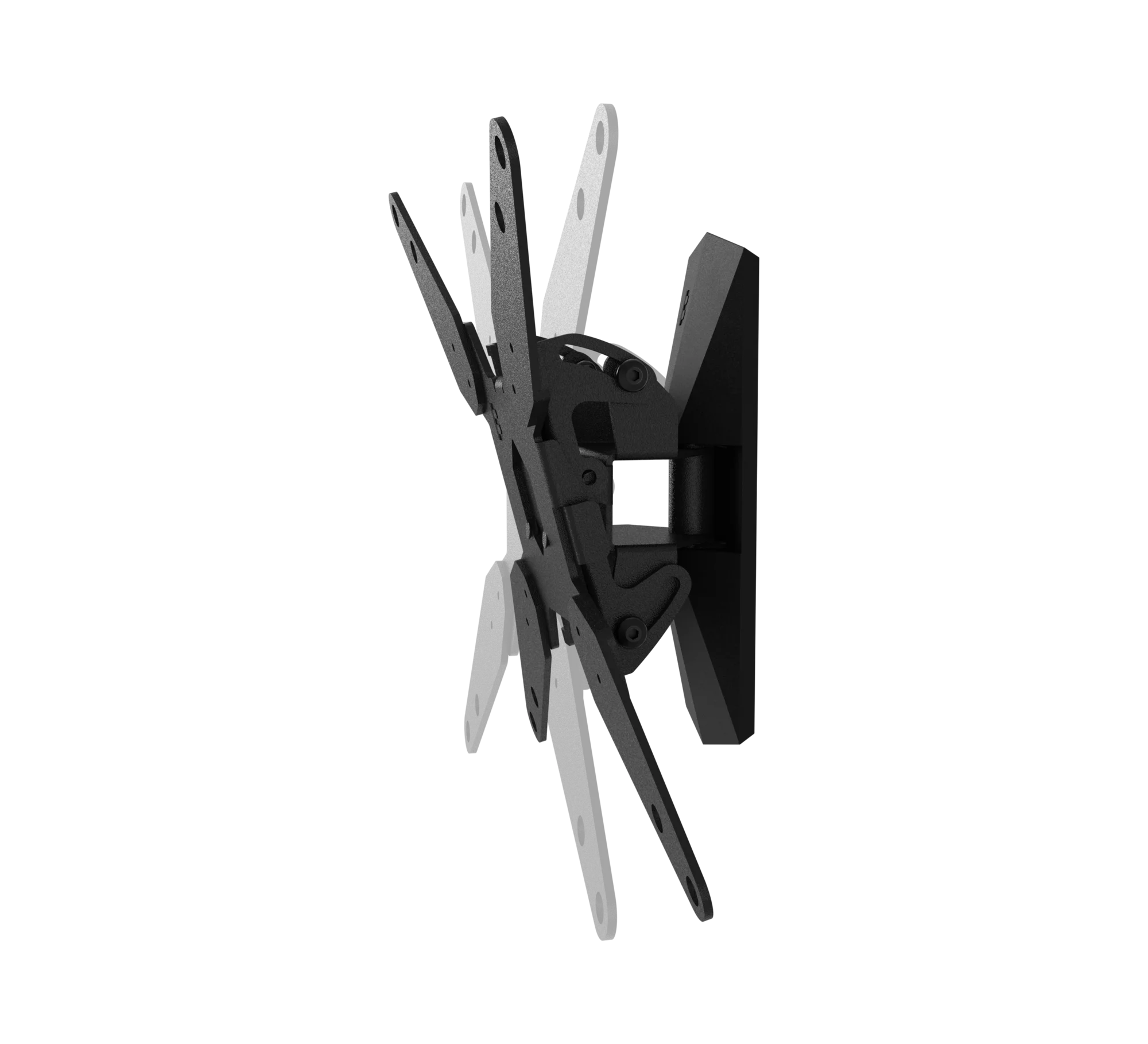

  • Tilt adjustment: +17° / -10°
  • Swivel at wall: 80°
  • Screen levelling: +/- 6°

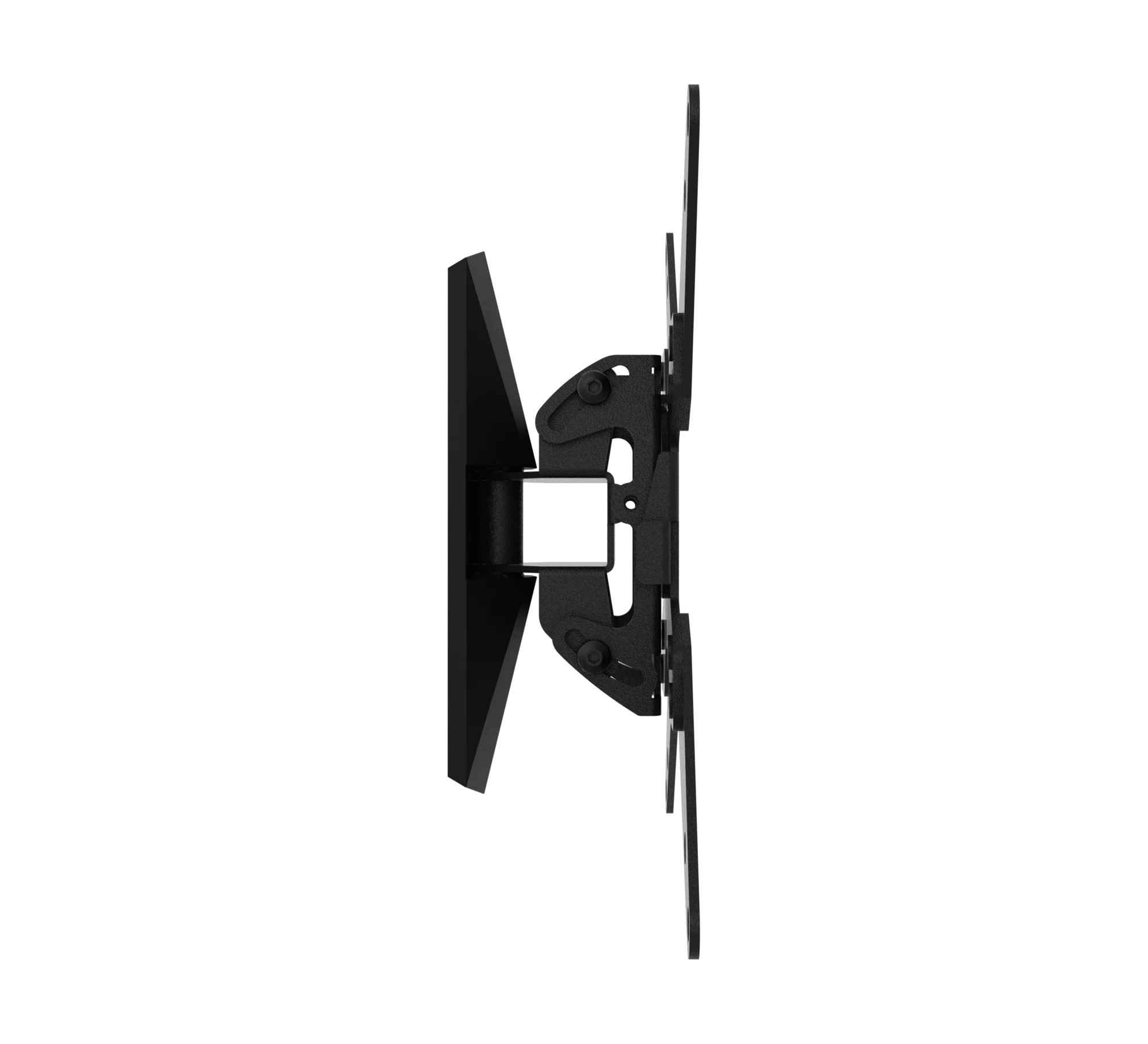

  • Distance from wall: 70mm
  • Recommended screen size: up to 47"
  • Max load: 30kg
  • VESA compatibility: up to 200 x 200
  • Tilt adjustment: +17° / -10°
  • Swivel at wall: 80°
  • Screen levelling: +/- 6°
  • Distance from wall: 70mm

Ordering & Box Information

Order Code: BT7519/B V2

Barcode: 5019318310485

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 1.49kg

Order Code: BT7519/B V2

Barcode: 5019318310485

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 1.49kg
