BT7594

Full Motion Articulating Arm Medical Ceiling Mount

Manufactured with Interpon anti-bacterial powder coating

BT7594/W

Full Motion Articulating Arm Medical Ceiling Mount

Manufactured with Interpon anti-bacterial powder coating

Enquire Today View Downloads

Overview

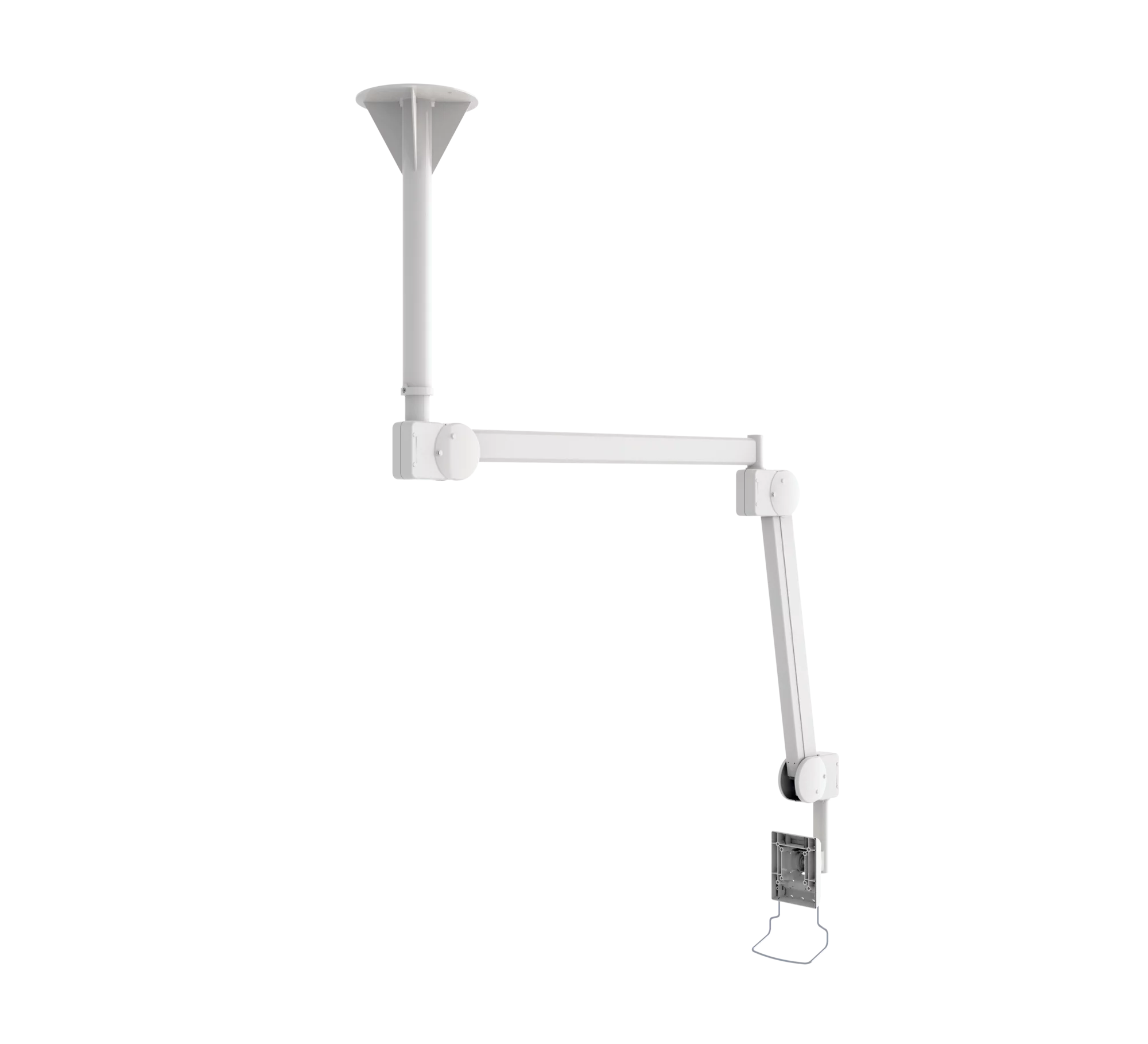

Designed for flat screens up to 28", this full motion ceiling mount is ideal for mounting above and beside hospital beds. Supplied with an optional handle for easy screen positioning and a built-in gas spring system that offers simple height and distance adjustment. The space saving design enables the mount to be folded flat when not in use.
Designed for flat screens up to 28", this full motion ceiling mount is ideal for mounting above and beside hospital beds. Supplied with an optional handle for easy screen positioning and a built-in gas spring system that offers simple height and distance adjustment. The space saving design enables the mount to be folded flat when not in use.

Product Features

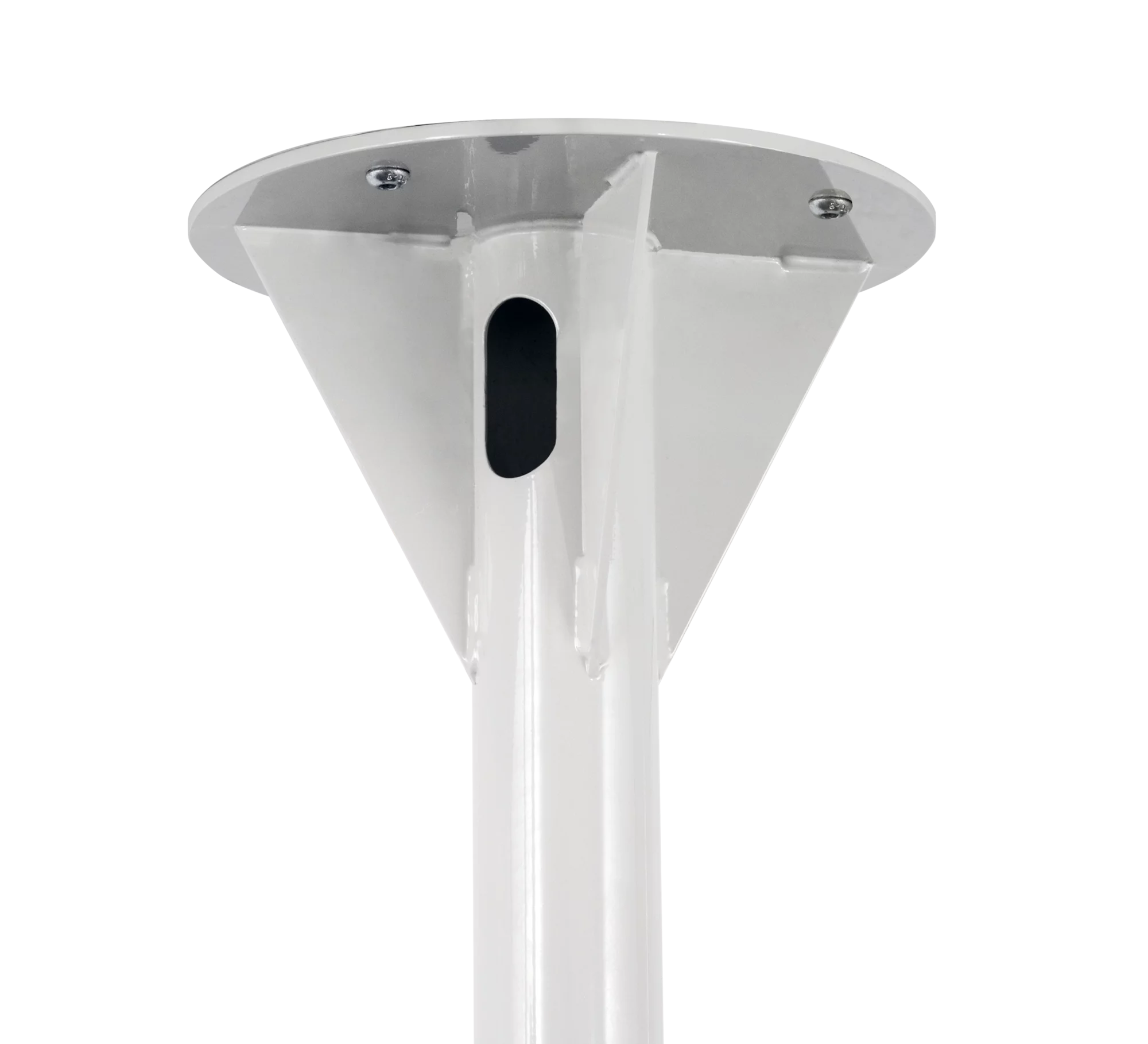

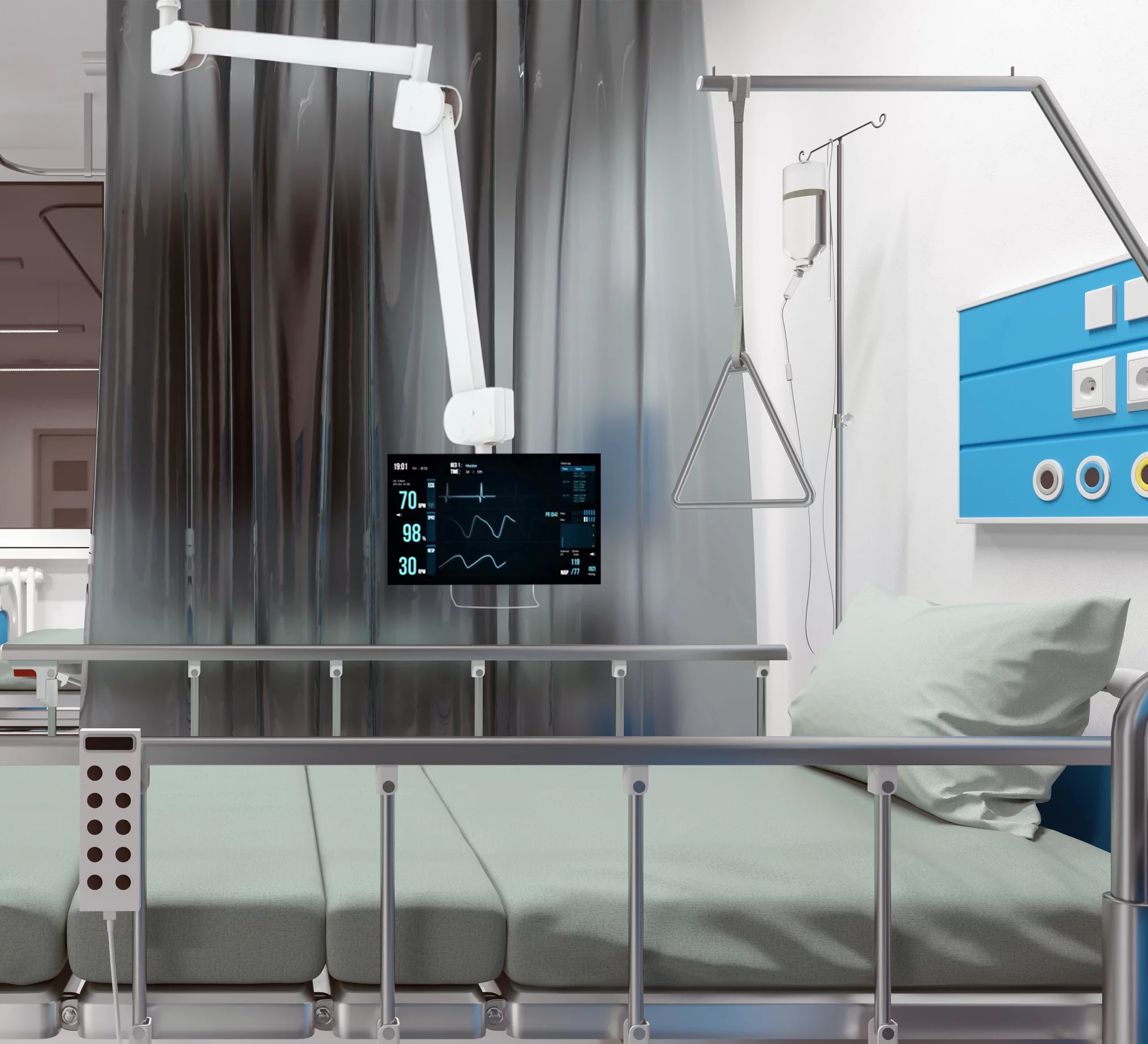

  • Full motion mount designed for ceiling mounting - ideal for installing above or beside hospital beds

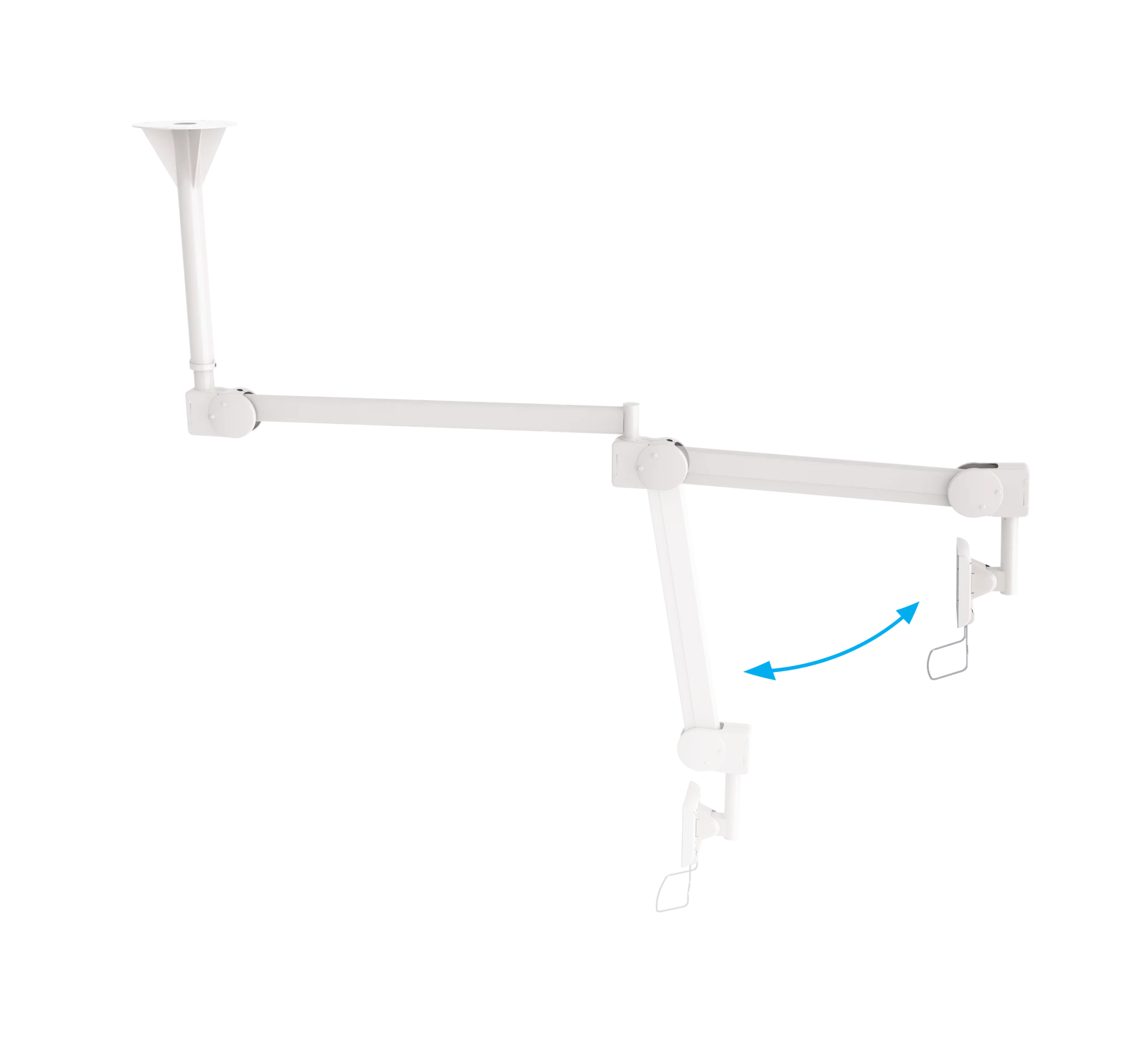

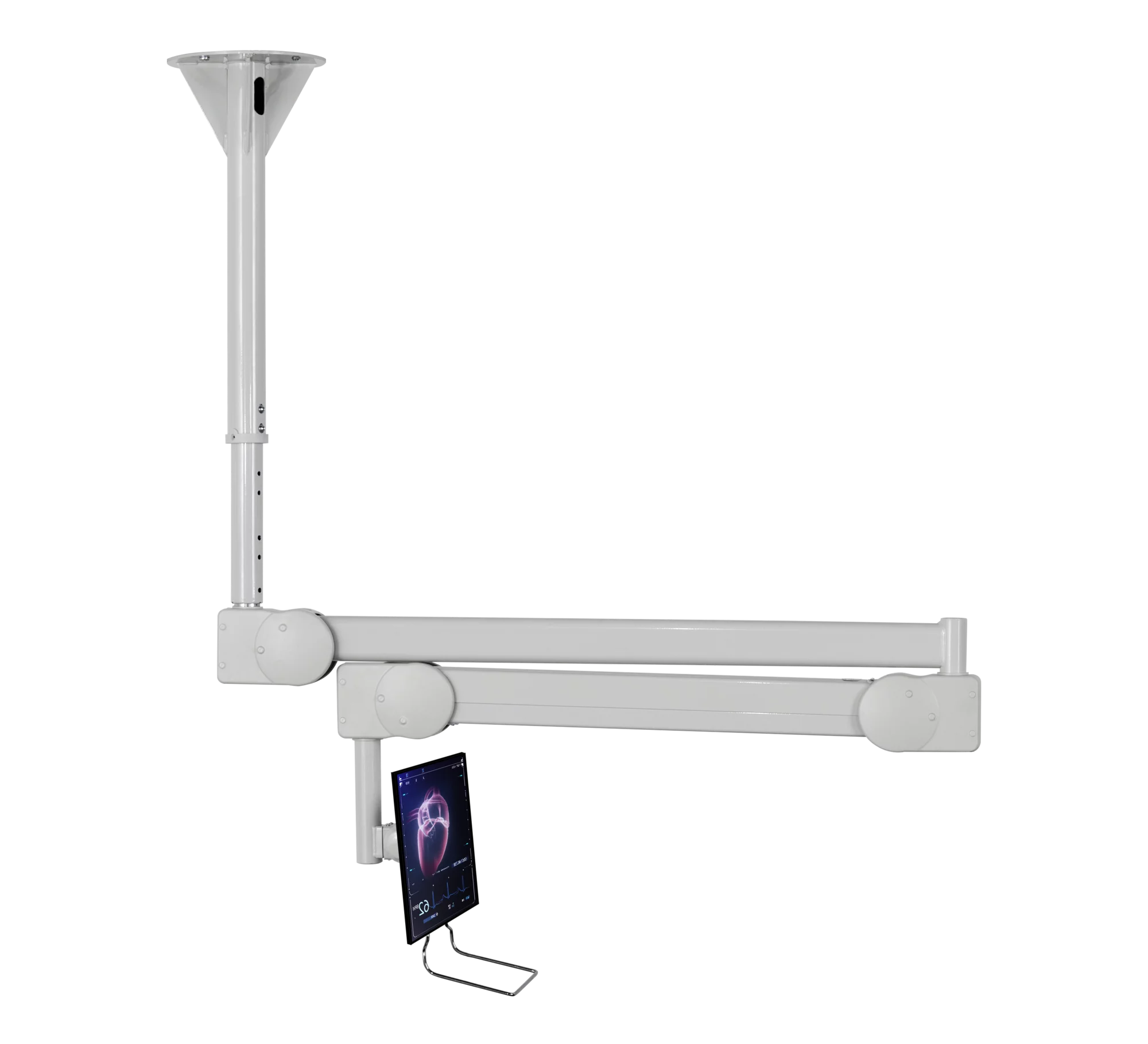

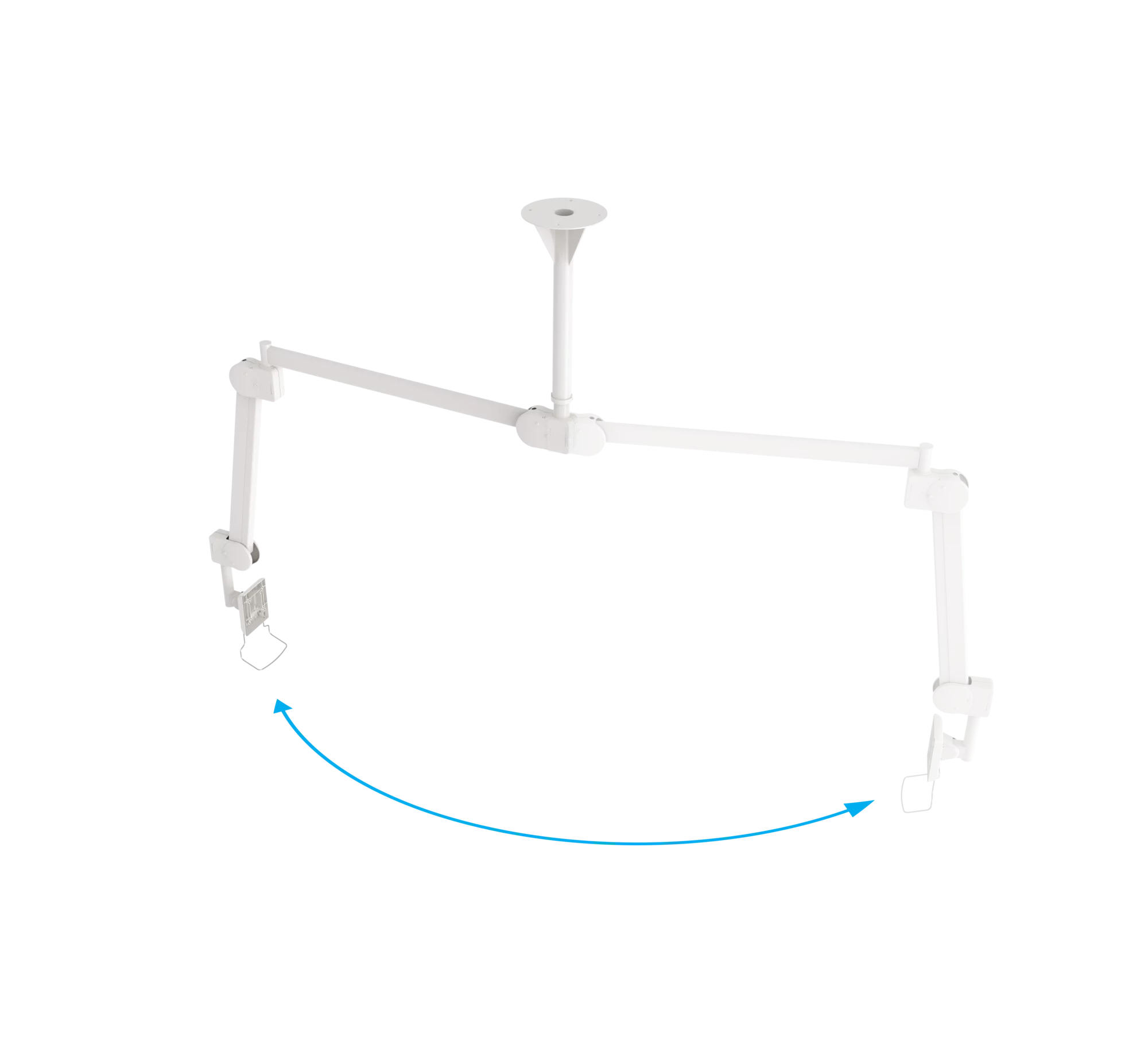

  • Arm extension allows screen to be positioned up to 1895mm from the centre of the mount

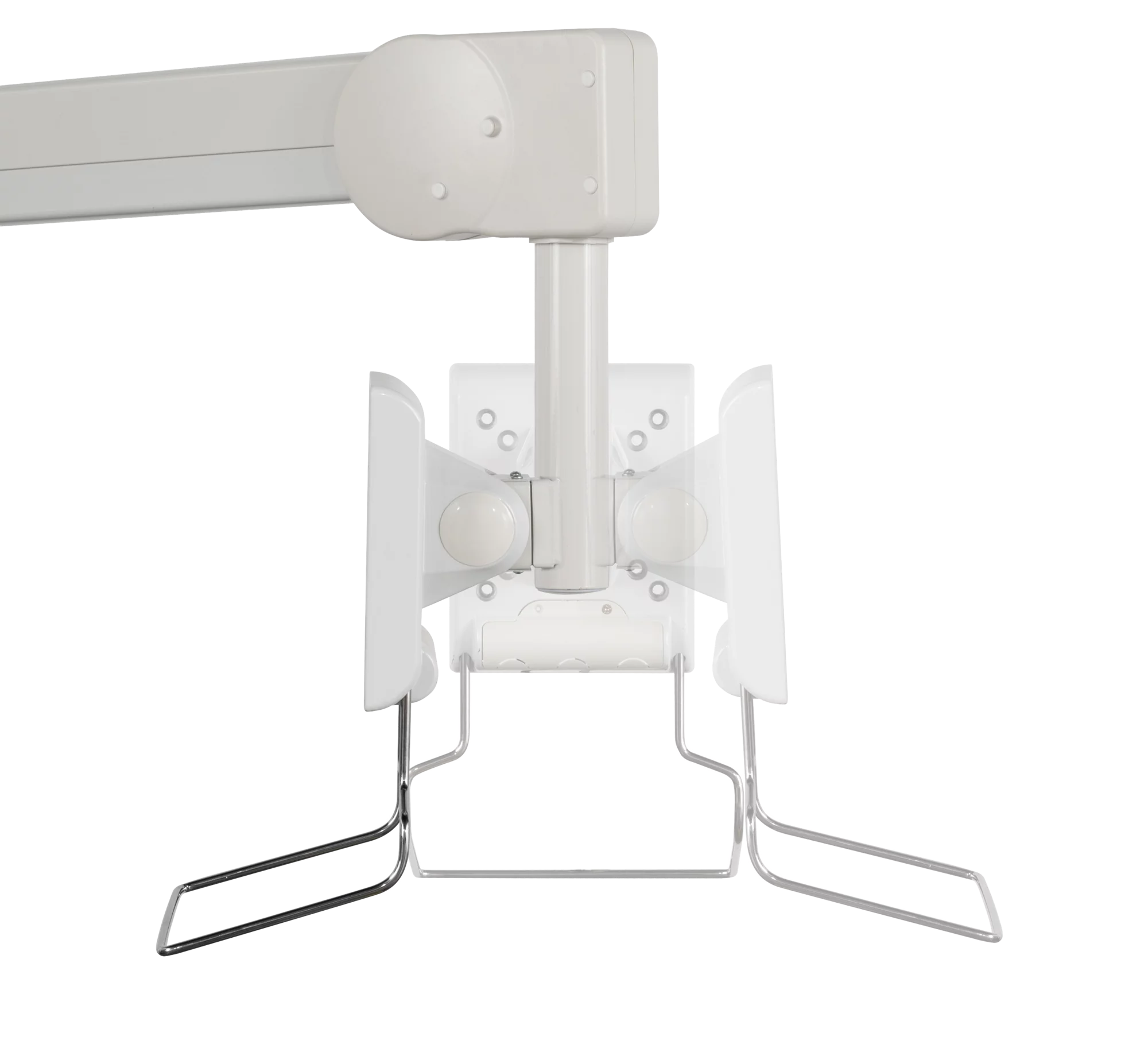

  • Tool-less tilt and swivel adjustment allows for perfect positioning

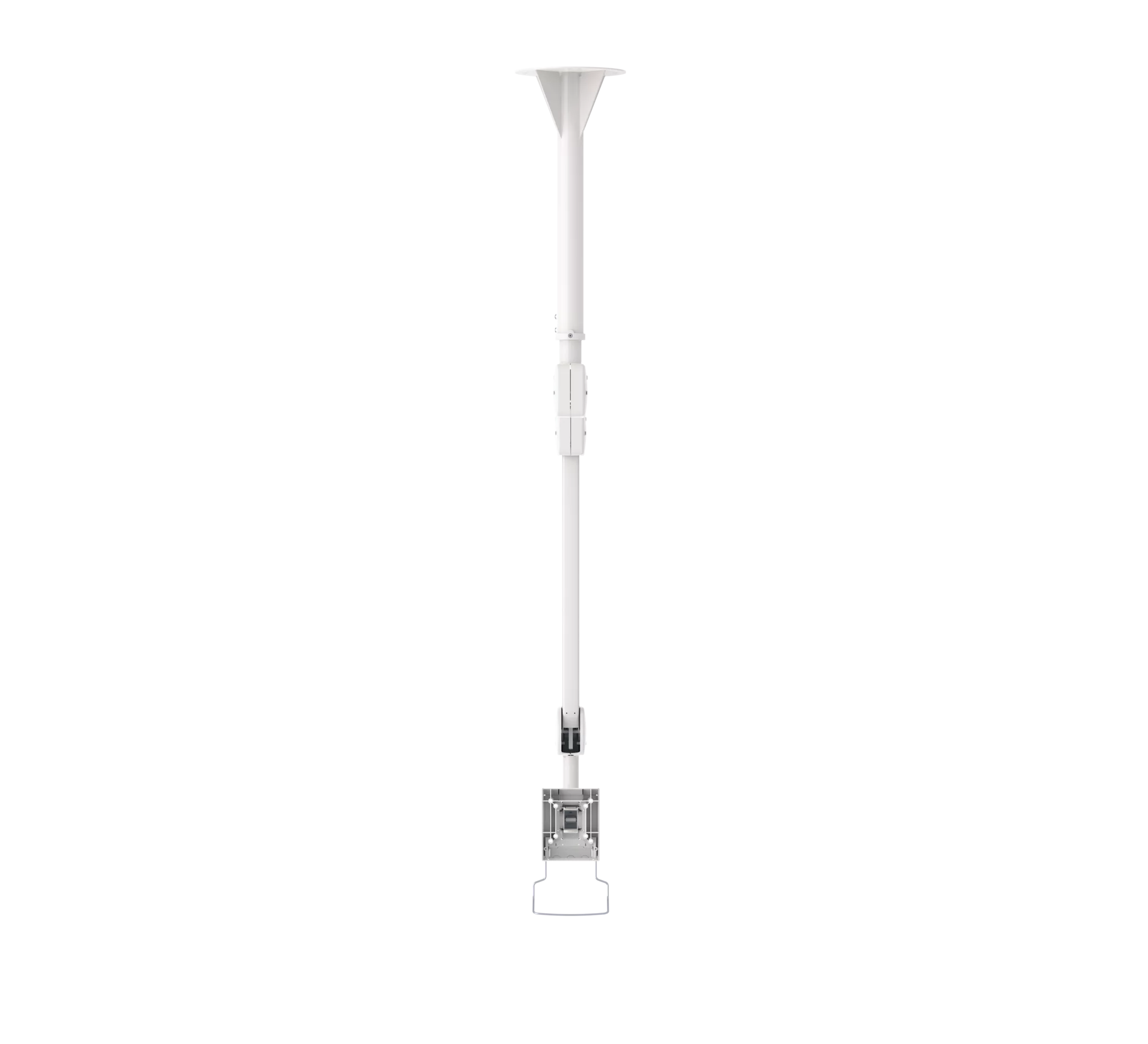

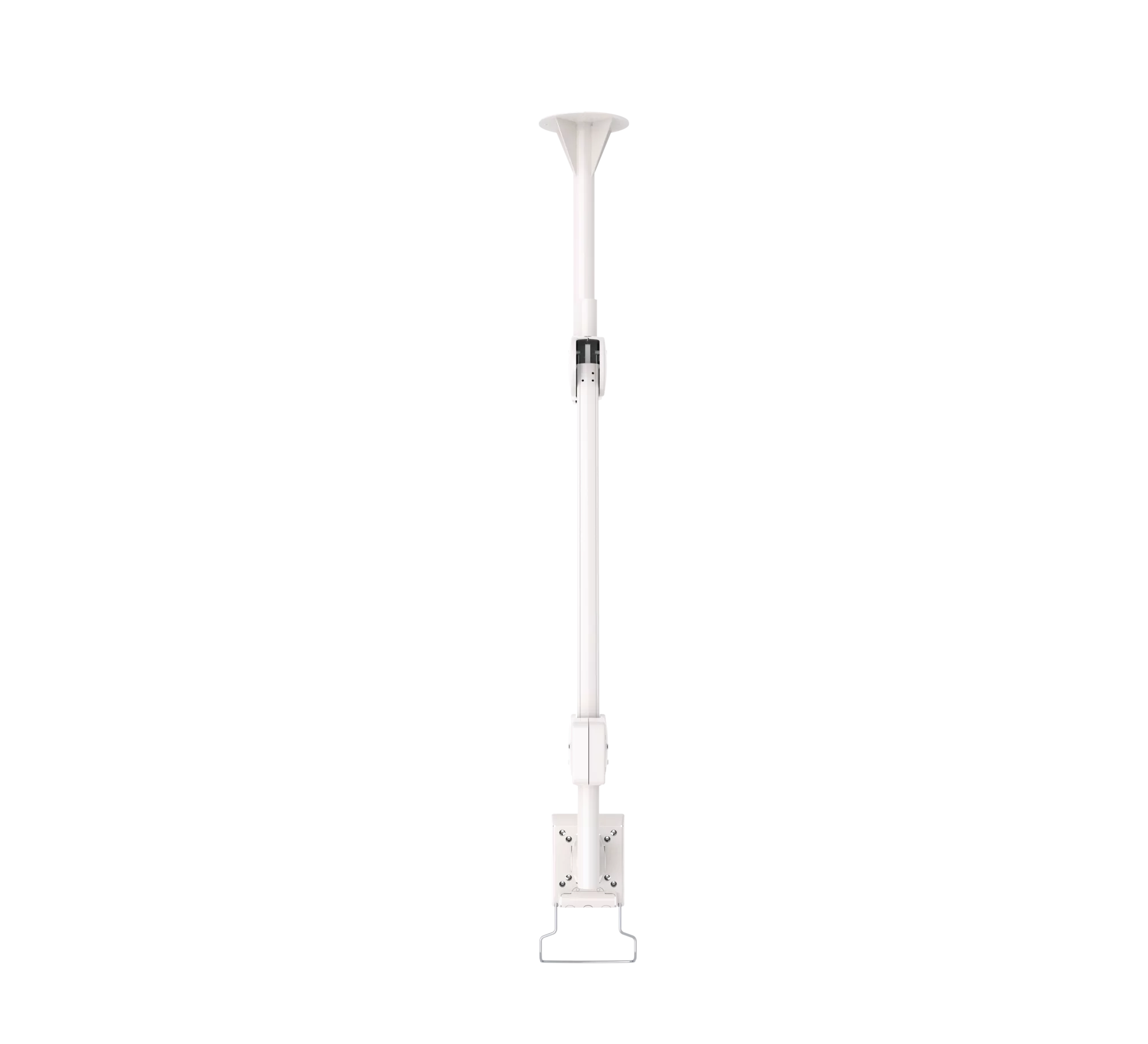

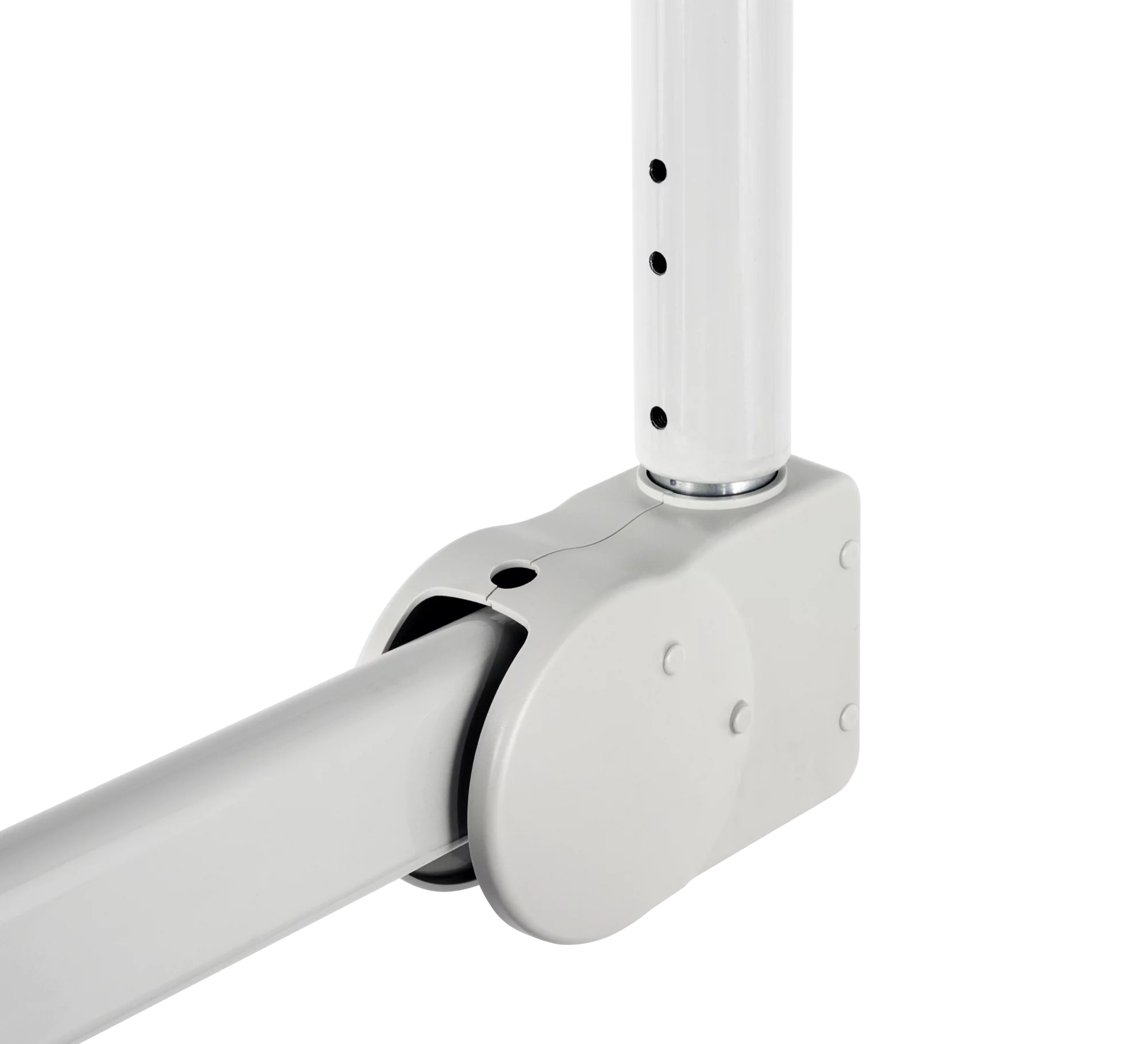

  • Adjustable ceiling drop height in 100mm increments
  • Built-in gas spring system offers easy height and distance adjustment
  • Medical mount manufactured with Interpon anti-bacterial powder coating, shown in tests to reduce bacterial population by a minimum of 99%
  • Comes with power and LAN cable pre-installed inside the arm
  • Integrated cable management for a neat and tidy installation
  • Full motion mount designed for ceiling mounting - ideal for installing above or beside hospital beds
  • Arm extension allows screen to be positioned up to 1895mm from the centre of the mount
  • Tool-less tilt and swivel adjustment allows for perfect positioning
  • Adjustable ceiling drop height in 100mm increments
  • Built-in gas spring system offers easy height and distance adjustment
  • Medical mount manufactured with Interpon anti-bacterial powder coating, shown in tests to reduce bacterial population by a minimum of 99%

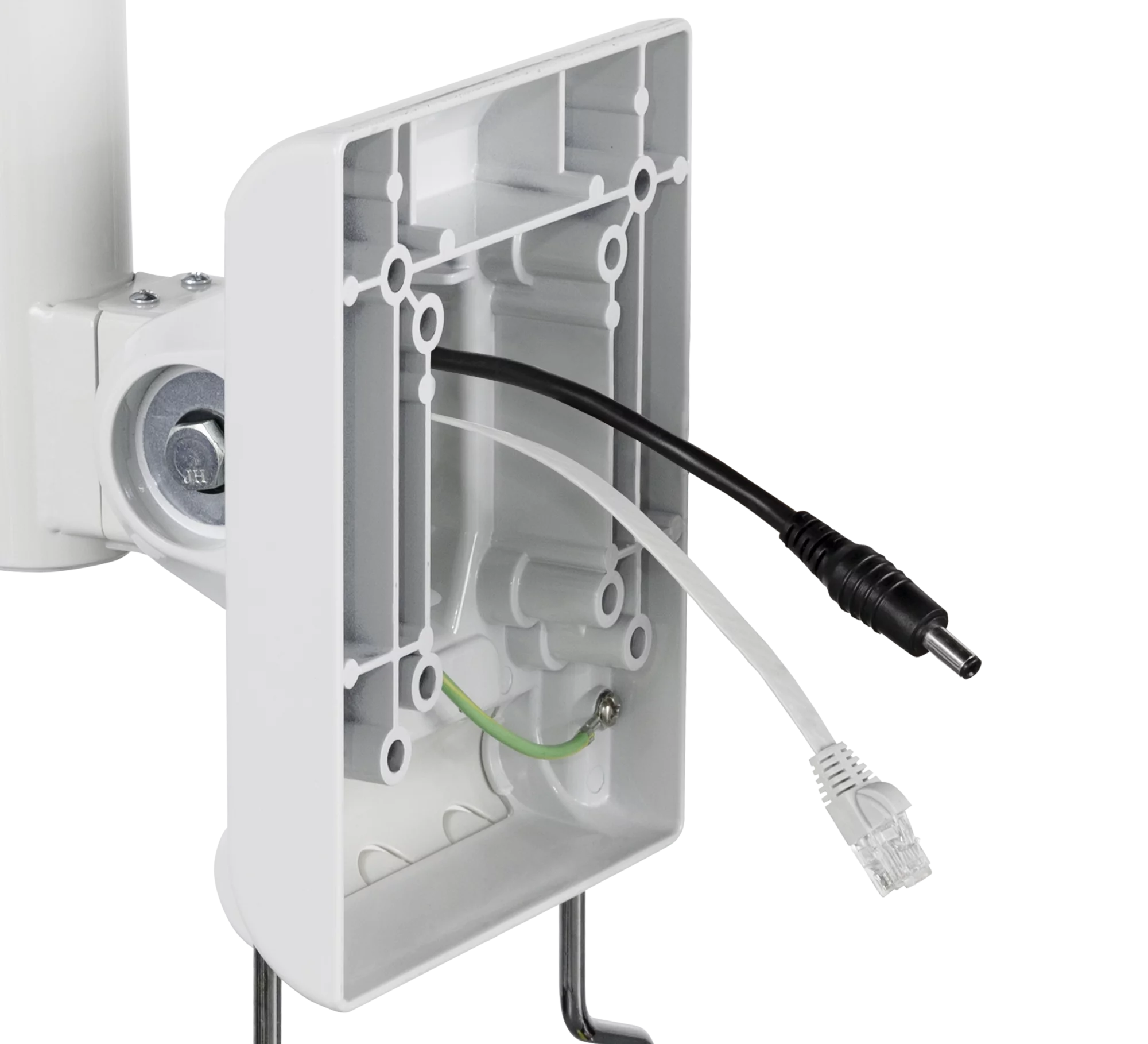

  • Comes with power and LAN cable pre-installed inside the arm
  • Integrated cable management for a neat and tidy installation

Product Specifications

  • Recommended display size: 10" up to 28"
  • Min load: 2kg
  • Max load: 8kg
  • VESA fixings: 75 x 75 & 100mm x 100mm

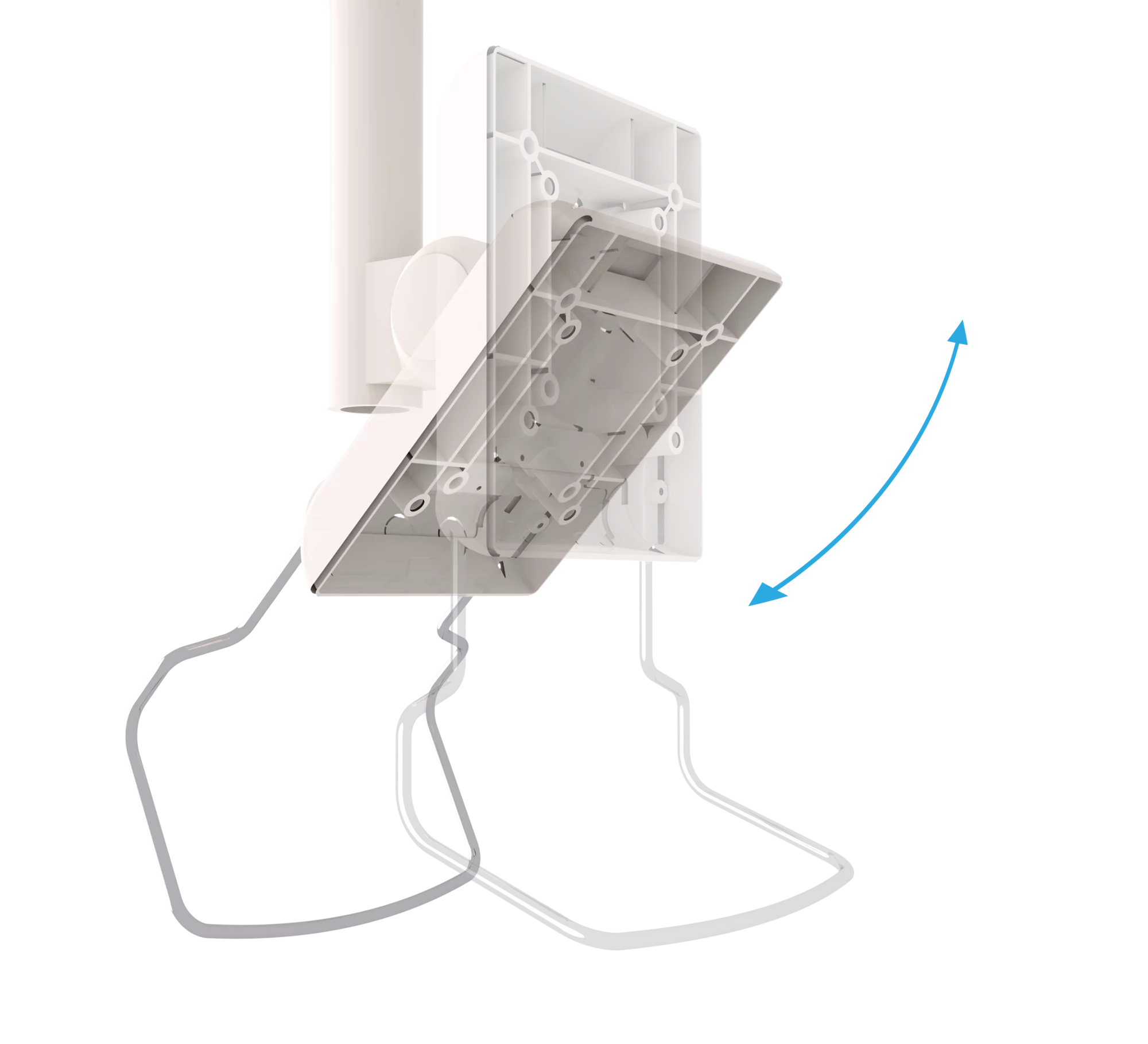

  • Tilt: -10 / +40°
  • Swivel: 330°
  • Max extension: 1895mm
  • Colour: White
  • Recommended display size: 10" up to 28"
  • Min load: 2kg
  • Max load: 8kg
  • VESA fixings: 75 x 75 & 100mm x 100mm
  • Tilt: -10 / +40°
  • Swivel: 330°
  • Max extension: 1895mm
  • Colour: White

Ordering & Box Information

Order Code: BT7594/W

Barcode: 5019318305894

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 24.10kg

Order Code: BT7594/W

Barcode: 5019318305894

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 24.10kg
