BT7611-SAM32

Wall Mount with Tilt for Samsung 32" E-Paper

Official Mounting Partner for Samsung E-Paper

BT7611-SAM32/W

Wall Mount with Tilt for Samsung 32" E-Paper

Official Mounting Partner for Samsung E-Paper

Enquire Today View Downloads

Overview

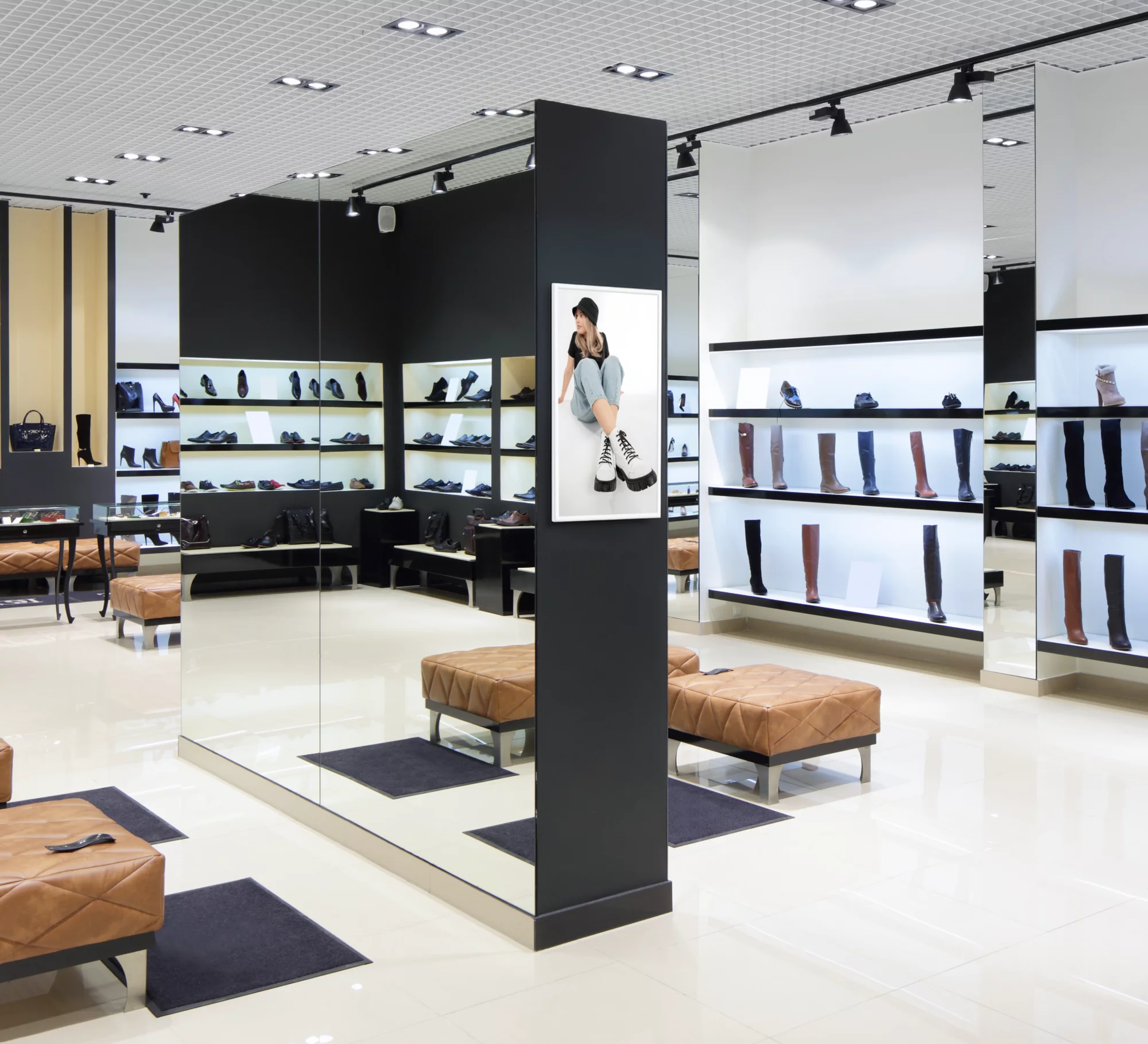

The BT7611-SAM32 is an ultra-slim, adjustable wall mount designed specifically for the Samsung 32" E-Paper EMDX display. Its discreet, low-profile design makes it ideal for retail, wayfinding, and other public spaces. The mount includes a port and battery compartment cover with an integrated power bank cradle, ensuring it's neatly hidden behind the screen while charging. For added security, the cover can be configured to block access to just the ports, or to both the ports and input buttons, protecting against public tampering. Quick to install and simple to adjust, the BT7611-SAM32 delivers a clean, secure, and professional mounting solution for Samsung E-Paper displays.
The BT7611-SAM32 is an ultra-slim, adjustable wall mount designed specifically for the Samsung 32" E-Paper EMDX display. Its discreet, low-profile design makes it ideal for retail, wayfinding, and other public spaces. The mount includes a port and battery compartment cover with an integrated power bank cradle, ensuring it's neatly hidden behind the screen while charging. For added security, the cover can be configured to block access to just the ports, or to both the ports and input buttons, protecting against public tampering. Quick to install and simple to adjust, the BT7611-SAM32 delivers a clean, secure, and professional mounting solution for Samsung E-Paper displays.

Product Features

  • Ultra-slim design with simple tilt adjustment for optimal viewing angles
  • Tool-less tilt for quick adjustment to the viewing angle or use the included micro-adjustment screw when more precision is needed
  • Cover can be fitted to restrict access to buttons and ports, preventing display tampering
  • Can be used in both portrait or landscape orientation

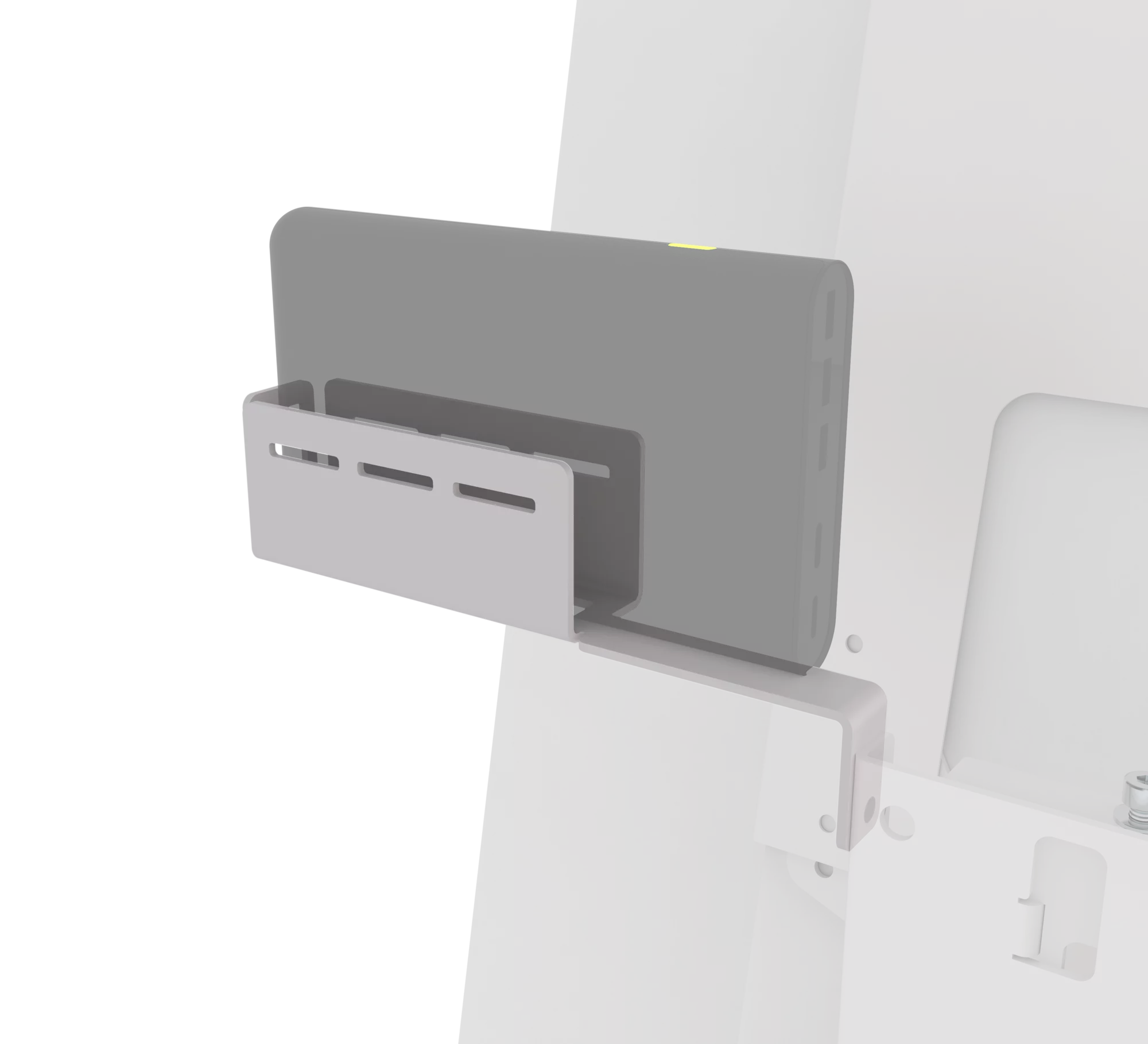

  • Integrated cradle allows a power bank to be stored neatly behind the screen
  • Provision for attaching a lighting bar if required
  • Tilt screw can be removed for tool-less adjustment
  • Allows access to Kensington lock slot
  • Can be installed to allow for upward or downward tilt

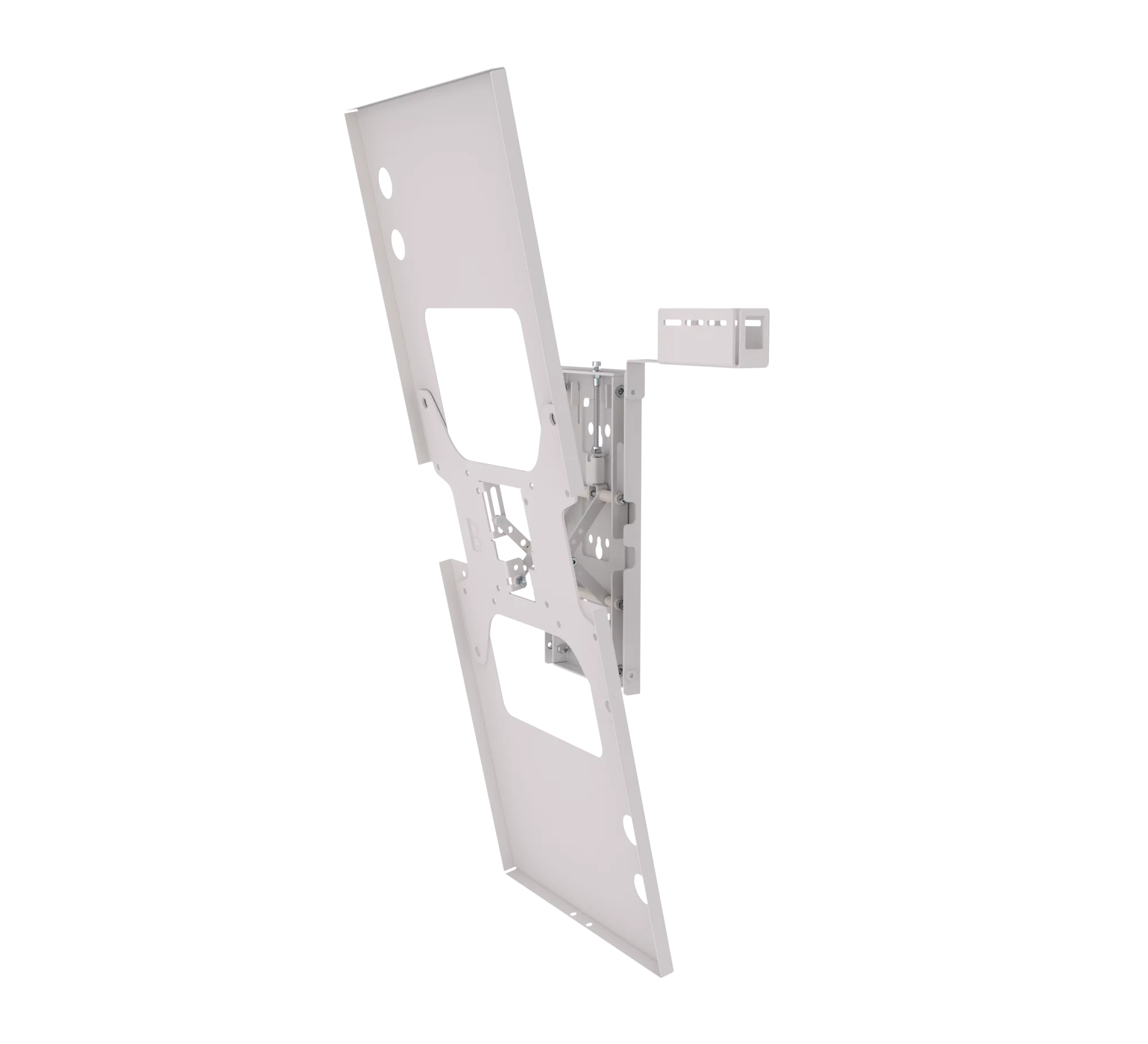

  • Service position provides rear access to the display for maintenance
  • 100% plastic free packaging
  • Ultra-slim design with simple tilt adjustment for optimal viewing angles
  • Tool-less tilt for quick adjustment to the viewing angle or use the included micro-adjustment screw when more precision is needed
  • Cover can be fitted to restrict access to buttons and ports, preventing display tampering
  • Can be used in both portrait or landscape orientation
  • Integrated cradle allows a power bank to be stored neatly behind the screen
  • Provision for attaching a lighting bar if required
  • Tilt screw can be removed for tool-less adjustment
  • Allows access to Kensington lock slot
  • Can be installed to allow for upward or downward tilt
  • Service position provides rear access to the display for maintenance
  • 100% plastic free packaging

Product Specifications

  • Designed for use with: Samsung 32" E-Paper EMDX

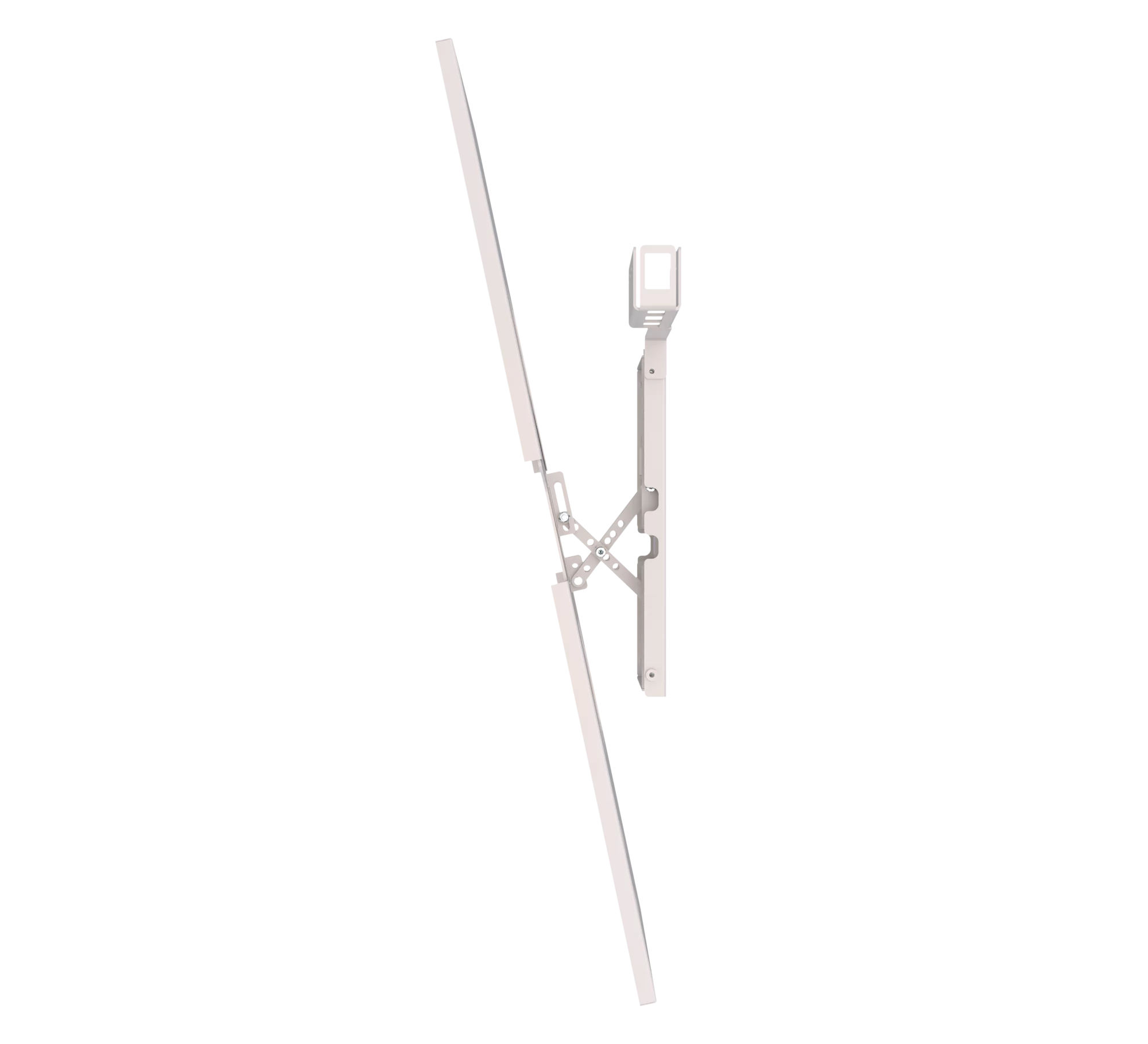

  • Tilt: 10° upwards / 10° downwards*
  • Max dimensions for power bank: W: 150mm H: 150mm D: 23mm
  • VESA fixings: 200 x 200mm
  • Orientation: Landscape, Portrait
  • Distance from wall to front of display: min.36.4mm - max.147mm
  • *Tilt orientation dependent on installation
  • Colour: White
  • Designed for use with: Samsung 32" E-Paper EMDX
  • Tilt: 10° upwards / 10° downwards*
  • Max dimensions for power bank: W: 150mm H: 150mm D: 23mm
  • VESA fixings: 200 x 200mm
  • Orientation: Landscape, Portrait
  • Distance from wall to front of display: min.36.4mm - max.147mm
  • *Tilt orientation dependent on installation
  • Colour: White

Ordering & Box Information

Order Code: BT7611-SAM32/W

Barcode: 5019318310164

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 3.39kg

Order Code: BT7611-SAM32/W

Barcode: 5019318310164

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 3.39kg
