BT7851

System 2

Adjustable Drop Ceiling Mount

Adjustable ceiling drop

BT7851/B

System 2

Adjustable Drop Ceiling Mount

Adjustable ceiling drop

Overview

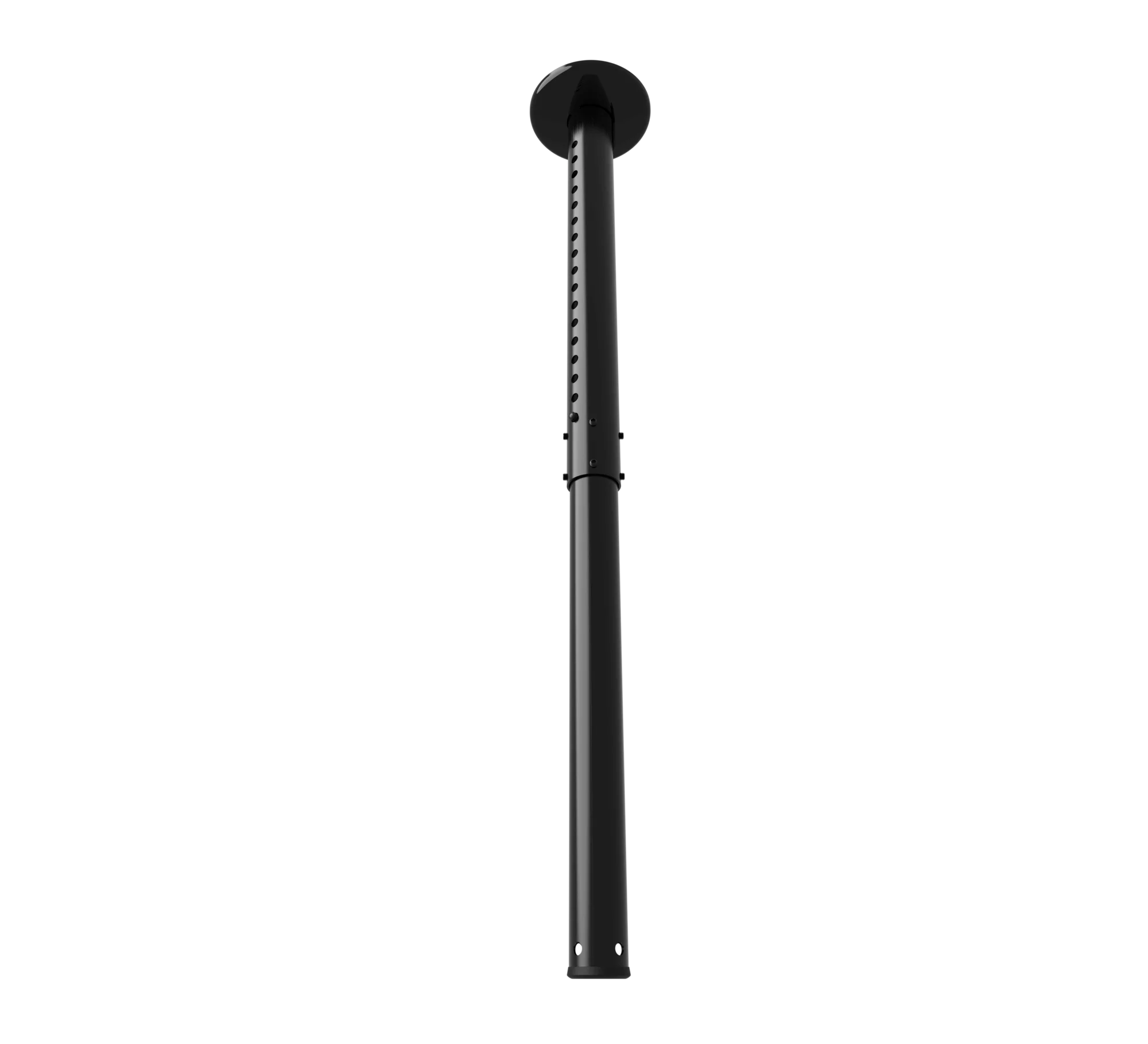

BT7851 Adjustable Drop Ceiling Mount is designed for use with B-Tech's System 2 modular range of components. B-Tech flat screen mounts can be attached to the pole using accessory collars, whilst projector mounts can fit directly to the bottom of the pole, rail installations can also be created using System X components. Supporting heavy loads of up to 100kg and featuring a tool-less telescopic pole allowing the ceiling drop to be raised or lowered in 25mm increments from 600mm - 1000mm. Cover plates are included to hide ceiling fixings creating a smart and tidy finish.
BT7851 Adjustable Drop Ceiling Mount is designed for use with B-Tech's System 2 modular range of components. B-Tech flat screen mounts can be attached to the pole using accessory collars, whilst projector mounts can fit directly to the bottom of the pole, rail installations can also be created using System X components. Supporting heavy loads of up to 100kg and featuring a tool-less telescopic pole allowing the ceiling drop to be raised or lowered in 25mm increments from 600mm - 1000mm. Cover plates are included to hide ceiling fixings creating a smart and tidy finish.

Product Features

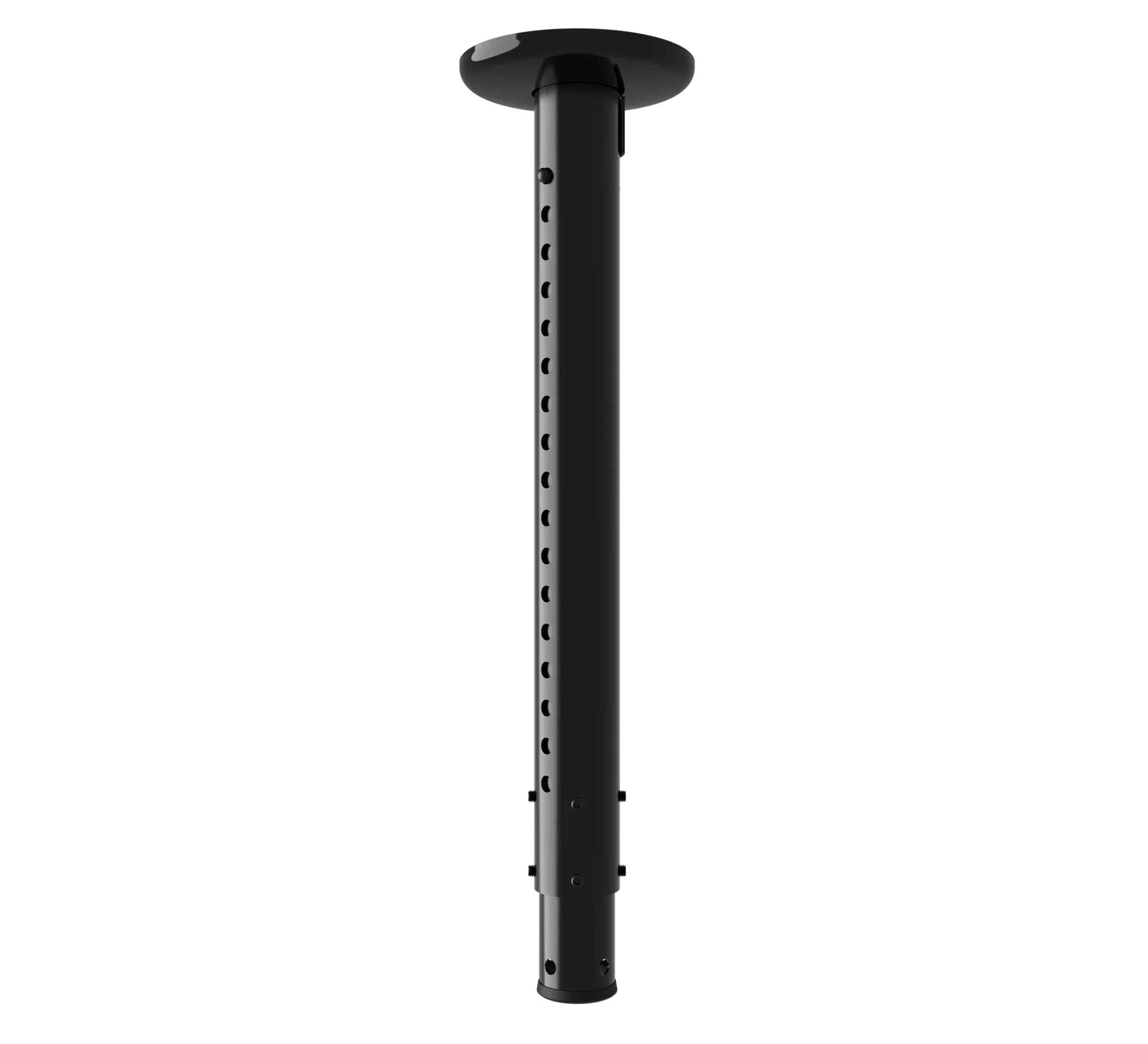

  • Tool-less adjustable drop in 25mm increments for quick and easy positioning of mounted screens
  • Compatible with a variety of existing B-Tech ranges such as System 2 and System X
  • Allows back-to-back configurations to be created when combined with BT8390-CFK Collar Fixing Kits or Accessory Collars
  • Compatible with all B-Tech Ø50mm accessory collars such as the BT7841
  • Poles are internally unobstructed for cables to pass through easily

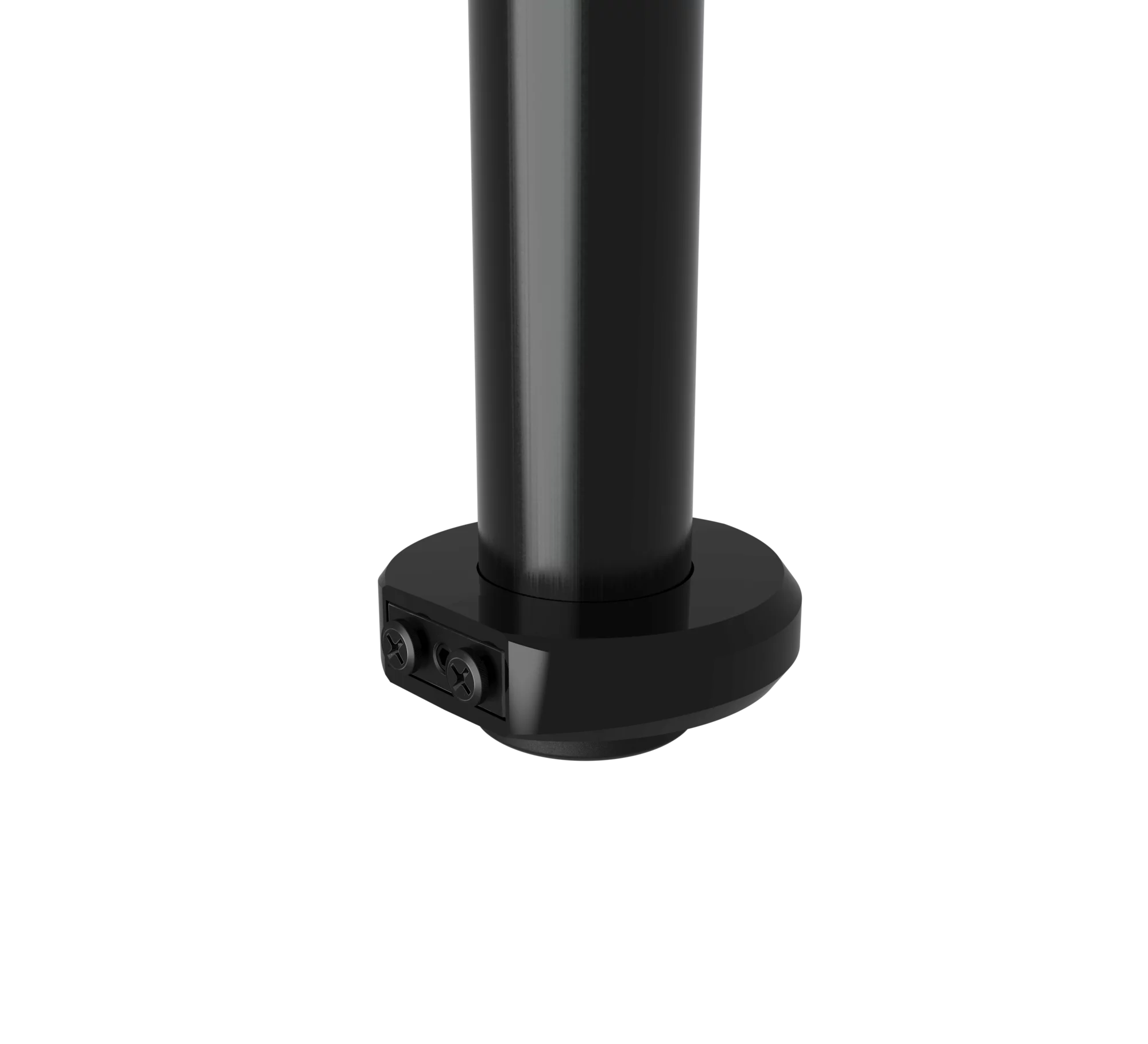

  • Features safety bolt holes at top and bottom for secure installation
  • Poles can be added using BT7823 & BT7824 Pole Joiners

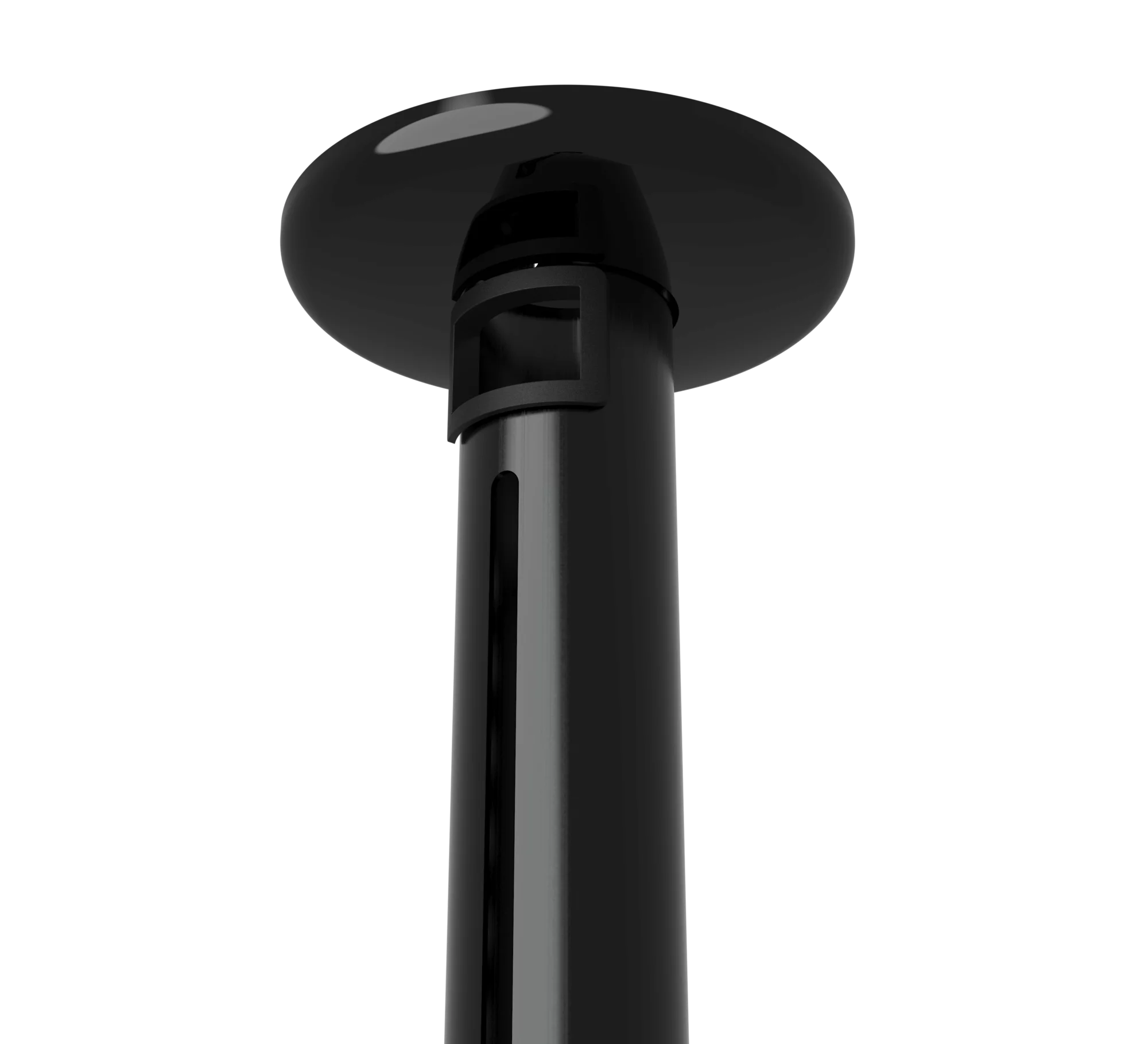

  • Cover plate and cable management included for a neat and tidy installation
  • Tool-less adjustable drop in 25mm increments for quick and easy positioning of mounted screens
  • Compatible with a variety of existing B-Tech ranges such as System 2 and System X
  • Allows back-to-back configurations to be created when combined with BT8390-CFK Collar Fixing Kits or Accessory Collars
  • Compatible with all B-Tech Ø50mm accessory collars such as the BT7841
  • Poles are internally unobstructed for cables to pass through easily
  • Features safety bolt holes at top and bottom for secure installation
  • Poles can be added using BT7823 & BT7824 Pole Joiners
  • Cover plate and cable management included for a neat and tidy installation

Product Specifications

  • Max load: 100kg
  • Pole diameter: 50mm
  • Product width: 157.5mm
  • Product depth: 157.5mm
  • Min product height: 600mm
  • Max product height: 1000mm
  • Colour: Black
  • Max load: 100kg
  • Pole diameter: 50mm
  • Product width: 157.5mm
  • Product depth: 157.5mm
  • Min product height: 600mm
  • Max product height: 1000mm
  • Colour: Black

Ordering & Box Information

Order Code: BT7851/B

Barcode: 5019318078972

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 3.80kg

Order Code: BT7851/B

Barcode: 5019318078972

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 3.80kg
