BT7853

System 2

Heavy Duty Ø50mm Pole

Available in two length options

BT7853-300/B

System 2

Heavy Duty Ø50mm Pole

Available in two length options

BT7853-200/B

System 2

Heavy Duty Ø50mm Pole

Available in two length options

Product variations available. Choose from the below options:

Pole Length (m)

3m

2m

Colour

Black

Enquire Today View Downloads

Overview

Designed for the large scale pole mounted installations that standard Ø50mm poles cannot hold, the BT7853 is a heavy duty alternative made from 3.2mm thick steel capable of supporting these heavier loads. The poles are available as standard in 2m or 3m lengths which can be cut to an exact length if required, and feature safety bolt holes top and bottom for a secure installation. The BT7563 is internally unobstructed for cables to pass through easily and poles can also be linked together to create even larger installs, using BT7824 external pole joiners.
Designed for the large scale pole mounted installations that standard Ø50mm poles cannot hold, the BT7853 is a heavy duty alternative made from 3.2mm thick steel capable of supporting these heavier loads. The poles are available as standard in 2m lengths which can be cut to an exact length if required, and feature safety bolt holes top and bottom for a secure installation. The BT7563 is internally unobstructed for cables to pass through easily and poles can also be linked together to create even larger installs, using BT7824 external pole joiners.
Designed for the large scale pole mounted installations that standard Ø50mm poles cannot hold, the BT7853 is a heavy duty alternative made from 3.2mm thick steel capable of supporting these heavier loads. The poles are available as standard in 3m lengths which can be cut to an exact length if required, and feature safety bolt holes top and bottom for a secure installation. The BT7563 is internally unobstructed for cables to pass through easily and poles can also be linked together to create even larger installs, using BT7824 external pole joiners.

Product Features

  • 32mm thick steel capable of supporting heavier loads
  • Available in 2m or 3m variants
  • Poles can be cut to length if required
  • Can be mounted to walls, floors or ceilings for more mounting flexibility
  • Compatible with all B-Tech Ø50mm accessory collars such as the BT7841
  • Suitable for use with a variety of B-Tech ranges including large System X installations
  • Poles are internally unobstructed for cables to pass through easily

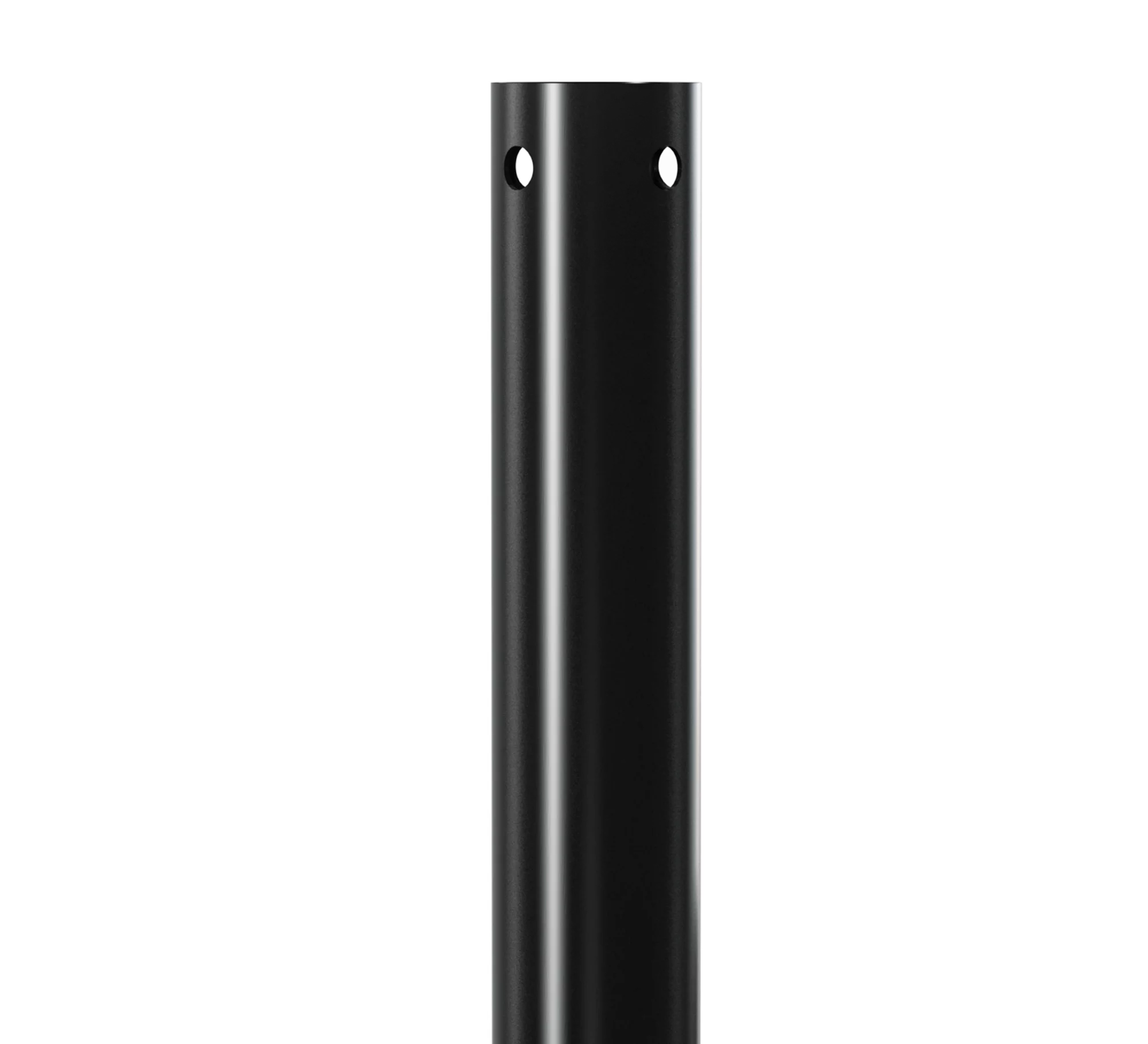

  • Features safety bolt holes at top and bottom for secure installation
  • Poles can be linked together using BT7824 External Pole Joiner
  • 32mm thick steel capable of supporting heavier loads
  • Poles can be cut to length if required
  • Can be mounted to walls, floors or ceilings for more mounting flexibility
  • Compatible with all B-Tech Ø50mm accessory collars such as the BT7841
  • Suitable for use with a variety of B-Tech ranges including large System X installations
  • Poles are internally unobstructed for cables to pass through easily
  • Features safety bolt holes at top and bottom for secure installation
  • Poles can be linked together using BT7824 External Pole Joiner
  • 32mm thick steel capable of supporting heavier loads
  • Poles can be cut to length if required
  • Can be mounted to walls, floors or ceilings for more mounting flexibility
  • Compatible with all B-Tech Ø50mm accessory collars such as the BT7841
  • Suitable for use with a variety of B-Tech ranges including large System X installations
  • Poles are internally unobstructed for cables to pass through easily
  • Features safety bolt holes at top and bottom for secure installation
  • Poles can be linked together using BT7824 External Pole Joiner

Product Specifications

  • Pole diameter: 50mm
  • Steel thickness: 3.2mm
  • Max load: 350kg
  • Lengths available: 2m , 3m
  • Colour: Black
  • Please note poles can be cut to an exact length if required
  • Pole diameter: 50mm
  • Steel thickness: 3.2mm
  • Max load: 350kg
  • Length: 3m
  • Colour: Black
  • Please note poles can be cut to an exact length if required
  • Pole diameter: 50mm
  • Steel thickness: 3.2mm
  • Max load: 350kg
  • Length: 2m
  • Colour: Black
  • Please note poles can be cut to an exact length if required

Ordering & Box Information

HS Code: 73269098

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): Select a product variation to see its total boxed weight.

Order Code: BT7853-300/B

Barcode: 5019318301308

HS Code: 73269098

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 12.89kg

Order Code: BT7853-200/B

Barcode: 5019318301292

HS Code: 73269098

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 7.89kg
