BT7882

AV Storage Cradle

Designed to 1U, 2U & 3U rack specification

BT7882/B

AV Storage Cradle

Designed to 1U, 2U & 3U rack specification

Overview

The BT7882 is the ideal solution for securing AV equipment designed to 1U, 2U & 3U rack specification onto B-Tech mounts, or directly to a wall if desired. An open framework design provides sufficient airflow to keep mounted devices cool and at the same time secure; preventing unauthorised removal through the use of pin hex security screws. The BT7882 can also be mounted onto Ø50mm poles, using B-Tech's System 2 collars or directly onto System X mounting rails and columns.
The BT7882 is the ideal solution for securing AV equipment designed to 1U, 2U & 3U rack specification onto B-Tech mounts, or directly to a wall if desired. An open framework design provides sufficient airflow to keep mounted devices cool and at the same time secure; preventing unauthorised removal through the use of pin hex security screws. The BT7882 can also be mounted onto Ø50mm poles, using B-Tech's System 2 collars or directly onto System X mounting rails and columns.

Product Features

  • Suitable for a wide range of AV equipment designed to 1U, 2U & 3U rack specification
  • Screens can be fitted directly to the front of the cradle using VESA75, 100 or 200 fixings
  • Tray opens 45° for easy access to equipment

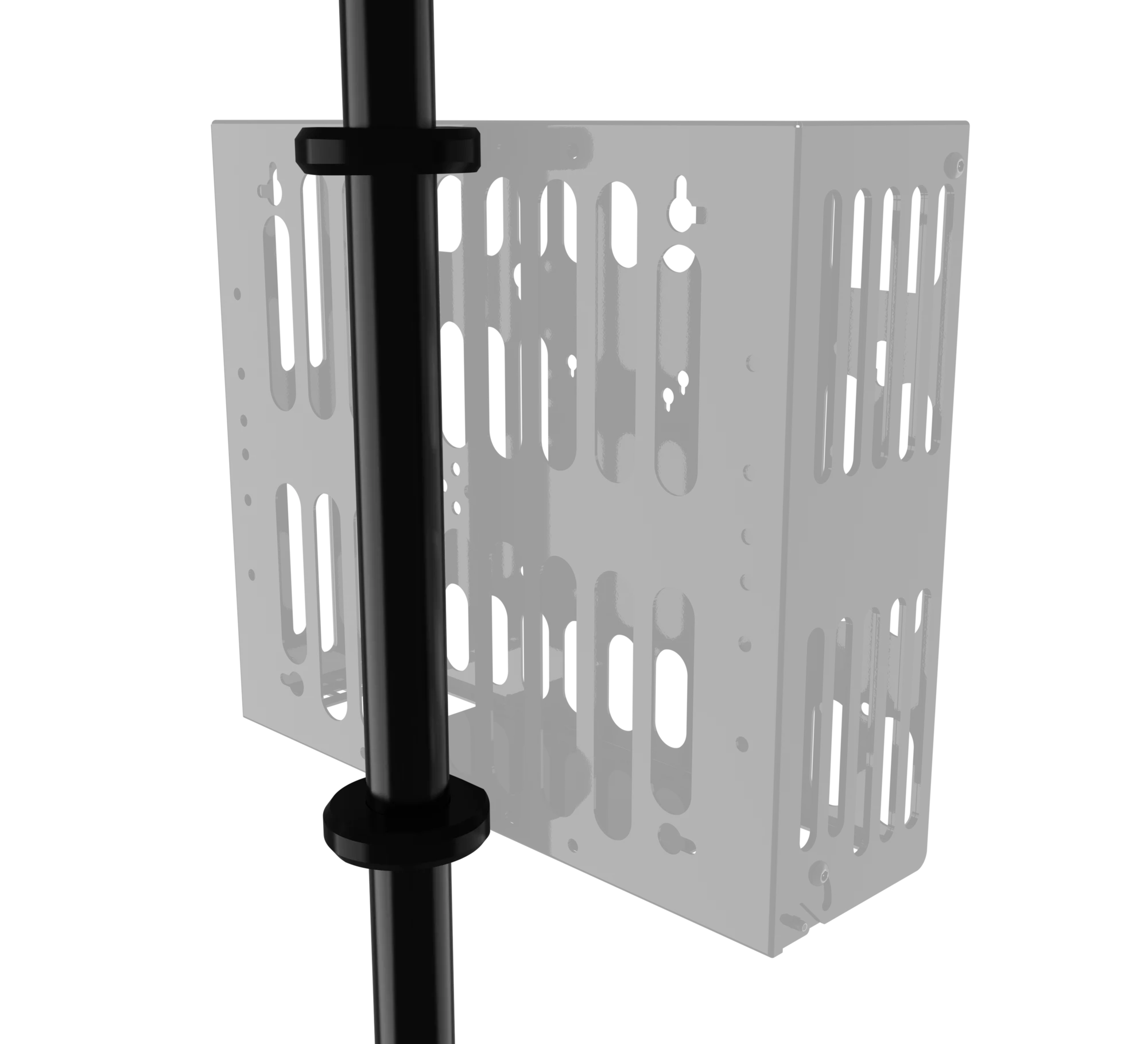

  • Compatible with B-Tech's System X range and B-Tech collars for pole mounted installations
  • Can also be mounted directly to a wall
  • Vented framework design for airflow
  • Anti-theft lock helps to keep the device secure
  • Keyhole mounting for a quick and easy installation
  • Suitable for a wide range of AV equipment designed to 1U, 2U & 3U rack specification
  • Screens can be fitted directly to the front of the cradle using VESA75, 100 or 200 fixings
  • Tray opens 45° for easy access to equipment
  • Compatible with B-Tech's System X range and B-Tech collars for pole mounted installations
  • Can also be mounted directly to a wall
  • Vented framework design for airflow
  • Anti-theft lock helps to keep the device secure
  • Keyhole mounting for a quick and easy installation

Product Specifications

  • Max storage load: 15kg
  • Max screen load: 20kg
  • VESA fixings: up to 400mm x 200mm (increased to 400mm x 400mm with BT7540)
  • Product width: 432mm
  • Product depth: 150mm
  • Product height: 497mm
  • Storage area width: 416mm
  • Storage area depth: 145mm
  • Storage area height: 488mm
  • Colour: Black
  • Max storage load: 15kg
  • Max screen load: 20kg
  • VESA fixings: up to 400mm x 200mm (increased to 400mm x 400mm with BT7540)
  • Product width: 432mm
  • Product depth: 150mm
  • Product height: 497mm
  • Storage area width: 416mm
  • Storage area depth: 145mm
  • Storage area height: 488mm
  • Colour: Black

Ordering & Box Information

Order Code: BT7882/B

Barcode: 5019318301773

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 9.60kg

Order Code: BT7882/B

Barcode: 5019318301773

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 9.60kg
