BT8226-HWP

Vantage

Horizontal Wall Plate

For use with BT8226 when mounting to a stud wall

BT8226-HWP/B

Vantage

Horizontal Wall Plate

For use with BT8226 when mounting to a stud wall

Overview

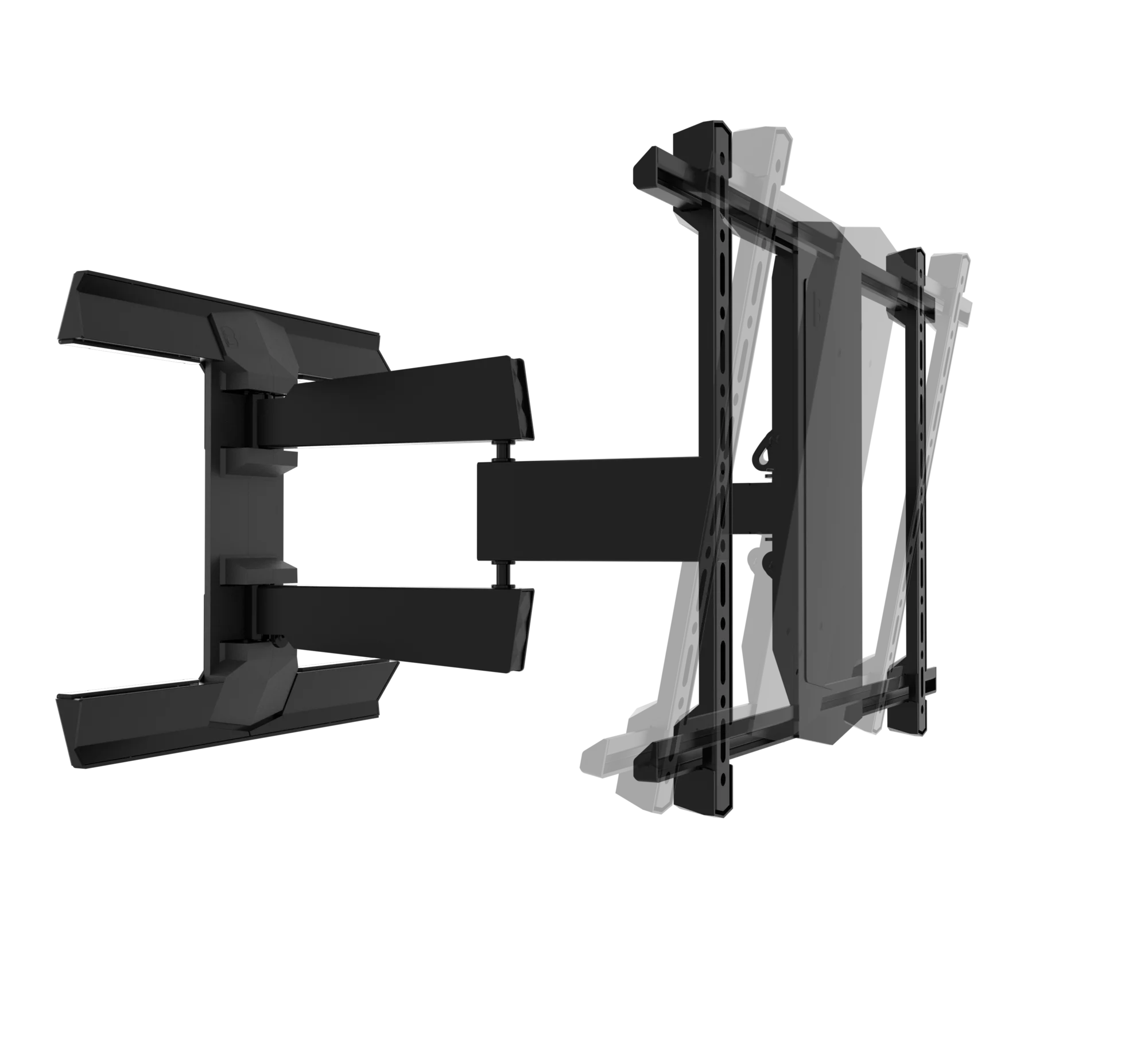

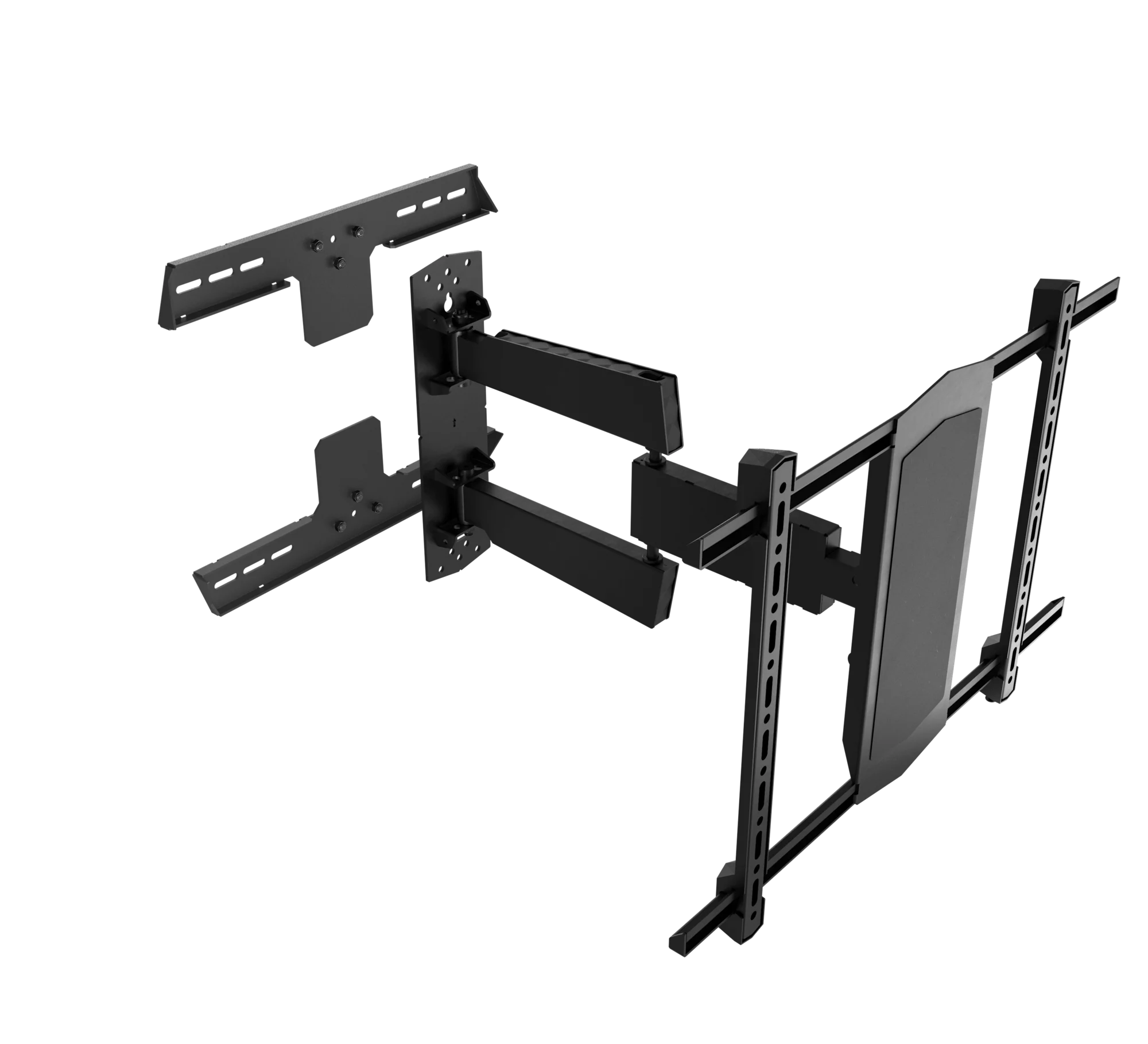

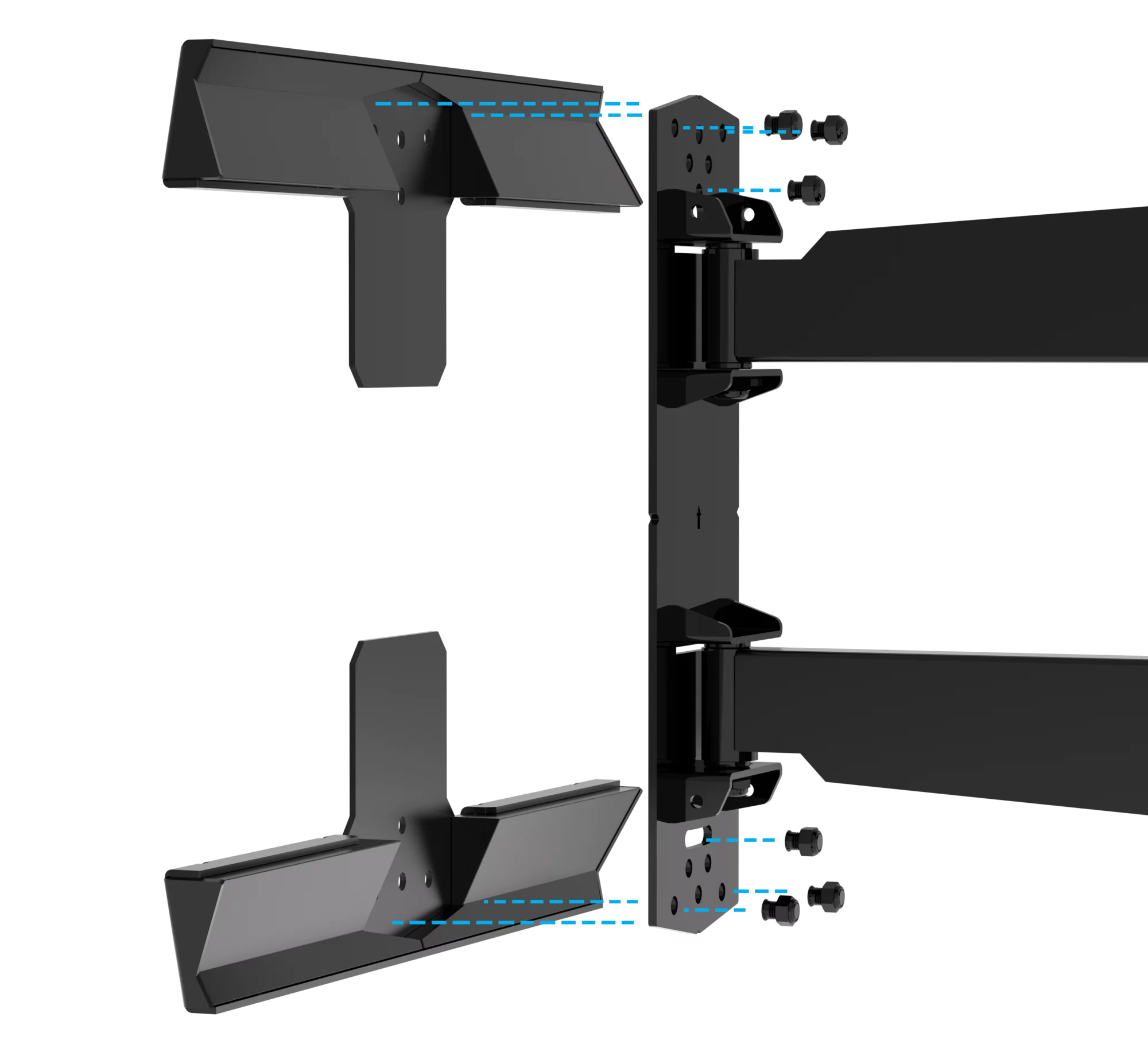

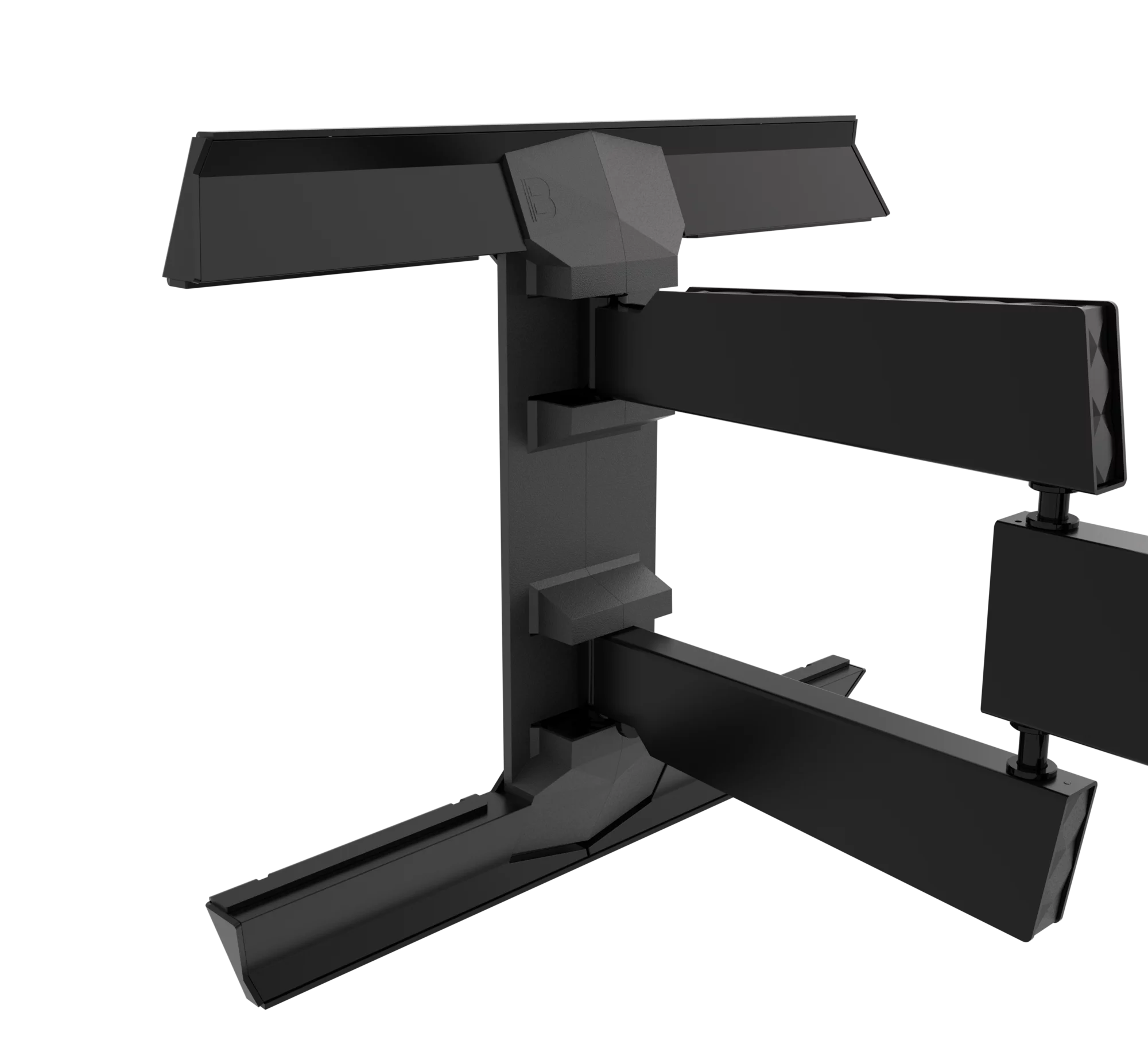

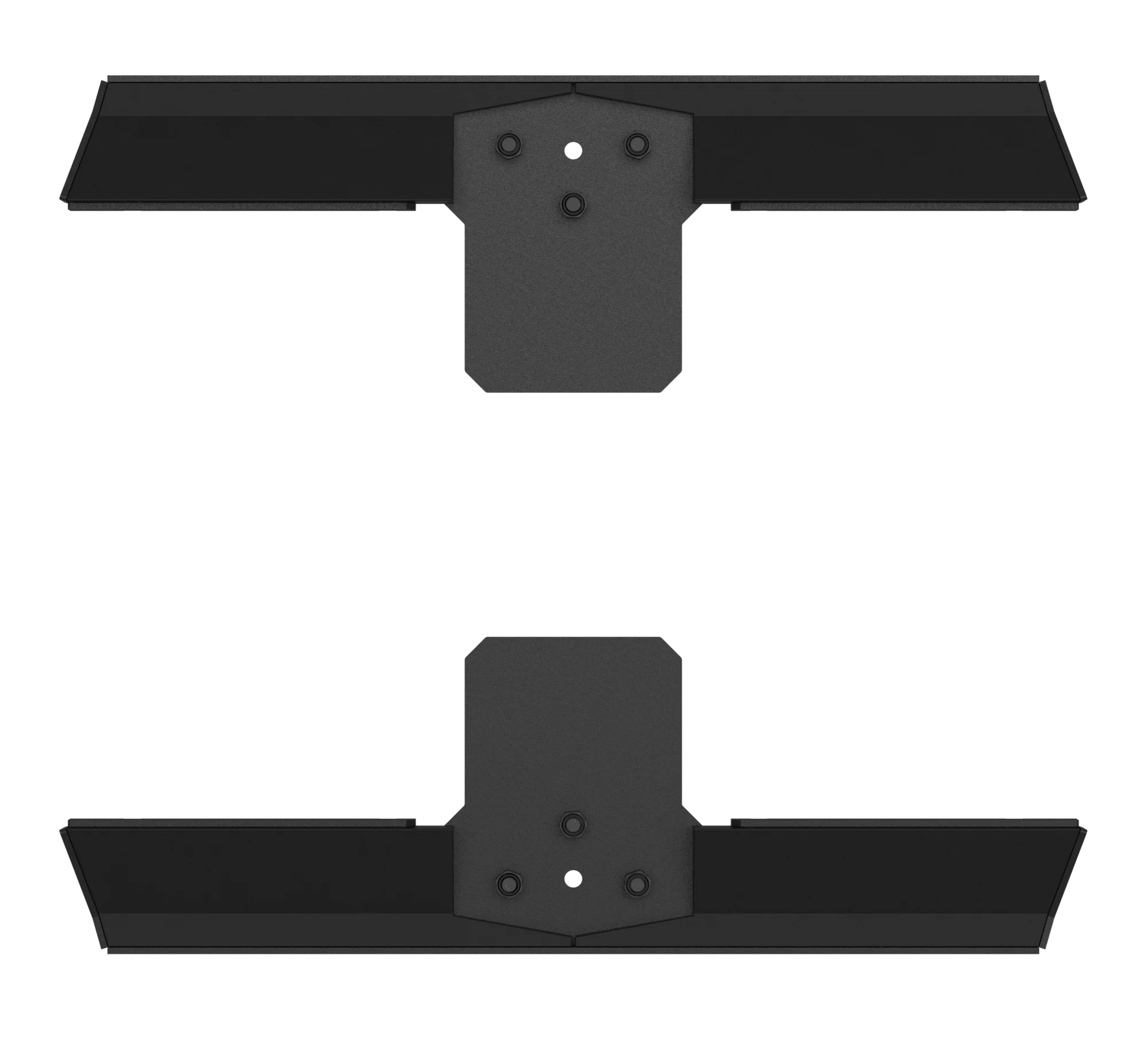

The BT8226-HWP Wall Plate Adaptor is designed for use with the BT8226 Double Arm Flat Screen Wall Mount, allowing installation along 16" (400mm) stud walls a configuration not possible with the BT8226 alone, the adaptor plate is also suitable for mounting on smaller spaced stud walls such as 12" (300mm). The adaptor includes cover plates for a clean and professional finish. All necessary fixings for attaching the BT8226 to the BT8226-HWP are supplied, along with a paper wall template to ensure accurate marking of the required holes on the chosen wall.
The BT8226-HWP Wall Plate Adaptor is designed for use with the BT8226 Double Arm Flat Screen Wall Mount, allowing installation along 16" (400mm) stud walls a configuration not possible with the BT8226 alone, the adaptor plate is also suitable for mounting on smaller spaced stud walls such as 12" (300mm). The adaptor includes cover plates for a clean and professional finish. All necessary fixings for attaching the BT8226 to the BT8226-HWP are supplied, along with a paper wall template to ensure accurate marking of the required holes on the chosen wall.

Product Features

  • Allows the BT8226 to be fitted to stud / partition walls
  • Includes cover plates for an attractive finish

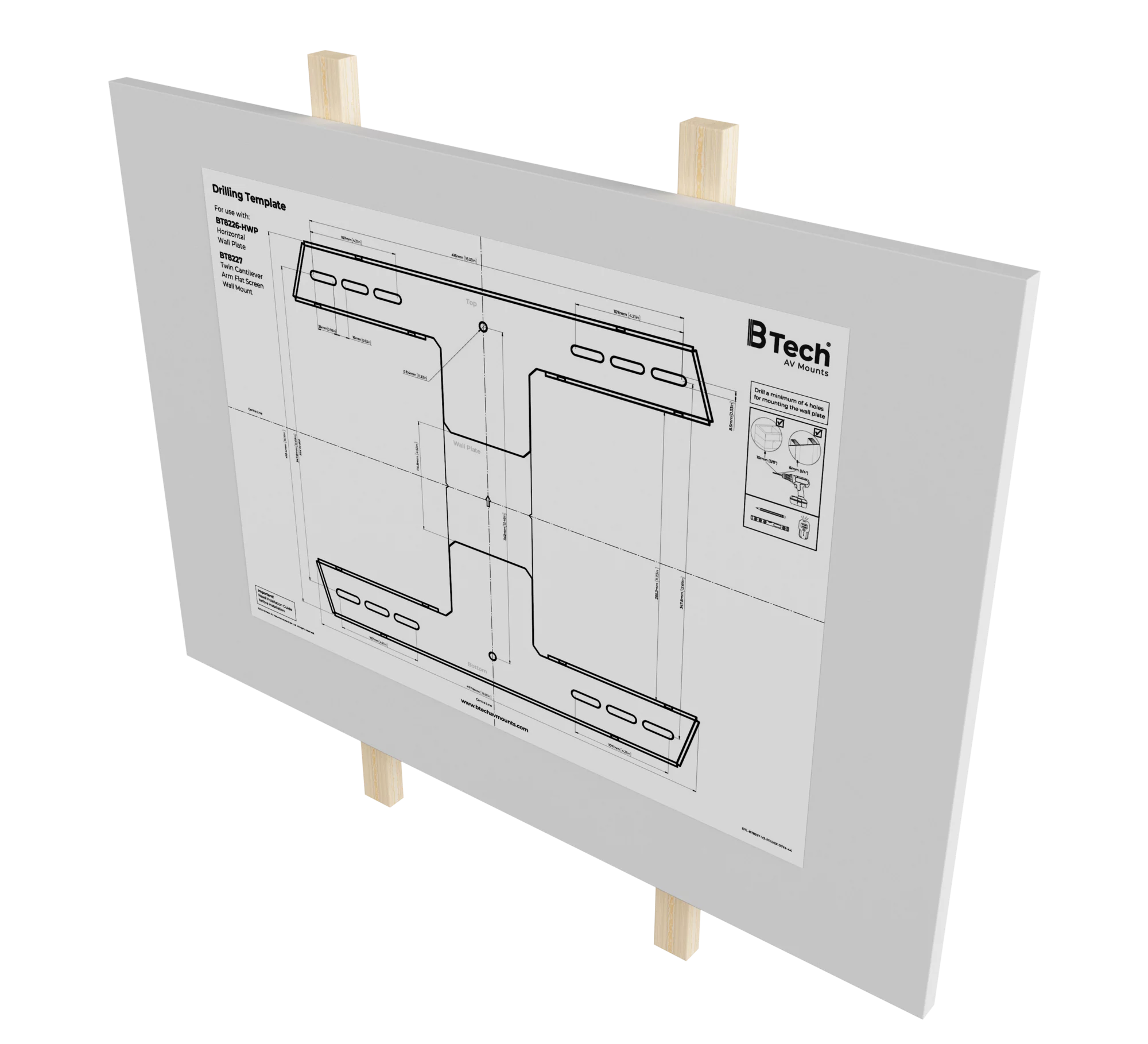

  • Includes paper wall template simple hole marking
  • All required fixings included
  • Simple installation
  • Allows the BT8226 to be fitted to stud / partition walls
  • Includes cover plates for an attractive finish
  • Includes paper wall template simple hole marking
  • All required fixings included
  • Simple installation

Product Specifications

  • Designed for use with: BT8226
  • Product width: 477.9mm
  • Product depth: 28mm
  • Product height: 410.4mm
  • For Stud / Partition spacing: 16"
  • Colour: Black
  • Designed for use with: BT8226
  • Product width: 477.9mm
  • Product depth: 28mm
  • Product height: 410.4mm
  • For Stud / Partition spacing: 16"
  • Colour: Black

Ordering & Box Information

Order Code: BT8226-HWP/B

Barcode: 5019318309038

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 2.46kg

Order Code: BT8226-HWP/B

Barcode: 5019318309038

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 2.46kg
