BT8322

Portrait Digital Signage Wall Mount

Ideal for retail installs

BT8322/B

Portrait Digital Signage Wall Mount

Ideal for retail installs

Enquire Today View Downloads

Overview

Designed for screens up to 65" in portrait orientation, the BT8322 is ideal for digital signage displays. The low-profile design mounts a screen just 36mm from the wall, can accommodate screens with VESA patterns up to 400 x 600 in portrait orientation, and can also mount screens in landscape orientation using 600 x 400 VESA patterns. BT8322 is supplied with adjustment screws that allow the screen to be levelled once mounted and safety screws feature to help prevent unauthorised screen removal.
Designed for screens up to 65" in portrait orientation, the BT8322 is ideal for digital signage displays. The low-profile design mounts a screen just 36mm from the wall, can accommodate screens with VESA patterns up to 400 x 600 in portrait orientation, and can also mount screens in landscape orientation using 600 x 400 VESA patterns. BT8322 is supplied with adjustment screws that allow the screen to be levelled once mounted and safety screws feature to help prevent unauthorised screen removal.

Product Features

  • Designed for portrait mounting, but can also be used for landscape installations if required
  • Arms feature levelling screws to adjust the screen height
  • Safety screws help prevent unauthorised removal of screens
  • Pole mounted version for ceiling, and floor mounting is available on request
  • VESA adaptors for screens with larger vertical fixings are also available
  • Simple installation with all mounting hardware included
  • Designed for portrait mounting, but can also be used for landscape installations if required
  • Arms feature levelling screws to adjust the screen height
  • Safety screws help prevent unauthorised removal of screens
  • Pole mounted version for ceiling, and floor mounting is available on request
  • VESA adaptors for screens with larger vertical fixings are also available
  • Simple installation with all mounting hardware included

Product Specifications

  • Recommended display size: 40" up to 65"
  • Max Load: 80kg
  • Fits universal patterns: up to 400mm x 600mm
  • Product width: 500mm
  • Product depth: 36mm
  • Product height: 620mm
  • Distance from wall: 36mm
  • Storage area depth: 20mm
  • Storage area height: 100mm
  • Padlock hole size diameter: 5mm
  • Orientation: Portrait
  • Colour: Black
  • Recommended display size: 40" up to 65"
  • Max Load: 80kg
  • Fits universal patterns: up to 400mm x 600mm
  • Product width: 500mm
  • Product depth: 36mm
  • Product height: 620mm
  • Distance from wall: 36mm
  • Storage area depth: 20mm
  • Storage area height: 100mm
  • Padlock hole size diameter: 5mm
  • Orientation: Portrait
  • Colour: Black

Ordering & Box Information

Order Code: BT8322/B

Barcode: 5019318306839

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 4.64kg

Order Code: BT8322/B

Barcode: 5019318306839

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 4.64kg

Downloads

BT8322 - Product Specification Sheet - English

pdf 1.33 MB

BT8322 - Product Specification Sheet - French

pdf 1.33 MB

BT8322 - Product Specification Sheet - Spanish

pdf 1.71 MB

BT8322 - Product Specification Sheet - Dutch

pdf 1.71 MB

BT8322 - Technical Drawings - (PDF)

pdf 627.65 KB

BT8322-B-1

png 51.90 KB

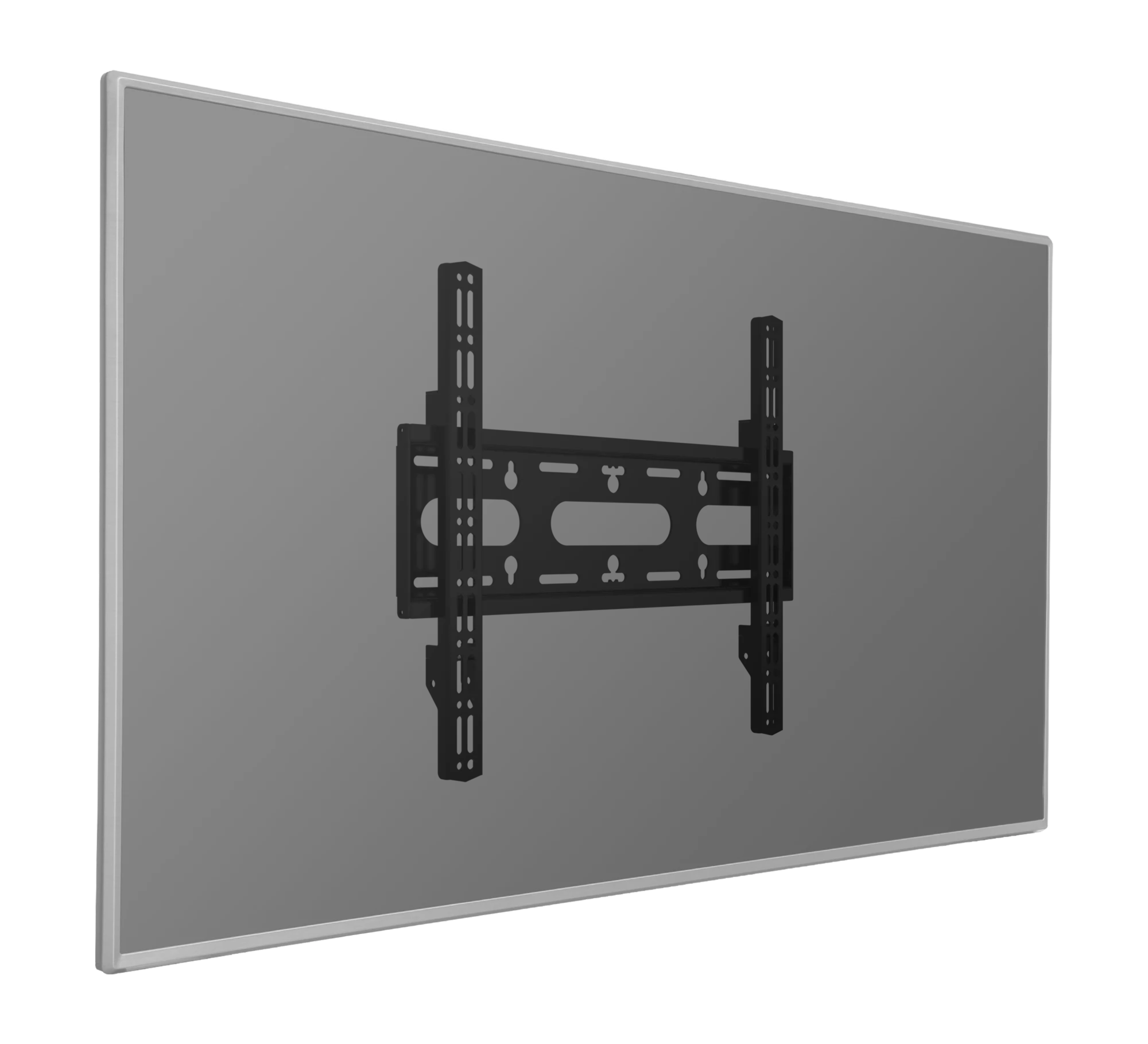

BT8322-B-10
