BT8330

System X

Universal Menu Board Mounting System

For wall mounting menu boards

BT8330/B

System X

Universal Menu Board Mounting System

For wall mounting menu boards

Enquire Today View Downloads

Overview

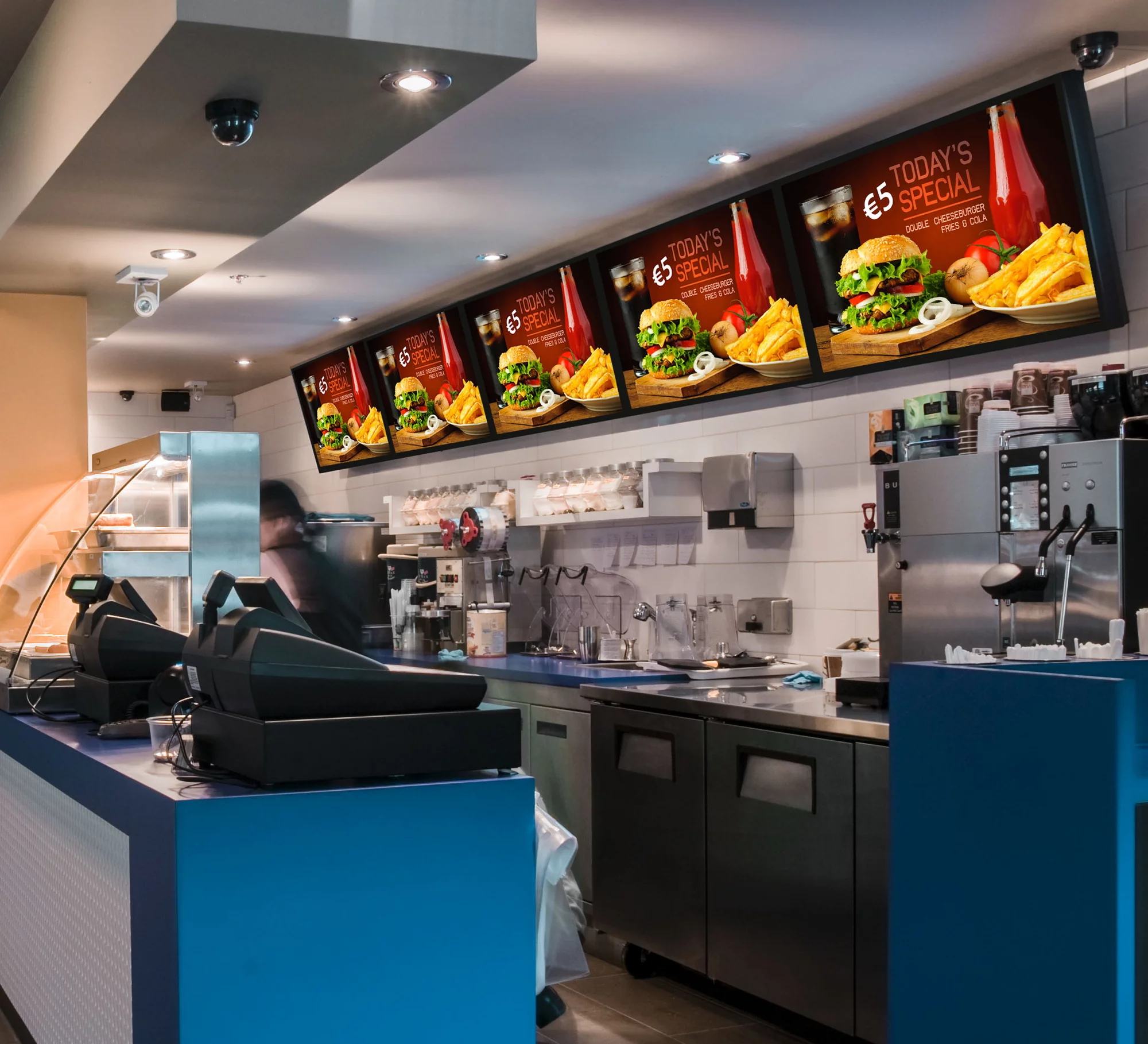

The BT8330 is a modular wall mounting system for single rail menu board installations of any size. The BT8330 can mount screens in landscape or portrait orientations with the option for tilt adjustment up to +20° for enhanced overhead visibility, perfect for fast food restaurants. As part of the System X range, the BT8330 can be used in thousands of different configurations and must be ordered according to your requirements using B-Tech's online configuration tool.
The BT8330 is a modular wall mounting system for single rail menu board installations of any size. The BT8330 can mount screens in landscape or portrait orientations with the option for tilt adjustment up to +20° for enhanced overhead visibility, perfect for fast food restaurants. As part of the System X range, the BT8330 can be used in thousands of different configurations and must be ordered according to your requirements using B-Tech's online configuration tool.

Product Features

  • Universal design suitable for all sized screens up to 50kg (per screen)
  • High-end aesthetic quality
  • Suitable for landscape or portrait mounting

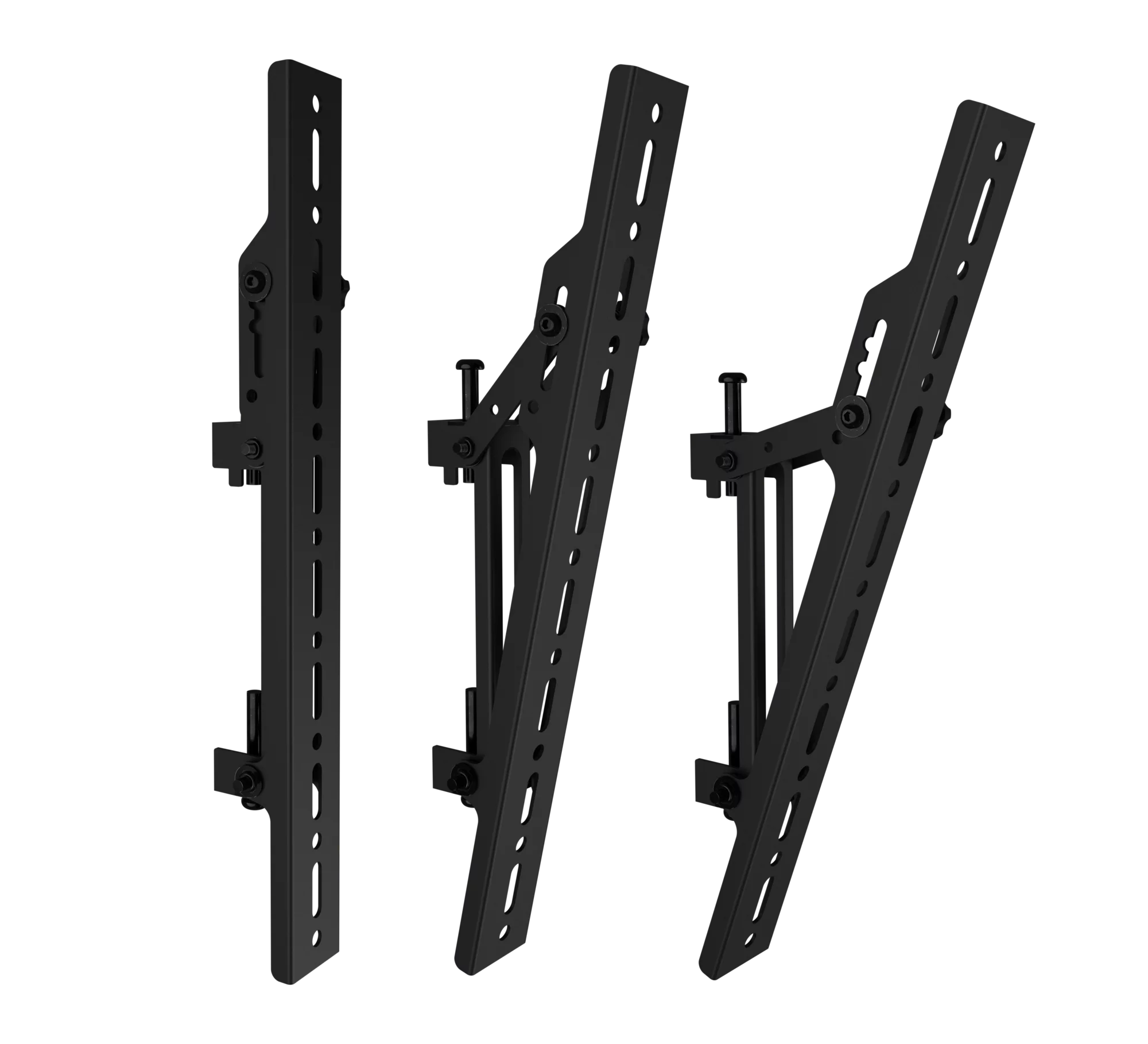

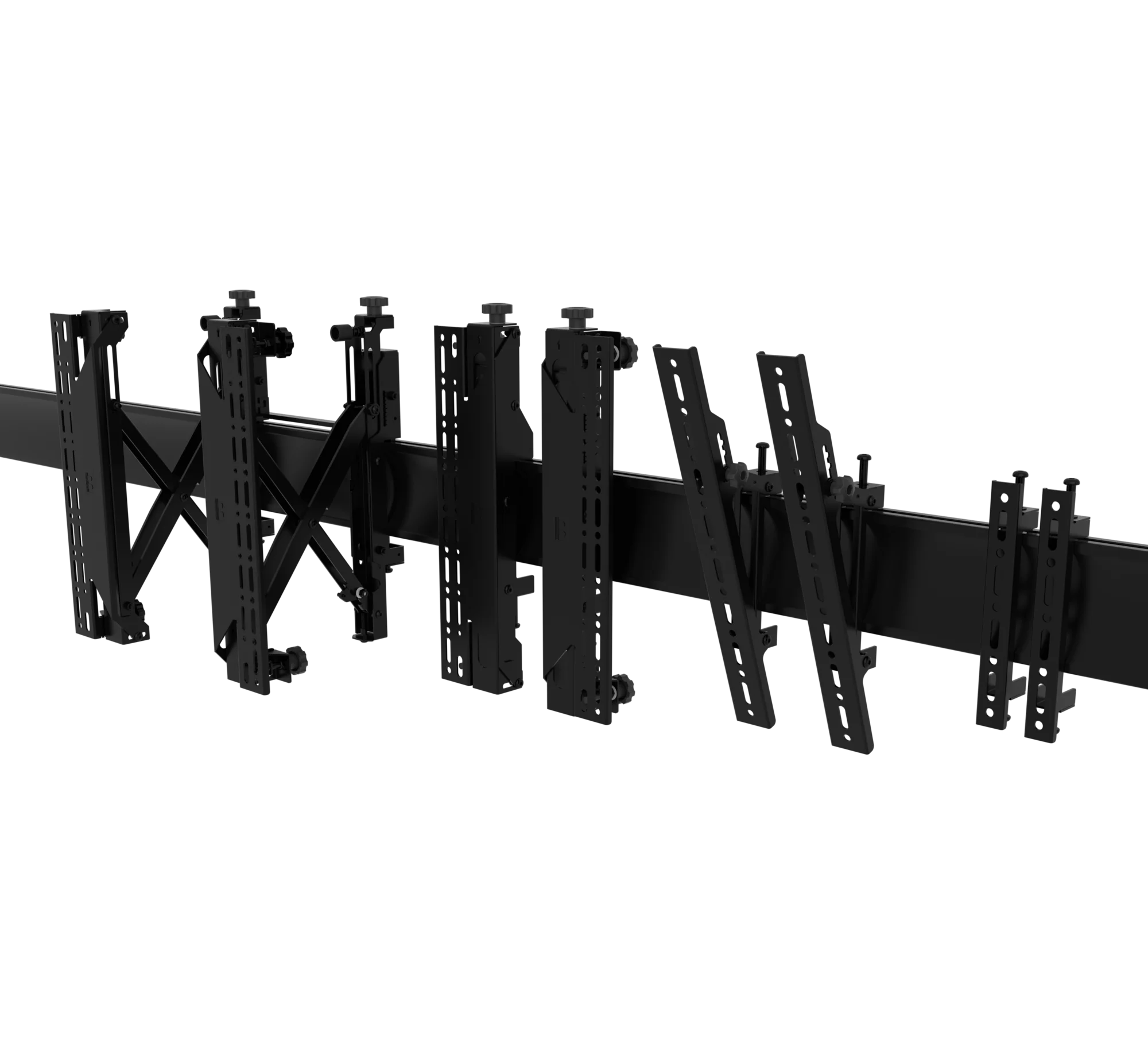

  • Choice of fixed or tilting interface arms available to suit a range of installs
  • Can be used with BT8390-VESA400MAF micro-adjusment arms if desired
  • Can be used to mount XXL screens with vertical fixings of 800mm*
  • All arms feature levelling screws to adjust the screen height

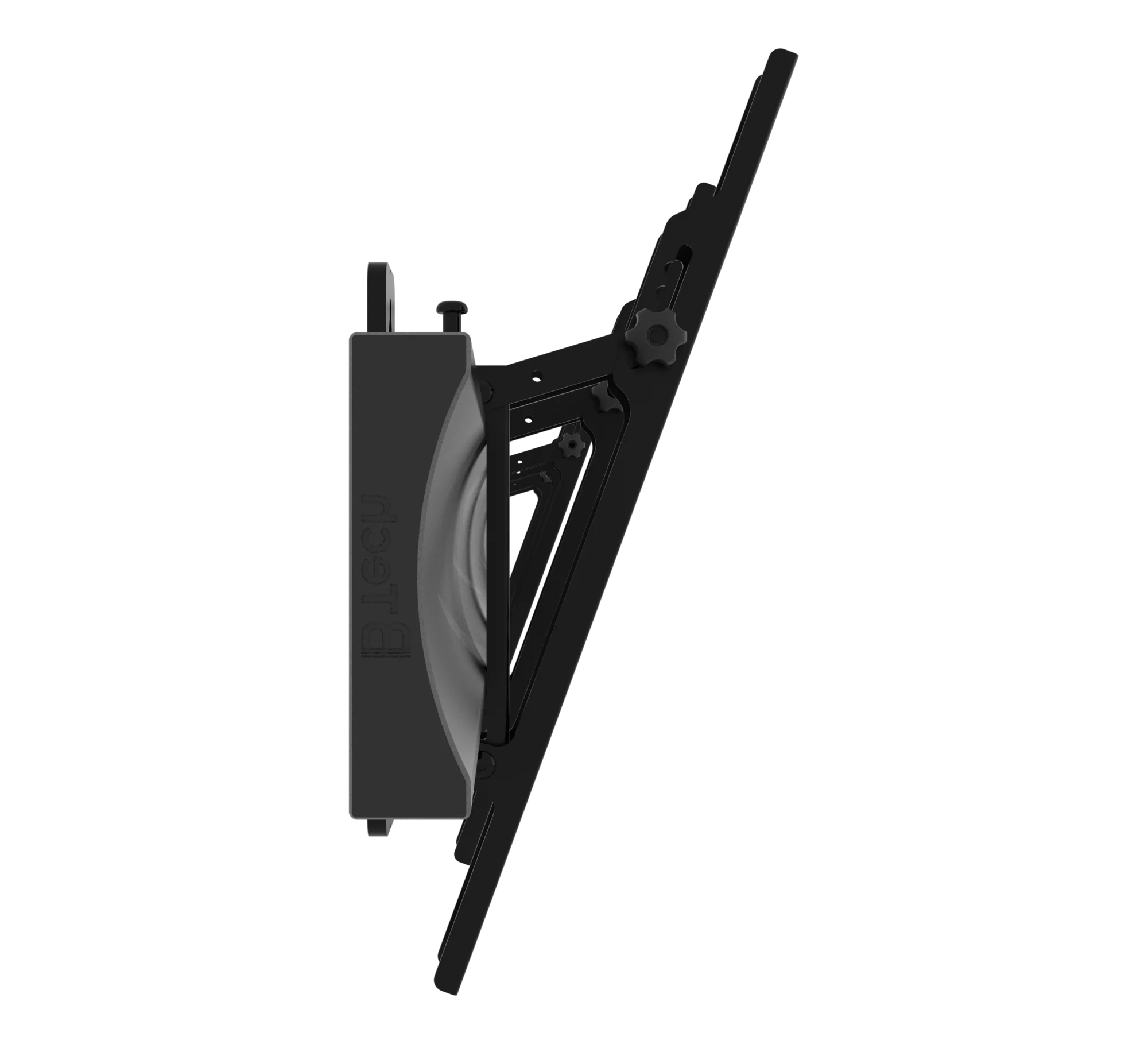

  • Tilting arms feature up to +20° tilt adjustment for enhanced overhead visibility

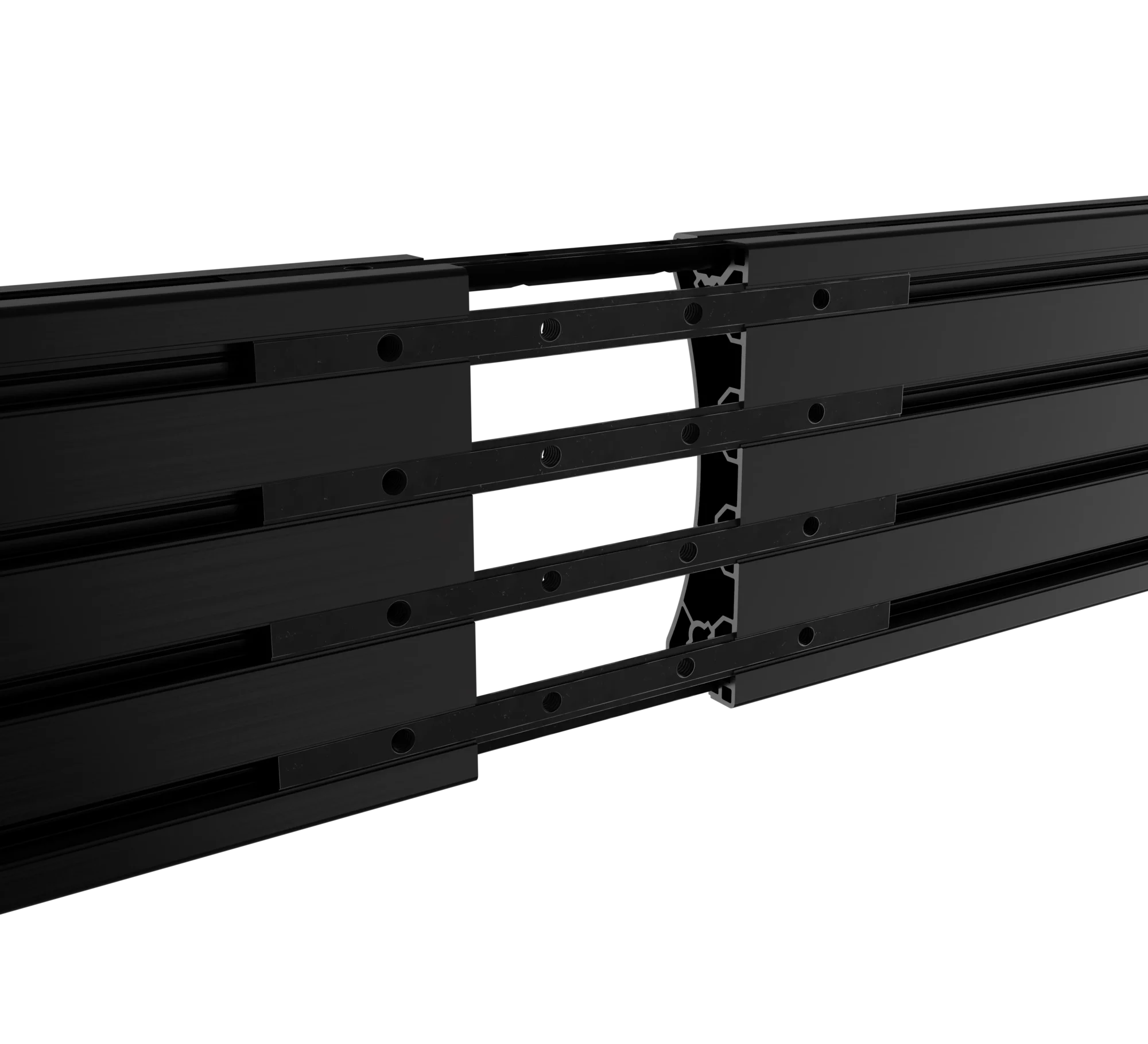

  • Multiple rail lengths available (rails can be also be joined)
  • Additional adaptor arms available to increase VESA mounting options
  • *Please see the BT8390-VESA800F interface arms on our website or contact your local sales representative for more details.
  • Universal design suitable for all sized screens up to 50kg (per screen)
  • High-end aesthetic quality
  • Suitable for landscape or portrait mounting
  • Choice of fixed or tilting interface arms available to suit a range of installs
  • Can be used with BT8390-VESA400MAF micro-adjusment arms if desired
  • Can be used to mount XXL screens with vertical fixings of 800mm*
  • All arms feature levelling screws to adjust the screen height
  • Tilting arms feature up to +20° tilt adjustment for enhanced overhead visibility
  • Multiple rail lengths available (rails can be also be joined)
  • Additional adaptors available to increase VESA fixings
  • *Please see the BT8390-VESA800F interface arms on our website or contact your local sales representative for more details.

Product Specifications

  • Recommended display size: 32" up to 75"
  • Max load: 50kg (per screen)
  • VESA fixings: up to 900mm*
  • Tilt (tilt arms only): +20°
  • Distance from wall (fixed arms): 48mm **
  • Distance from wall (tilt arms): 58.4mm
  • Distance from wall (micro-adjustment arms): 86mm (+/-10mm)
  • Orientation: Landscape, Portrait
  • Colour: Black
  • *Refers to maximum vertical fixing dimension for a typical configuration. Correctly sized interface arms & adaptors will be supplied as necessary to suit the mounting pattern you require.
  • **Please see the BT8390-VESA800F interface arms on our website or contact your local sales representative for more details.
  • Recommended display size: 32" up to 75"
  • Max load: 50kg (per screen)
  • VESA fixings: up to 900mm*
  • Tilt (tilt arms only): +20°
  • Distance from wall (fixed arms); 48mm **
  • Distance from wall (tilt arms): 58.4mm
  • Distance from wall (micro-adjustment arms): 86mm (+/-10mm)
  • Orientation: Landscape, Portrait
  • Colour: Black
  • *Refers to maximum vertical fixing dimension for a typical configuration. Correctly sized interface arms & adaptors will be supplied as necessary to suit the mounting pattern you require.
  • **Please see the BT8390-VESA800F interface arms on our website or contact your local sales representative for more details.

Ordering & Box Information

Order Code: BT8330/B

Barcode: 5019318081163

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): Weight dependent on order

Order Code: BT8330/B

Barcode: 5019318081163

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): Weight dependent on order

Downloads

BT8330 - Product Specification Sheet - English

pdf 1.89 MB

BT8330 - Product Specification Sheet - French

pdf 1.89 MB

BT8330 - Product Specification Sheet - Spanish

pdf 1.95 MB

BT8330 - Product Specification Sheet - Dutch

pdf 1.94 MB

BT8330 - Installation Guide

pdf 10.17 MB

BT8330 - Technical Drawings - (PDF)

pdf 148.64 KB

BT8330-B-1

png 53.06 KB

BT8330-B-13

png 59.21 KB

BT8330-B-3

png 44.27 KB

BT8330-B-2

png 27.42 KB

BT8330-B-7

png 32.52 KB

BT8330-B-12

png 88.22 KB

BT8330-B-10

png 89.03 KB

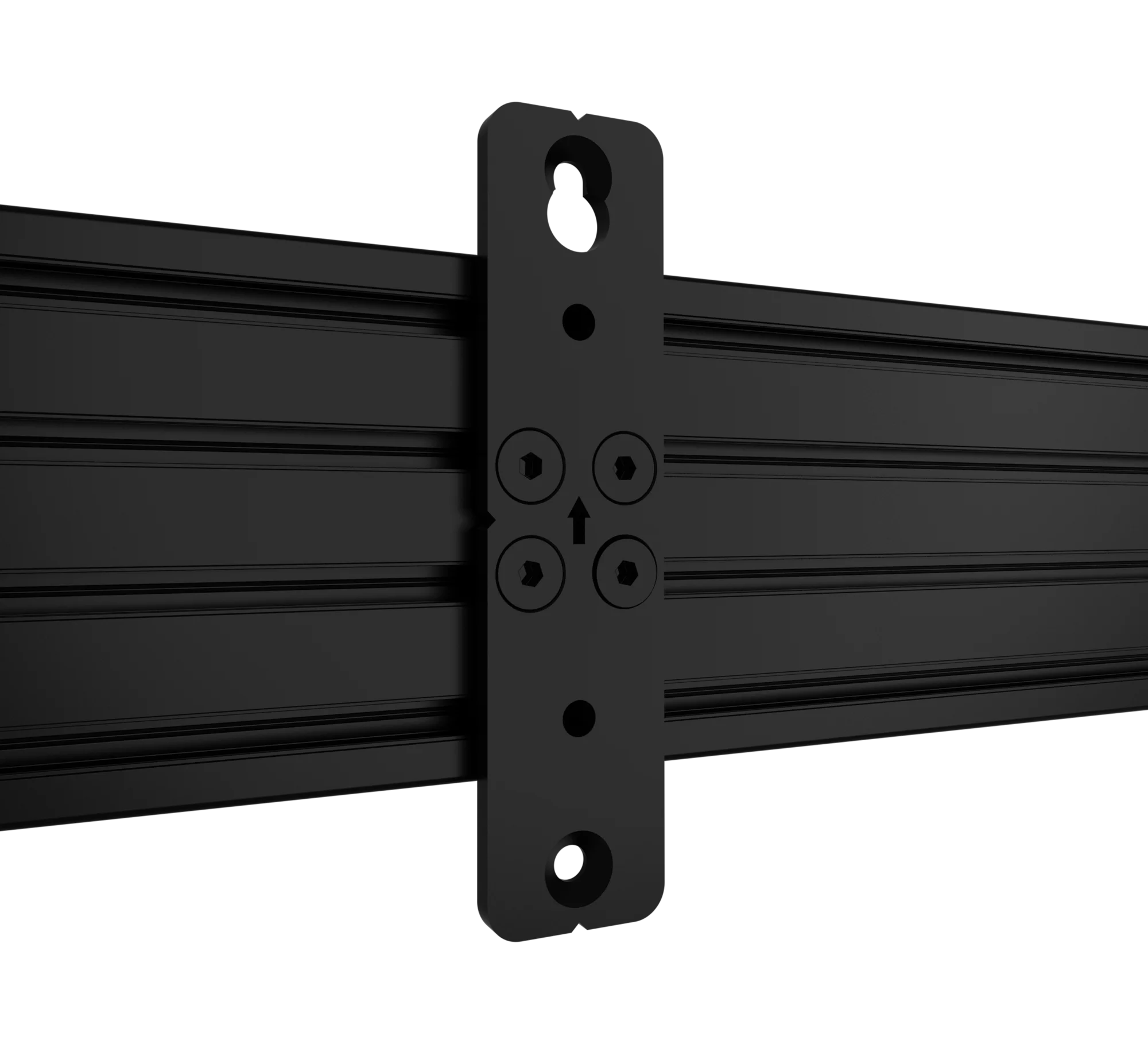

BT8330-B-9
