BT8343

System X

Universal Curved Videowall Ceiling Mount

Angle up to +/-45° per screen

BT8343/BB

System X

Universal Curved Videowall Ceiling Mount

Angle up to +/-45° per screen

Enquire Today View Downloads

Overview

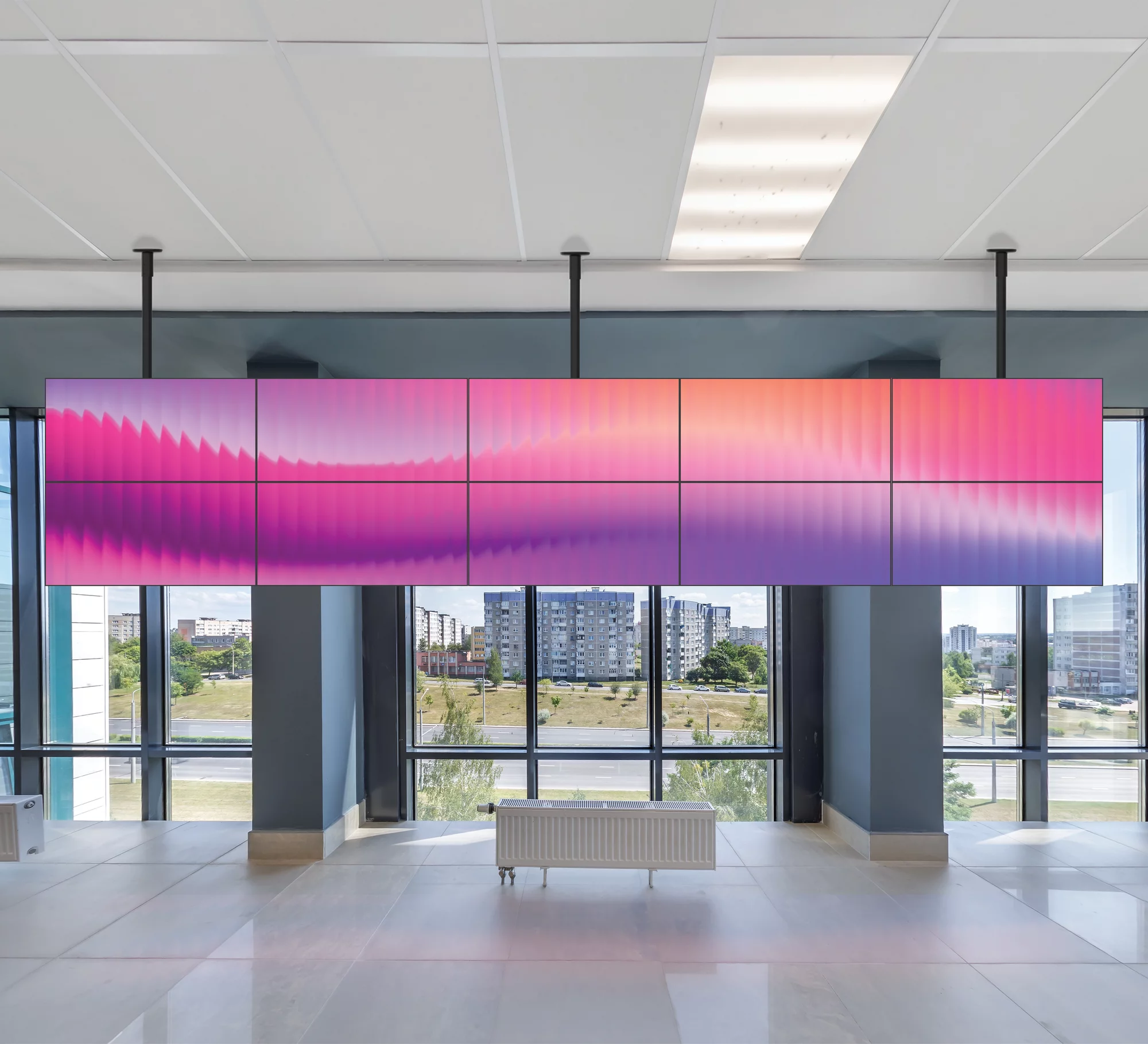

Designed to mount videowalls in curved configurations, the BT8343 is a ceiling mounted system with a universal design suitable for all screens from 39" to 75". As part of B-Tech's dynamic System X range, this contemporary mounting solution is lightweight yet incredibly strong, has a high-end aesthetic quality and comes with integrated angle guides, cable management and a choice of interface arms.
Designed to mount videowalls in curved configurations, the BT8343 is a ceiling mounted system with a universal design suitable for all screens from 39" to 75". As part of B-Tech's dynamic System X range, this contemporary mounting solution is lightweight yet incredibly strong, has a high-end aesthetic quality and comes with integrated angle guides, cable management and a choice of interface arms and ceiling drops.

Product Features

  • Configurable mounting solution available to order to your requirements from stock
  • Suitable for landscape or portrait mounting
  • Easy to use adjustable adaptor creates an angled join between screens
  • Integrated angle guides eliminate the need to measure required angles
  • Integrated rail mounting guides ensure the join position is consistent throughout the installation without the need to measure

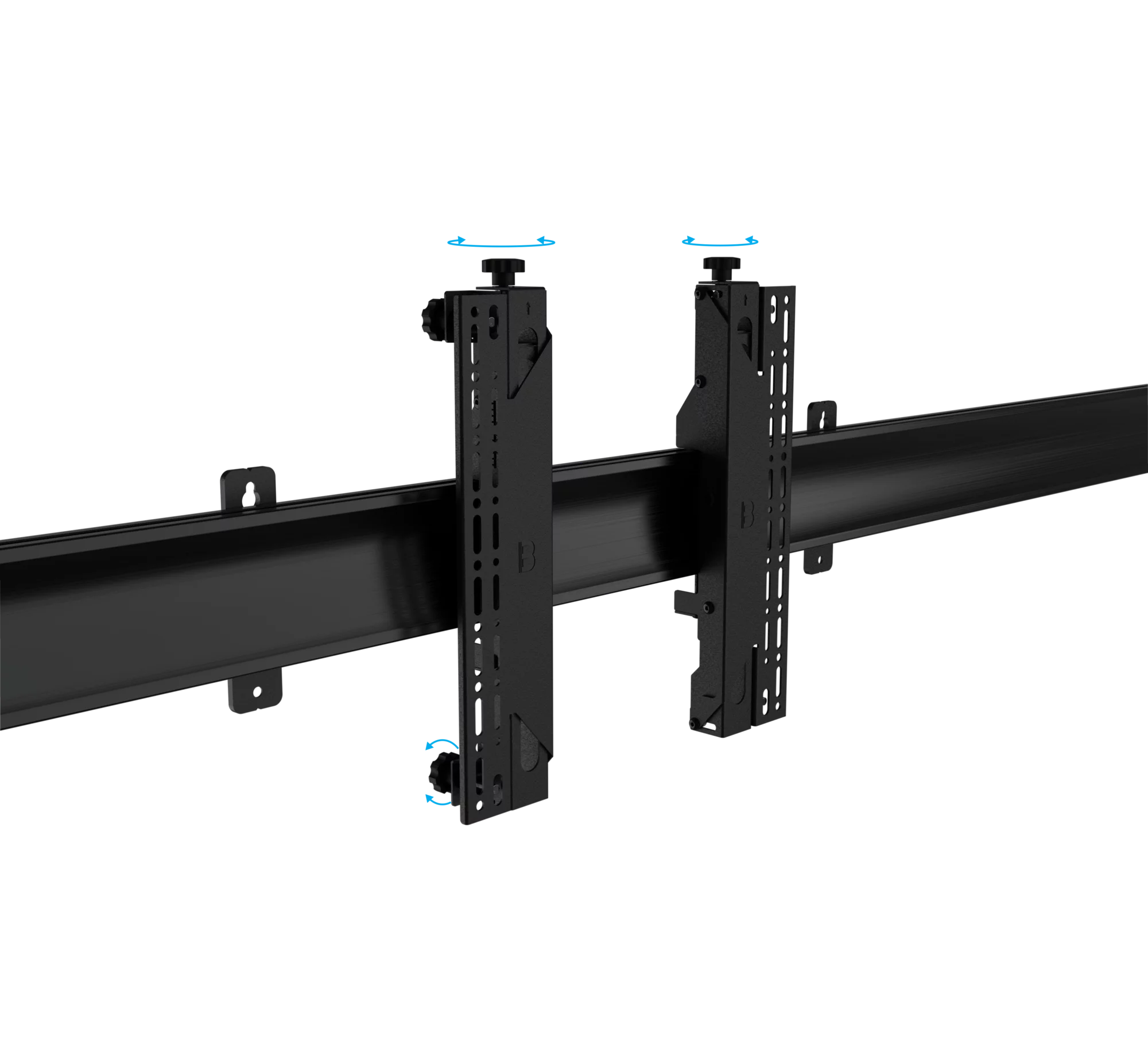

  • Tool-less micro-adjustments for seamless screen alignment
  • Arms feature levelling screws to adjust the screen height

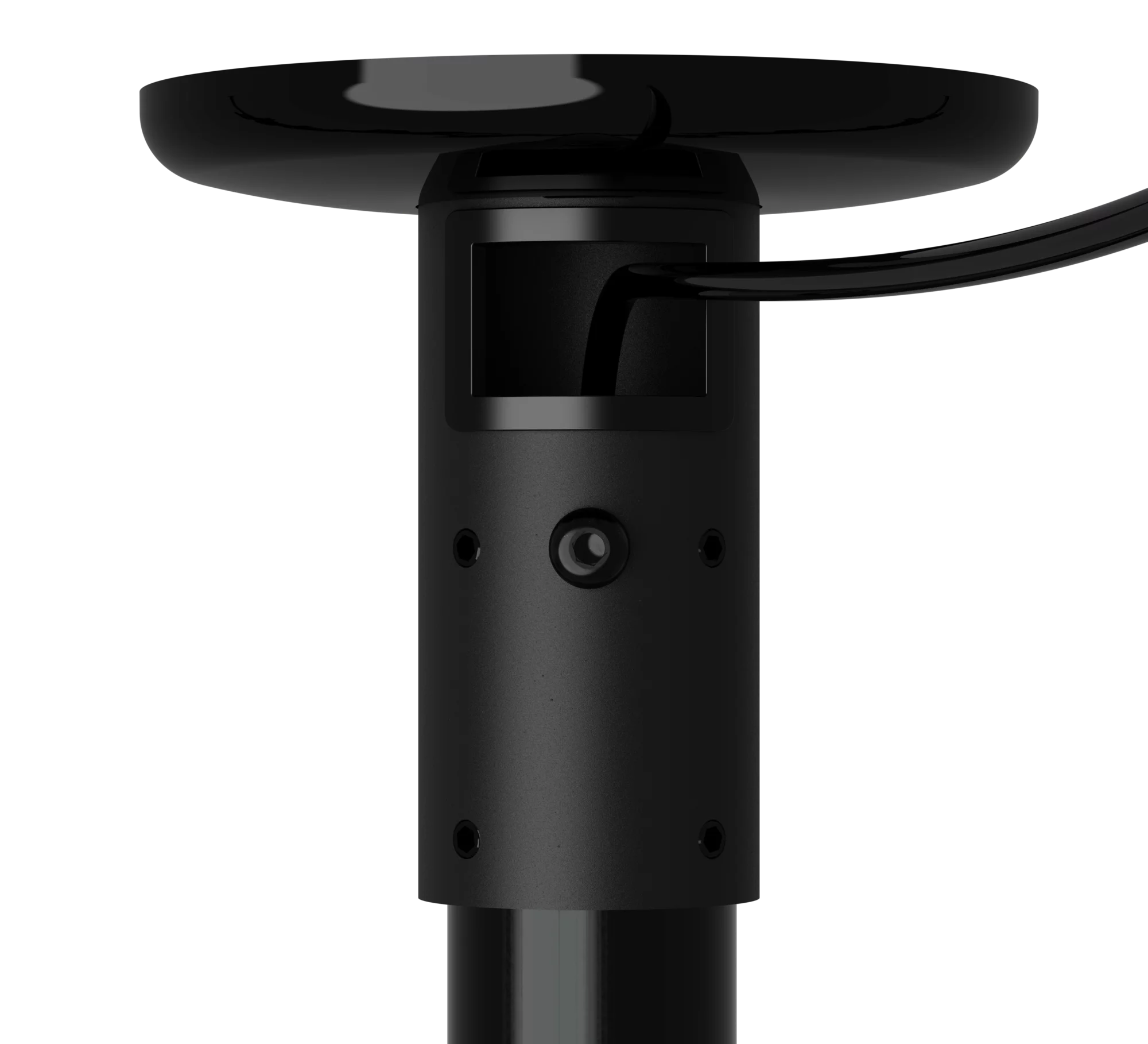

  • Integrated cable management
  • Safety screws help prevent unauthorised removal of screens
  • Simple installation with all mounting hardware included
  • Configurable mounting solution available to order to your requirements from stock
  • Suitable for landscape or portrait mounting
  • Easy to use adjustable adaptor creates an angled join between screens
  • Integrated angle guides eliminate the need to measure required angles
  • Integrated rail mounting guides ensure the join position is consistent throughout the installation without the need to measure
  • Tool-less micro-adjustments for seamless screen alignment
  • Arms feature levelling screws to adjust the screen height
  • Integrated cable management
  • Safety screws help prevent unauthorised removal of screens
  • Simple installation with all mounting hardware included

Product Specifications

  • Recommended display size: 32" up to 75"
  • Max load: 50kg per screen
  • Angle adjustment range: up to +/- 45° (between screens)
  • VESA fixings: up to 900mm *
  • Pole length: 0.5m up to 3m (can be cut to length)
  • Orientation: Landscape, Portrait
  • Colour: Black

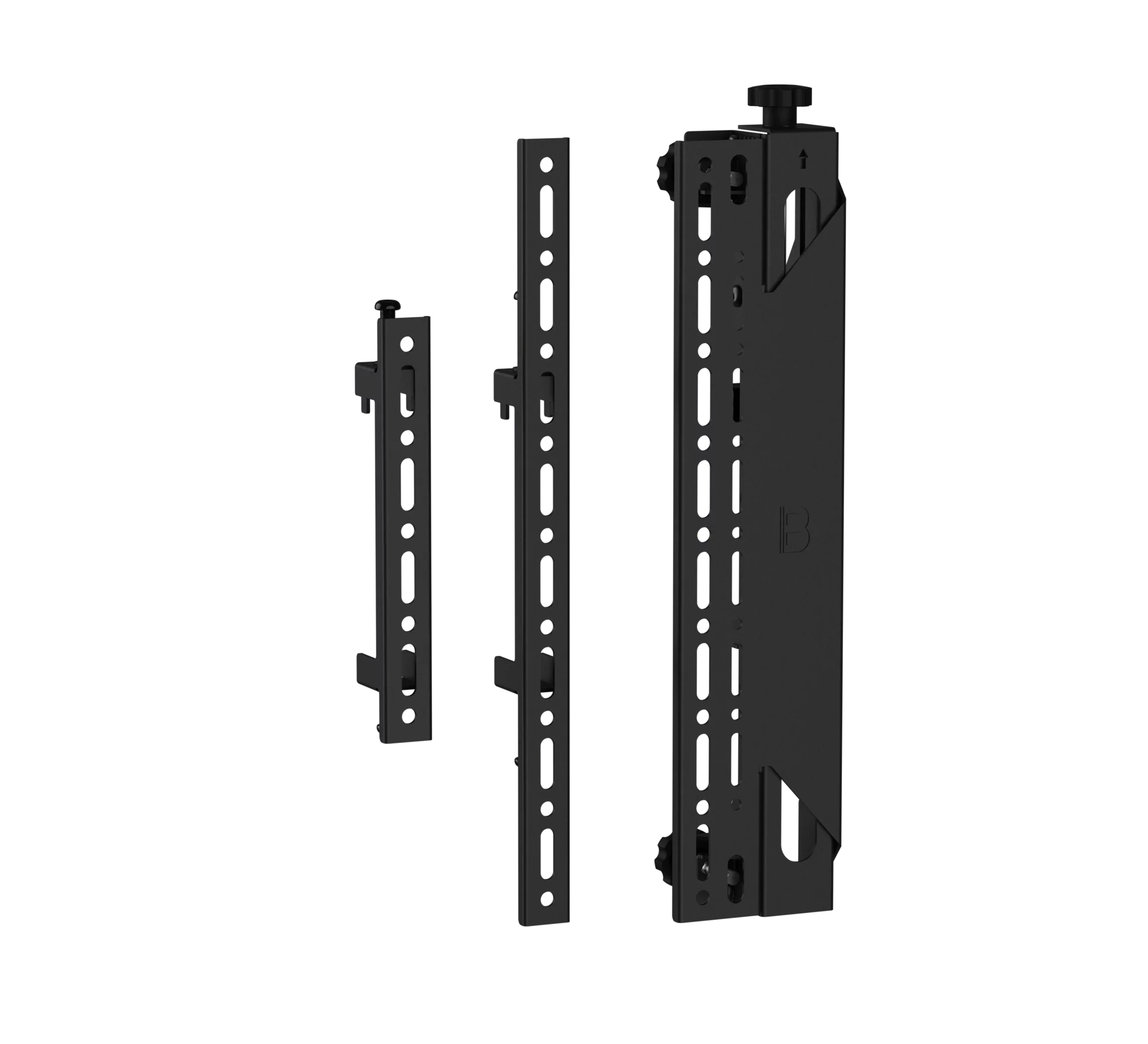

  • *VESA fixings refers to maximum vertical fixing dimension for a typical configuration. Correctly sized interface arms & adaptors will be supplied as necessary to suit the mounting pattern you require
  • Recommended display size: 32" up to 75"
  • Max load: 50kg per screen
  • Angle adjustment range: up to +/- 45° (between screens)
  • VESA fixings: up to 900mm *
  • Pole length: 0.5m up to 3m (can be cut to length)
  • Orientation: Landscape, Portrait
  • Colour: Black
  • *VESA fixings refers to maximum vertical fixing dimension for a typical configuration. Correctly sized interface arms & adaptors will be supplied as necessary to suit the mounting pattern you require

Ordering & Box Information

Order Code: BT8343/B

Barcode: 5019318301926

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): Weight dependent on order

Order Code: BT8343/BB

Barcode: 5019318301926

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): Weight dependent on order

Downloads

BT8343 - Product Specification Sheet - English

pdf 2.77 MB

BT8343 - Product Specification Sheet - French

pdf 2.73 MB

BT8343 - Installation Guide

pdf 29.17 MB

BT8343-B-1

png 78.92 KB

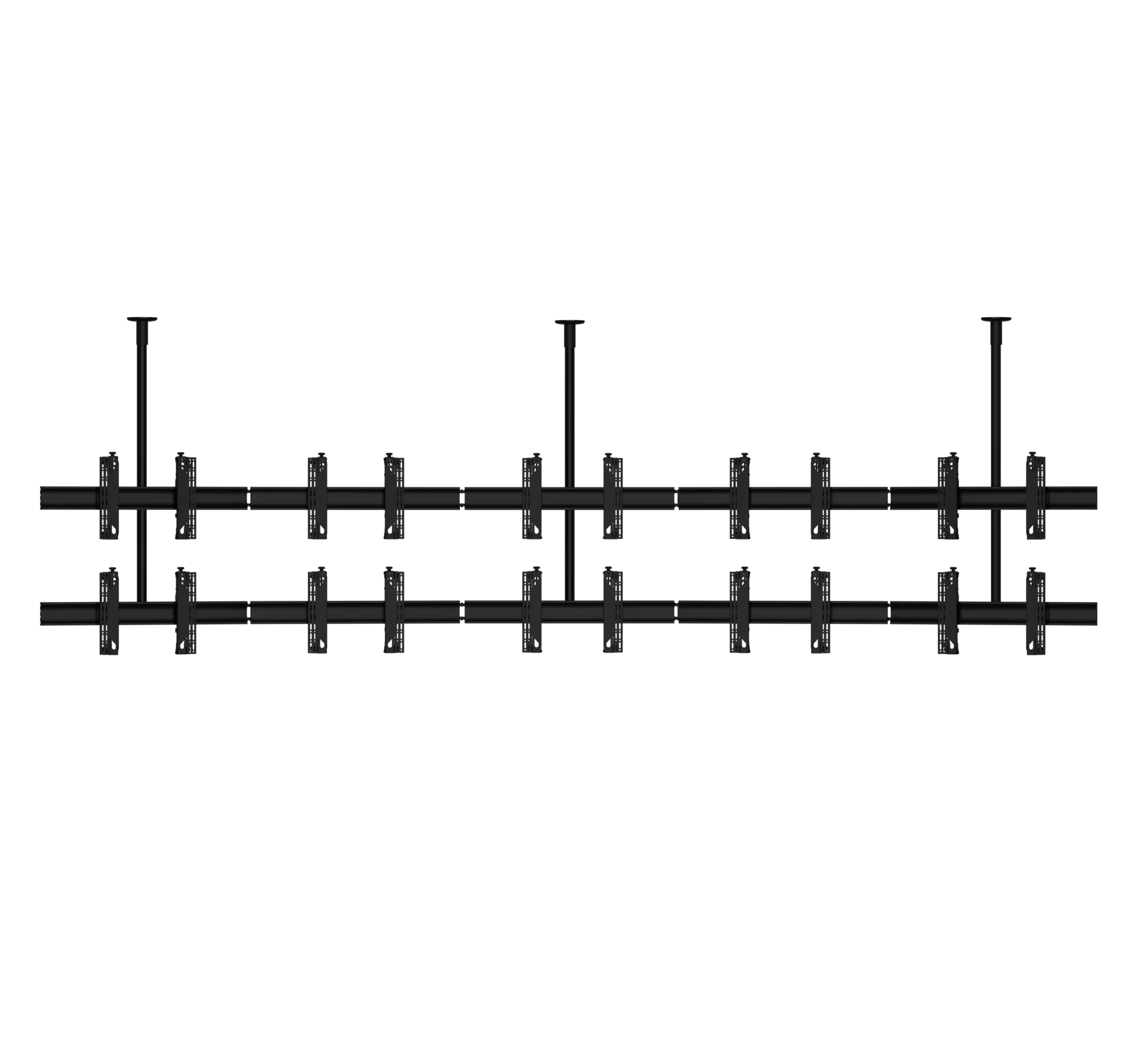

BT8343-B-2
