Home All Products Twin Column Base
Metric Imperial

BT8385-TCB

Mode-AL

Twin Column Base

Mode-AL Component Range

BT8385-TCB/B

Mode-AL

Twin Column Base

Mode-AL Component Range

Enquire Today View Downloads

Overview

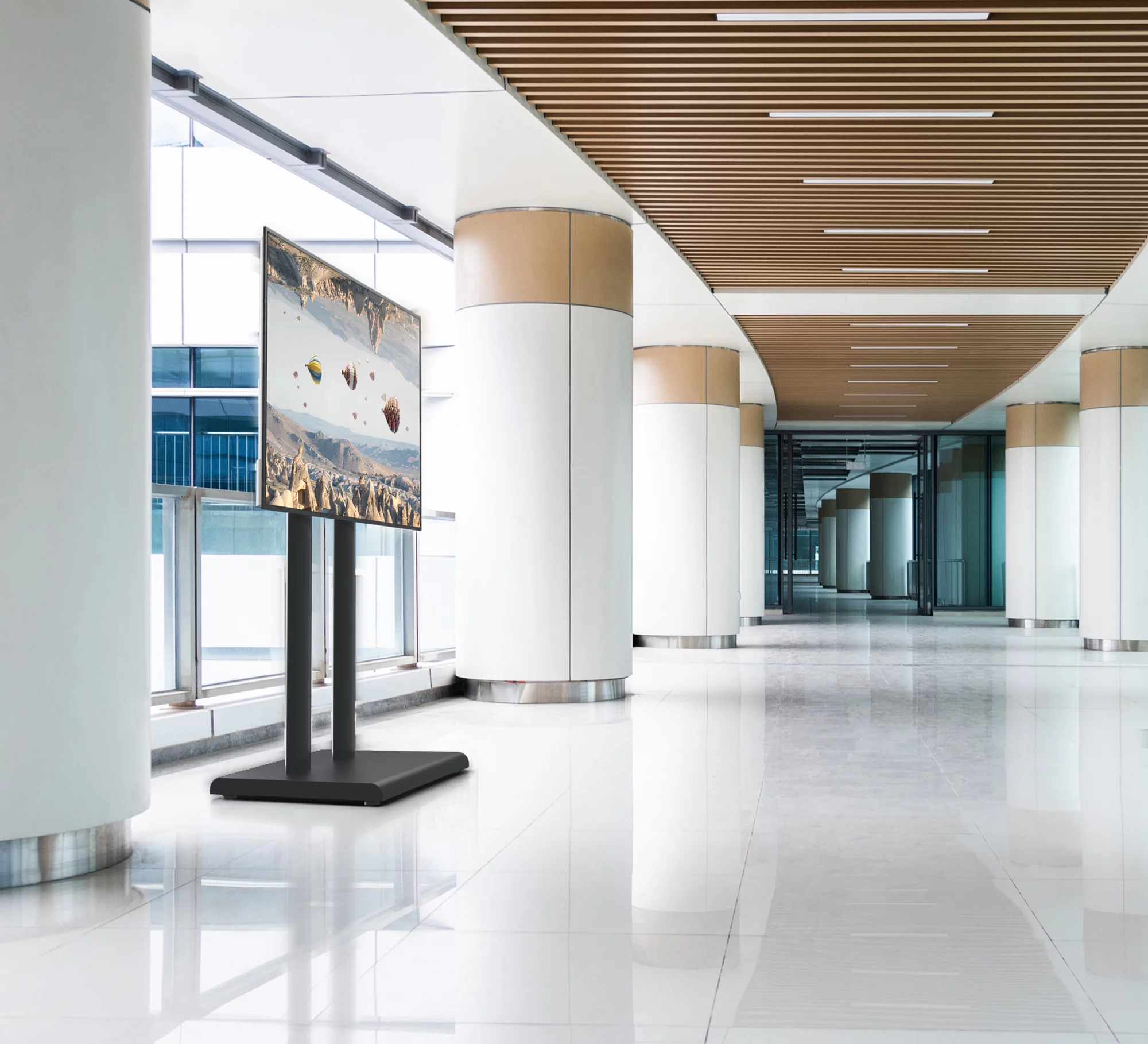

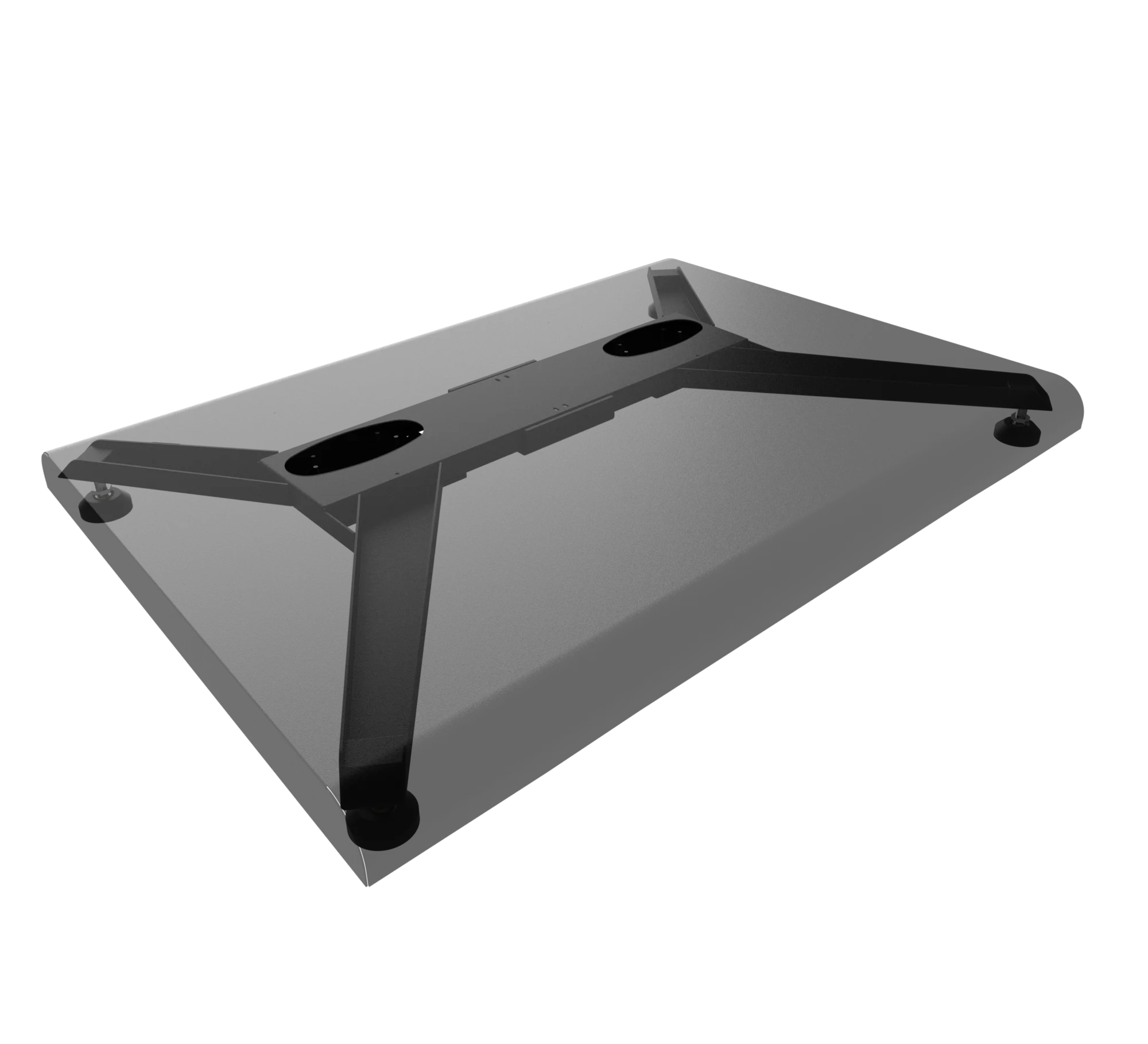

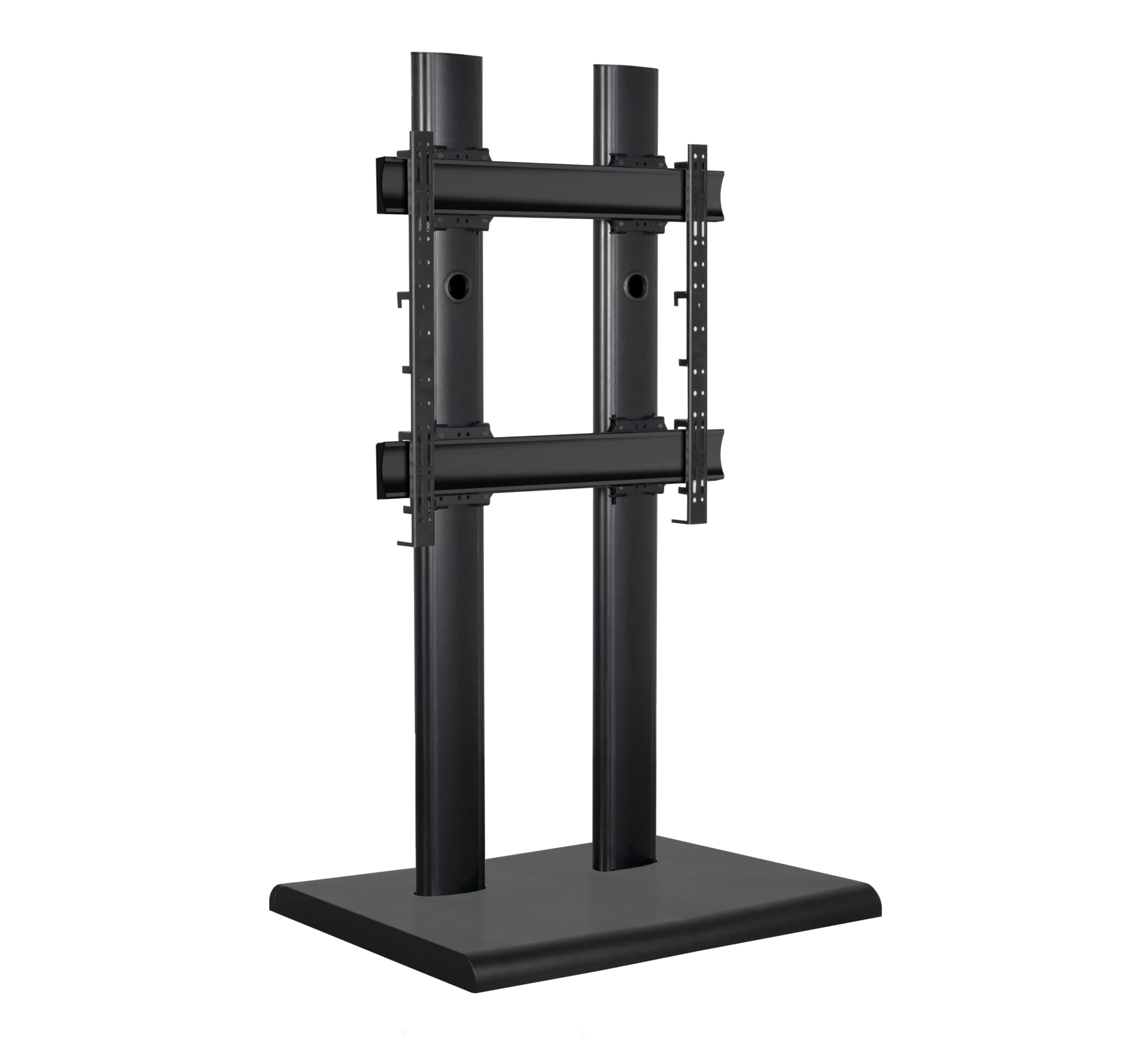

BT8385-TCB provides a sturdy base to create a freestanding mounting solution for extra-large screens or a twin screen installation. The base is supplied in two parts for easy transportation and can be quickly assembled onsite. Two BT8385 Vertical Columns fix to the base to create the basis of your installation. Supplied with adjustable levelling feet to accommodate uneven floor surfaces.
BT8385-TCB provides a sturdy base to create a freestanding mounting solution for extra-large screens or a twin screen installation. The base is supplied in two parts for easy transportation and can be quickly assembled onsite. Two BT8385 Vertical Columns fix to the base to create the basis of your installation. Supplied with adjustable levelling feet to accommodate uneven floor surfaces.

Product Features

  • Provides a sturdy base to create a freestanding single or twin screen mounting solution
  • Fixes easily to BT8385 columns

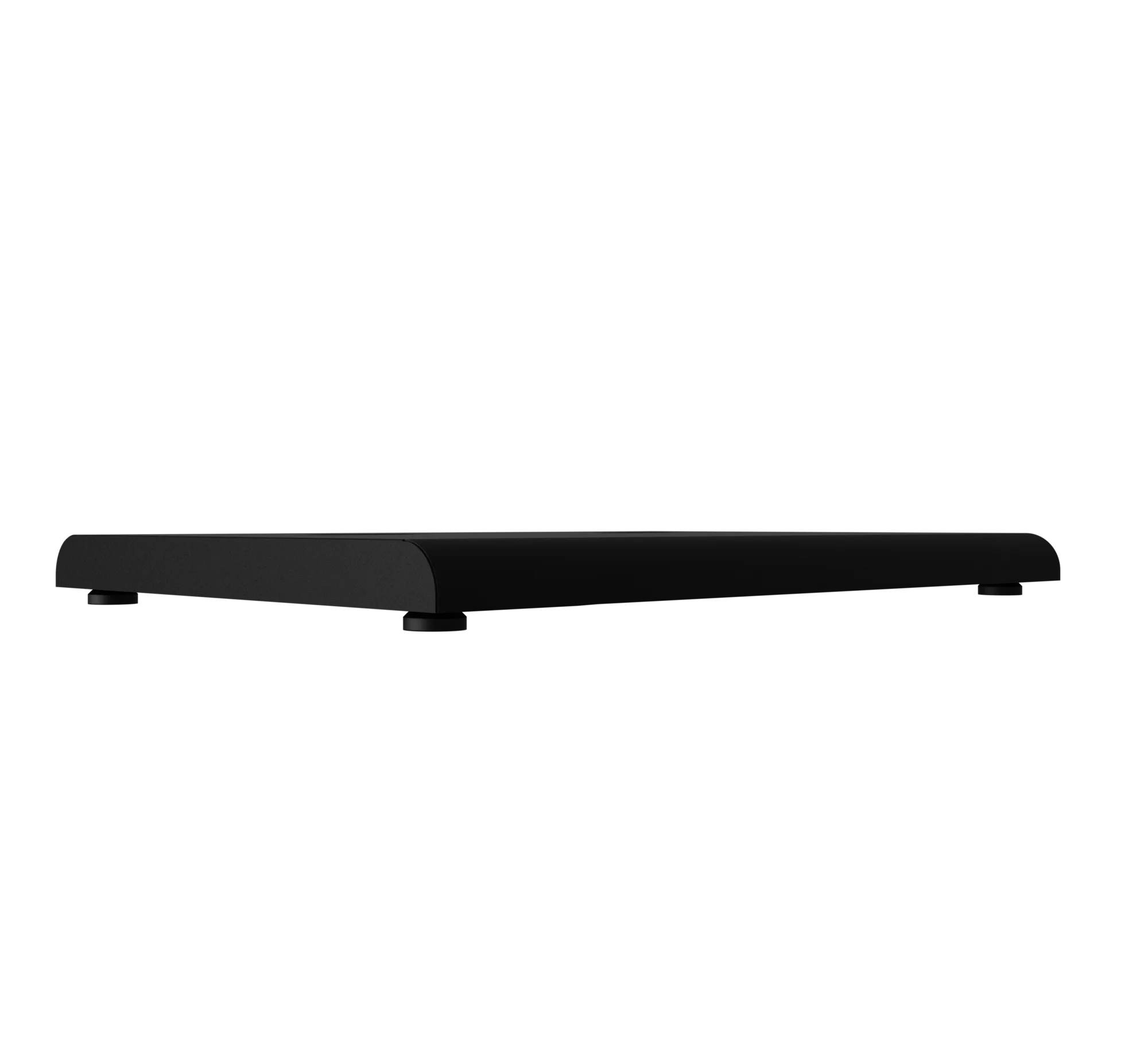

  • Includes adjustable levelling feet
  • Integrated cable management throughout the base
  • Provides a sturdy base to create a freestanding single or twin screen mounting solution
  • Fixes easily to BT8385 columns
  • Includes adjustable levelling feet
  • Integrated cable management throughout the base

Product Specifications

  • Designed for use with: BT8385 - Vertical Columns
  • Twin Screen Max load: 56kg per screen
  • Single Screen Max load: 100kg
  • Product width: 1138.7mm
  • Product depth: 786.5mm
  • Min product height: 71.5mm
  • Max product height: 81.5mm
  • Colour: Black
  • Designed for use with: BT8385 - Vertical Columns
  • Twin Screen Max load: 56kg per screen
  • Single Screen Max load: 100kg
  • Product width: 1138.7mm
  • Product depth: 786.5mm
  • Min product height: 71.5mm
  • Max product height: 81.5mm
  • Colour: Black

Ordering & Box Information

Order Code: BT8385-TCB/B

Barcode: 5019318302749

HS Code: 94032080

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 27kg

Order Code: BT8385-TCB/B

Barcode: 5019318302749

HS Code: 94032080

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 27kg

Downloads

BT8385-TCB - Installation Guide_g2clyn

pdf 2.86 MB

BT8385-TCB - Technical Drawings - (PDF)

pdf 267.24 KB

BT8385-TCB-B-1

png 55.09 KB

BT8385-TCB-B-2

png 156.84 KB

BT8385-TCB-B-3

png 16.36 KB

BT8385-TCB-B-4

png 93.09 KB

BT8385-TCB-B-5

png 51.95 KB

Downloads

BT8385-TCB - Installation Guide_g2clyn

pdf 2.86 MB

BT8385-TCB - Technical Drawings - (PDF)

pdf 267.24 KB

BT8385-TCB-B-1

png 55.09 KB

BT8385-TCB-B-2

png 156.84 KB

BT8385-TCB-B-3

png 16.36 KB

BT8385-TCB-B-4

png 93.09 KB

BT8385-TCB-B-5

png 51.95 KB
