BT8390-SA

System X

Adjustable Accessory Mounting Arm

Designed for B-Tech shelves & other AV accessory mounts

BT8390-SA/B

System X

Adjustable Accessory Mounting Arm

Designed for B-Tech shelves & other AV accessory mounts

Enquire Today View Downloads

Overview

The BT8390-SA allows B-Tech shelves, video bar mounting plates and other accessory mounts to be fitted onto System X installations, making it the ideal solution for adding a VC camera or video bar to a twin screen set-up. The arm hooks onto BT8390 mounting rails and can be positioned so that the mounted accessory is either above or below the screen(s). Featuring an adjustable extension arm that can be freely positioned anywhere along the length of the rail, the BT8390-SA is suitable for use with a large range of screen sizes.
The BT8390-SA allows B-Tech shelves, video bar mounting plates and other accessory mounts to be fitted onto System X installations, making it the ideal solution for adding a VC camera or video bar to a twin screen set-up. The arm hooks onto BT8390 mounting rails and can be positioned so that the mounted accessory is either above or below the screen(s). Featuring an adjustable extension arm that can be freely positioned anywhere along the length of the rail, the BT8390-SA is suitable for use with a large range of screen sizes.

Product Features

  • Suitable for a range of different accessory shelves and mounts
  • Allows mounted accessories to be positioned above or below the screen(s)
  • Adjustable extension arm for optimal positioning of mounted accessories
  • Ideal for VC cameras when used in conjuntion with BT7863

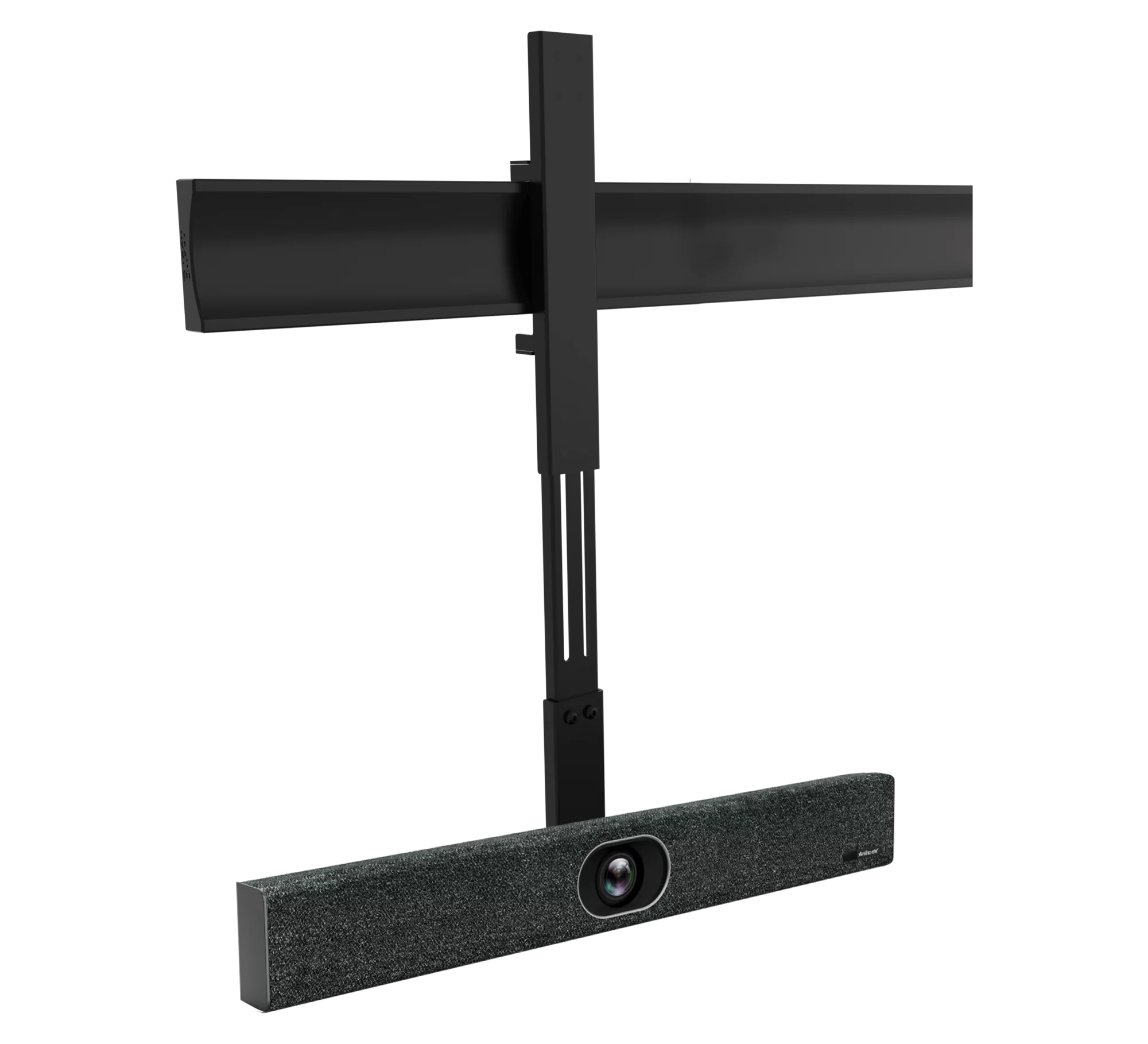

  • Ideal for video bars when used with a B-Tech mounting plate

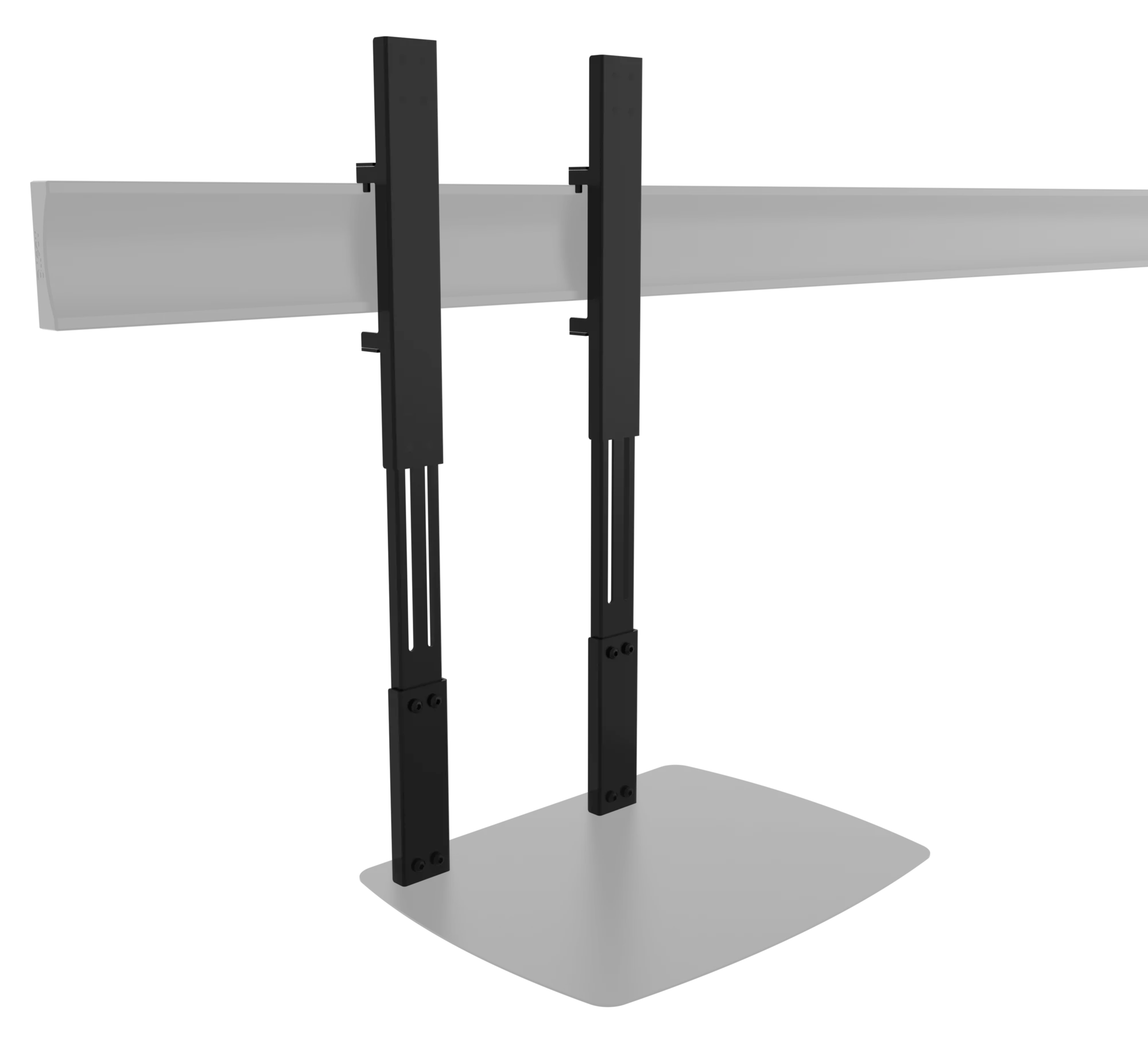

  • Large shelves such as BT7032 can be mounted using 2x BT8390-SA
  • Optional extension bar is included to increase height adjustment and accommodate larger screens
  • Simple 'hook-on' design for quick and easy installation & removal
  • *BT8390 rails and accessory mounts available separately
  • Suitable for a range of different accessory shelves and mounts
  • Allows mounted accessories to be positioned above or below the screen(s)
  • Adjustable extension arm for optimal positioning of mounted accessories
  • Ideal for VC cameras when used in conjuntion with BT7863
  • Ideal for video bars when used with a B-Tech mounting plate
  • Large shelves such as BT7032 can be mounted using 2x BT8390-SA
  • Optional extension bar is included to increase height adjustment and accommodate larger screens
  • Simple 'hook-on' design for quick and easy installation & removal
  • *BT8390 rails and accessory mounts available separately

Product Specifications

  • Max load (single adaptor): 4kg
  • Max load (when two BT8390-SA are used for large shelves): 15kg
  • Product width: 61mm
  • Product depth: 50mm
  • Min product height: 457.5mm
  • Max product height: 854mm
  • Max extension: 396mm
  • Colour: Black
  • Max load (single adaptor): 4kg
  • Max load (when two BT8390-SA are used for large shelves): 15kg
  • Product width: 61mm
  • Product depth: 50mm
  • Min product height: 457.5mm
  • Max product height: 854mm
  • Max extension: 396mm
  • Colour: Black

Ordering & Box Information

Order Code: BT8390-SA/B

Barcode: 5019318501692

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 2.30kg

Order Code: BT8390-SA/B

Barcode: 5019318501692

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 2.30kg

Downloads

BT8390-SA - Product Specification Sheet - English

pdf 1.48 MB

BT8390-SA - Product Specification Sheet - French

pdf 1.48 MB

BT8390-SA - Product Specification Sheet - Spanish

pdf 3.40 MB

BT8390-SA - Product Specification Sheet - Dutch

pdf 3.39 MB

BT8390-SA - Installation Guide

pdf 3.82 MB

BT8390-SA - Technical Drawings - (PDF)

pdf 272.79 KB

BT8390-SA-B-1

png 11.45 KB

BT8390-SA-B-2

png 9.58 KB

BT8390-SA-B-3

png 11.57 KB

BT8390-SA-B-7

png 11.55 KB

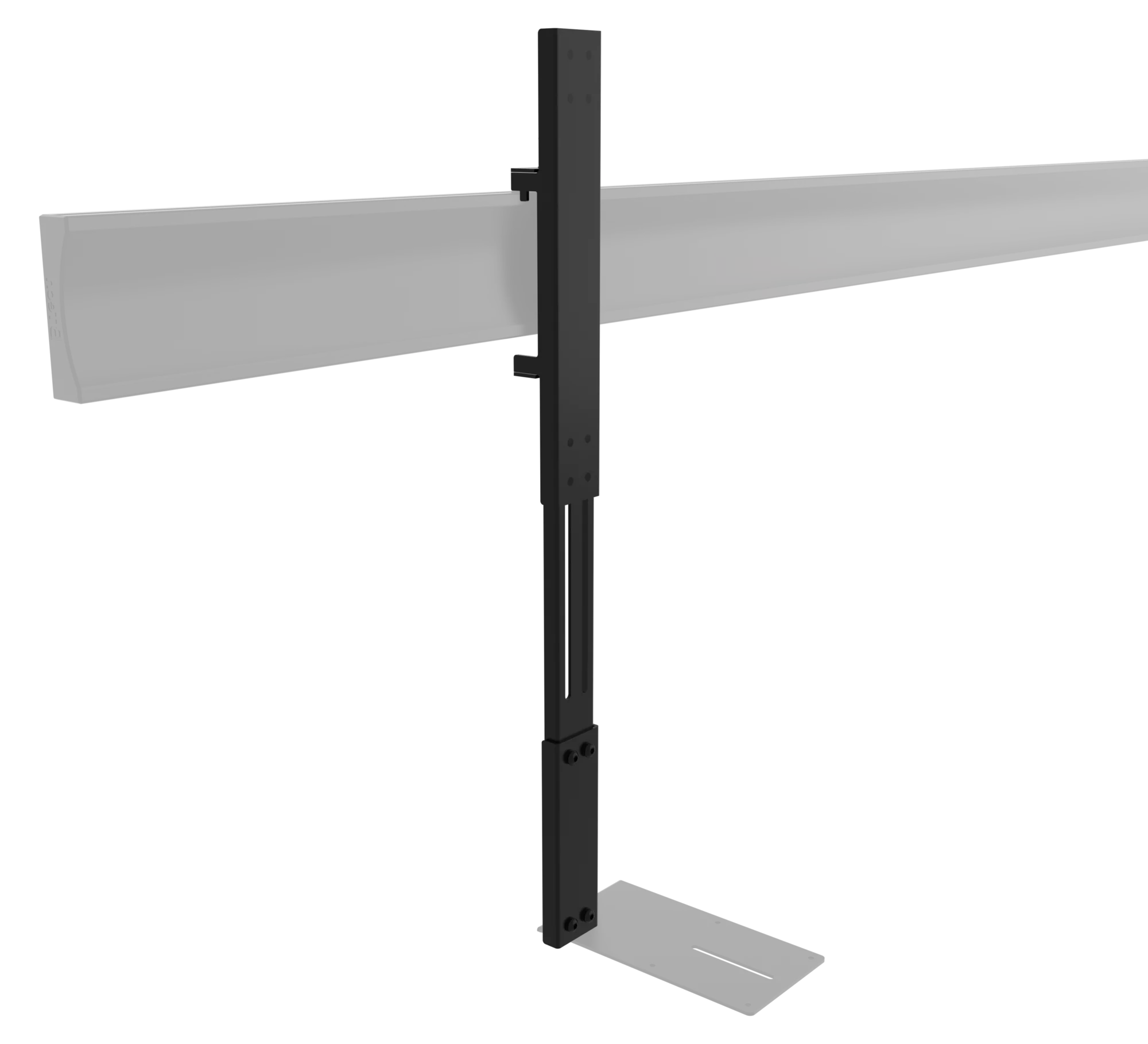

BT8390-SA-B-9

png 36.85 KB

BT8390-SA-B-11

png 45.81 KB

BT8390-SA-B-13

png 96.92 KB

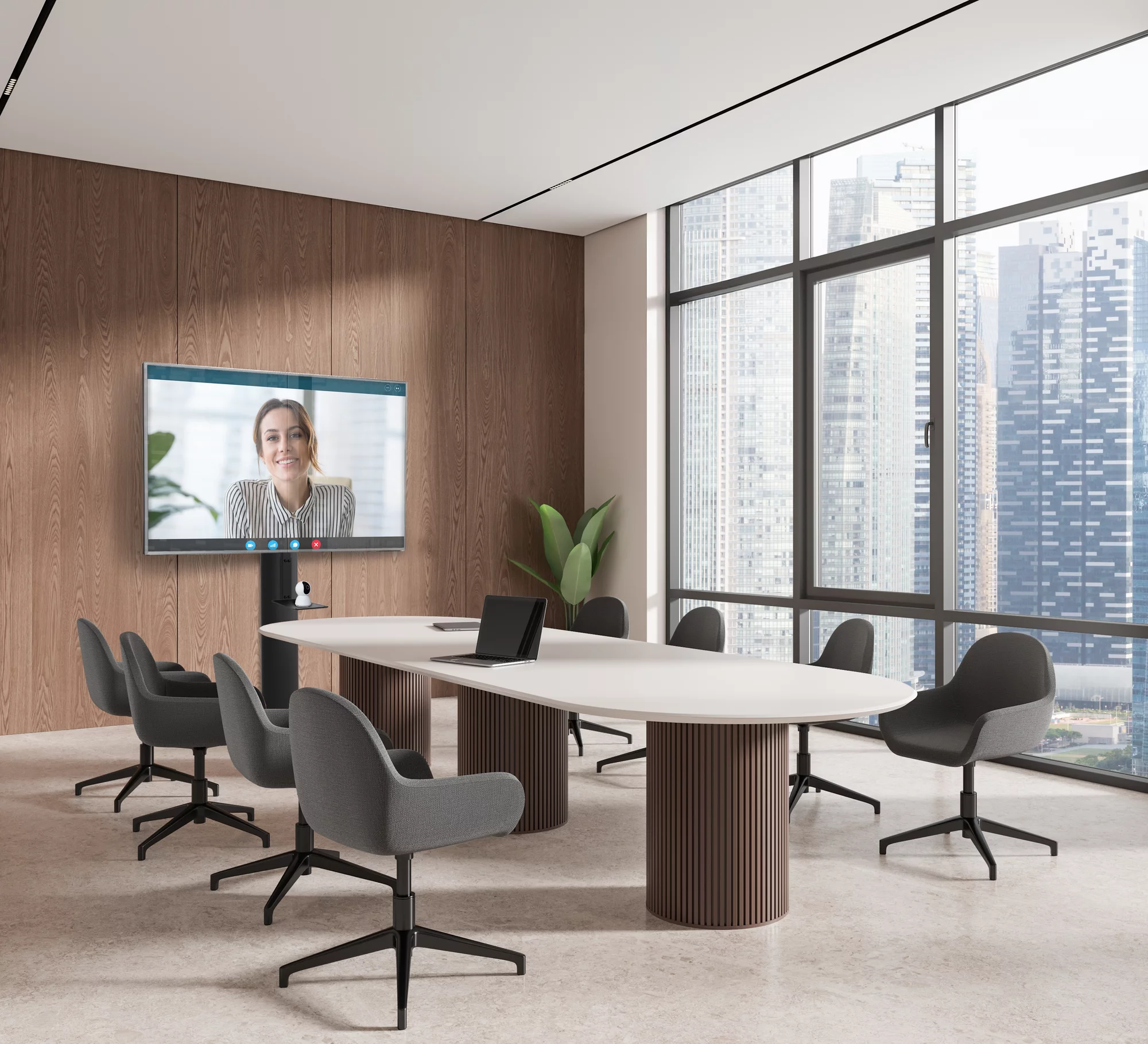

BT8390-SA-B-6
