BT8392-WFK7

System X

System X Adjustable Height & Depth Rail Mounting Bracket

For use with BT8392 Mounting Rails

BT8392-WFK7/B

System X

System X Adjustable Height & Depth Rail Mounting Bracket

For use with BT8392 Mounting Rails

Overview

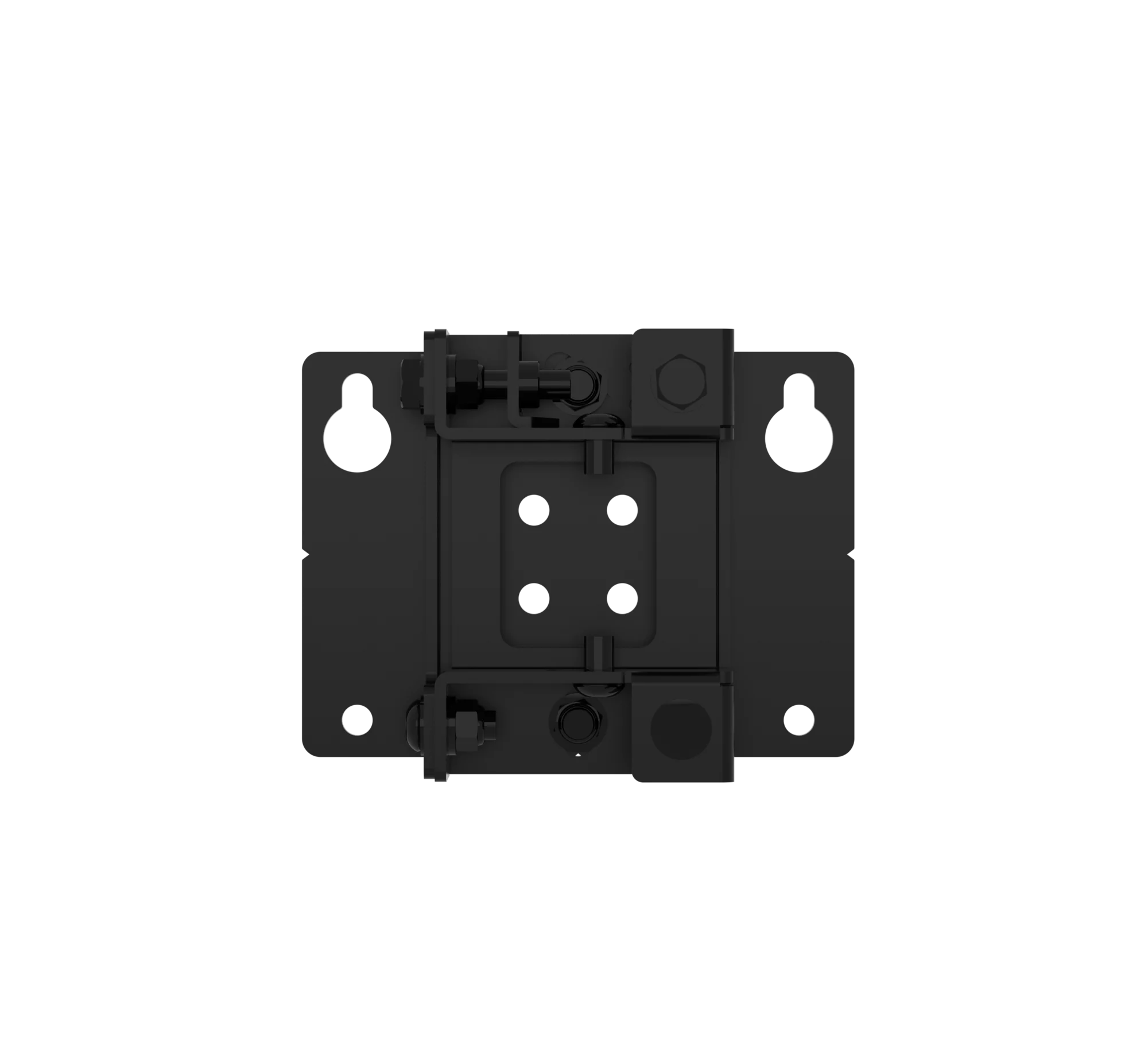

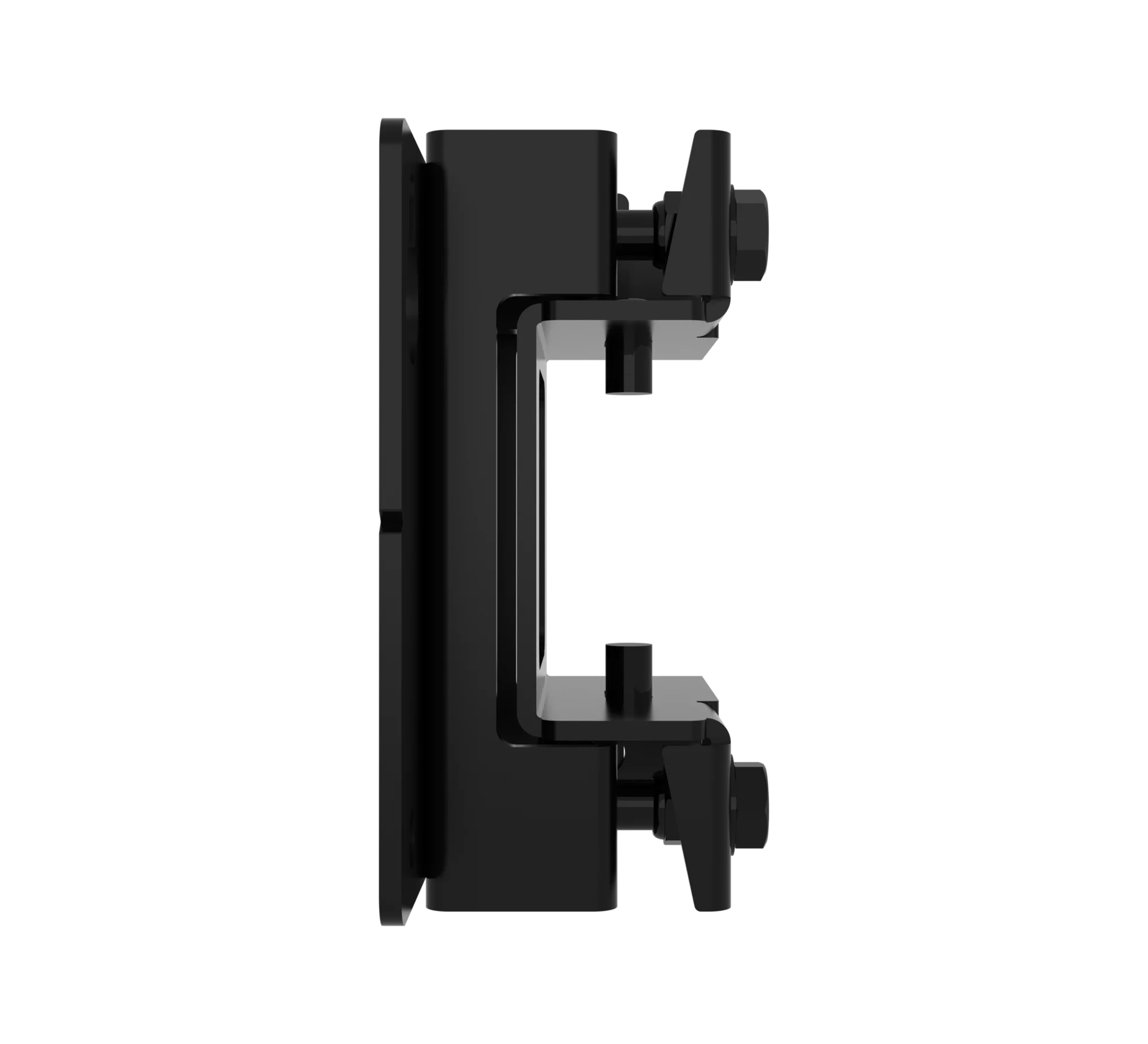

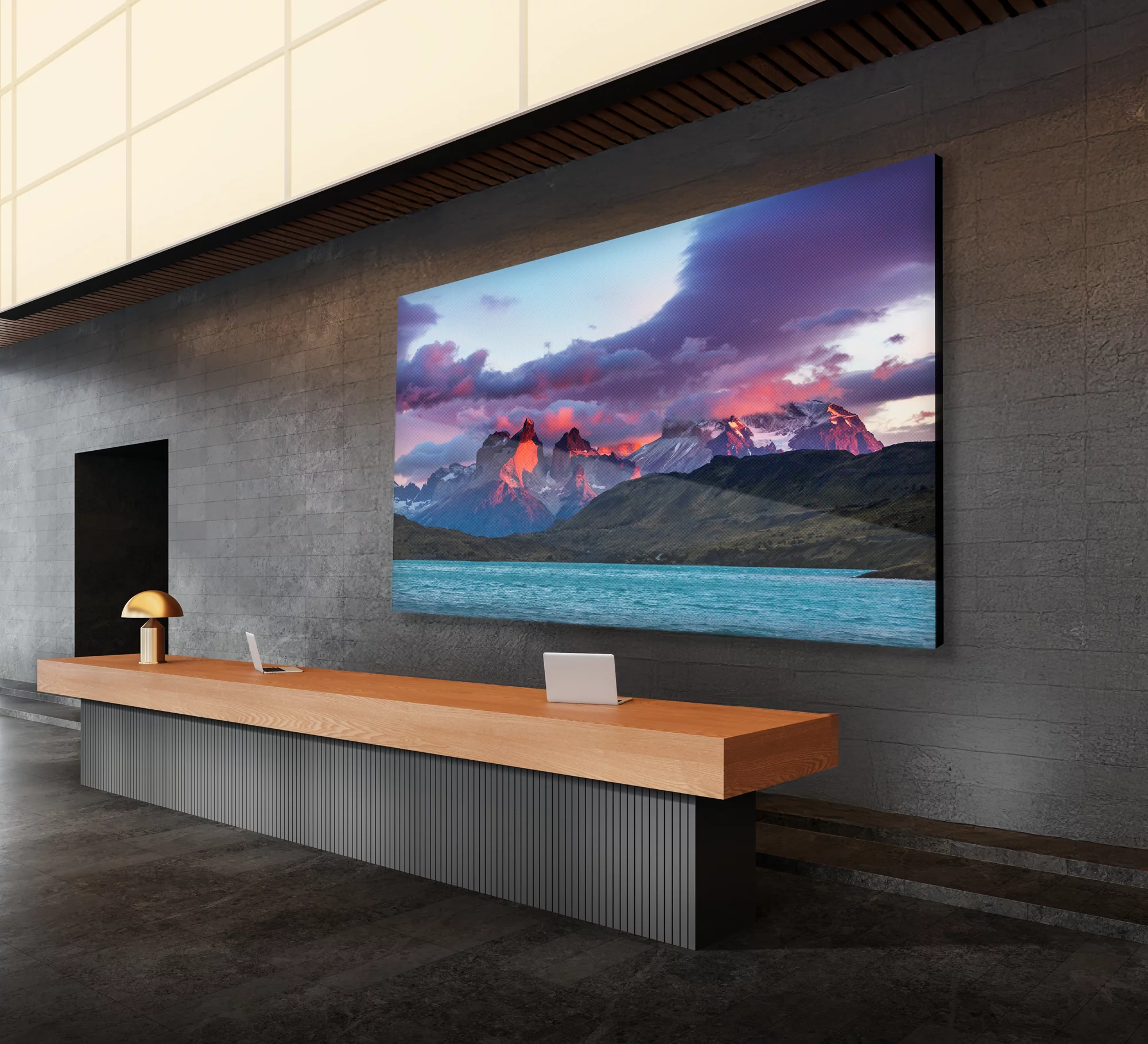

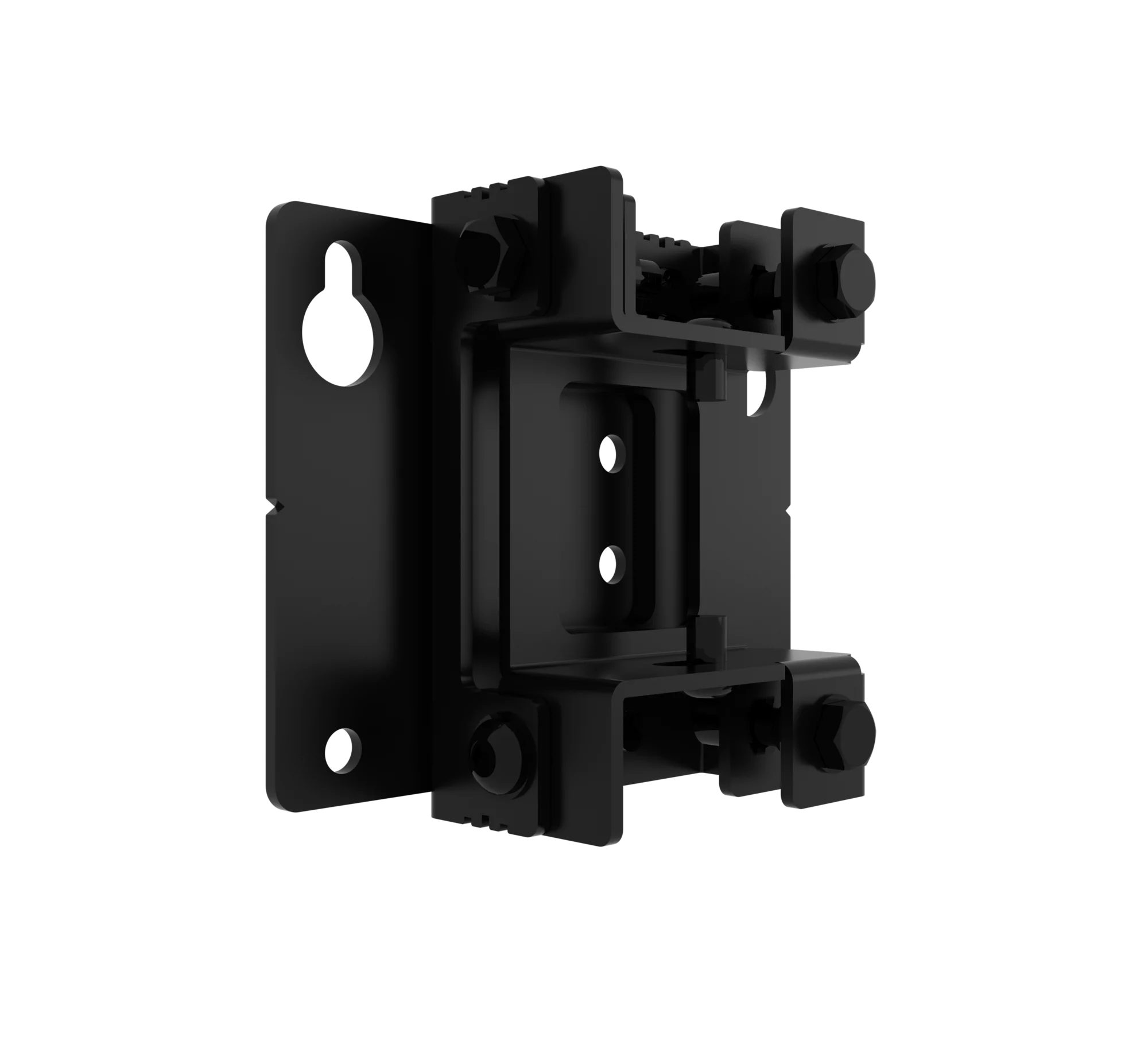

The BT8392-WFK7 is an adjustable wall mounting bracket designed for use with BT8392 rails in dvLED and videowall installations. It provides fine height and depth alignment to help achieve a precise rail structure when installing multiple cabinets or rows. Suitable for single or paired use, the bracket mounts the rail 50mm from the wall and allows controlled micro-adjustment after fixing, supporting a clean and level finish on professional wall-mounted systems.
The BT8392-WFK7 is an adjustable wall mounting bracket designed for use with BT8392 rails in dvLED and videowall installations. It provides fine height and depth alignment to help achieve a precise rail structure when installing multiple cabinets or rows. Suitable for single or paired use, the bracket mounts the rail 50mm from the wall and allows controlled micro-adjustment after fixing, supporting a clean and level finish on professional wall-mounted systems.

Product Features

  • Adjustable height and depth for fine rail alignment

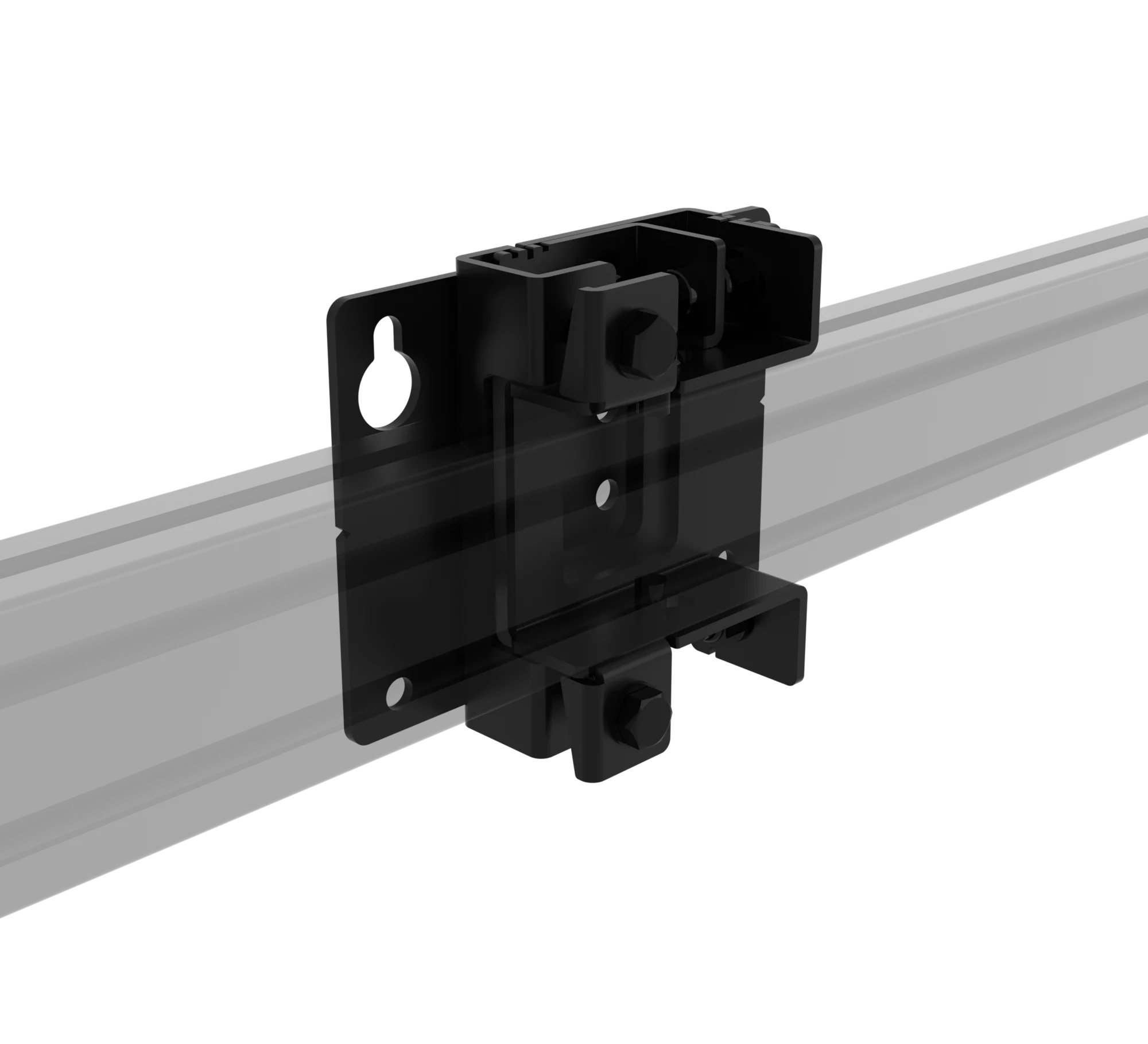

  • Compatible with BT8392 horizontal rails

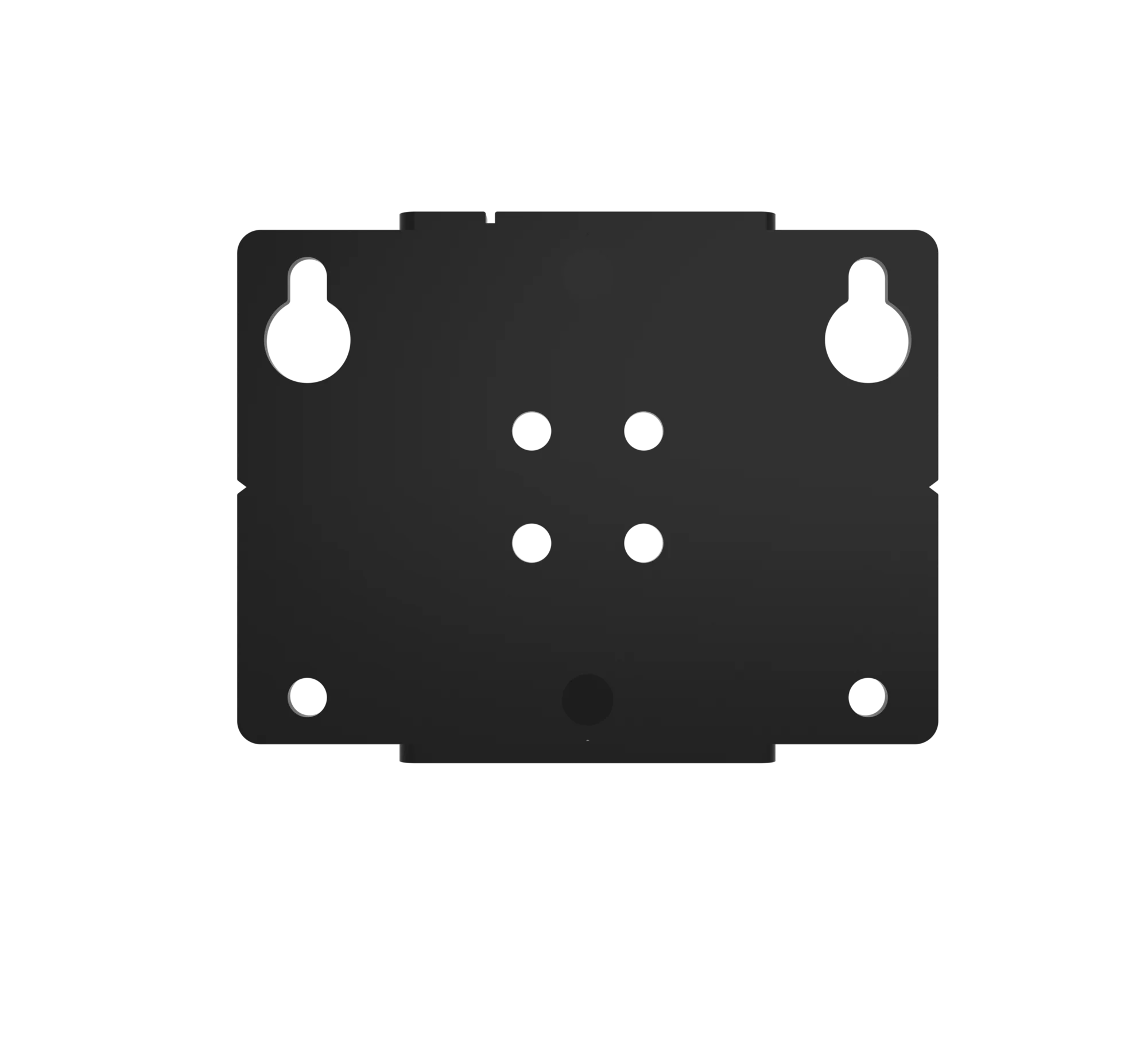

  • Keyhole slots allow easy hook-on installation
  • Supports micro-adjustment after assembly
  • Steel construction for strength and reliability
  • Adjustable height and depth for fine rail alignment
  • Compatible with BT8392 horizontal rails
  • Keyhole slots allow easy hook-on installation
  • Supports micro-adjustment after assembly
  • Steel construction for strength and reliability

Product Specifications

  • Designed for use with: BT8392 - Mounting Rail
  • Max load: 100kg per bracket
  • Product width: 150mm
  • Min product depth: 51.3mm
  • Max product depth: 60.3mm
  • Min product height: 114mm
  • Max product height: 124mm
  • Distance from wall: 50mm
  • Adjustable depth: +/- 5mm
  • Adjustable height: +/- 5mm
  • Qty per pack: 1
  • Colour: Black
  • Designed for use with: BT8392 - Mounting Rail
  • Max load: 100kg per bracket
  • Product width: 150mm
  • Min product depth: 51.3mm
  • Max product depth: 60.3mm
  • Min product height: 114mm
  • Max product height: 124mm
  • Distance from wall: 50mm
  • Adjustable depth: +/- 5mm
  • Adjustable height: +/- 5mm
  • Qty per pack: 1
  • Colour: Black

Ordering & Box Information

Order Code: BT8392-WFK7/B

Barcode: 5019318309298

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 1.3kg

Order Code: BT8392-WFK7/B

Barcode: 5019318309298

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 1.3kg
