BT8421

Universal Flat Screen Wall Mount

For medium screens

BT8421/B

Universal Flat Screen Wall Mount

For medium screens

Enquire Today View Downloads

Overview

Designed for medium sized screens up to 35kg, the slimline BT8421 mounts screens just 30mm from the wall and features post installation screen alignment, B-Tech's "On Wall Levelling System" and simple 'hook-on' installation to make screen mounting as quick and simple as possible. The BT8421 also features a security locking bar to help prevent un-authorised removal of the screen. All mounting hardware included.
Designed for medium sized screens up to 35kg, the slimline BT8421 mounts screens just 30mm from the wall and features post installation screen alignment, B-Tech's "On Wall Levelling System" and simple 'hook-on' installation to make screen mounting as quick and simple as possible. The BT8421 also features a security locking bar to help prevent un-authorised removal of the screen. All mounting hardware included.

Product Features

  • Low profile design for a close to the wall installation
  • Features OWLS (On Wall Levelling System) to allow the wall plate to be levelled once mounted, eliminating the need to re-drill the wall
  • Suitable for concrete or brick walls
  • Lateral adjustment of screen once mounted
  • Includes locking bar and security locking screws to prevent unauthorised removal of the screen. A padlock (not supplied) can also be added for extra security
  • Simple 'hook-on' installation
  • All mounting hardware included
  • Low profile design for a close to the wall installation
  • Features OWLS (On Wall Levelling System) to allow the wall plate to be levelled once mounted, eliminating the need to re-drill the wall
  • Suitable for concrete or brick walls
  • Lateral adjustment of screen once mounted
  • Includes locking bar and security locking screws to prevent unauthorised removal of the screen. A padlock (not supplied) can also be added for extra security
  • Simple 'hook-on' installation
  • All mounting hardware included

Product Specifications

  • Recommended display size: 32" up to 55"
  • Max load: 35kg
  • VESA fixings: up to 400mm x 400mm
  • Universal fixings: up to 465mm x 400mm
  • Product width: 513mm
  • Product depth: 32.5mm
  • Product height: 450mm
  • Distance from wall: 30mm
  • Orientation: Landscape, Portrait
  • Colour: Black
  • Recommended display size: 32" up to 55"
  • Max load: 35kg
  • VESA fixings: up to 400mm x 400mm
  • Universal fixings: up to 465mm x 400mm
  • Product width: 513mm
  • Product depth: 32.5mm
  • Product height: 450mm
  • Distance from wall: 30mm
  • Orientation: Landscape, Portrait
  • Colour: Black

Ordering & Box Information

Order Code: BT8421/B

Barcode: 5019318084232

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 2.75kg

Order Code: BT8421/B

Barcode: 5019318084232

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 2.75kg

Downloads

BT8421 - Product Specification Sheet - English

pdf 1.20 MB

BT8421 - Product Specification Sheet - French

pdf 1.21 MB

BT8421 - Product Specification Sheet - Spanish

pdf 2.26 MB

BT8421 - Product Specification Sheet - Dutch

pdf 2.25 MB

BT8421 - Installation Guide

pdf 4.56 MB

BT8421 - Technical Drawings - (DXF)

DXF 28.21 MB

BT8421 - Technical Drawings - (PDF)

pdf 104.84 KB

BT8421-B-3

png 75.81 KB

BT8421-B-8

png 52.21 KB

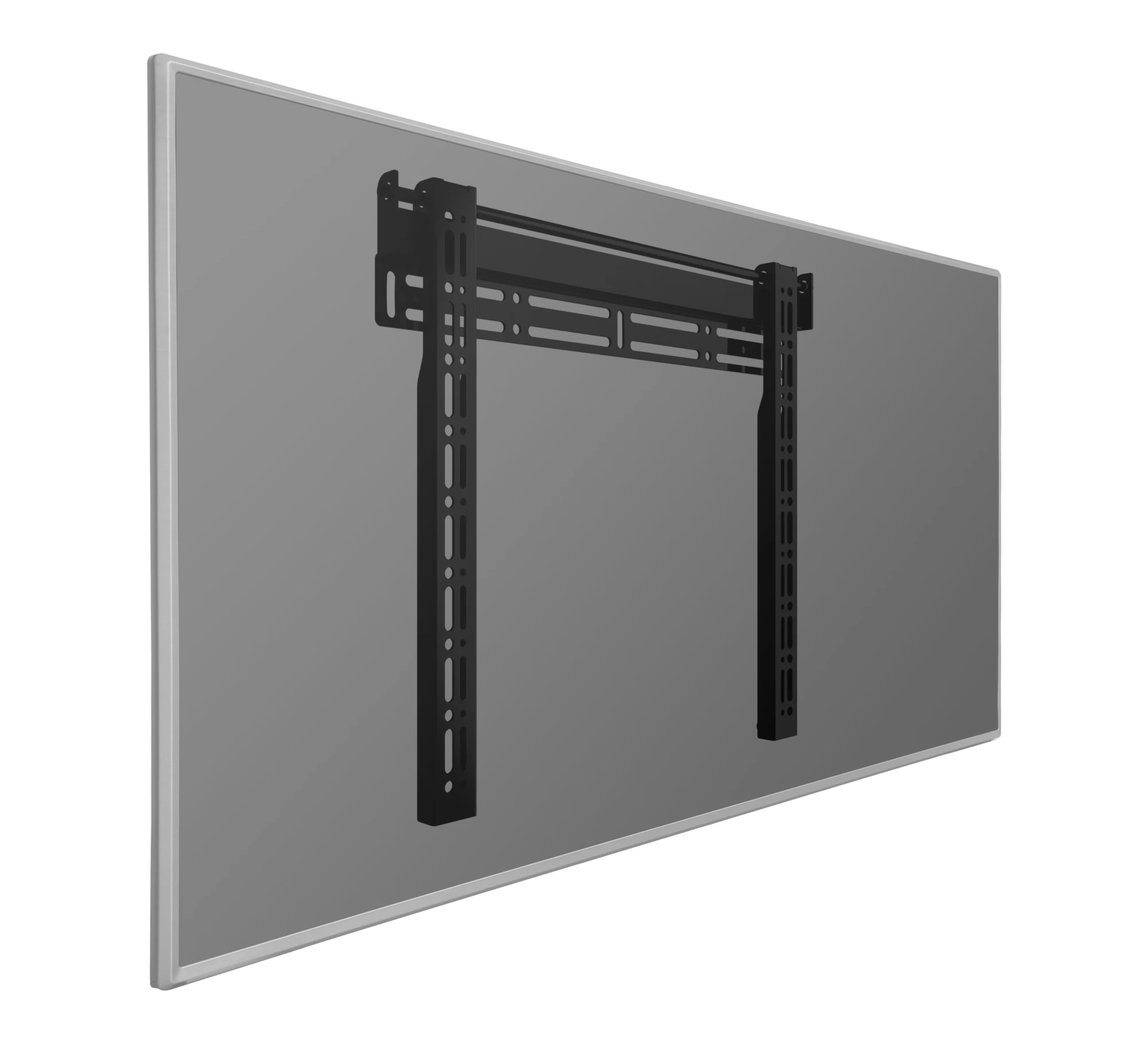

BT8421-B-6-Screen

png 63.46 KB

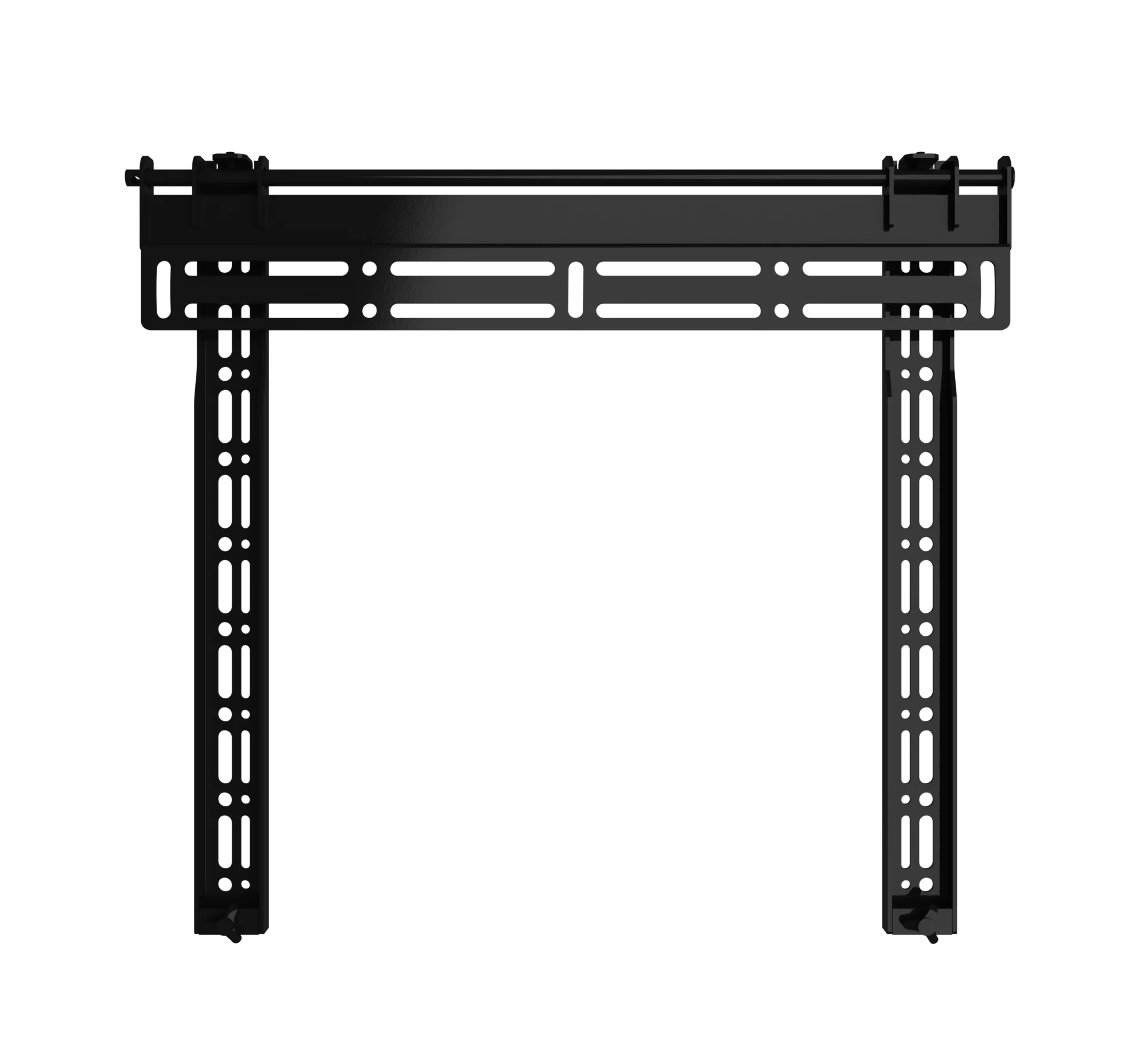

BT8421-B-9

png 41.88 KB

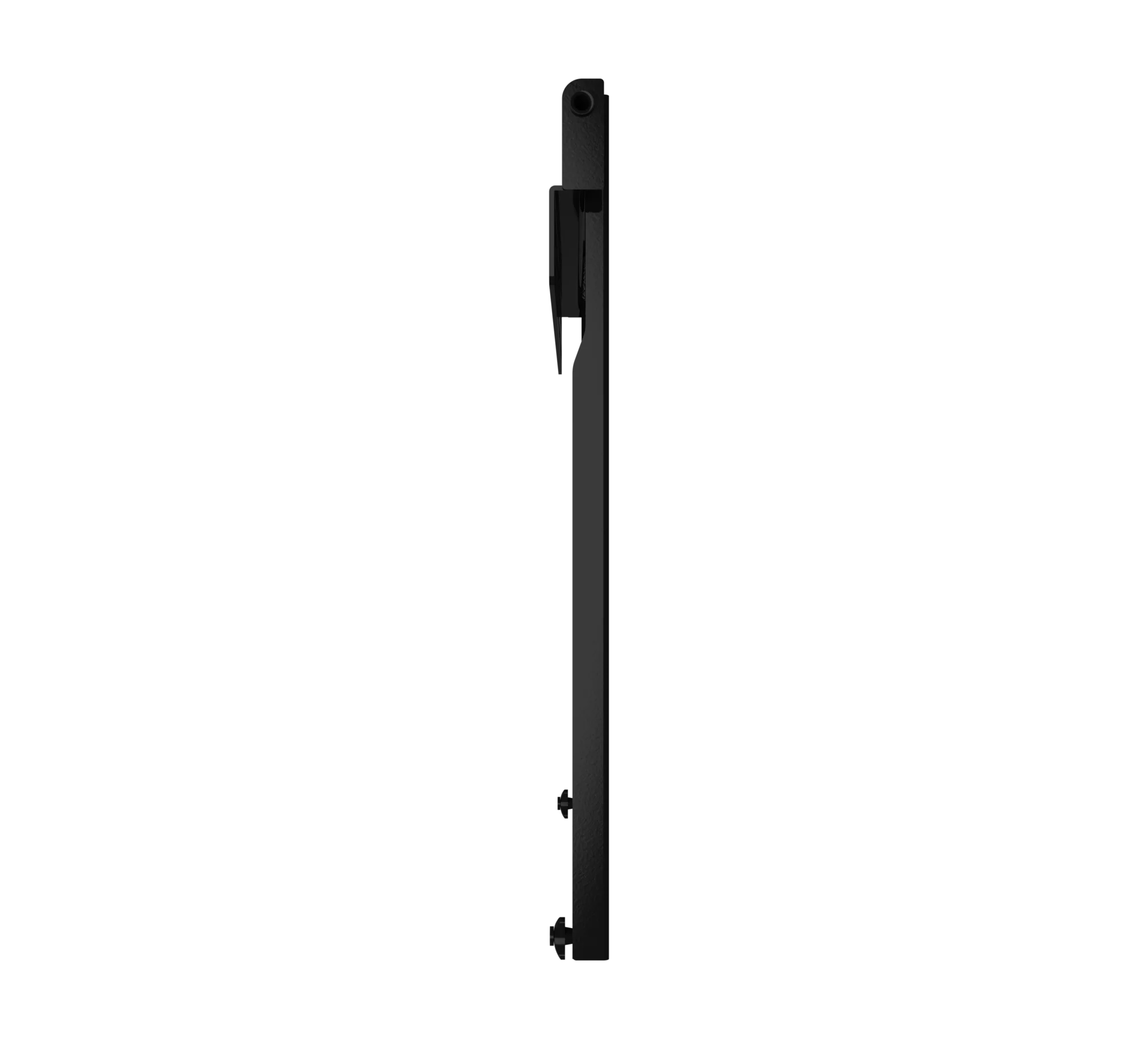

BT8421-B-5

png 13.35 KB

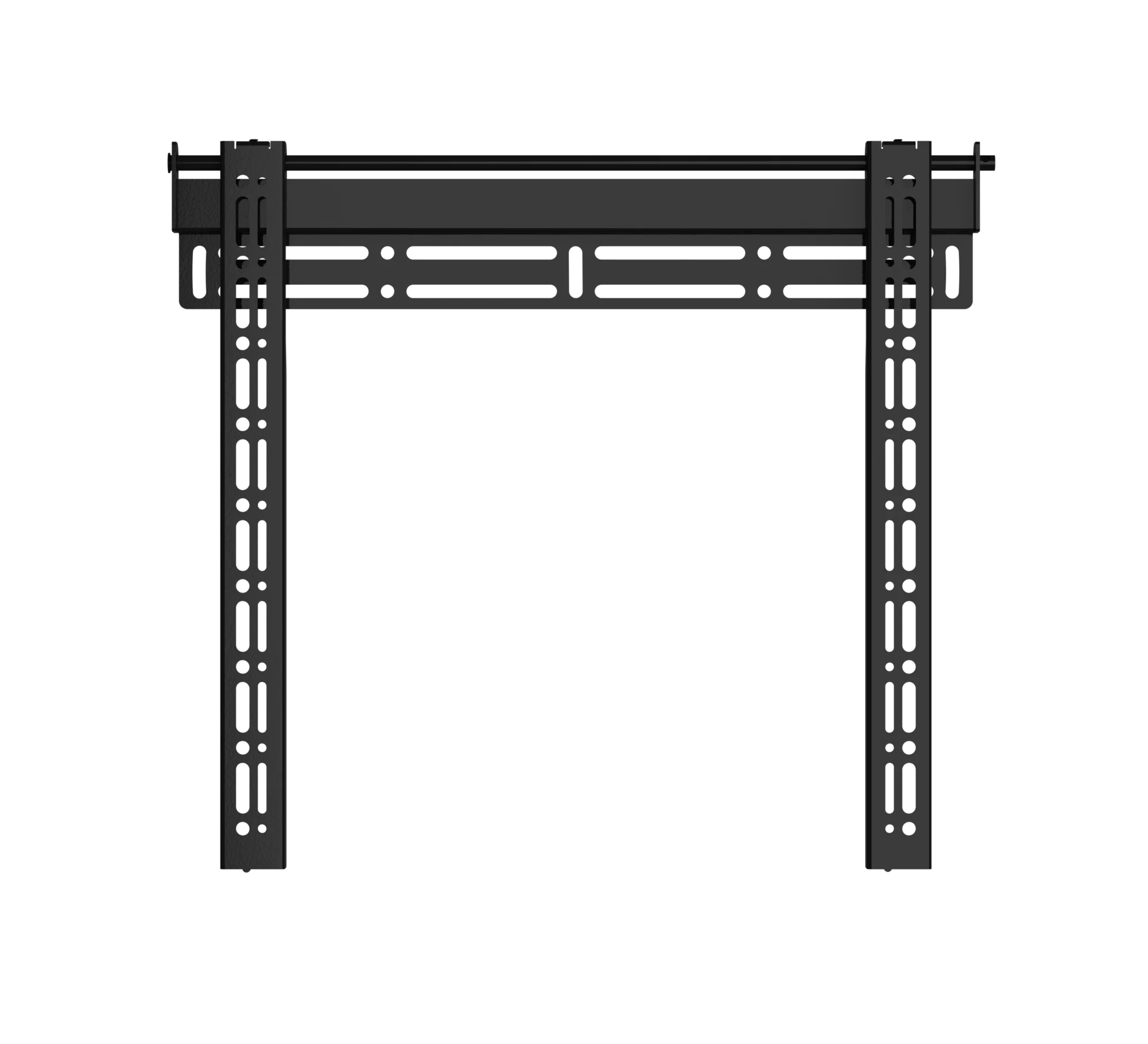

BT8421-B-4

png 41.18 KB

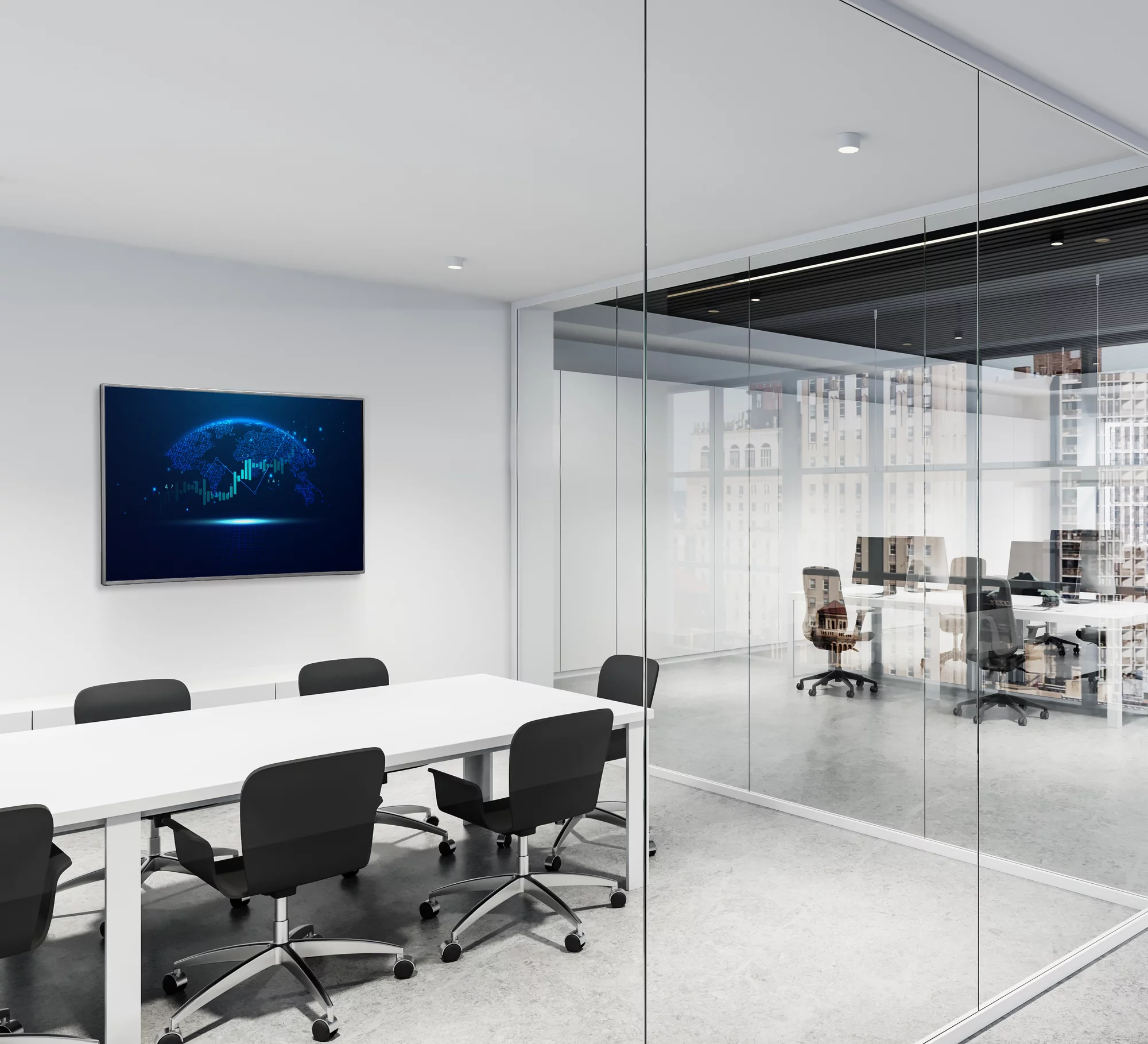

BT8421-B-7
