BT8427

Adjustable Drop Flat Screen Ceiling Mount with Tilt

Mounts a screen in landscape or portrait

BT8427/B

Adjustable Drop Flat Screen Ceiling Mount with Tilt

Mounts a screen in landscape or portrait

Enquire Today View Downloads

Overview

Designed to ceiling mount screens up to 70kg and VESA fixings up to 600 x 400, the BT8427 features a tool-less adjustable drop of 572mm - 972mm with a safety bolt supplied for a secure installation and utilises an easy tilt mechanism for the perfect view. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.
Designed to ceiling mount screens up to 70kg and VESA fixings up to 600 x 400, the BT8427 features a tool-less adjustable drop of 572mm - 972mm with a safety bolt supplied for a secure installation and utilises an easy tilt mechanism for the perfect view. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.

Product Features

  • Adjustable ceiling drop in increments of 25mm
  • Quick and easy adjustment of the tilt angle
  • Lateral adjustment of screen once mounted
  • Suitable for landscape or portrait mounting
  • Arms feature levelling screws to adjust the screen height
  • Security screws help prevent unauthorised removal of screens
  • Integrated cable management
  • Cover plate included for smart installation
  • Simple 'hook-on' installation with all mounting hardware included
  • Adjustable ceiling drop in increments of 25mm
  • Quick and easy adjustment of the tilt angle
  • Lateral adjustment of screen once mounted
  • Suitable for landscape or portrait mounting
  • Arms feature levelling screws to adjust the screen height
  • Security screws help prevent unauthorised removal of screens
  • Integrated cable management
  • Cover plate included for smart installation
  • Simple 'hook-on' installation with all mounting hardware included

Product Specifications

  • Recommended display size: 32" up to 65"
  • Max load: 70kg
  • VESA fixings: up to 468mm x 400mm
  • VESA compatibility (with induded adaptors): up to 600mm x 400mm
  • Tilt: +20°
  • Product width: 620mm
  • Min product height: 789.4mm
  • Max product height: 1189.4mm
  • Ceiling drop (to centre of screen): Min.572mm - Max.972mm
  • Orientation: Landscape, Portrait
  • Colour: Black
  • Recommended display size: 32" up to 65"
  • Max load: 70kg
  • VESA fixings: up to 468mm x 400mm
  • VESA compatibility (with induded adaptors): up to 600mm x 400mm
  • Tilt: +20°
  • Product width: 620mm
  • Min product height: 789.4mm
  • Max product height: 1189.4mm
  • Ceiling drop (to centre of screen): Min.572mm - Max.972mm
  • Orientation: Landscape, Portrait
  • Colour: Black

Ordering & Box Information

Order Code: BT8427/B

Barcode: 5019318084454

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 10.31kg

Order Code: BT8427/B

Barcode: 5019318084454

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 10.31kg

Downloads

BT8427 - Product Specification Sheet - English

pdf 1.45 MB

BT8427 - Product Specification Sheet - French

pdf 1.45 MB

BT8427 - Product Specification Sheet - Spanish

pdf 1.45 MB

BT8427 - Product Specification Sheet - Dutch

pdf 1.45 MB

BT8427 - Installation Guide

pdf 4.03 MB

BT8427 - Technical Drawings - (PDF)

pdf 322.29 KB

BT8427-1

png 29.96 KB

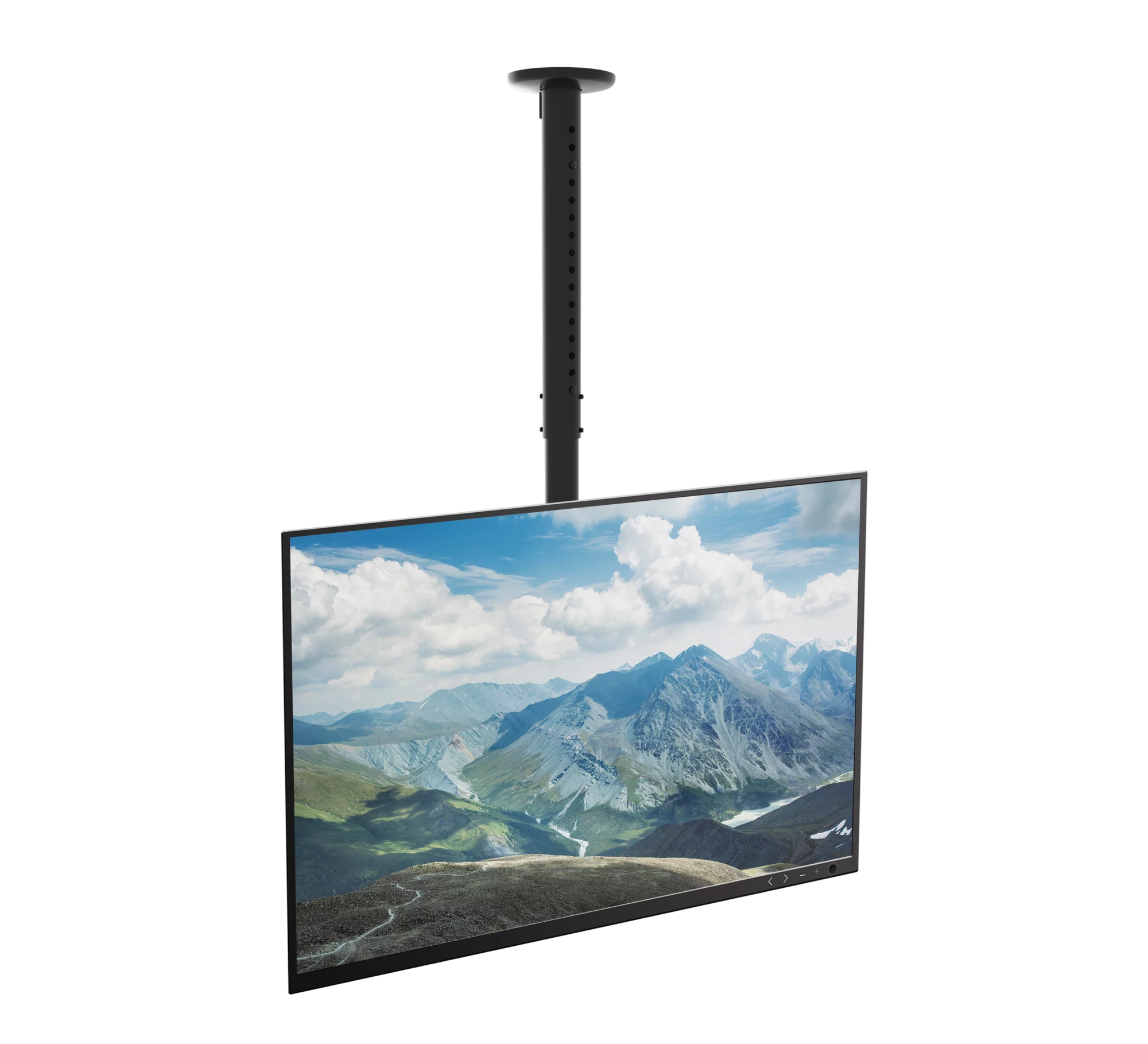

BT8427-B-11

png 127.77 KB

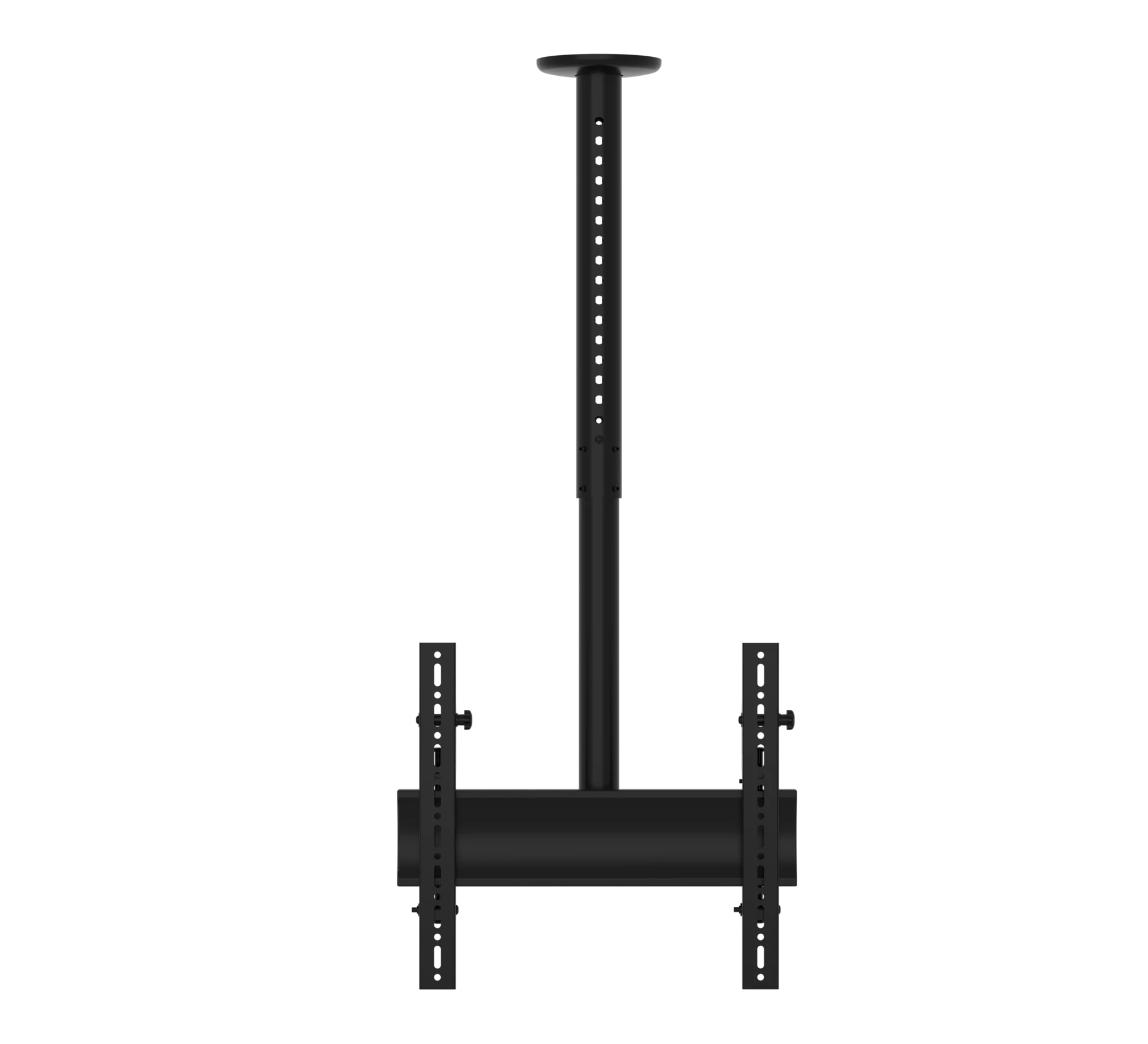

BT8427-2

png 23.75 KB

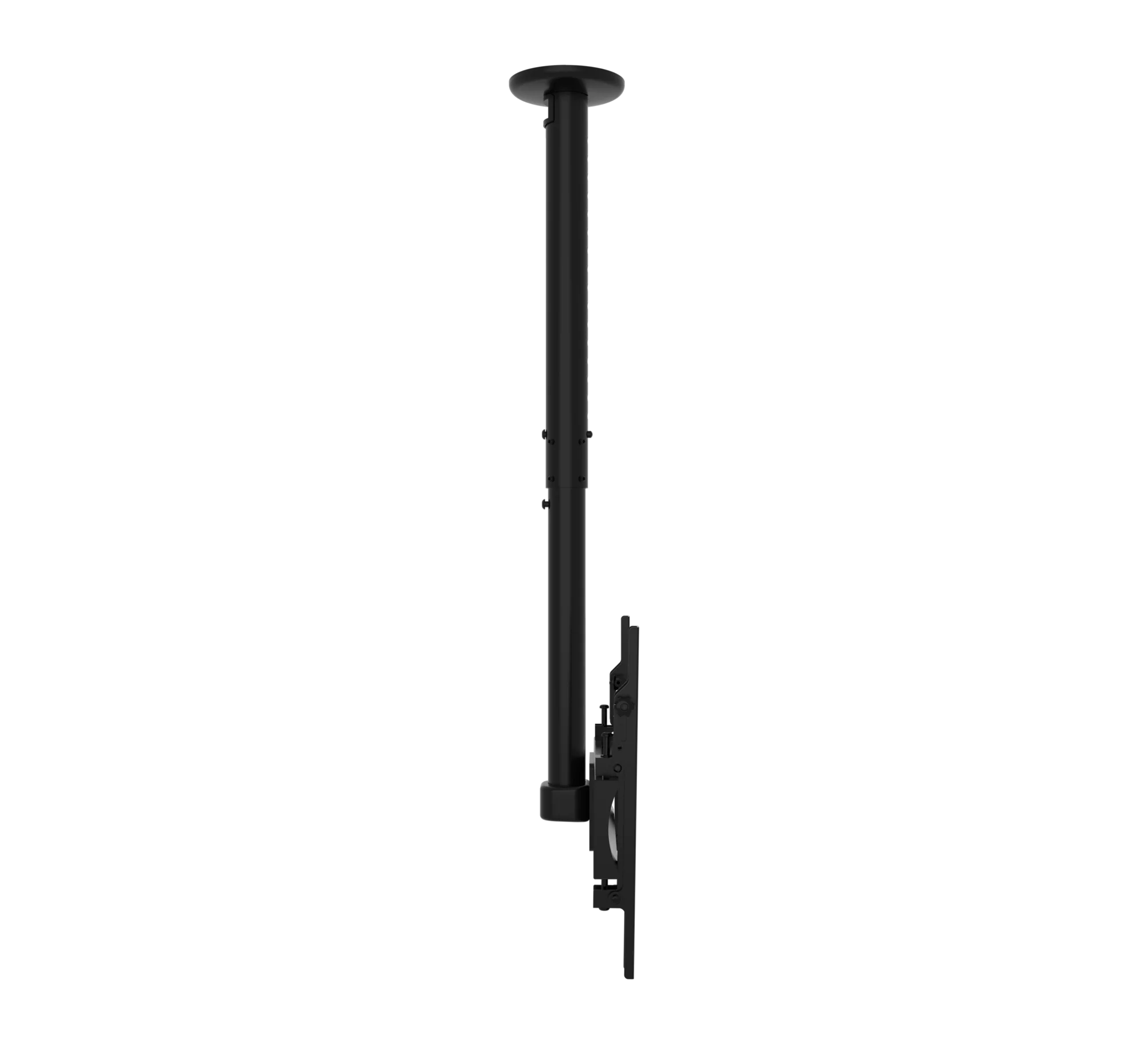

BT8427-B-3

png 19.30 KB

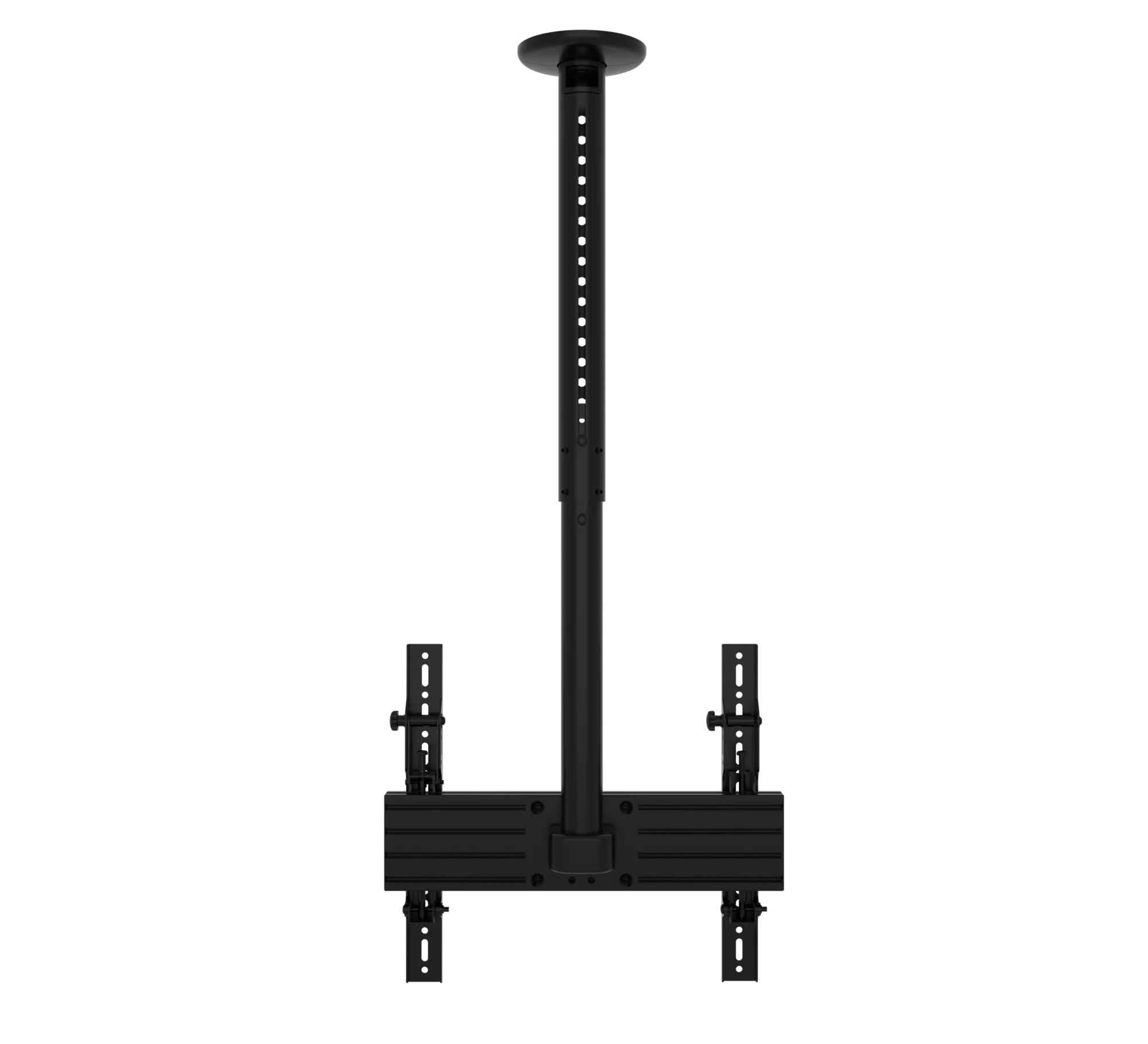

BT8427-6

png 26.44 KB

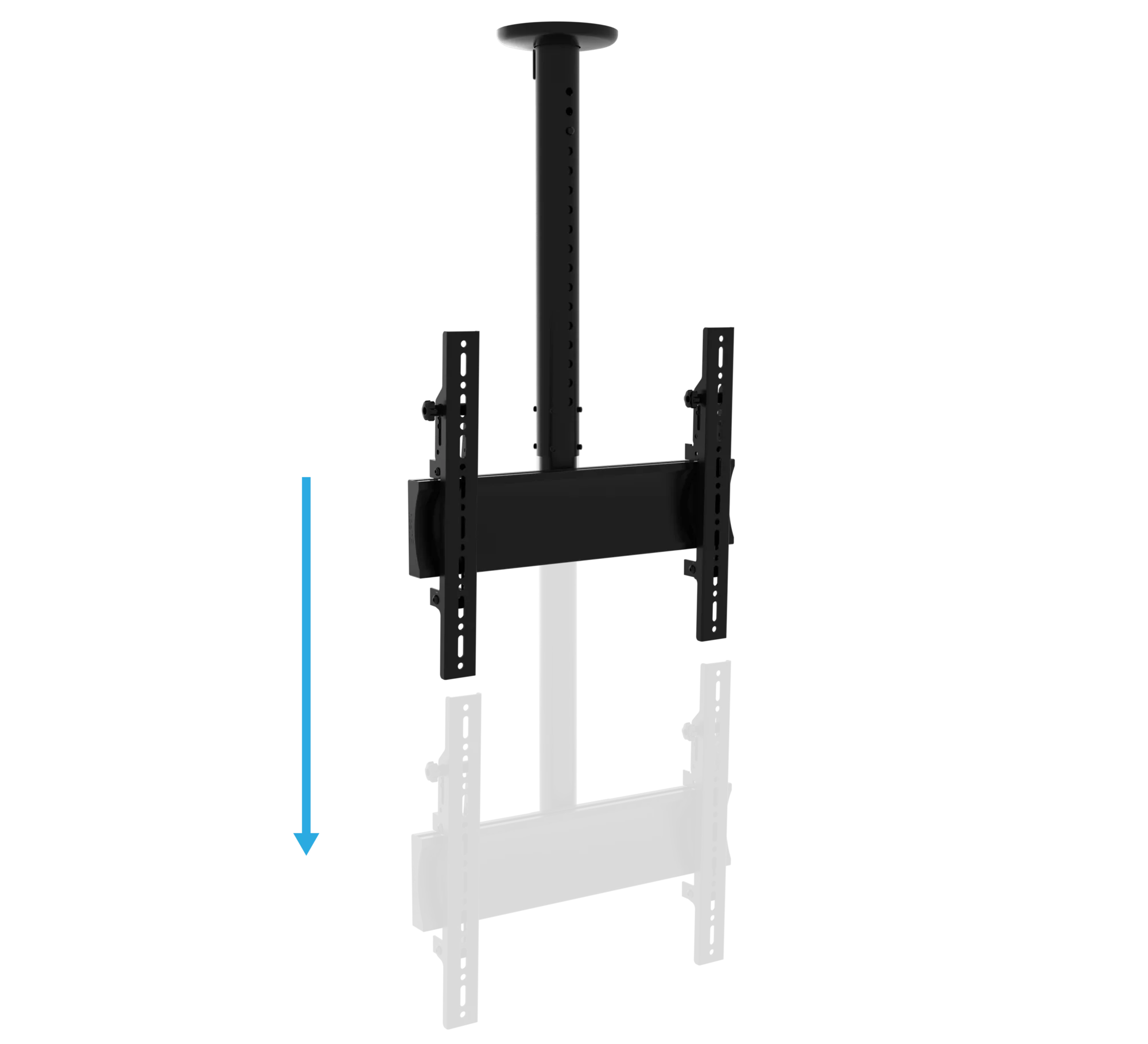

BT8427-B-9

png 43.22 KB

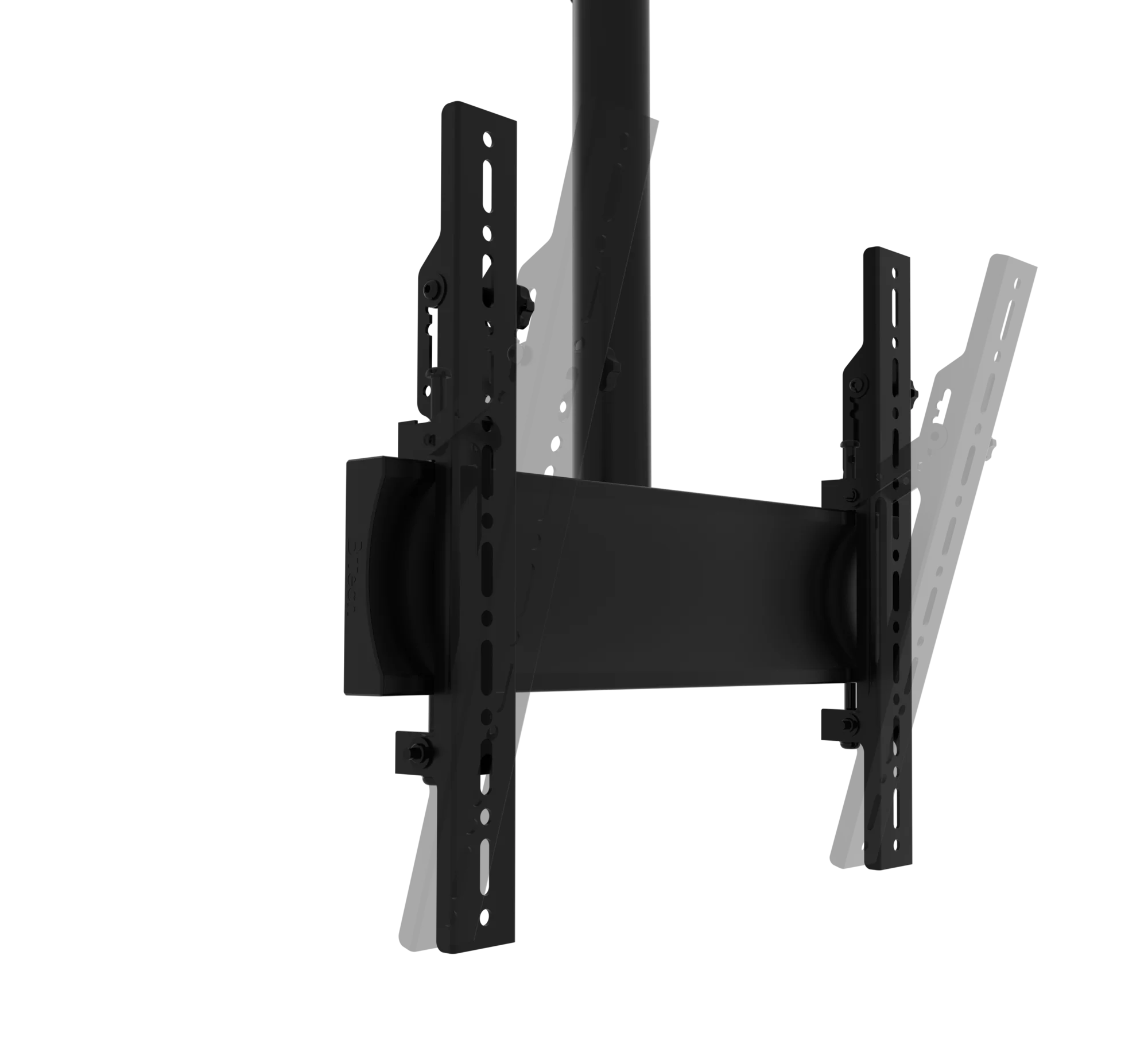

BT8427-8

png 57.30 KB

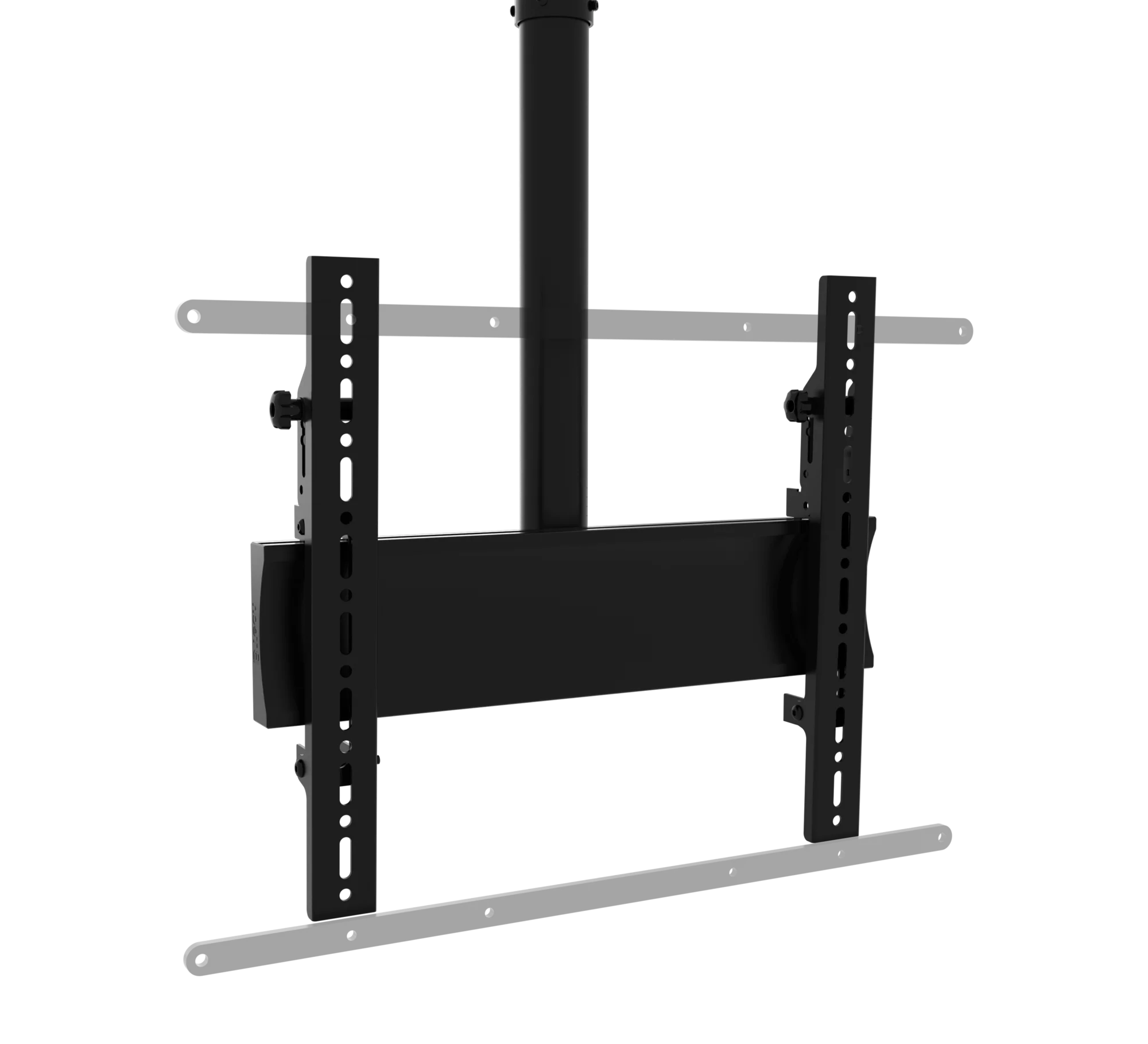

BT8427-B-10

png 58.57 KB

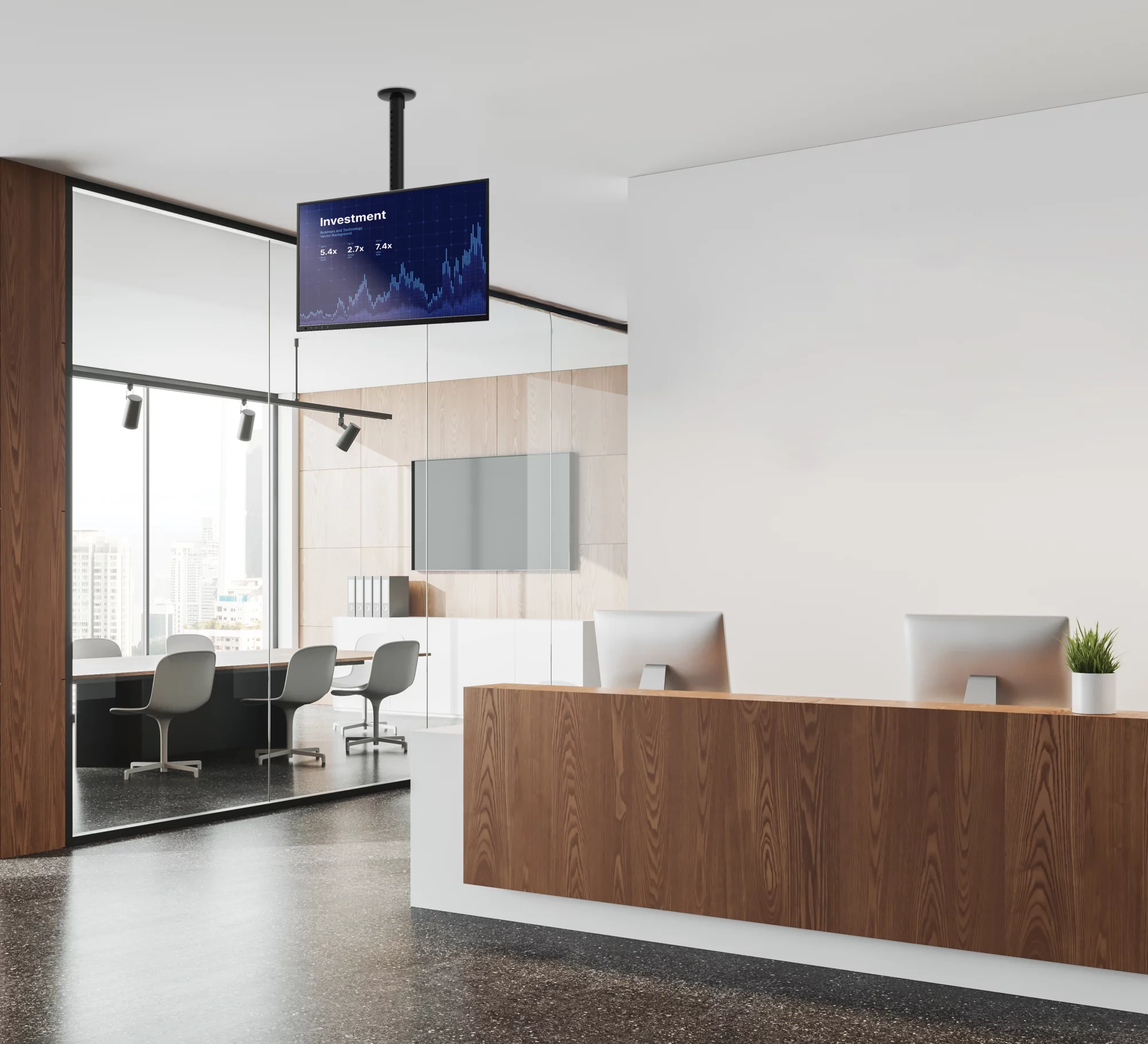

BT8427-B-5

png 218.23 KB

BT8427 - Green Sheet

pdf 339.46 KB
