BT8506

Momentum

Extra-Large Flat Screen Display Trolley / Stand

For a quick & easy installation

BT8506/B V2

Momentum

Extra-Large Flat Screen Display Trolley / Stand

For a quick & easy Installation

Enquire Today View Downloads

Overview

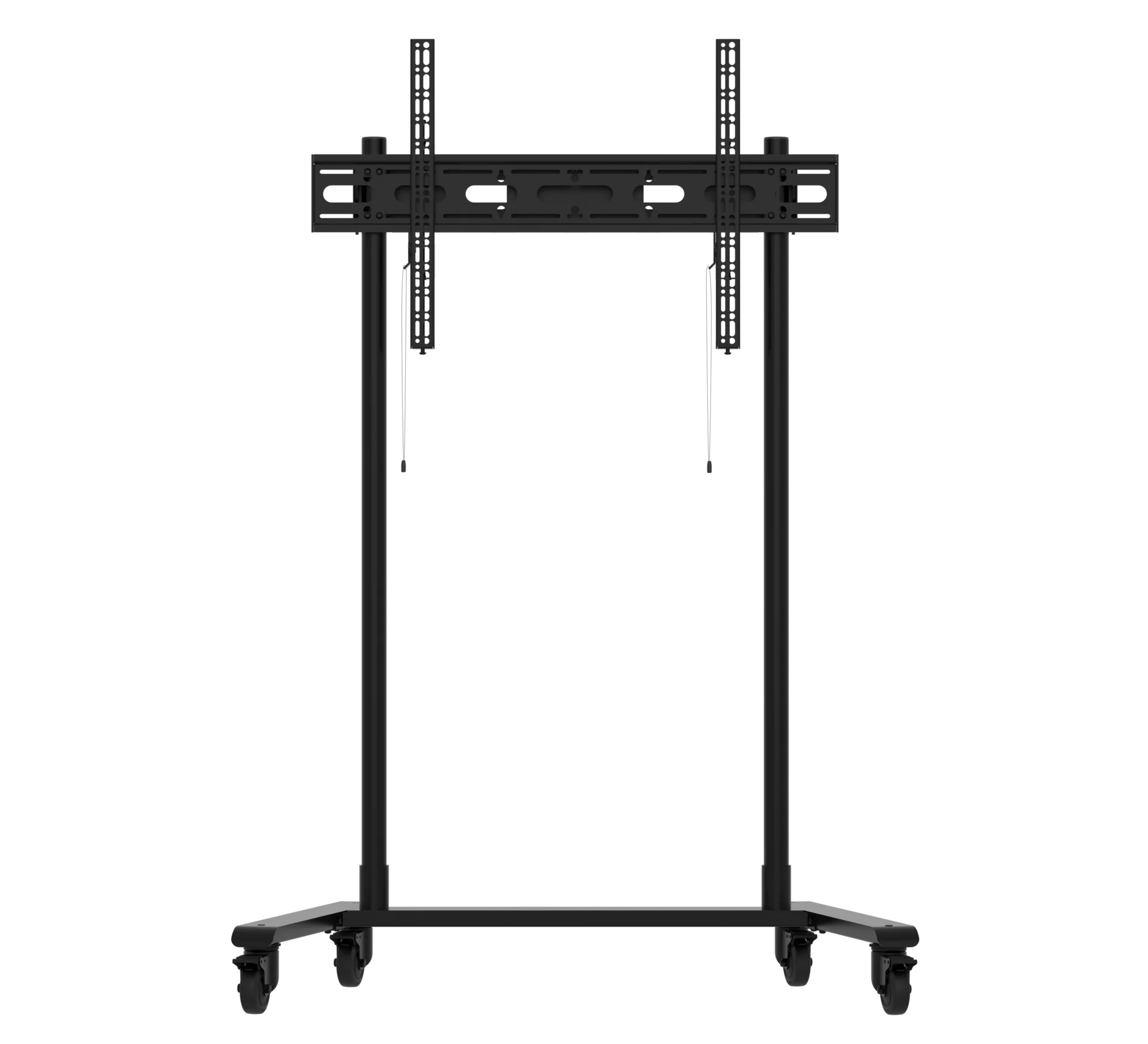

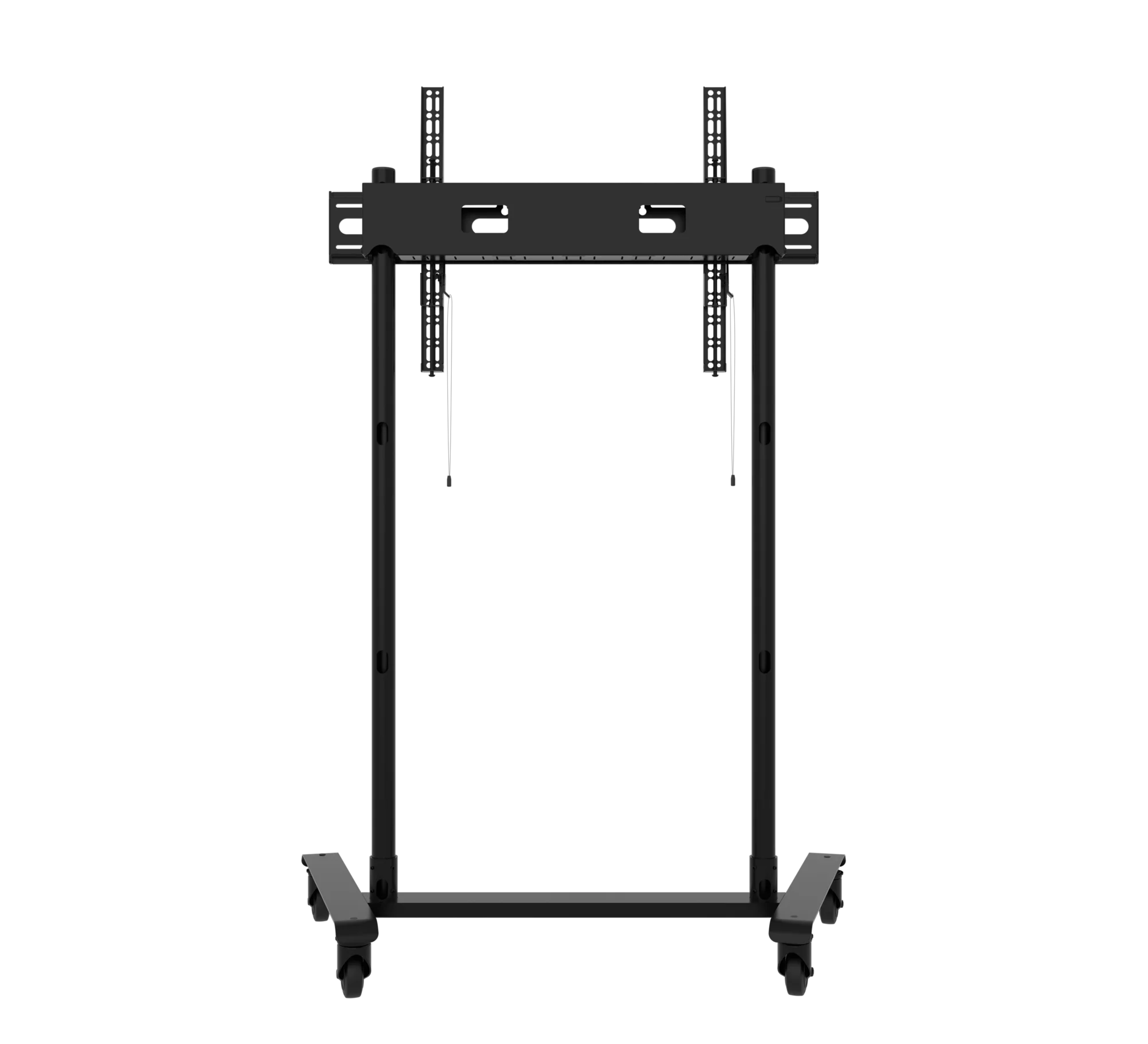

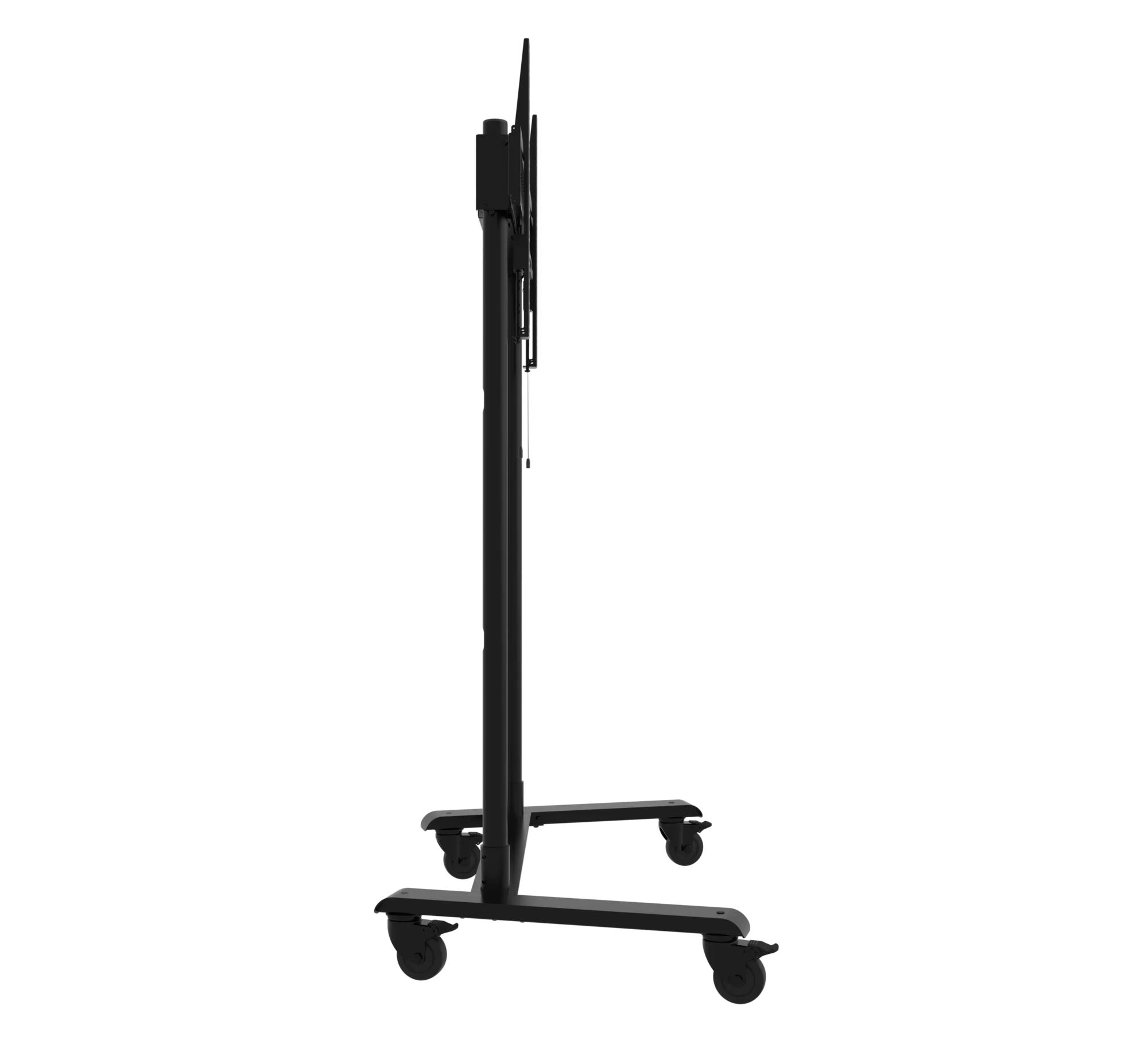

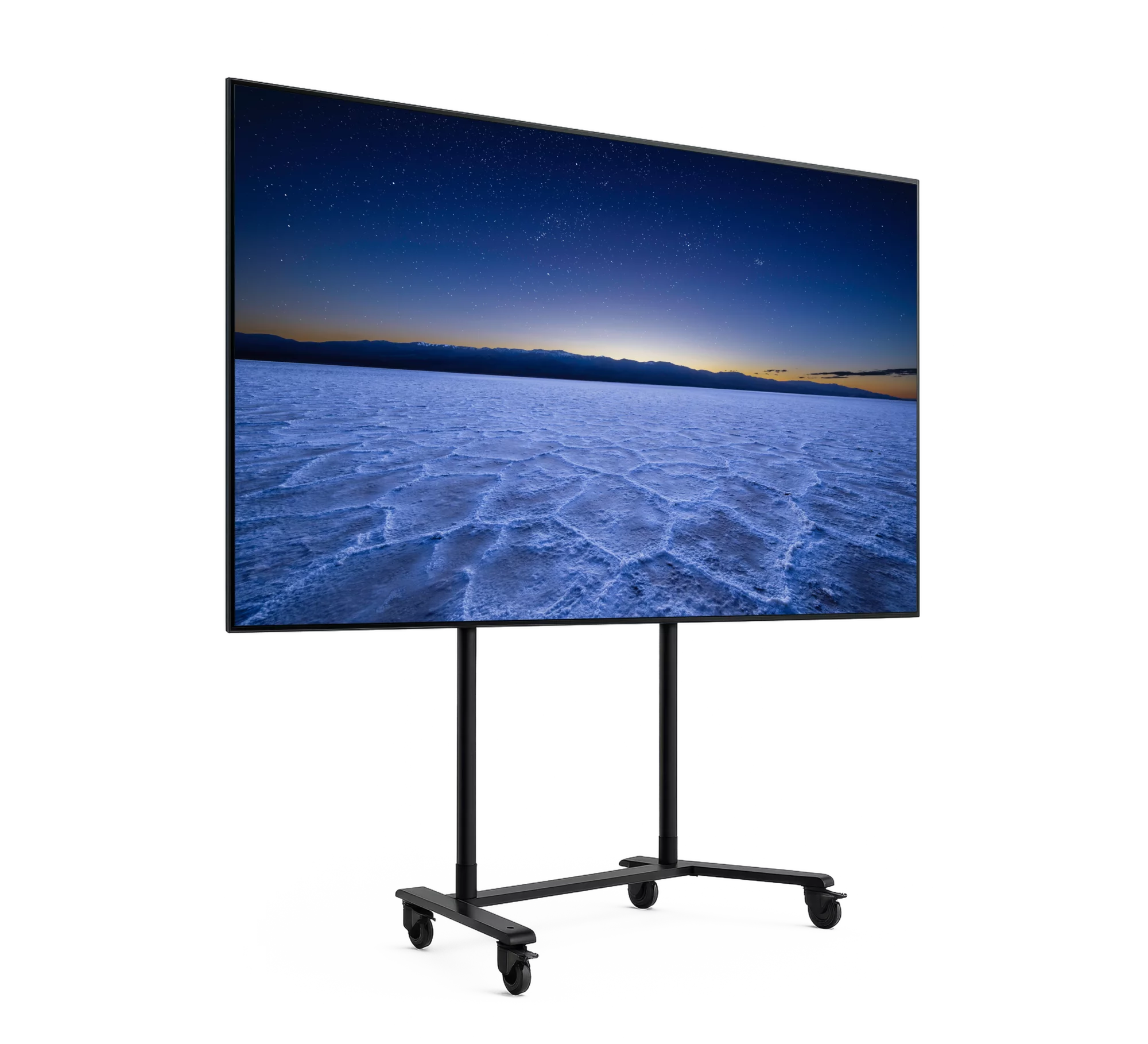

The BT8506 is a mobile or freestanding solution for extra-large screens and heavy duty touchscreen displays with VESA fixings up to 1000 x 600mm. Featuring a simple 'hook-on' installation for quick and easy screen fitting, the BT8506 includes a storage area for cables and accessories, with integrated cable management throughout for a neat and tidy installation. The trolley base disassembles into three pieces for portability.
The BT8506 is a mobile or freestanding solution for extra-large screens and heavy duty touchscreen displays with VESA fixings up to 1000 x 600mm. Featuring a simple 'hook-on' installation for quick and easy screen fitting, the BT8506 includes a storage area for cables and accessories, with integrated cable management throughout for a neat and tidy installation. The trolley base disassembles into three pieces for portability.

Product Features

  • Heavy duty XL flat screen trolley suitable for screens 65" and over

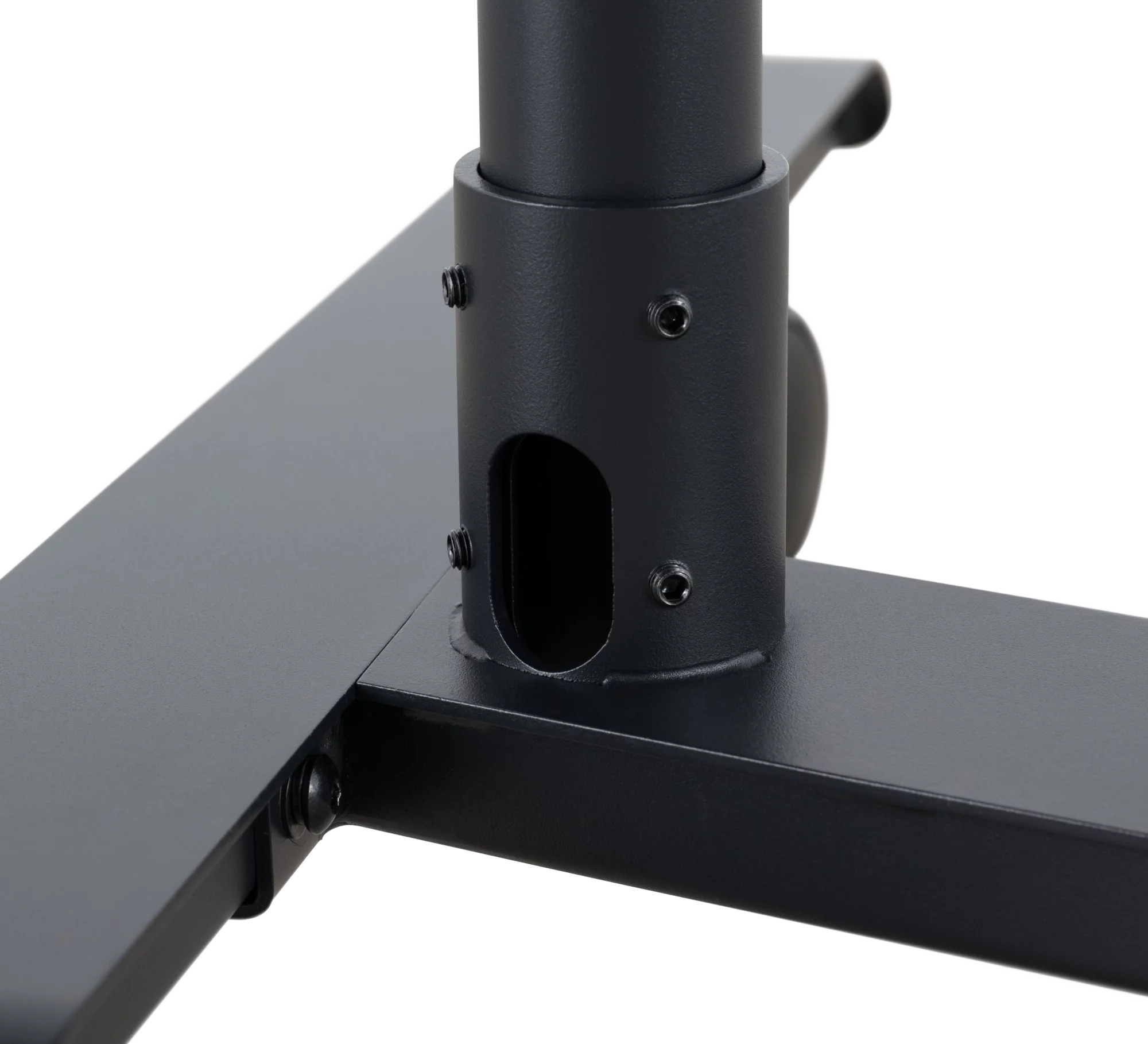

  • Base disassembles into three pieces for easy transportation

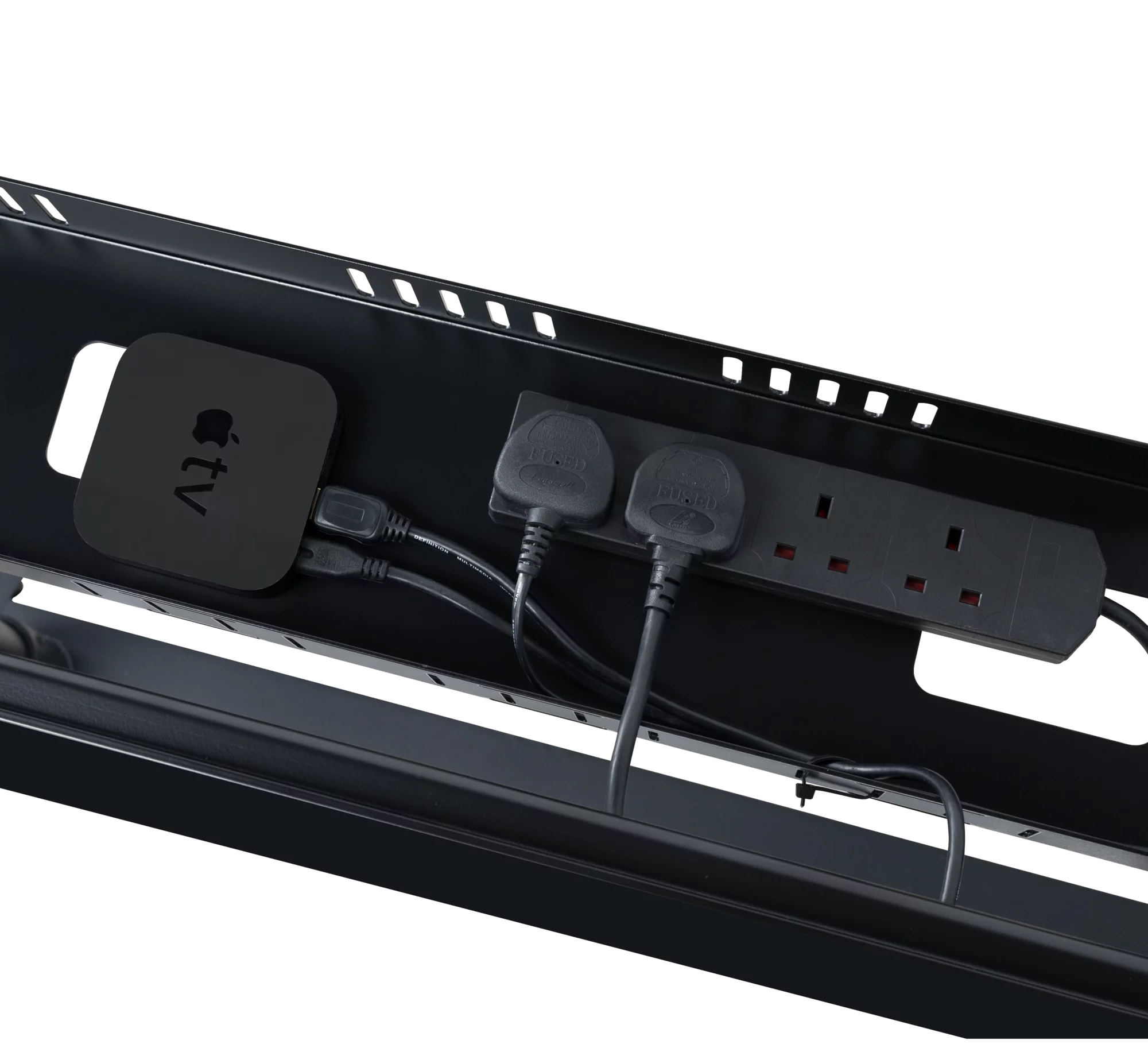

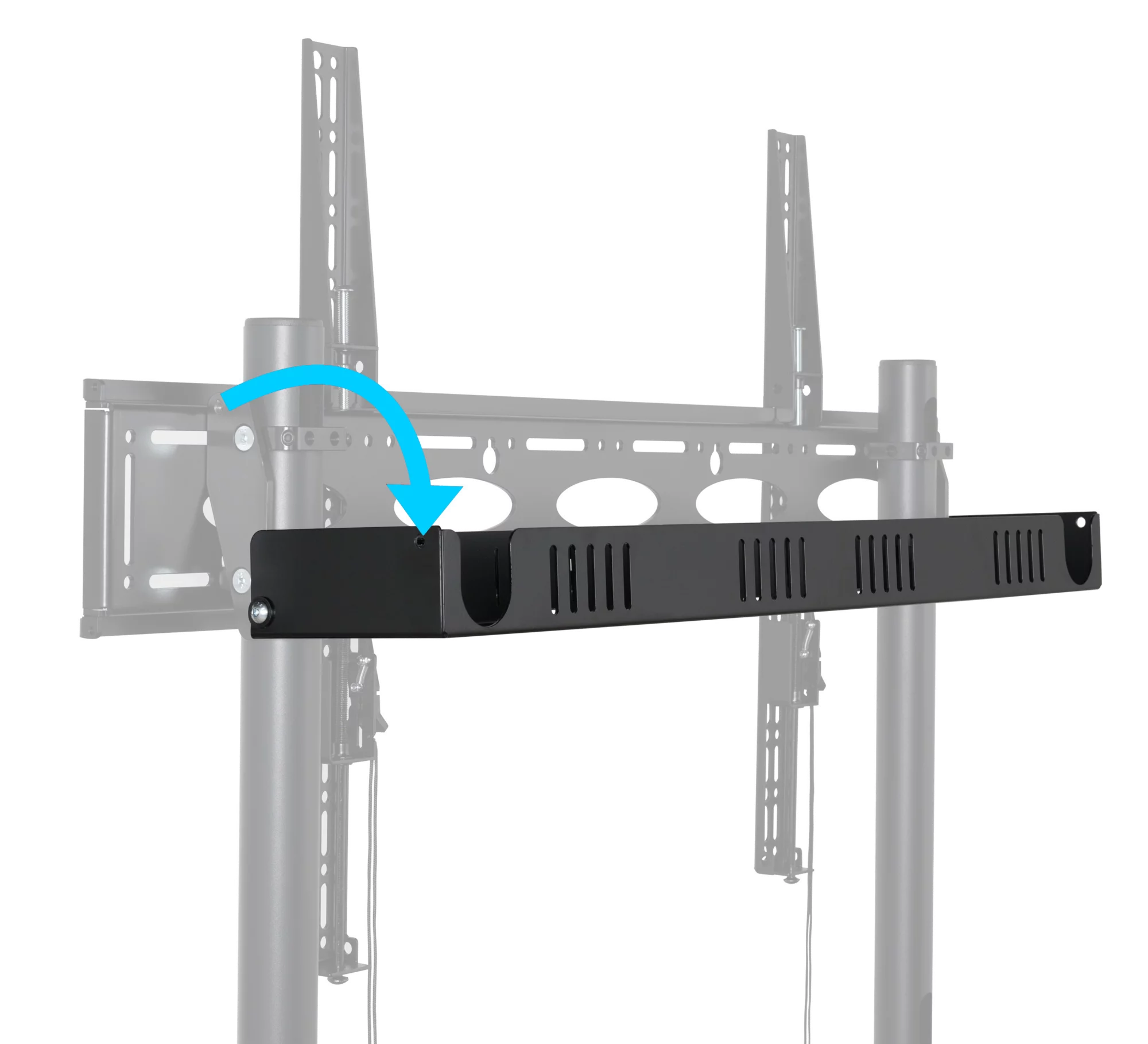

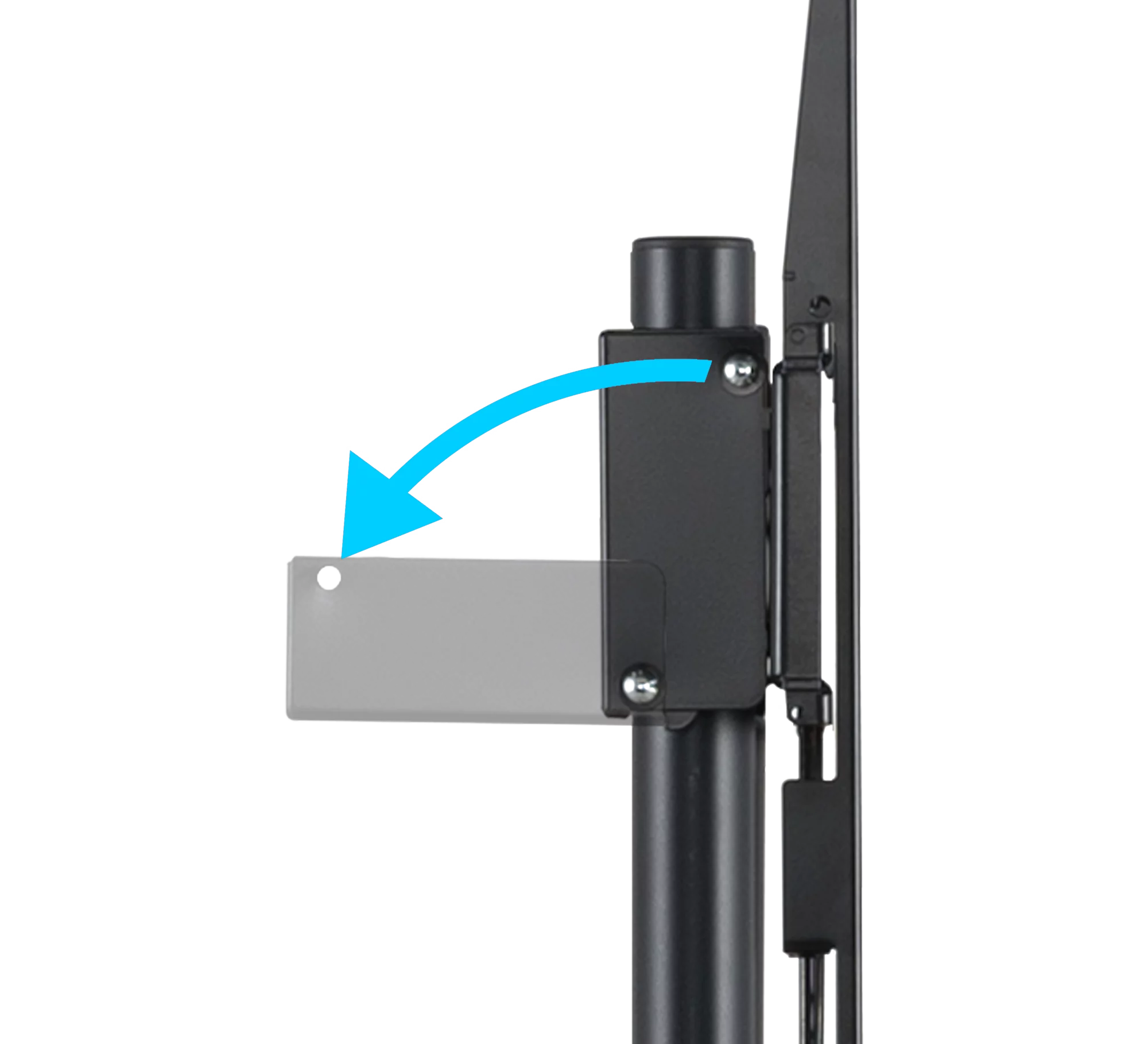

  • The interface features an optional storage area for cables and accessories

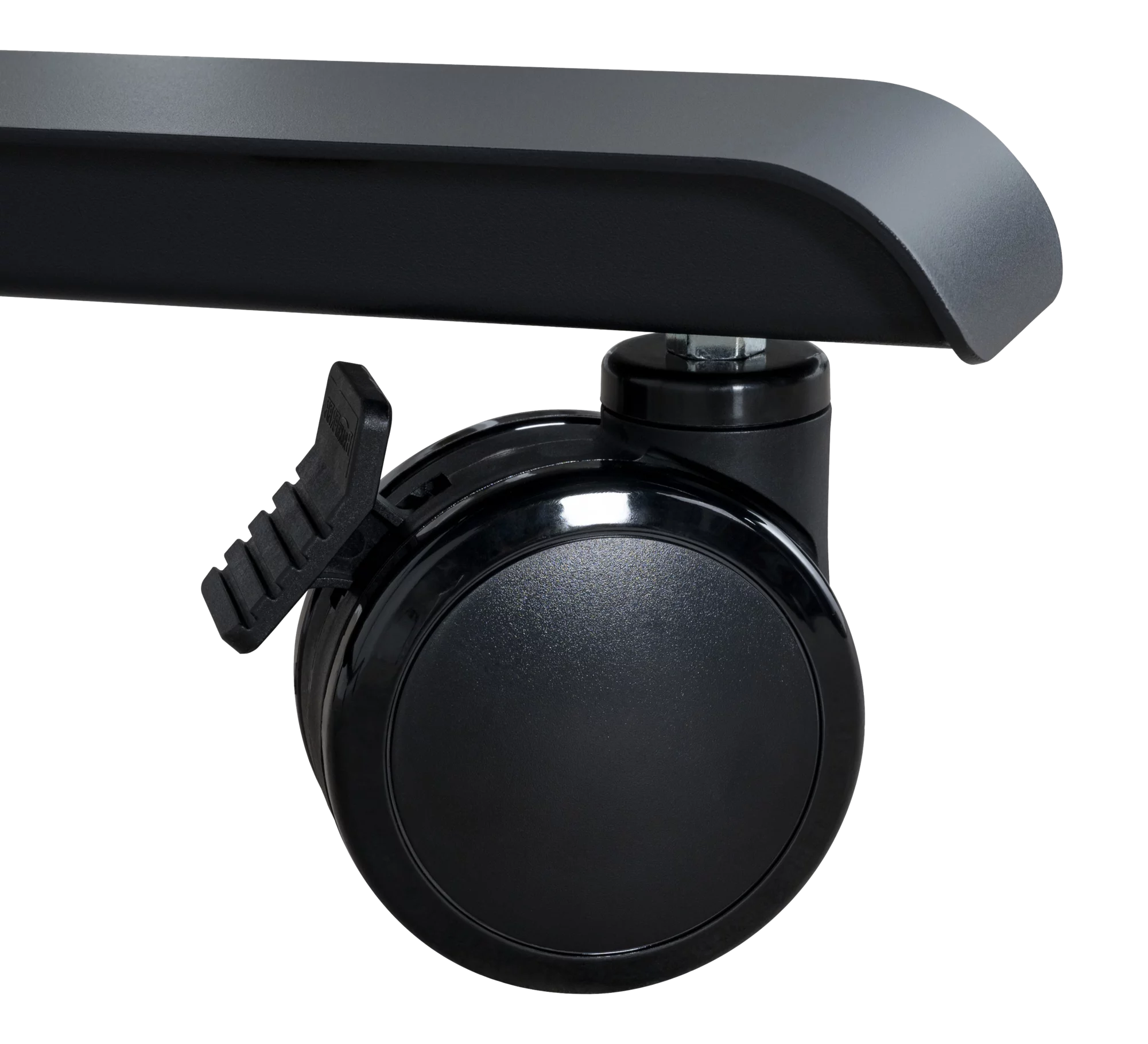

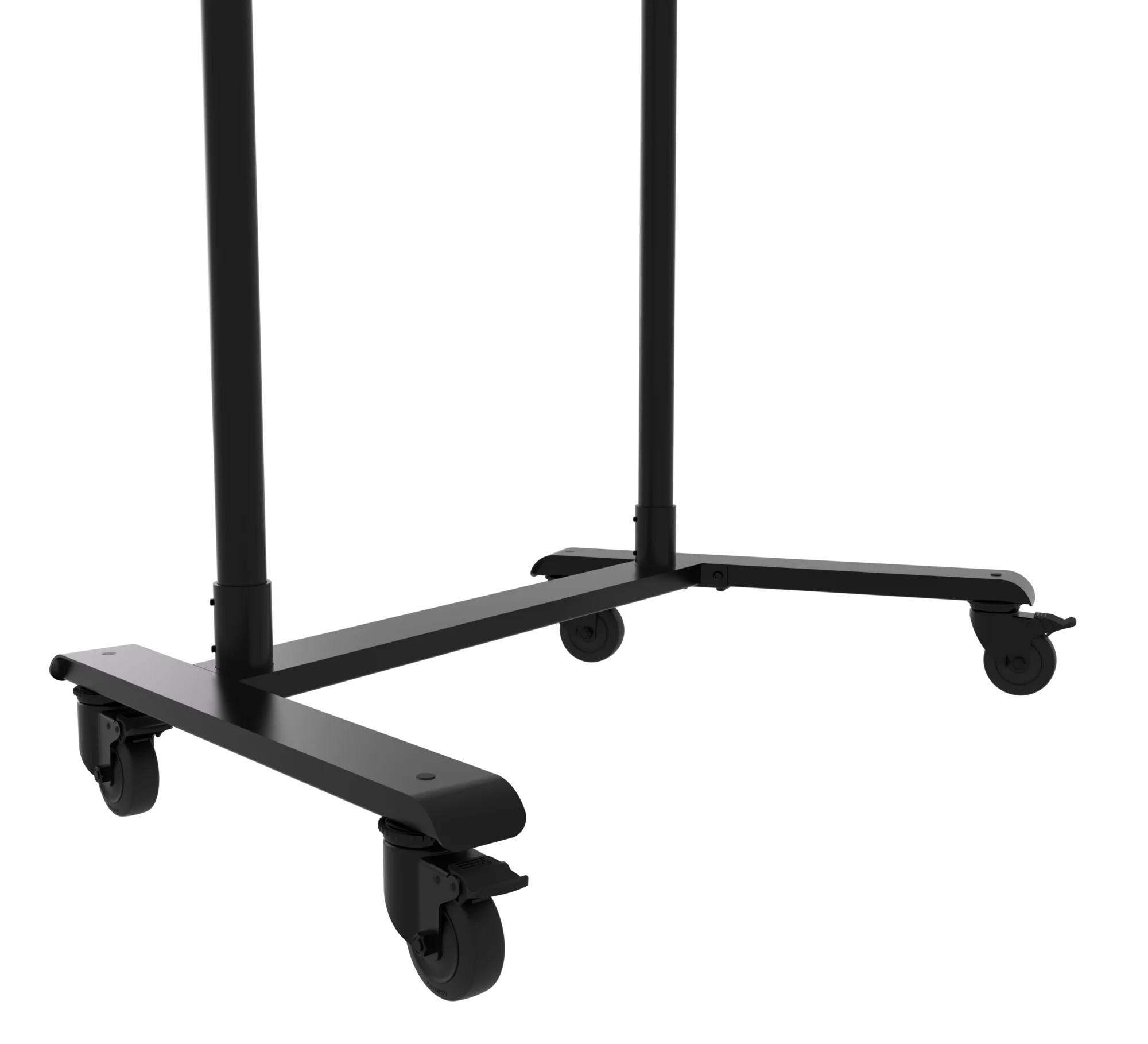

  • Includes non-marking locking/braked castors & alternative levelling feet

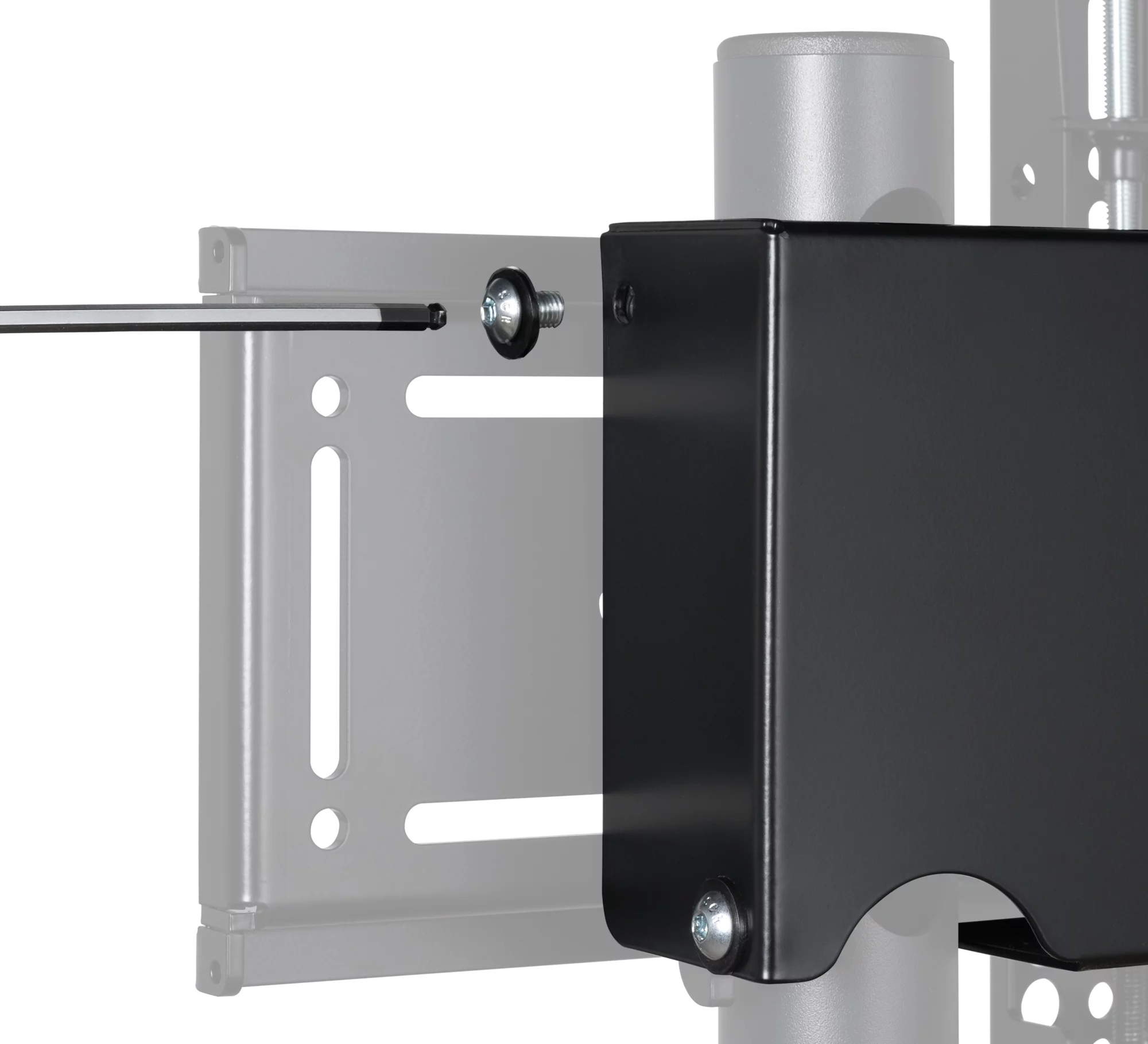

  • Adjustment screws allow the screen to be levelled once mounted
  • 1.5m Ø50mm poles supplied with cable management holes
  • Shelves and other accessories can be fitted to the poles using Ø50mm
  • Accessories can also be mounted above/below the screen using a BT7031
  • Integrated cable management for a neat and tidy installation

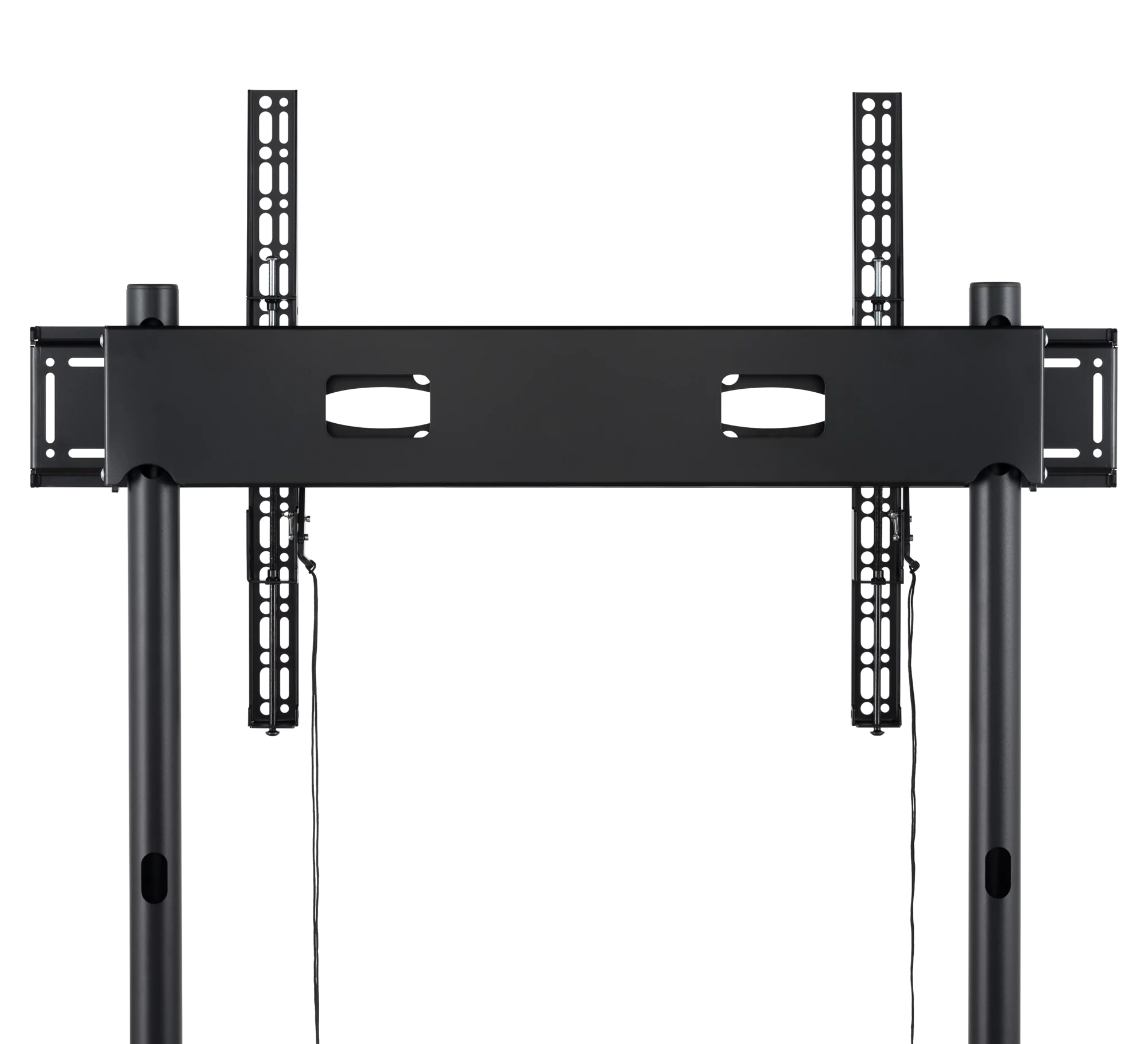

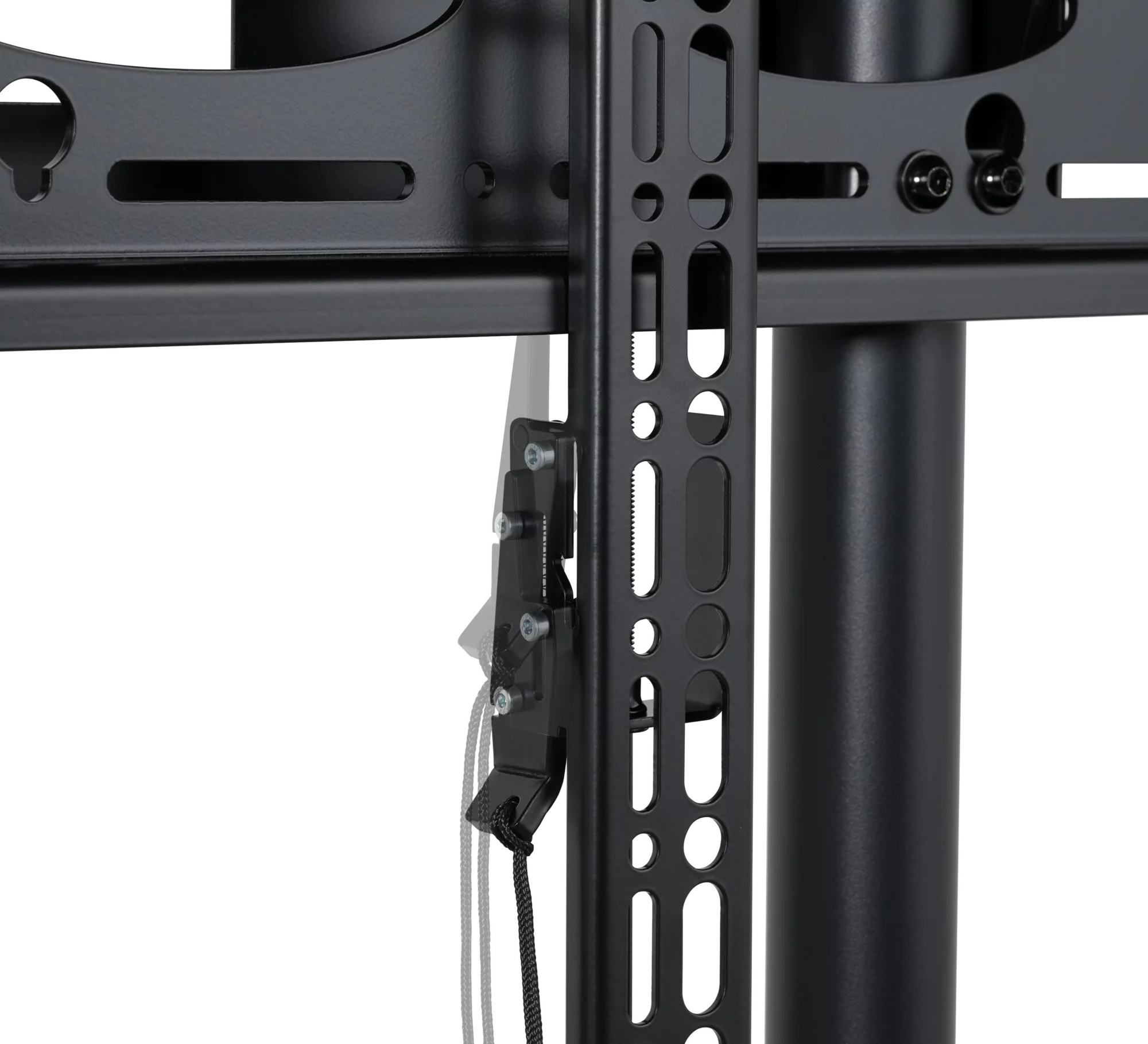

  • Simple 'hook-on' installation
  • All mounting hardware included
  • Heavy duty XL flat screen trolley suitable for screens 65" and over
  • Base disassembles into three pieces for easy transportation
  • The interface features an optional storage area for cables and accessories

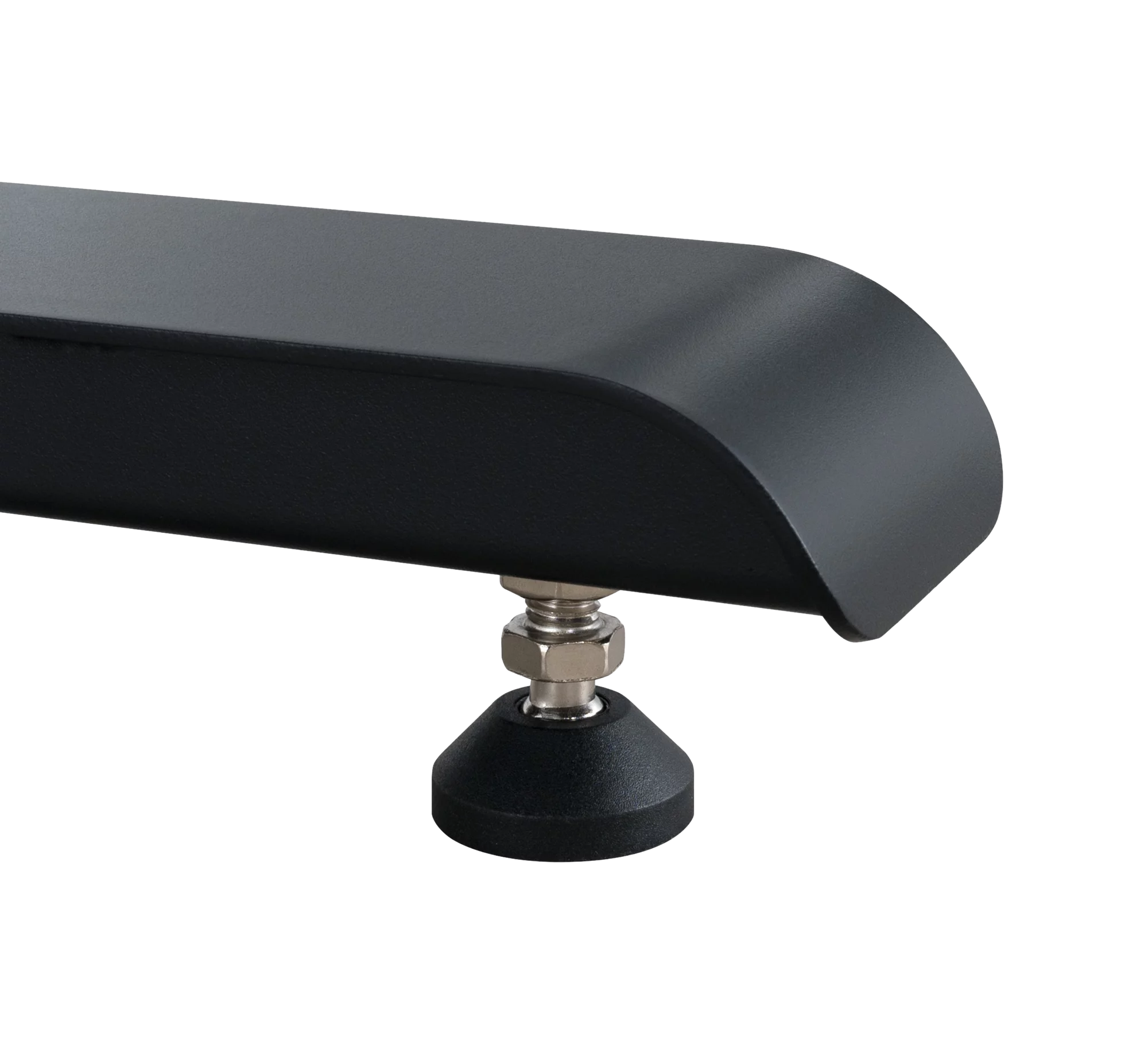

  • Includes non-marking locking/braked castors & alternative levelling feet
  • Adjustment screws allow the screen to be levelled once mounted
  • 1.5m Ø50mm poles supplied with cable management holes
  • Shelves and other accessories can be fitted to the poles using Ø50mm
  • Accessories can also be mounted above/below the screen using a BT7031
  • Integrated cable management for a neat and tidy installation
  • Simple 'hook-on' installation
  • All mounting hardware included

Product Specifications

  • Recommended display size: 65" up to 120"
  • Max load: 130kg
  • VESA fixings: up to 1000mm x 600mm
  • Pole diameter: 50mm
  • Product width: 1340mm
  • Product depth: 738mm
  • Product height: 1731mm
  • Storage area width: 720mm
  • Storage area depth: 90mm
  • Storage area height: 160mm
  • Orientation: Landscape, Portrait
  • Colour: Black
  • Recommended display size: 65" up to 120"
  • Max load: 130kg
  • VESA fixings: up to 1000mm x 600mm
  • Pole diameter: 50mm
  • Product width: 1340mm
  • Product depth: 738mm
  • Product height: 1731mm
  • Storage area width: 720mm
  • Storage area depth: 90mm
  • Storage area height: 160mm
  • Orientation: Landscape, Portrait
  • Colour: Black

Ordering & Box Information

Order Code: BT8506/B V2

Barcode: 5019318759444

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 38.89kg

Order Code: BT8506/B V2

Barcode: 5019318759444

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 38.89kg

Downloads

BT8506 - Product Specification Sheet - English

pdf 1.55 MB

BT8506 - Product Specification Sheet - French

pdf 1.66 MB

BT8506 - Product Specification Sheet - Spanish

pdf 1.74 MB

BT8506 - Product Specification Sheet - Dutch

pdf 1.74 MB

BT8506 - Installation Guide

pdf 6.11 MB

BT8506 - Technical Drawings - (DXF)

DXF 32.97 MB

BT8506 - Technical Drawings - (PDF)

pdf 428.27 KB

BT8506-B-1

png 47.65 KB

BT8506-B-11

png 232.13 KB

BT8506-B-2

png 44.46 KB

BT8506-B-3

png 30.40 KB

BT8506-B-6

png 38.80 KB

BT8506-B-9

png 56.07 KB

BT8506-B-15

png 166.80 KB

BT8506-B-19

png 105.08 KB

BT8506-B-14

png 153.50 KB

BT8506-B-16

png 182.94 KB

BT8506-B-17

png 105.58 KB

BT8506-B-18

png 93.78 KB

BT8506-B-22

png 124.28 KB

BT8506-B-21

png 165.23 KB

BT8506-B-23

png 122.29 KB

BT8506-B-5

png 267.56 KB

BT8506 - Green Sheet

pdf 389.30 KB
