BT8554

Momentum

Motorised Twin Screen VC Trolley

Motorised height-adjustment

BT8554/B

Momentum

Motorised Twin Screen VC Trolley

Motorised height-adjustment

Enquire Today View Downloads

Overview

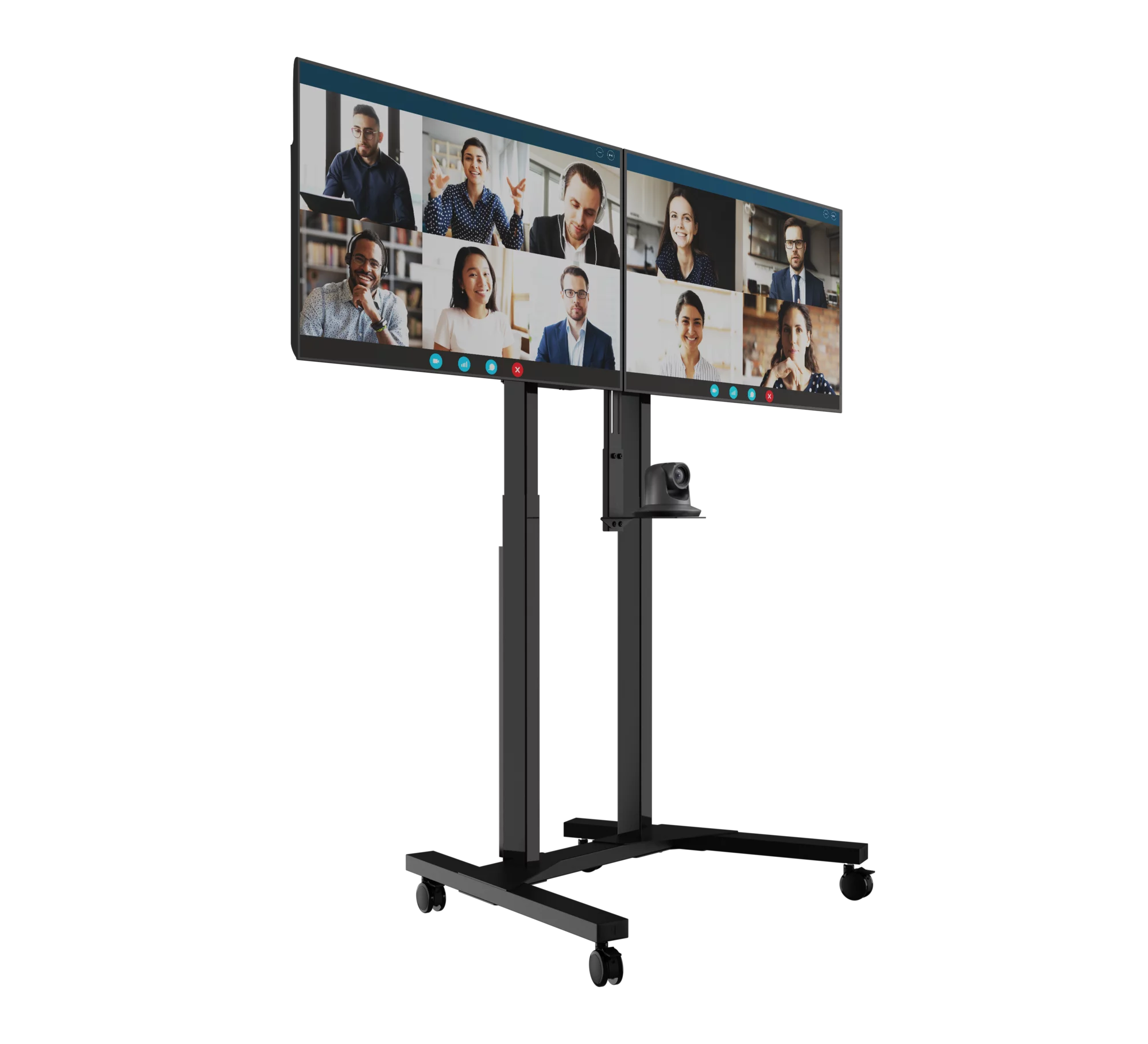

Part of B-Tech's Momentum Range of mobile display solutions, the BT8554 Momentum E-Lift Duo is a motorised, height-adjustable trolley designed for twin displays up to 46" each. Its electronic height adjustment system allows for effortless raising and lowering of the screens via a wired control panel, with an adjustment range of up to 650mm that makes the display accessible to a variety of users. Capable of mounting dual screens up to 25kg per display and featuring a sleek and modern design aesthetic, quick assembly and ease of use. An integrated storage unit at the rear provides convenient space for cable management and AV equipment, making the complete AV set-up both neat and practical.
Part of B-Tech's Momentum Range of mobile display solutions, the BT8554 Momentum E-Lift Duo is a motorised, height-adjustable trolley designed for twin displays up to 46" each. Its electronic height adjustment system allows for effortless raising and lowering of the screens via a wired control panel, with an adjustment range of up to 650mm that makes the display accessible to a variety of users. Capable of mounting dual screens up to 25kg per display and featuring a sleek and modern design aesthetic, quick assembly and ease of use. An integrated storage unit at the rear provides convenient space for cable management and AV equipment, making the complete AV set-up both neat and practical.

Product Features

  • All mounting hardware included
  • Simple hook-on screen installation
  • Safety screws help prevent unauthorised removal of the screen
  • Levelling screws for simple post-install alignment
  • Auto-stop; prevents screen from movement when resistance is felt

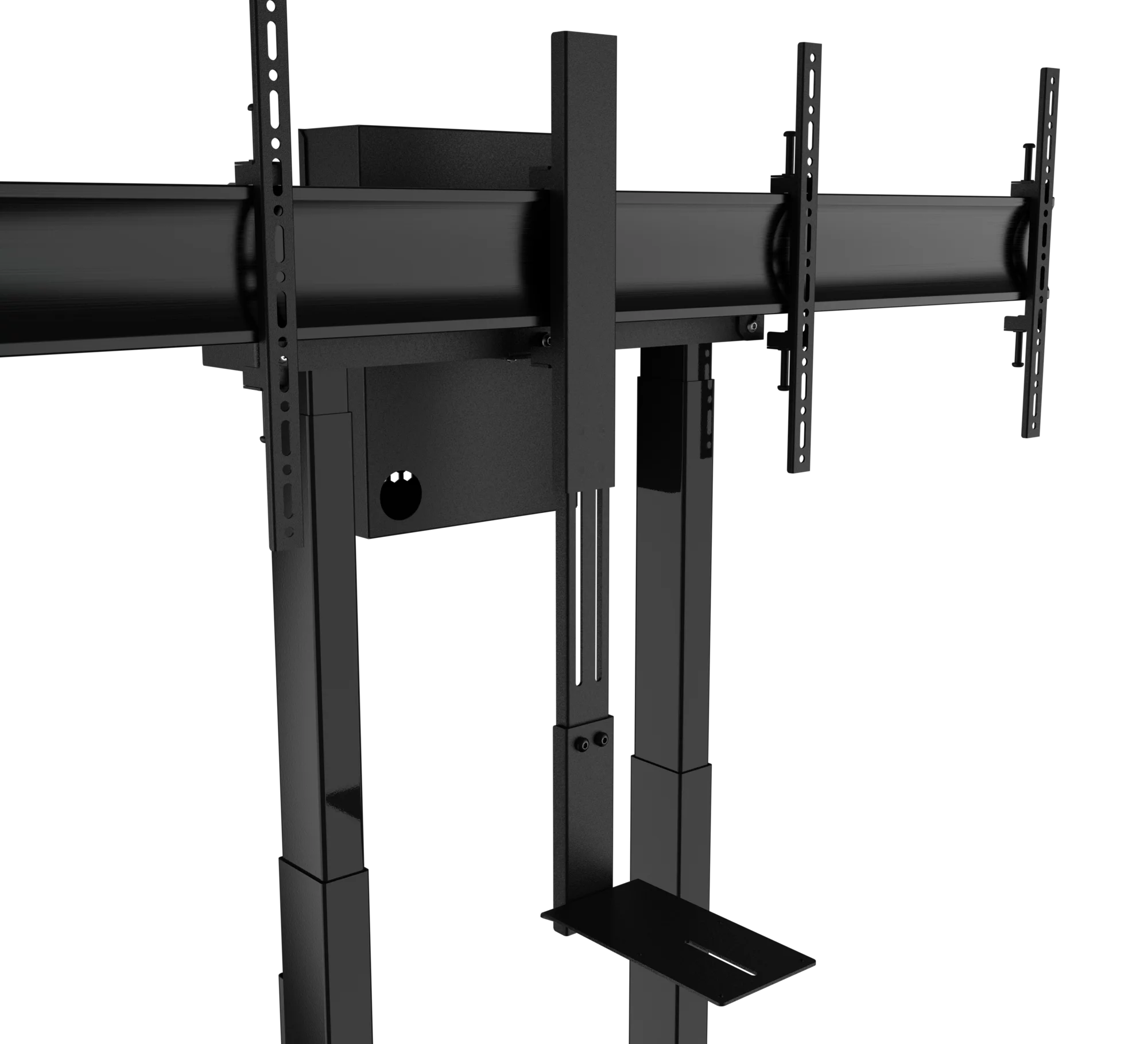

  • VC shelf for cameras with 1/4" thread and 100 x 100mm fixing points

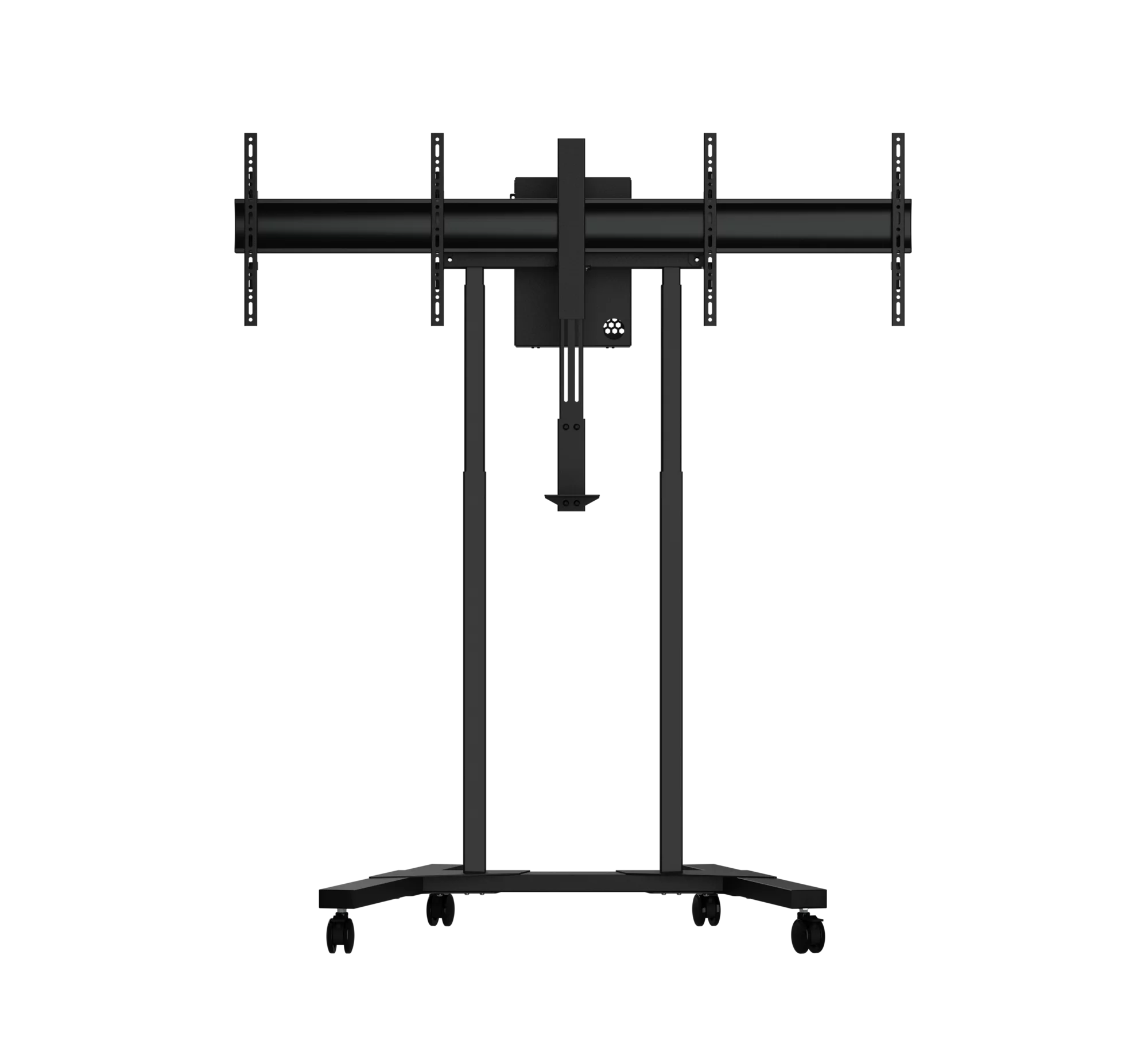

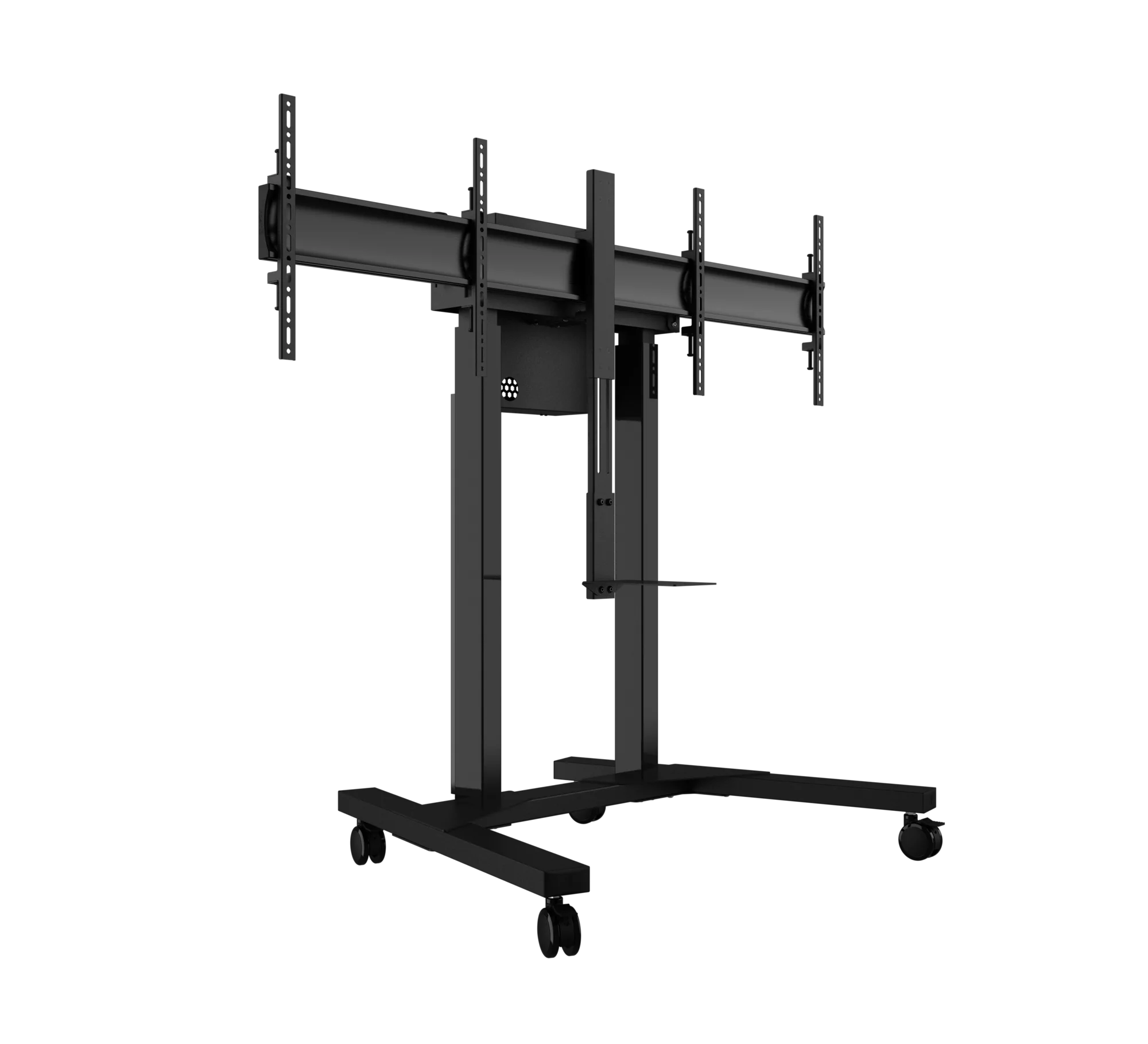

  • Universal design suitable for mounting two screens side by side
  • Storage compartment on the rear stores cables and AV equipment

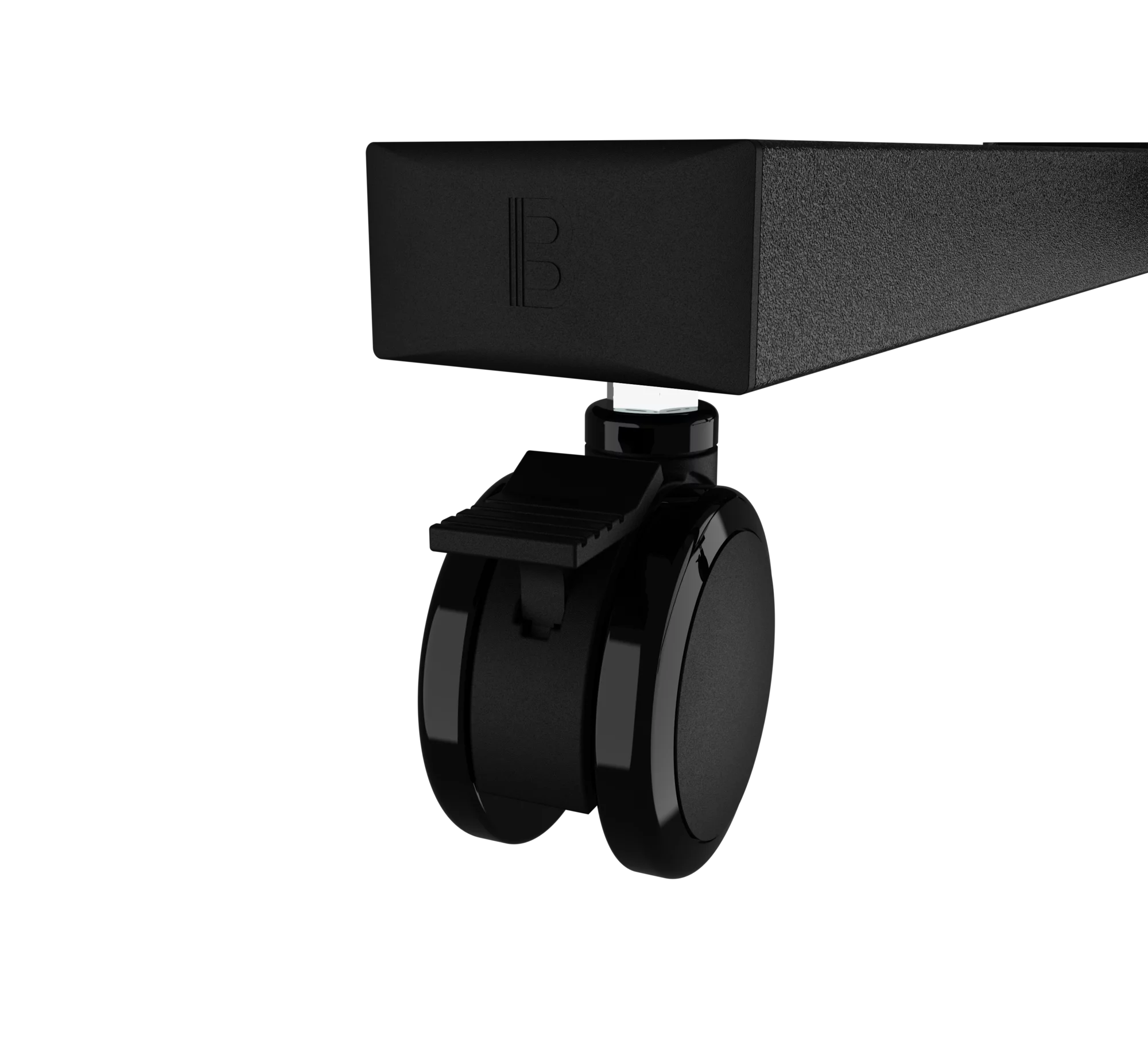

  • Non-marking locking / braked castors included
  • Supplied with a wired control console for easy height adjustment
  • Motorised height-adjustment for precise screen positioning
  • Motorised height-adjustment for precise screen positioning
  • Supplied with a wired control console for easy height adjustment
  • Non-marking locking / braked castors included
  • Storage compartment on the rear stores cables and AV equipment
  • Universal design suitable for mounting two screens side by side
  • VC shelf for cameras with 1/4" thread and 100 x 100mm fixing points
  • Auto-stop; prevents screen from movement when resistance is felt
  • Levelling screws for simple post-install alignment
  • Safety screws help prevent unauthorised removal of the screen
  • Simple hook-on screen installation
  • All mounting hardware included

Product Specifications

  • Recommended display size: 39" up to 46"
  • Max load: 25kg per screen
  • VESA fixings: up to 400mm x 400mm
  • Product depth: 832.8mm
  • Min product height: 1302.9mm
  • Max product height: 1952.9mm
  • Height adjustment speed - per second: 35mm
  • Shelf depth: 235mm
  • Shelf width: 120mm
  • Shelf height: 3mm
  • Storage area width: 257mm
  • Storage area depth: 95.2mm
  • Storage area depth: 260mm
  • Orientation: Landscape
  • Colour: Black
  • Storage area height: 377mm
  • Recommended display size: 39" up to 46"
  • Max load: 25kg per screen
  • VESA fixings: up to 400mm x 400mm
  • Product depth: 832.8mm
  • Min product height: 1302.9mm
  • Max product height: 1952.9mm
  • Height adjustment speed - per second: 35mm
  • Shelf depth: 235mm
  • Shelf width: 120mm
  • Shelf height: 3mm
  • Storage area width: 257mm
  • Storage area depth: 95.2mm
  • Storage area height: 377mm
  • Storage area depth: 260mm
  • Orientation: Landscape
  • Colour: Black

Ordering & Box Information

Order Code: BT8554/B

Barcode: 5019318309748

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 62.18kg

Order Code: BT8554/B

Barcode: 5019318309748

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 62.18kg

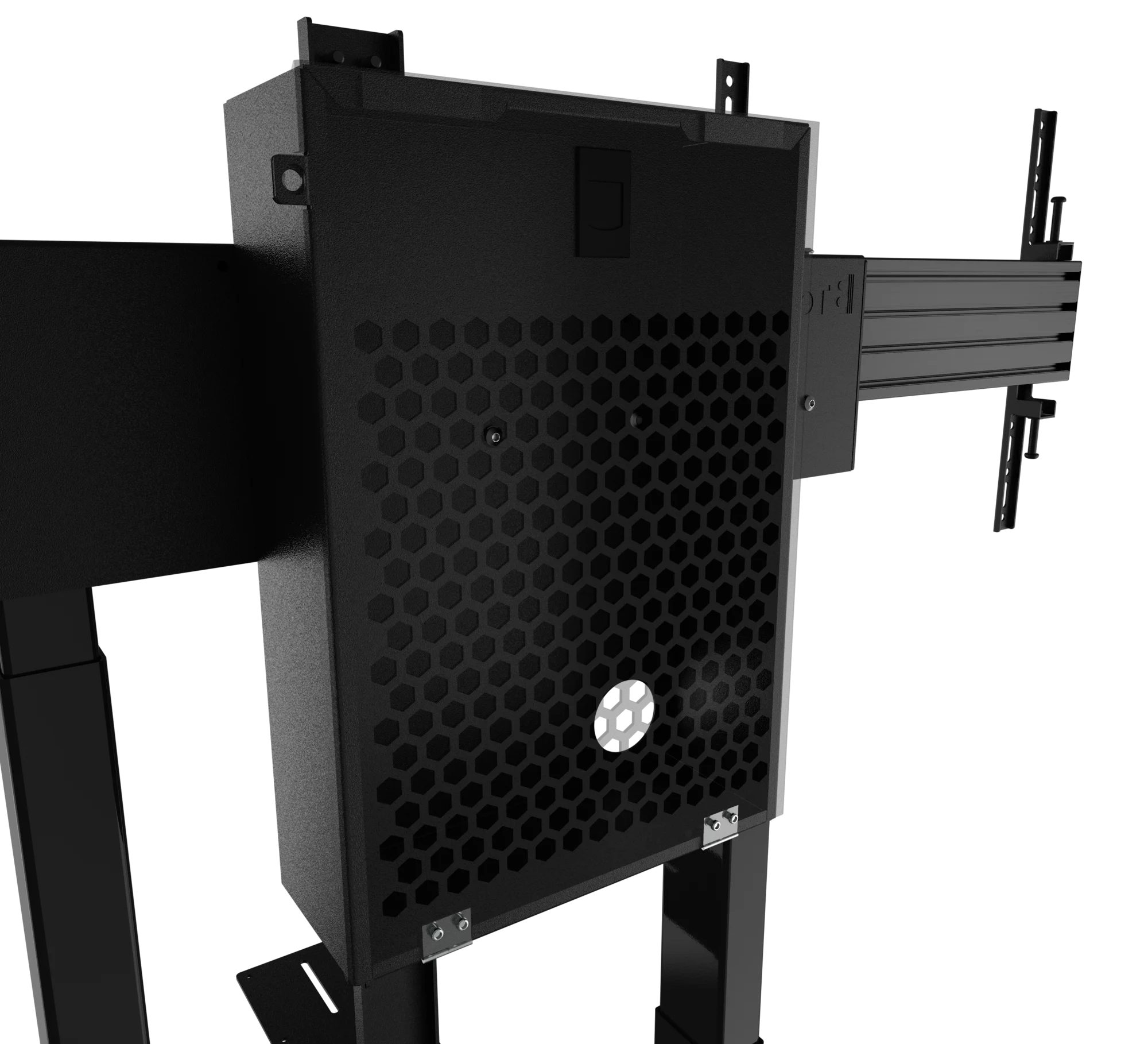

Tidy installation & professional look

Peripheral devices such as media players, PCs, routers and power supplies can be neatly housed within the unit’s rear storage, reducing visual clutter and creating a clean, professional finish ideal for conference rooms and client-facing environments.

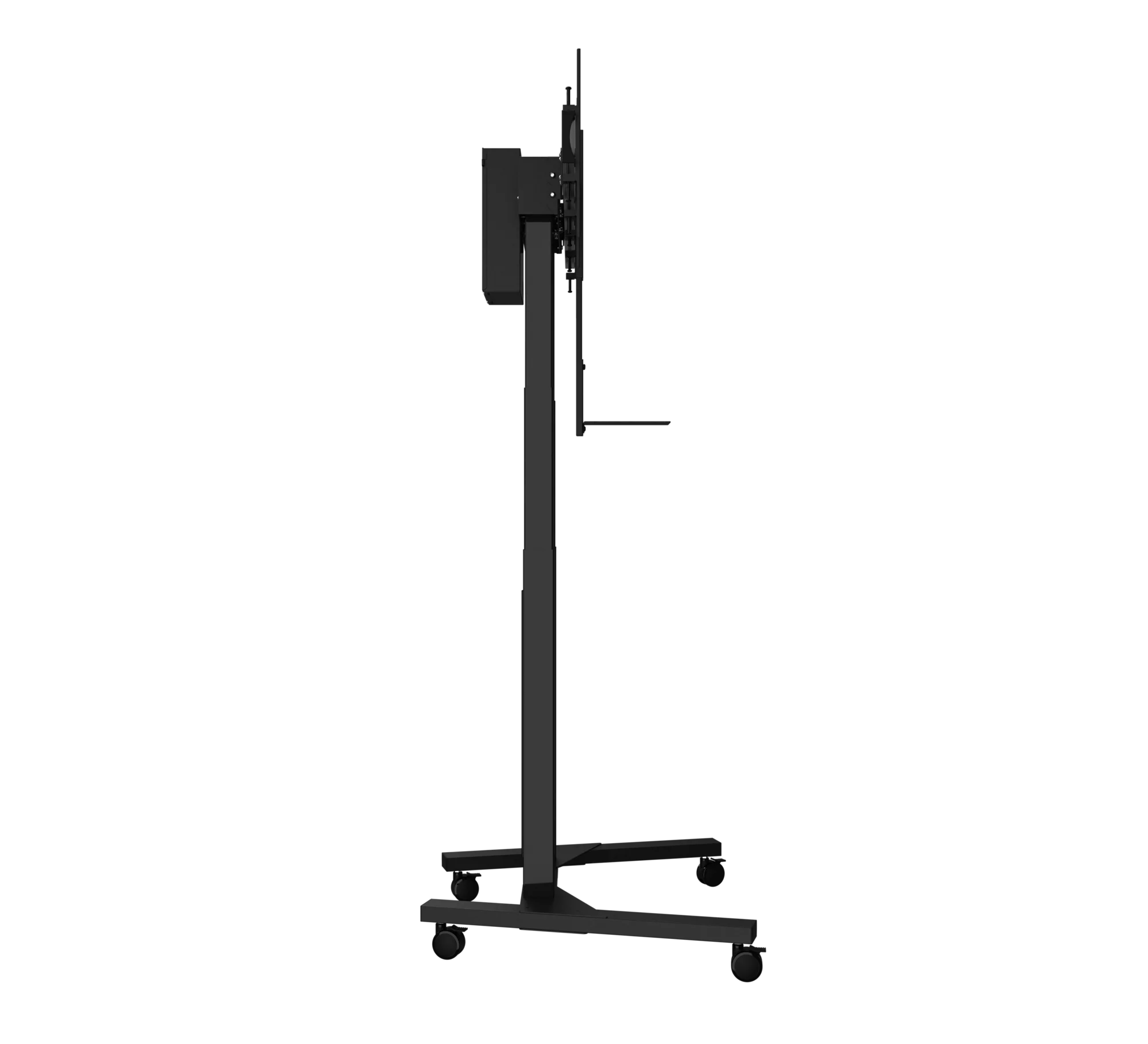

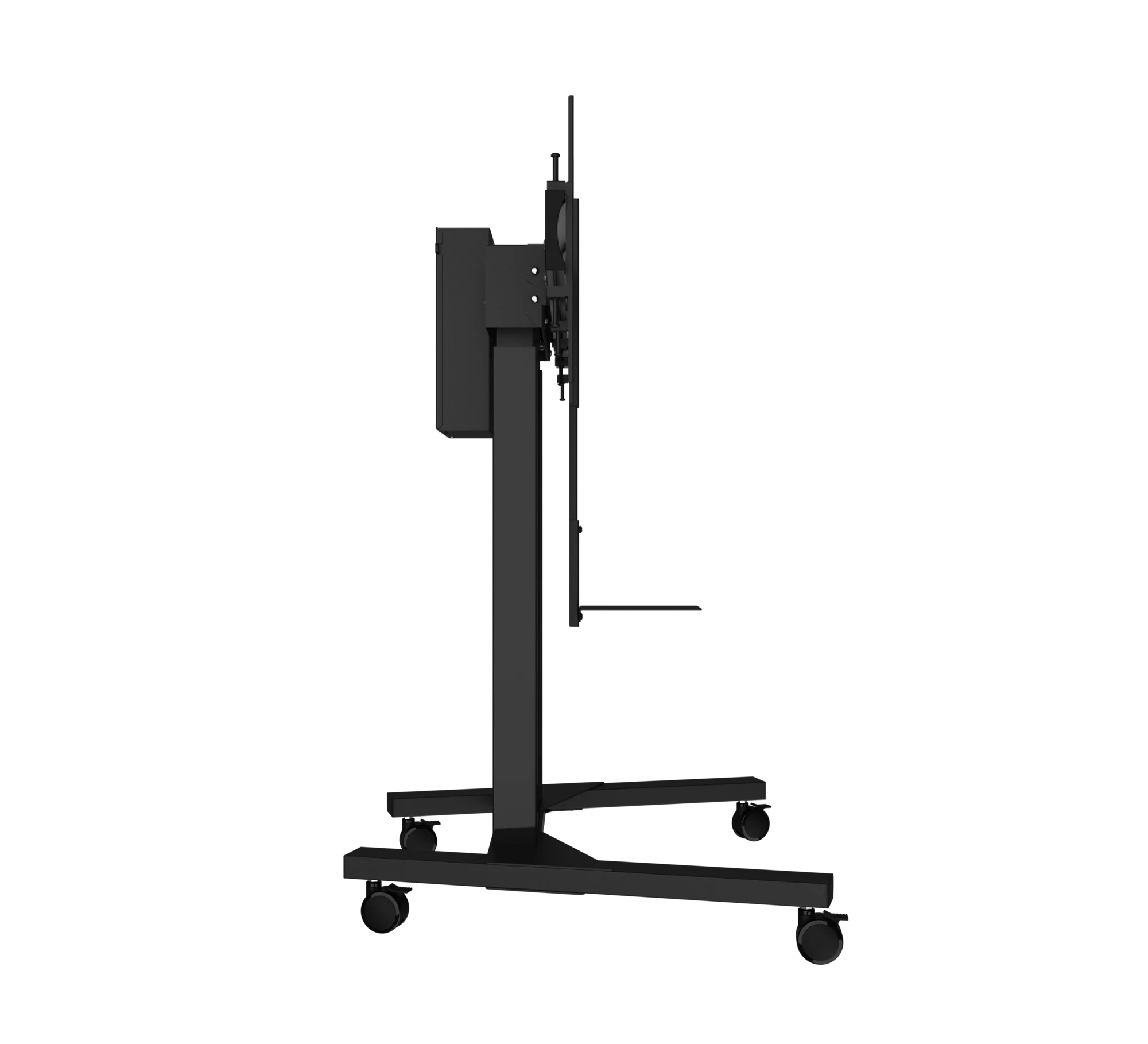

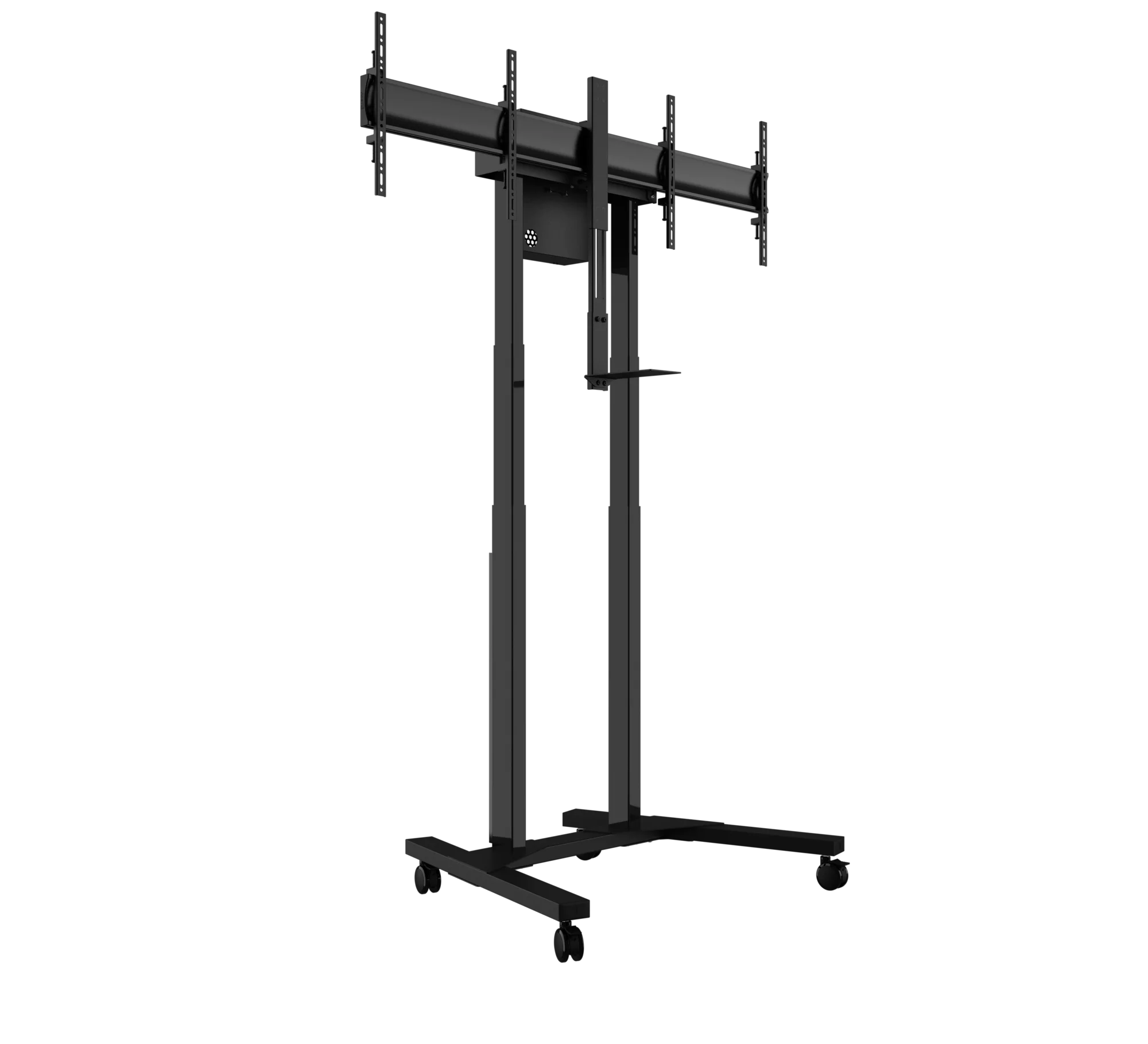

Motorised height adjustment with wide range

The BT8554 features a motorised height-adjustment system, allowing twin displays to be smoothly raised or lowered at the touch of a wired control panel, with an impressive adjustment range of up to 650 mm.


Motorised height adjustment with wide range

The BT8554 features a motorised height-adjustment system, allowing twin displays to be smoothly raised or lowered at the touch of a wired control panel, with an impressive adjustment range of up to 650 mm.


Tidy installation & professional look

Peripheral devices such as media players, PCs, routers and power supplies can be neatly housed within the unit’s rear storage, reducing visual clutter and creating a clean, professional finish ideal for conference rooms and client-facing environments.

Downloads

BT8554 - Product Specification Sheet - English

pdf 1.80 MB

BT8554 - Product Specification Sheet - US

pdf 1.80 MB

BT8554 - Installation Guide

pdf 10.59 MB

BT8554 - Technical Drawings - (DXF)

DXF 31.38 MB

BT8554 - Technical Drawings - (PDF)

pdf 366.68 KB

BT8554-B-1

png 41.52 KB

BT8554-B-19

png 82.75 KB

BT8554-B-2

png 30.65 KB

BT8554-B-3

png 26.25 KB

BT8554-B-5

png 55.17 KB

BT8554-B-7

png 23.68 KB

BT8554-B-8

png 47.08 KB

BT8554-B-9

png 36.99 KB

BT8554-B-10

png 28.66 KB

BT8554-B-11

png 37.36 KB

BT8554-B-13

png 37.70 KB

BT8554-B-14

png 91.75 KB

BT8554-B-15

png 124.87 KB

BT8554-B-16

png 229.02 KB

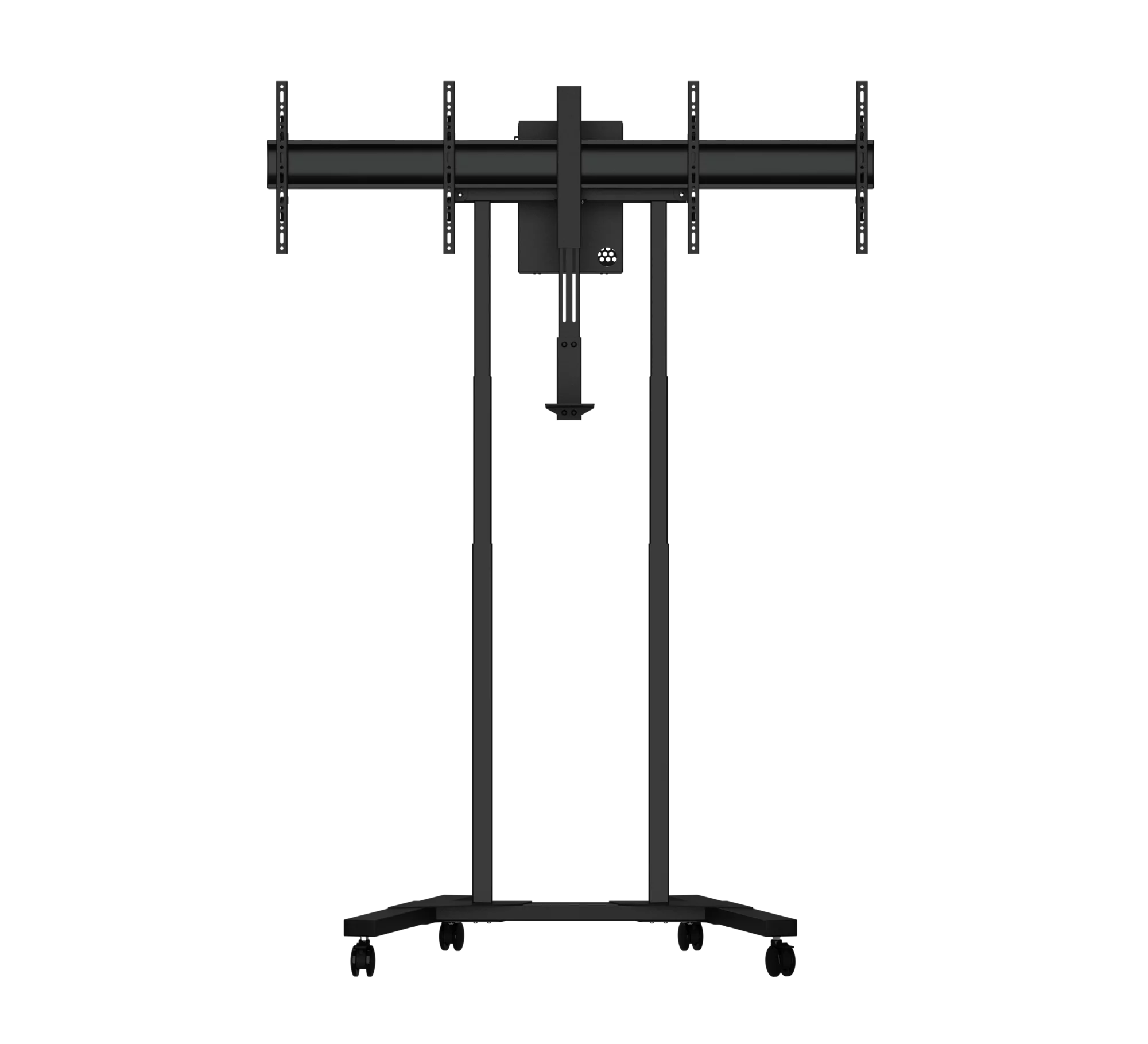

BT8554-B-18
