Home All Products Adjustable Drop Extra-Large Projector Ceiling Mount
Metric Imperial

BT899XL-AD

Adjustable Drop Extra-Large Projector Ceiling Mount

With Micro Adjustment

BT899XL-AD/B

Adjustable Drop Extra-Large Projector Ceiling Mount

With Micro Adjustment

Enquire Today View Downloads

Overview

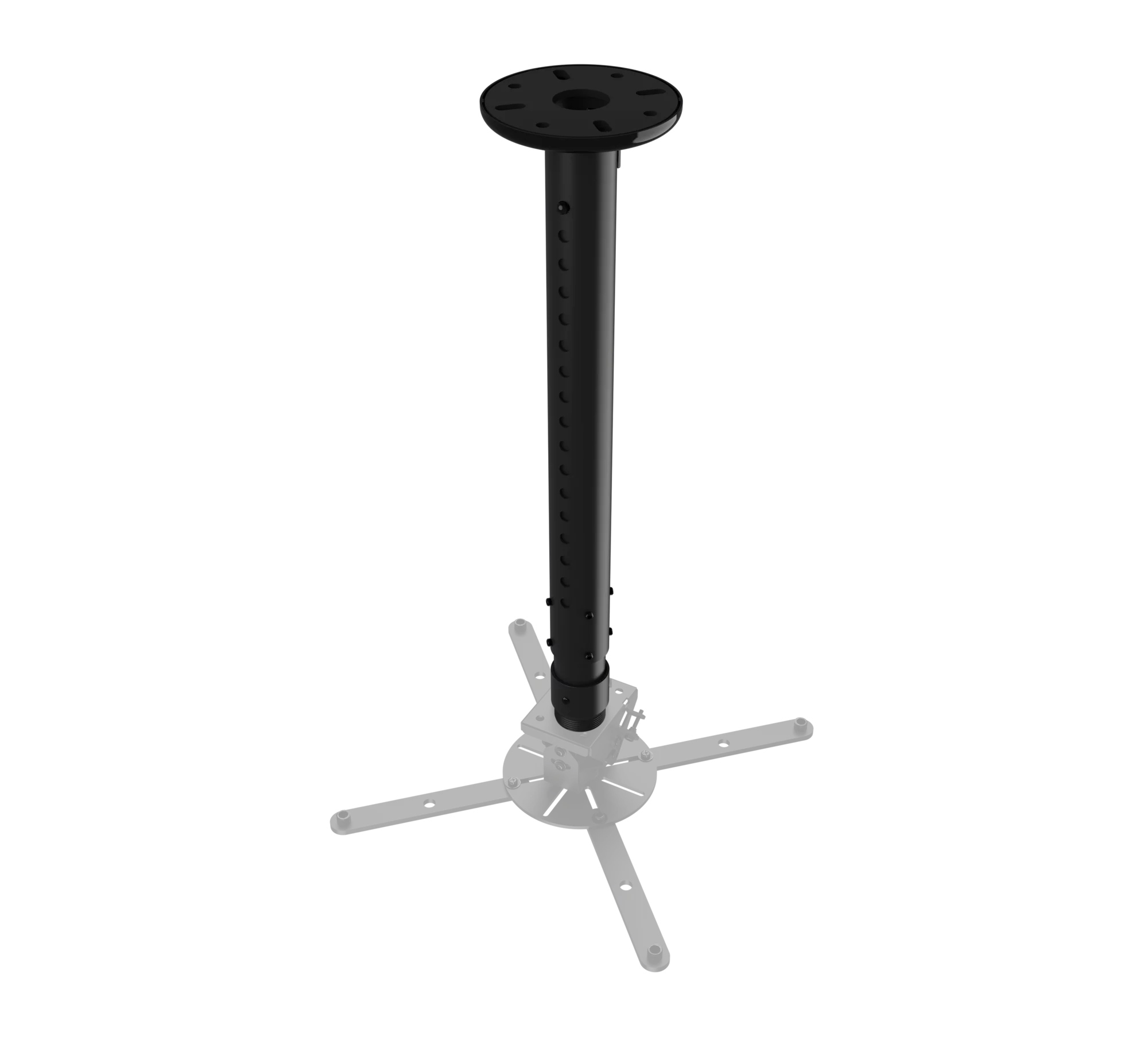

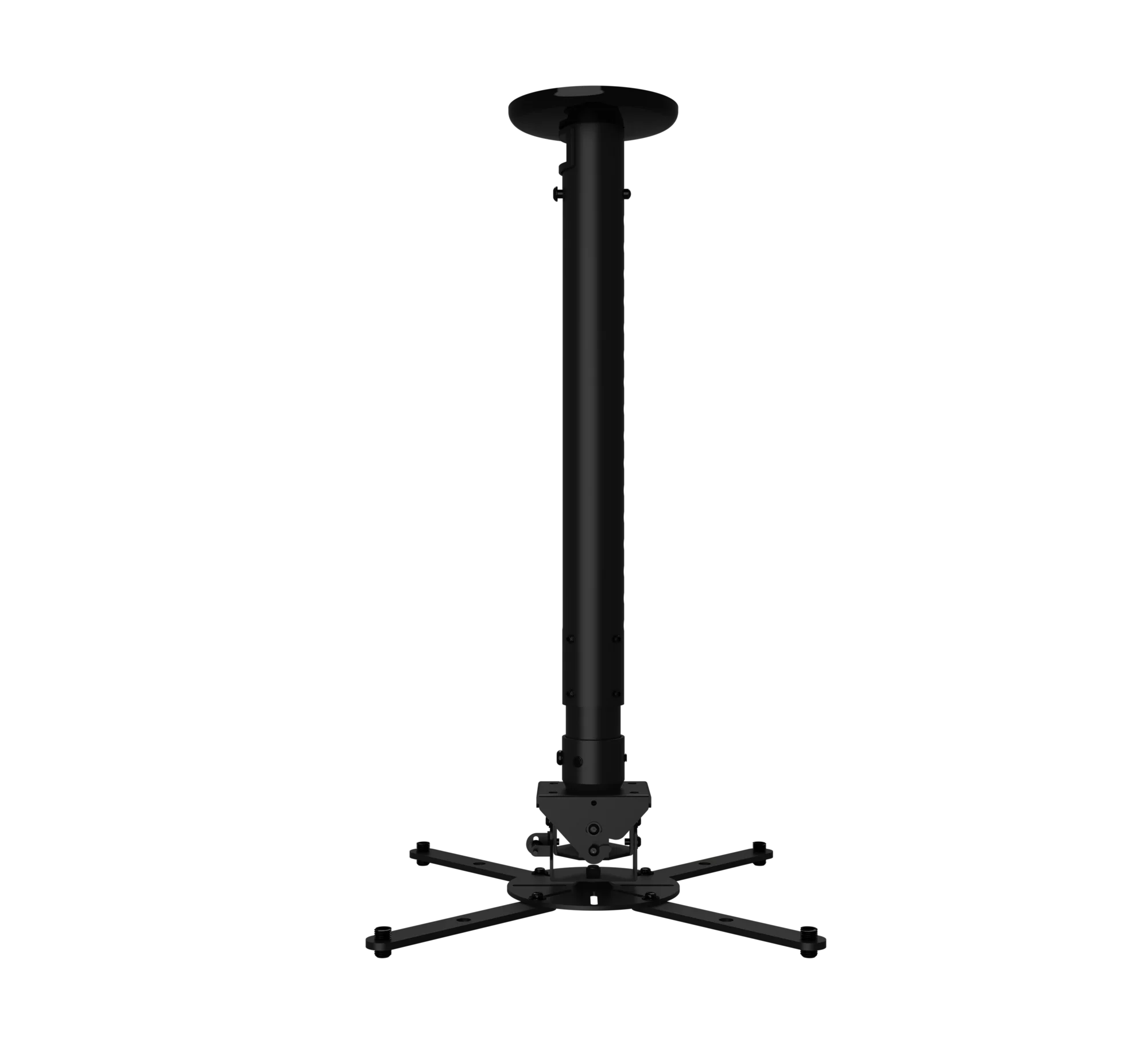

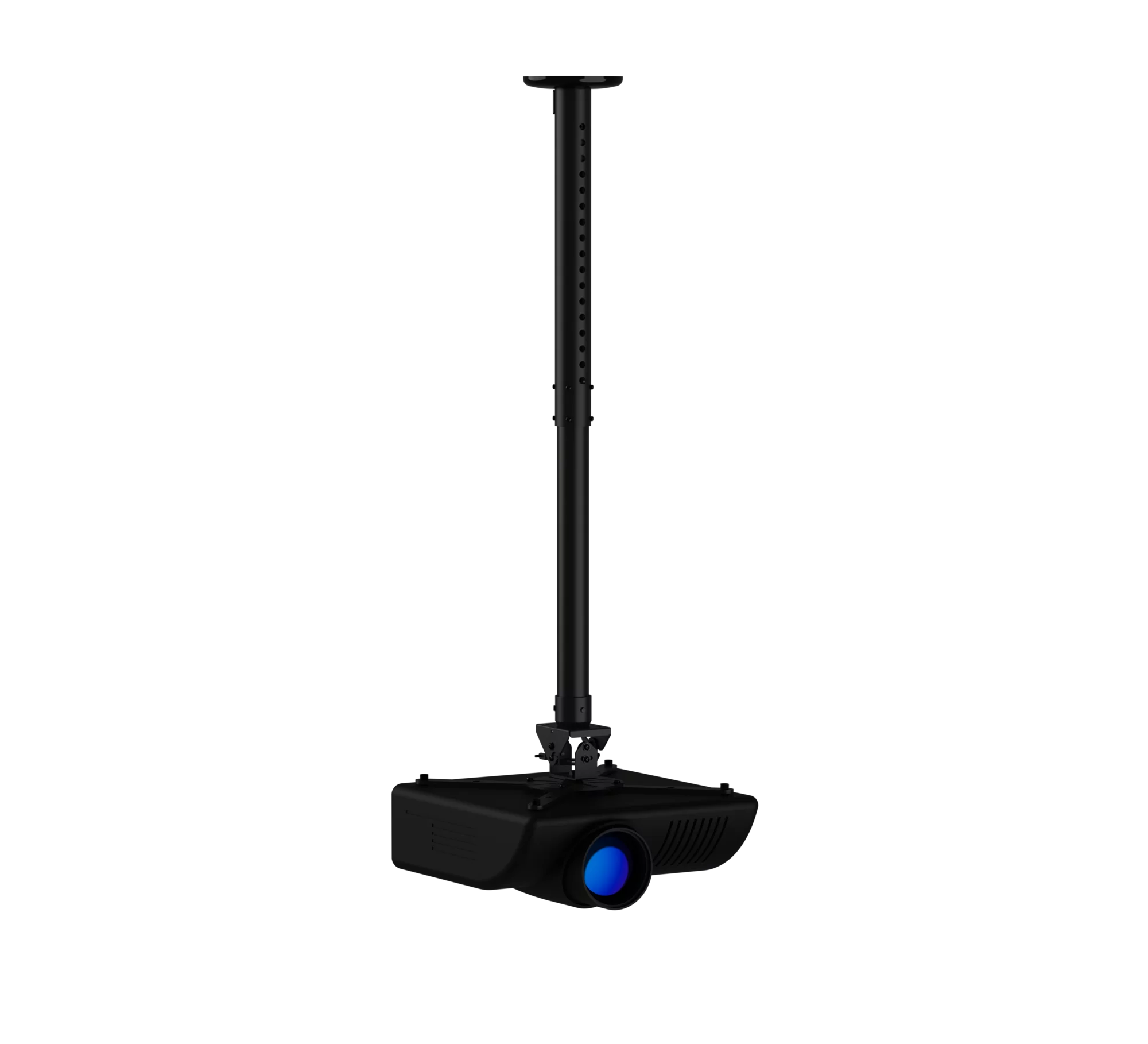

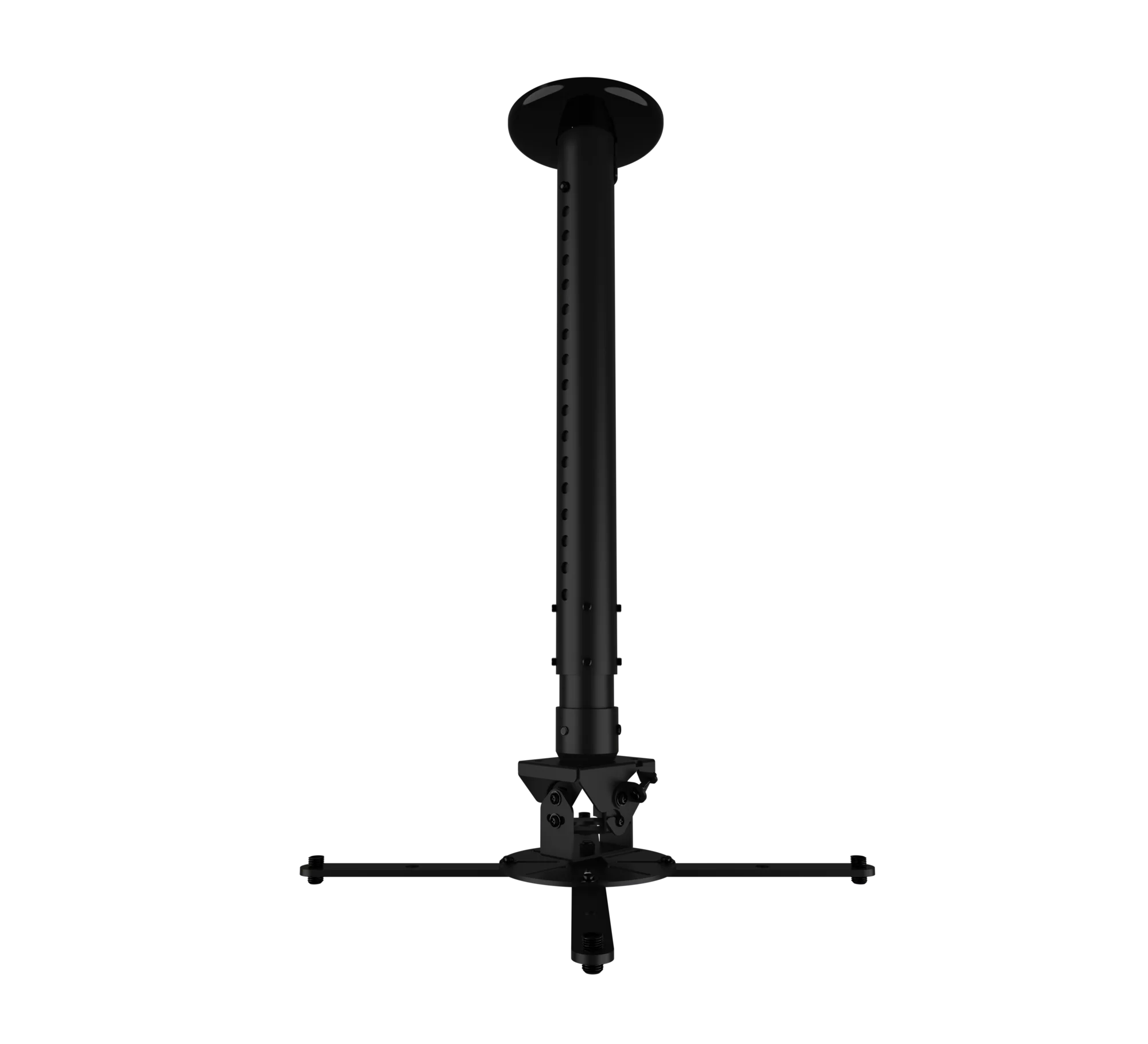

The BT899XL-AD is a ceiling mounted, universal projector mount designed to mount projectors up to 25kg. The BT899-AD allows the projector to be lowered or raised in 25mm increments & securely fastened at the desired height. The BT899-AD has a maximum drop of 1137mm & features easy adjustment of tilt, yaw & roll plus optional micro-adjustment makes alignment of projections quick & simple.
The BT899XL-AD is a ceiling mounted, universal projector mount designed to mount projectors up to 25kg. The BT899-AD allows the projector to be lowered or raised in 25mm increments & securely fastened at the desired height. The BT899-AD has a maximum drop of 1137mm & features easy adjustment of tilt, yaw & roll plus optional micro-adjustment makes alignment of projections quick & simple.

Product Features

  • Tool-less adjustable drop in 25mm increments for the perfect positioning of projector height
  • Integrated cable management for a smart installation
  • Security locking screws and Allen key provided for a secure installation
  • Unique 'Carousel' mounting plate for universal compatibility
  • Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings
  • Tool-less adjustable drop in 25mm increments for the perfect positioning of projector height
  • Integrated cable management for a smart installation
  • Security locking screws and Allen key provided for a secure installation
  • Unique 'Carousel' mounting plate for universal compatibility
  • Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings

Product Specifications

  • Max load: 25kg
  • Tilt: +/-13°

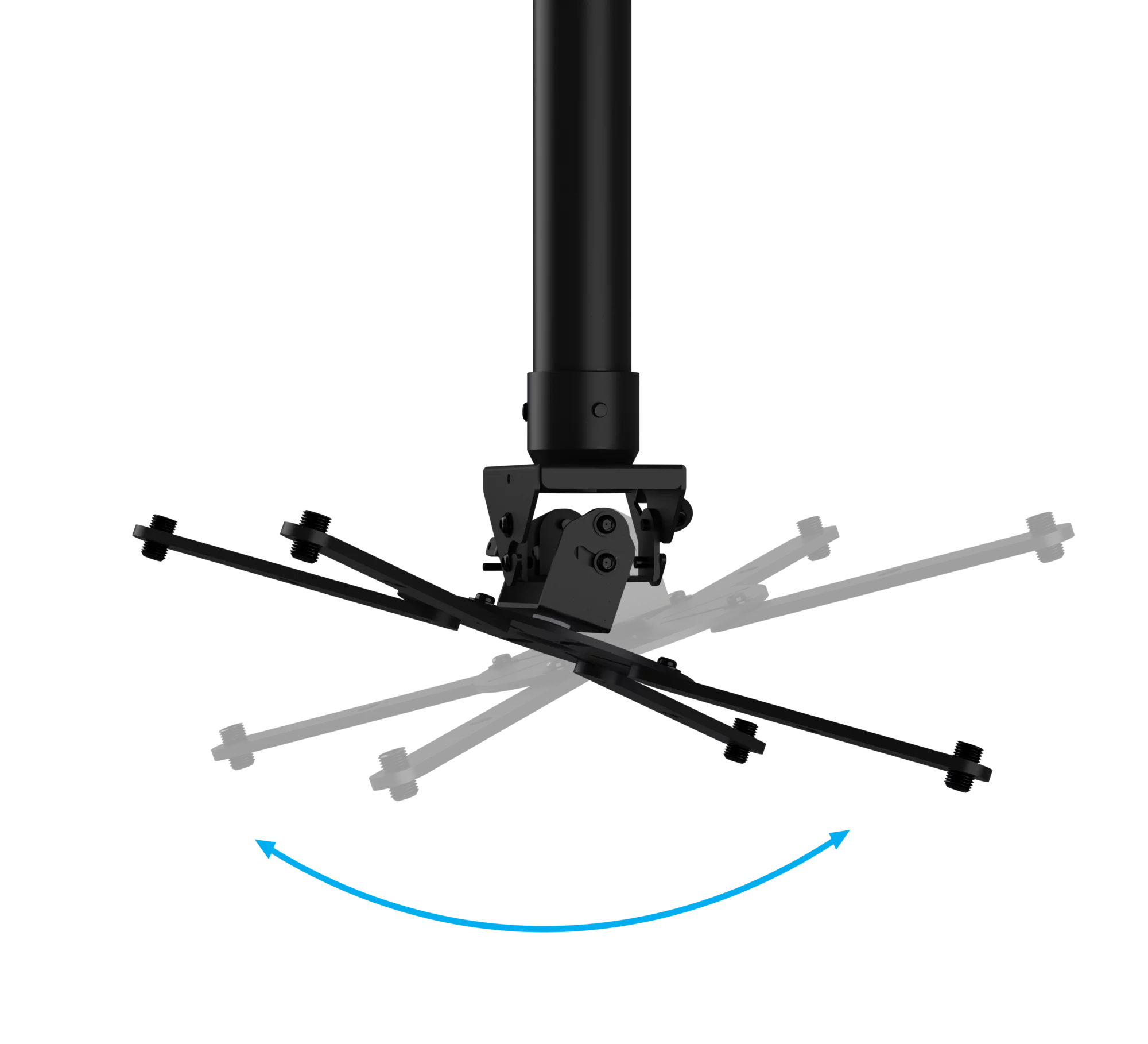

  • Yaw: 360°
  • Roll: +/-6°
  • Max distance between fixings: 493mm
  • Max product width: 522mm
  • Max product depth: 522mm
  • Min product height: 728.5mm
  • Max product height: 1128.5mm
  • Max extension: 400mm
  • Colour: Black
  • Max load: 25kg
  • Tilt: +/-13°
  • Yaw: 360°
  • Roll: +/-6°
  • Max distance between fixings: 493mm
  • Max product width: 522mm
  • Max product depth: 522mm
  • Min product height: 728.5mm
  • Max product height: 1128.5mm
  • Max extension: 400mm
  • Colour: Black

Ordering & Box Information

Order Code: BT899XL-AD/B

Barcode: 5019318761140

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 7.42kg

Order Code: BT899XL-AD/B

Barcode: 5019318761140

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 7.42kg

Downloads

BT899XL-AD - Product Specification Sheet - English

pdf 1.78 MB

BT899XL-AD - Product Specification Sheet - French

pdf 1.78 MB

BT899XL-AD - Product Specification Sheet - Spanish

pdf 1.66 MB

BT899XL-AD - Product Specification Sheet - Dutch

pdf 1.66 MB

BT899XL-AD - Installation Guide

pdf 4.60 MB

BT899XL-AD - Technical Drawings - (PDF)

pdf 462.92 KB

BT899XL-AD-B-1

png 19.46 KB

BT899XL-AD-B-8

png 22.14 KB

BT899XL-AD-B-3

png 29.36 KB

BT899XL-AD-B-4

png 25.98 KB

BT899XL-AD-B-6

png 40.79 KB

BT899XL-AD-B-10

png 28.57 KB

BT899XL-AD-B-9

png 69.48 KB

BT899XL-AD-B-5

png 272.70 KB

BT899XL - Green Sheet

pdf 342.90 KB
