BTF840

System X

System X Universal Flat Screen Stand

For portrait & landscape mounting

BTF840/BS

System X

System X Universal Flat Screen Stand

For portrait & landscape mounting

BTF840/BB

System X

System X Universal Flat Screen Stand

For portrait & landscape mounting

Product variations available. Choose from the below options:

Colour

Black & Silver

Black

Enquire Today View Downloads

Overview

The BTF840 is a premium mounting solution designed to mount screens up to 75" in either landscape or portrait orientation. A heavy duty steel base eliminates the need to bolt to the floor and adjustable levelling feet are included to accommodate uneven surfaces. The high-end aesthetic with an anodised aluminium finish and integrated cable management ensures finished installations are neat and tidy, making the BTF840 ideal for use in professional or commercial applications.
The BTF840 is a premium mounting solution designed to mount screens up to 75" in either landscape or portrait orientation. A heavy duty steel base eliminates the need to bolt to the floor and adjustable levelling feet are included to accommodate uneven surfaces. The high-end aesthetic with an anodised aluminium finish and integrated cable management ensures finished installations are neat and tidy, making the BTF840 ideal for use in professional or commercial applications.
The BTF840 is a premium mounting solution designed to mount screens up to 75" in either landscape or portrait orientation. A heavy duty steel base eliminates the need to bolt to the floor and adjustable levelling feet are included to accommodate uneven surfaces. The high-end aesthetic with an anodised aluminium finish and integrated cable management ensures finished installations are neat and tidy, making the BTF840 ideal for use in professional or commercial applications.

Product Features

  • Universal design suitable for mounting screens in a landscape or portrait orientation
  • Heavy duty steel base construction provides stability, eliminating the need to bolt to the floor
  • Can also be bolted to the floor to help prevent unauthorised relocation of the display
  • Supplied with adjustable levelling feet to accommodate uneven floor surfaces
  • Arms feature levelling screws to adjust the screen height
  • Collar compatible accessories such as shelves can be fitted directly to the column
  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Simple 'hook-on' screen installation
  • Universal design suitable for mounting screens in a landscape or portrait orientation
  • Heavy duty steel base construction provides stability, eliminating the need to bolt to the floor
  • Can also be bolted to the floor to help prevent unauthorised relocation of the display
  • Supplied with adjustable levelling feet to accommodate uneven floor surfaces
  • Arms feature levelling screws to adjust the screen height
  • Collar compatible accessories such as shelves can be fitted directly to the column
  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Simple 'hook-on' screen installation
  • Universal design suitable for mounting screens in a landscape or portrait orientation
  • Heavy duty steel base construction provides stability, eliminating the need to bolt to the floor
  • Can also be bolted to the floor to help prevent unauthorised relocation of the display
  • Supplied with adjustable levelling feet to accommodate uneven floor surfaces
  • Arms feature levelling screws to adjust the screen height
  • Collar compatible accessories such as shelves can be fitted directly to the column
  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Simple 'hook-on' screen installation

Product Specifications

  • Recommended display size: 39" -75"
  • Max load: 70kg
  • VESA fixings (as standard): up to 430mm x 400mm*
  • VESA fixings (with included adaptors): up to 600mm x 400mm*
  • Column length: 1.8m
  • Product width: 890mm
  • Product depth: 604mm
  • Product height: 1841mm
  • Orientation: Landscape, Portrait
  • Colour options: Black or Silver & Black
  • *As standard the maximum screen fixing dimension is 400mm. Increase either the horizontal or vertical fixing to 600mm using the included interface adaptor arms.
  • Recommended display size: 39" -75"
  • Max load: 70kg
  • VESA fixings (as standard): up to 430mm x 400mm*
  • VESA fixings (with included adaptors): up to 600mm x 400mm*
  • Column length: 1.8m
  • Product width: 890mm
  • Product depth: 604mm
  • Product height: 1841mm
  • Orientation: Landscape, Portrait
  • Colour: Silver & Black
  • *As standard the maximum screen fixing dimension is 400mm. Increase either the horizontal or vertical fixing to 600mm using the included interface adaptor arms.
  • Recommended display size: 39" -75"
  • Max load: 70kg
  • VESA fixings (as standard): up to 430mm x 400mm*
  • VESA fixings (with included adaptors): up to 600mm x 400mm*
  • Column length: 1.8m
  • Product width: 890mm
  • Product depth: 604mm
  • Product height: 1841mm
  • Orientation: Landscape, Portrait
  • Colour: Black
  • *As standard the maximum screen fixing dimension is 400mm. Increase either the horizontal or vertical fixing to 600mm using the included interface adaptor arms.

Ordering & Box Information

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): Select a product variation to see its total boxed weight.

Order Code: BTF840/BS

Barcode: 5019318087554

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 30.63kg

Order Code: BTF840/BB

Barcode: 5019318087547

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 30.73kg

Downloads

BTF840 - Product Specification Sheet - English

pdf 1.37 MB

BTF840 - Installation Guide

pdf 5.13 MB

BTF840 - Technical Drawings - (PDF)

pdf 214.71 KB

BTF840-1

png 22.96 KB

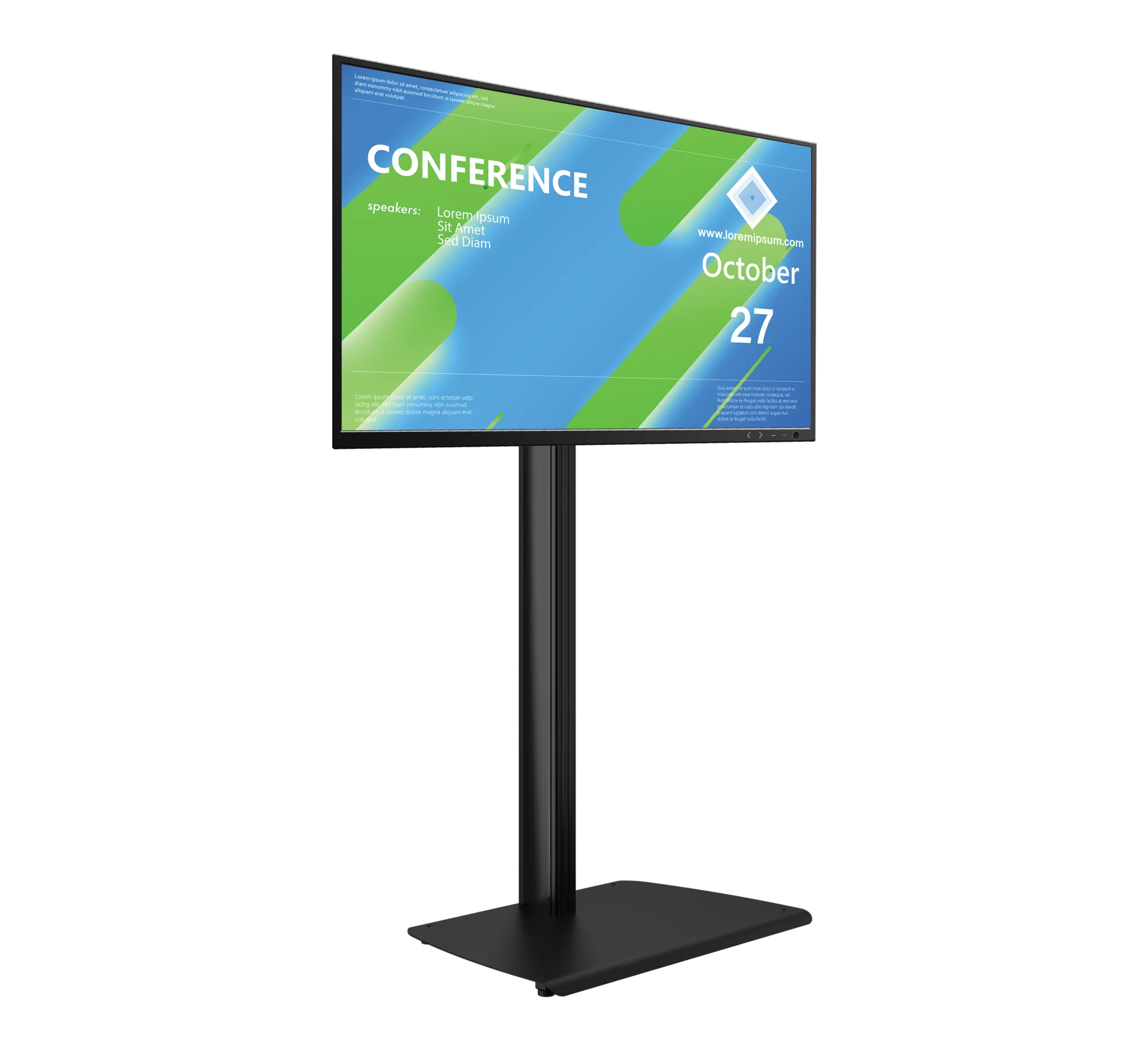

BTF840-B-1-Screen

png 60.80 KB

BTF840-2

png 22.89 KB

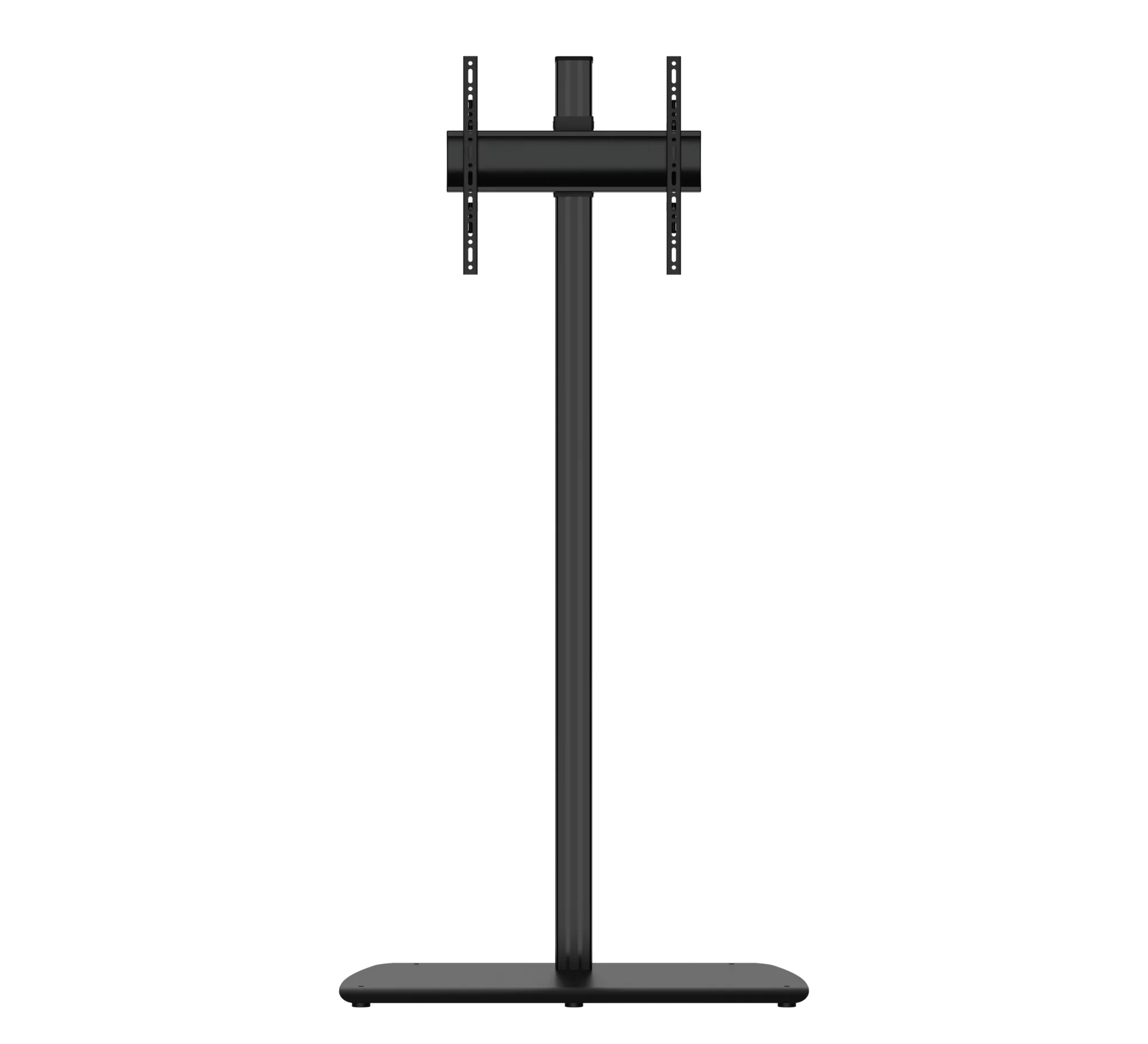

BTF840-3

png 17.68 KB

BTF840-8

png 17.86 KB

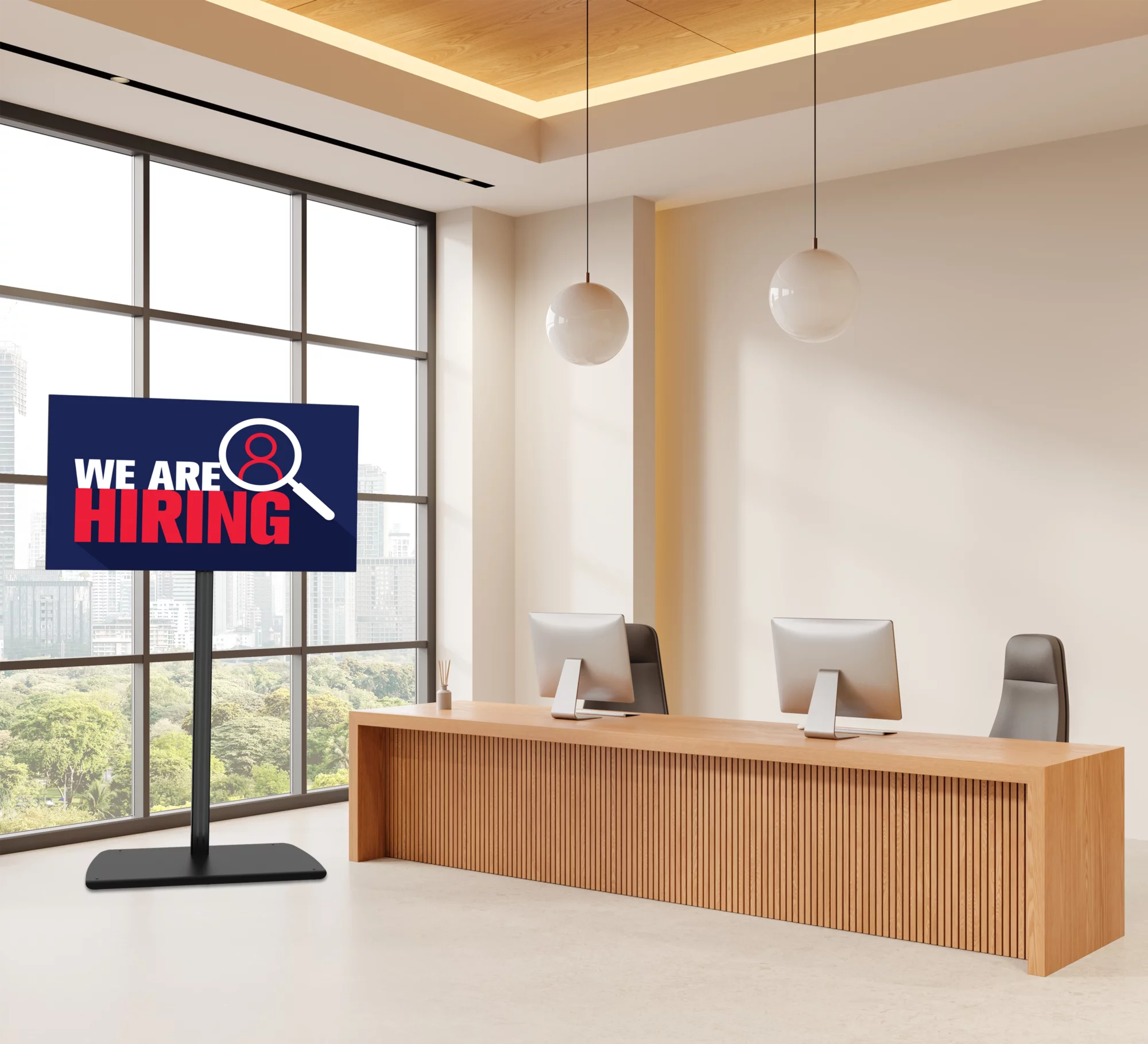

BTF840-7

png 170.49 KB

BTF840 - Green Sheet

pdf 356.93 KB

Downloads

BTF840 - Product Specification Sheet - English

pdf 1.37 MB

BTF840 - Installation Guide

pdf 5.13 MB

BTF840 - Technical Drawings - (PDF)

pdf 214.71 KB

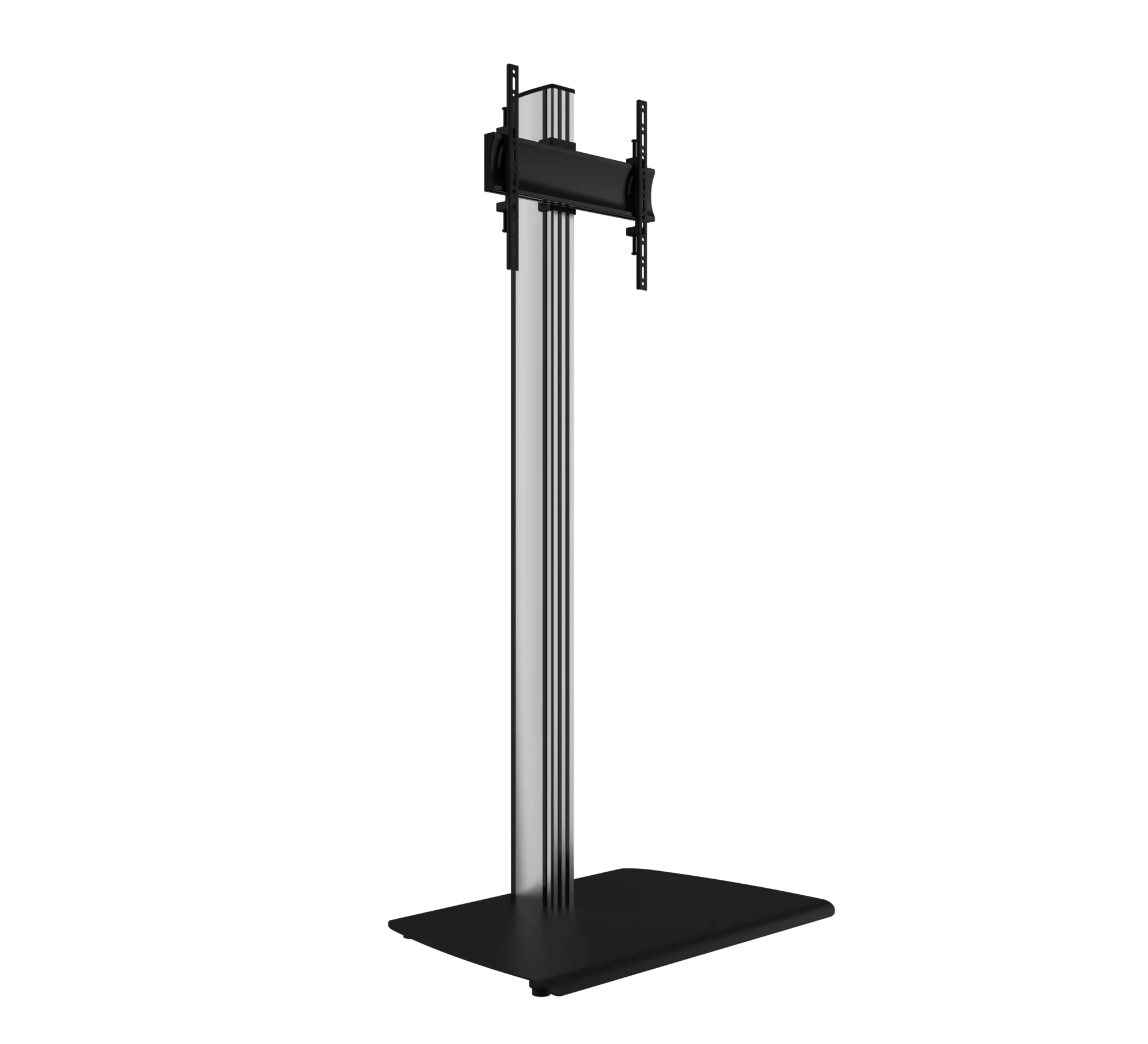

BTF840-BS-1

png 22.89 KB

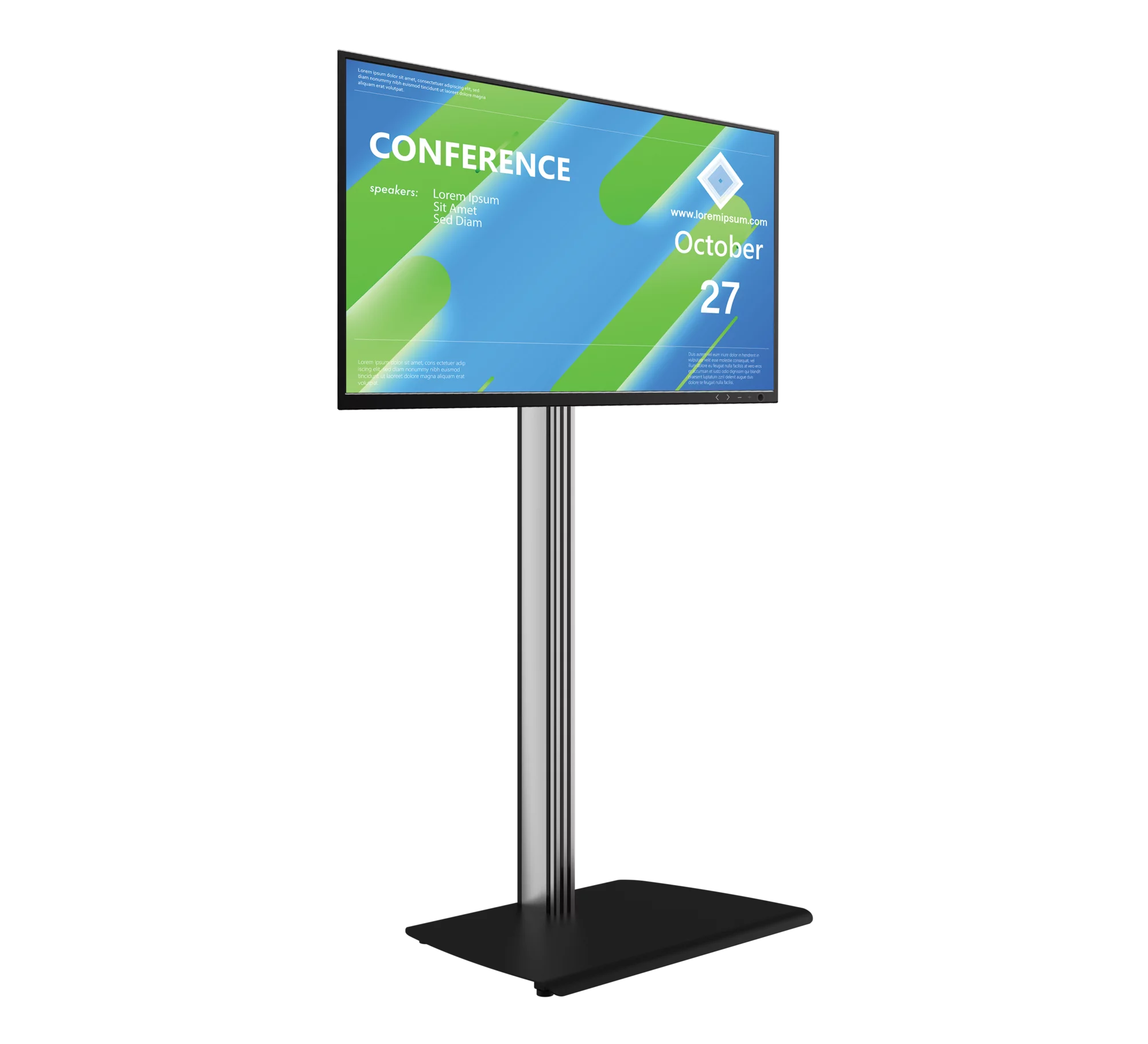

BTF840-BS-1-Screen

png 55.34 KB

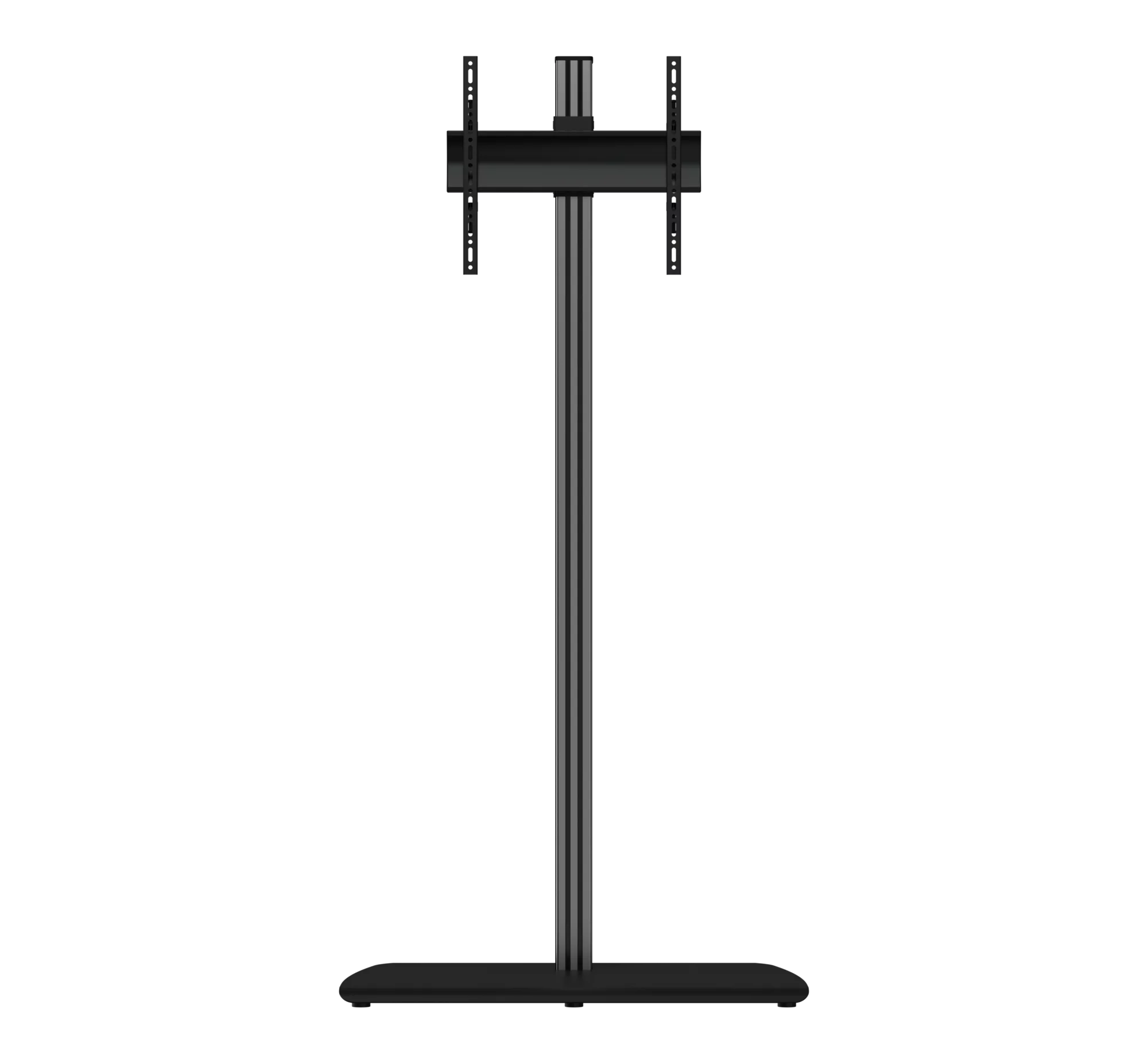

BTF840-BS-2

png 16.75 KB

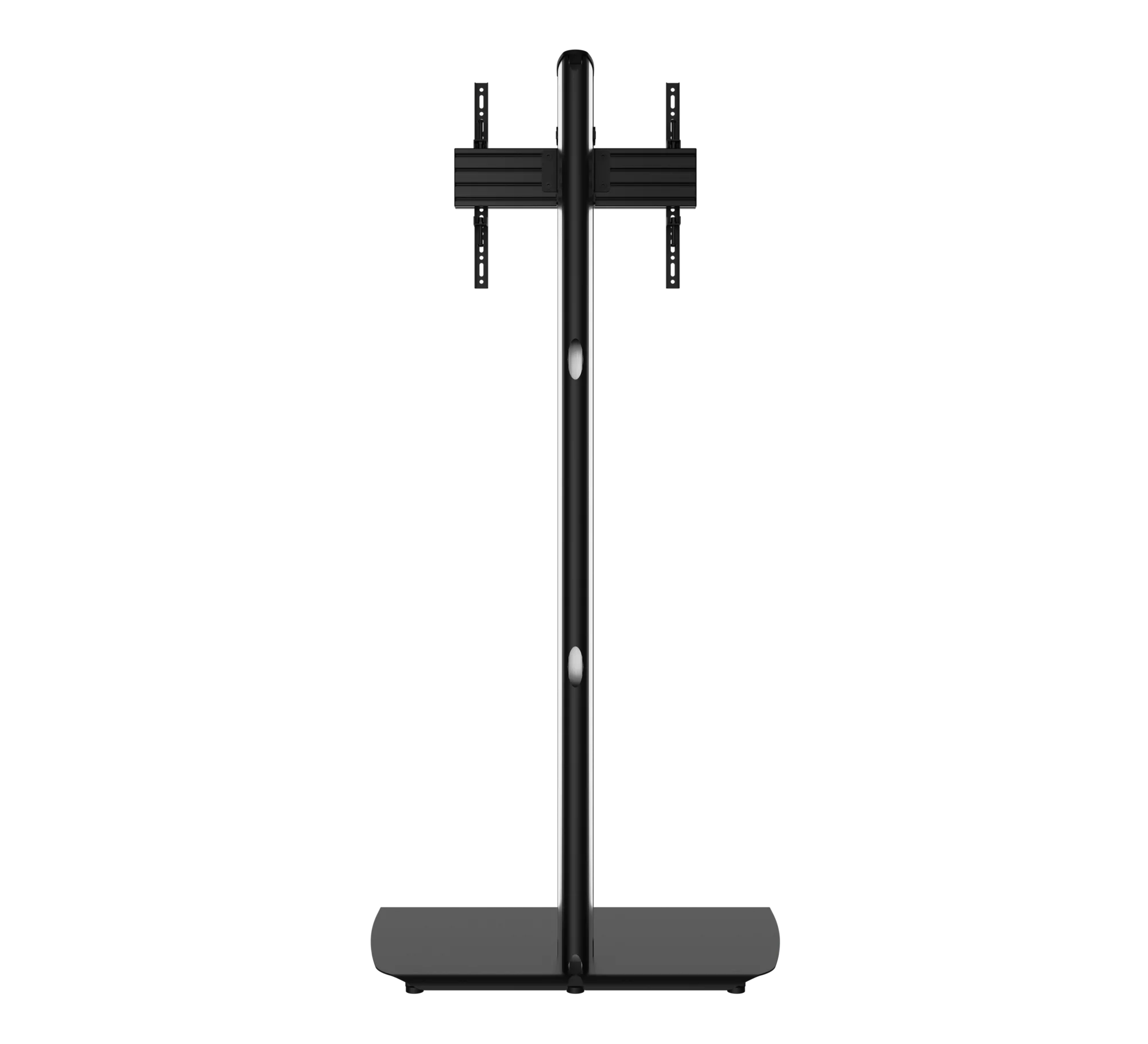

BTF840-BS-7

png 19.13 KB

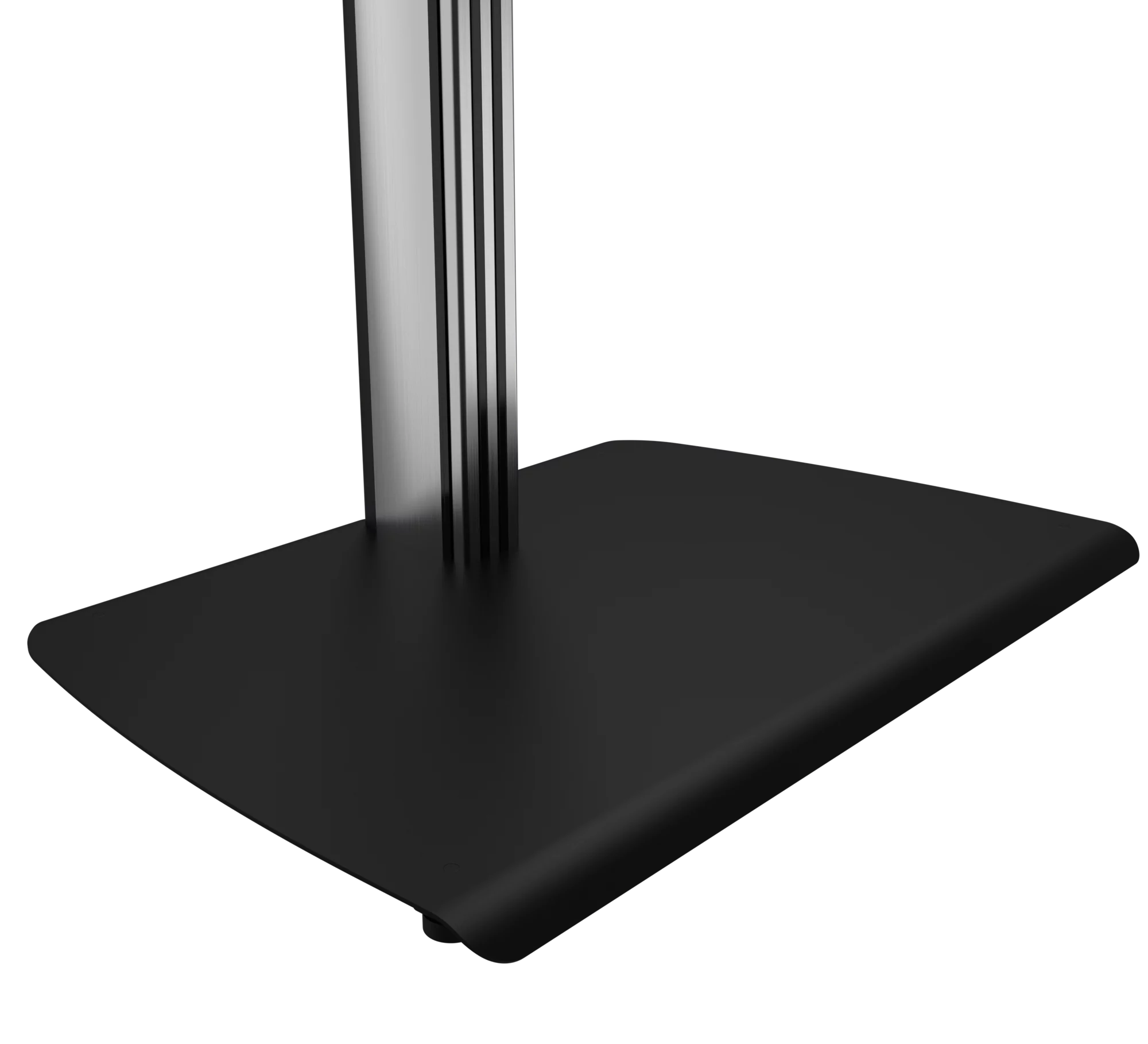

BTF840-BS-9

png 40.88 KB

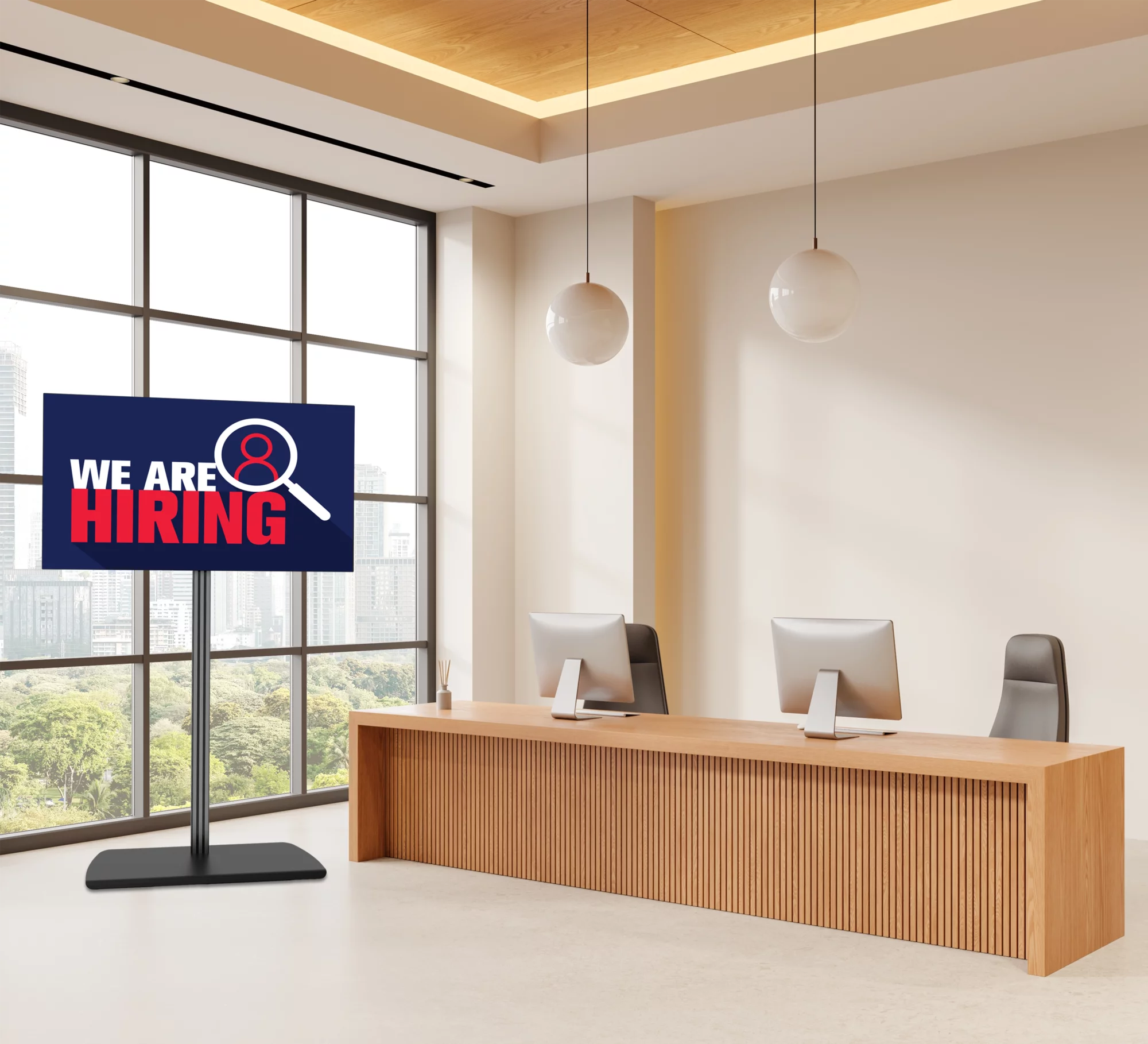

BTF840-BS-6

png 170.24 KB

BTF840 - Green Sheet

pdf 356.93 KB

Downloads

BTF840 - Product Specification Sheet - English

pdf 1.37 MB

BTF840 - Installation Guide

pdf 5.13 MB

BTF840 - Technical Drawings - (PDF)

pdf 214.71 KB

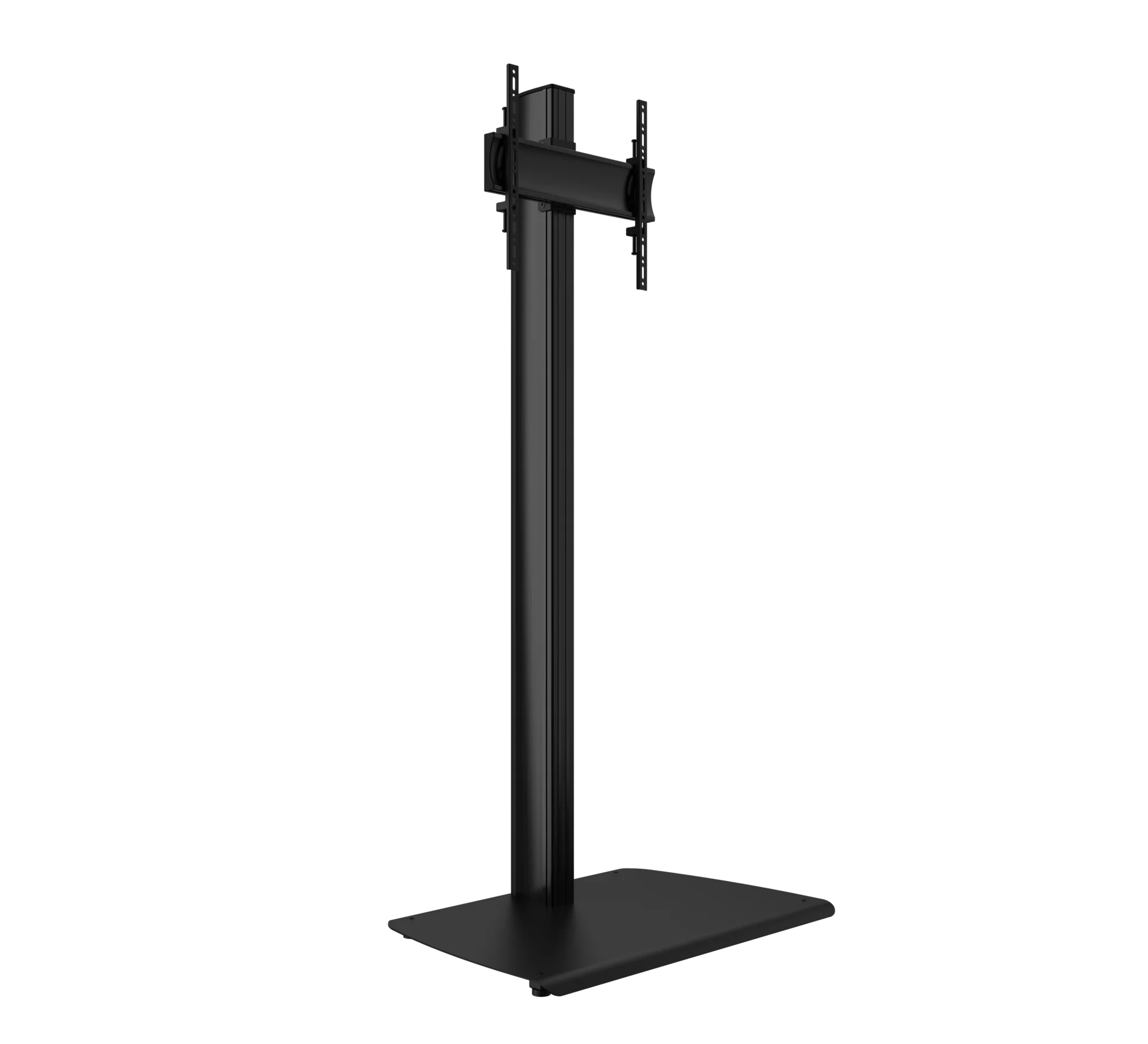

BTF840-B-1

png 22.96 KB

BTF840-B-1-Screen

png 60.80 KB

BTF840-B-2

png 17.68 KB

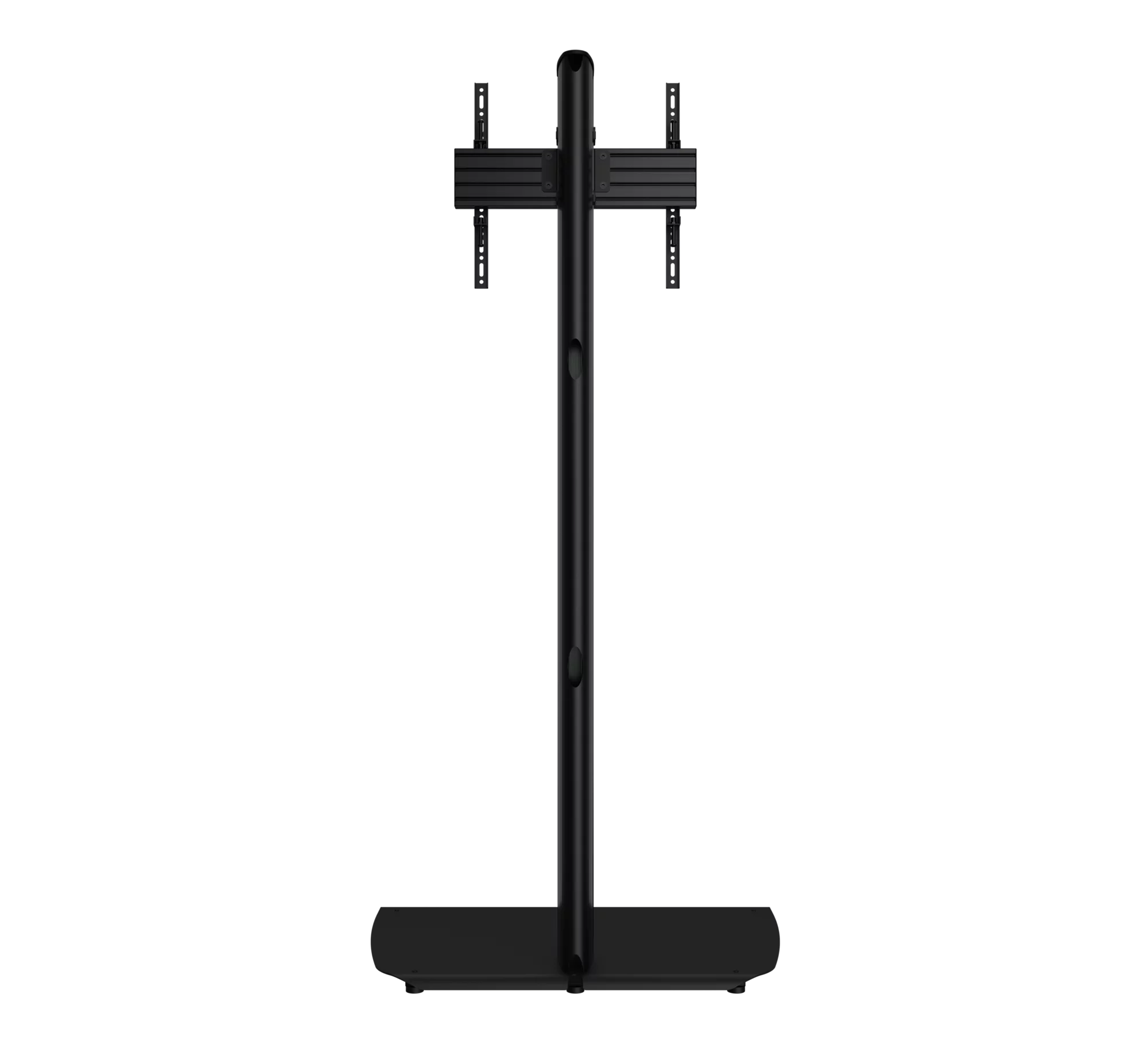

BTF840-B-7

png 17.86 KB

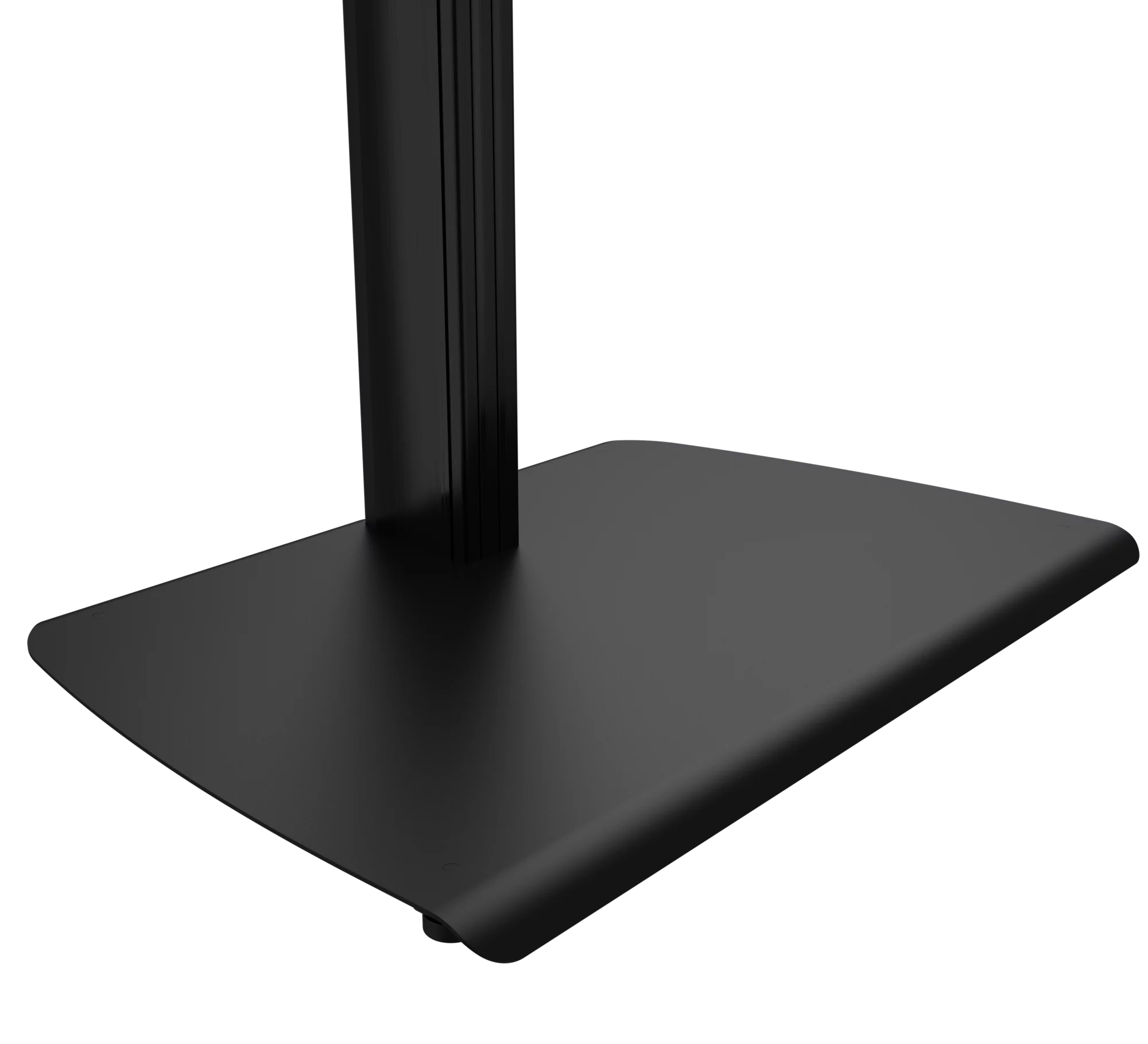

BTF840-B-9

png 39.51 KB

BTF840-B-6

png 170.49 KB

BTF840 - Green Sheet

pdf 356.93 KB
