Home All Products Double Arm Flat Screen Wall Mount with Tilt & Swivel
Metric Imperial

BTV504

Ventry

Double Arm Flat Screen Wall Mount with Tilt & Swivel

Folds flat to the wall

BTV504/B

Ventry

Double Arm Flat Screen Wall Mount with Tilt & Swivel

Folds flat to the wall

Enquire Today View Downloads

Overview

Designed to wall mount small to medium sized screens, this double arm wall mount features a tilting interface and three swivel points, allowing quick and easy repositioning of screens as required - whether folded flat against the wall at a depth of 79mm or at maximum extension. Cable management is included to help make a neat and tidy mounting solution which is ideal for home installations as well as commercial applications.
Designed to wall mount small to medium sized screens, this double arm wall mount features a tilting interface and three swivel points, allowing quick and easy repositioning of screens as required - whether folded flat against the wall at a depth of 79mm or at maximum extension. Cable management is included to help make a neat and tidy mounting solution which is ideal for home installations as well as commercial applications.

Product Features

  • Easy tilt and swivel adjustment
  • Features three swivel points: 180° at wall, 360° at central pivot and 240° at interface
  • Screen rotation allows screen to mounted in landscape or portrait orientation
  • Folds flat to the wall
  • Integrated cable management
  • Integrated spirit level for easy wall plate levelling during installation
  • Simple 'hook-on' installation with all mounting hardware included
  • Easy tilt and swivel adjustment
  • Features three swivel points: 180° at wall, 360° at central pivot and 240° at interface
  • Screen rotation allows screen to mounted in landscape or portrait orientation
  • Folds flat to the wall
  • Integrated cable management
  • Integrated spirit level for easy wall plate levelling during installation
  • Simple 'hook-on' installation with all mounting hardware included

Product Specifications

  • Recommended display size: up to 47"
  • Max load: 25kg
  • VESA fixings: up to 200mm x 200mm
  • Tilt: +/-15°
  • Swivel: 180°
  • Screen rotation: 360°
  • Distance from wall: min: 79mm - max: 385mm
  • Recommended display size: up to 47"
  • Max load: 25kg
  • VESA fixings: up to 200mm x 200mm
  • Tilt: +/-15°
  • Swivel: 180°
  • Screen rotation: 360°
  • Distance from wall: min: 79mm - max: 385mm

Ordering & Box Information

Order Code: BTV504/B

Barcode: 5019318440625

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 2.70kg

Order Code: BTV504/B

Barcode: 5019318440625

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 2.70kg

Downloads

BTV504 - Product Specification Sheet - English

pdf 1.54 MB

BTV504 - Product Specification Sheet - Spanish

pdf 2.89 MB

BTV504 - Product Specification Sheet - Dutch

pdf 2.89 MB

BTV504 - Installation Guide

pdf 4.71 MB

BTV504 - Technical Drawings - (PDF)

pdf 258.61 KB

BTV504-1

png 152.35 KB

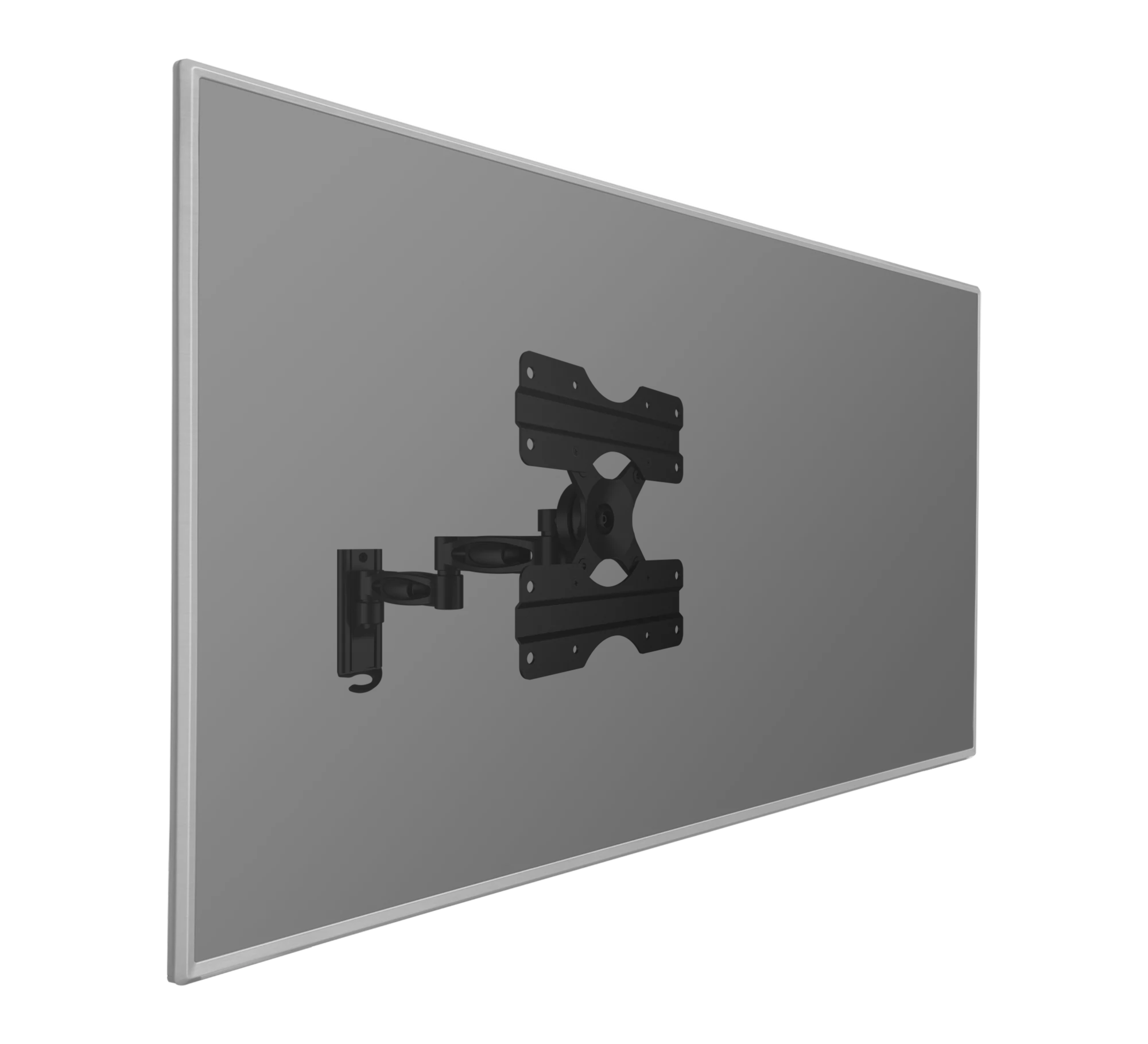

BTV504-B-1-Screen

png 50.96 KB

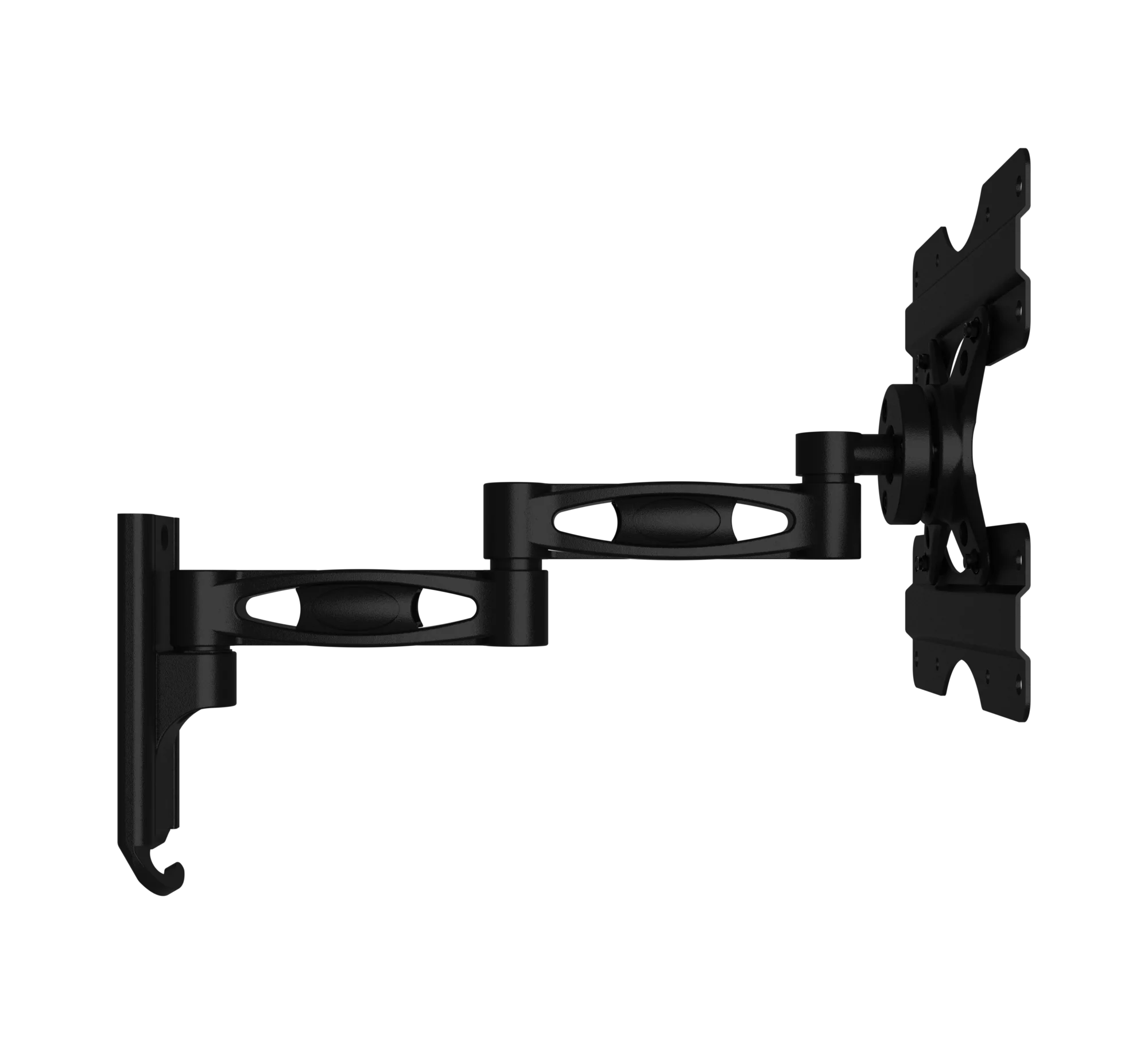

BTV504-B-3

png 46.22 KB

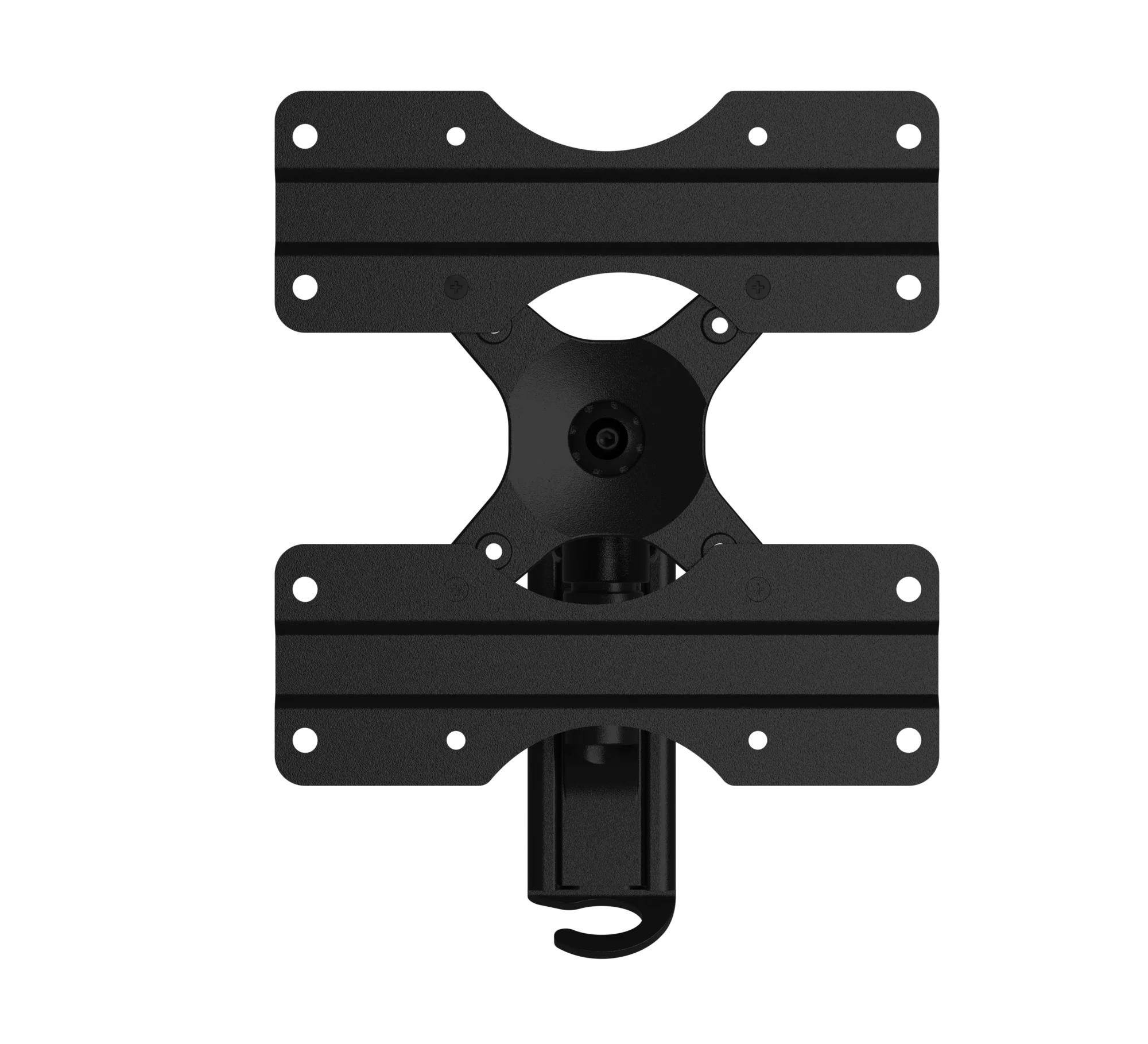

BTV504-2

png 187.69 KB

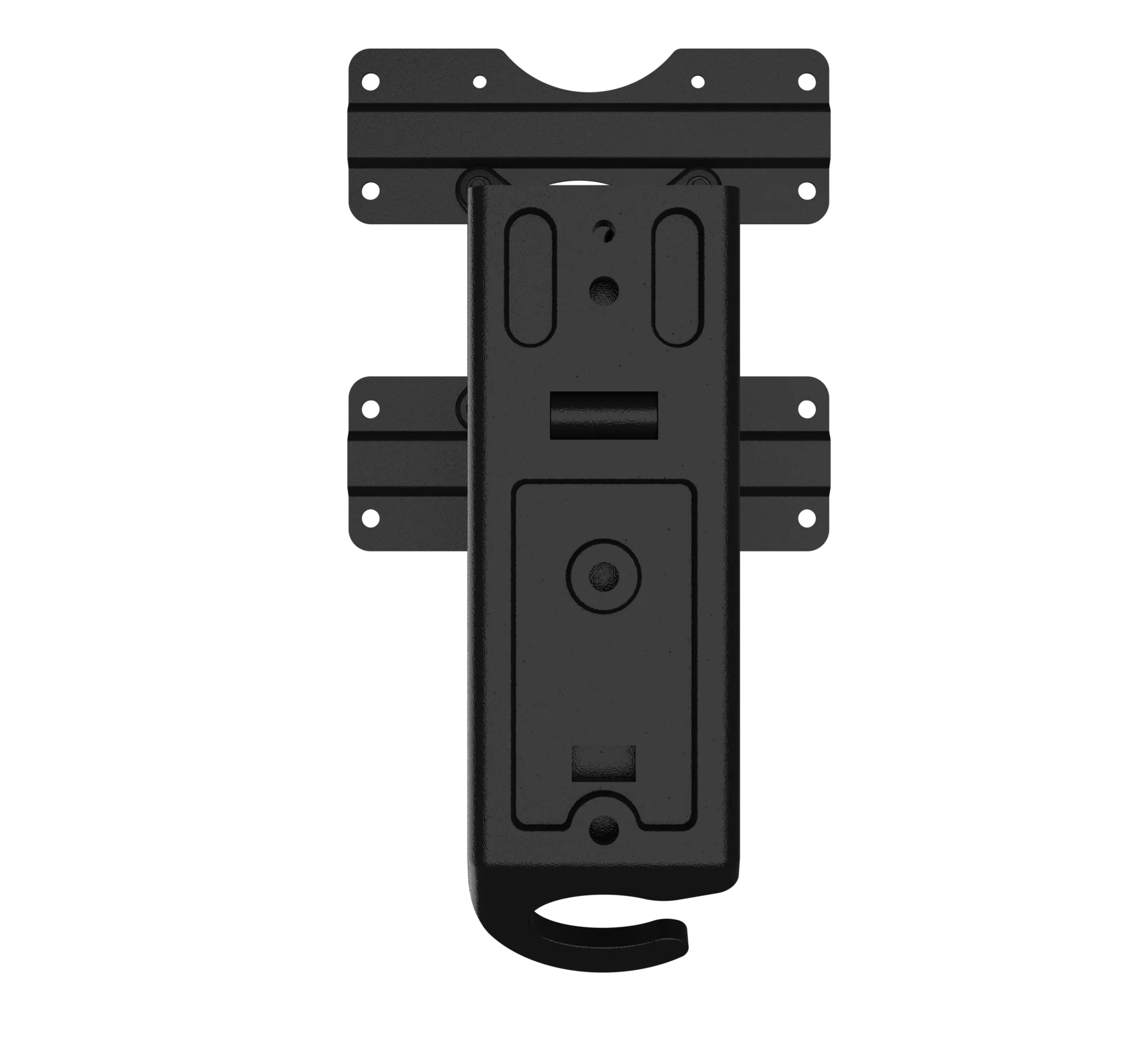

BTV504-7

png 61.79 KB

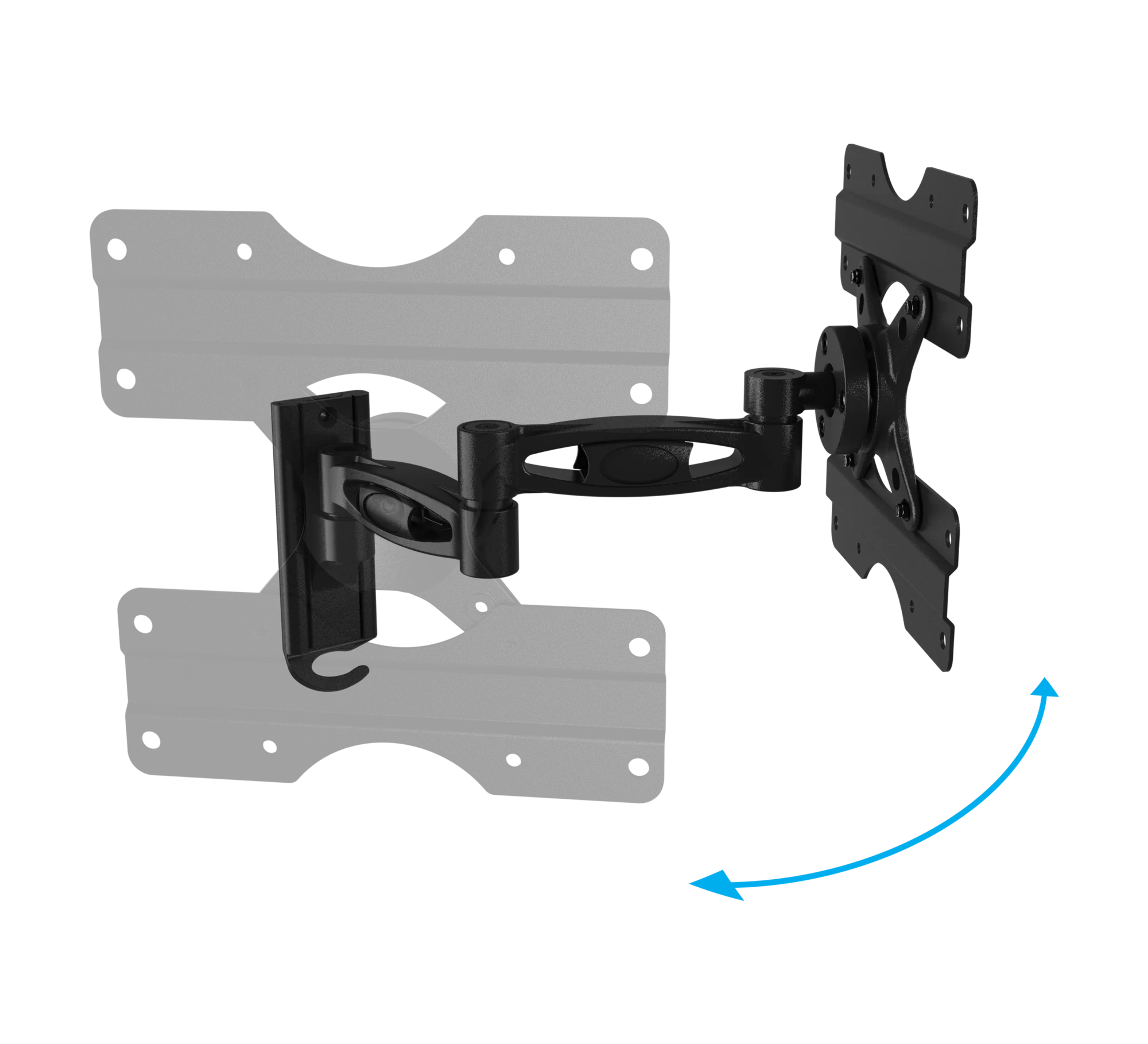

BTV504-B-8

png 158.12 KB

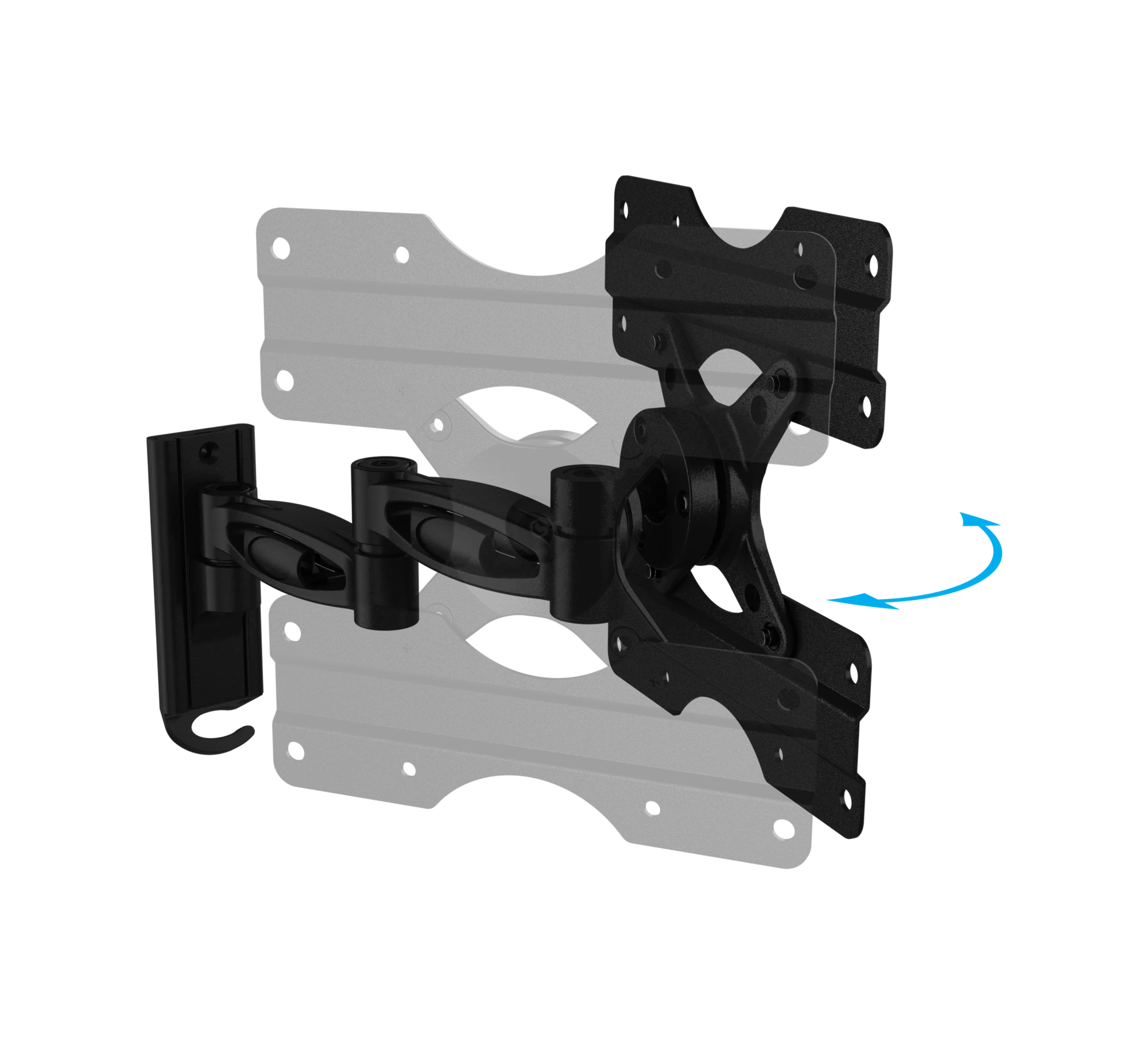

BTV504-B-9

png 175.58 KB

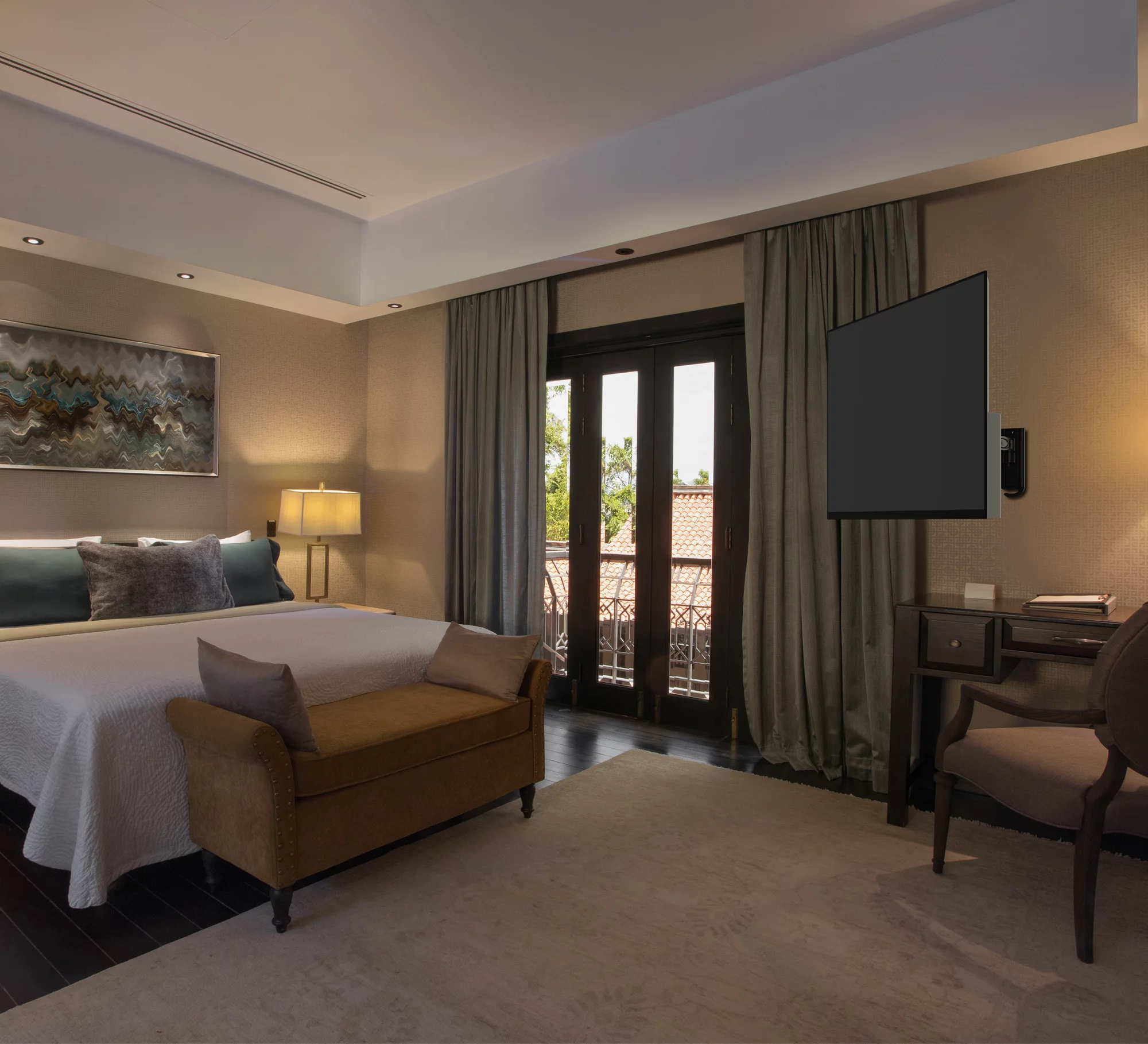

BTV504-6

png 254.12 KB

BTV504 - Green Sheet

pdf 376.79 KB

Downloads

BTV504 - Product Specification Sheet - English

pdf 1.54 MB

BTV504 - Product Specification Sheet - Spanish

pdf 2.89 MB

BTV504 - Product Specification Sheet - Dutch

pdf 2.89 MB

BTV504 - Installation Guide

pdf 4.71 MB

BTV504 - Technical Drawings - (PDF)

pdf 258.61 KB

BTV504-1

png 152.35 KB

BTV504-B-1-Screen

png 50.96 KB

BTV504-B-3

png 46.22 KB

BTV504-2

png 187.69 KB

BTV504-7

png 61.79 KB

BTV504-B-8

png 158.12 KB

BTV504-B-9

png 175.58 KB

BTV504-6

png 254.12 KB

BTV504 - Green Sheet

pdf 376.79 KB
