Home All Products Flat Screen Wall Mount with Double Arm
Metric Imperial

BTV513

Ventry

Flat Screen Wall Mount with Double Arm

Folds flat to the wall

BTV513/B

Ventry

Flat Screen Wall Mount with Double Arm

Folds flat to the wall

Enquire Today View Downloads

Overview

Designed to mount large-sized screens, this ultra-slim wall mount with a double arm features a tilting interface and three swivel points, allowing quick and easy repositioning of the screen, whether folded flat to the wall or at maximum extension. A cable management clip is included to help route cables along the double arm for a smart installation, ideal for home installations and commercial applications.
Designed to mount large-sized screens, this ultra-slim wall mount with a double arm features a tilting interface and three swivel points, allowing quick and easy repositioning of the screen, whether folded flat to the wall or at maximum extension. A cable management clip is included to help route cables along the double arm for a smart installation, ideal for home installations and commercial applications.

Product Features

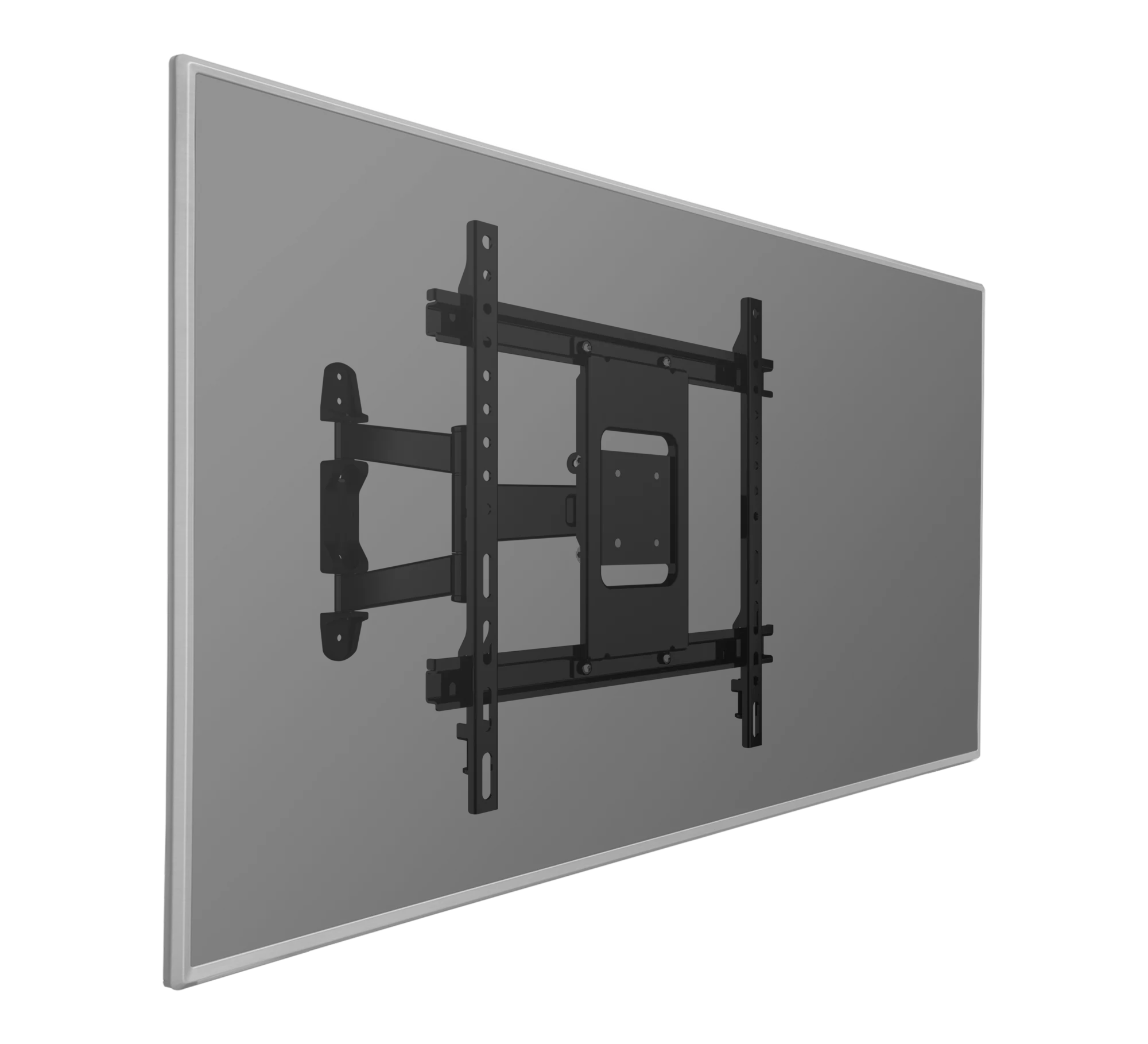

  • Ultra-slim design allows close to the wall installation when folded flat
  • Easy tilt and swivel adjustment

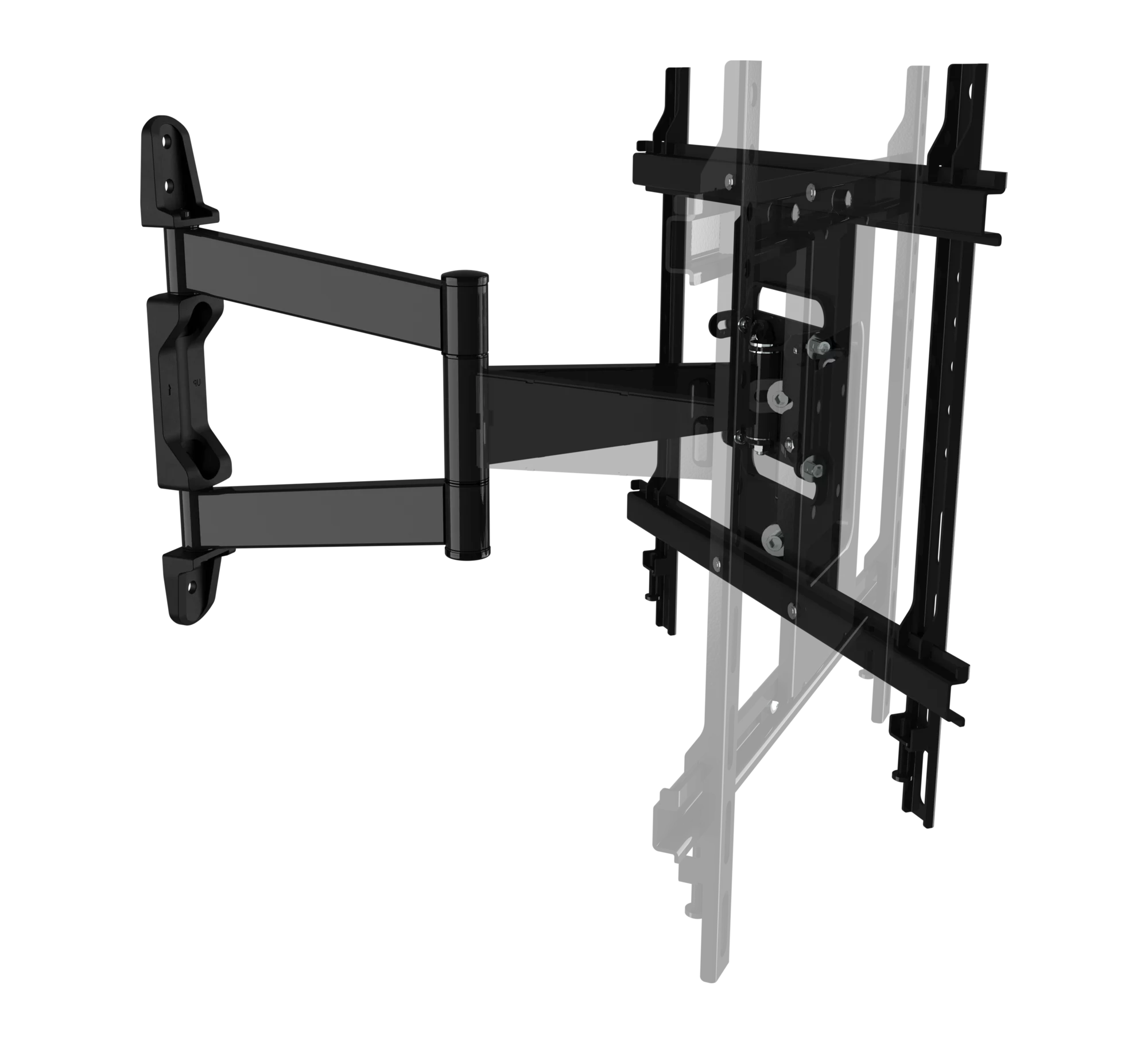

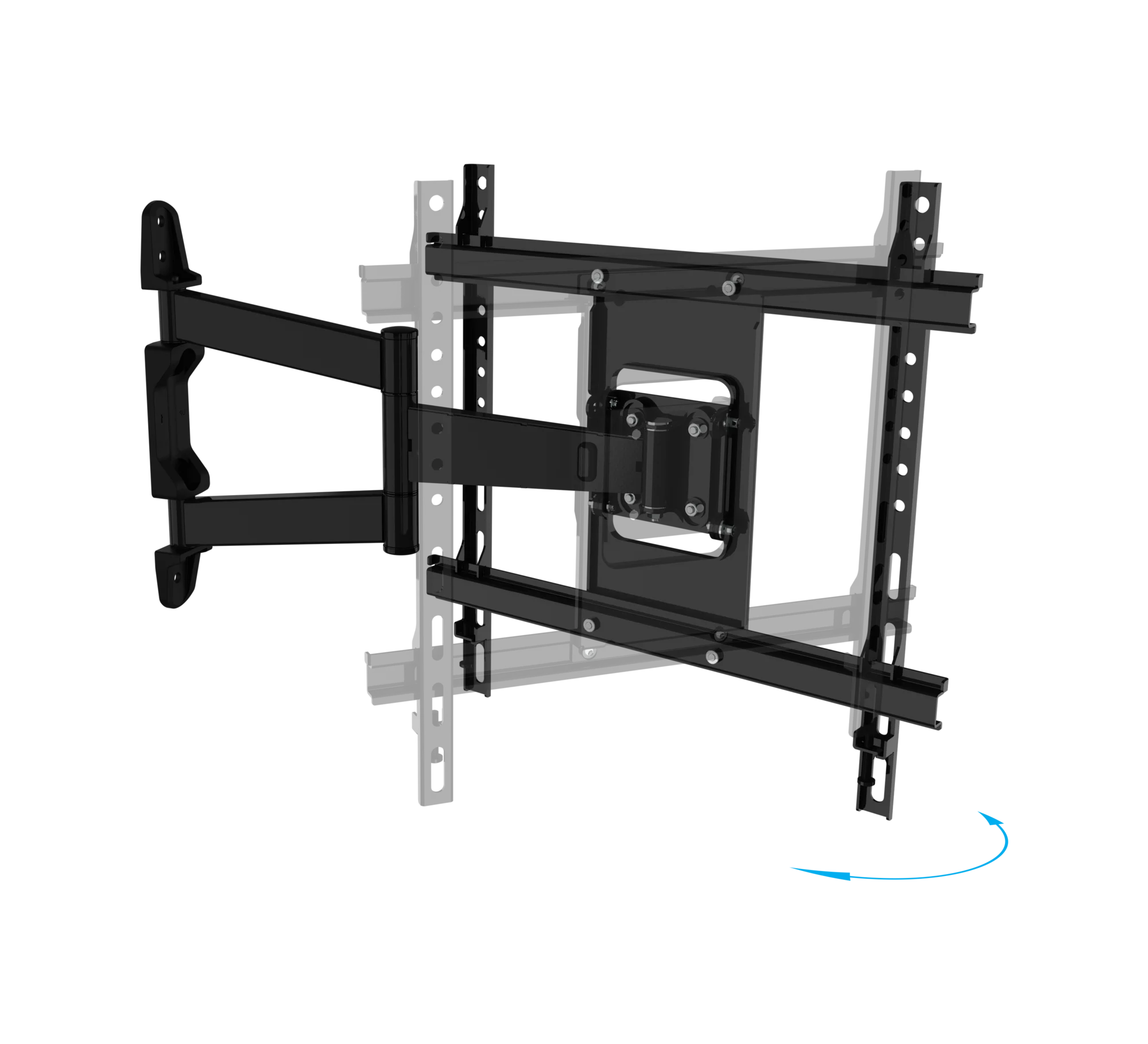

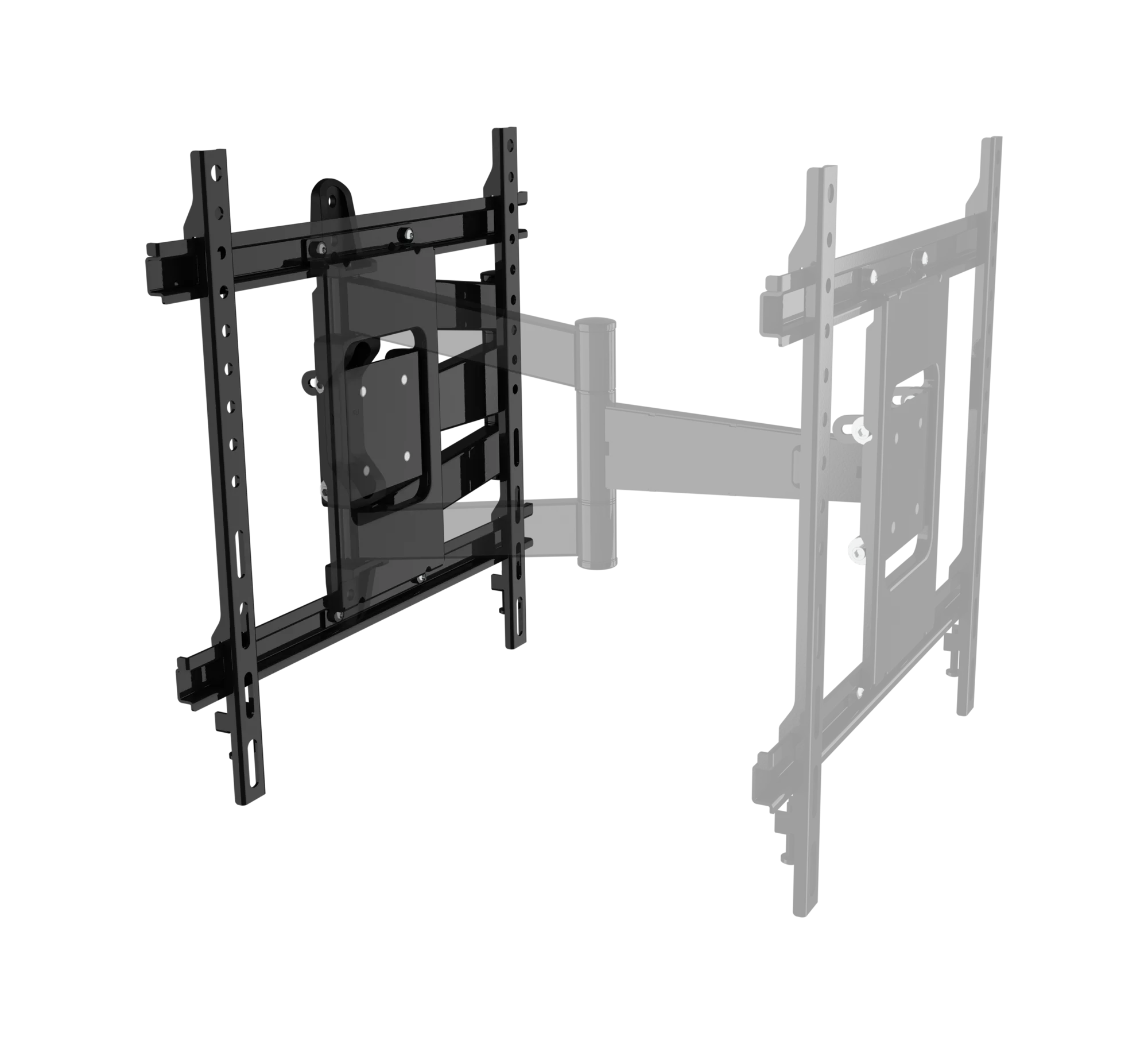

  • Features three swivel points: 180° at wall, 360° at central pivot and 240° at interface
  • Lateral adjustment of screen once mounted
  • Single stud mounting for easy installation
  • Levelling screws allow adjustment of screen height
  • Integrated cable management
  • Simple 'hook-on' installation with all mounting hardware included
  • Ultra-slim design allows close to the wall installation when folded flat
  • Easy tilt and swivel adjustment
  • Features three swivel points: 180° at wall, 360° at central pivot and 240° at interface
  • Lateral adjustment of screen once mounted
  • Single stud mounting for easy installation
  • Levelling screws allow adjustment of screen height
  • Integrated cable management
  • Simple 'hook-on' installation with all mounting hardware included

Product Specifications

  • Recommended display size: up to 55"
  • Max load: 35kg

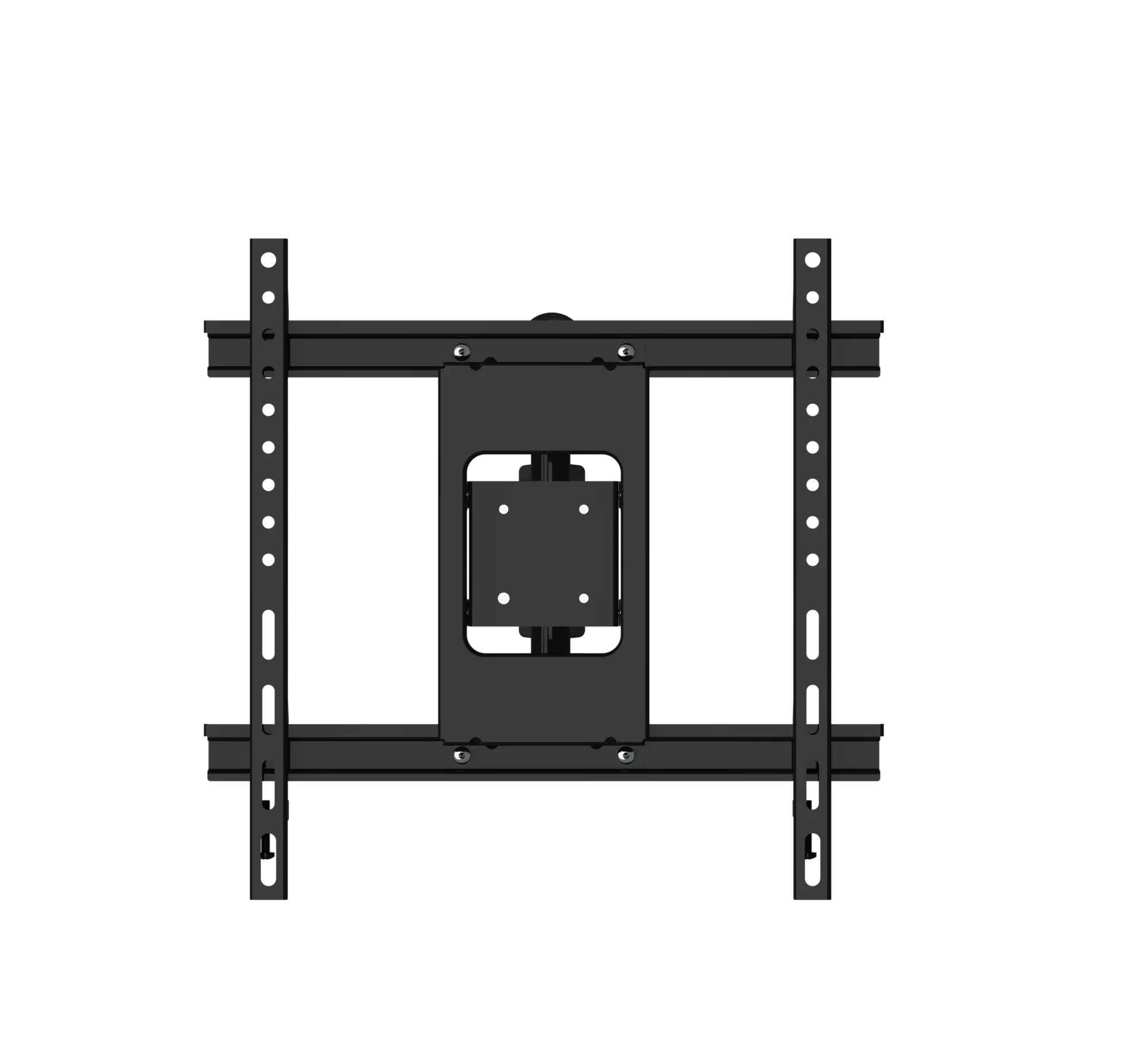

  • VESA fixings: up to 400mm x 400mm
  • Tilt: +10°/-2°
  • Swivel: 180° (at wall) & 360° (at central pivot)
  • Distance from wall: min: 40mm - max: 450mm
  • Recommended display size: up to 55"
  • Max load: 35kg
  • VESA fixings: up to 400mm x 400mm
  • Tilt: +10°/-2°
  • Swivel: 180° (at wall) & 360° (at central pivot)
  • Distance from wall: min: 40mm - max: 450mm

Ordering & Box Information

Order Code: BTV513/B

Barcode: 5019318305078

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 5.20kg

Order Code: BTV513/B

Barcode: 5019318305078

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 5.20kg

Downloads

BTV513 - Product Specification Sheet - English

pdf 2.58 MB

BTV513 - Product Specification Sheet - Spanish

pdf 2.74 MB

BTV513 - Product Specification Sheet - Dutch

pdf 2.74 MB

BTV513 - Installation Guide

pdf 6.04 MB

BTV513 - Technical Drawings - (PDF)

pdf 240.28 KB

BTV513-B-1

png 58.93 KB

BTV513-B-13

png 61.00 KB

BTV513-B-3

png 47.21 KB

BTV513-B-2

png 27.57 KB

BTV513-B-7

png 44.13 KB

BTV513-B-11

png 106.54 KB

BTV513-B-12

png 97.28 KB

BTV513-B-10

png 103.78 KB

BTV513-B-8

png 104.93 KB

BTV513-B-9

png 104.46 KB

BTV513-B-6

png 357.23 KB

Downloads

BTV513 - Product Specification Sheet - English

pdf 2.58 MB

BTV513 - Product Specification Sheet - Spanish

pdf 2.74 MB

BTV513 - Product Specification Sheet - Dutch

pdf 2.74 MB

BTV513 - Installation Guide

pdf 6.04 MB

BTV513 - Technical Drawings - (PDF)

pdf 240.28 KB

BTV513-B-1

png 58.93 KB

BTV513-B-13

png 61.00 KB

BTV513-B-3

png 47.21 KB

BTV513-B-2

png 27.57 KB

BTV513-B-7

png 44.13 KB

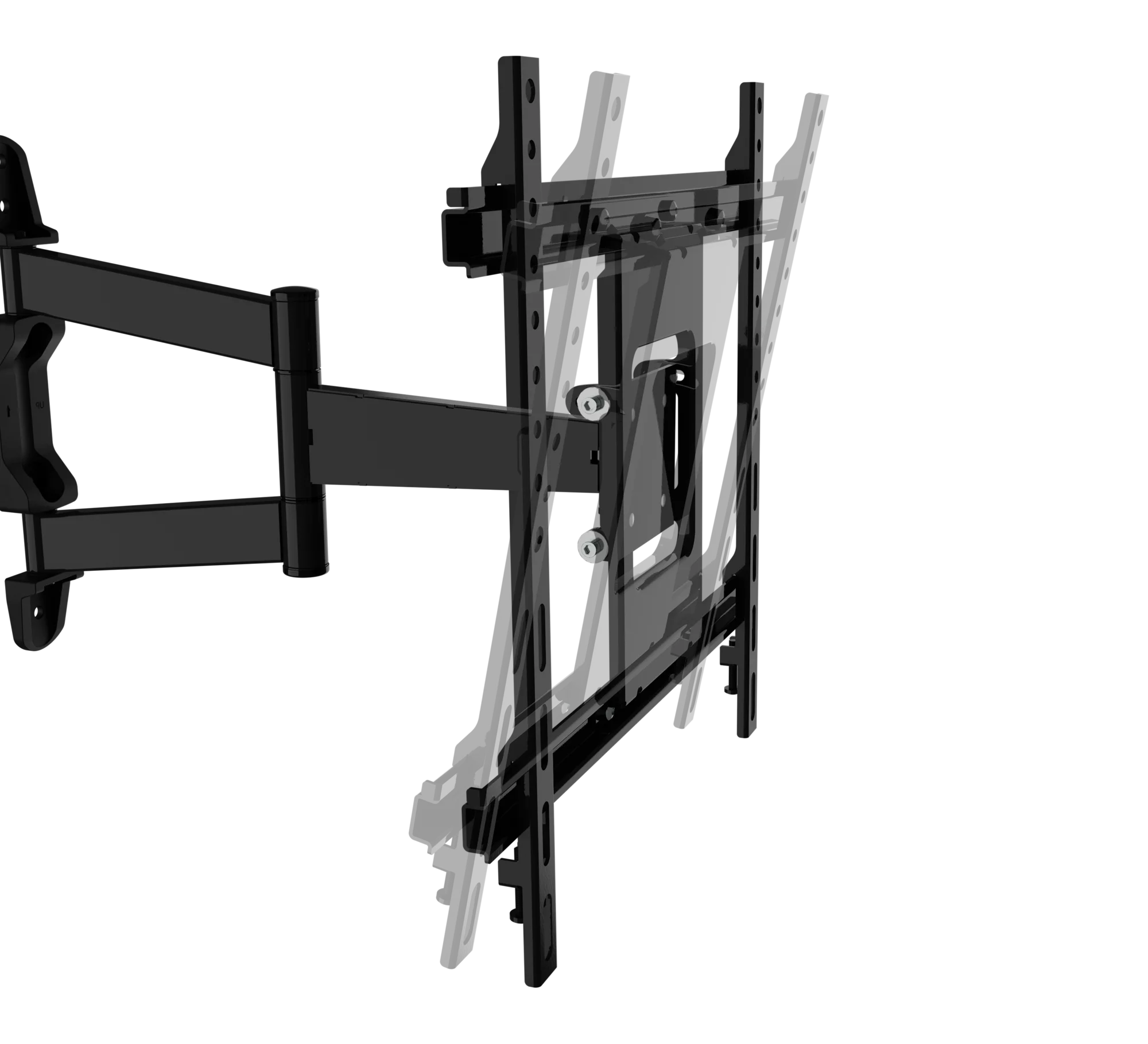

BTV513-B-11

png 106.54 KB

BTV513-B-12

png 97.28 KB

BTV513-B-10

png 103.78 KB

BTV513-B-8

png 104.93 KB

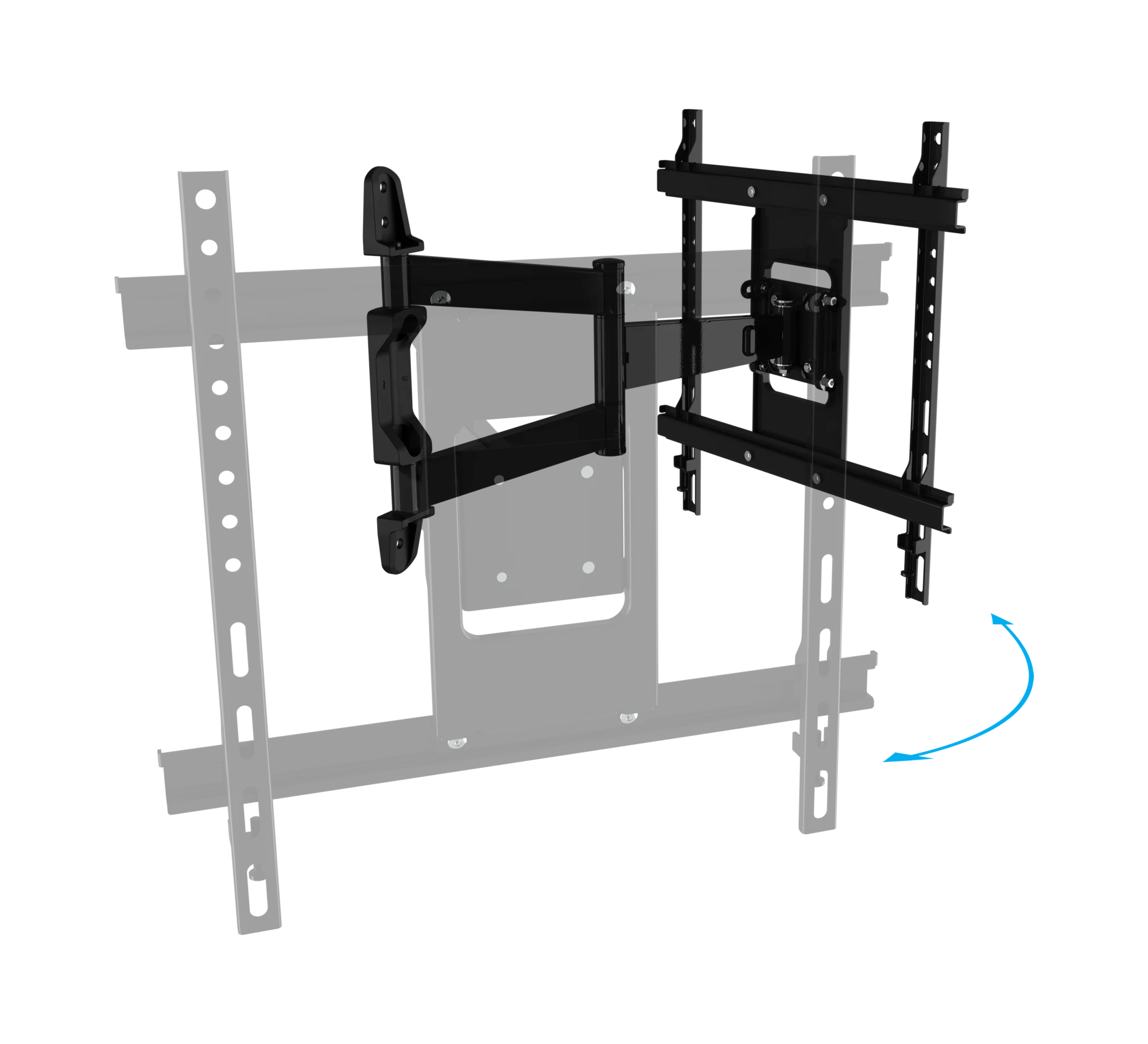

BTV513-B-9
