BT7033

AV Accessory Shelf

For use with B-Tech Poles, Columns & Accessory Collars

BT7033/B

AV Accessory Shelf

For use with B-Tech Poles, Columns & Accessory Collars

Overview

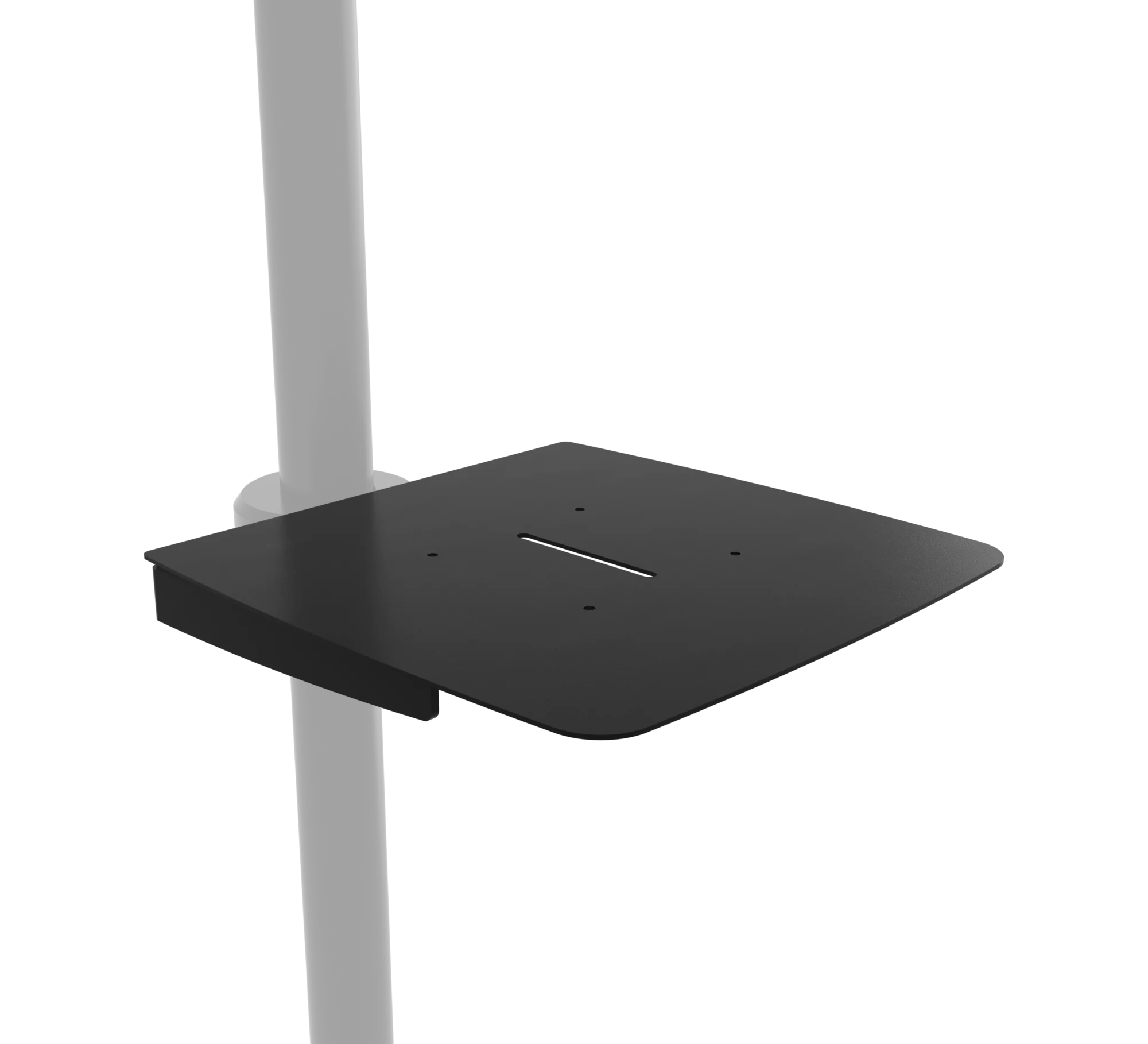

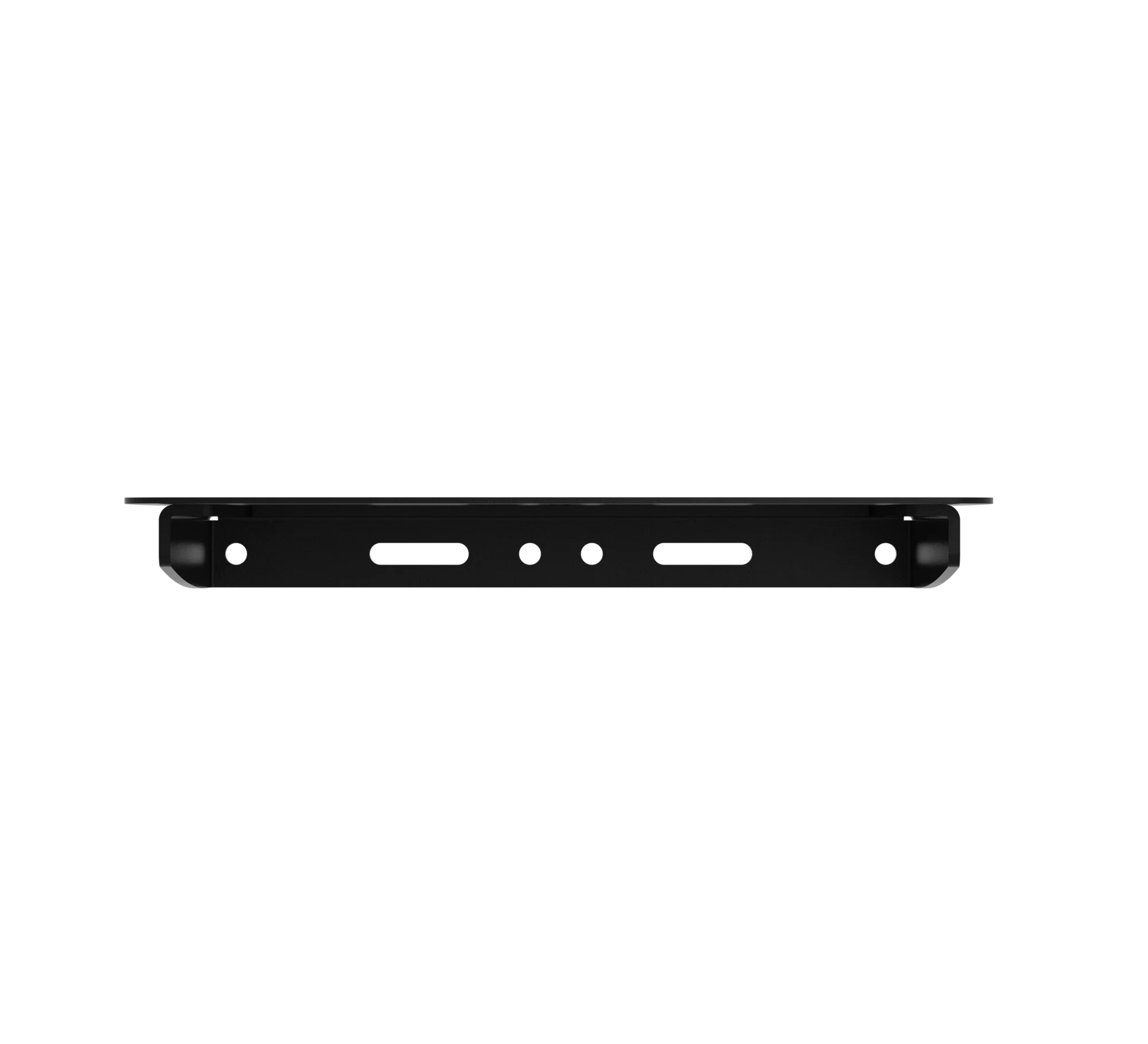

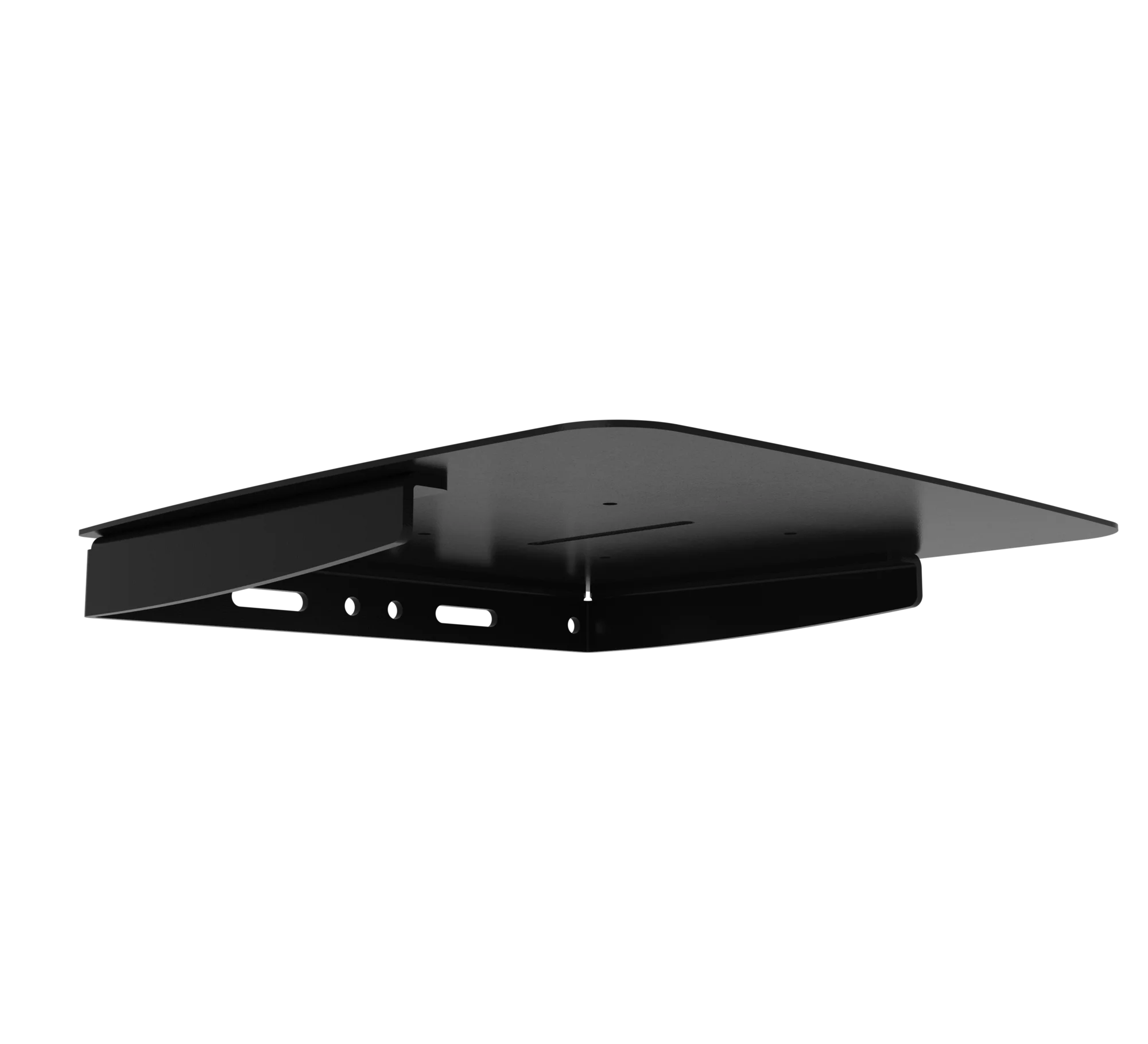

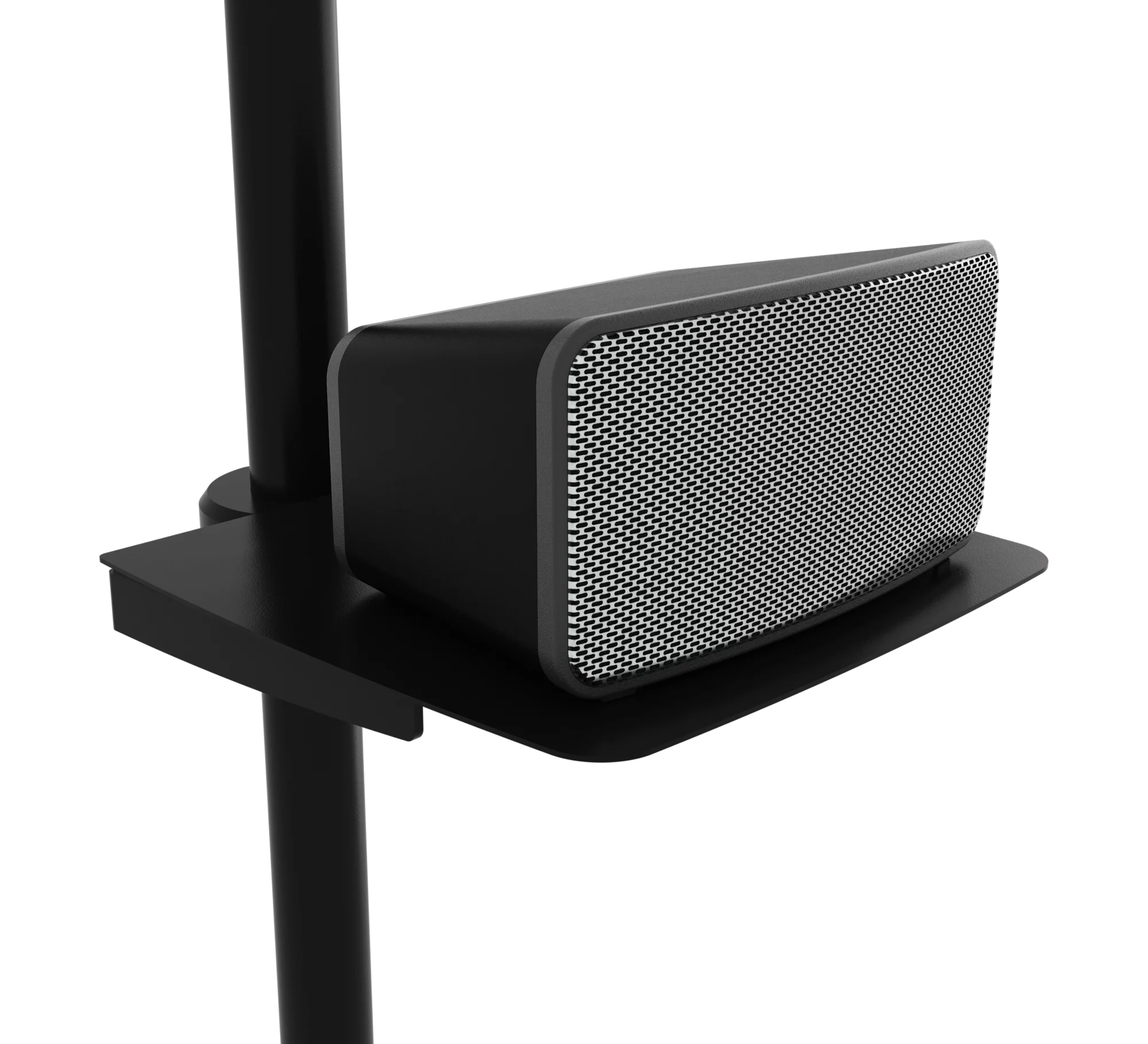

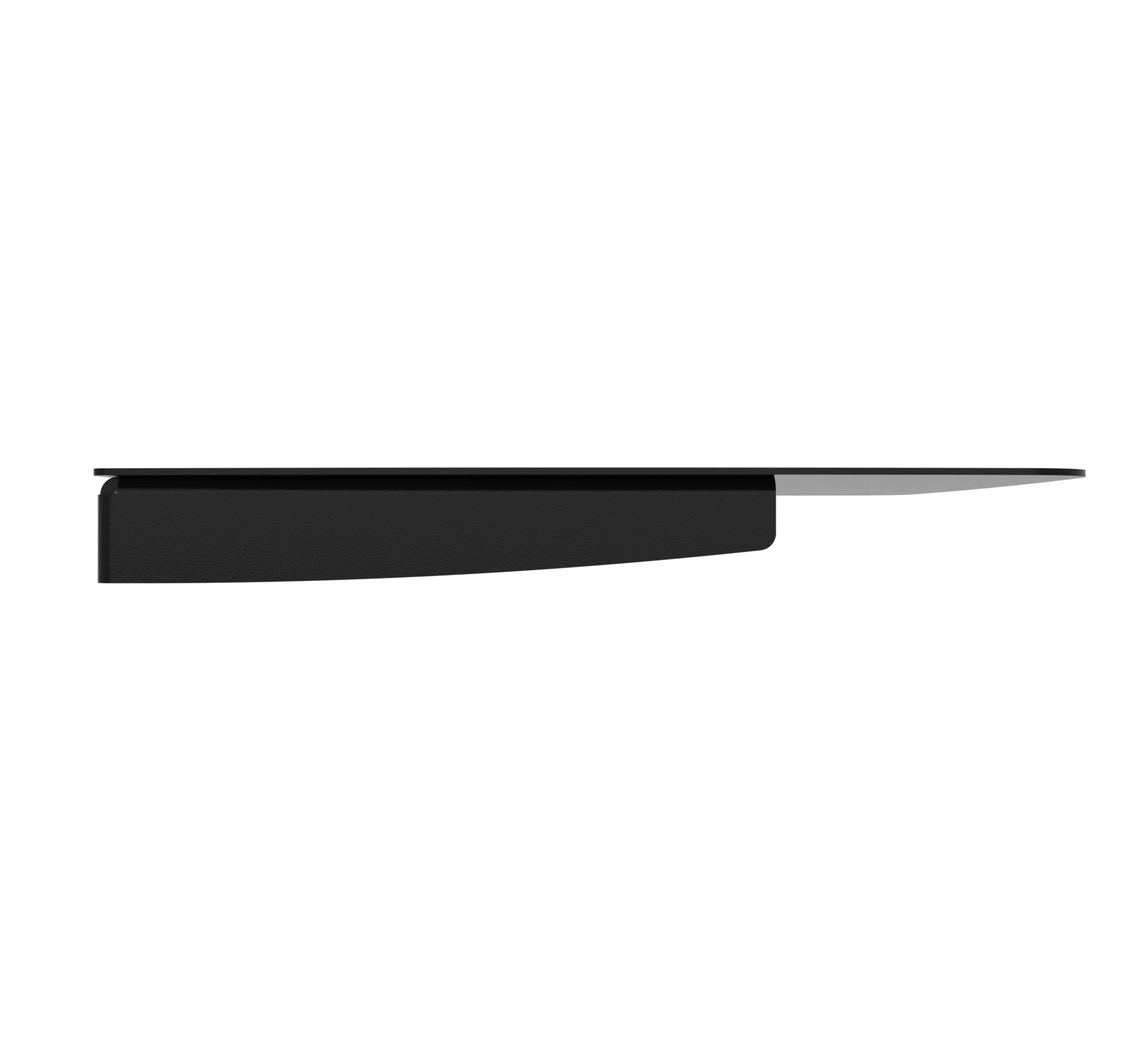

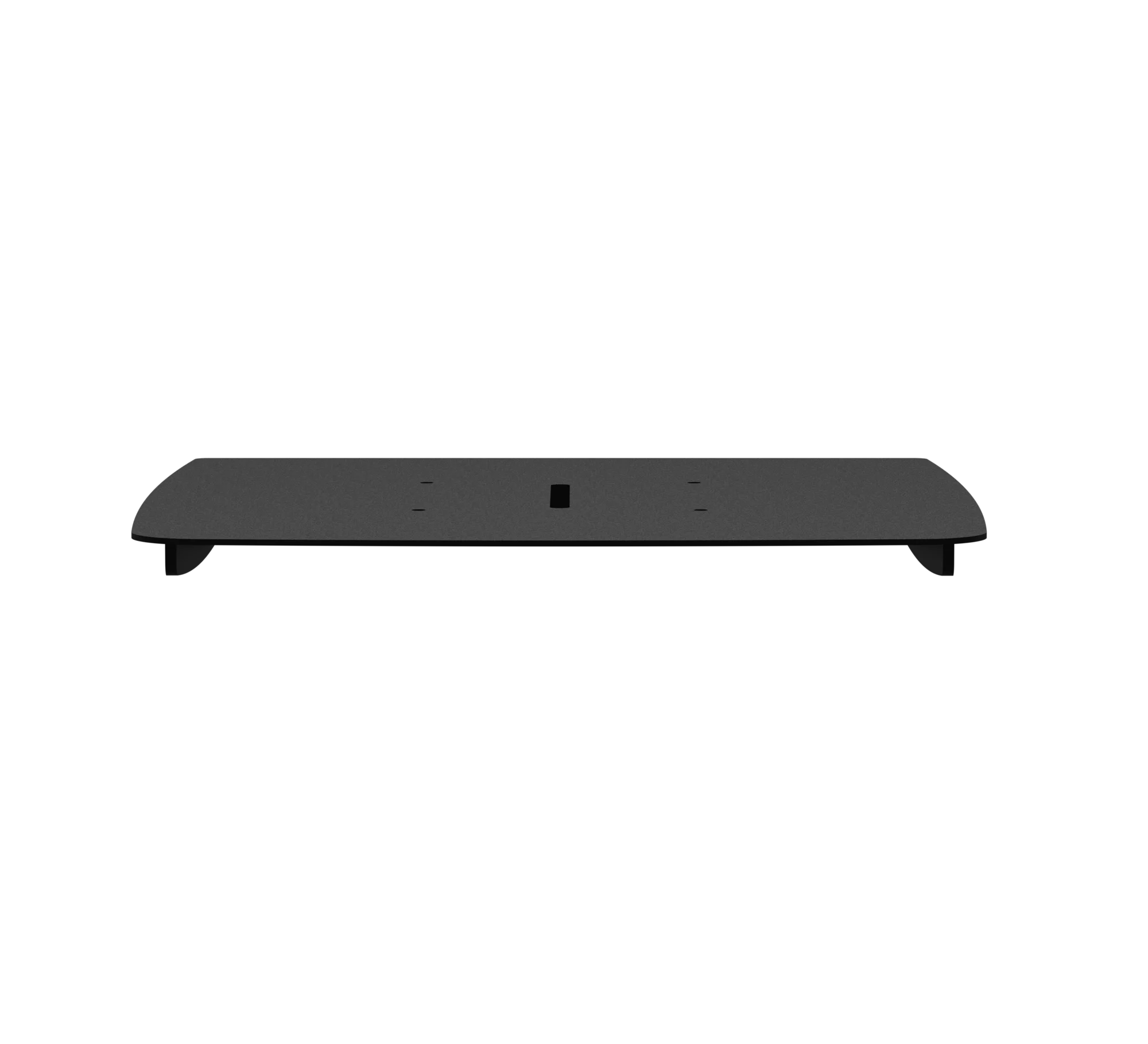

The BT7033 is a stylish accessory shelf that can be mounted directly to a wall or across a wide range of B-Tech products such as System X rails and columns, accessory mounting arms and accessory collars to allow for pole mounting. The shelf can be mounted across one or two poles and includes fixing points for VC cameras using 100 x 100mm fixings.
The BT7033 is a stylish accessory shelf that can be mounted directly to a wall or across a wide range of B-Tech products such as System X rails and columns, accessory mounting arms and accessory collars to allow for pole mounting. The shelf can be mounted across one or two poles and includes fixing points for VC cameras using 100 x 100mm fixings.

Product Features

  • Can be mounted directly to; walls and System X rails/columns, or to B-Tech accessory collars for pole mounting
  • Compatible with BT7052 / BT7841 collars for use with Ø50mm poles (all sold separately)
  • Can be mounted on a single or double pole/column (use 1 collar for single poles, 2 collars for double poles)
  • Can also be used with adjustable mounting arms BT7031, BT7034 or BT8390-SA, to mount above or below a screen that is wall mounted or on a System X rail

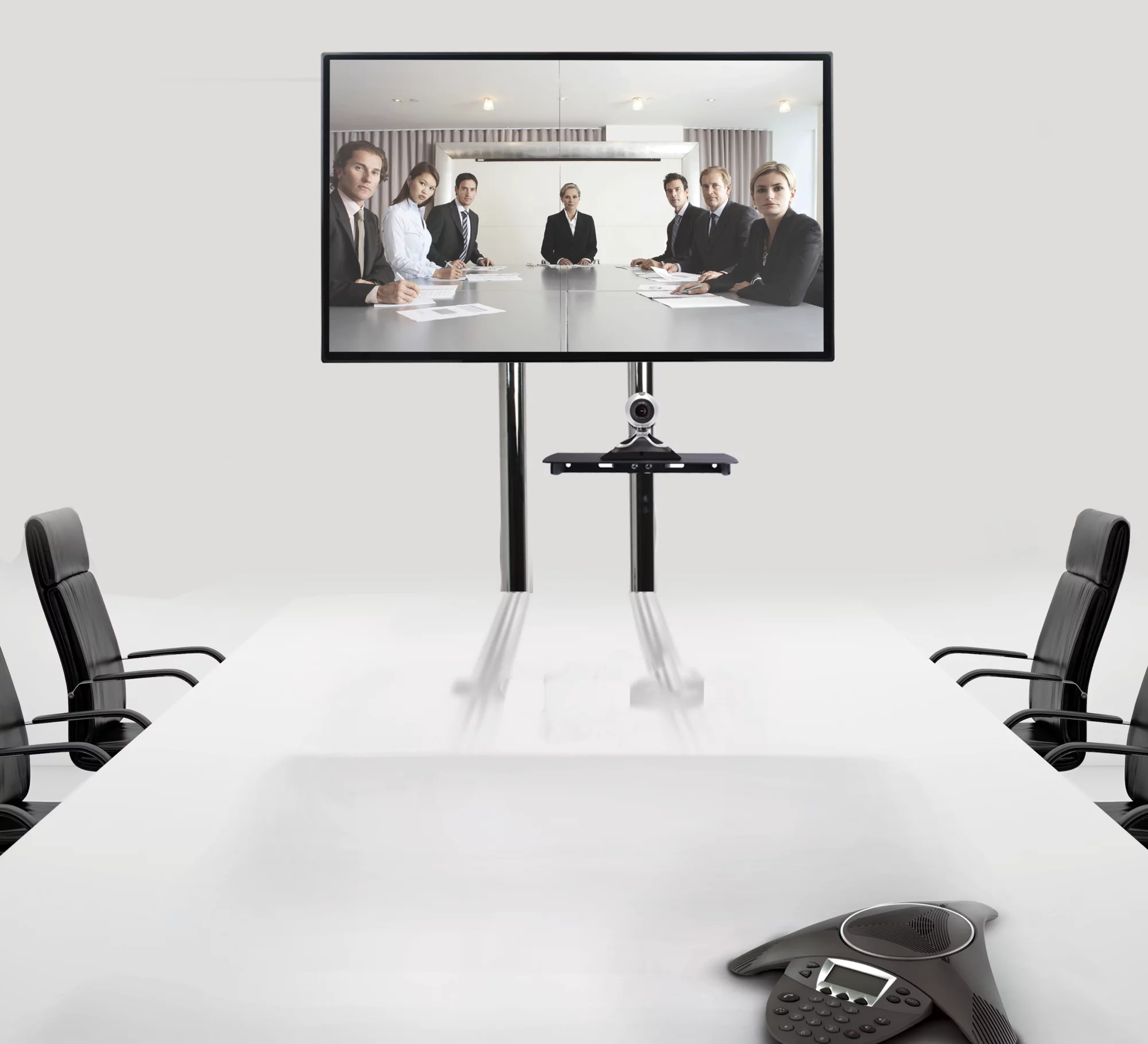

  • Suitable for mounting a VC camera - Fits most cameras with 1/4" thread. Also features 100 x 100mm fixing points
  • Can be mounted directly to walls and System X rails/columns, or to B-Tech accessory collars for pole mounting
  • Compatible with BT7052 / BT7841 collars for use with Ø50mm poles (all sold separately)
  • Can be mounted on a single or double pole/column (use 1 collar for single poles, 2 collars for double poles)
  • Can also be used with adjustable mounting arms BT7031, BT7034 or BT8390-SA, to mount above or below a screen that is wall mounted or on a System X rail
  • Suitable for mounting a VC camera - Fits most cameras with 1/4" thread. Also features 100 x 100mm fixing points

Product Specifications

  • Max load when used with single column/pole/arm: 15kg
  • Max load when used with twin columns/poles/arms: 25kg
  • Product width: 300mm
  • Product depth: 300mm
  • Product height: 33.5mm
  • Colour: Black
  • Max load when used with single column/pole/arm: 15kg
  • Max load when used with twin columns/poles/arms: 25kg
  • Product width: 300mm
  • Product depth: 300mm
  • Product height: 33.5mm
  • Colour: Black

Ordering & Box Information

Order Code: BT7033/B

Barcode: 5019318759802

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 4.80kg

Order Code: BT7033/B

Barcode: 5019318759802

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 4.80kg
