BT7550

Rotational Flip Mount

Flip a screen from landscape to portrait

BT7550/B

Rotational Flip Mount

Flip a screen from landscape to portrait

Enquire Today View Downloads

Overview

The BT7550 Rotational Flip Mount allows a mounted screen to be easily rotated from landscape to portrait orientation. The tool-less rotation adjustment allows the users to freely rotate the screen from 0° to 90° while mounted or locked at a preferred angle using the built in angle guide before mounting. Additional features include optional negative tilt of 4.5°, ideal for touchscreen displays such as the Samsung Flip*. The BT7550 can be mounted directly to the wall or attached to other mounts in the B-Tech range for additional features such as pop-out mounting. Pole mounting using System 2 collars or directly to System X solutions can also be done easily.
The BT7550 Rotational Flip Mount allows a mounted screen to be easily rotated from landscape to portrait orientation. The tool-less rotation adjustment allows the users to freely rotate the screen from 0° to 90° while mounted or locked at a preferred angle using the built in angle guide before mounting. Additional features include optional negative tilt of 4.5°, ideal for touchscreen displays such as the Samsung Flip*. The BT7550 can be mounted directly to the wall or attached to other mounts in the B-Tech range for additional features such as pop-out mounting. Pole mounting using System 2 collars or directly to System X solutions can also be done easily.

Product Features

  • Allows mounted screens to rotate from landscape to portrait orientation (or vice versa) - Ideal for the Samsung Flipor other similar touch screens
  • Use with BT7550-SF2 adaptors for mounting Samsung Flip 2 screens
  • Tool-less, easy to use rotation adjustment can be set before or after installation
  • Rotation can be stopped and fixed at any angle between 0° and 90°

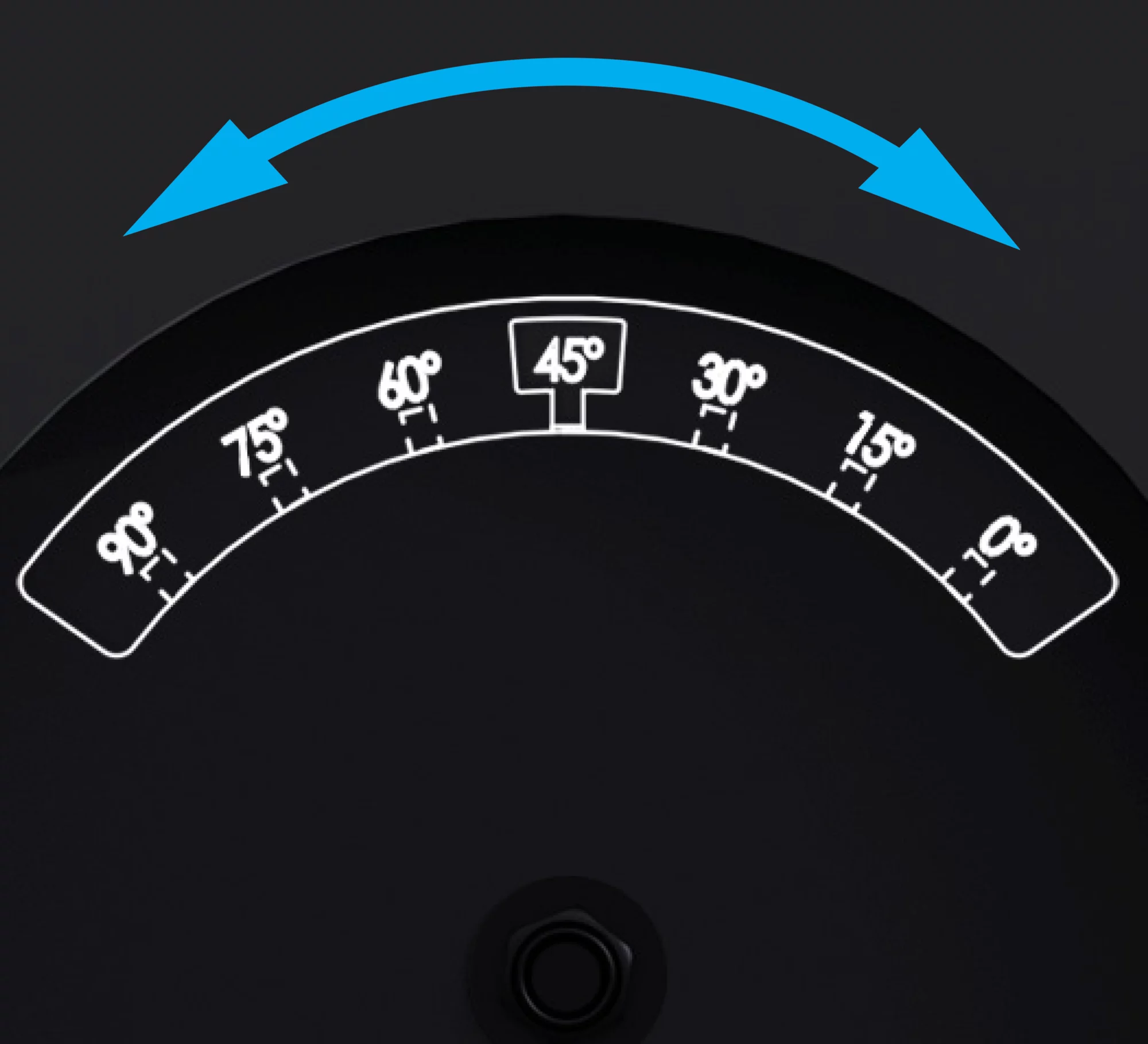

  • Includes angle guides to help set the desired rotation of your screen
  • Can be used to mount screens directly to walls

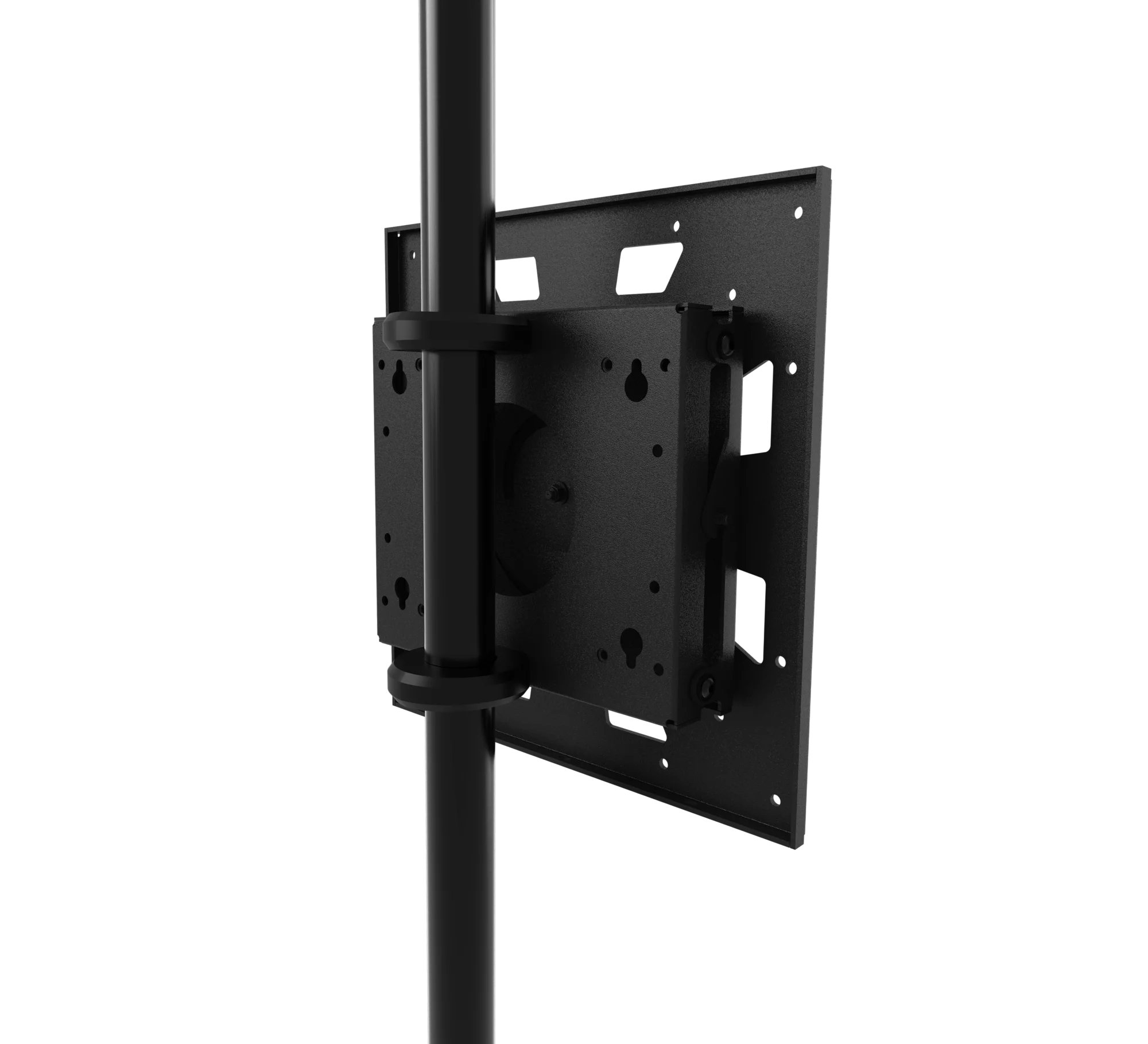

  • Can also be mounted to standard B-Tech mounts, pole mounted using System 2 collars or directly to System X solutions

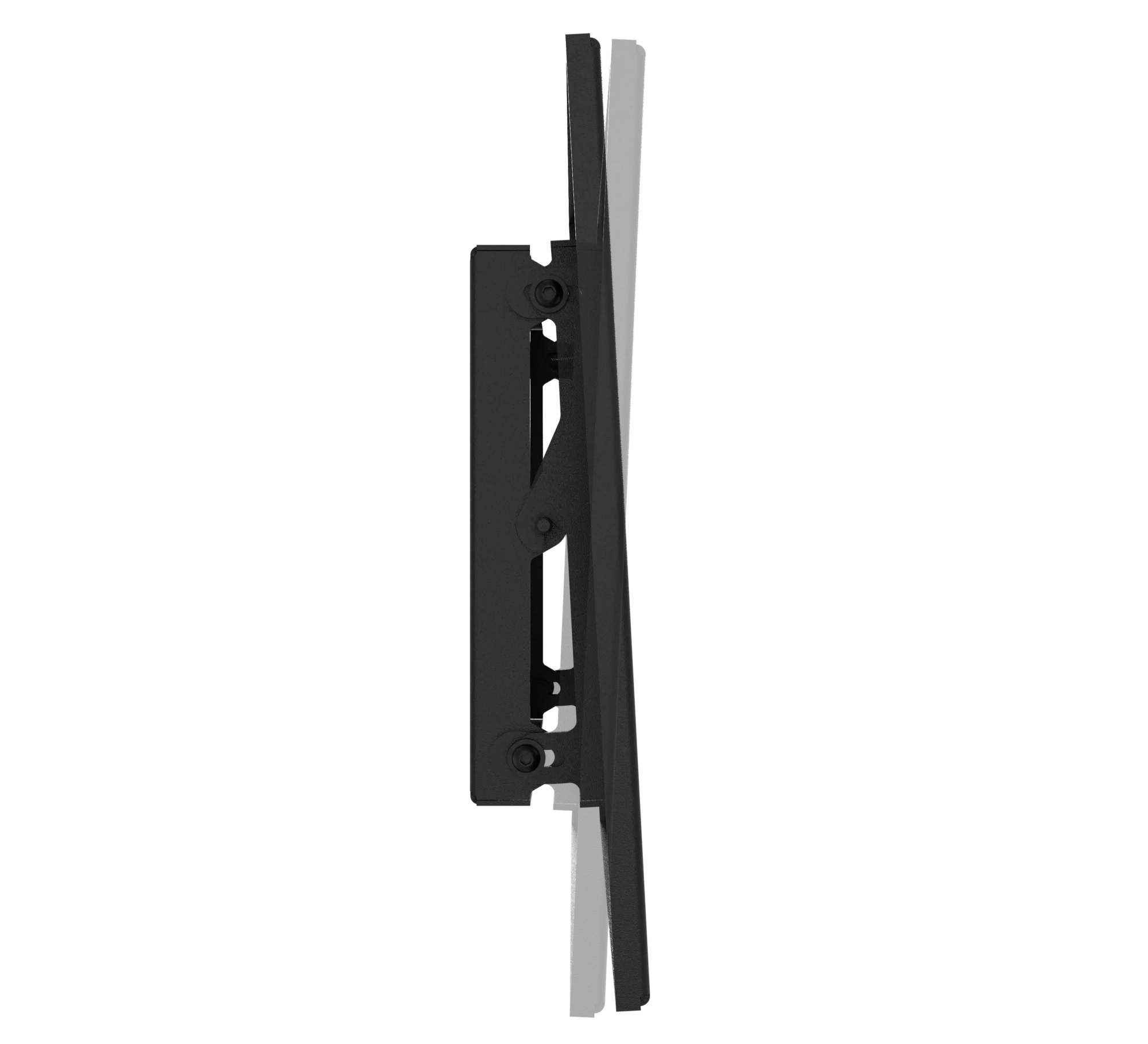

  • Features a negative tilt of 4.5 degrees for easier use of touchscreens (ideal for Samsung Flip)
  • Simple installation with all mounting hardware included
  • Allows mounted screens to rotate from landscape to portrait orientation (or vice versa) - Ideal for the Samsung Flipor other similar touch screens
  • Use with BT7550-SF2 adaptors for mounting Samsung Flip 2 screens
  • Tool-less, easy to use rotation adjustment can be set before or after installation
  • Rotation can be stopped and fixed at any angle between 0° and 90°
  • Includes angle guides to help set the desired rotation of your screen
  • Can be used to mount screens directly to walls
  • Can also be mounted to standard B-Tech mounts, pole mounted using System 2 collars or directly to System X solutions
  • Features a negative tilt of 4.5 degrees for easier use of touchscreens (ideal for Samsung Flip)
  • Simple installation with all mounting hardware included

Product Specifications

  • Designed for displays from: 37" up to 65"
  • Max load: 70kg

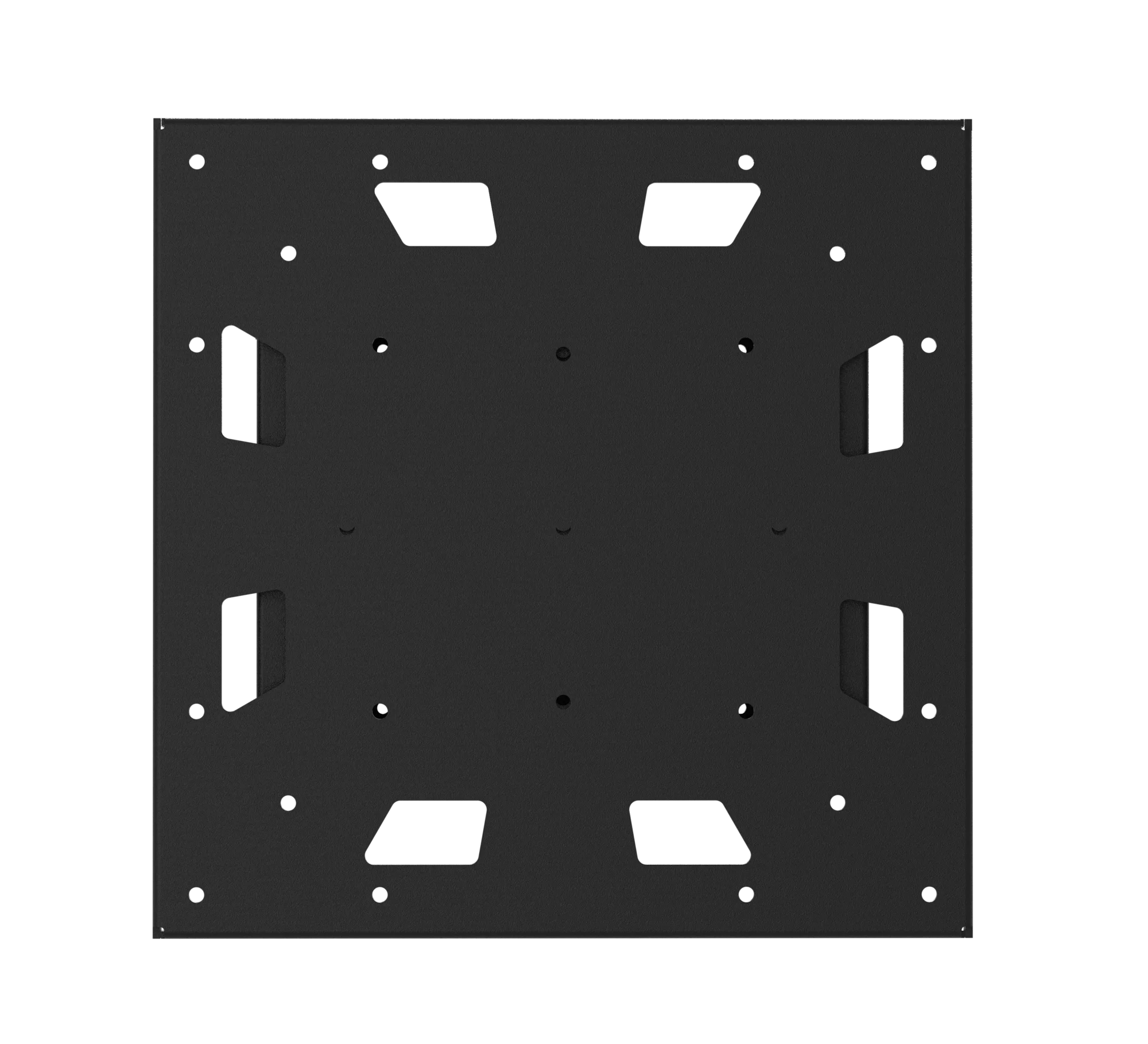

  • VESA fixings: 200mm x 200mm up to 400mm x 400mm
  • Screen Rotation: 90°
  • Max product width: 448.2mm
  • Product width: 448.2mm
  • Min product depth: 75.5mm
  • Max product depth: 93mm
  • Distance from wall: 75.5mm
  • Orientation: Landscape, Portrait
  • Colour: Black
  • Designed for displays from: 37" up to 65"
  • Max load: 70kg
  • VESA fixings: 200mm x 200mm up to 400mm x 400mm
  • Screen Rotation: 90°
  • Max product width: 448.2mm
  • Product width: 448.2mm
  • Min product depth: 75.5mm
  • Max product depth: 93mm
  • Distance from wall: 75.5mm
  • Orientation: Landscape, Portrait
  • Colour: Black

Ordering & Box Information

Order Code: BT7550/B

Barcode: 5019318301742

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 13.90kg

Order Code: BT7550/B

Barcode: 5019318301742

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 13.90kg

Downloads

BT7550 - Product Specification Sheet - English

pdf 1.41 MB

BT7550 - Product Specification Sheet - French

pdf 1.41 MB

BT7550 - Product Specification Sheet - Spanish

pdf 1.64 MB

BT7550 - Product Specification Sheet - Dutch

pdf 1.64 MB

BT7550 - Product Specification Sheet - US

pdf 1.64 MB

BT7550 - Installation Guide

pdf 2.97 MB

BT7550 - Technical Drawings - (DXF)

DXF 21.32 MB

BT7550 - Technical Drawings - (PDF)

pdf 205.02 KB

BT7550-B-1

png 143.23 KB

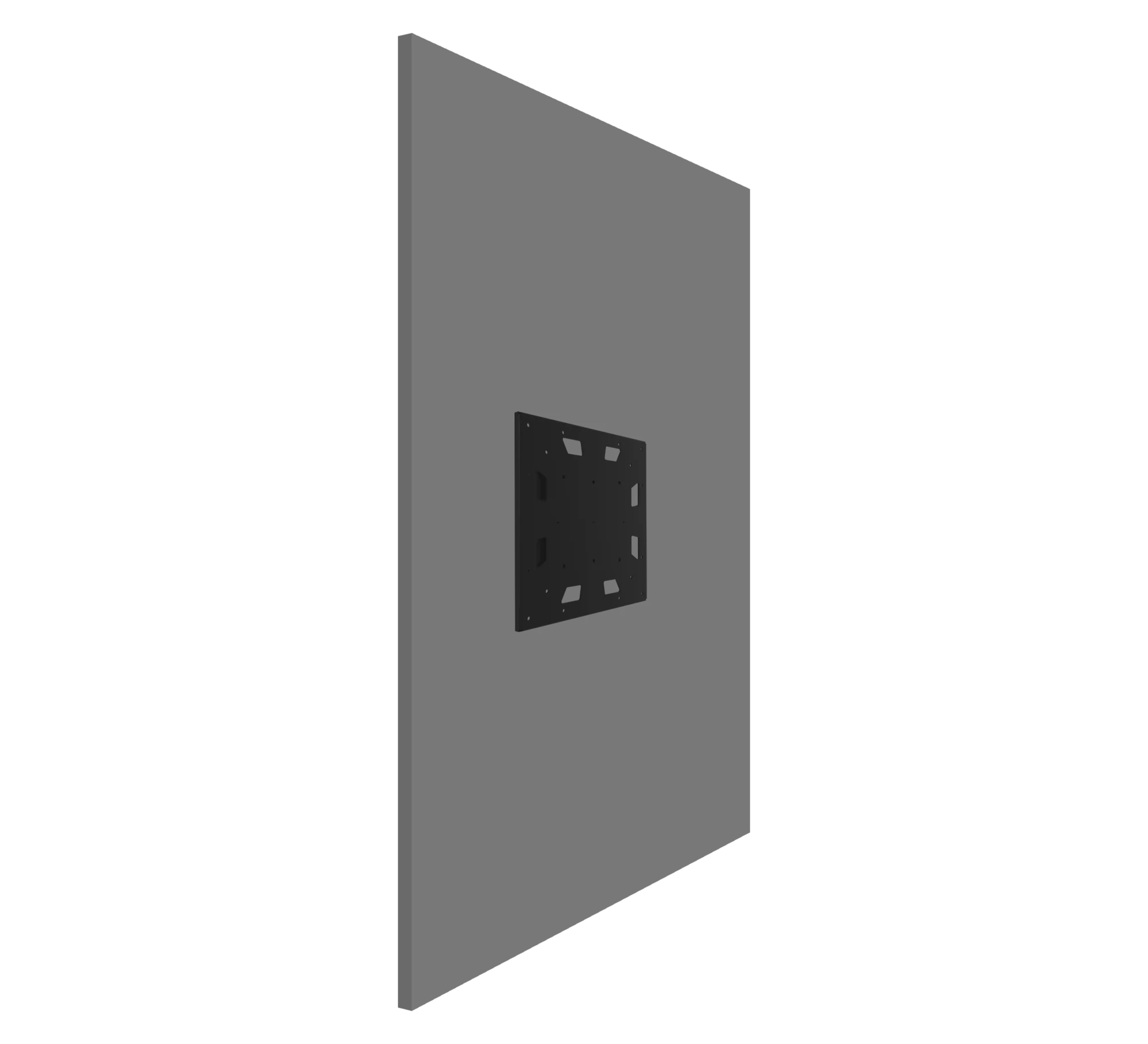

BT7550-B-2

png 17.94 KB

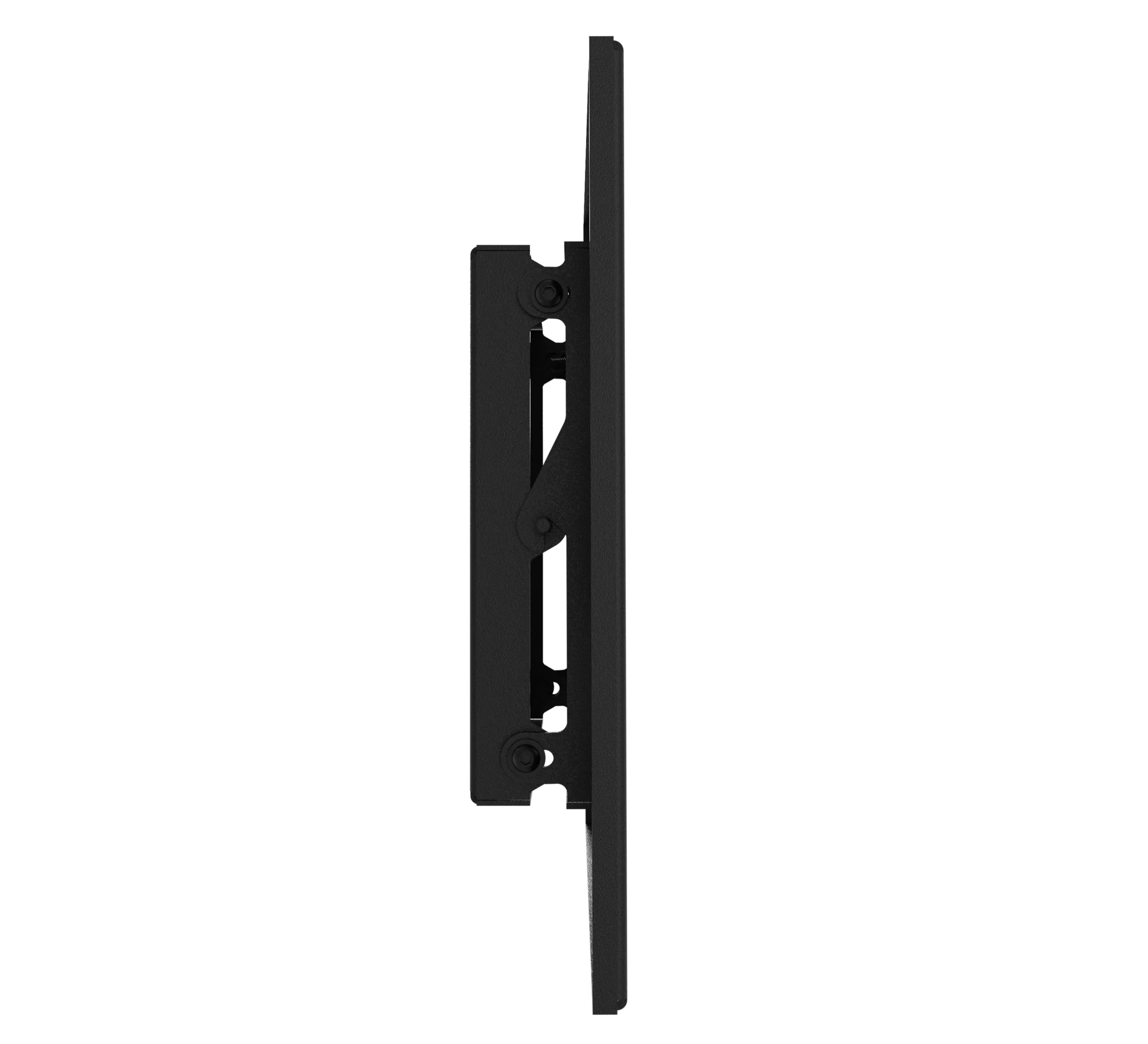

BT7550-B-4

png 45.35 KB

BT7550-B-6

png 51.08 KB

BT7550-B-3

png 182.30 KB

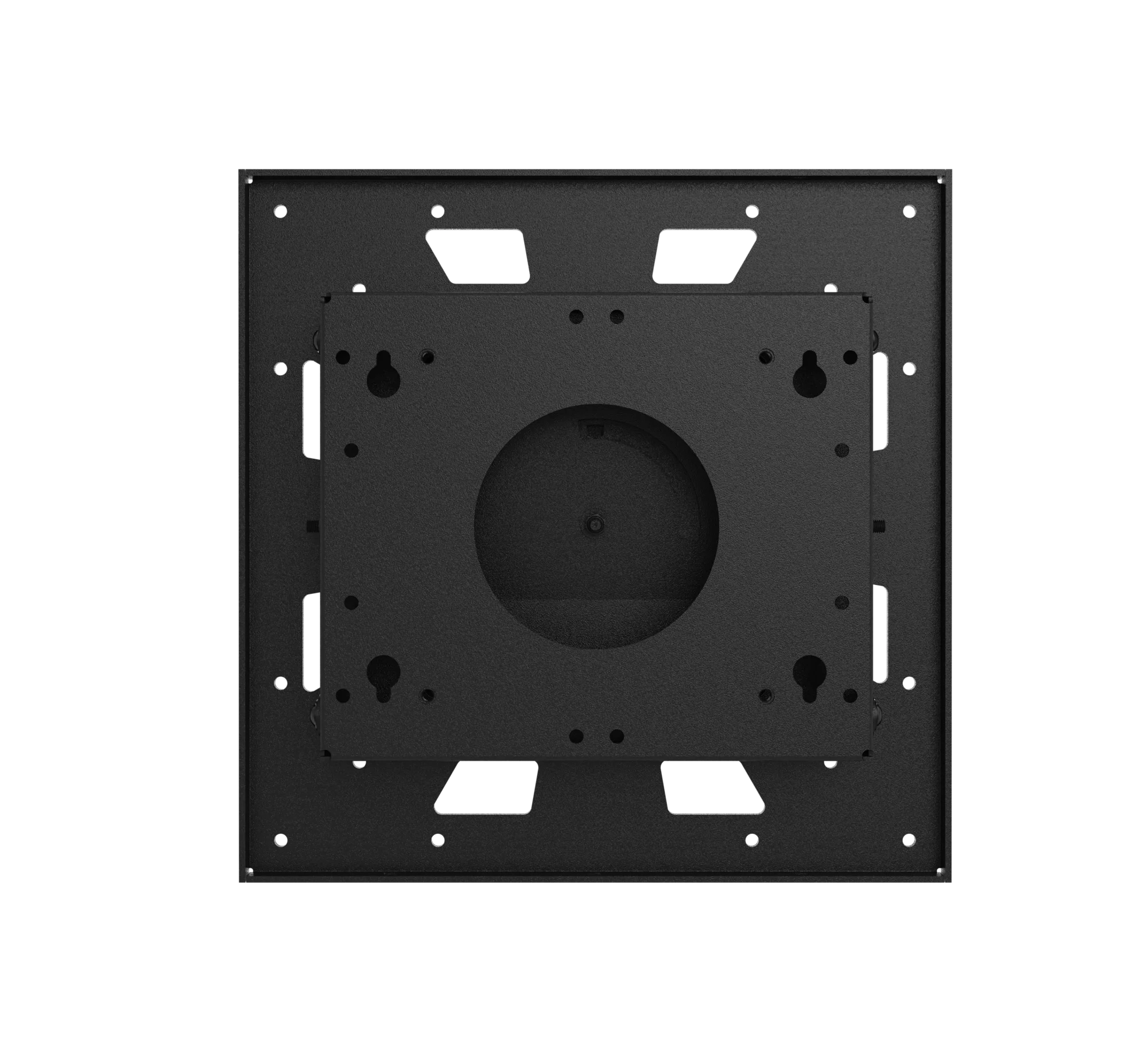

BT7550-B-7

png 264.26 KB

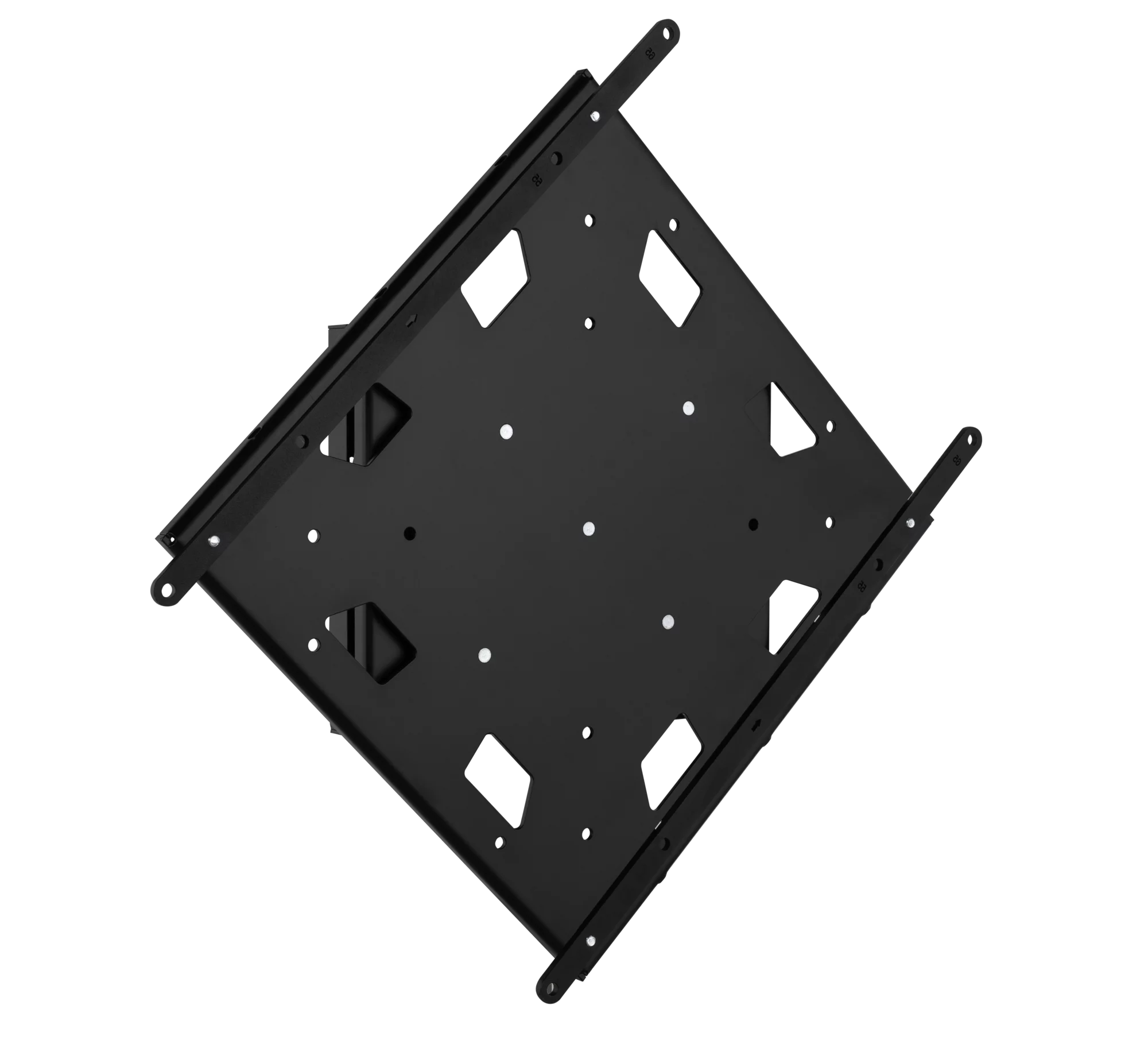

BT7550-B-12

png 62.62 KB

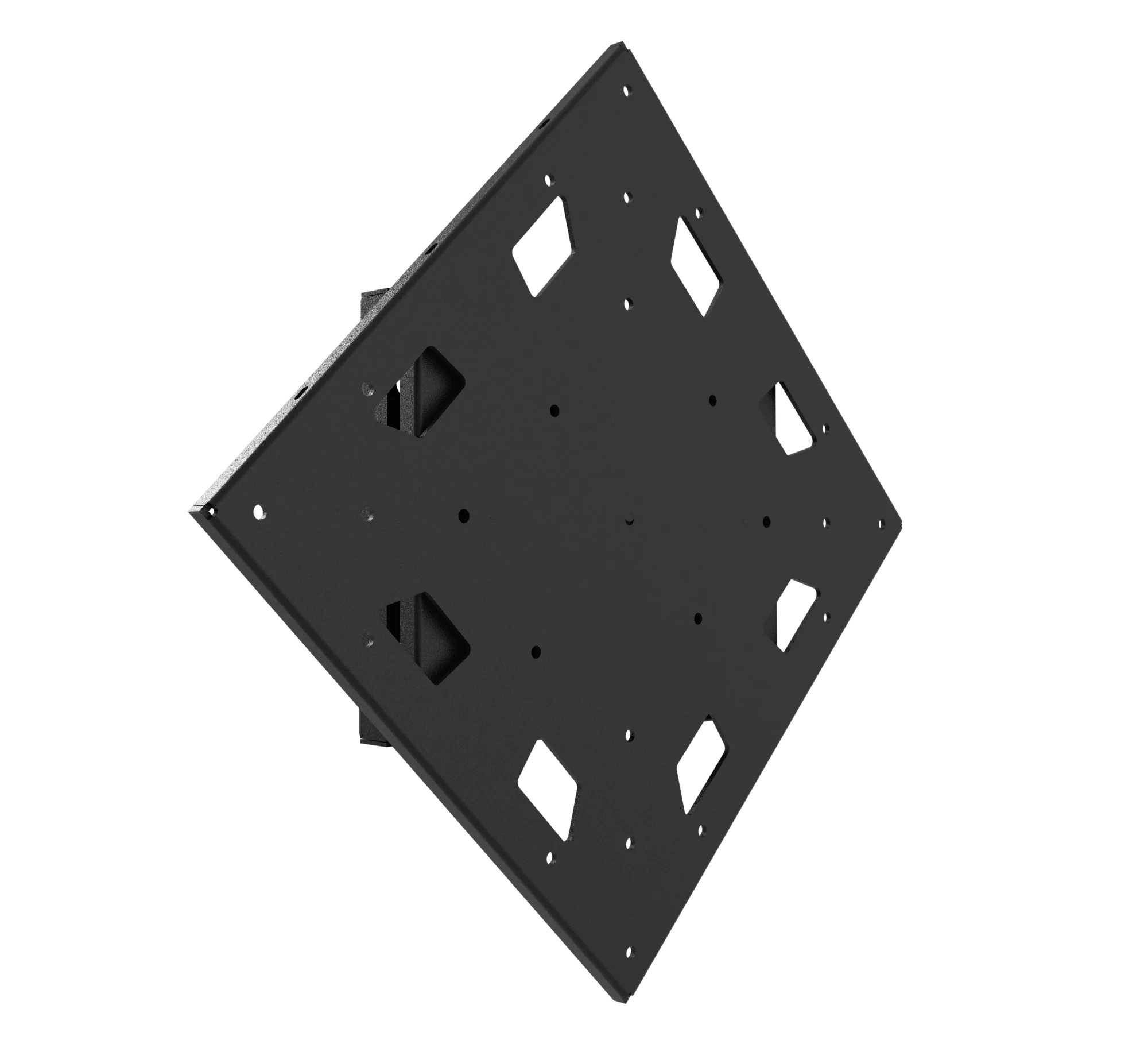

BT7550-B-9

png 66.44 KB

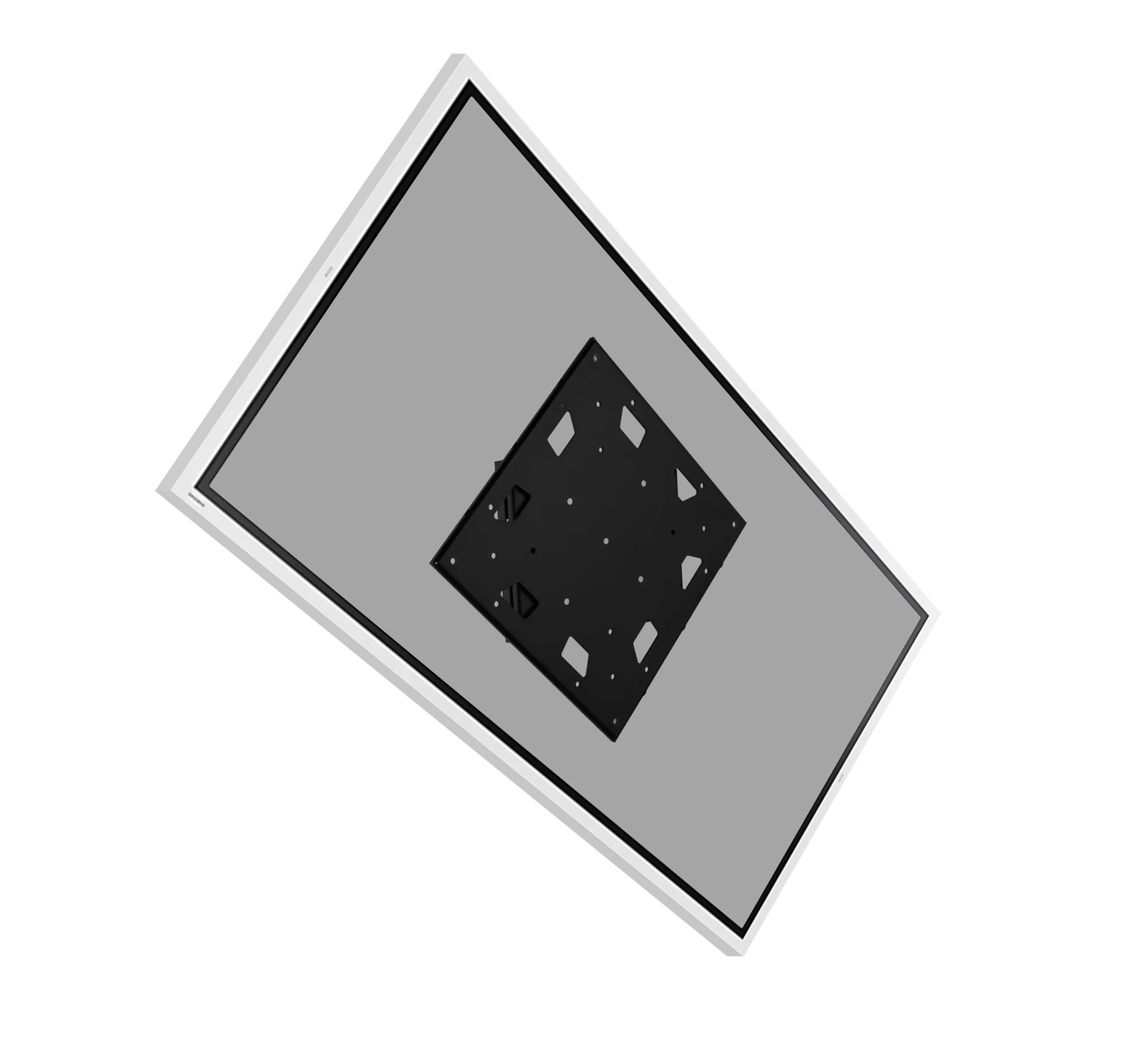

BT7550-B-11

png 66.75 KB

BT7550-B-10

png 67.34 KB

BT7550-B-8

png 94.16 KB

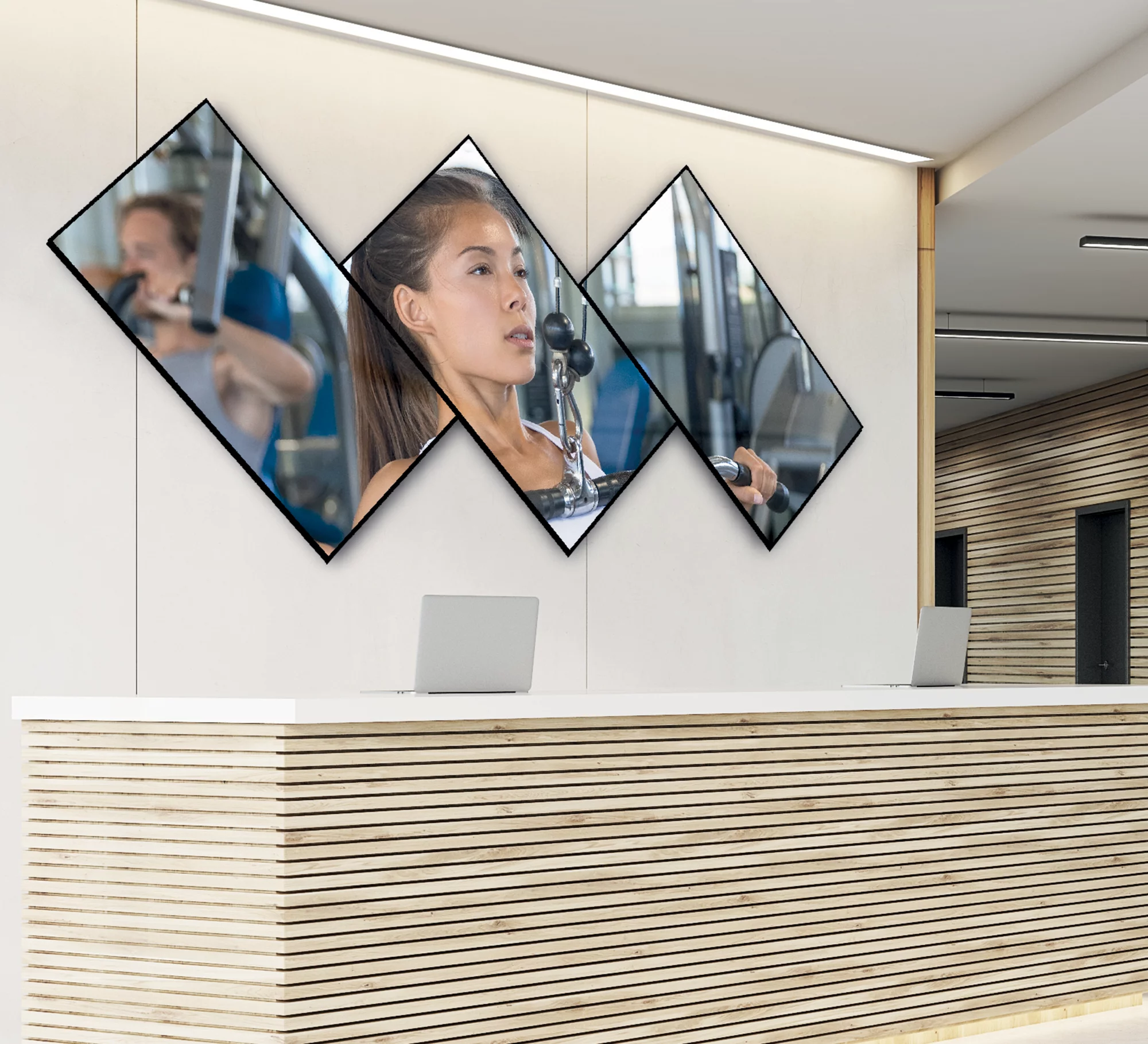

BT7550-B-5
