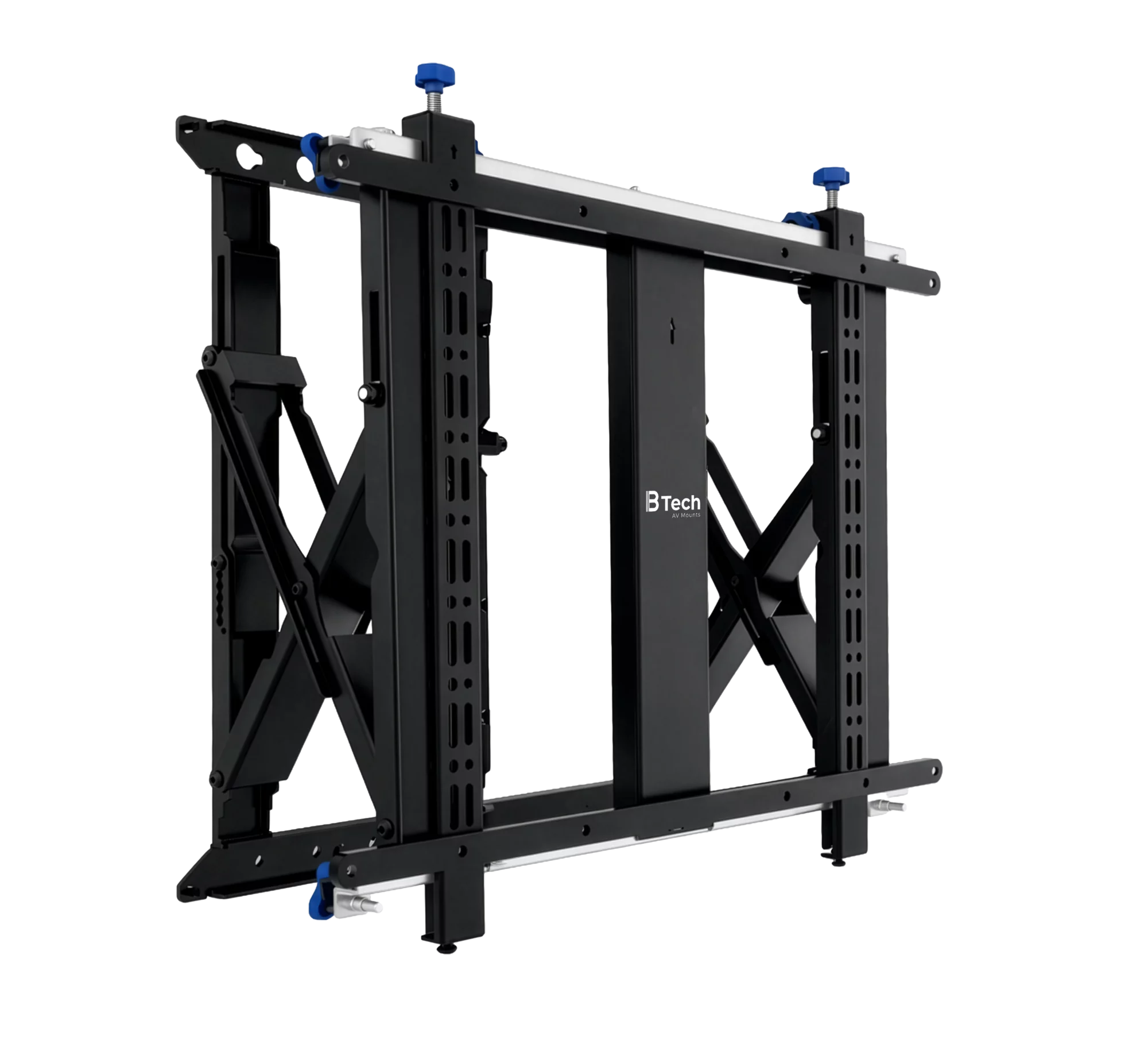

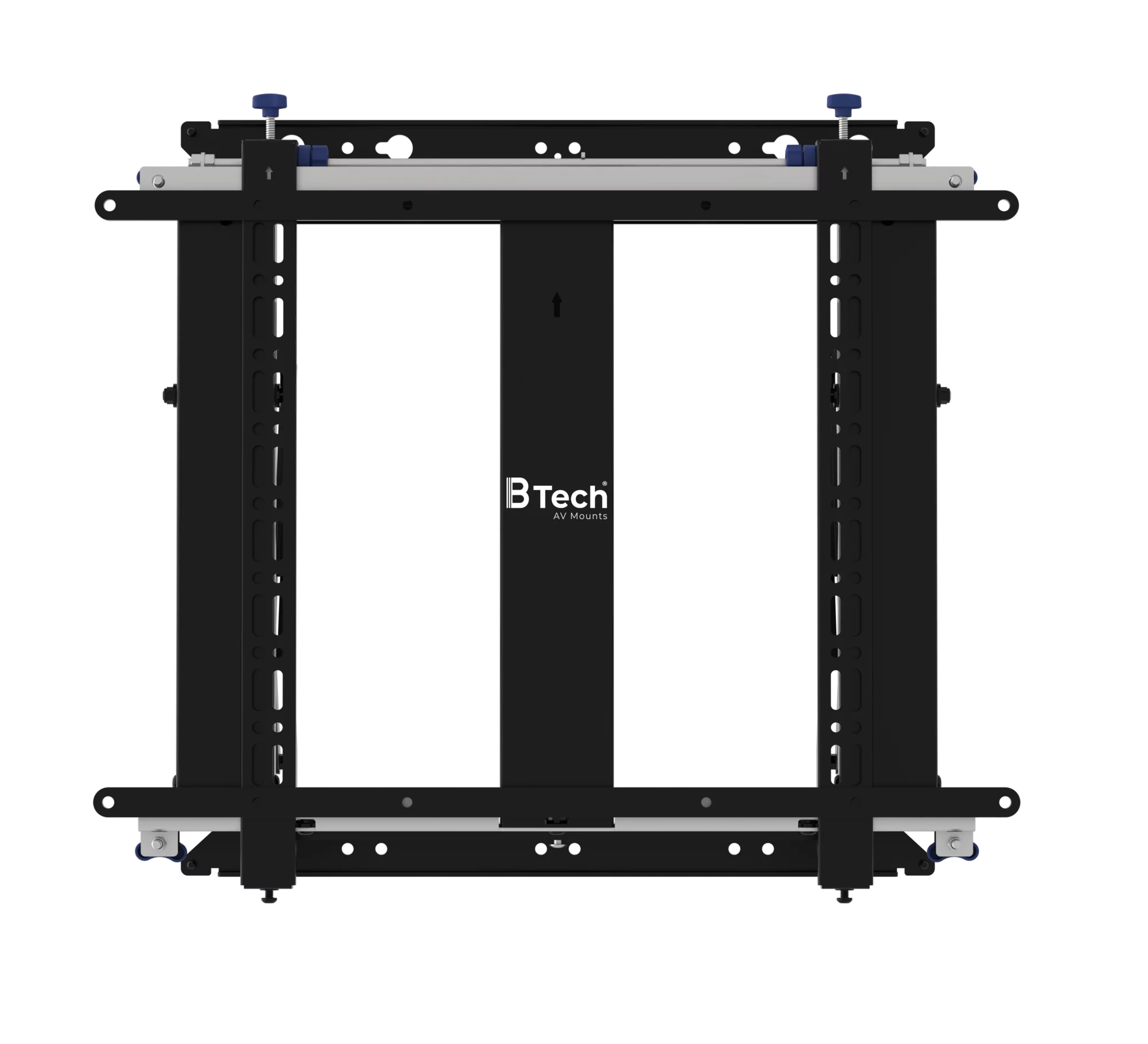

BT8312

Slimline Soft-Open Full Service Video Wall Mount with Micro-Adjustment

Modular mount for unlimted videowall displays

BT8312/B V2

Slimline Soft-Open Full Service Video Wall Mount with Micro-Adjustment

Modular mount for unlimted videowall displays

Overview

Designed to make video wall installations quick and simple, the BT8312 is a modular mount that can be used to create unlimited video wall configurations in both landscape and portrait formats. Its low-profile design is ideal for mounting into shallow wall recesses or where space in front of the wall is limited. Eight points of micro-adjustment allow for precise screen alignment, while the soft-opening mechanism provides a controlled release for easy access to the rear of the screen during servicing and maintenance.
Designed to make video wall installations quick and simple, the BT8312 is a modular mount that can be used to create unlimited video wall configurations in both landscape and portrait formats. Its low-profile design is ideal for mounting into shallow wall recesses or where space in front of the wall is limited. Eight points of micro-adjustment allow for precise screen alignment, while the soft-opening mechanism provides a controlled release for easy access to the rear of the screen during servicing and maintenance.

Product Features

  • Suitable for both wall and pole mounting
  • Security screws help prevent unauthorised screen removal
  • Integrated locking mechanism prevents accidental pop-out of the mount
  • Screen-specific wall plate spacer kits available (sold separately) to speed up installation

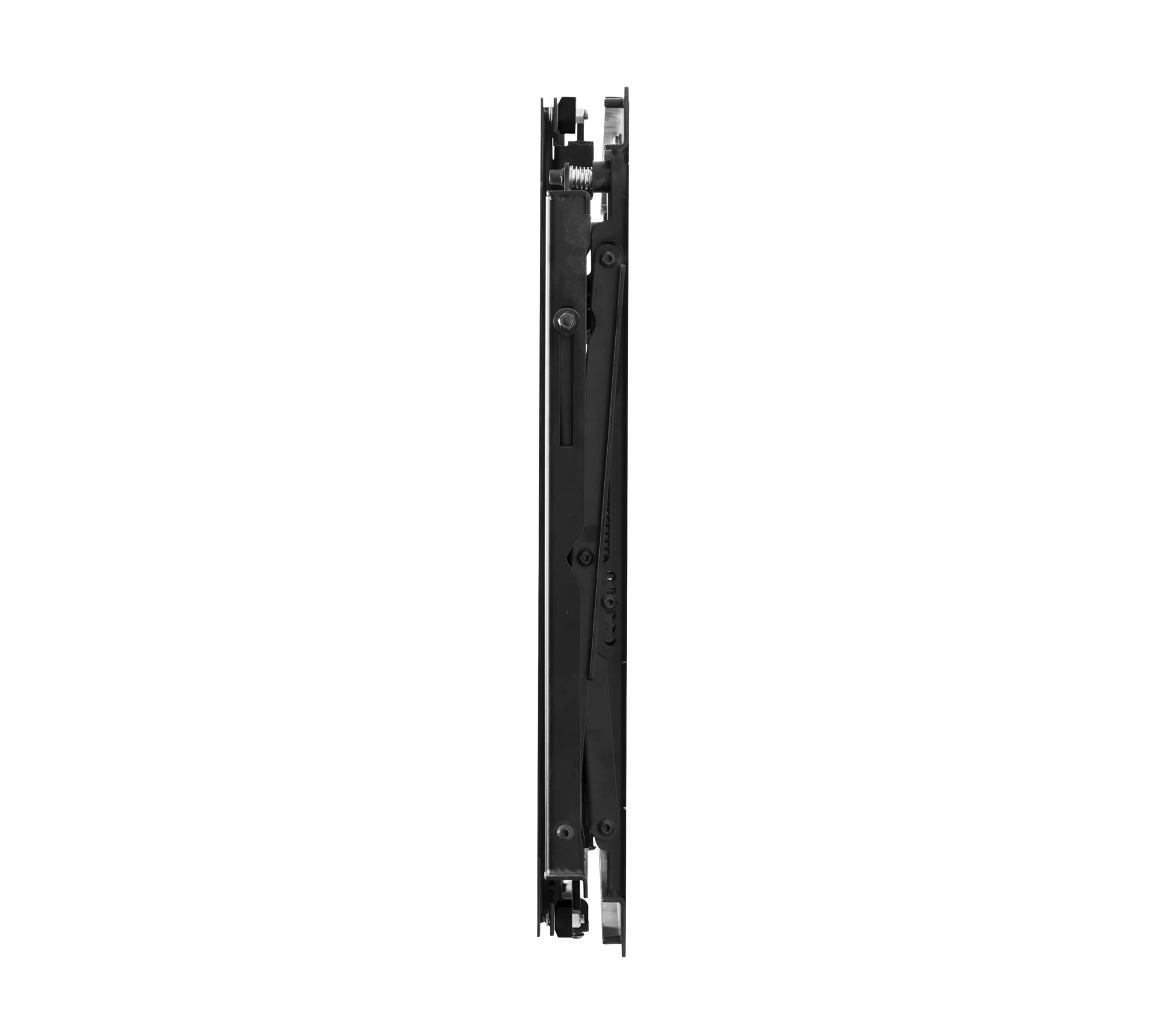

  • Slim design ideal for low profile installs on walls or mounting in recesses
  • Keyhole mounting slots for quick and simple installation

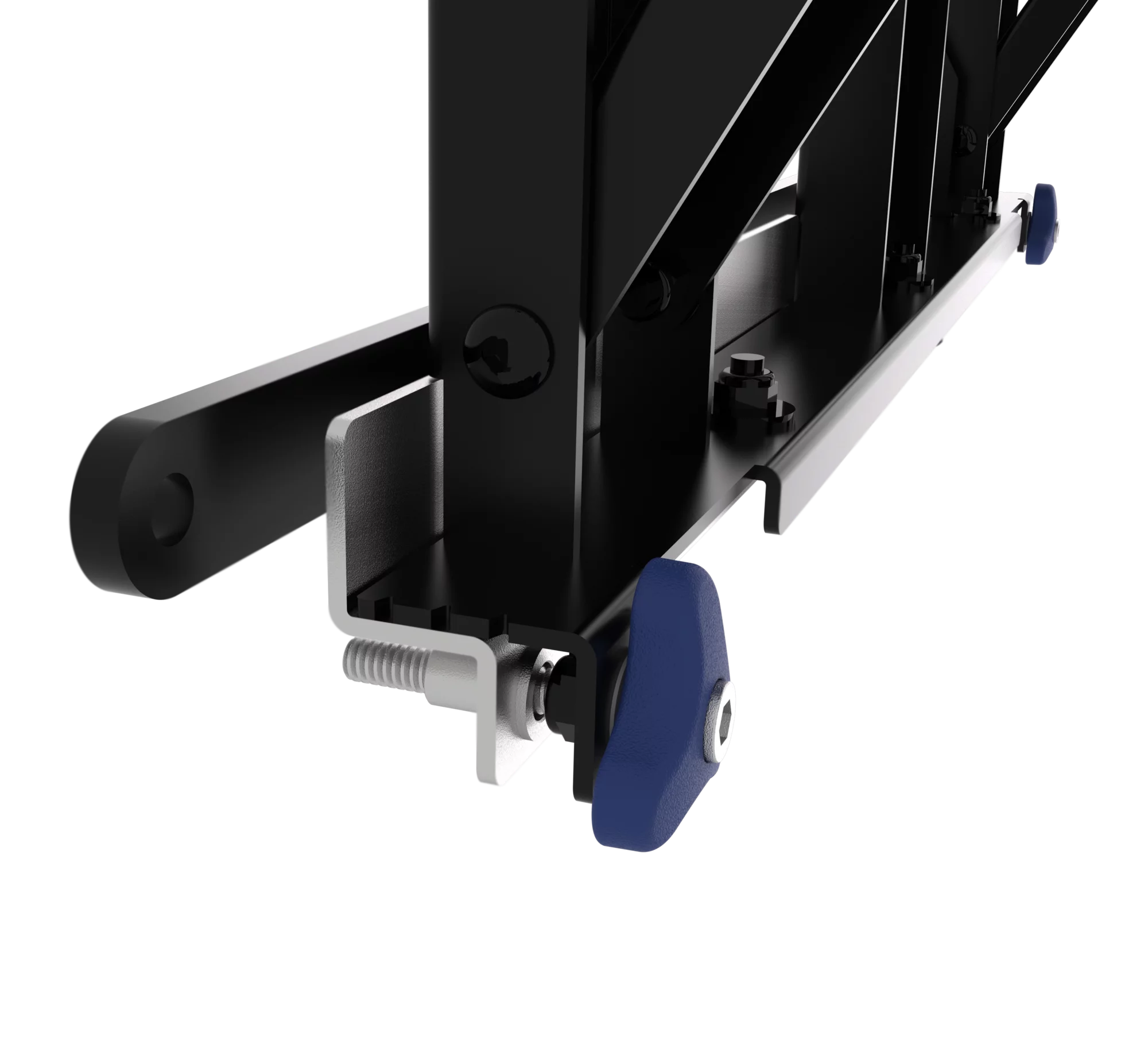

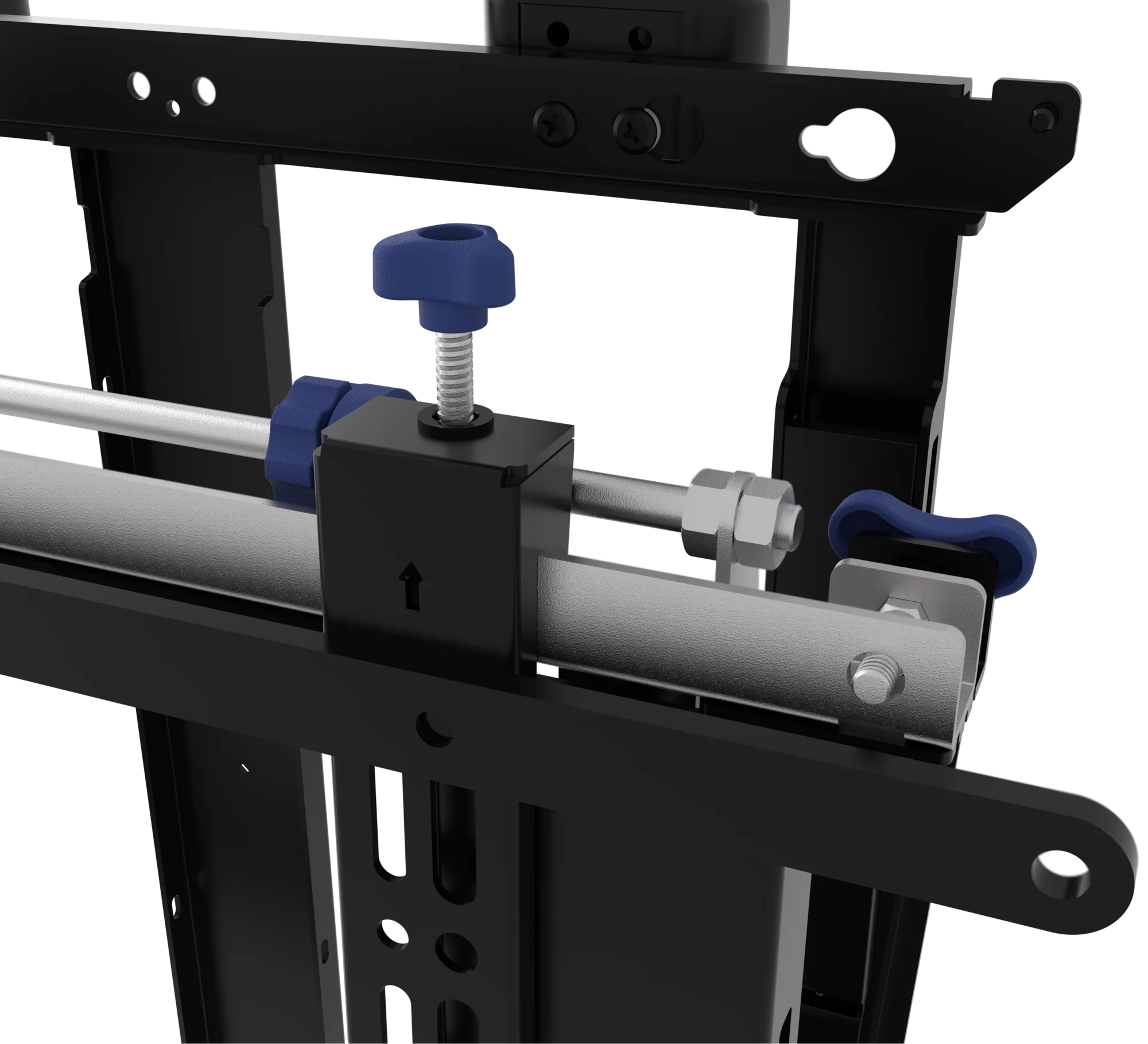

  • Tool-less micro-adjustment at each corner for precise display alignment

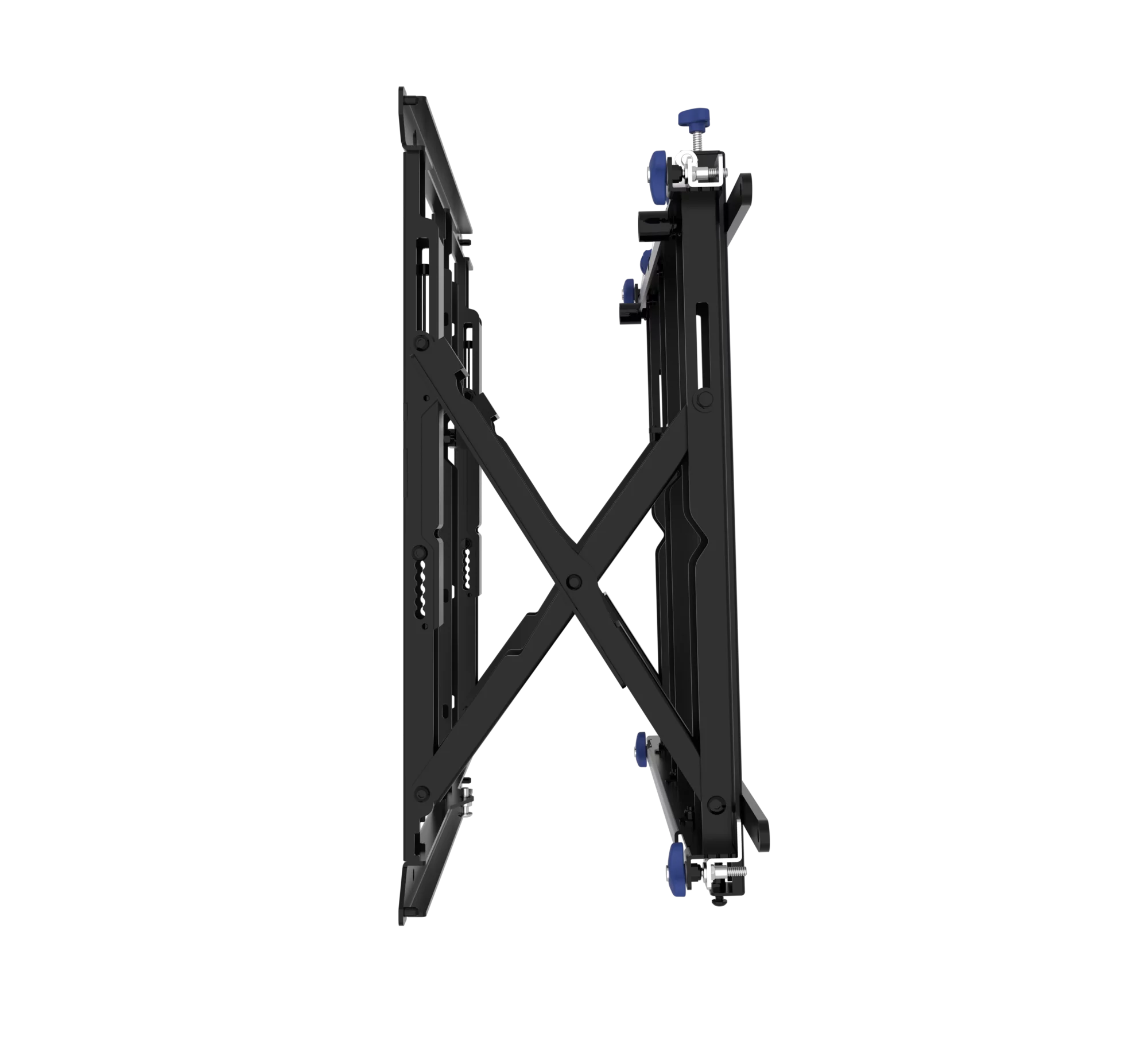

  • Pop-out system with soft opening for safe and easy service access
  • Optional adaptor arms for VESA 800 x 400 fixings (BT7565), available separately
  • Slim design ideal for low profile installs on walls or mounting in recesses
  • Modular mount allows video wall assembly in an unlimited number of configurations
  • Pop-out system with soft opening provides a safe and easy service access
  • Tool-less micro-adjustment at each corner for seamless display alignment
  • Keyhole mounting for quick and easy installation
  • Suitable for both wall or pole mounting
  • Screen specific wall plate spacers kits are available (separately) to speed up installation times
  • Integrated locking mechanism prevents accidental pop-out of mount
  • Safety screws help prevent unauthorised removal of screens
  • Adaptor arms for VESA 800 x 400 fixings (BT7565) available separately

Product Specifications

  • Recommended display size: 42" up to 75"
  • Max load: 50kg
  • VESA compatibility (as standard): 200mm x 100mm to 400mm x 400mm
  • VESA compatibility (with included adaptors): up to 600mm x 400mm*
  • Micro-adjustment per corner: -/+ 7.5mm
  • Product width: 522mm
  • Min product depth: 62mm (Closed)
  • Max product depth: 77mm (Closed)
  • Product height: 547mm
  • Popped out depth: 215mm - 230mm (Open)
  • Screen height adjustment: 15mm
  • *Please note using the Interface Adaptor Arms to mount VESA 600mm x 400mm screens will increase the total depth of the product by 6mm, for a total depth of 75.5mm, 229mm whilst popped out (+/-7.5mm micro-adjustment)
  • Recommended display size: 42" up to 75"
  • VESA compatibility (as standard): 200mm x 100mm to 400mm x 400mm
  • VESA compatibility (with included adaptors): up to 600mm x 400mm*
  • Micro-adjustment per corner: -/+ 7.5mm
  • Product width: 522mm
  • Min product depth: 62mm (Closed)
  • Max product depth: 77mm (Closed)
  • Product height: 547mm
  • Popped out depth: 215mm - 230mm (Open)
  • Screen height adjustment: 15mm
  • Max load: 50kg
  • *Please note using the Interface Adaptor Arms to mount VESA 600mm x 400mm screens will increase the total depth of the product by 6mm, for a total depth of 75.5mm, 229mm whilst popped out (+/-7.5mm micro-adjustment)

Ordering & Box Information

Order Code: BT8312/B V2

Barcode: 5019318081231

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 15.5kg

Order Code: BT8312/B V2

Barcode: 5019318081231

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 15.5kg


Ideal for Recess Mounting

The BT8312 is the perfect solution for recess mounting thanks to its slim, low-profile design that allows screens to sit neatly within wall cavities for a clean and professional finish. Its precision-engineered structure ensures secure and reliable installation, while integrated cable management keeps wiring hidden for a tidy appearance. With easy access to mounting and adjustment features, the BT8312 makes recessed installations straightforward, making it ideal for environments where aesthetics and space-saving are key priorities, such as retail displays, corporate settings, and public spaces.

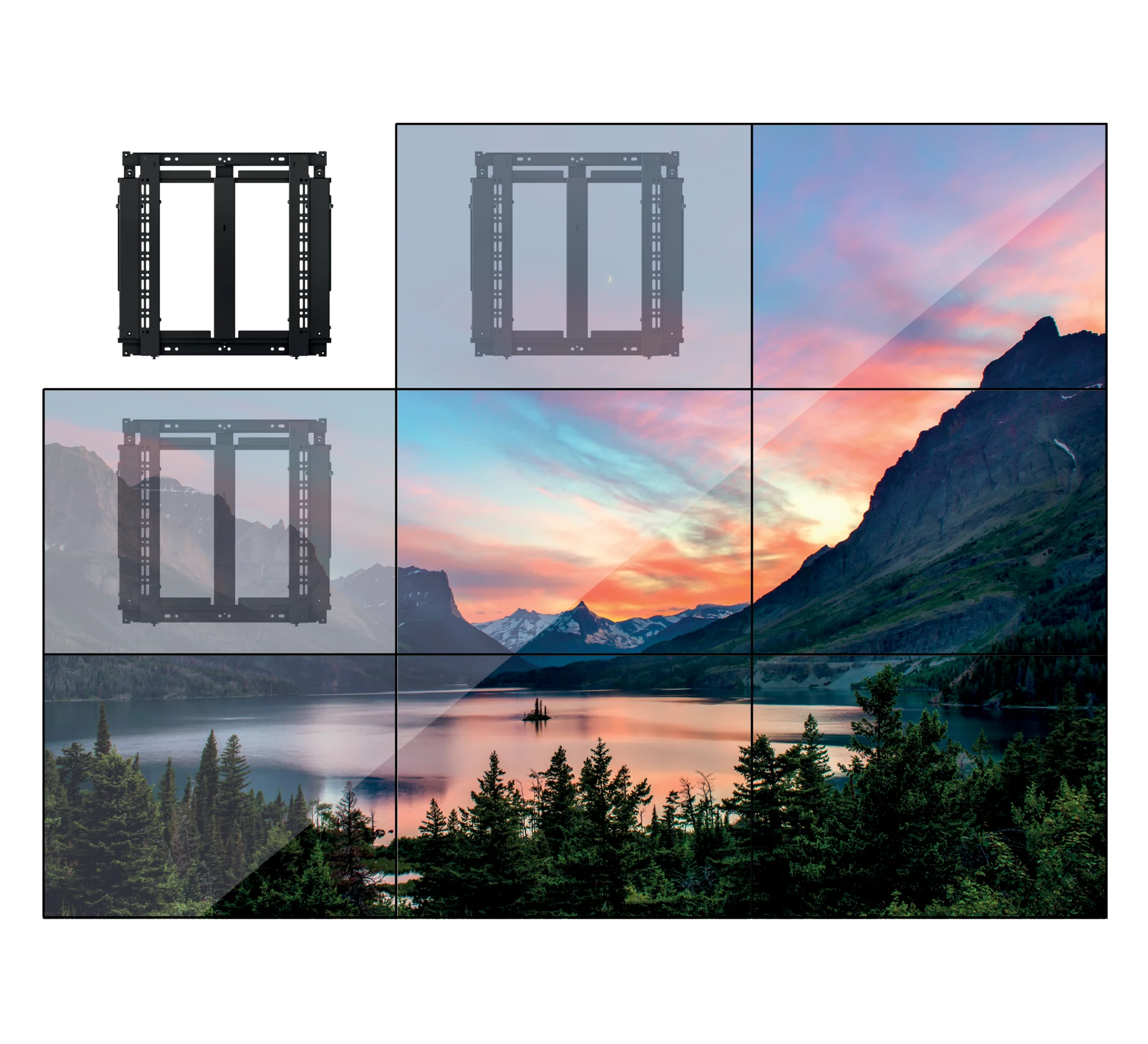

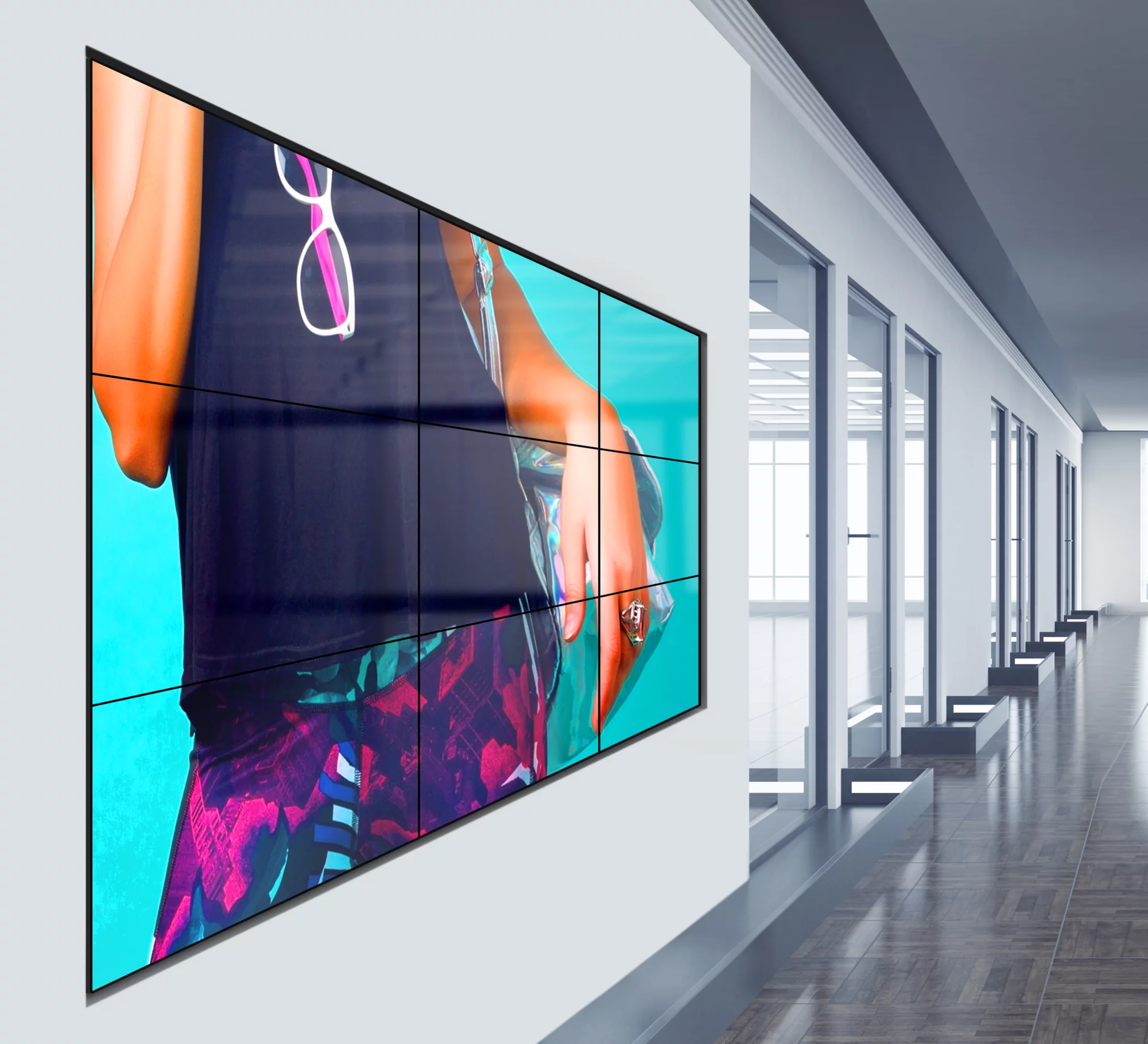

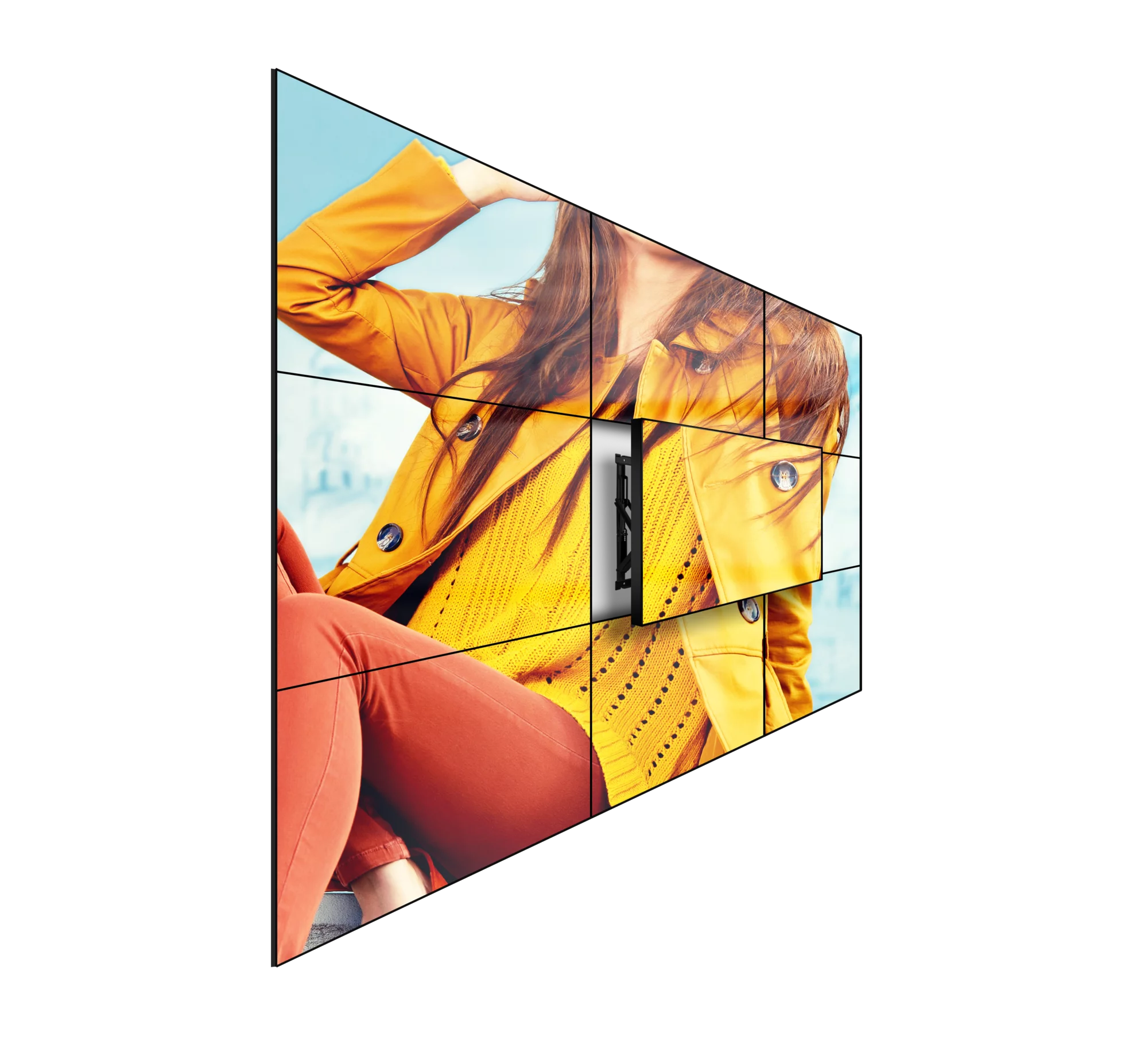

Modular mount for an unlimited number of videowall configurations

The BT8312 is a modular mounting solution designed to create an unlimited number of video wall configurations. Whether installed in landscape or portrait format, this system provides the flexibility to build video walls of any size or layout, making it ideal for commercial, control room, retail, or public display environments.


Modular mount for an unlimited number of videowall configurations

The BT8312 is a modular mounting solution designed to create an unlimited number of video wall configurations. Whether installed in landscape or portrait format, this system provides the flexibility to build video walls of any size or layout, making it ideal for commercial, control room, retail, or public display environments.

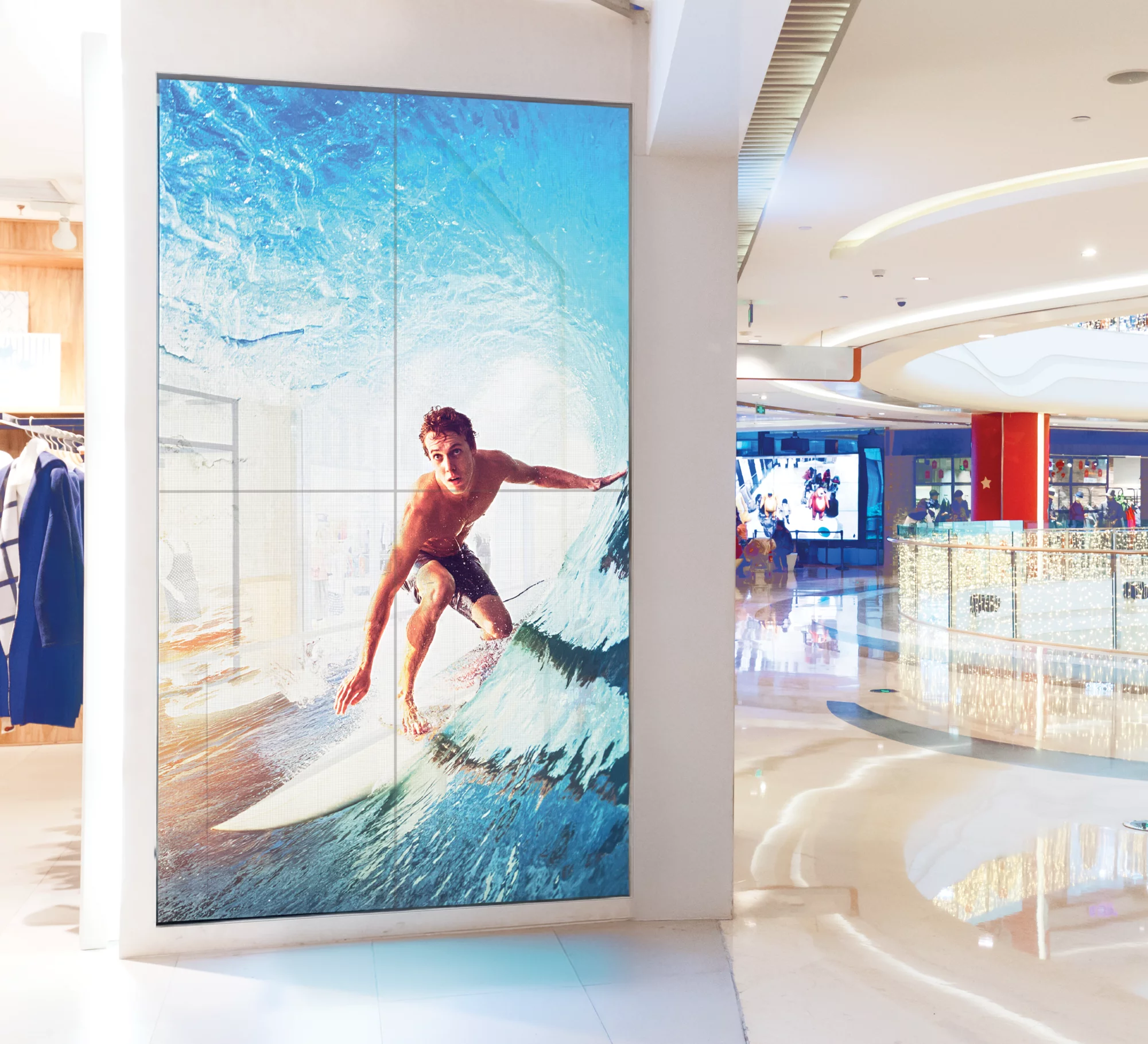

Ideal for Recess Mounting

The BT8312 is the perfect solution for recess mounting thanks to its slim, low-profile design that allows screens to sit neatly within wall cavities for a clean and professional finish. Its precision-engineered structure ensures secure and reliable installation, while integrated cable management keeps wiring hidden for a tidy appearance. With easy access to mounting and adjustment features, the BT8312 makes recessed installations straightforward, making it ideal for environments where aesthetics and space-saving are key priorities, such as retail displays, corporate settings, and public spaces.
