BT7896

Pull-Out Flat Screen Wall Mount with In-Wall AV Storage Tray

Integrated easy access to AV Equipment

BT7896/B

Pull-Out Flat Screen Wall Mount with In-Wall AV Storage Tray

Integrated easy access to AV Equipment

Enquire Today View Downloads

Overview

The BT7896 is a versatile pull-out wall mount for medium to large screens, combining service-friendly design with adaptable functionality. Push-to-release arms allow quick rear access without removing the screen, while adjustable depth, tilt, and swivel provide precise positioning. The integrated AV tray can be removed, re-positioned laterally inside the wall bracket, or mounted to the side to avoid mains sockets and cable inputs etc. Its slim profile is ideal for low-profile or recessed installations, and features such as cable management and levelling adjustment ensure a clean, professional finish.
The BT7896 is a versatile pull-out wall mount for medium to large screens, combining service-friendly design with adaptable functionality. Push-to-release arms allow quick rear access without removing the screen, while adjustable depth, tilt, and swivel provide precise positioning. The integrated AV tray can be removed, re-positioned laterally inside the wall bracket, or mounted to the side to avoid mains sockets and cable inputs etc. Its slim profile is ideal for low-profile or recessed installations, and features such as cable management and levelling adjustment ensure a clean, professional finish.

Product Features

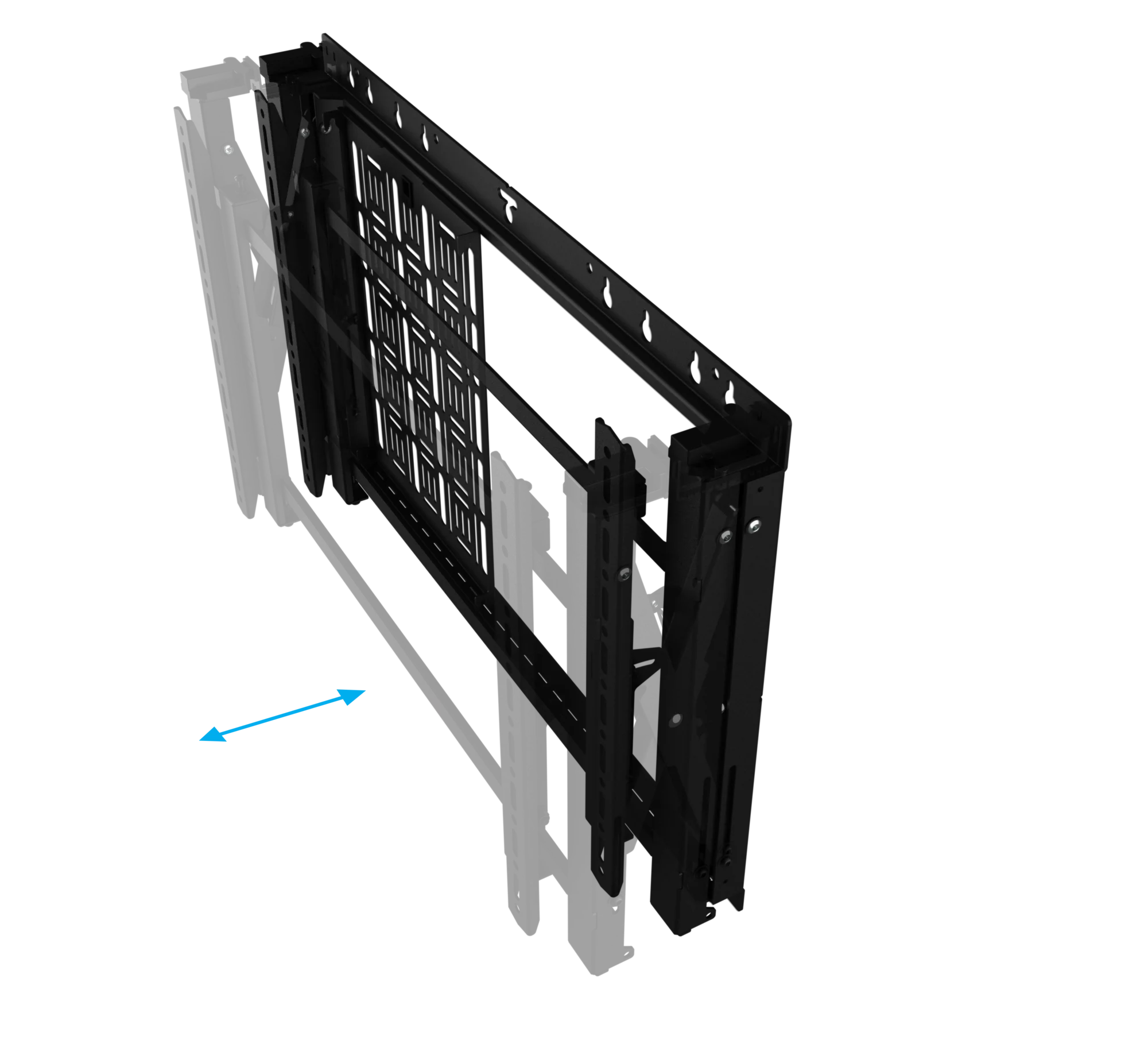

  • Push-to-release arms provide simple service access without screen removal

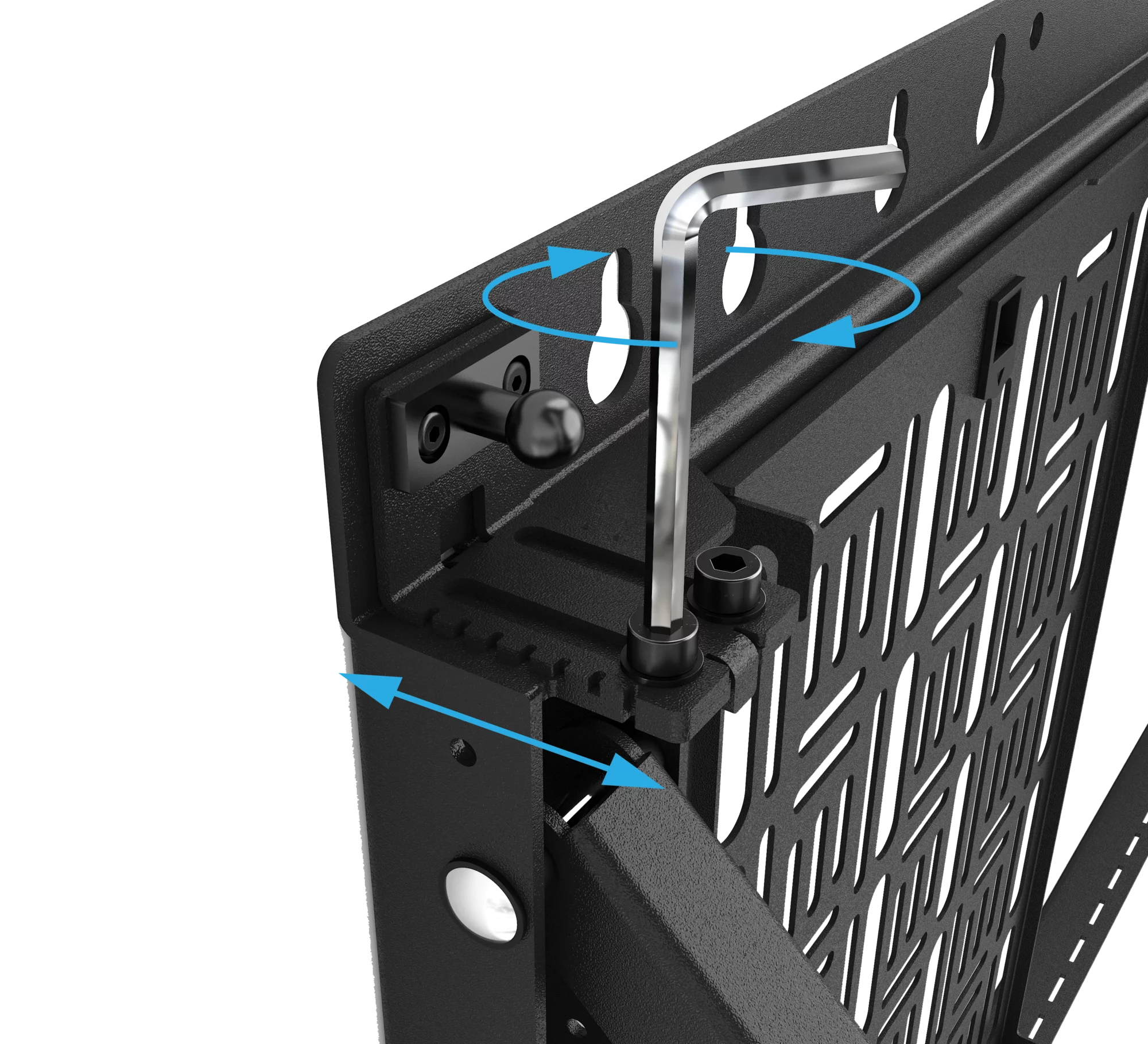

  • Lockable depth adjustment ensures a precise fit in recesses of different sizes

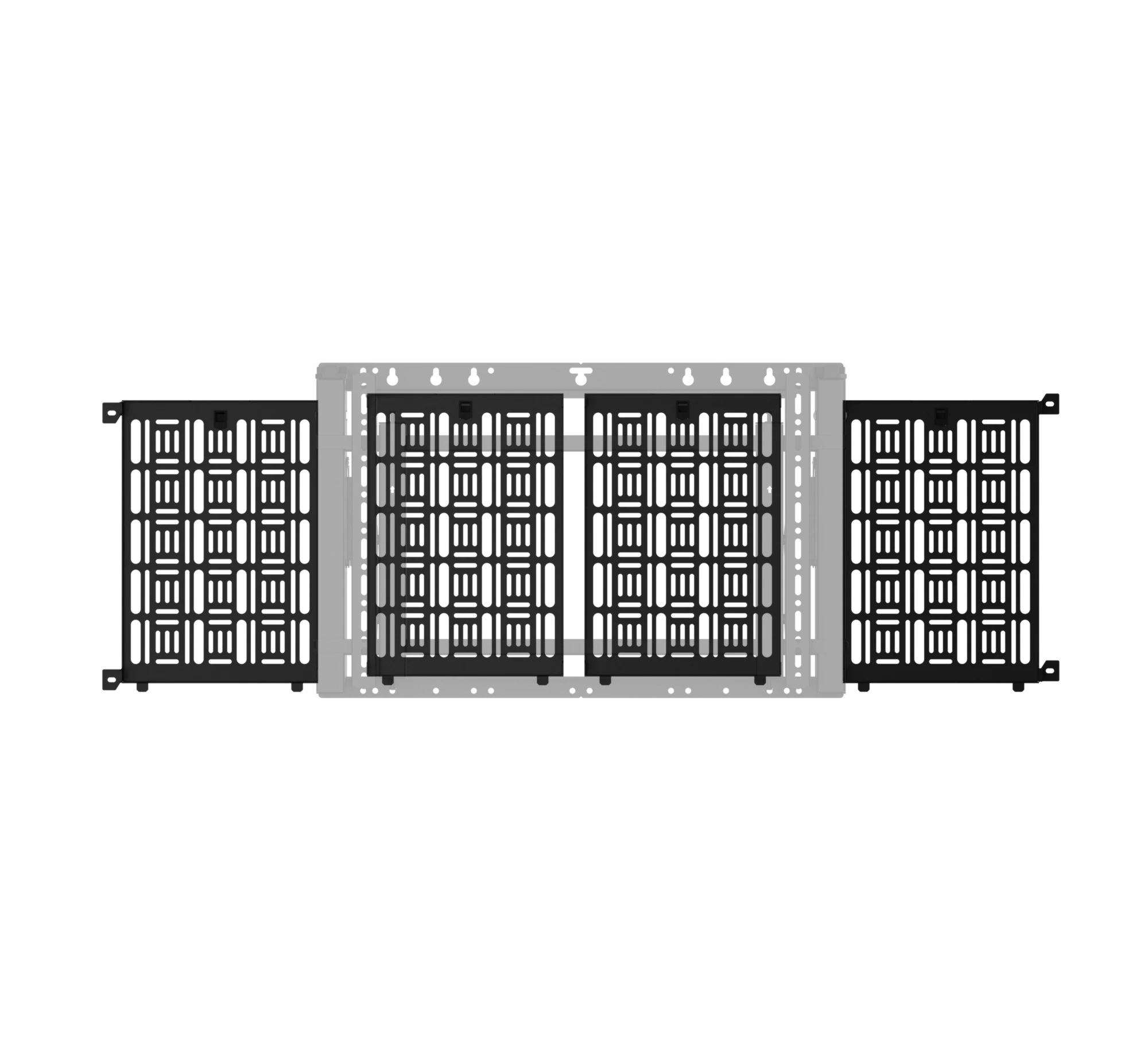

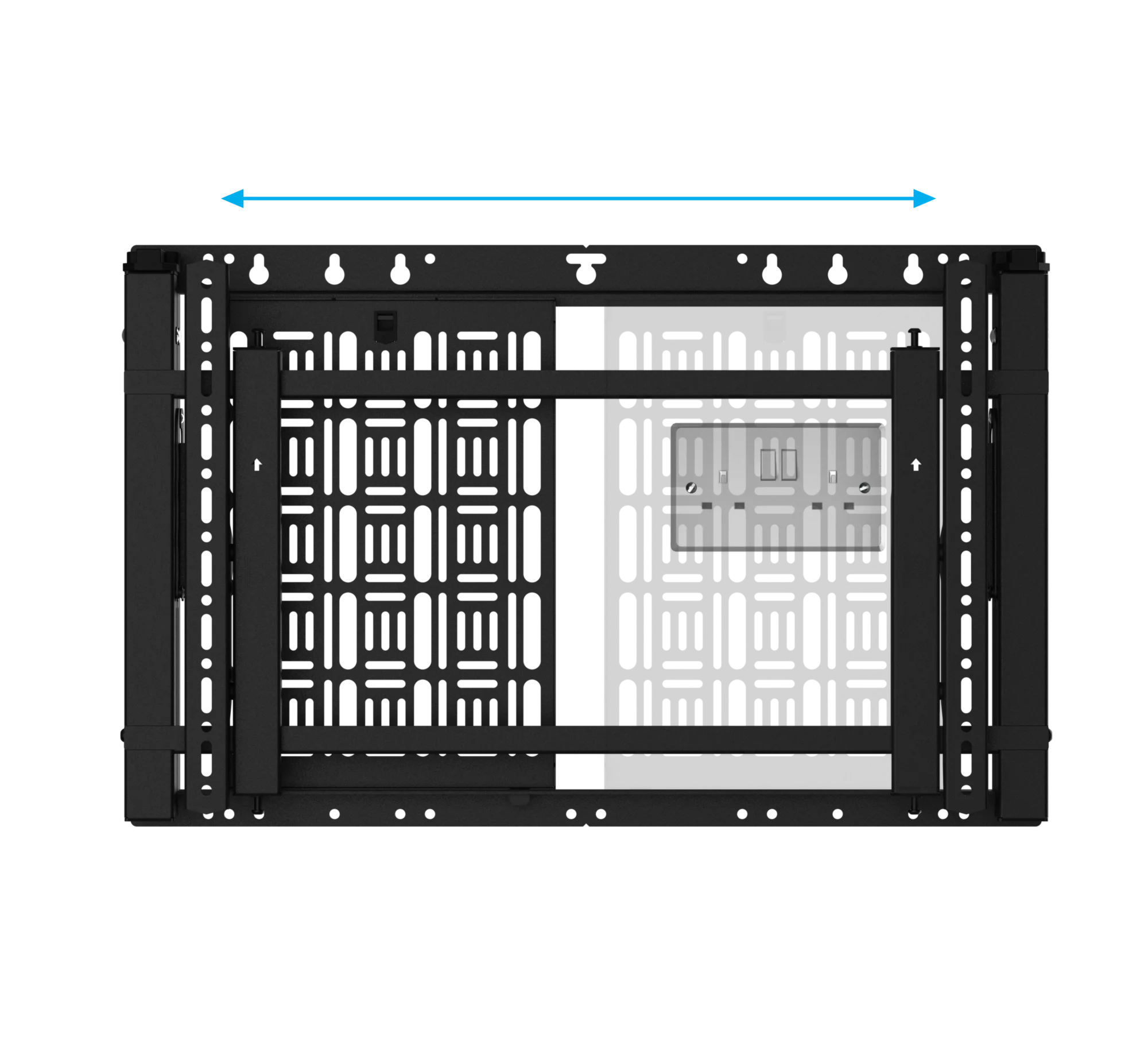

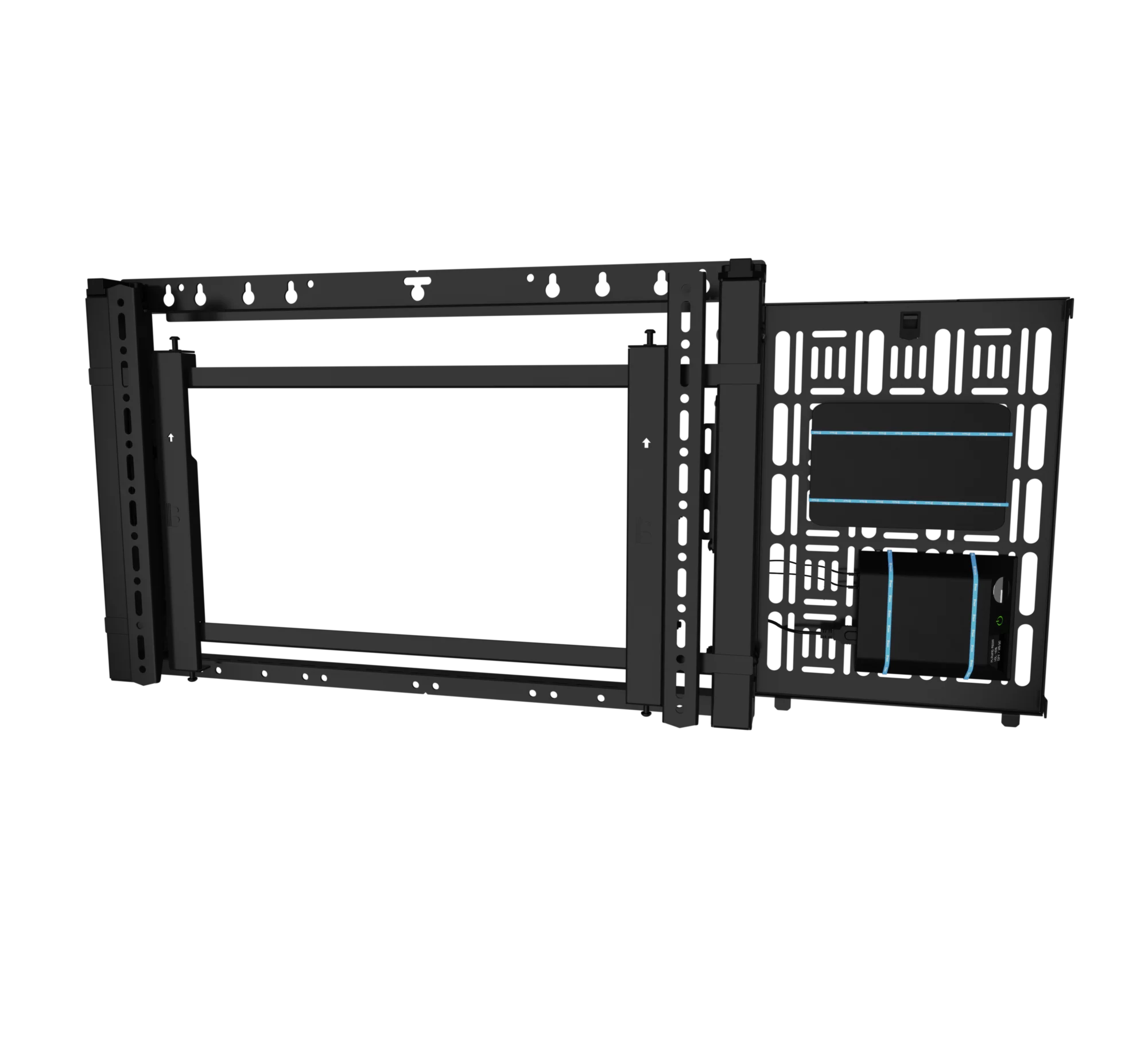

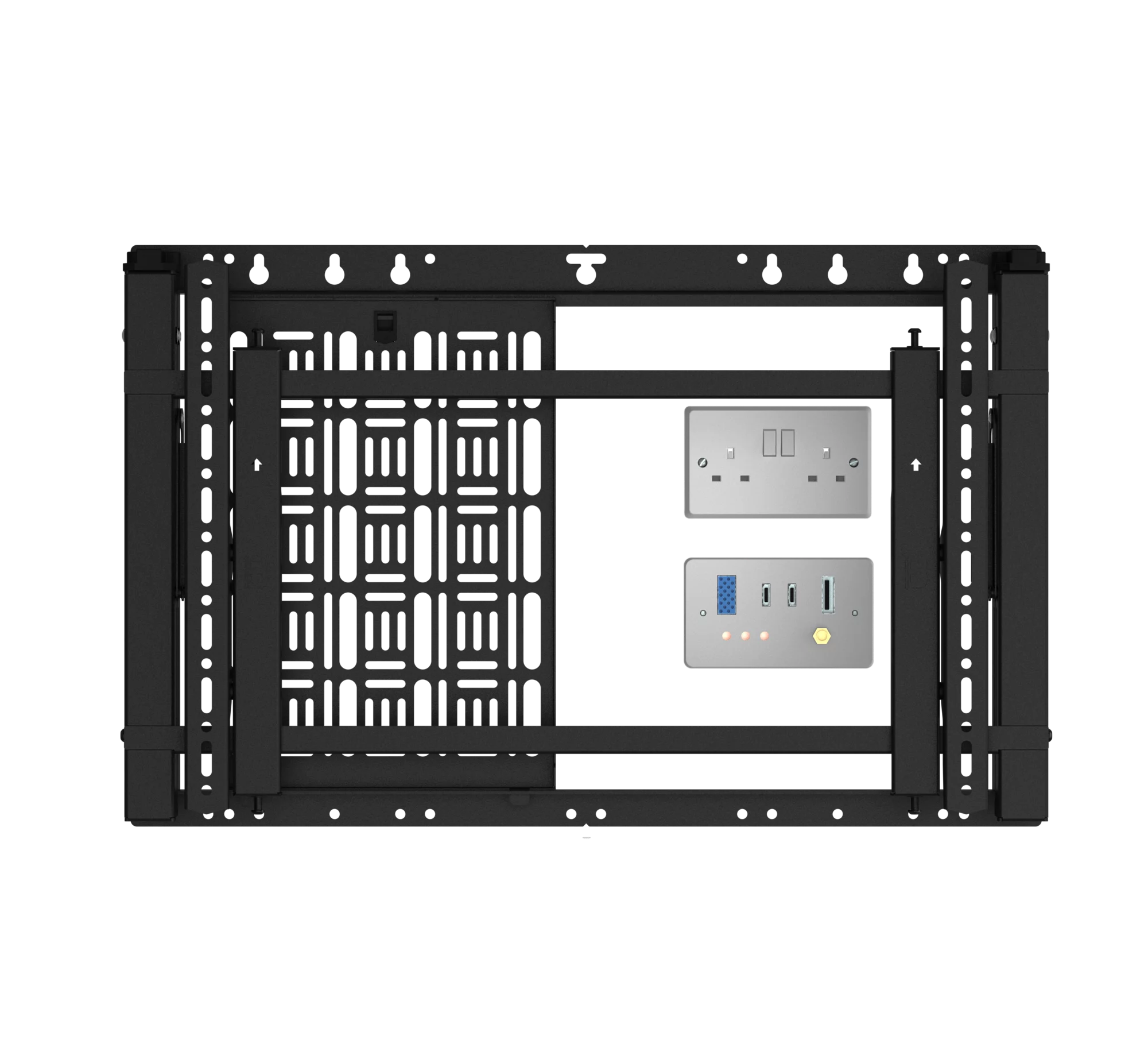

  • Integrated AV tray can be repositioned to the side to of the mount to avoid obstructions

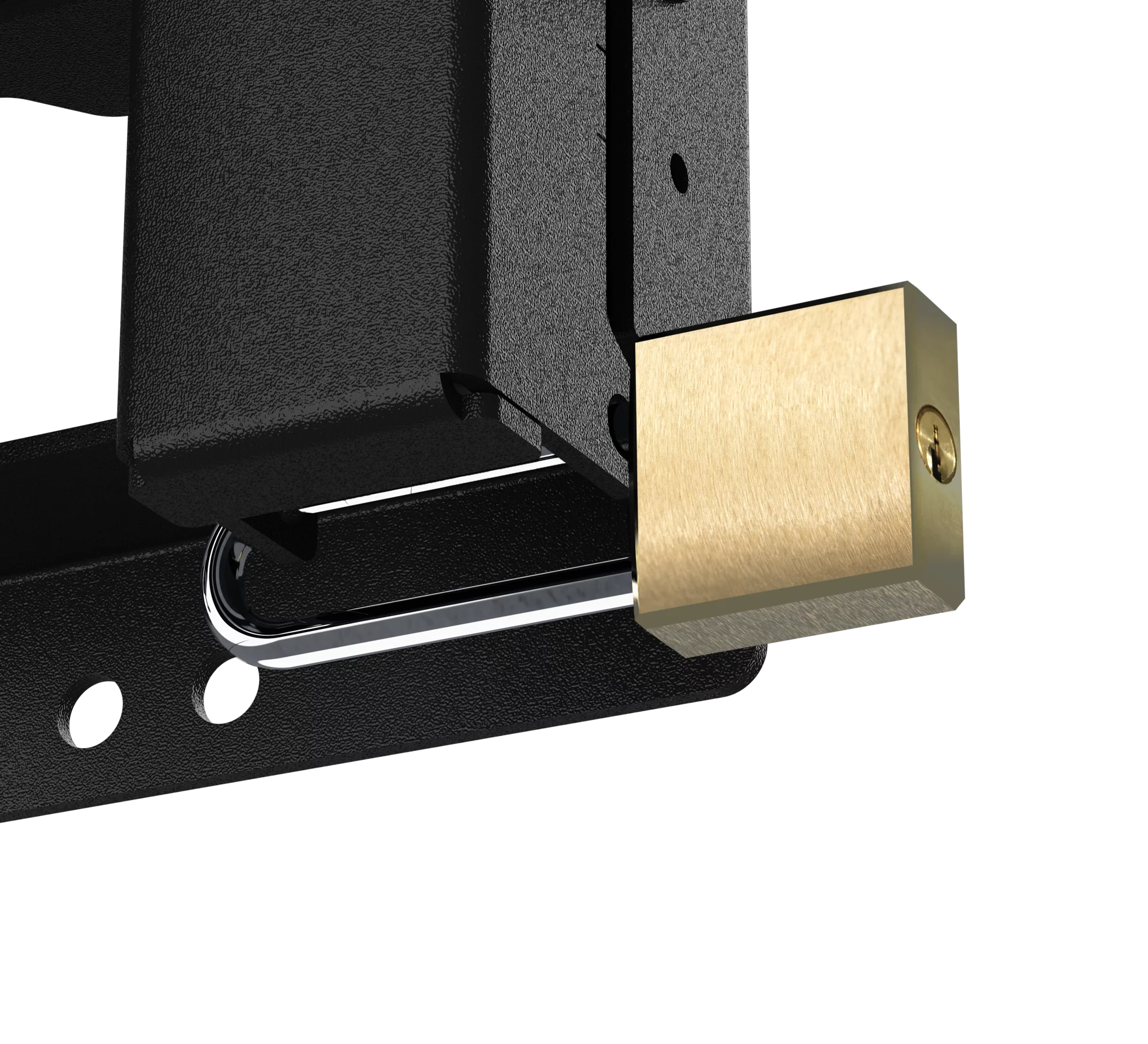

  • Lockable in the closed position and compatible with a padlock for added security (padlock not included)

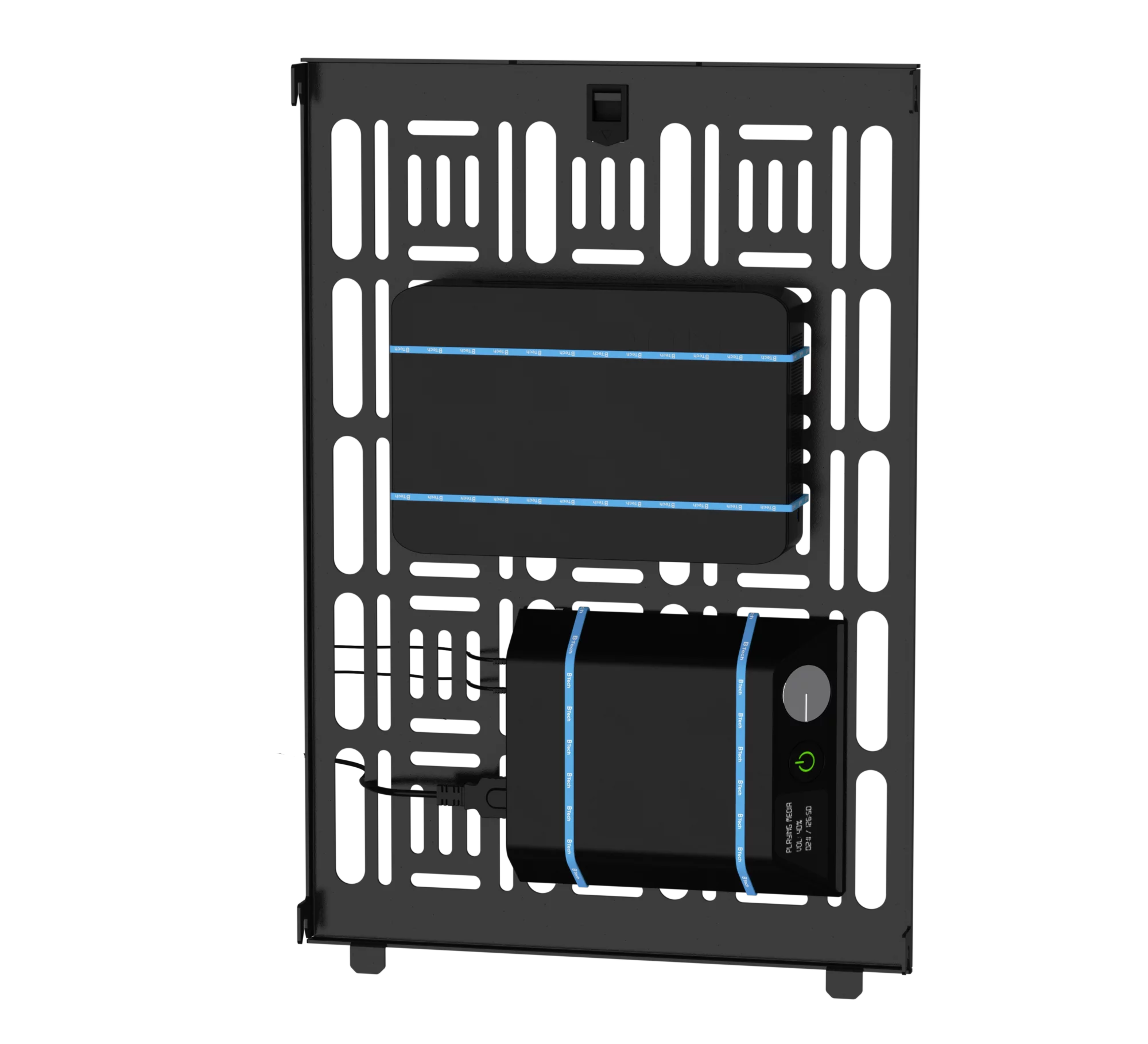

  • Quick release AV storage tray (when mounted inside the wall plate)
  • Additional Storage Tray (BT7896-Tray) available separately

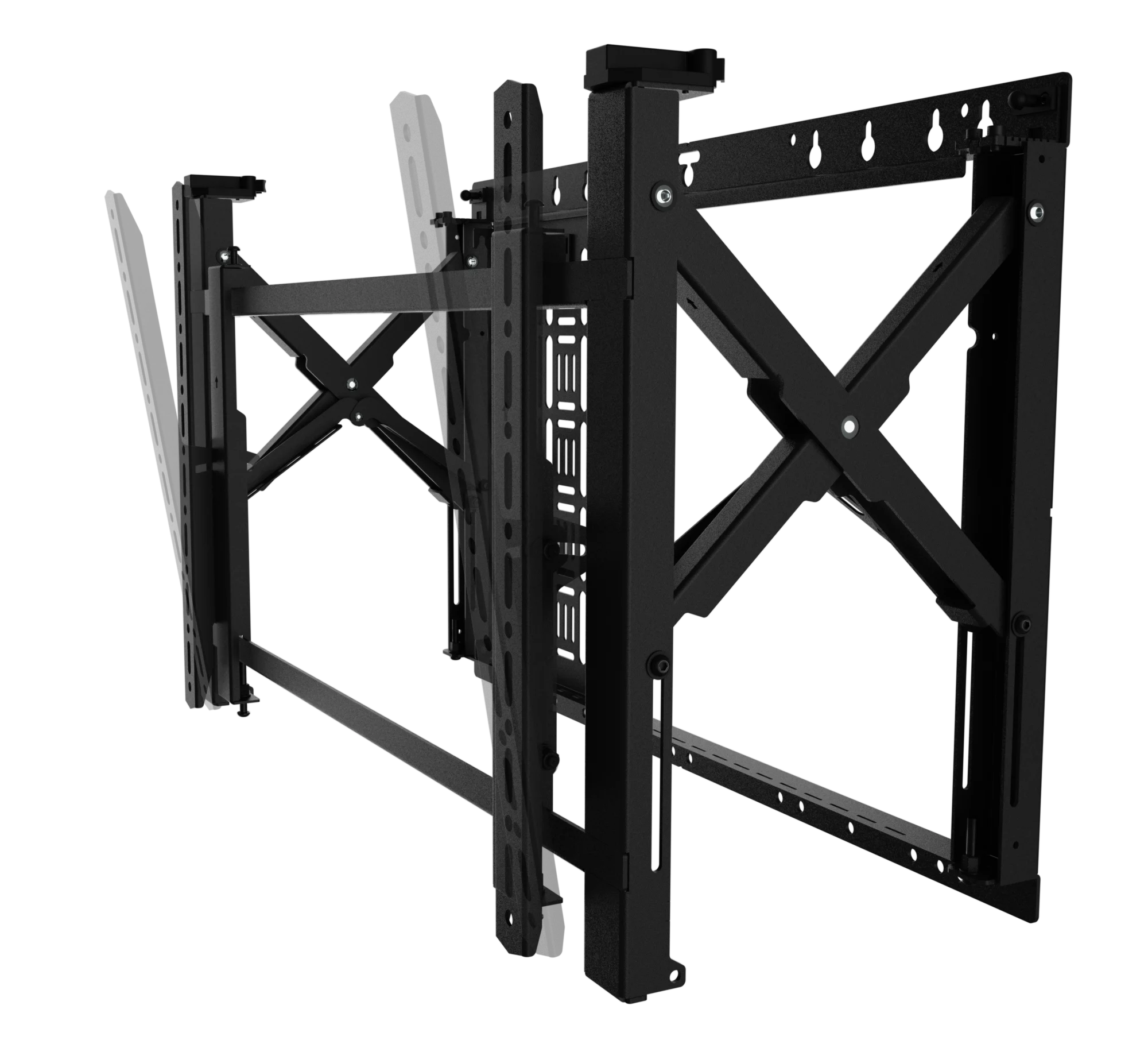

  • Adjustable depth, tilt, and swivel for precise screen positioning
  • Keyhole wall mounting for fast, hook-on installation

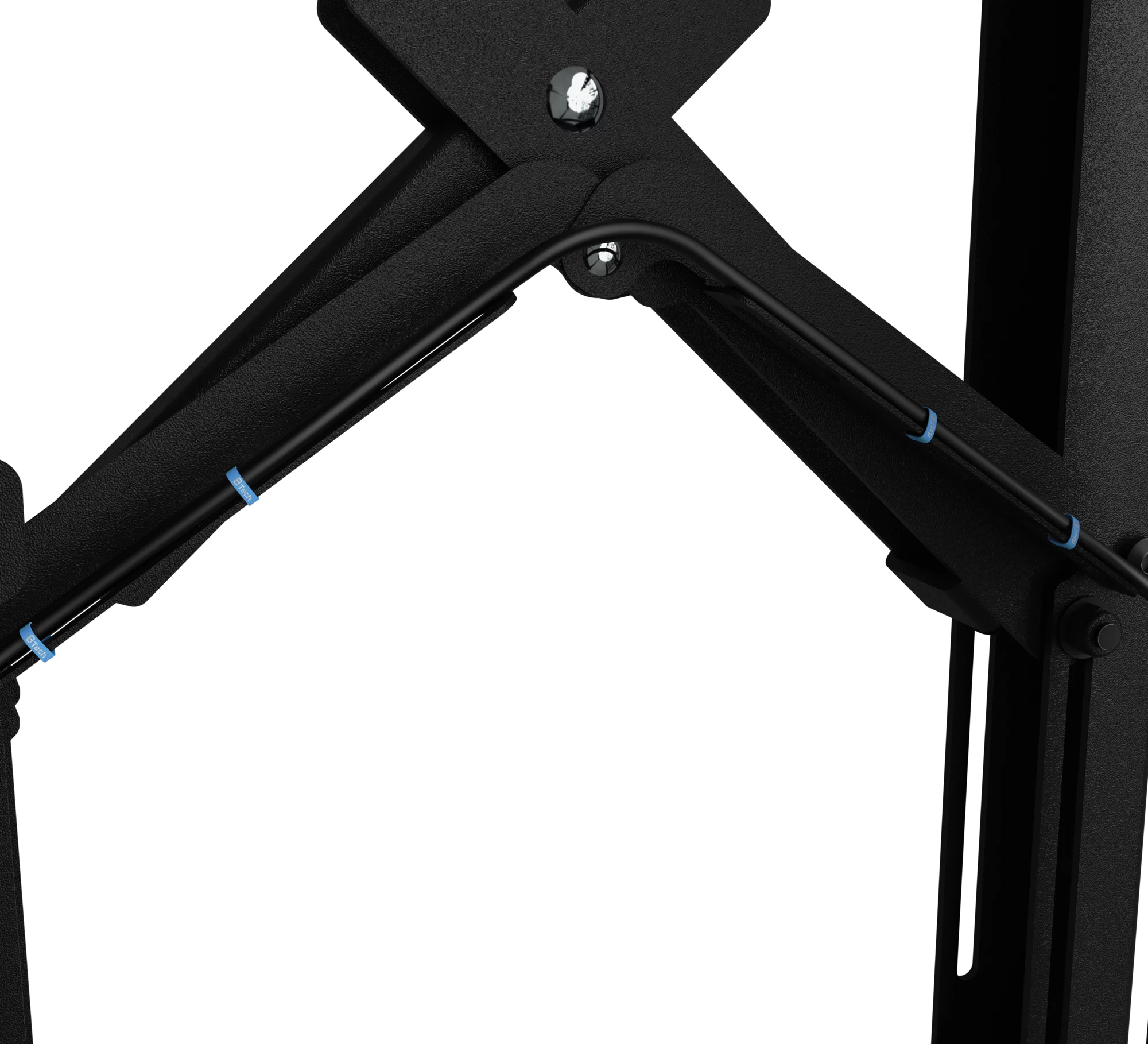

  • Includes cable straps and routing for tidy cable management
  • Drilling template included

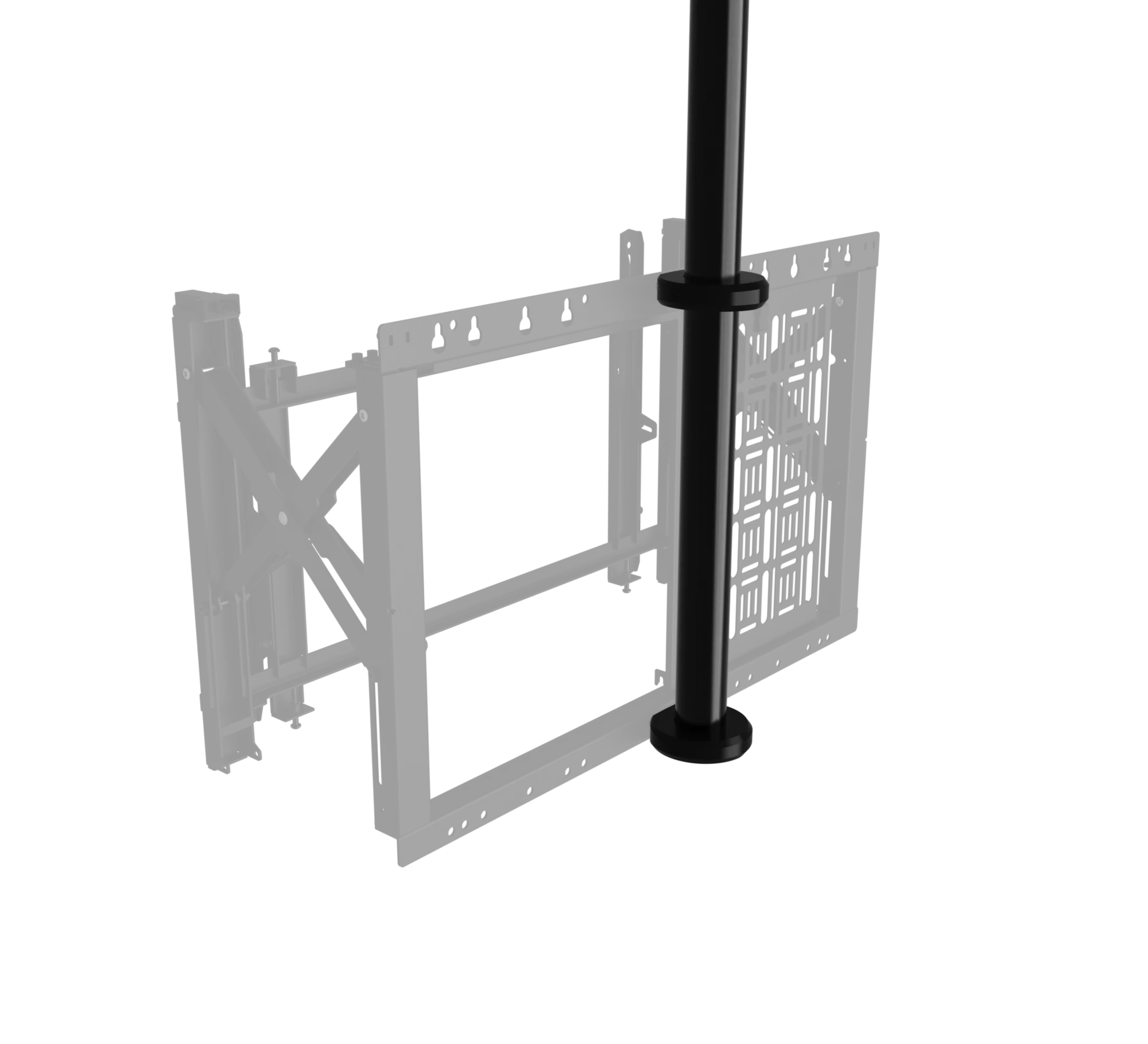

  • Use with an BT7031 Accessory Mounting Arm to add a Component Shelf or Video Bar to the installation
  • 100% plastic-free packaging
  • Pull-out function ideal for recess mounting
  • Push-to-release arms provide simple service access without screen removal
  • Lockable depth adjustment ensures a precise fit in recesses of different sizes
  • Integrated AV tray can be repositioned to the side to of the mount to avoid obstructions
  • Lockable in the closed position and compatible with a padlock for added security (padlock not included)
  • Quick release AV storage tray (when mounted inside the wall plate)
  • Additional Storage Tray (BT7896-Tray) available separately
  • Adjustable depth, tilt, and swivel for precise screen positioning
  • Keyhole wall mounting for fast, hook-on installation
  • Includes cable straps and routing for tidy cable management
  • Drilling template included
  • Use with an BT7031 Accessory Mounting Arm to add a Component Shelf or Video Bar to the installation
  • 100% plastic-free packaging
  • Pull-out function ideal for recess mounting

Product Specifications

  • Recommended display size: 42" up to 75"
  • Max screen load: 70kg
  • VESA fixings: up to 650 x 400mm

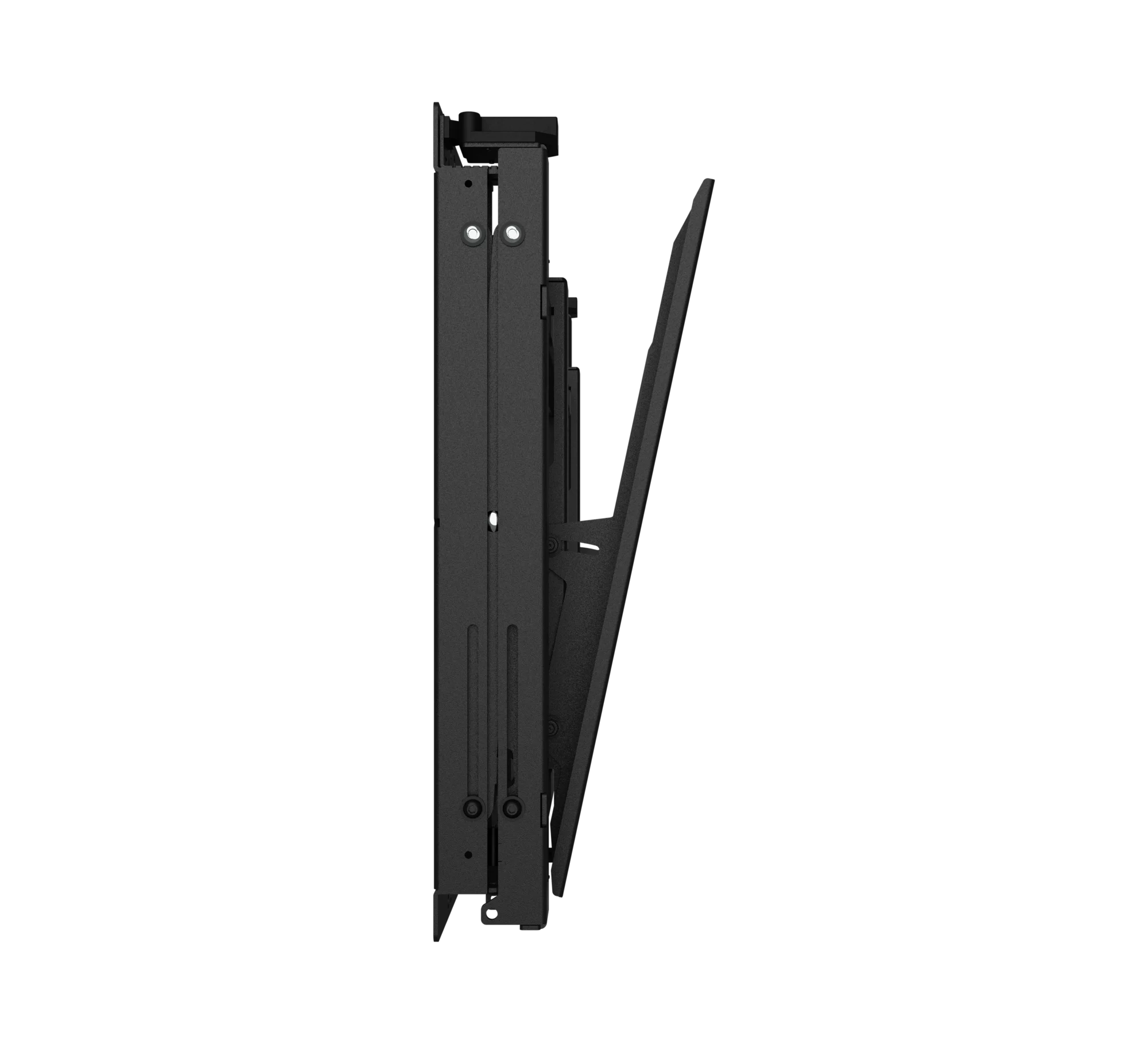

  • Tilt: 2° upward / 12° downward
  • Depth adjustment: +73.5mm
  • Distance from wall closed flat: min: 91mm - max: 164mm
  • Distance from wall closed with full-tilt: min: 161mm - max: 234mm
  • Distance from wall popped out: 301mm (flat) - 371mm (with full-tilt)
  • Max tray load when fitted into the mount: 5kg
  • Max tray load when wall mounted to the side of mount: 10kg
  • Max equipment dimensions (mounted inside): H: 392mm x W: 271mm x D: 31mm - 104.5mm
  • Max equipment dimensions (wall mounted on the side): H: 392mm x W: 271mm x D: 82mm - 155.5mm
  • Colour: Black
  • Storage tray dimensions: H: 407mm W: 274mm
  • Recommended display size: 42" up to 75"
  • Max screen load: 70kg
  • VESA fixings: up to 650 x 400mm
  • Tilt: 2° upward / 12° downward
  • Depth adjustment: +73.5mm
  • Distance from wall closed flat: min: 91mm - max: 164mm
  • Distance from wall closed with full-tilt: min: 161mm - max: 234mm
  • Distance from wall popped out: 301mm (flat) - 371mm (with full-tilt)
  • Max tray load when fitted into the mount: 5kg
  • Max tray load when wall mounted to the side of mount: 10kg
  • Max equipment dimensions (mounted inside): H: 392mm x W: 271mm x D: 31mm - 104.5mm
  • Max equipment dimensions (wall mounted on the side): H: 392mm x W: 271mm x D: 82mm - 155.5mm
  • Colour: Black
  • Storage tray dimensions: H: 407mm W: 274mm

Ordering & Box Information

Order Code: BT7896/B

Barcode: 5019318309731

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 13.10kg

Order Code: BT7896/B

Barcode: 5019318309731

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 13.10kg
