BT7885

Flat Screen Wall Mount with Pull-Down AV Storage Tray

Integrated easy access to AV Equipment

BT7885/B

Flat Screen Wall Mount with Pull-Down AV Storage Tray

Integrated easy access to AV Equipment

Enquire Today View Downloads

Overview

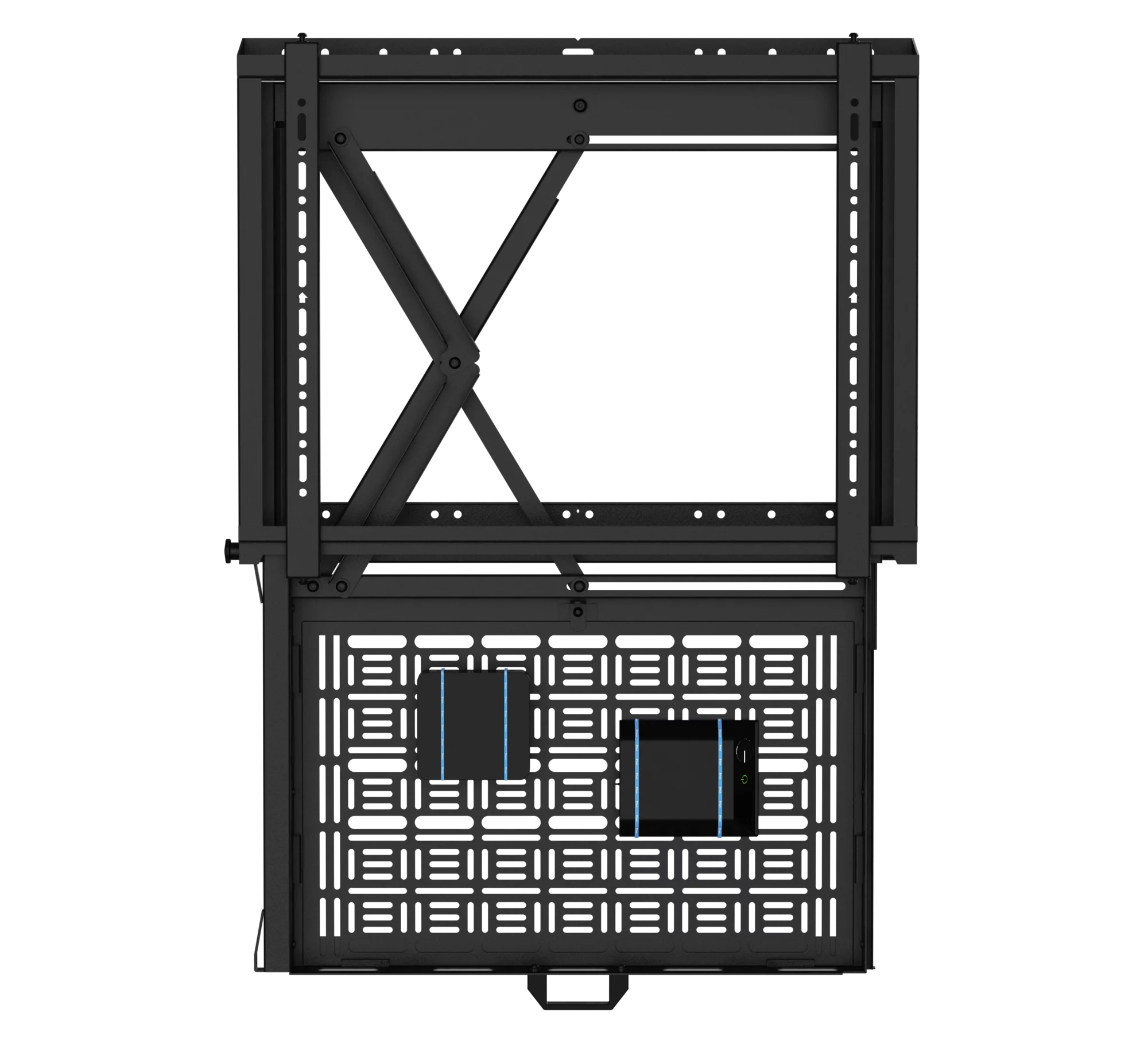

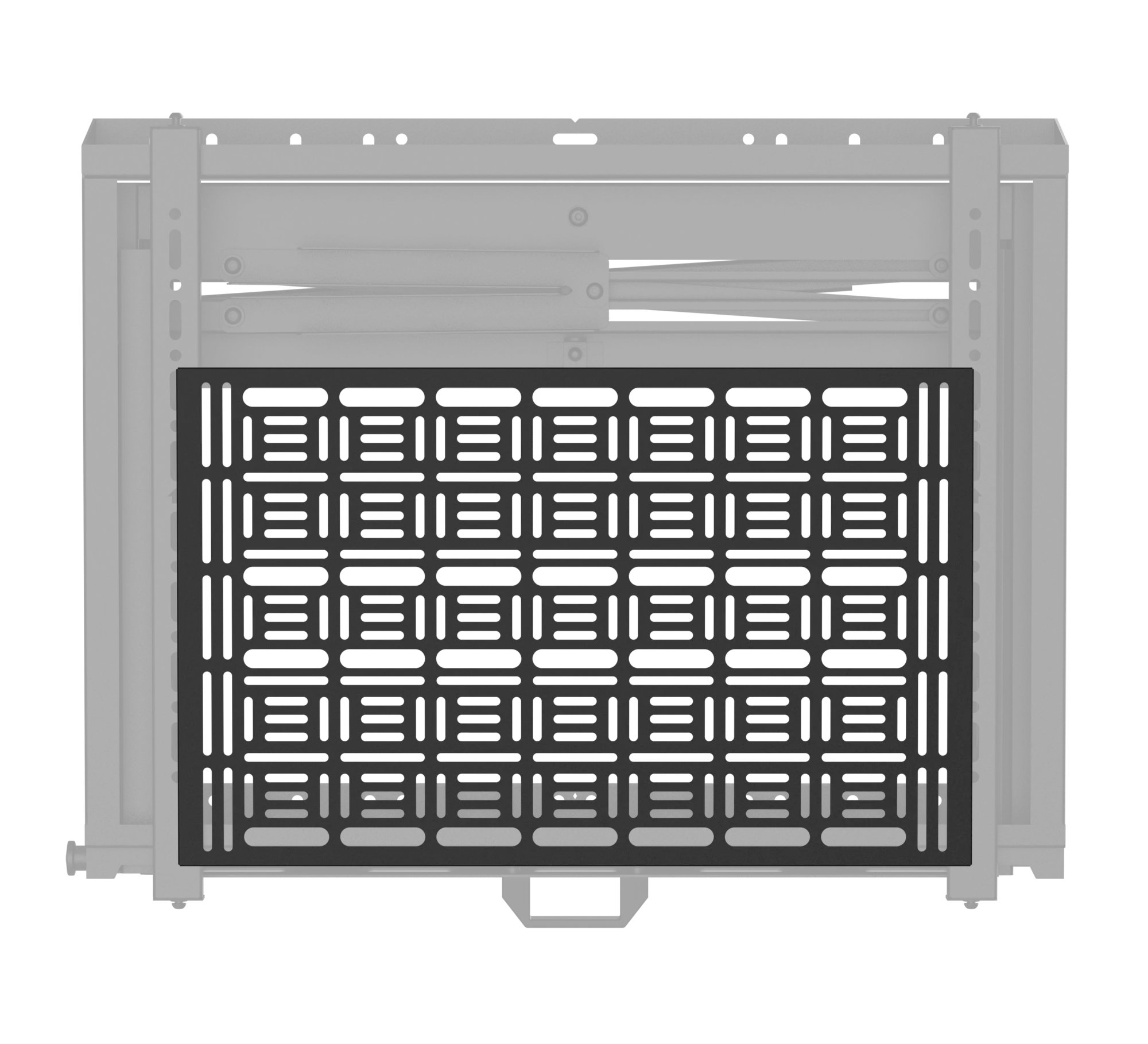

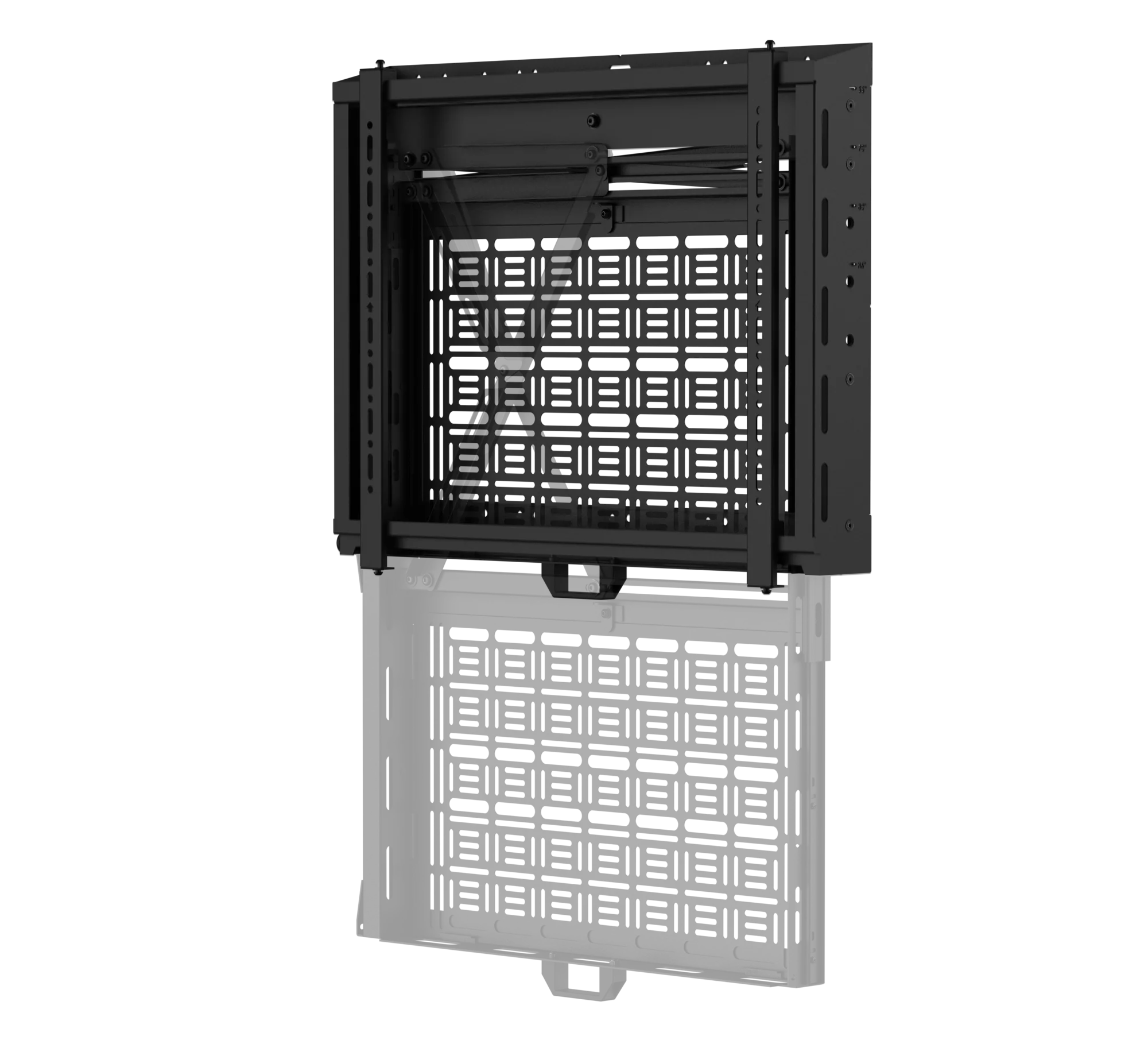

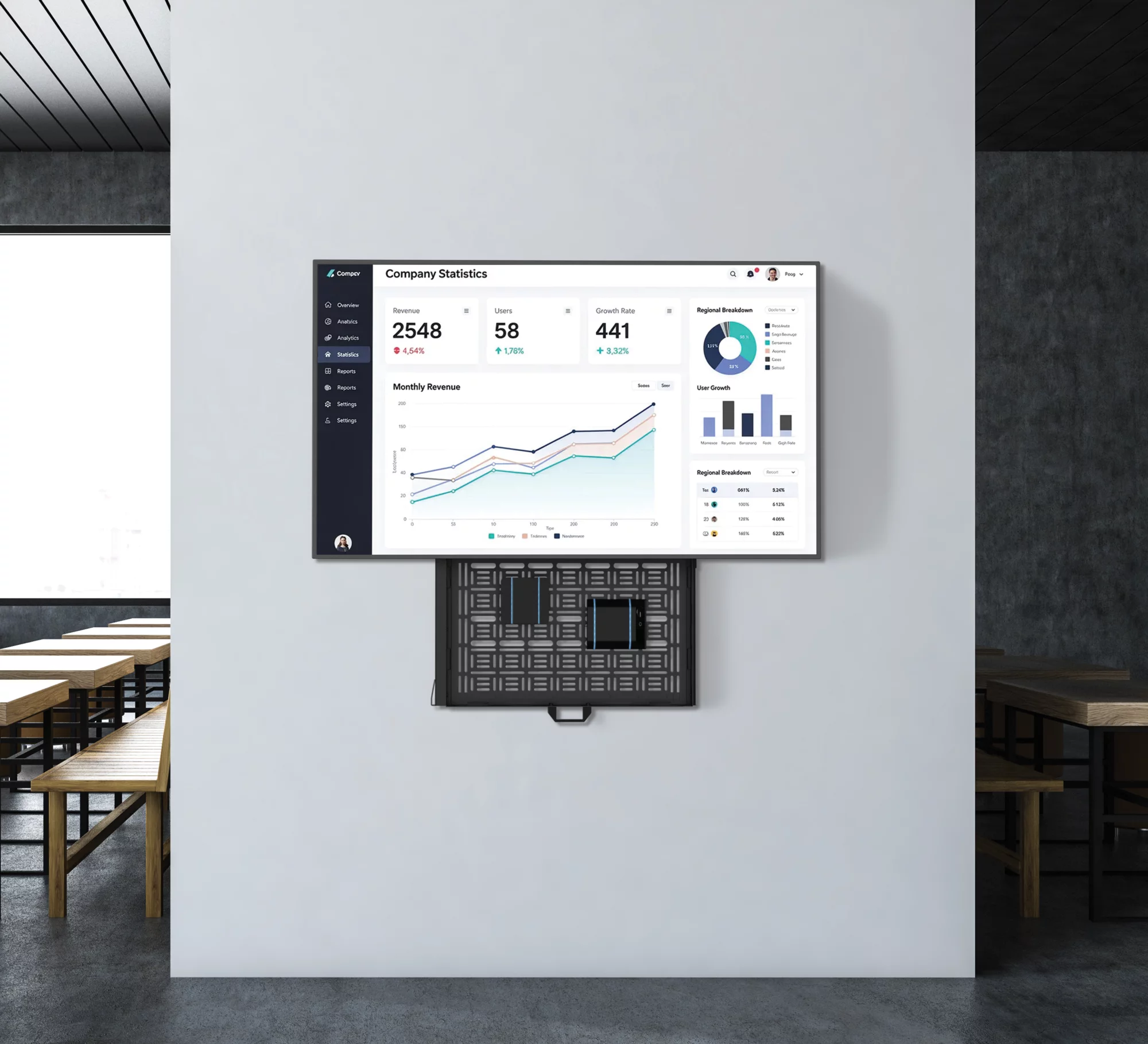

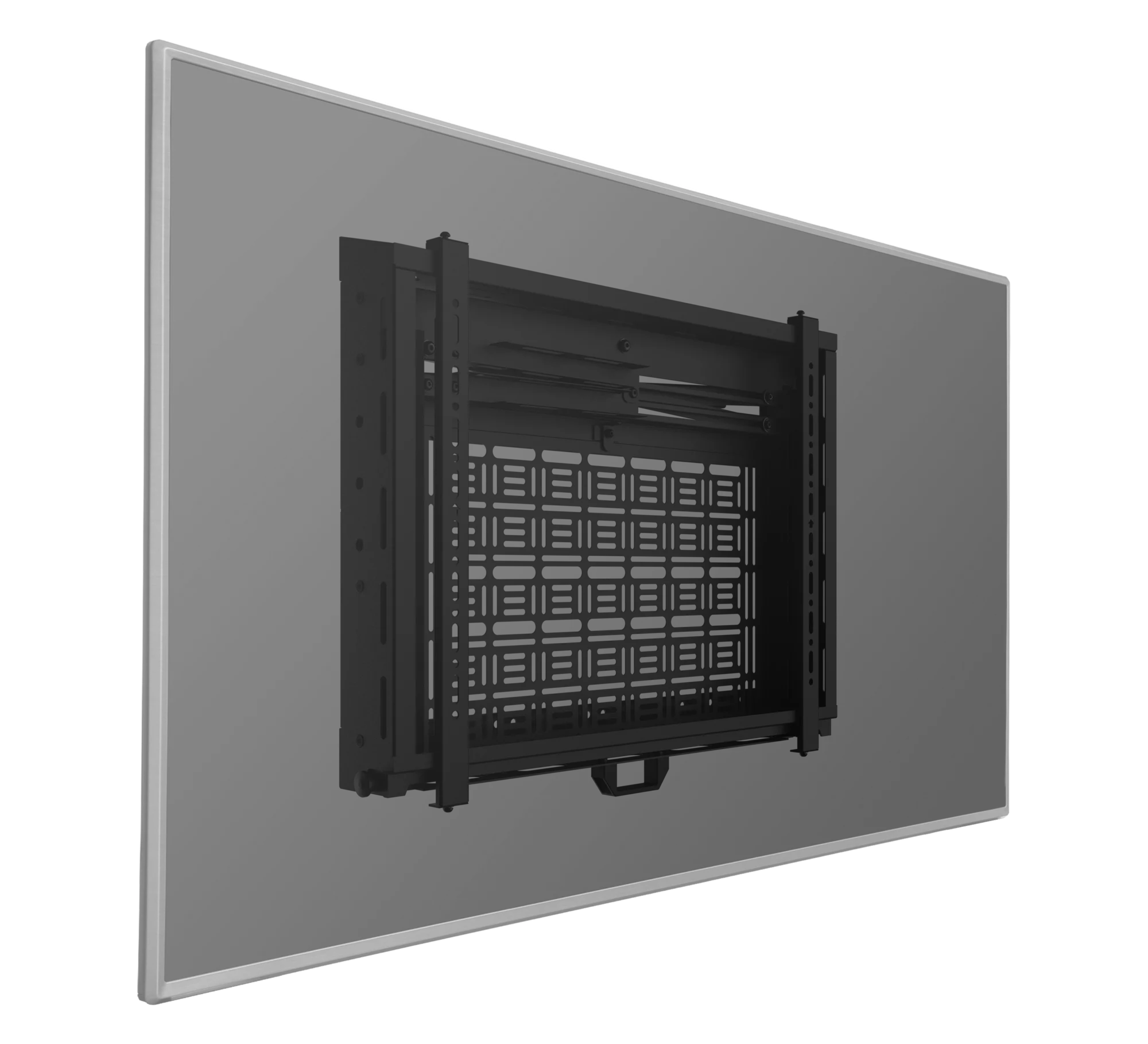

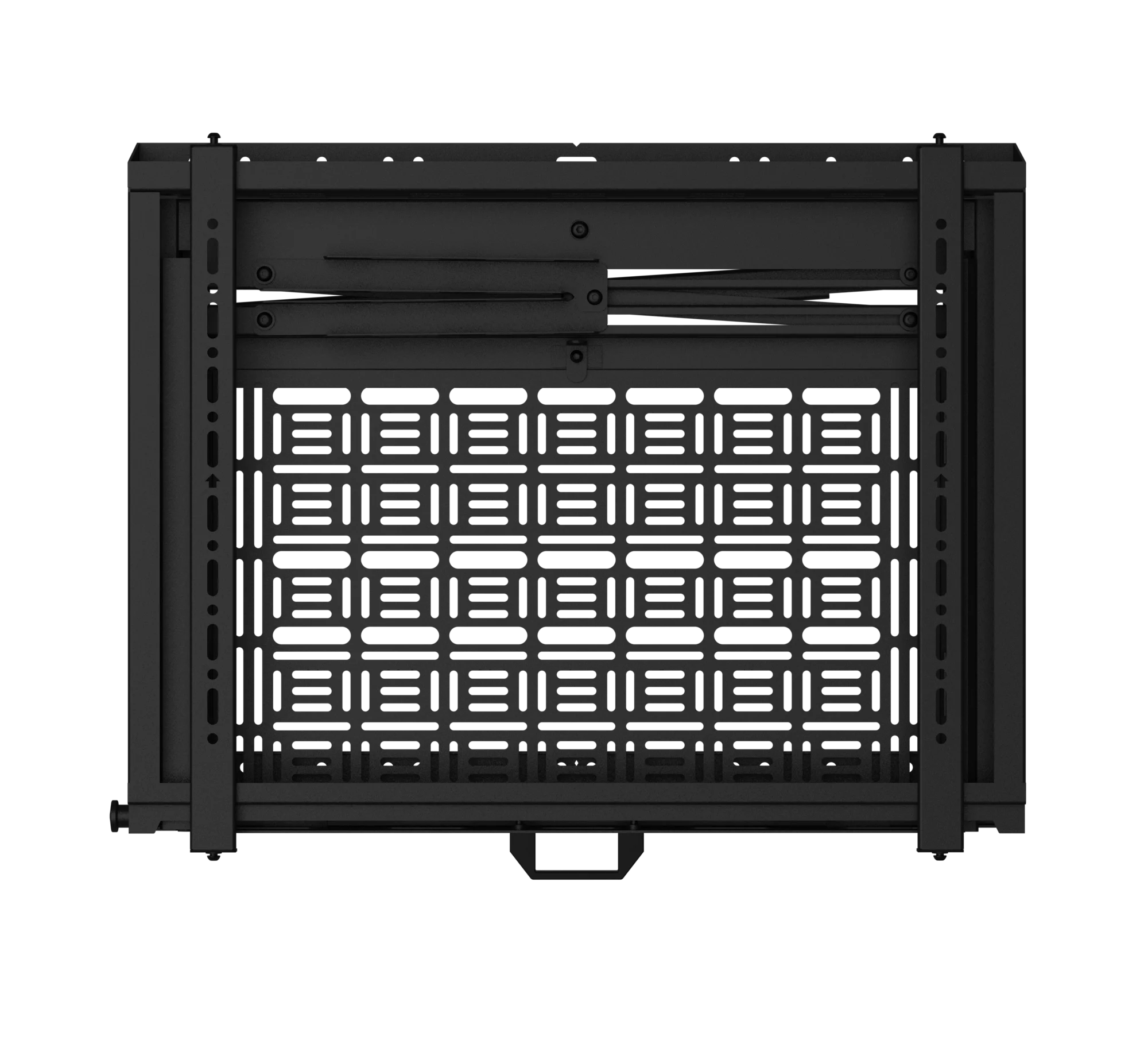

The BT7885 is a screen mounting solution with an integrated pull-down tray for storing AV equipment behind the screen. Featuring a quick release equipment interface plate which can be separated from the mount, AV equipment can be easily added or removed from the install without needing to remove the screen first. The tray mechanism is tool-less for ease and speed of use, with the option to add a padlock (not included) to help prevent unauthorised access to the equipment. To ensure cables do not get tangled or pinched when the tray is opened and closed, an integrated cable management track moves in unison with the tray. The BT7885 is suitable for wall mounting as well as to B-Tech's System 2 poles and System X/Mode-AL columns.
The BT7885 is a screen mounting solution with an integrated pull-down tray for storing AV equipment behind the screen. Featuring a quick release equipment interface plate which can be separated from the mount, AV equipment can be easily added or removed from the install without needing to remove the screen first. The tray mechanism is tool-less for ease and speed of use, with the option to add a padlock (not included) to help prevent unauthorised access to the equipment. To ensure cables do not get tangled or pinched when the tray is opened and closed, an integrated cable management track moves in unison with the tray. The BT7885 is suitable for wall mounting as well as to B-Tech's System 2 poles and System X/Mode-AL columns.

Product Features

  • Flat screen mount designed to hold & hide AV accessories behind the screen

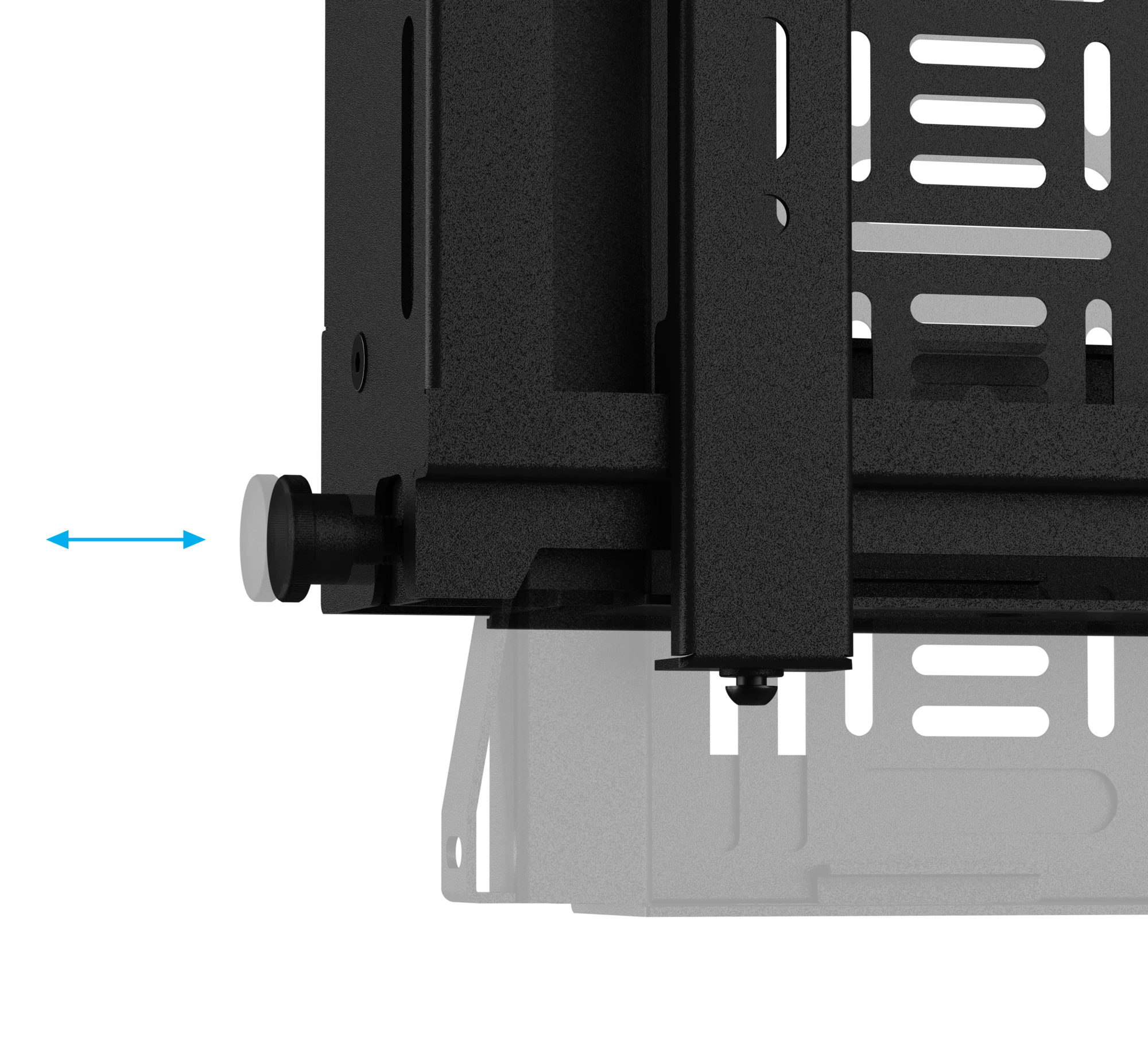

  • Tool-less, operation & assisted release of the AV storage tray
  • Accessories can be accessed without screen removal

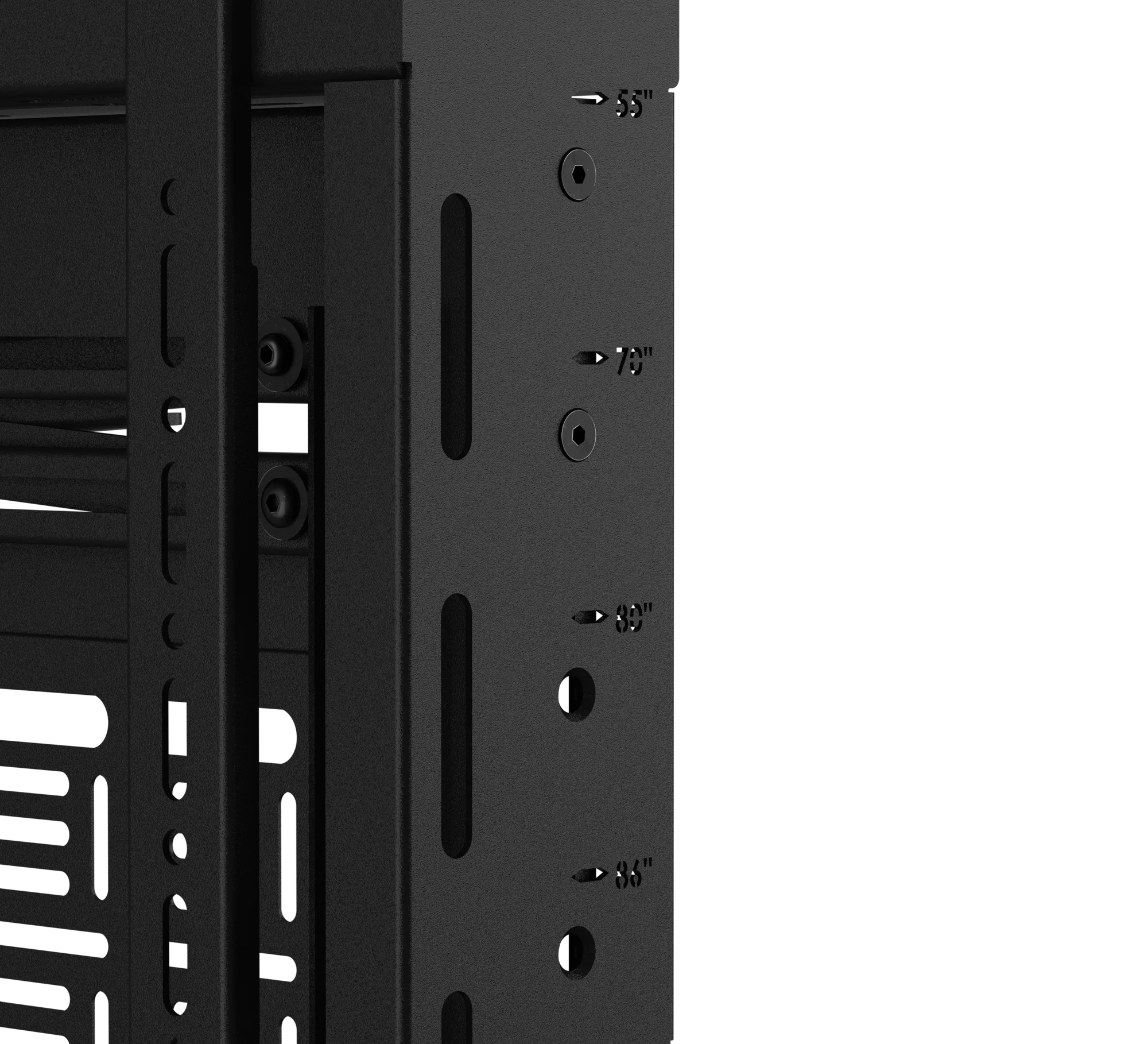

  • Interface arms include levelling screws to adjust the screen height

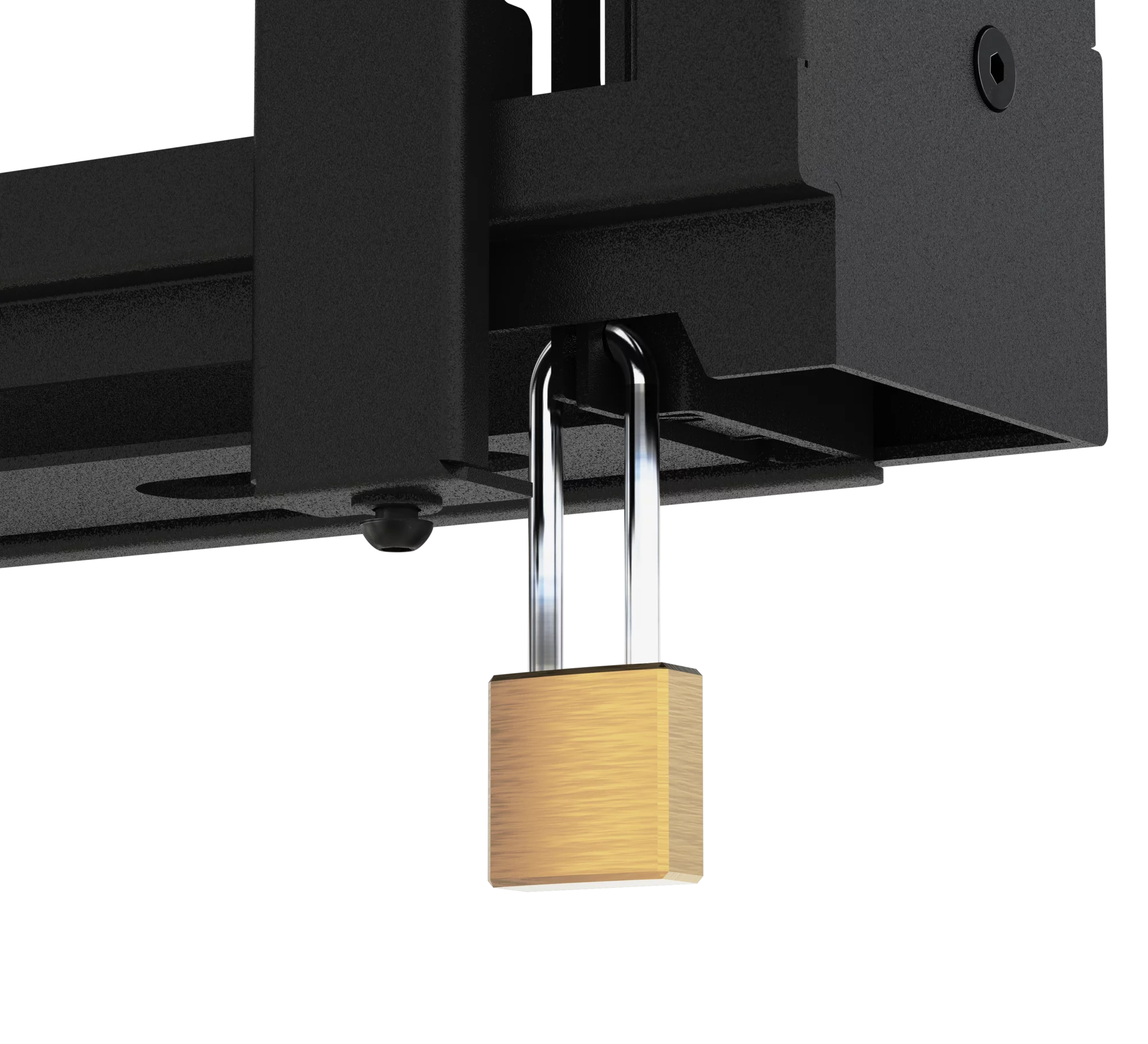

  • Locks in closed & open positions & can be secured with a padlock (not included)
  • Keyhole wall mounting for easy installation

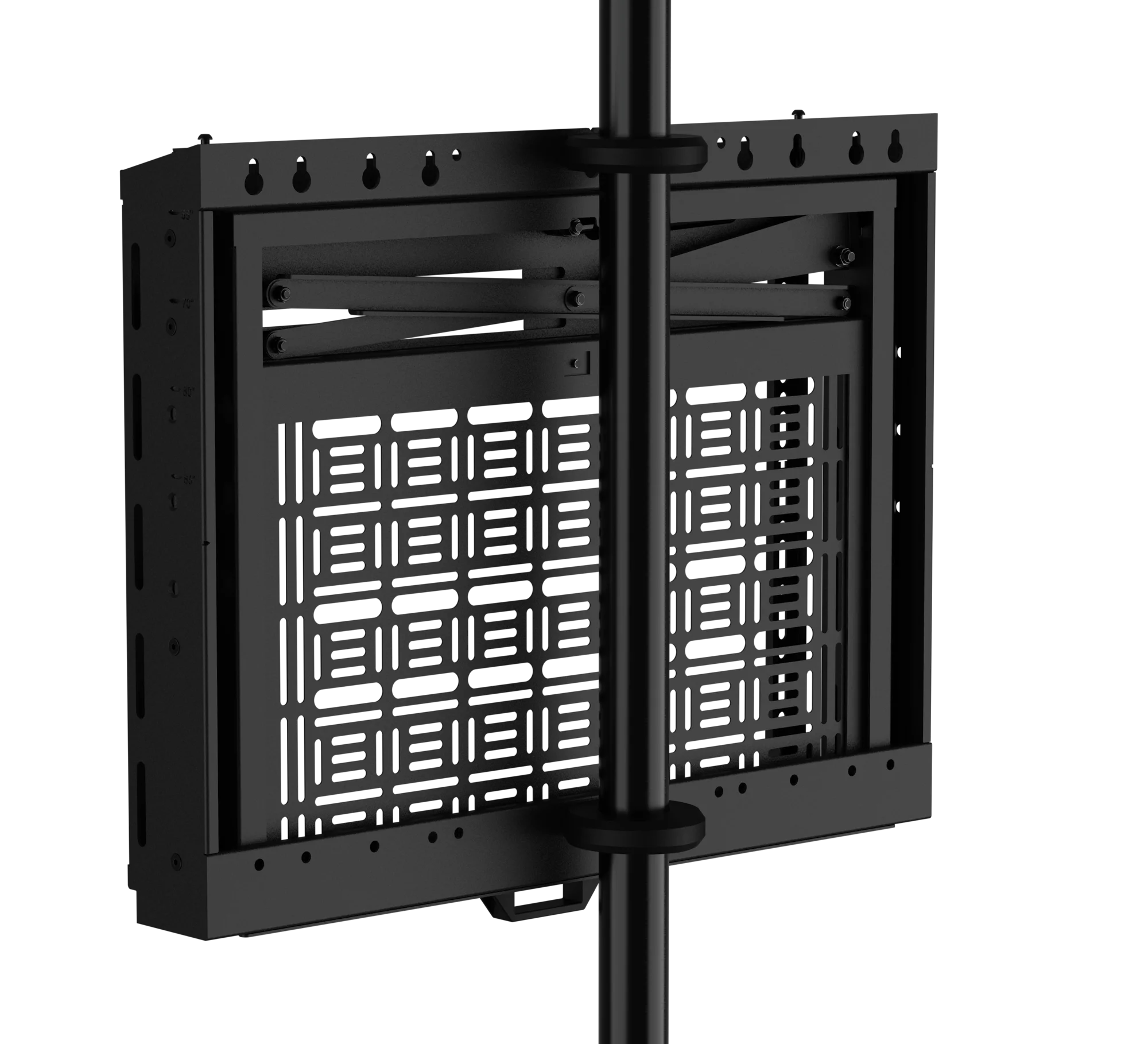

  • Compatible with B-Tech's System X, Mode-AL columns & B-Tech collars for pole mounted installations

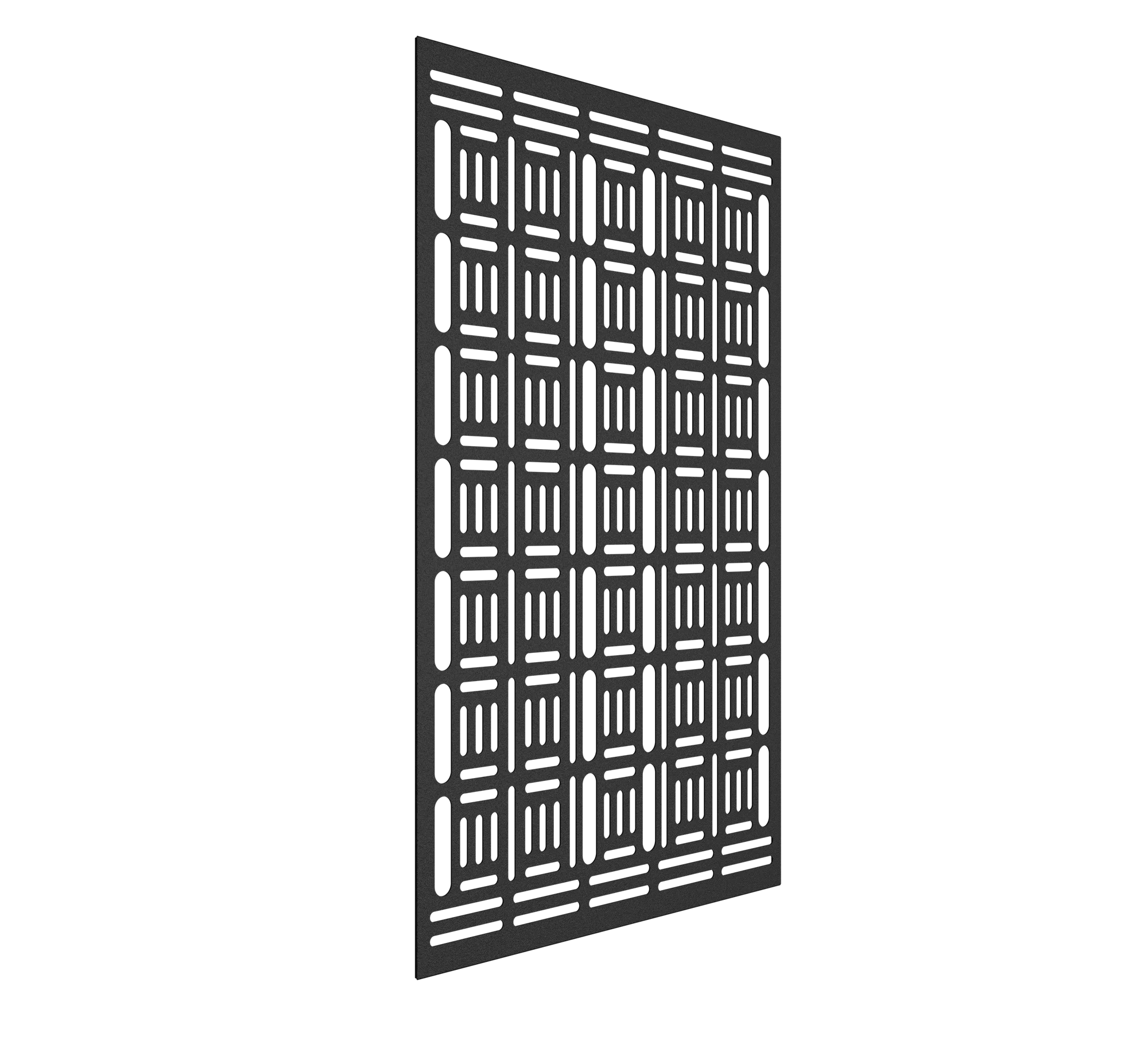

  • Additional trays available for purchase to allow for fast change over of AV equipment
  • All mounting hardware included
  • Flat screen mount designed to hold & hide AV accessories behind the screen
  • Tool-less, operation & assisted release of the AV storage tray
  • Accessories can be accessed without screen removal
  • Interface arms include levelling screws to adjust the screen height
  • Locks in closed & open positions & can be secured with a padlock (not included)
  • Keyhole wall mounting for easy installation
  • Compatible with B-Tech's System X, Mode-AL columns & B-Tech collars for pole mounted installations
  • Additional trays available for purchase to allow for fast change over of AV equipment
  • All mounting hardware included

Product Specifications

  • Recommended display size: 49" up to 86"
  • Max screen load: 70kg
  • VESA fixings: 100mm x 100mm up to 600mm x 400mm
  • Distance from wall: 100mm
  • Storage area max weight: 8kg
  • Storage area width: 575mm
  • Storage area depth: 60mm
  • Storage area height: 361mm
  • Max tray extension (from wall mount): 1192mm
  • Colour: Black
  • Recommended display size: 49" up to 86"
  • Max screen load: 70kg
  • VESA fixings: 100mm x 100mm up to 600mm x 400mm
  • Distance from wall: 100mm
  • Storage area max weight: 8kg
  • Storage area width: 575mm
  • Storage area depth: 60mm
  • Storage area height: 361mm
  • Max tray extension (from wall mount): 1192mm
  • Colour: Black

Ordering & Box Information

Order Code: BT7885/B

Barcode: 5019318305108

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 21kg

Order Code: BT7885/B

Barcode: 5019318305108

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 21kg

Downloads

BT7885 - Product Specification Sheet - English

pdf 1.79 MB

BT7885 - Product Specification Sheet - French

pdf 1.79 MB

BT7885 - Product Specification Sheet - Spanish

pdf 3.34 MB

BT7885 - Product Specification Sheet - Dutch

pdf 3.34 MB

BT7885 - Product Specification Sheet - US

pdf 3.33 MB

BT7885 - Installation Guide

pdf 10.08 MB

BT7885 - Technical Drawings - (DXF)

dxf 61.38 MB

BT7885 - Technical Drawings - (PDF)

pdf 613.83 KB

BT7885-B-1

png 158.48 KB

BT7885-B-1-Screen

png 96.98 KB

BT7885-B-2

png 120.53 KB

BT7885-B-3

png 24.92 KB

BT7885-B-17

png 13.96 KB

BT7885-B-8

png 177.37 KB

BT7885-B-13

png 116.35 KB

BT7885-B-9

png 175.29 KB

BT7885-B-12

png 173.68 KB

BT7885-B-11

png 394.35 KB

BT7885-B-10

png 477.98 KB

BT7885-B-14

png 254.59 KB

BT7885-B-6

png 165.19 KB

BT7885 - Green Sheet

pdf 423.47 KB
