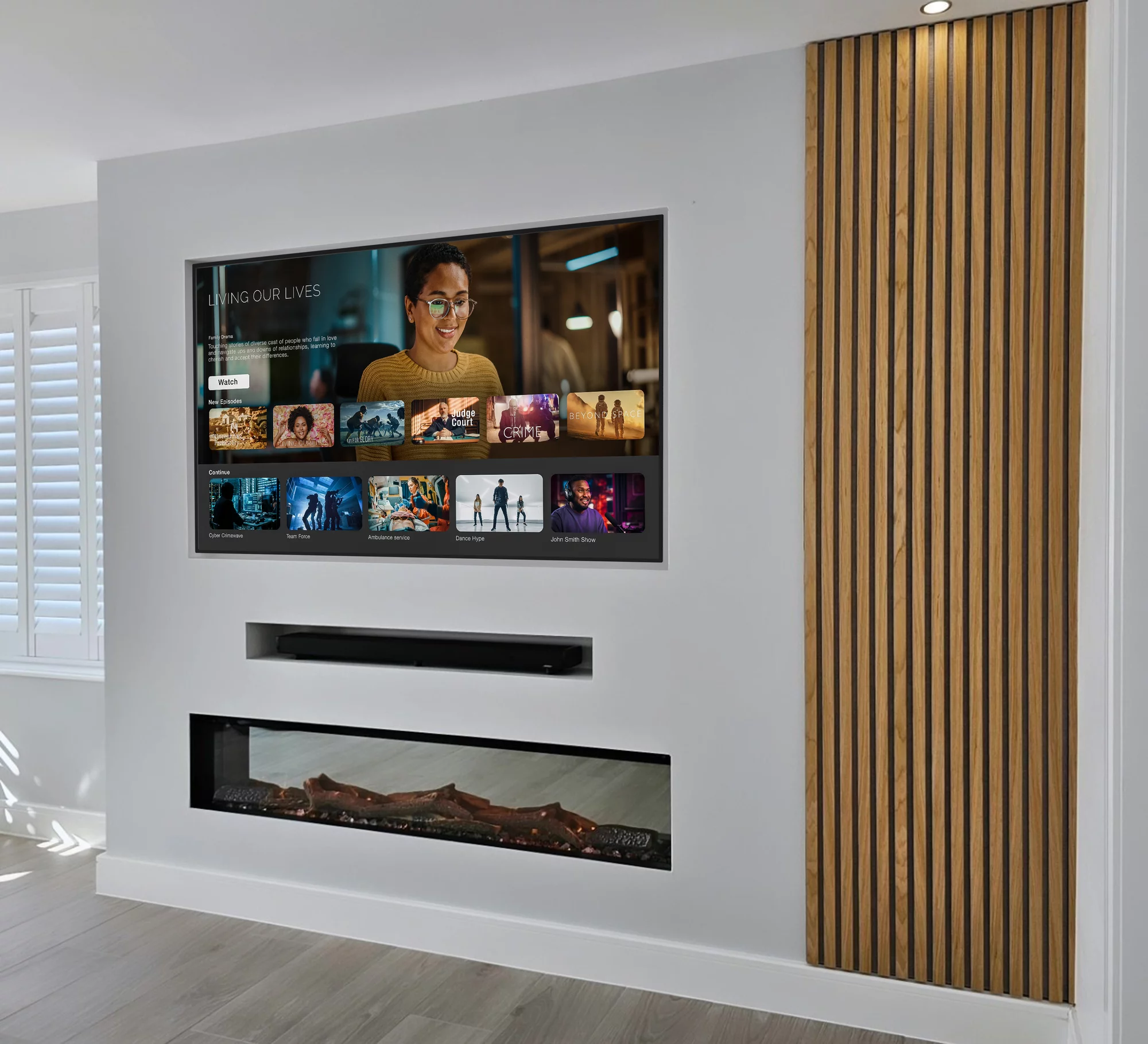

• Perfect solution for mounting screens into recessed walls
• Suitable for creating videowall installations

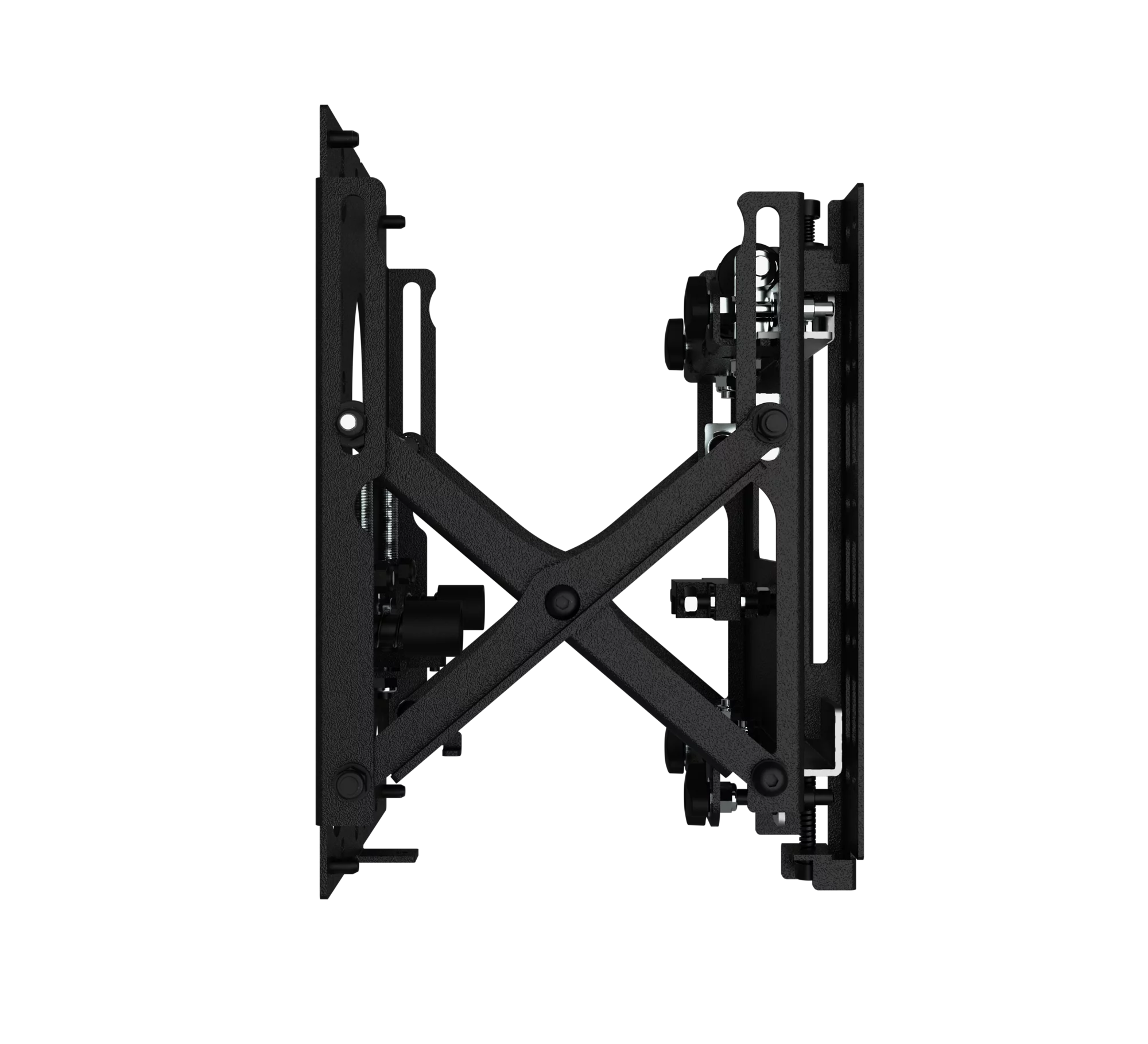

• Push-to-open / push-to-close system for quick and easy service access

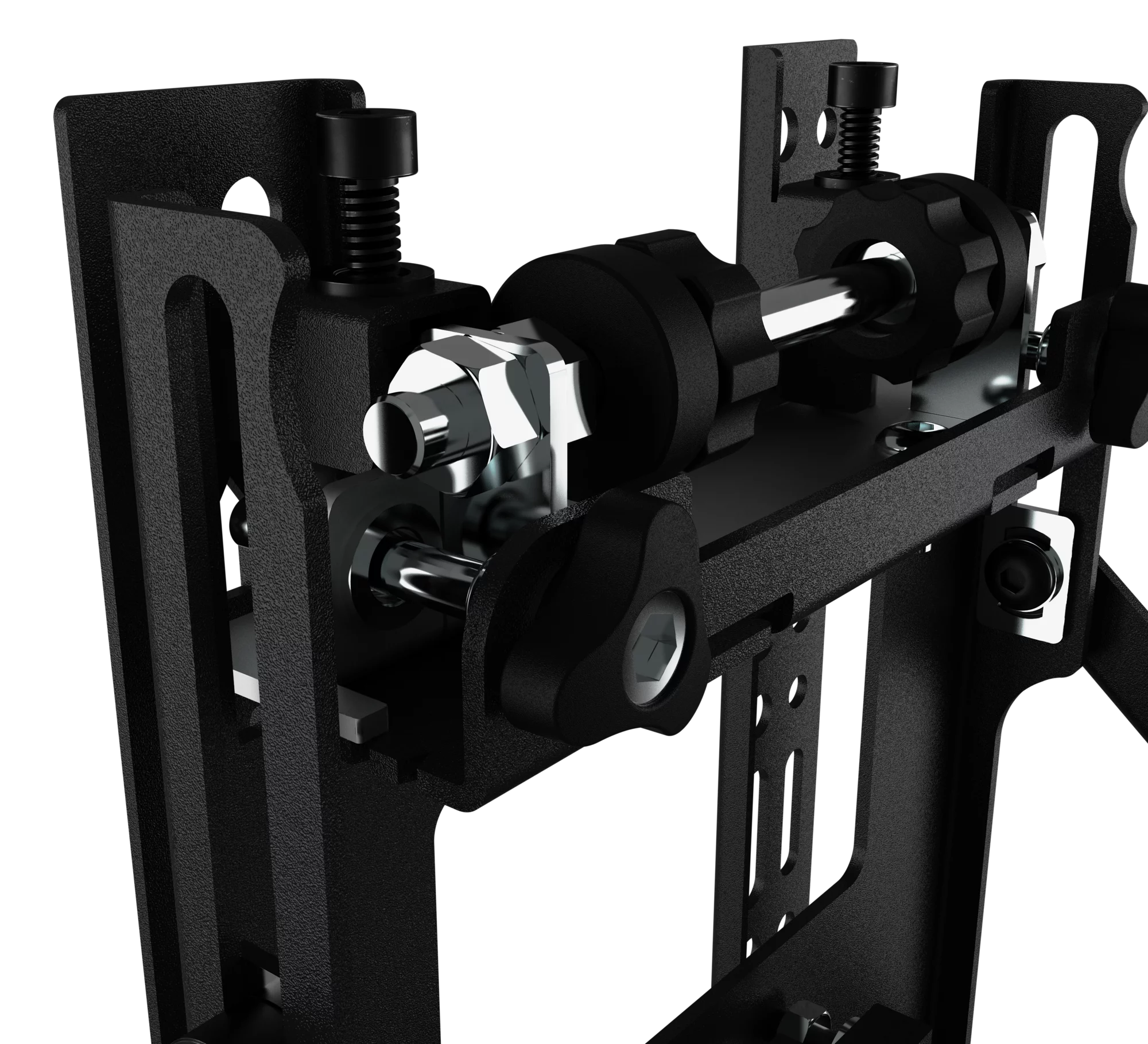

• Tool-less micro-adjustment at each corner for precise display alignment
• Supports both landscape and portrait screen mounting
• Suitable for both wall or pole mounting

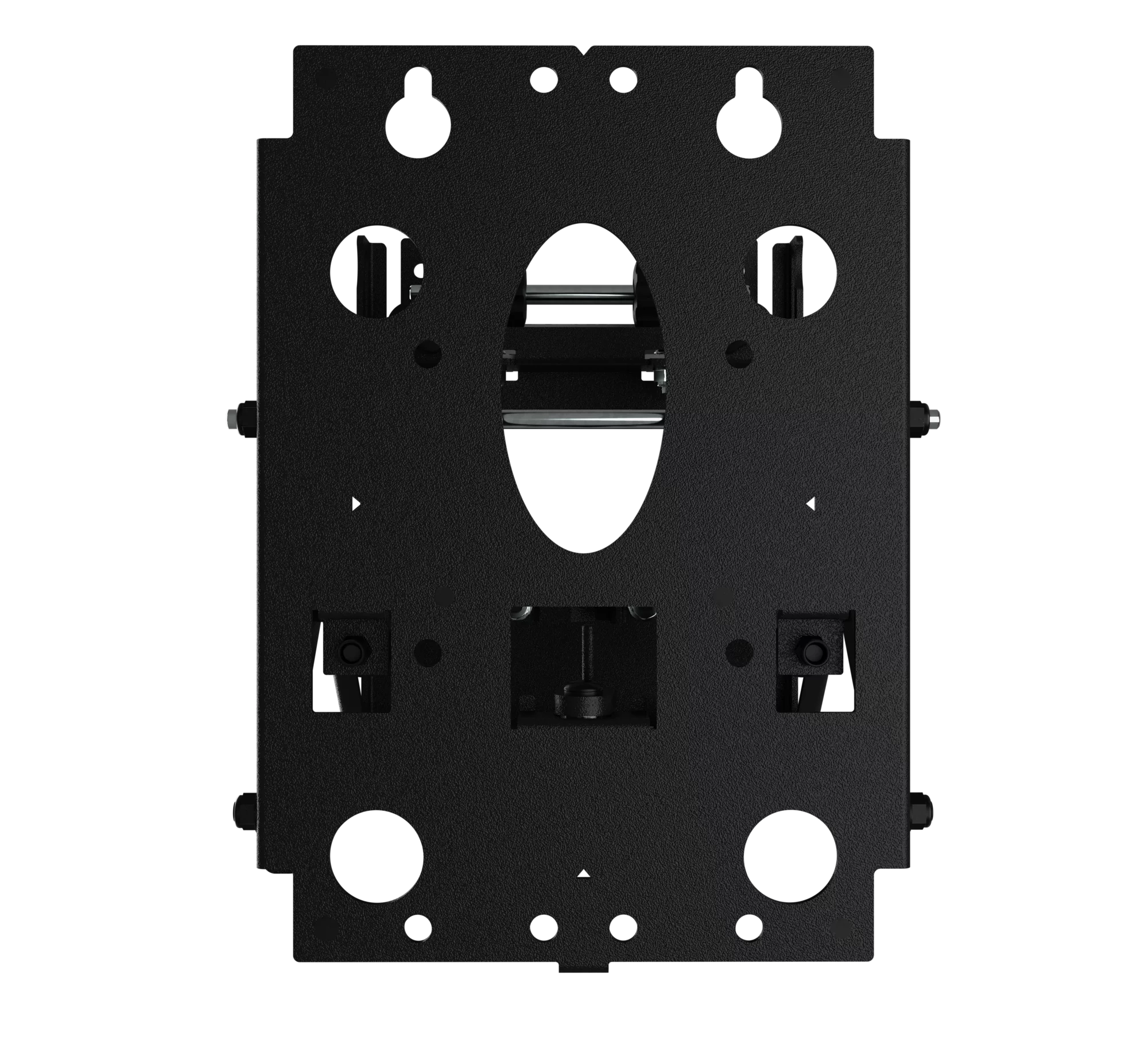

• Keyhole fixing for fast, simple installation
• Levelling screws for easy screen height adjustment
• Integrated locking mechanism prevents accidental pop-out
• Built-in cable management keeps installations tidy
• Hook-on' design with all mounting hardware included

• Recommended display size: 22" up to 42"
• Max load: 25kg
• VESA fixings: 75 x 75mm up to 200 x 200mm
• Micro-adjustment per corner: -/+4mm
• Distance from wall: 73mm
• Popped out depth: 191mm
• Screen height adjustment: 12mm
• Orientation: Landscape, Portrait
• Colour: Black
• *Please note using the included Interface Adaptor Arms to mount VESA 200mm x 200mm screens will increase the total depth of the product by 4mm , for a total depth of: 77mm , 195mm whilst popped out.

Order Code: BT8309/B V2

Barcode: 5019318301315

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 4kg
