Adjustable Ceiling Mount with Tilt for Samsung 32" E-Paper
Official Mounting Partner for Samsung E-Paper
Overview

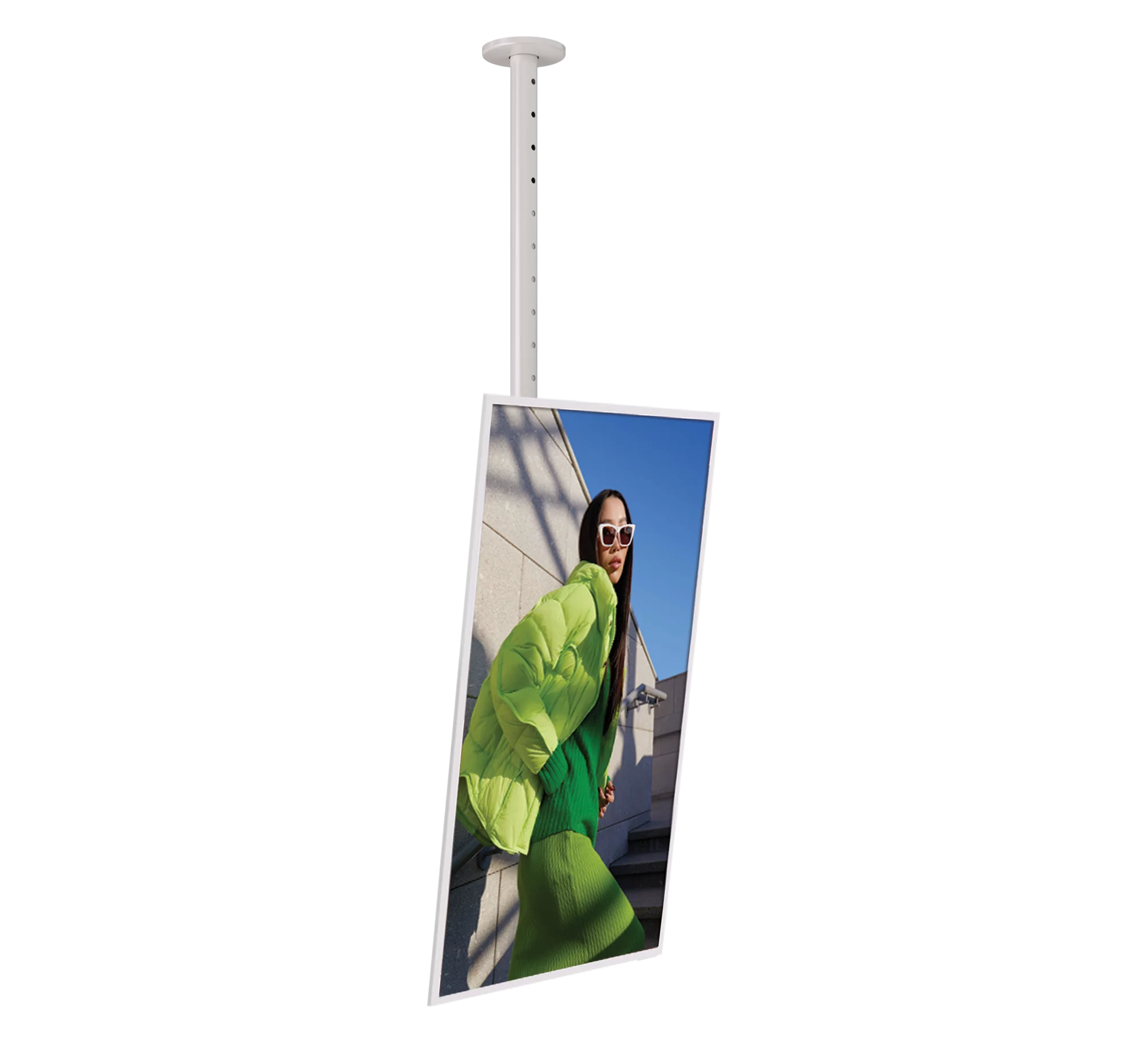

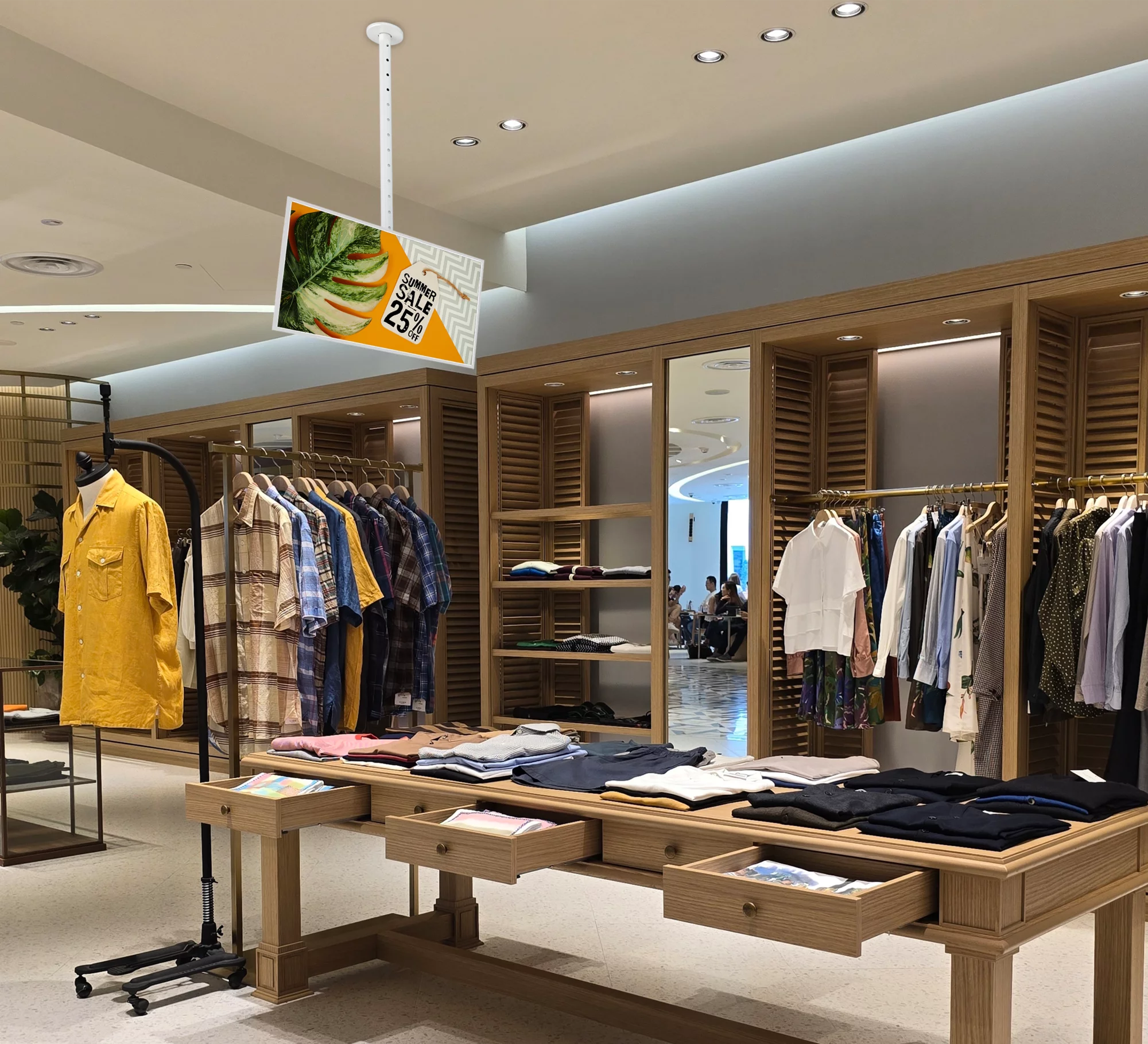

The BT7671-AD-SAM32 is a purpose-designed, adjustable drop ceiling mount for the Samsung 32" E-Paper EMDX display. Its sleek, low-profile design makes it ideal for retail environments, wayfinding applications, and other public spaces. The mount features a combined port and battery compartment cover with an integrated power bank cradle, allowing the power bank to remain neatly concealed behind the display while charging. For enhanced security, the cover can be configured to restrict access to the ports only, or to both the ports and the battery compartment, helping to prevent tampering in public areas.Quick and easy to install, the BT7671-AD-SAM32 provides a clean, secure, and professional mounting solution for Samsung E-Paper displays.
Product Features

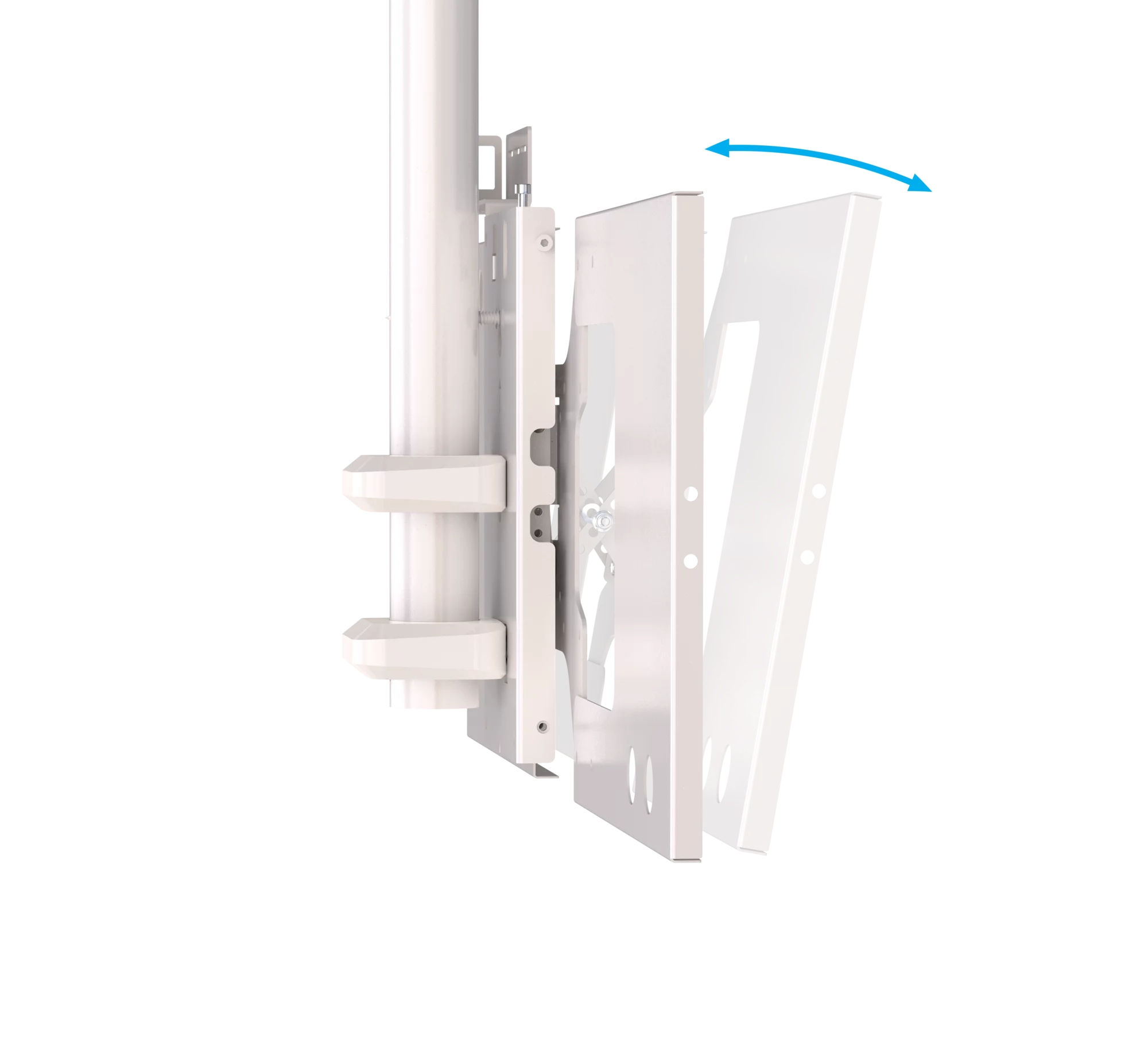

- Easy tilt adjustment with precision micro-adjustment

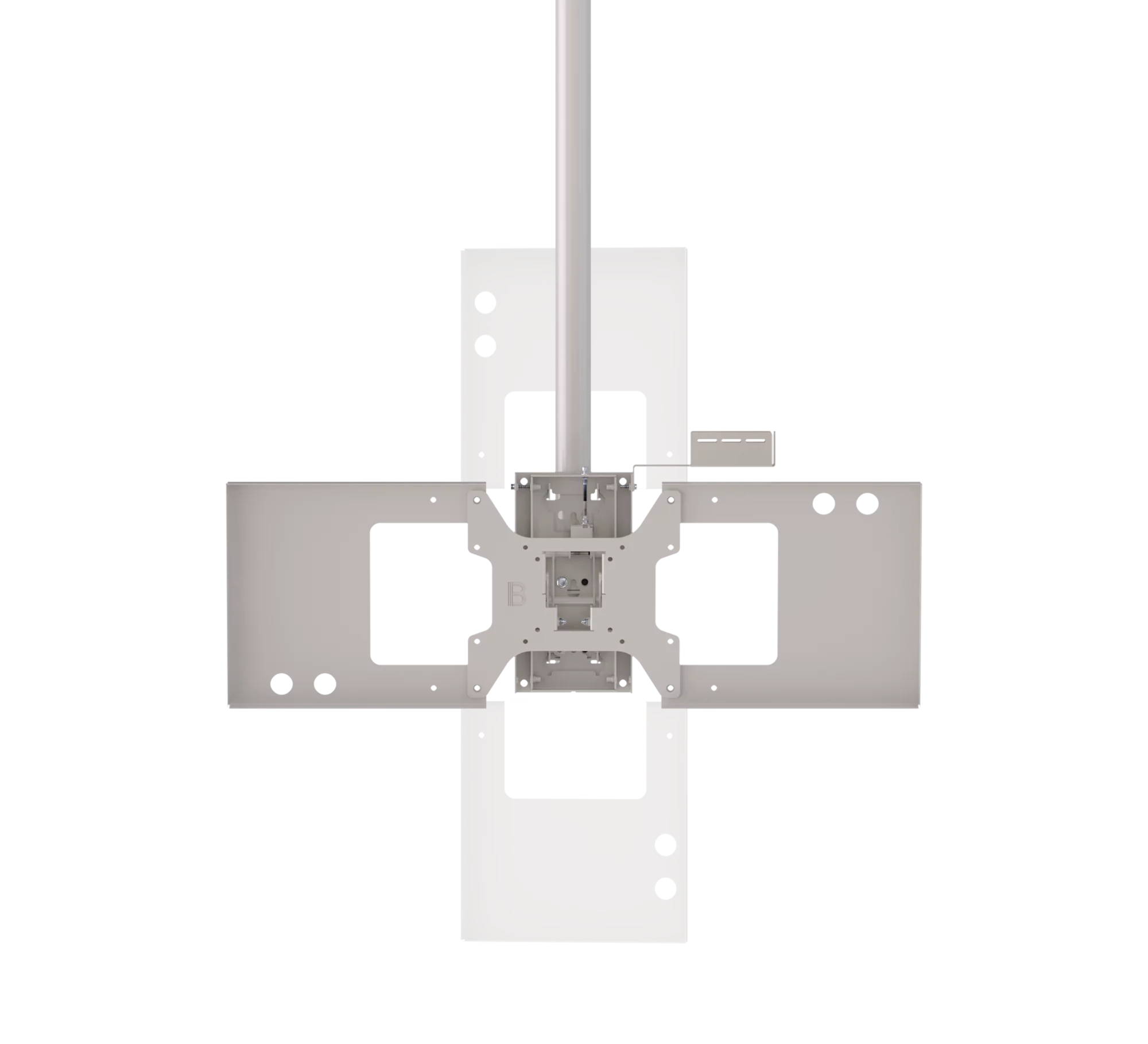

- Mounts displays in a portrait or landscape orientation
- Integrated power bank cradle allows discreet battery installation behind the display
- Adjustable drop in 50mm increments
- An additional mount BT7611 can be added to create a back-to-back installation

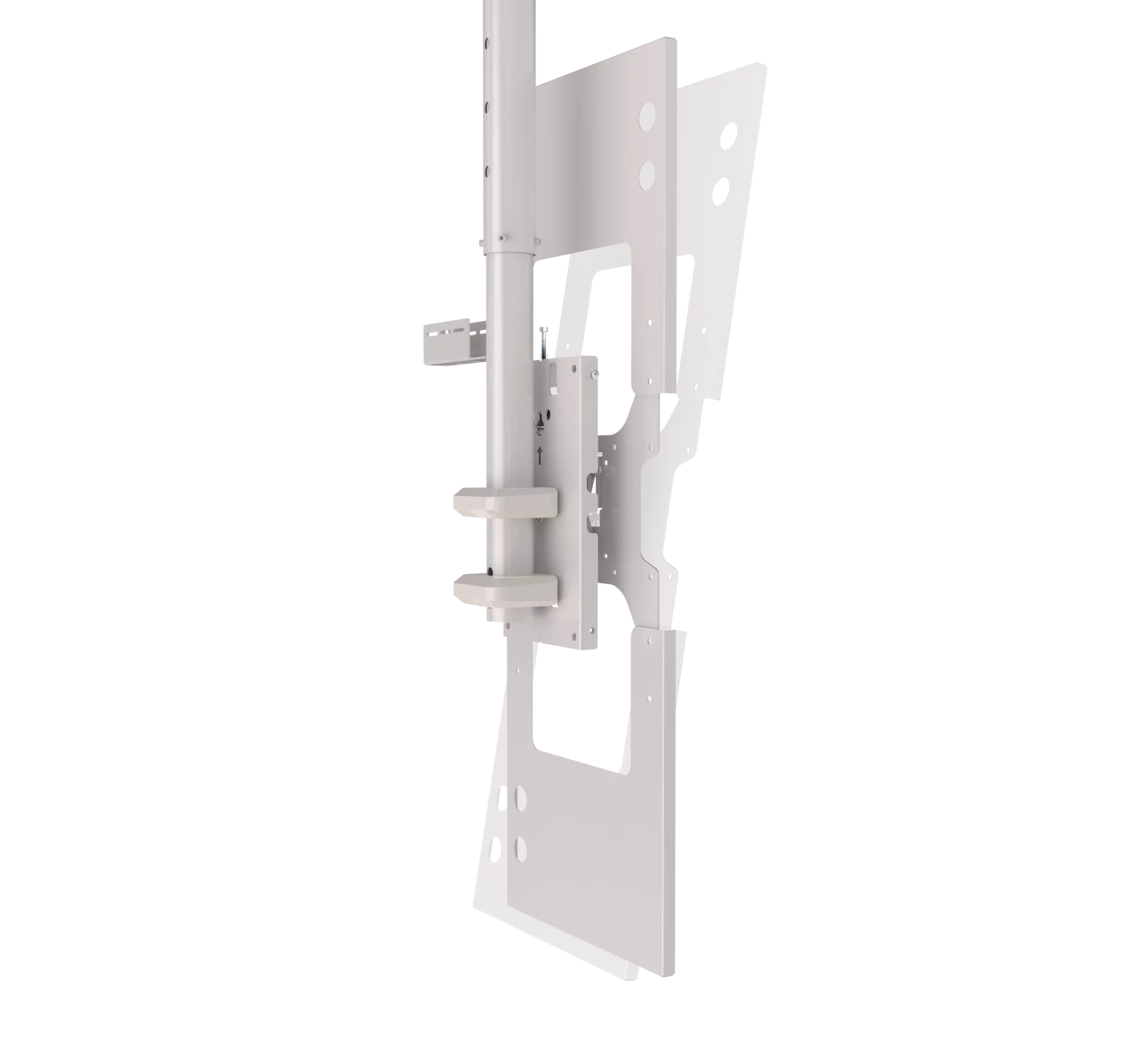

- Service position provides easy access to the rear of the display for maintenance
- Locks at 0° or the selected tilt angle

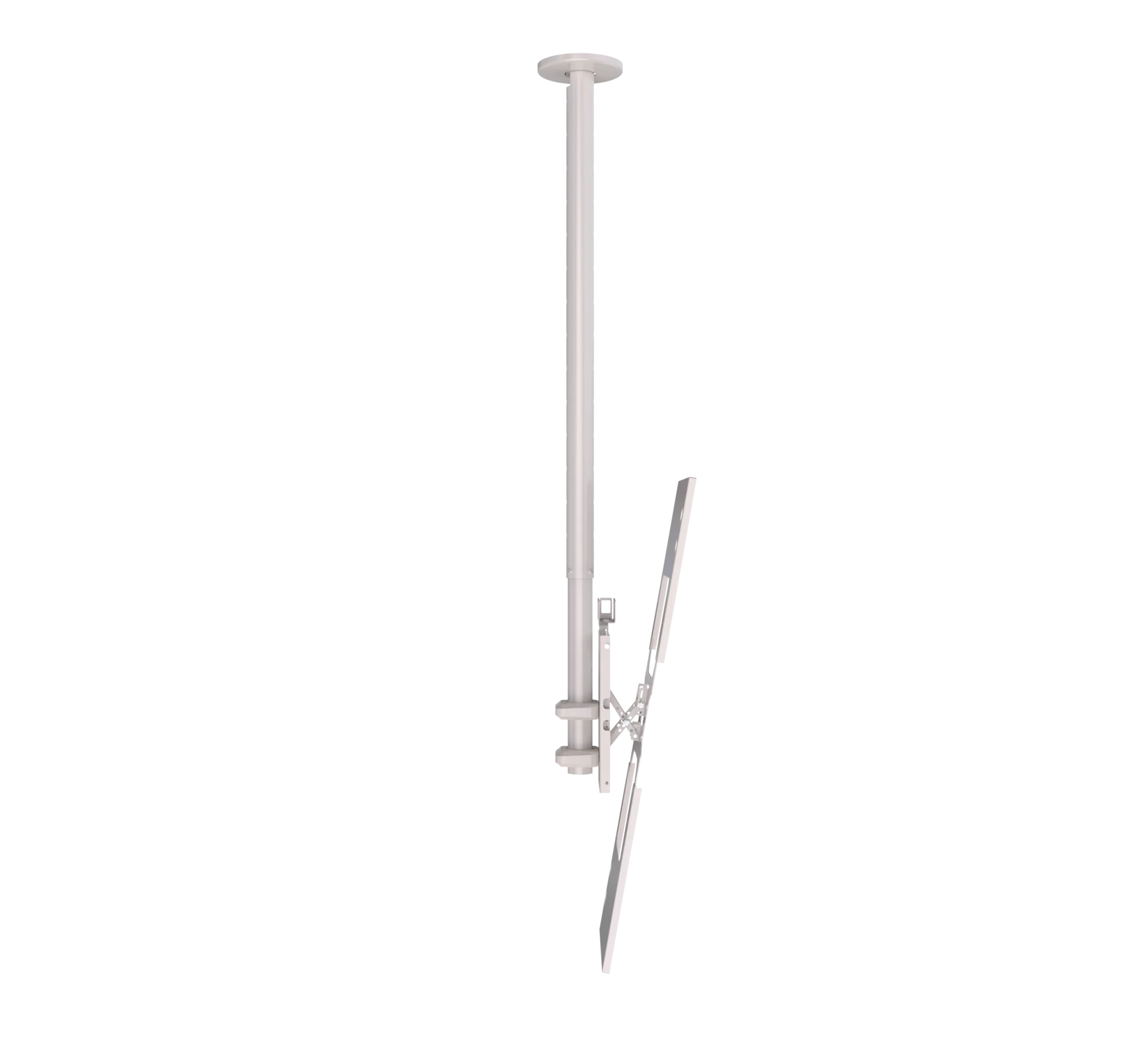

- Can be installed to allow for upward or downward tilt
- Simple hook-on installation enables fast and straightforward assembly
Product Specifications
- Designed for use with: Samsung 32" E-Paper EMDX
- Min adjustable drop height to centre of screen: 765mm
- Max adjustable drop height to centre of screen: 1403mm
- Tilt: 10° upward / 10° downward
- Ceiling plate diameter: Ø128mm
- Inner pole diameter: Ø38mm
- Max dimensions for power bank: W: 150mm H: 150mm D: 23mm
- Colour: White
Ordering & Box Information
Order Code: BT7671-AD-SAM32/W
Barcode: 5019318311116
HS Code: 94032080
- Vietnam
Country of Origin:
Single or Multi-Box Item: Multi Box Item
