Spare AV Storage Tray for Use With BT7896 Pull-Out Mount
Use up to 4 trays with every BT7896
Overview

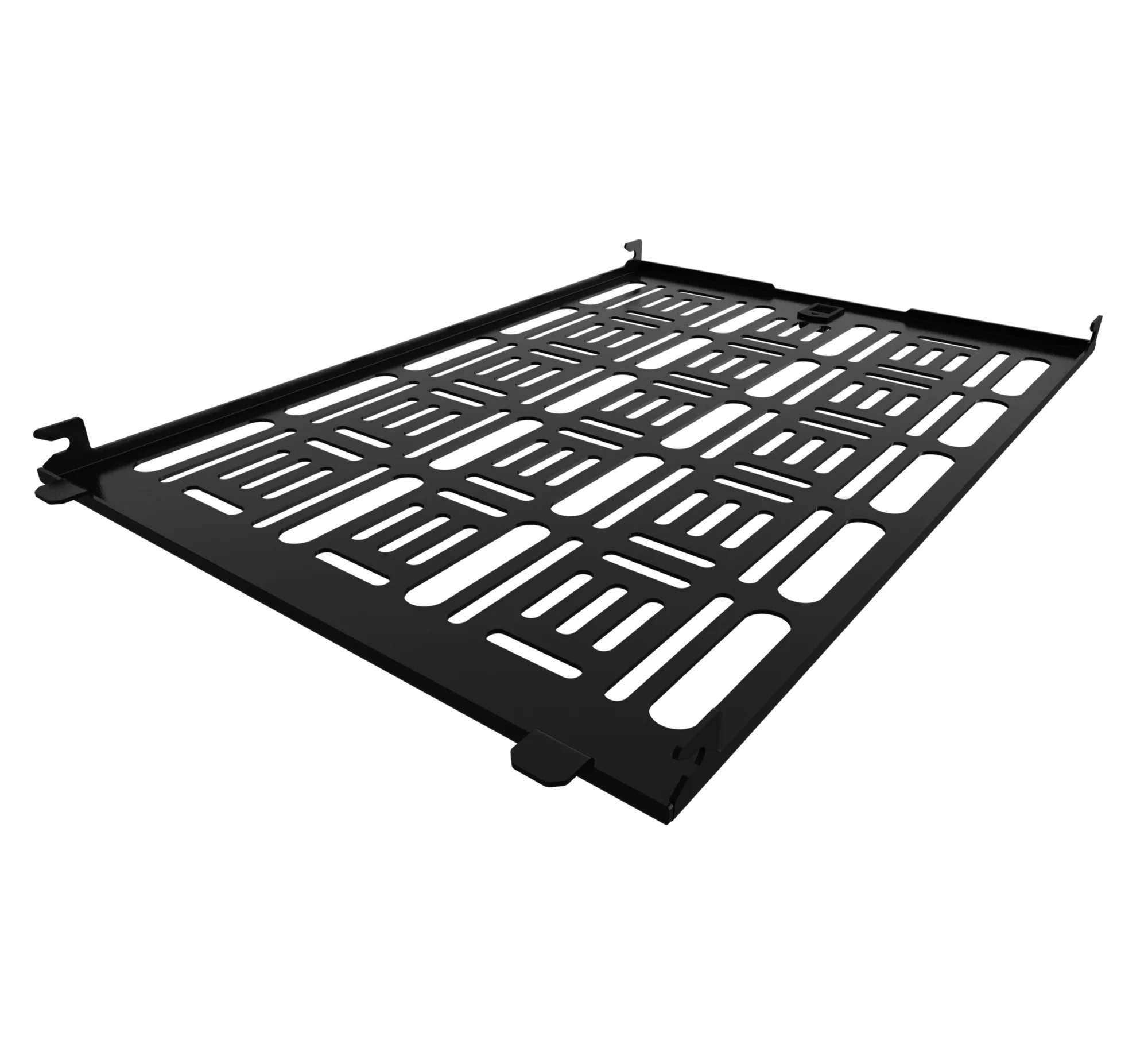

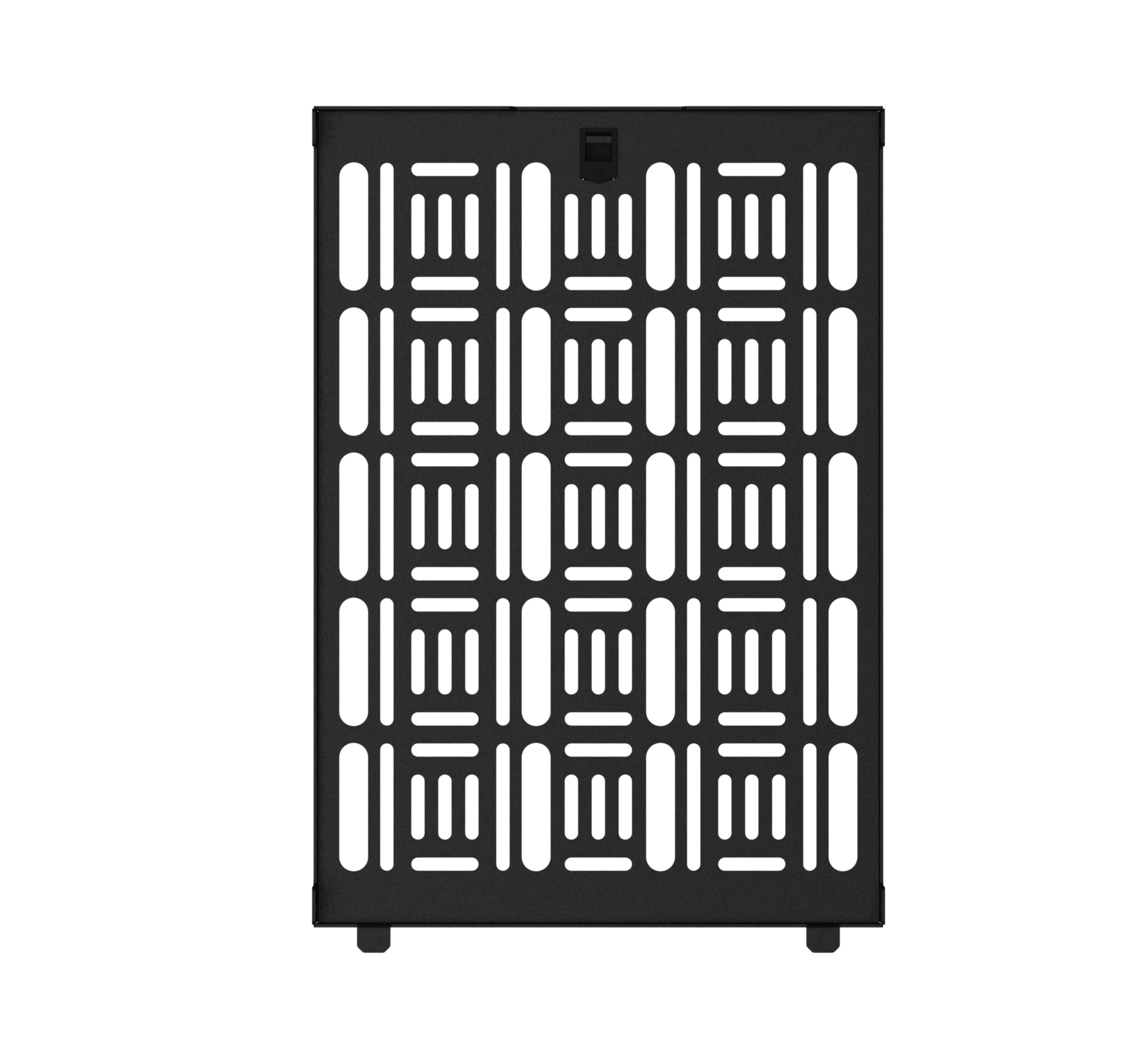

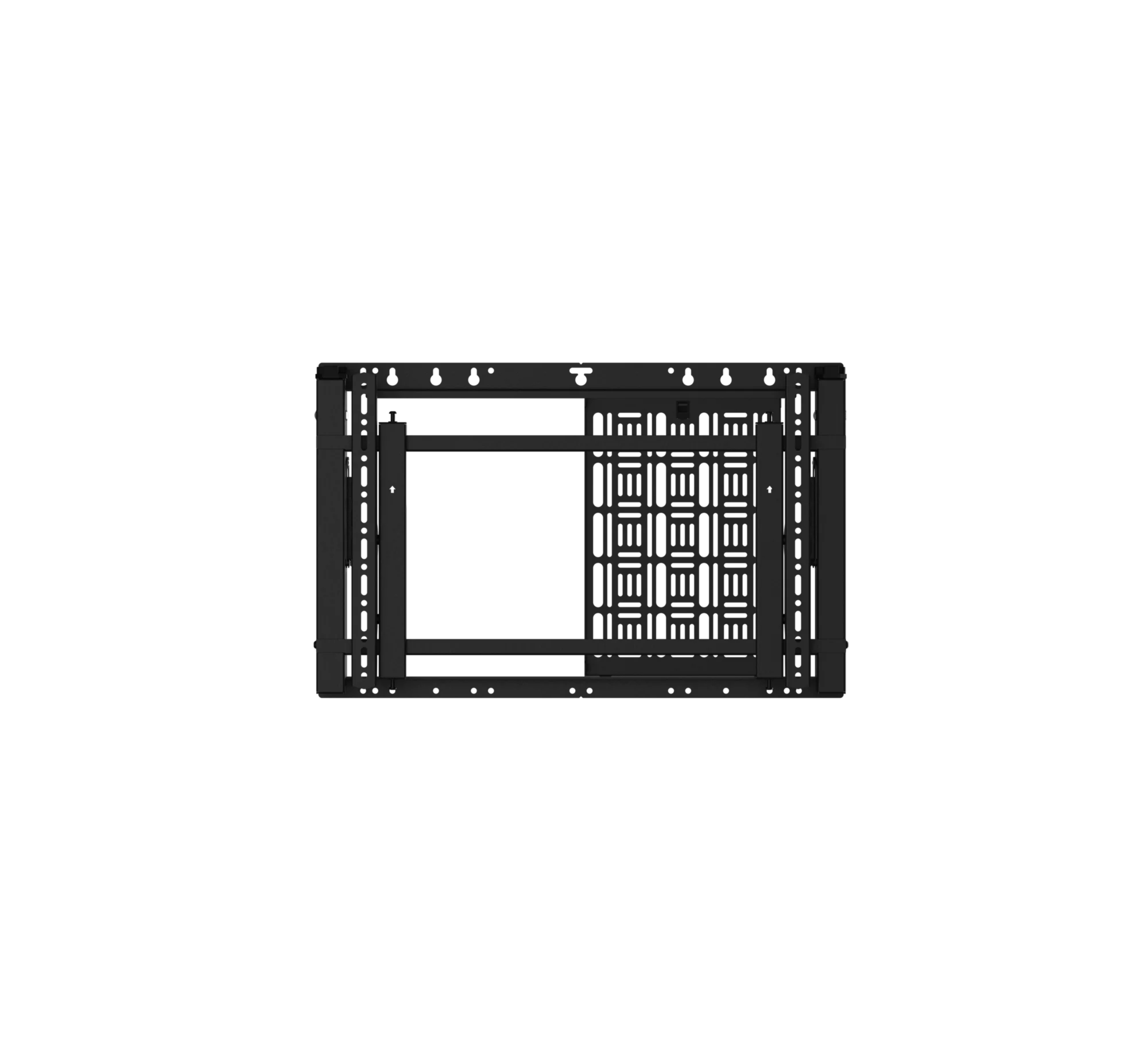

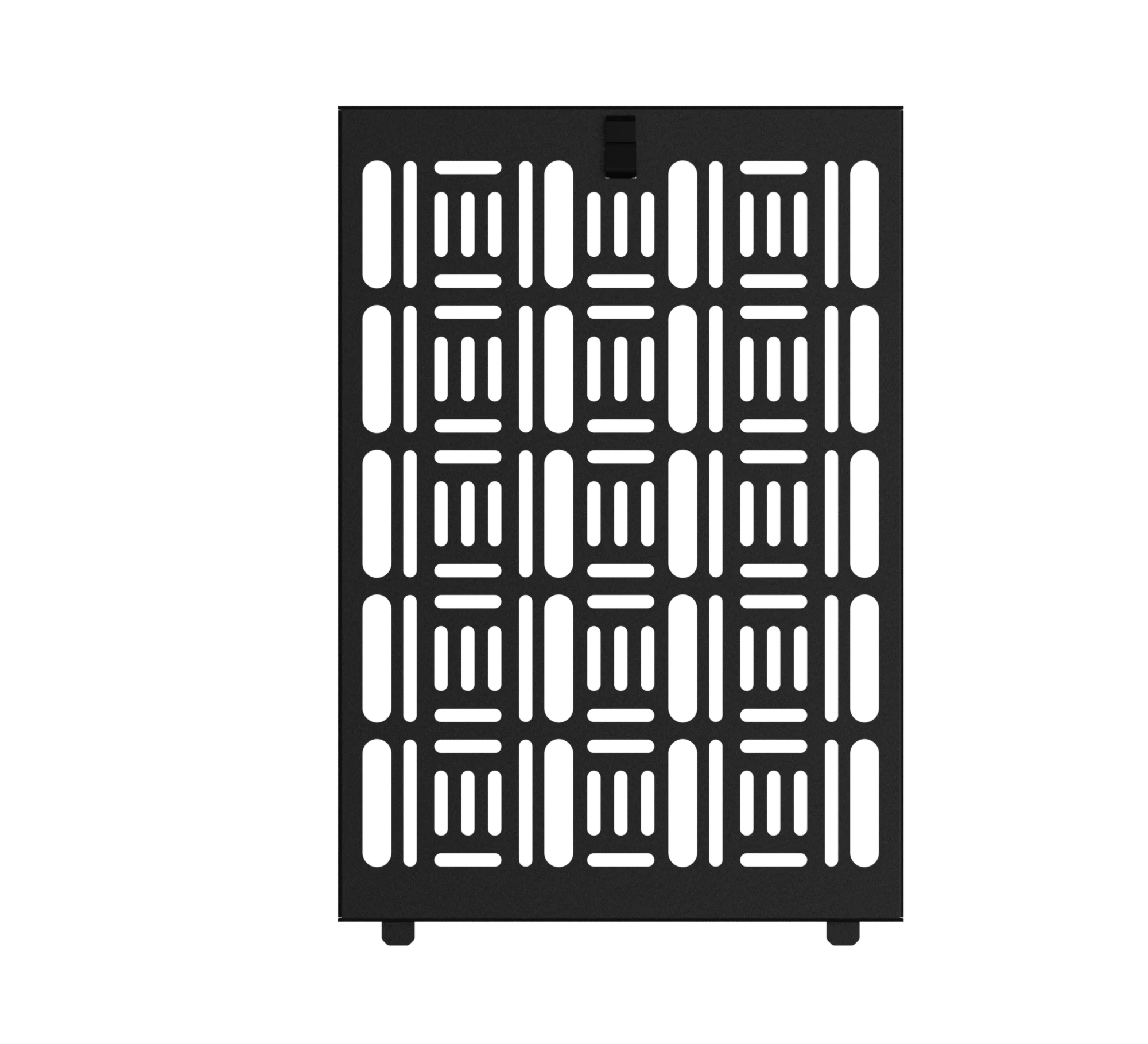

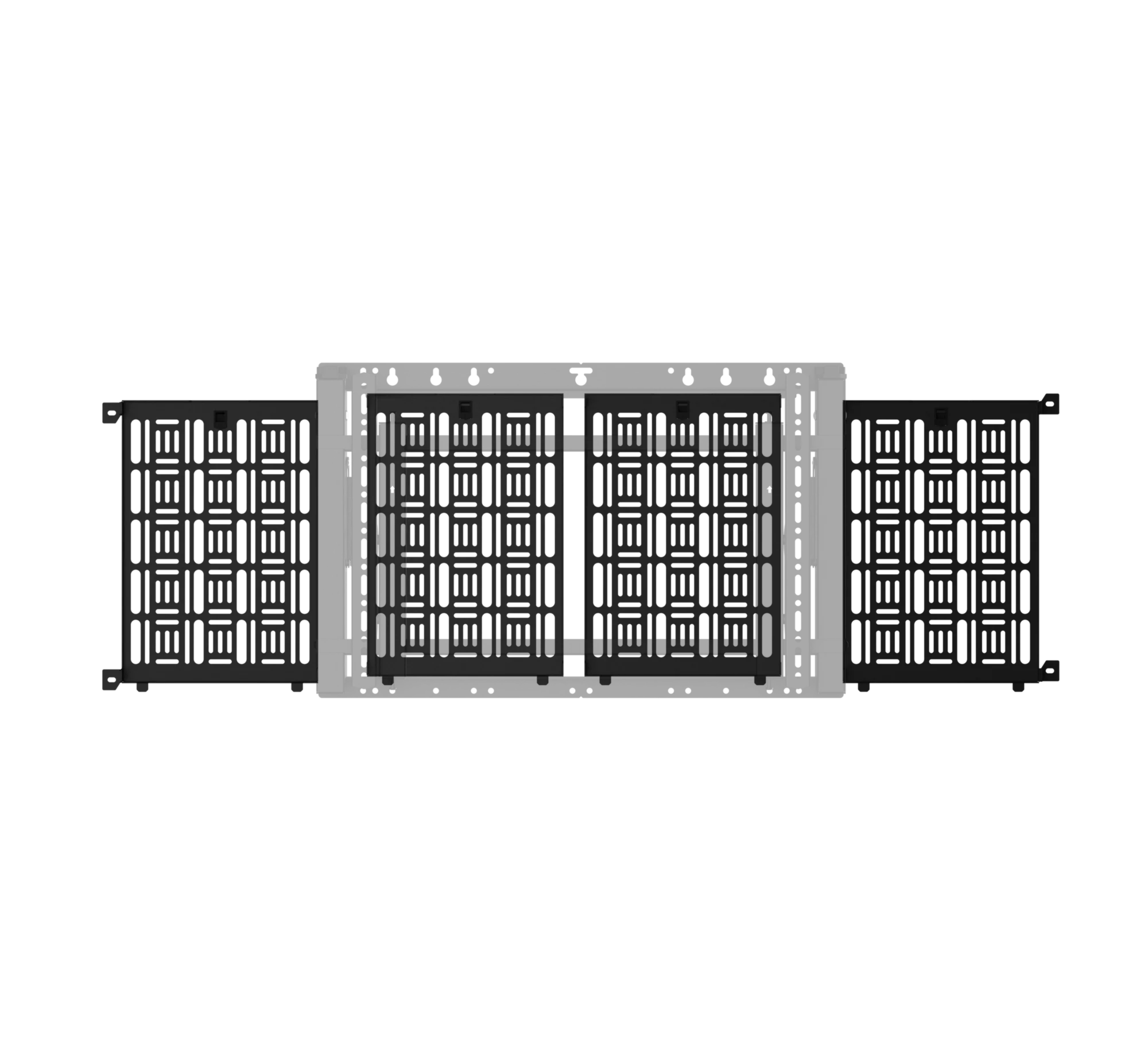

The BT7896-TRAY is an additional or replacement AV storage tray designed for use with the BT7896 Pull-Out Flat Screen Wall Mount. It can be installed alongside the original supplied tray, allowing two trays to be fitted side-by-side inside the mount, or it can be mounted to the outside of the BT7896 when internal space is limited. The tray can also be pre-loaded with equipment and used as a quick-swap replacement, enabling rapid reconfiguration during installation or servicing. A self-wrap strip is included for securing AV devices and maintaining a clean, organised setup.
Product Features
- Supplied in 100% plastic-free packaging
- Includes a self-wrap strip for secure device mounting and tidy cable management
- Quick-release mechanism allows the tray to be removed and swapped in seconds
- Ideal as a pre-loaded replacement tray for fast, tool-free equipment interchangeability

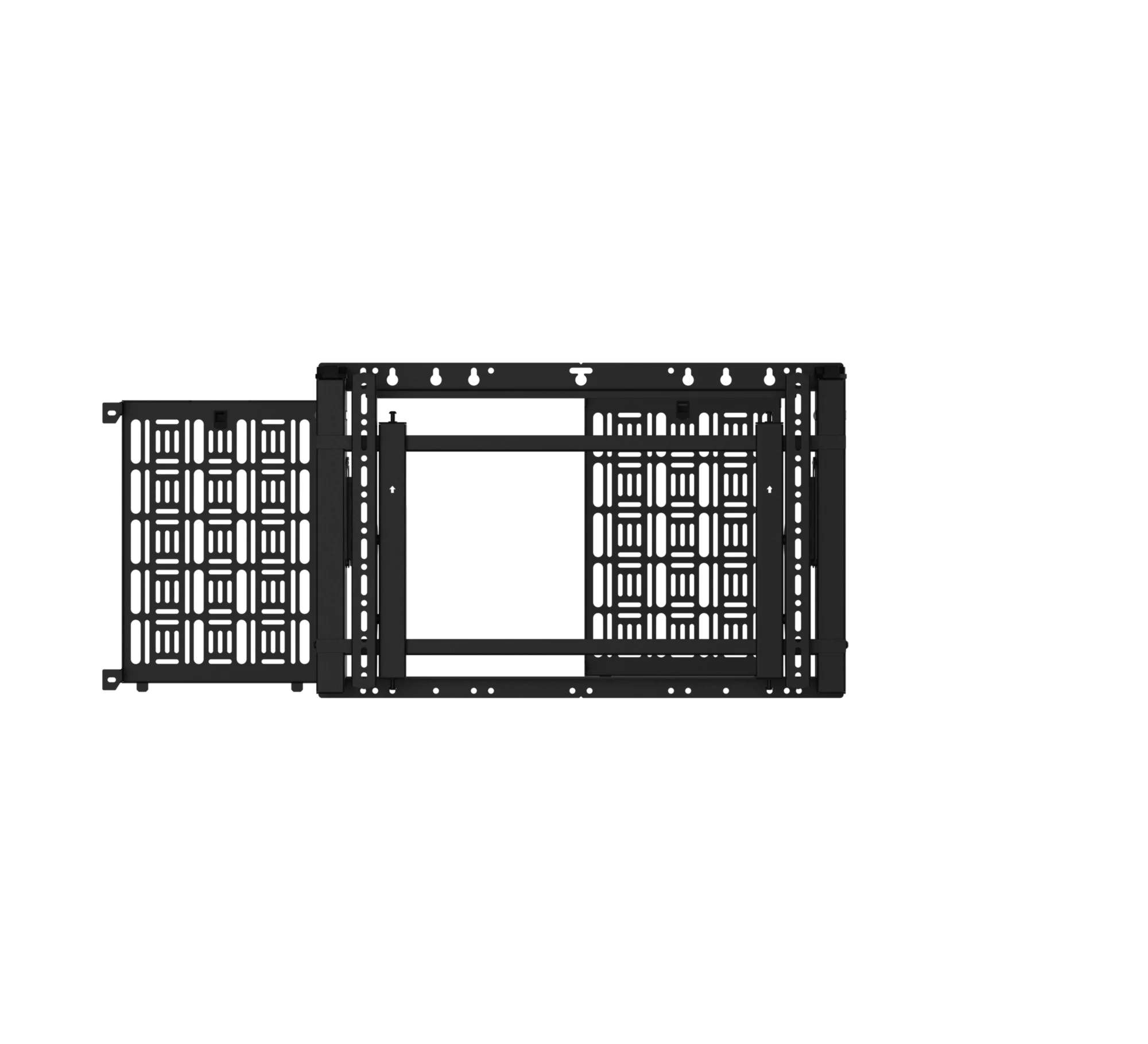

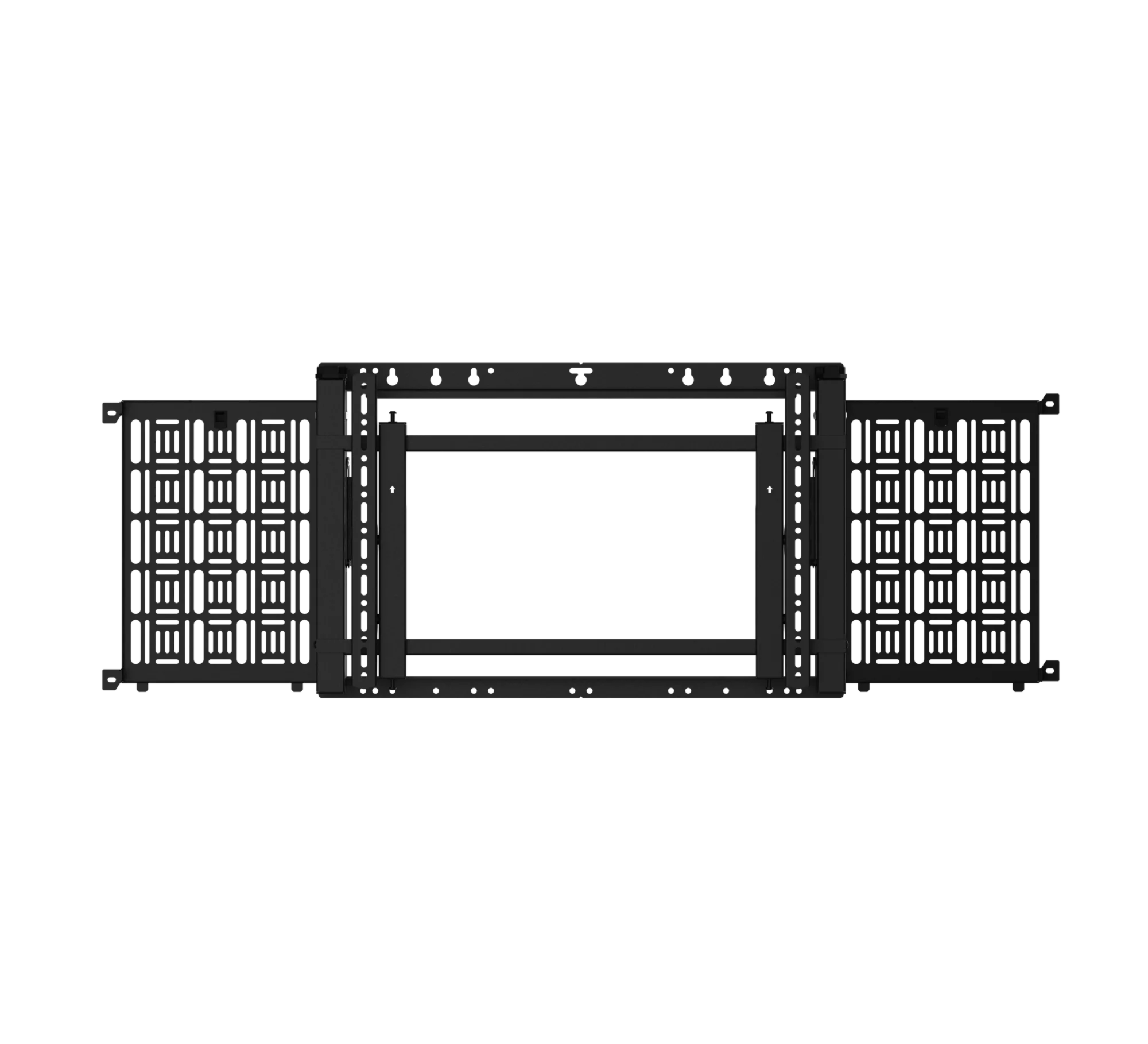

- Optional side-mounting position provides extra flexibility when internal space is restricted

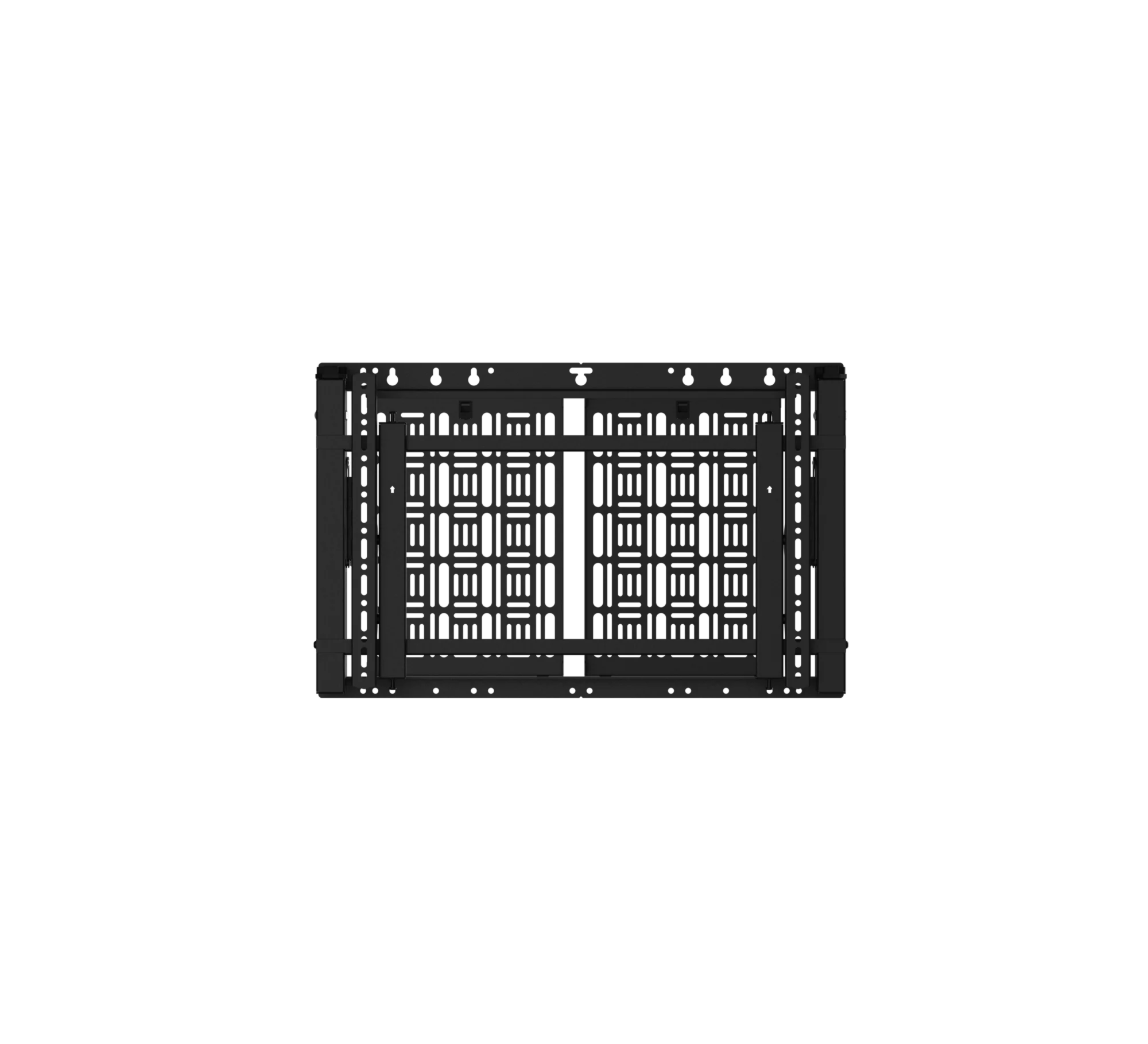

- Compatible with the original BT7896 tray and can be fitted side-by-side inside the mount
Product Specifications
- Max storage load (inside BT7896): 5kg
- Colour: Black
- Max equipment dimensions (when side mounted): H: 392mm x W: 271mm x D: 82 - 155.5mm
- Max equipment dimensions (inside BT7896): H: 392mm x W: 271mm x D: 31 - 104.5mm
- Max storage load (side mounted): 10kg
Ordering & Box Information
Order Code: BT7896-TRAY/B
Barcode: 5019318310478
HS Code: 83025000
- China
Country of Origin:
Single or Multi-Box Item: Single Box Item
Total Boxed Weight (kg): 1.3kg
