BT8380-AFB

System X

Bolt-Down Floor Base with Level Adjustment

Ideal for uneven surfaces

BT8380-AFB/B

System X

Bolt-Down Floor Base with Level Adjustment

Ideal for uneven surfaces

Enquire Today View Downloads

Overview

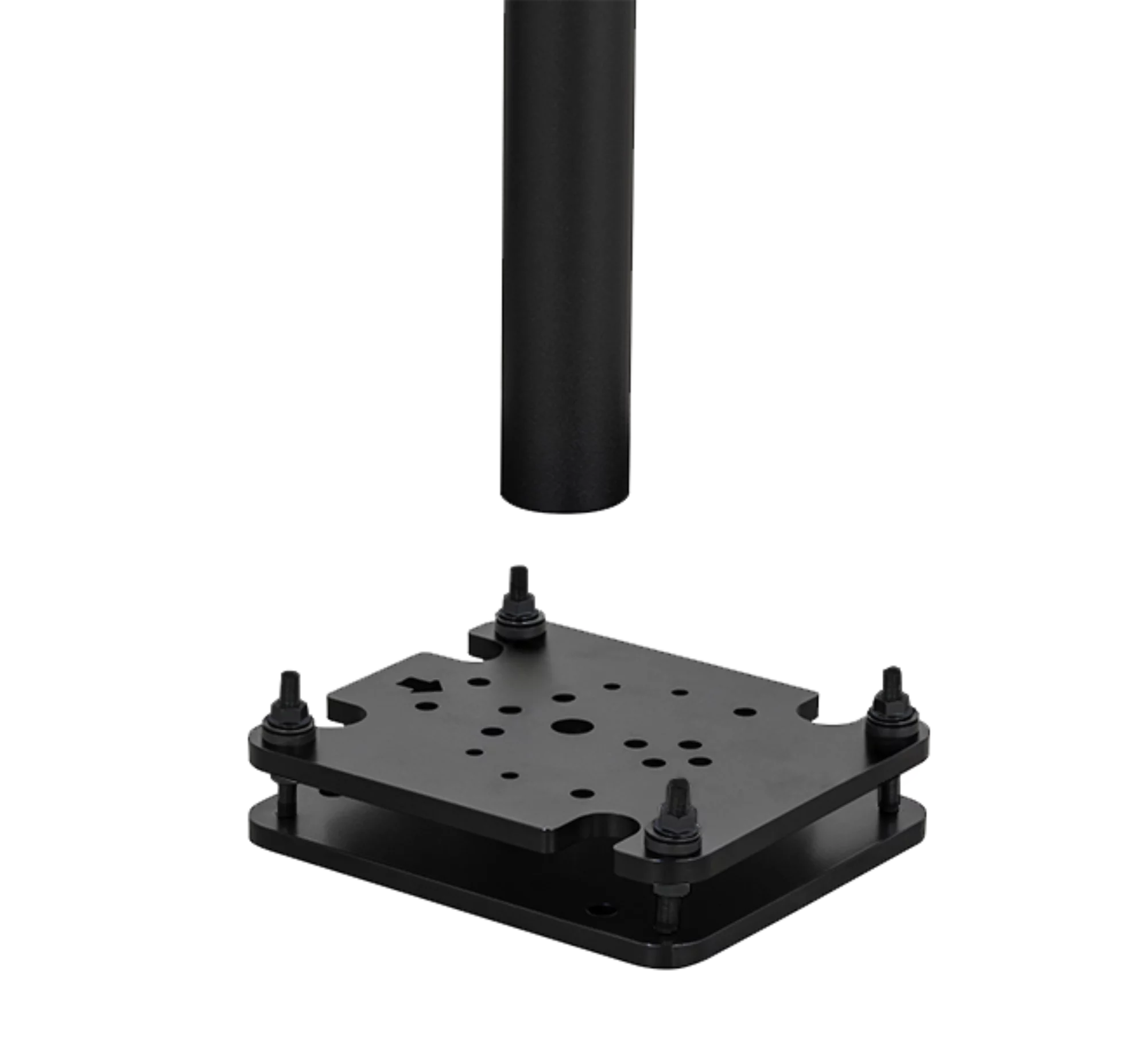

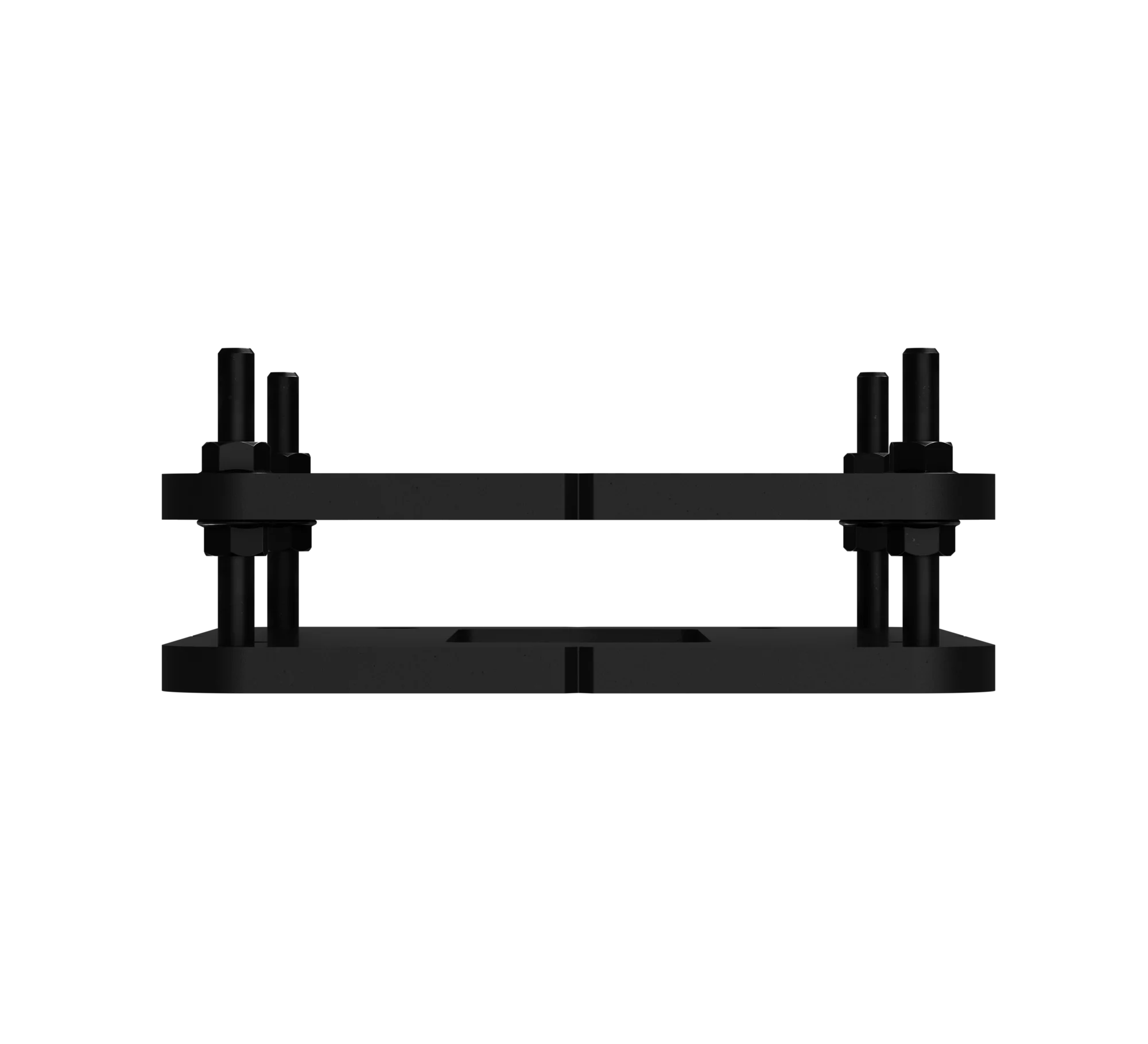

Designed to securely fix B-Tech's vertical columns, poles or rails to uneven floors, the BT8380-AFB uses a levelling plate with +/-13.5mm of adjustment available on each corner ensuring a level installation of the display stand. The Bolt Down Floor Base is suitable for use on floors with minor slopes or uneven surfaces and strong enough to support substantial loads of up to 150kg per column. With a minimal footprint, the BT8380-AFB is ideal for installations where floor space in limited, such as corporate locations, control rooms, retail shop fronts or for close to the wall displays.
Designed to securely fix B-Tech's vertical columns, poles or rails to uneven floors, the BT8380-AFB uses a levelling plate with +/-13.5mm of adjustment available on each corner ensuring a level installation of the display stand. The Bolt Down Floor Base is suitable for use on floors with minor slopes or uneven surfaces and strong enough to support substantial loads of up to 150kg per column. With a minimal footprint, the BT8380-AFB is ideal for installations where floor space in limited, such as corporate locations, control rooms, retail shop fronts or for close to the wall displays.

Product Features

  • Level adjustment suitable for use on uneven surfaces or floors with minor slopes
  • Small footprint is ideal for retail and corporate applications where floor space is limited or for close to the wall installations
  • Heavy duty steel capable of supporting substantial loads
  • Can be used for large scale dvLED or videowall installations in straight or curved configurations - ideal for applications such as control rooms
  • Integrated cable management
  • Compatible with a variety of B-Tech columns (BT8380 / BT8381 / BT8385), poles (BT4107 / BT4116 / BT4118) and rails (BT8390)
  • Includes a cover plate for a smart installation
  • Level adjustment suitable for use on uneven surfaces or floors with minor slopes
  • Small footprint is ideal for retail and corporate applications where floor space is limited or for close to the wall installations
  • Heavy duty steel capable of supporting substantial loads
  • Can be used for large scale dvLED or videowall installations in straight or curved configurations - ideal for applications such as control rooms
  • Integrated cable management
  • Compatible with a variety of B-Tech columns (BT8380 / BT8381 / BT8385), poles (BT4107 / BT4116 / BT4118) and rails (BT8390)
  • Includes a cover plate for a smart installation

Product Specifications

  • Max load: 150kg (per base)*
  • Designed for use with: BT8380 - Vertical Columns
  • Base dimensions: W: 183mm D: 213mm H: 45mm

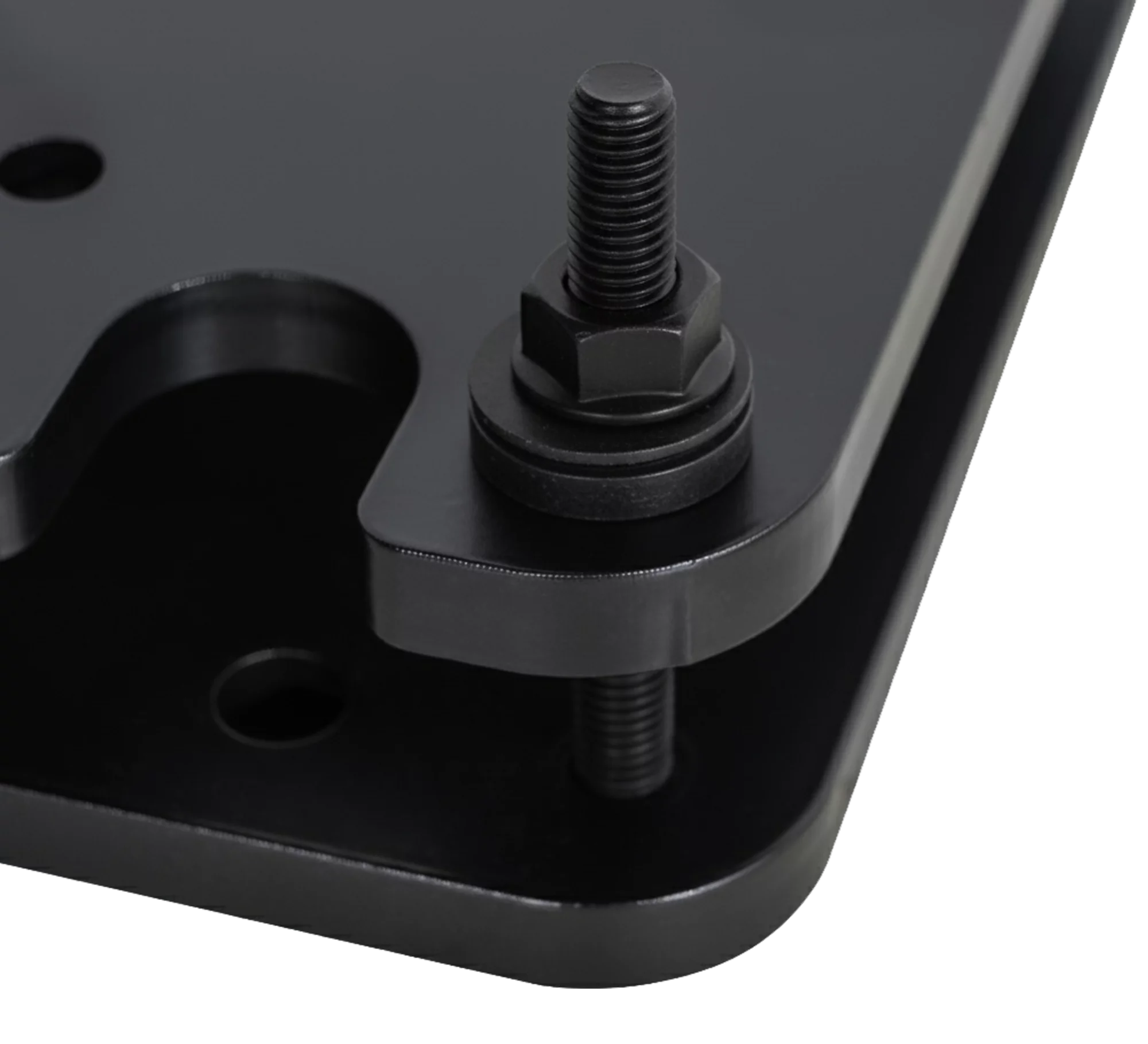

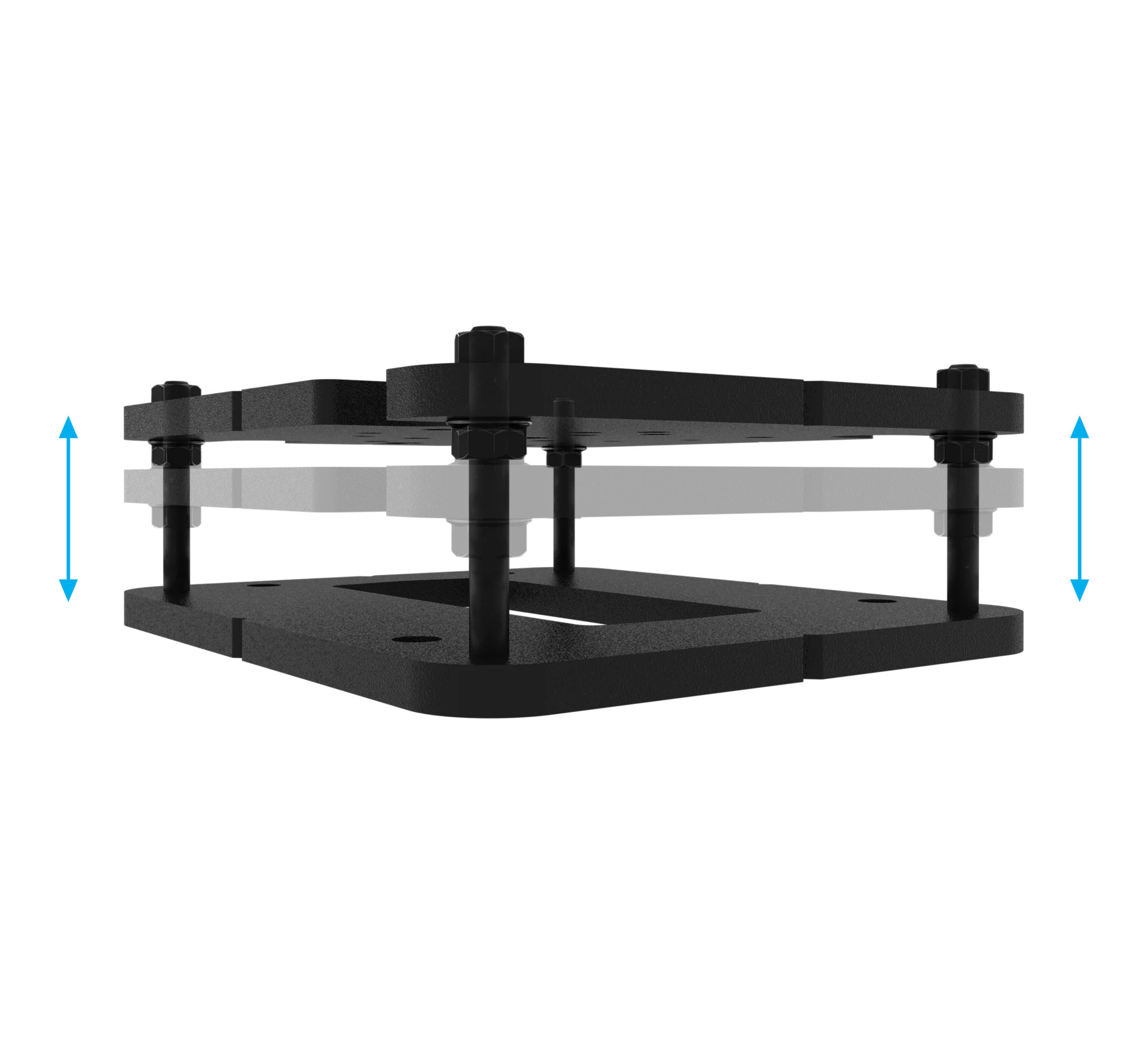

  • Micro-adjustment per corner: -/+13.5mm
  • Qty per pack: 1
  • Colour: Black
  • *No more than 100kg should be mounted at a height above 1.2m on BT8380 columns - see assembly leaflet for more info
  • Max load: 150kg (per base)*
  • Designed for use with: BT8380 - Vertical Columns
  • Base dimensions: W: 183mm D: 213mm H: 45mm
  • Micro-adjustment per corner: -/+13.5mm
  • Qty per pack: 1
  • Colour: Black
  • *No more than 100kg should be mounted at a height above 1.2m on BT8380 columns - see assembly leaflet for more info

Ordering & Box Information

Order Code: BT8380-AFB/B

Barcode: 5019318305924

HS Code: 94032080

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 5.50kg

Order Code: BT8380-AFB/B

Barcode: 5019318305924

HS Code: 94032080

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 5.50kg

Downloads

BT8380-AFB - Product Specification Sheet - English

pdf 1.53 MB

BT8380-AFB - Product Specification Sheet - French

pdf 1.54 MB

BT8380-AFB - Installation Guide

pdf 2.89 MB

BT8380-AFB - Technical Drawings - (DXF)

DXF 28.29 MB

BT8380-AFB - Technical Drawings - (PDF)

pdf 122.42 KB

BT8380-AFB-B-1

png 46.12 KB

BT8380-AFB-B-3

png 18.56 KB

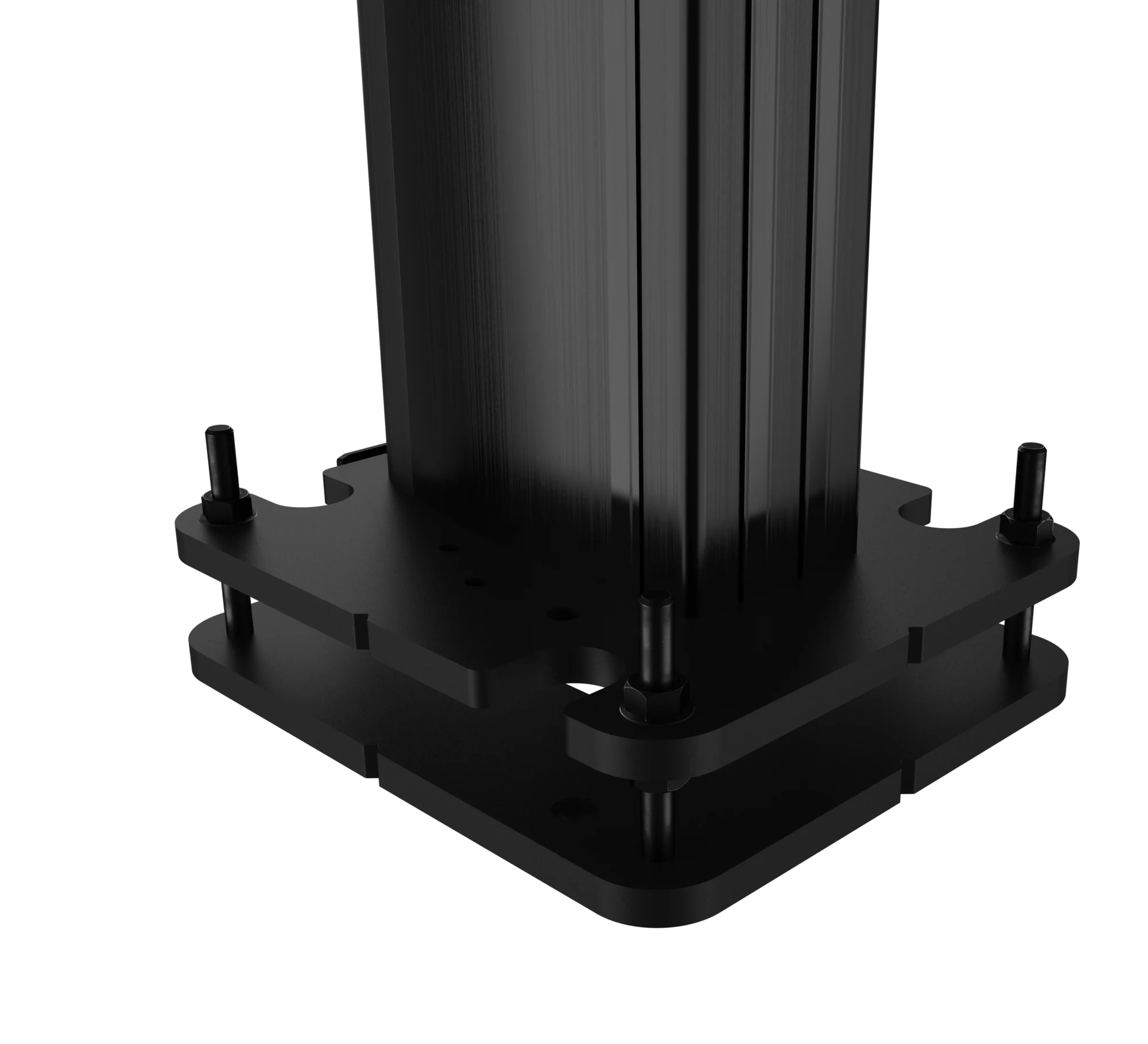

BT8380-AFB-B-5

png 60.13 KB

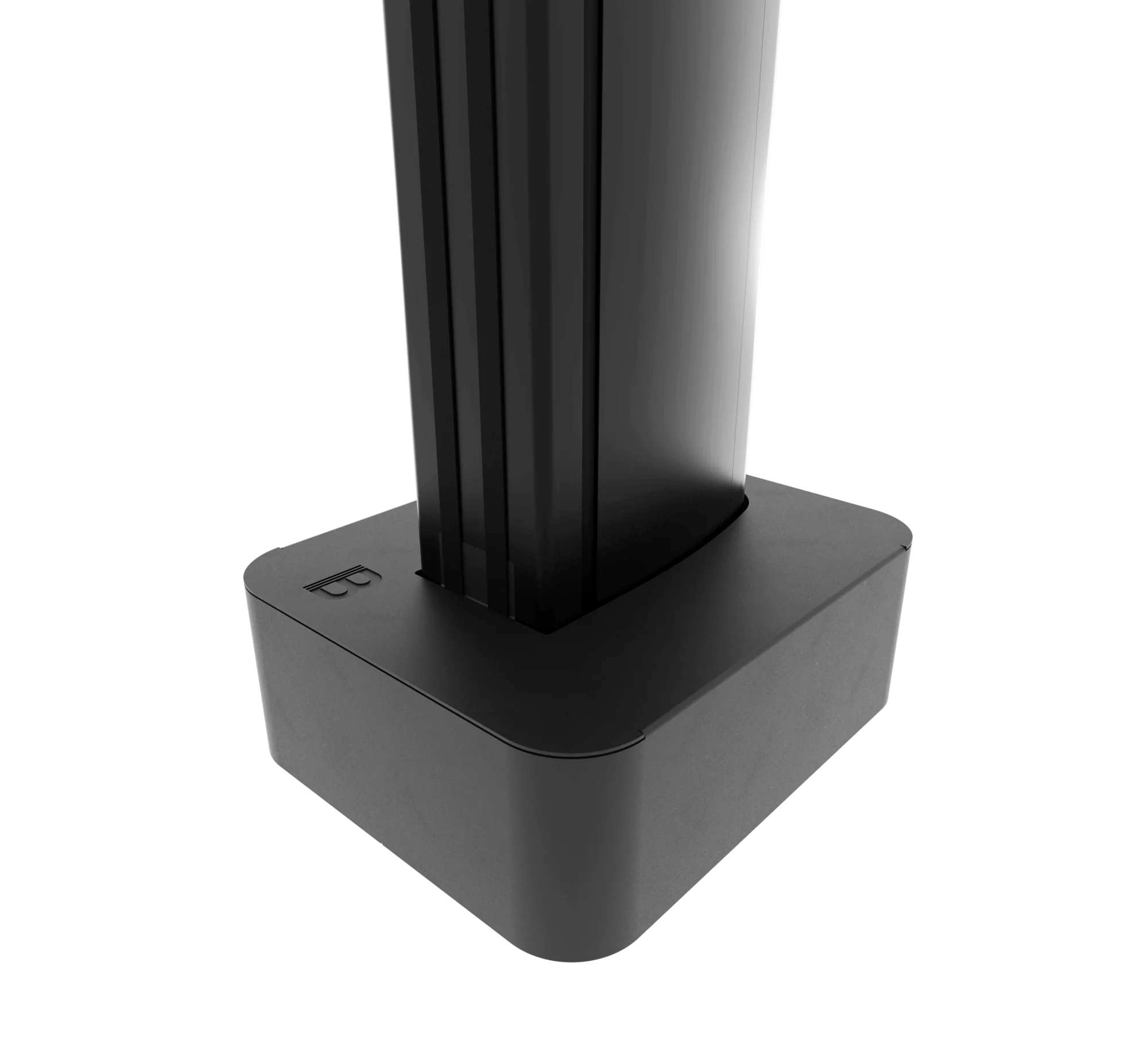

BT8380-AFB-B-8

png 62.25 KB

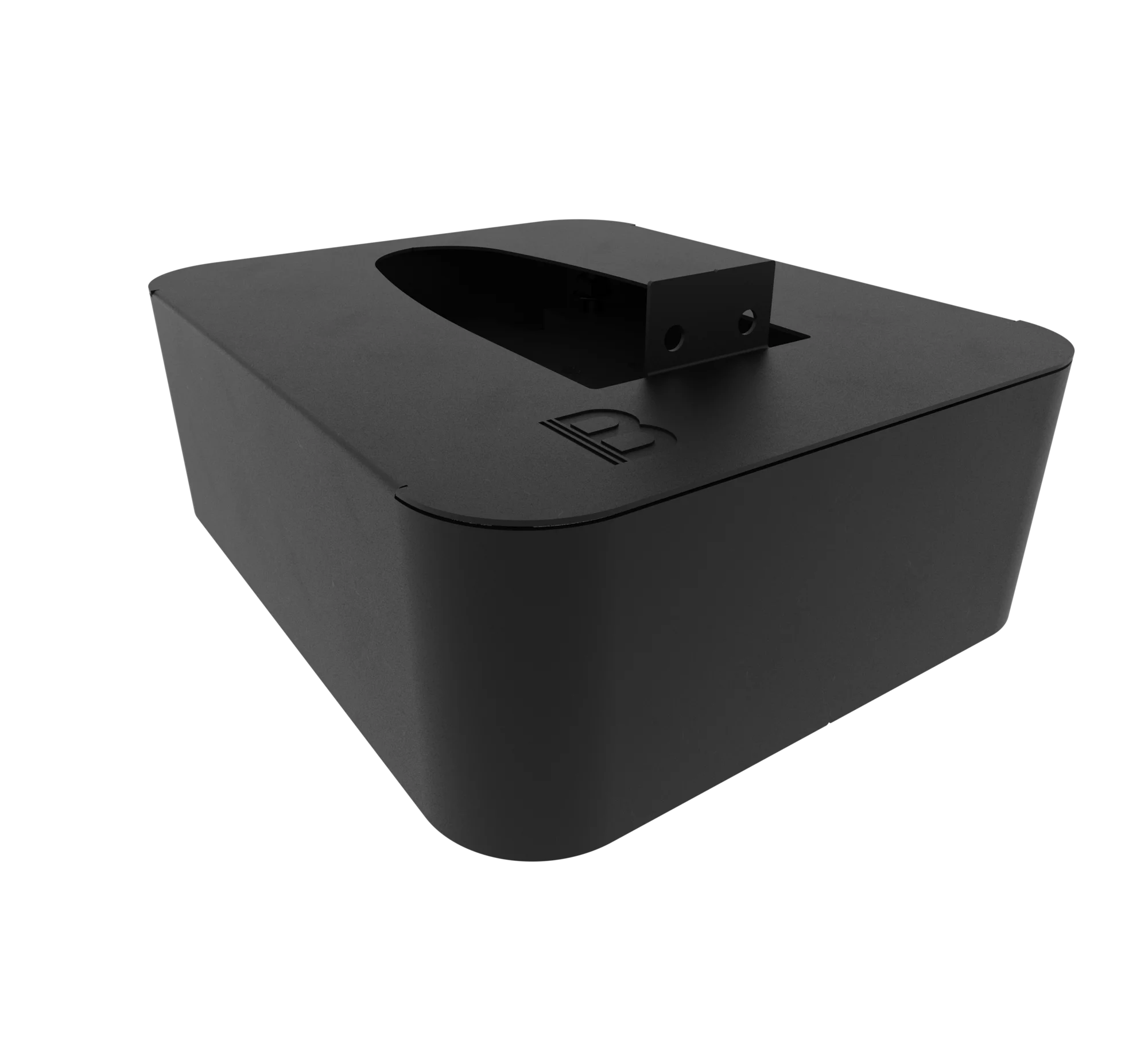

BT8380-AFB-B-2

png 62.34 KB

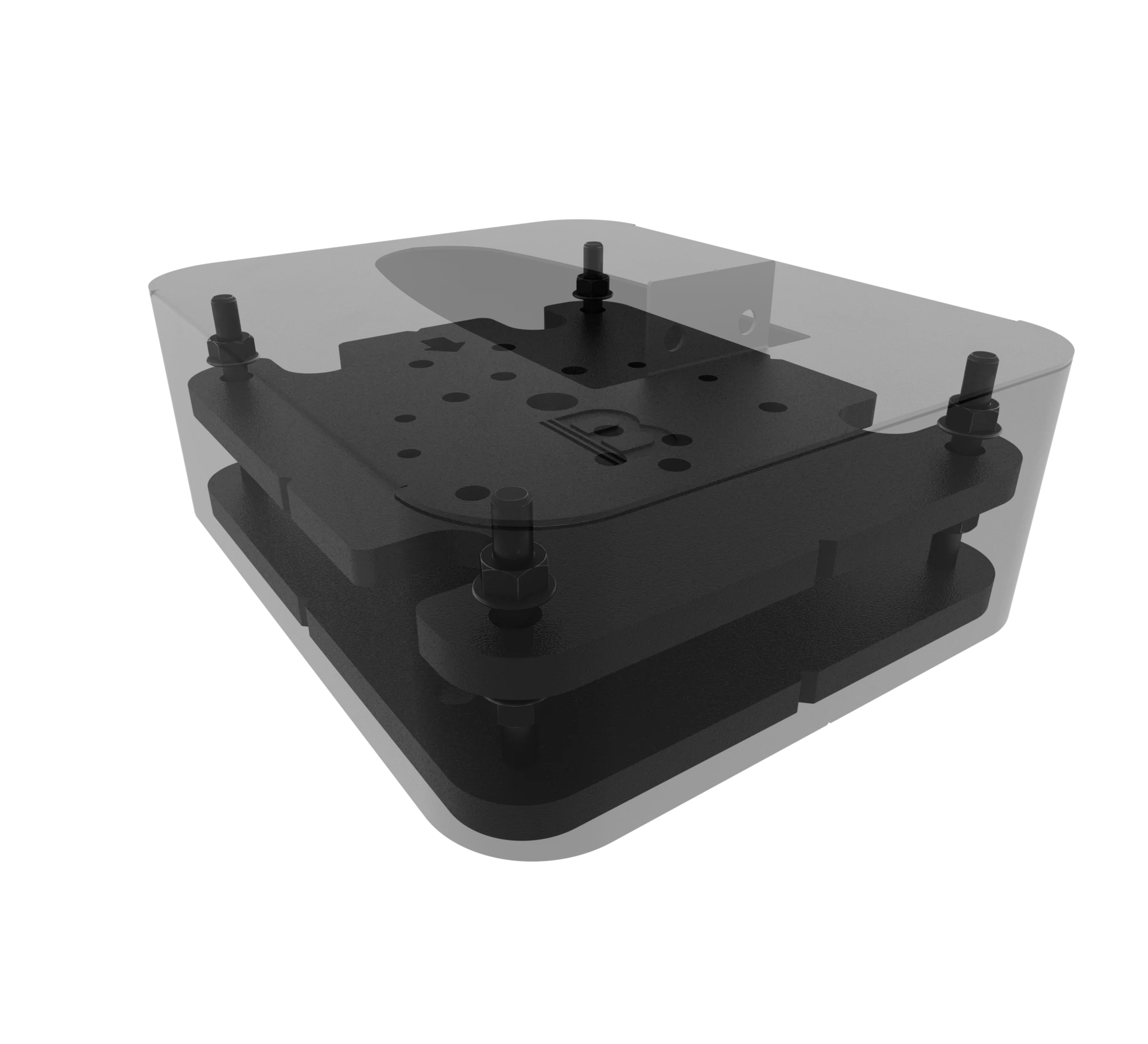

BT8380-AFB-B-9

png 109.07 KB

BT8380-AFB-B-11

png 62.26 KB

BT8380-AFB-B-7

png 97.94 KB

BT8380-AFB-B-12

png 55.10 KB

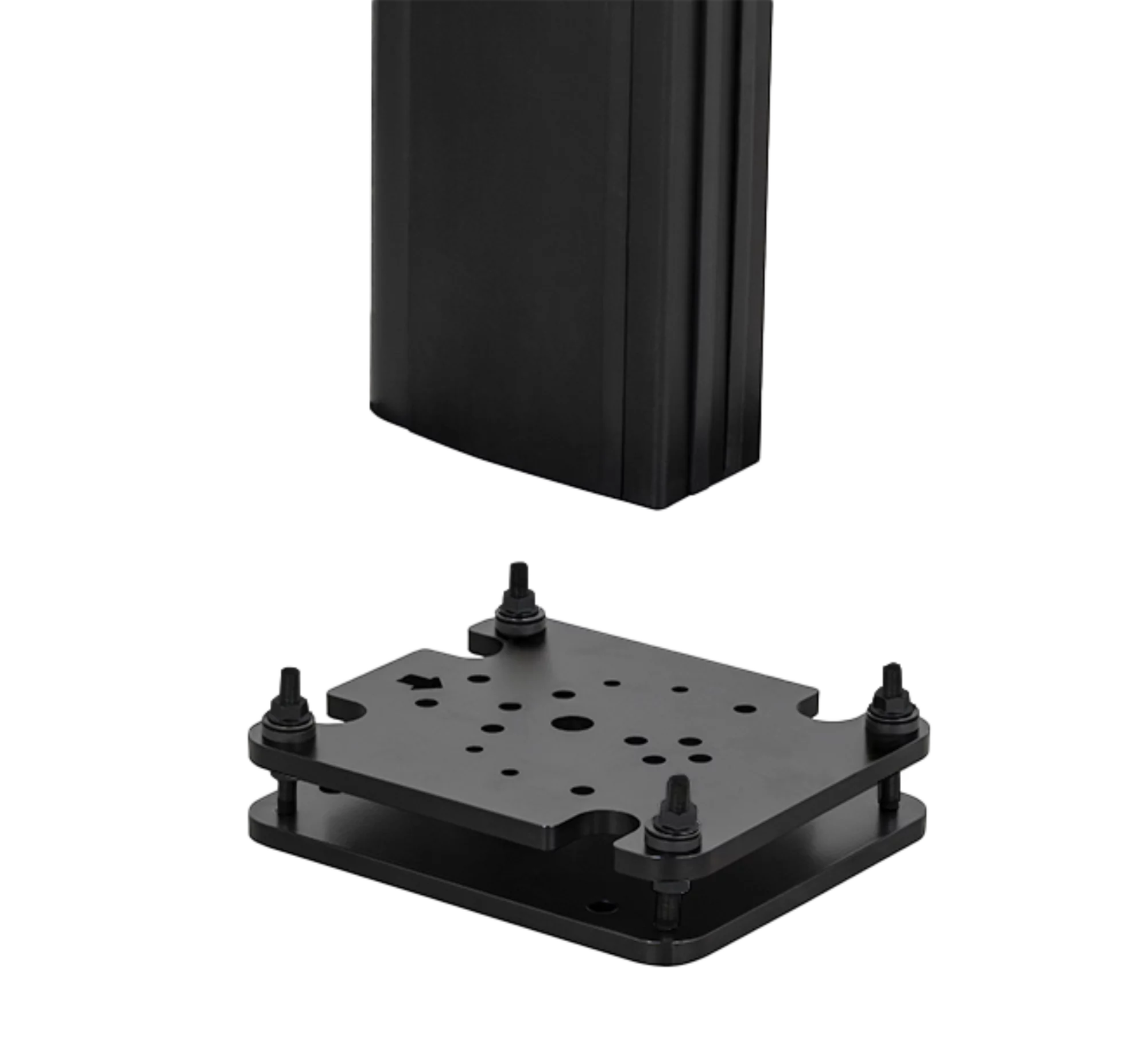

BT8380-AFB-B-13

png 68.16 KB

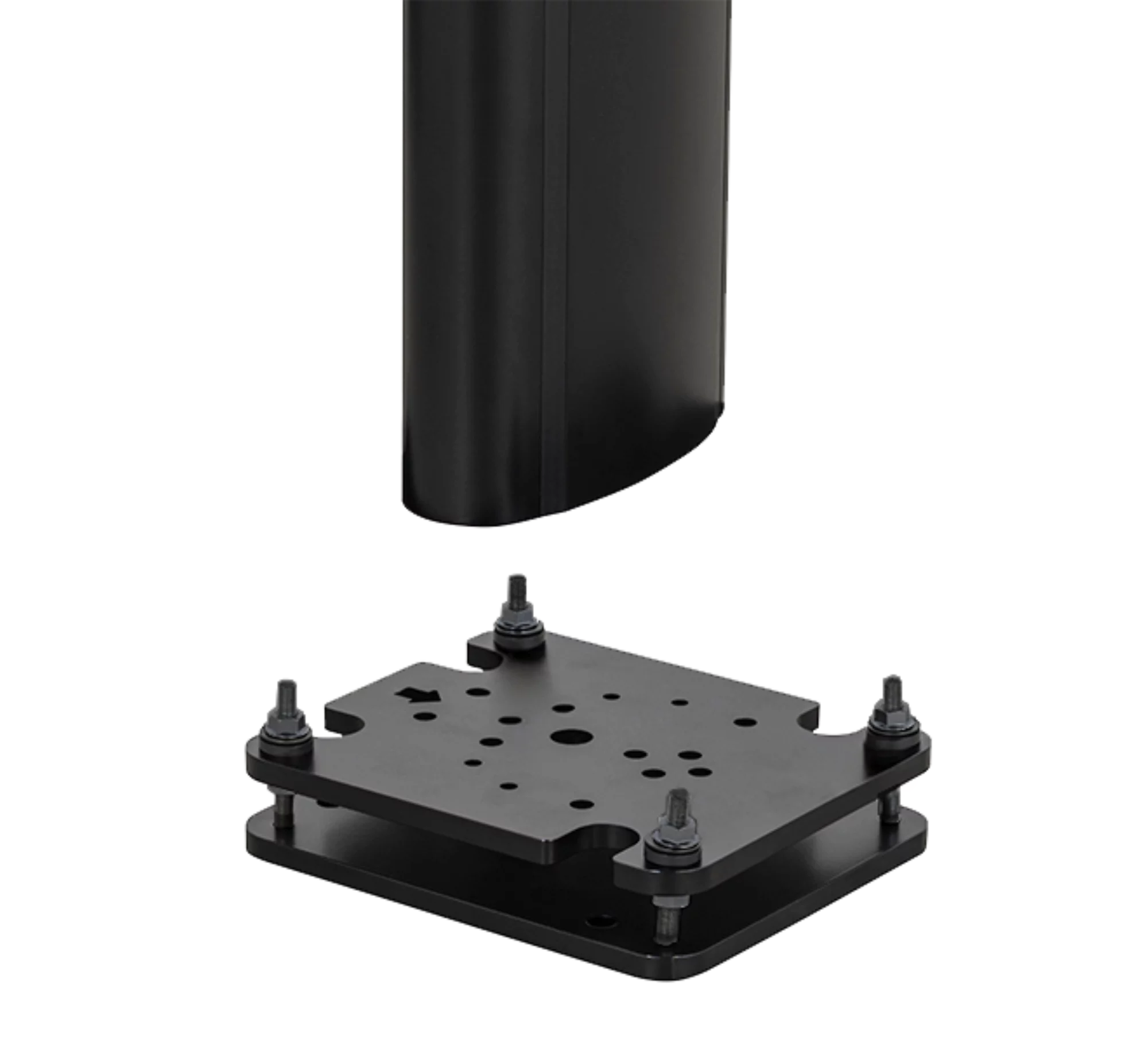

BT8380-AFB-B-14

png 61.61 KB

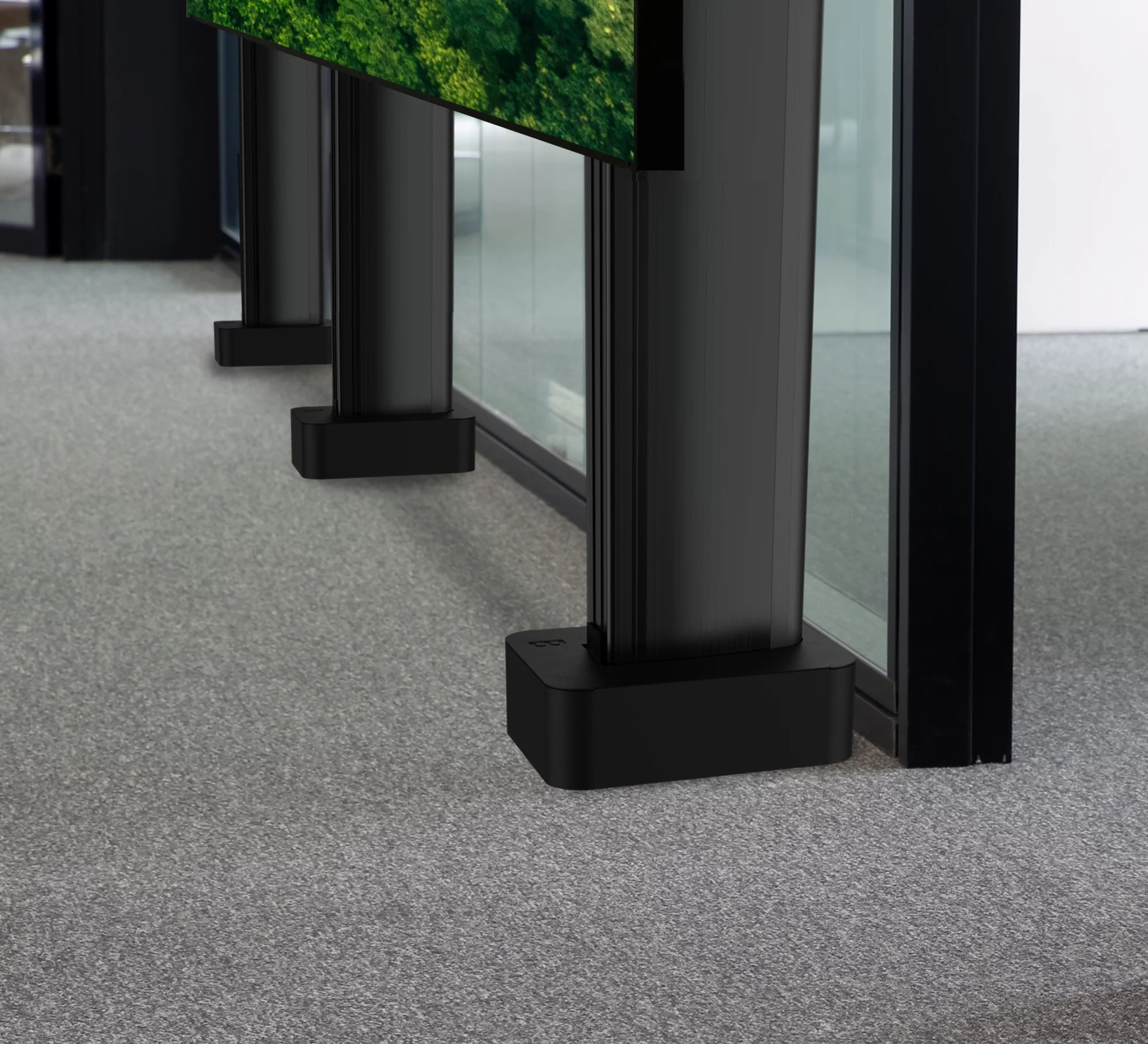

BT8380-AFB-B-6
