Home All Products System X Joining Plate
Metric Imperial

BT8381-JPS

System X Joining Plate

Fixes Mounting Rails to Vertical Columns

BT8381-JPS/B

System X Joining Plate

Fixes Mounting Rails to Vertical Columns

Enquire Today View Downloads

Overview

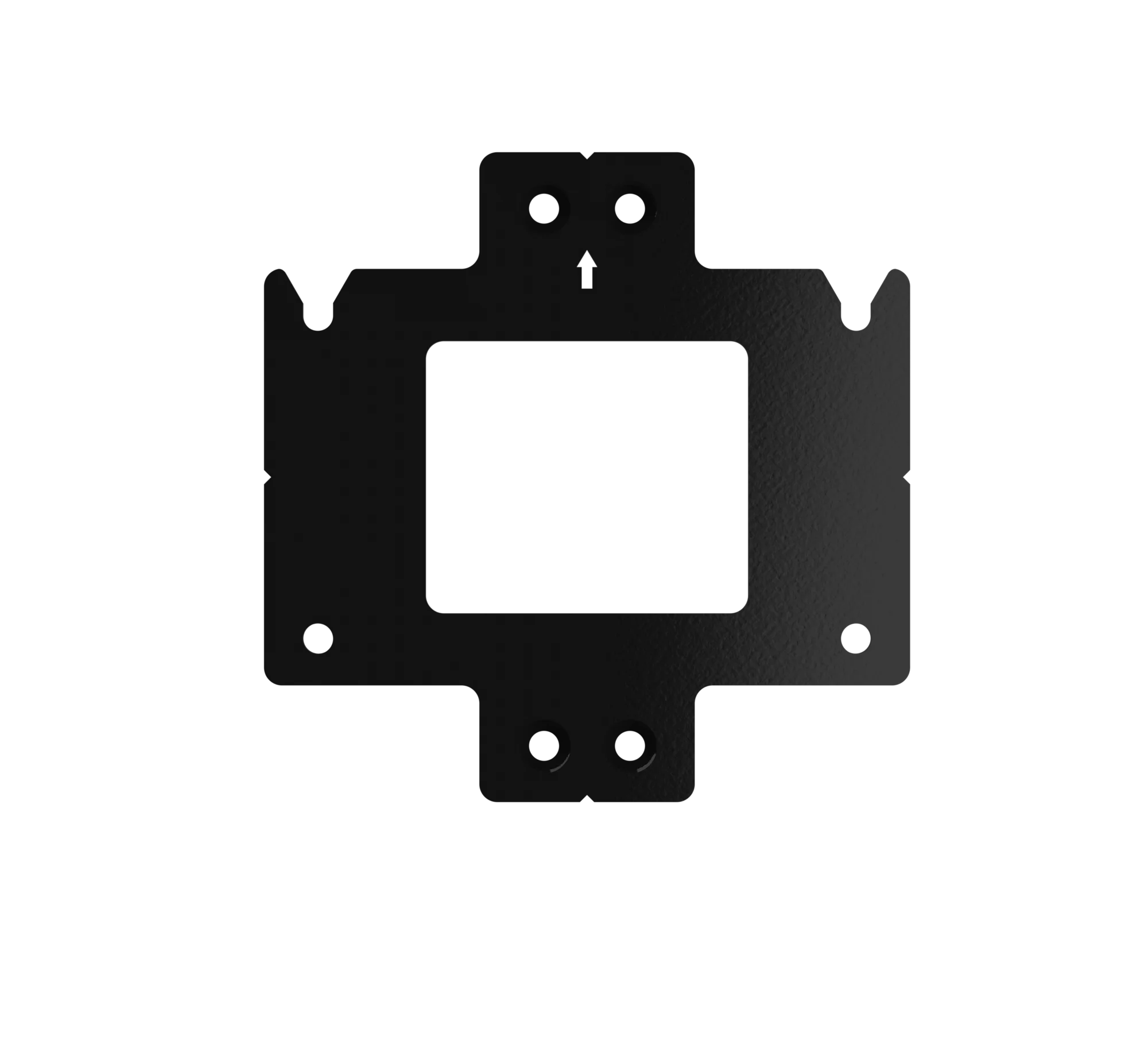

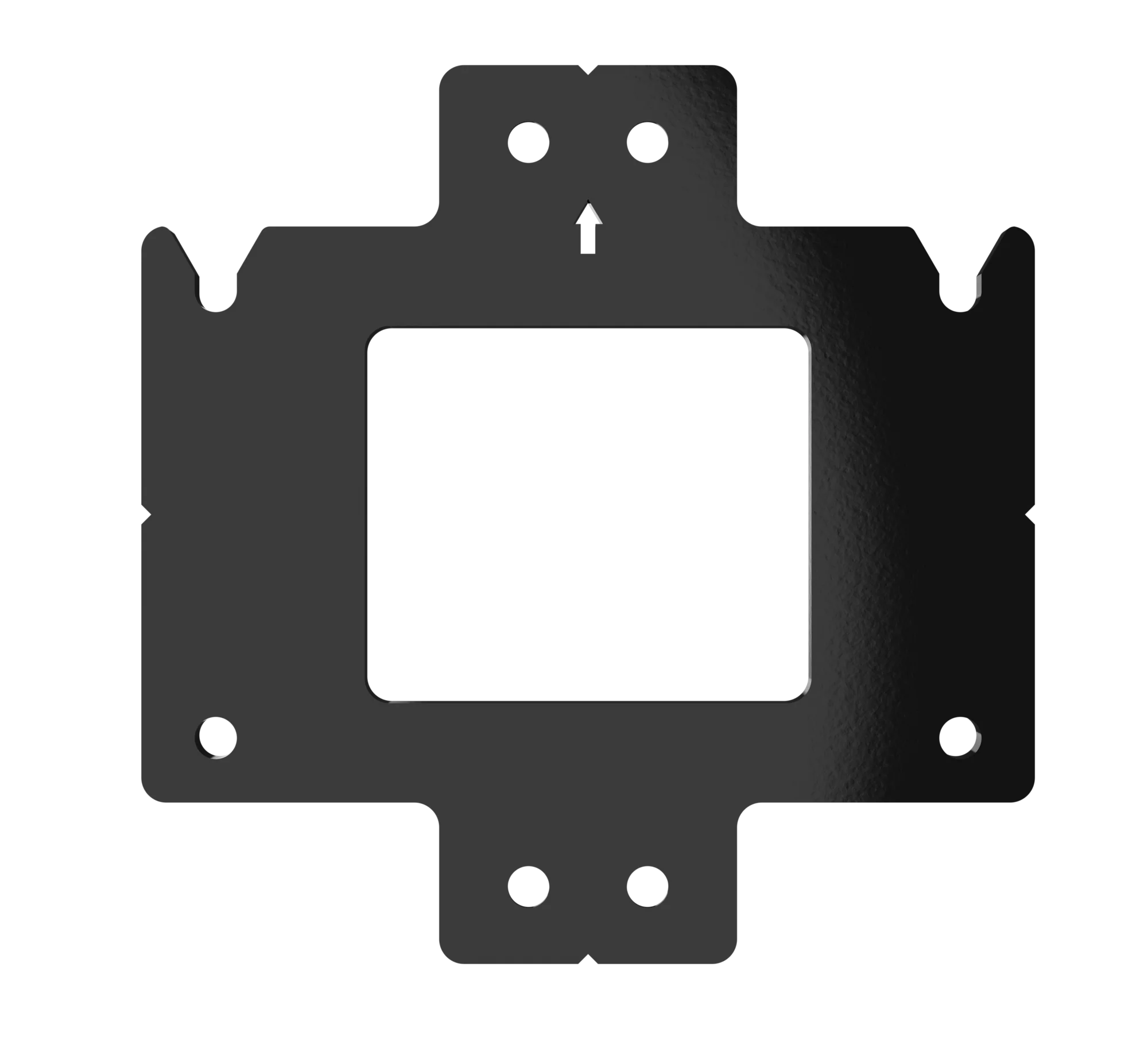

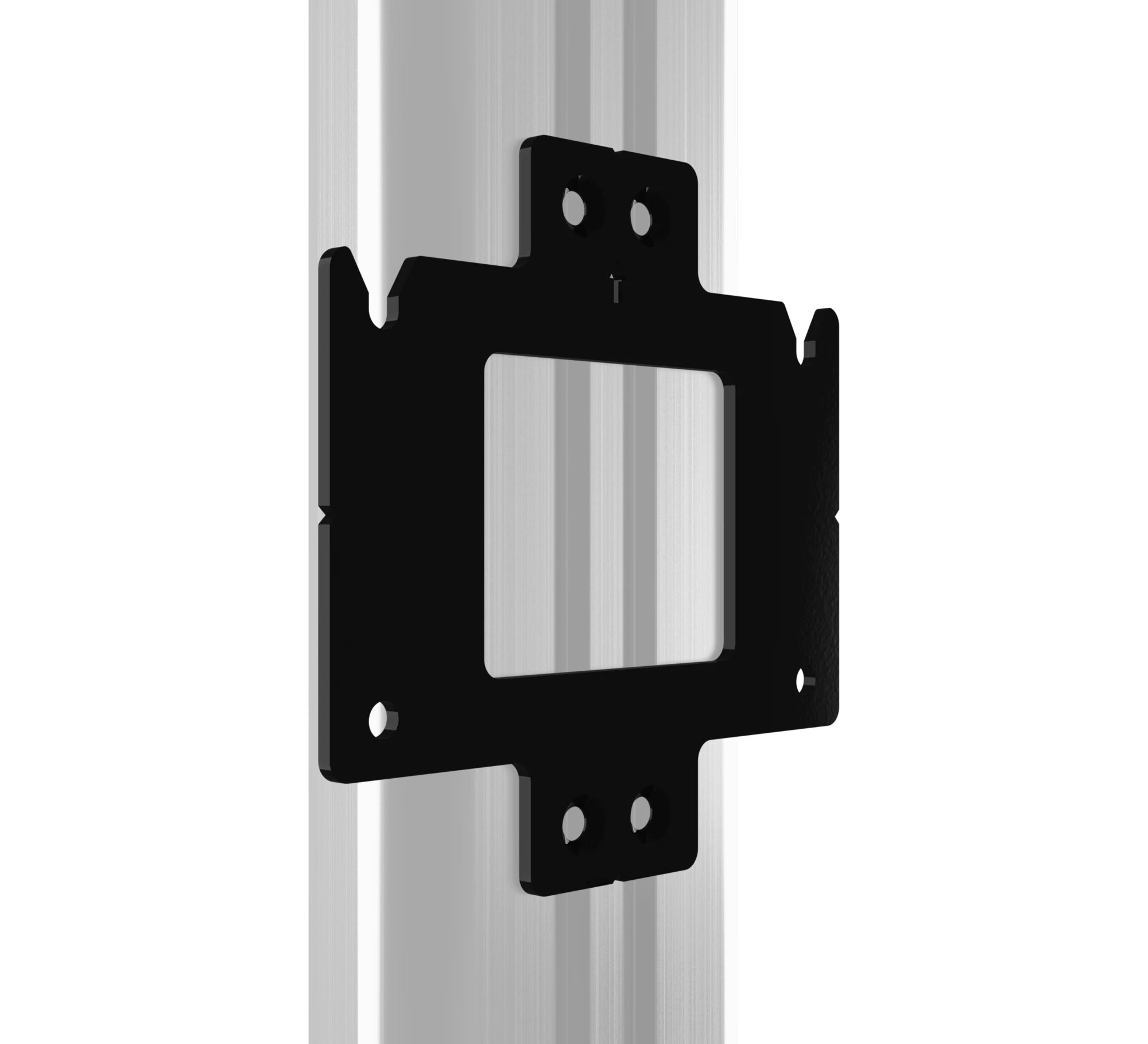

Designed to mount System X Rails to BT8381 Support Columns. The BT8381-JPS Joining Plate is needed to assemble System X screen mounting components to B-Tech's range of Floor Stand Components and Designer Trolleys and is ideal for multi-screen installations. The plate is fitted quickly and easily using the provided sliding nuts and countersunk screws, which allow the mounted rail to be positioned anywhere along the height of the column.
Designed to mount System X Rails to BT8381 Support Columns. The BT8381-JPS Joining Plate is needed to assemble System X screen mounting components to B-Tech's range of Floor Stand Components and Designer Trolleys and is ideal for multi-screen installations. The plate is fitted quickly and easily using the provided sliding nuts and countersunk screws, which allow the mounted rail to be positioned anywhere along the height of the column.

Product Features

  • Used for a variety of different fixed, freestanding or mobile installations
  • Ideal for System X single, twin screen and videowall installations
  • Included sliding nuts allow rails and columns to be positioned as required to suit the application

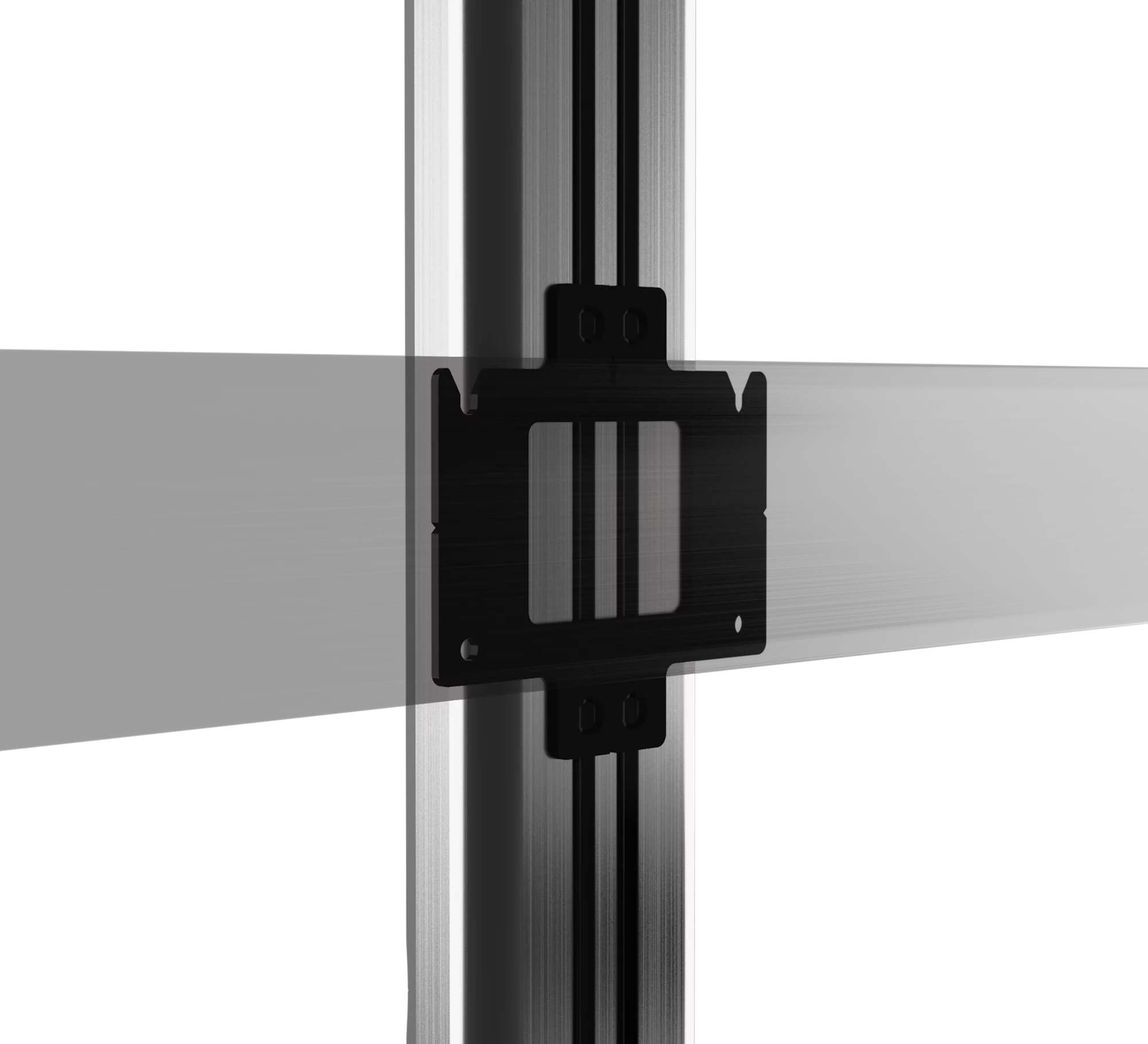

  • Connects BT8390 mounting rails to BT8381 vertical columns
  • Can be positioned at any height on the column, and anywhere along the rail to suit the application

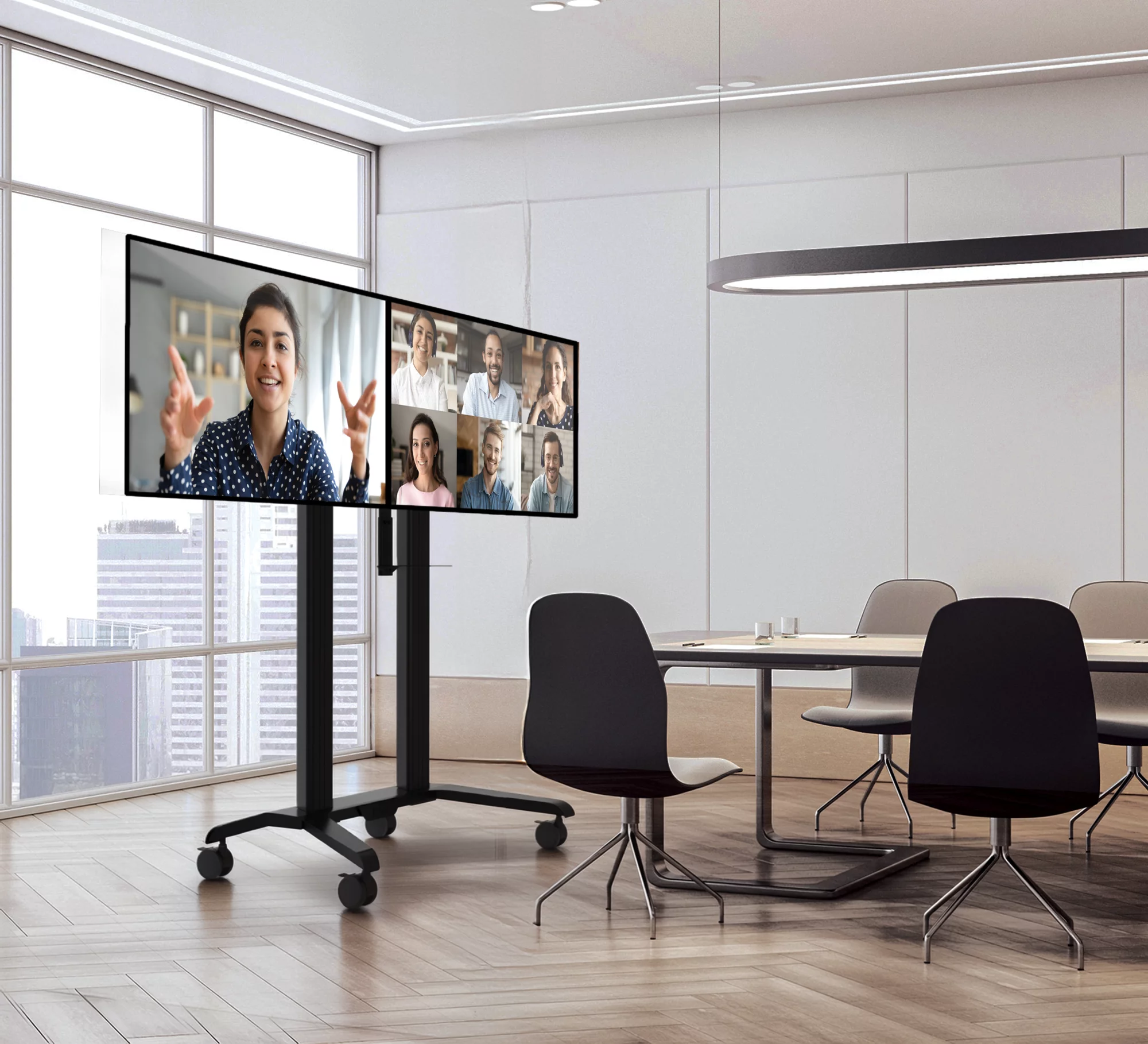

  • Can be added to B-Tech range of Designer Trolleys (BT8562 / BT8564)
  • Used for a variety of different fixed, freestanding or mobile installations
  • Ideal for System X single, twin screen and videowall installations
  • Included sliding nuts allow rails and columns to be positioned as required to suit the application
  • Connects BT8390 mounting rails to BT8381 vertical columns
  • Can be positioned at any height on the column, and anywhere along the rail to suit the application
  • Can be added to B-Tech range of Designer Trolleys (BT8562 / BT8564)

Product Specifications

  • Product width: 180mm
  • Product depth: 4mm
  • Product height: 181mm
  • Steel thickness: 4mm
  • Qty per pack: 1
  • Colour: Black
  • Product width: 180mm
  • Product depth: 4mm
  • Product height: 181mm
  • Steel thickness: 4mm
  • Qty per pack: 1
  • Colour: Black

Ordering & Box Information

Order Code: BT8381-JPS/B

Barcode: 5019318302923

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 0.70kg

Order Code: BT8381-JPS/B

Barcode: 5019318302923

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 0.70kg
