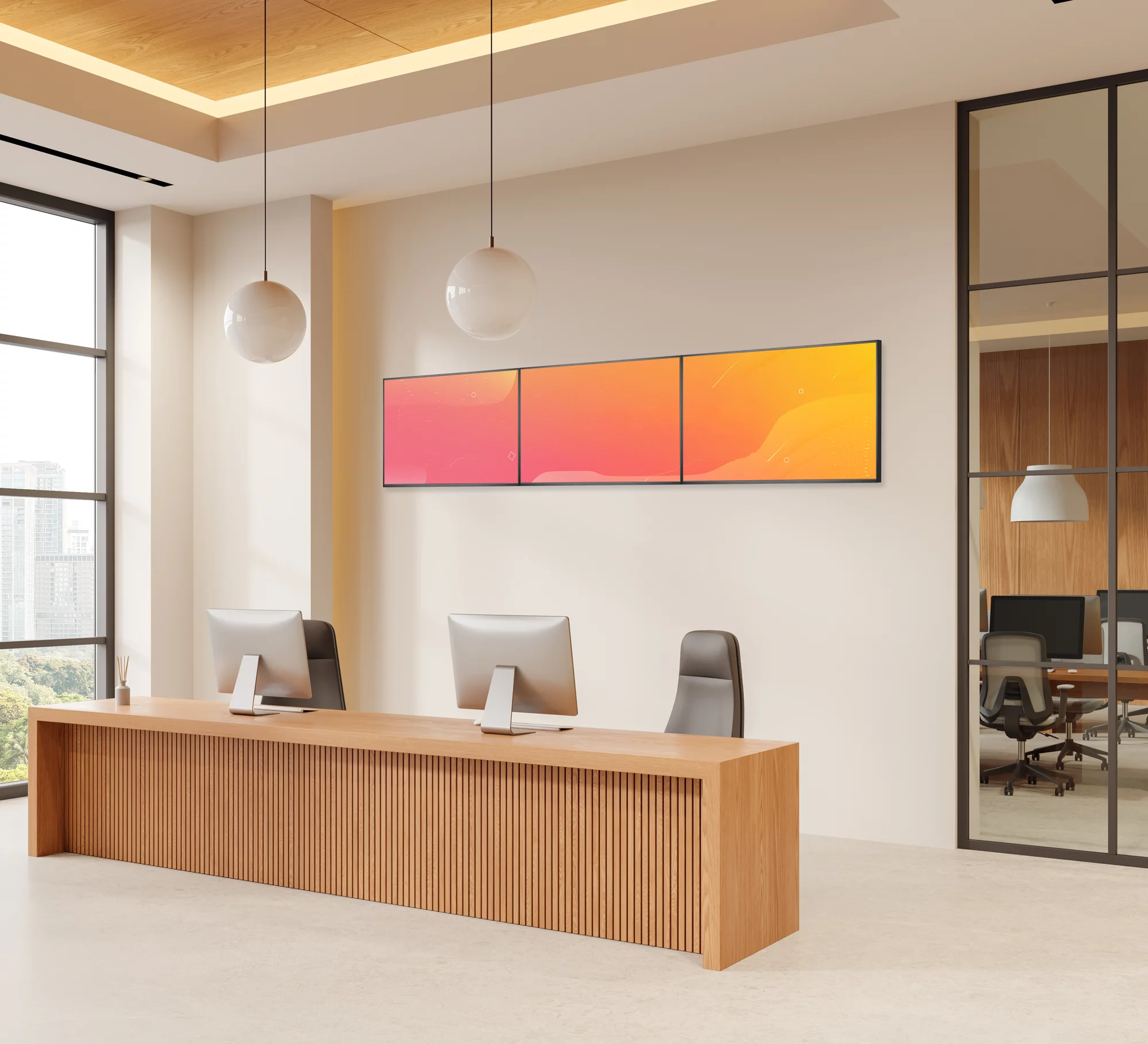

• Ideal for videowalls and other multi-screen installations
• Push to open / push to close system provides quick and easy service access

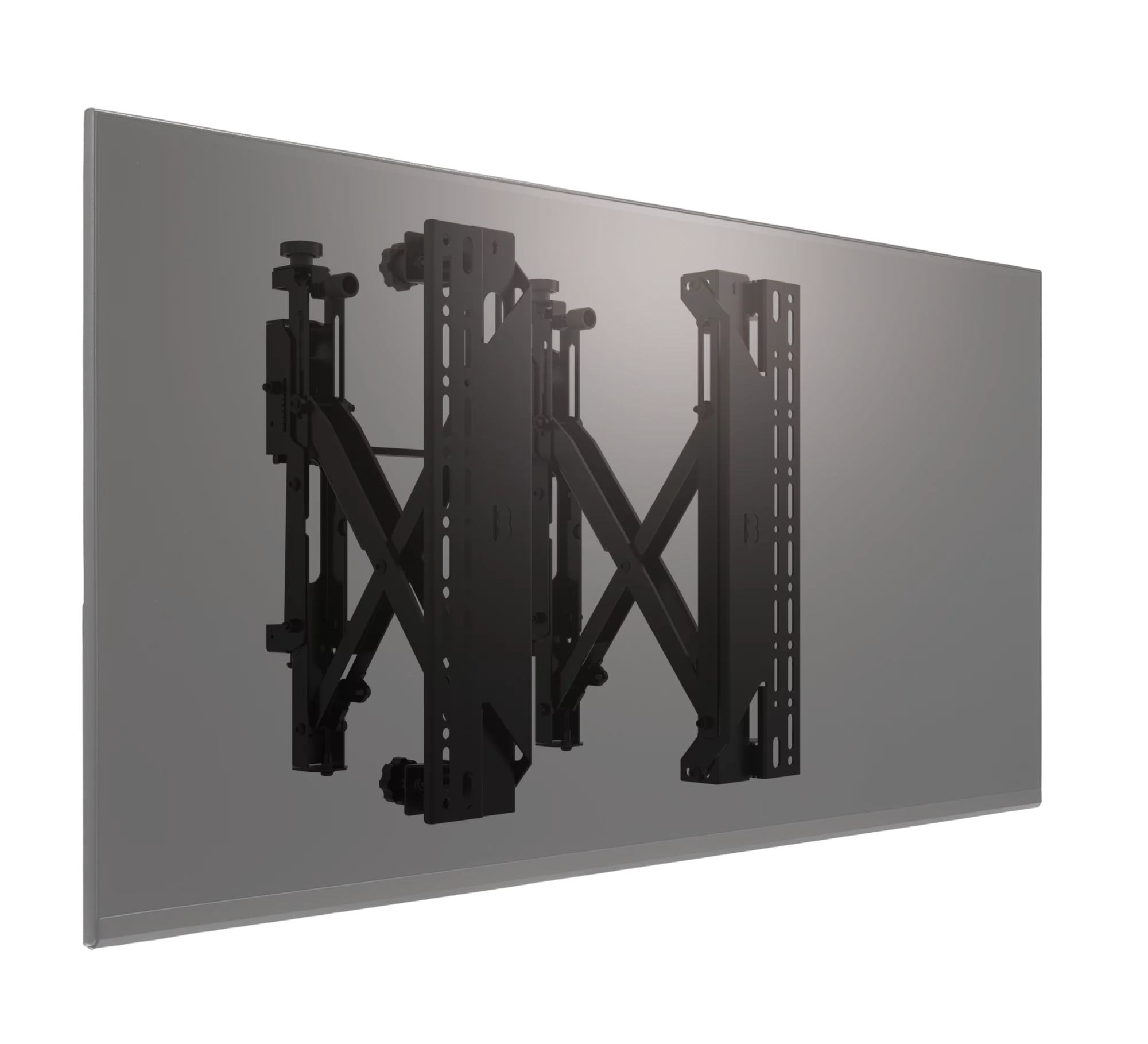

• Perfect solution for mounting screens into a recessed wall
• Universal design compatible with most screens
• Suitable for landscape or portrait mounting
• Tool-less micro-adjustment for seamless display alignment
• Lateral adjustment - position arms anywhere along the length of the rail
• Safety screws help prevent unauthorised removal of screens
• Simple 'hook-on' installation
• All mounting hardware included
• TUV certified

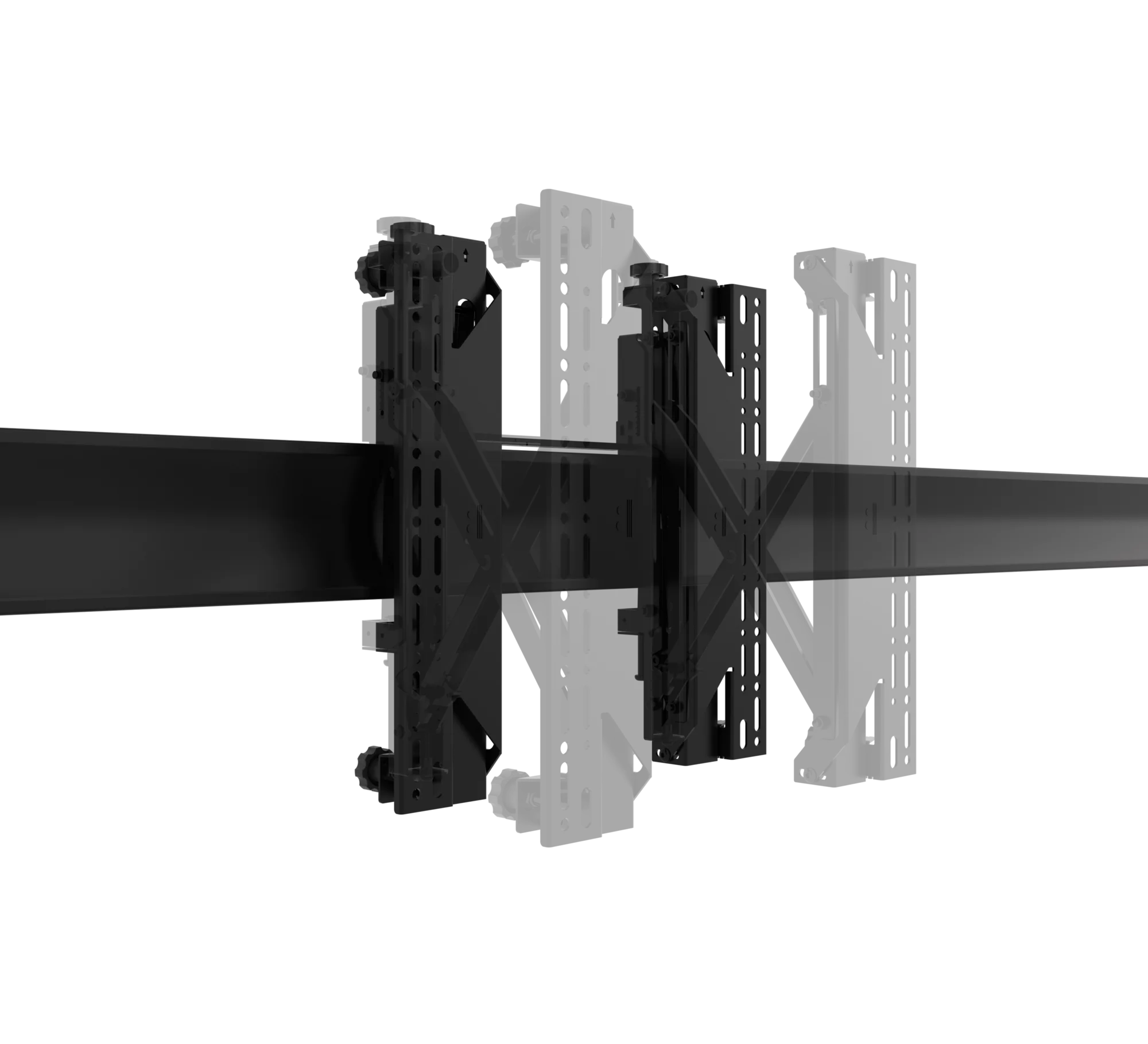

• Designed for use with: BT8390 - Mounting Rail
• Recommended display size: 39" up to 75"
• Max load: 50kg
• VESA fixings: up to 400mm *
• Micro-adjustment per corner -/+: 10mm
• Product width: 110.9mm
• Product depth: 68.7mm
• Product height: 434.4mm

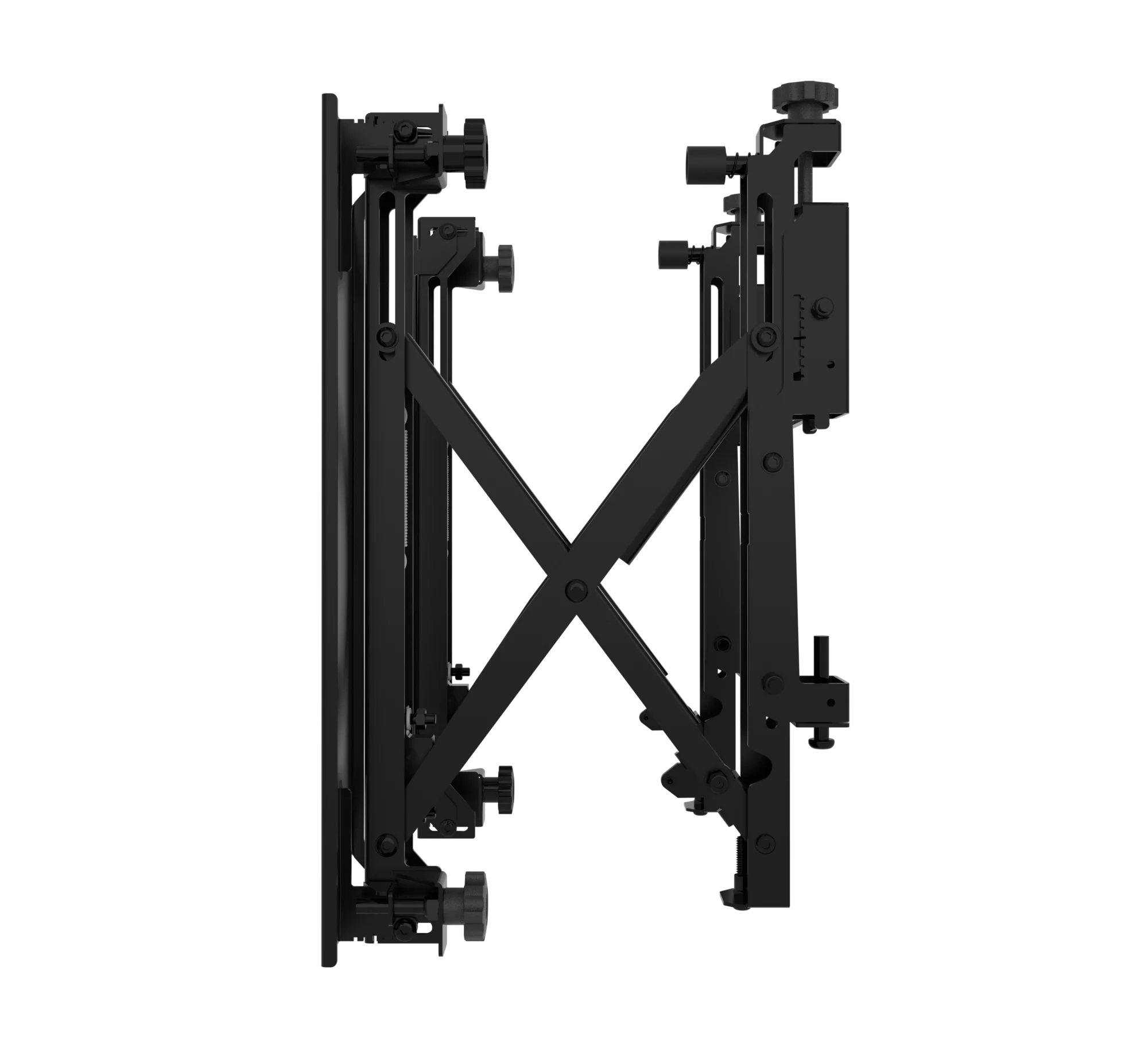

• Popped out depth: 237.2mm
• Screen height adjustment: 20mm
• Closed depth (mounted using BT8390-WFK1): 105.4mm
• Open depth (mounted using BT8390-WFK1): 273.9mm
• Height Adjustment: +/- 20mm
• Supplied in pairs
• Colour: Black
• *The VESA specification of the BT8390-VESA400mm MAP refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary. BT7564 Interface Adaptor Arms can be used to increase the maximum vertical fixings to 600mm for larger screens.
• Depth adjustment: +/-10mm

Order Code: BT8390-VESA400MAP/B V2

Barcode: 5019318501609

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 8kg
