BT8390-WFK2

System X

System X Rail Mounting Bracket

For use with BT8390 rails

BT8390-WFK2/B

System X

System X Rail Mounting Bracket

For use with BT8390 rails

Overview

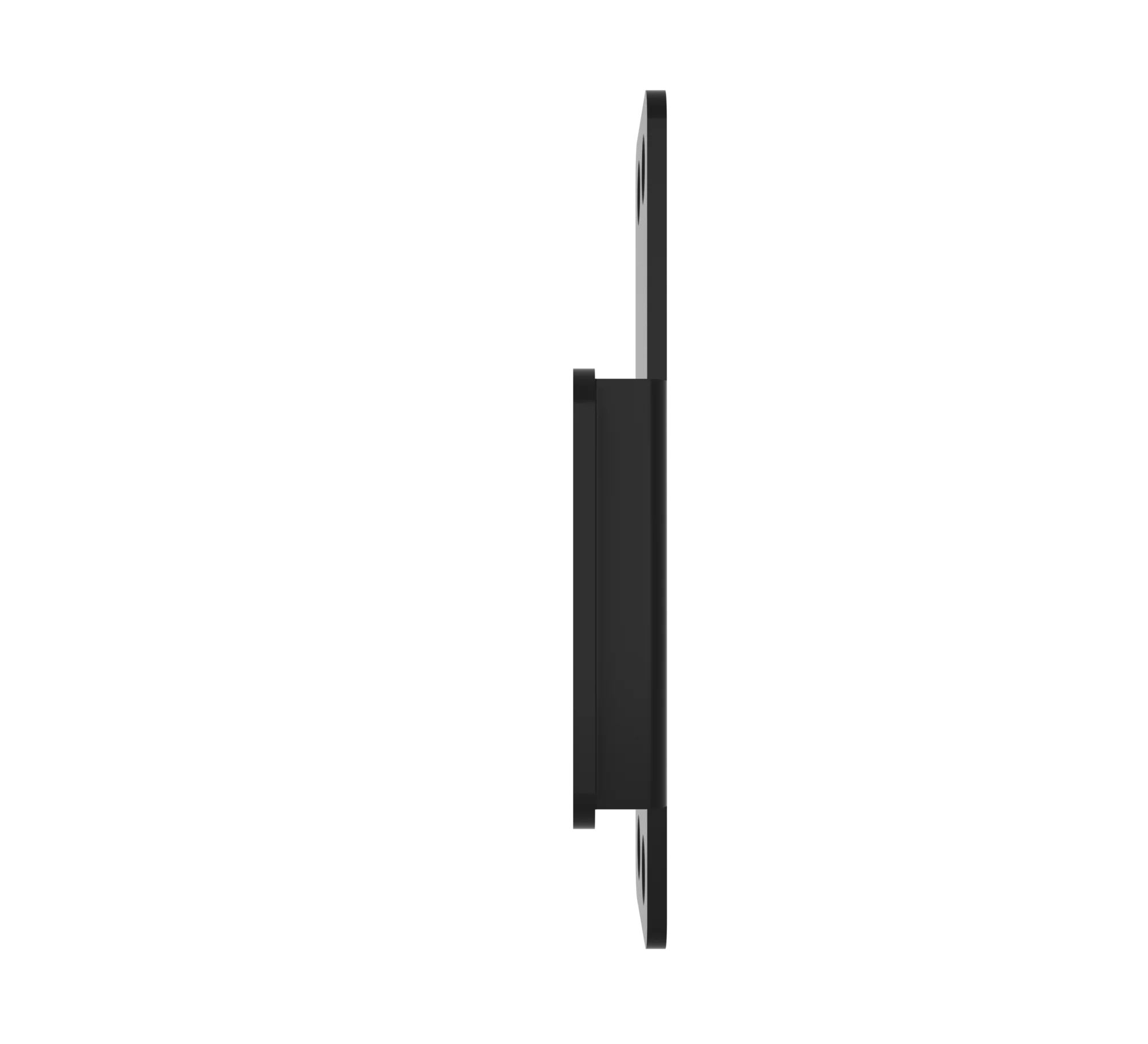

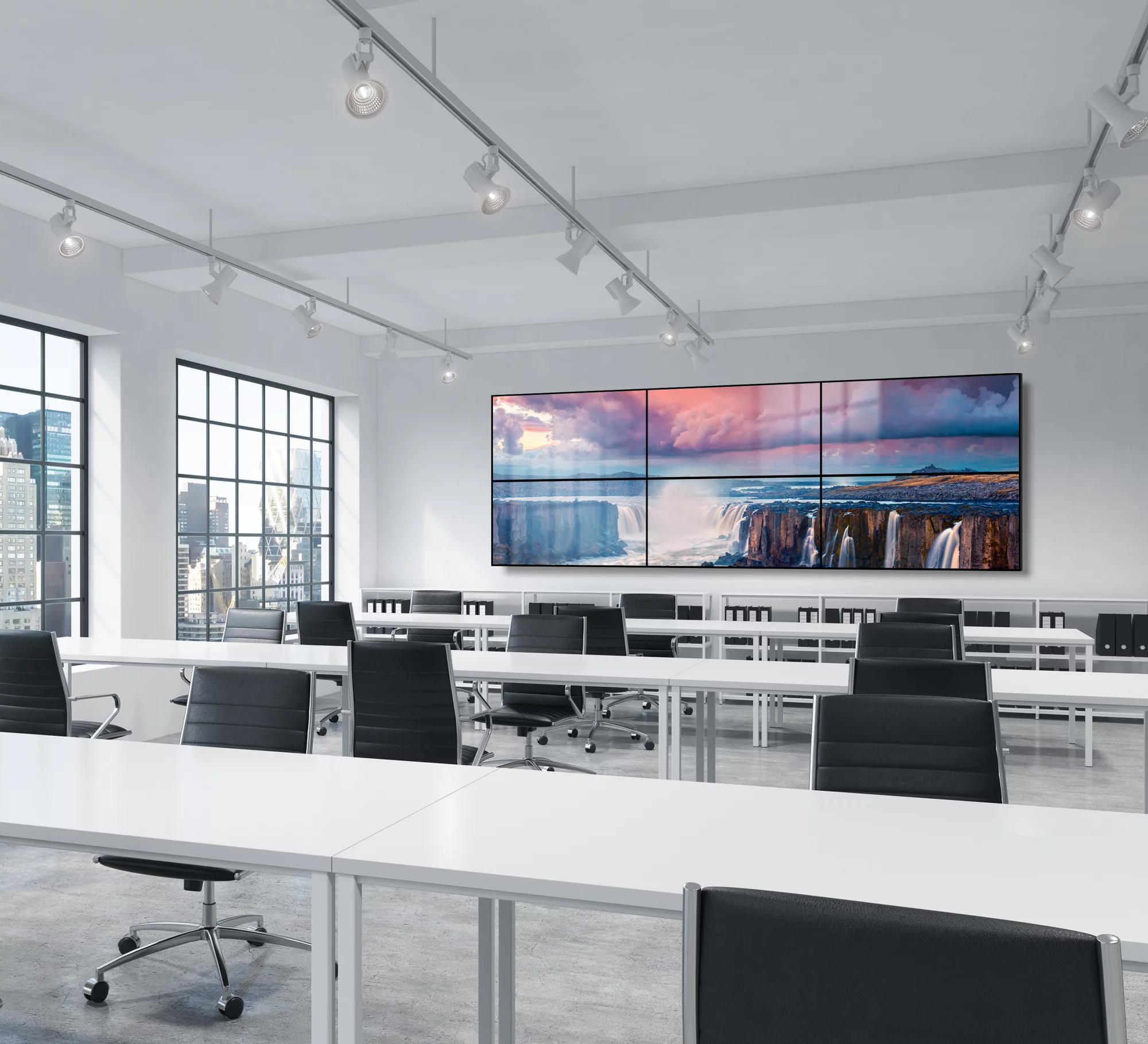

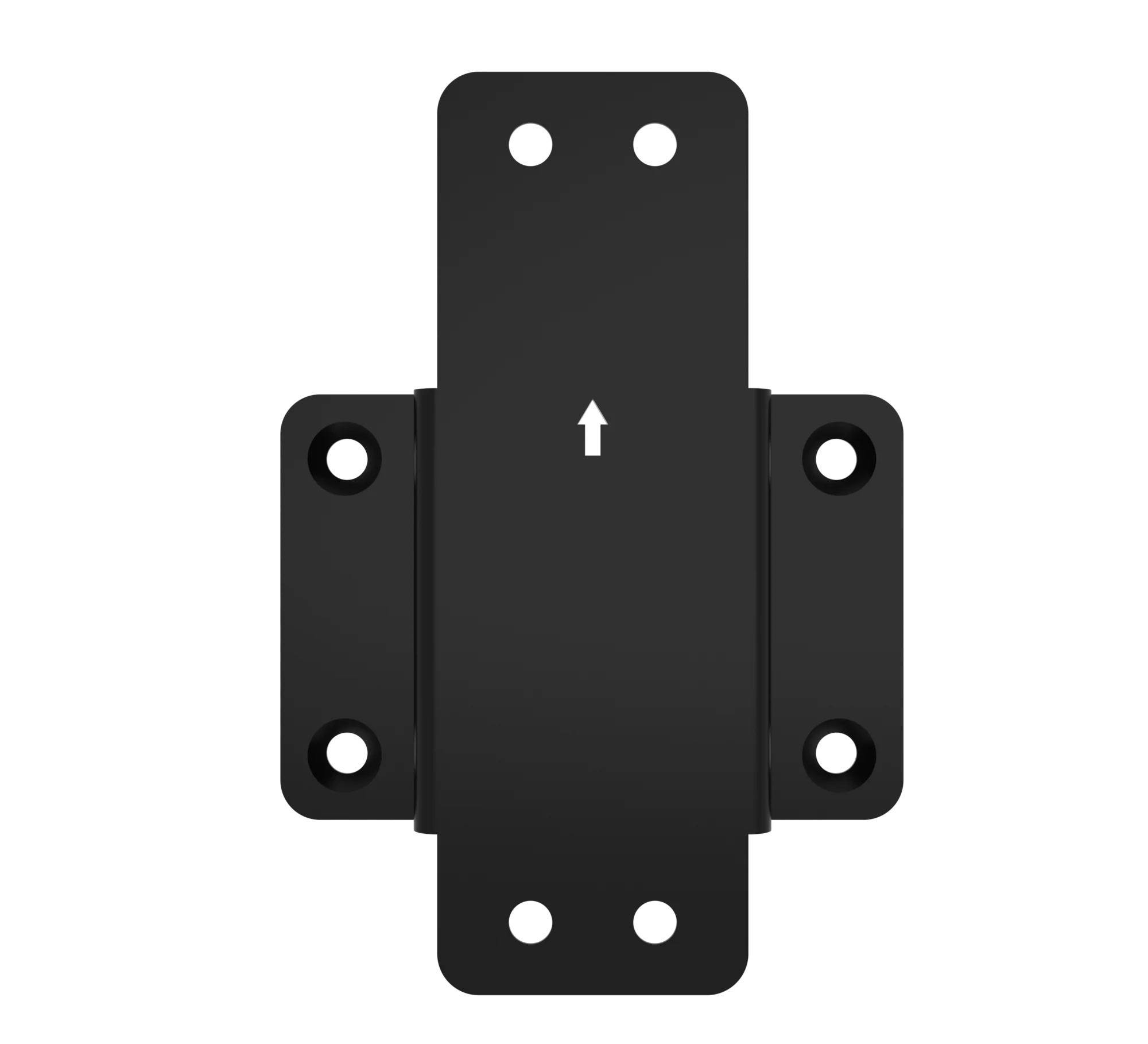

The BT8390-WFK2 is a bracket designed to fix BT8390 mounting rails onto walls or poles, for the installation of video walls and other multi-screen configurations. The sturdy 5mm thick plate is designed for installations using micro-adjustment, pop-out or XL interface arms from the System X range.
The BT8390-WFK2 is a bracket designed to fix BT8390 mounting rails onto walls or poles, for the installation of video walls and other multi-screen configurations. The sturdy 5mm thick plate is designed for installations using micro-adjustment, pop-out or XL interface arms from the System X range.

Product Features

  • Designed to mount BT8390 horizontal mounting rails to the wall
  • Can also be used for pole mounted videowall installations
  • Increased depth allows for an enhanced tilt range when using tilt arms

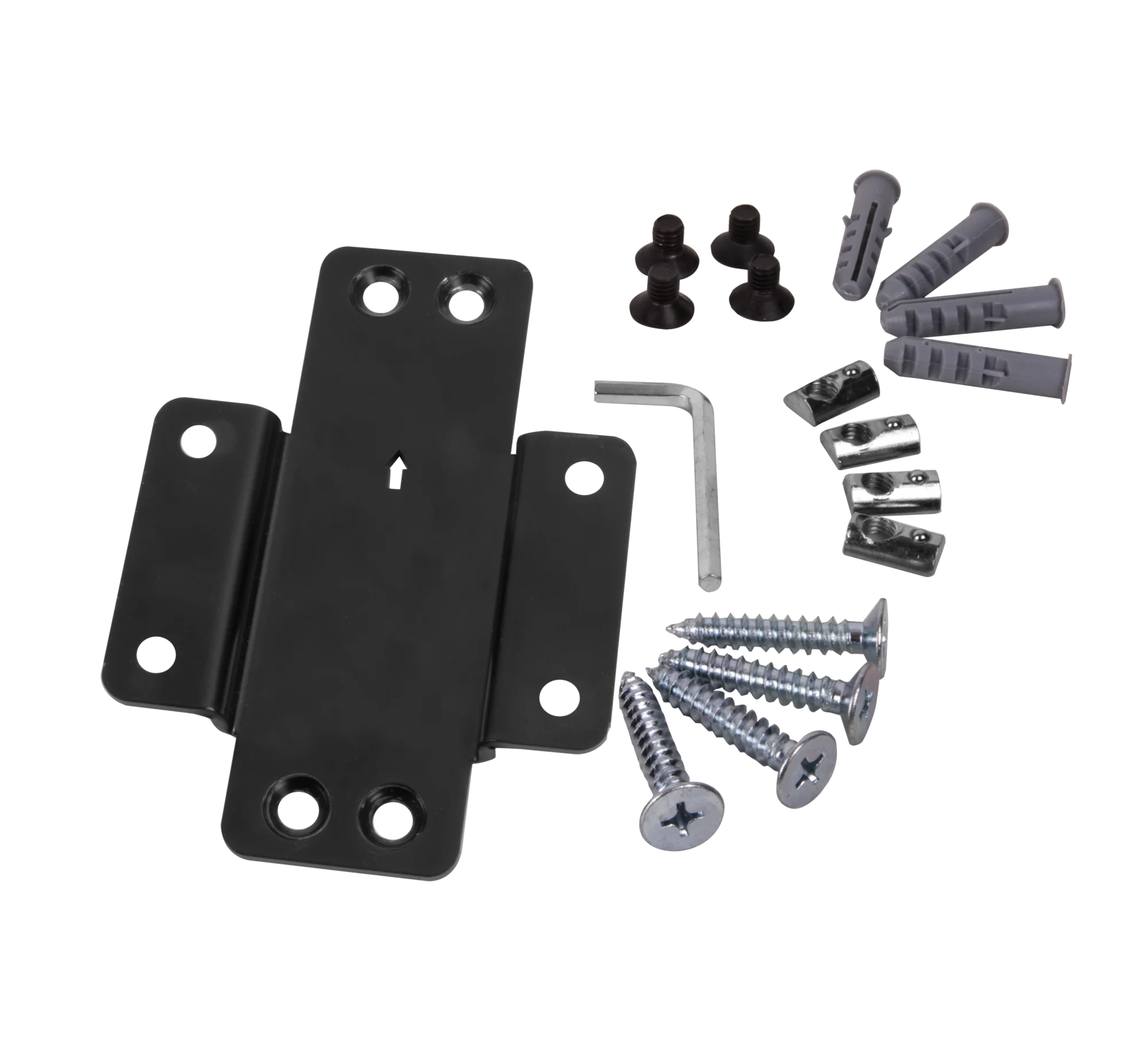

  • Countersunk screws sit flush with the plate for a neat installation
  • TUV certified
  • Designed to mount BT8390 horizontal mounting rails to the wall
  • Can also be used for pole mounted videowall installations
  • Increased depth allows for an enhanced tilt range when using tilt arms
  • Countersunk screws sit flush with the plate for a neat installation
  • TUV certified

Product Specifications

  • Designed for use with: BT8390 - Mounting Rail
  • Compatible interface arms: All System X Arms
  • Max load: 100kg
  • Product width: 126mm
  • Product depth: 19mm
  • Product height: 178mm
  • Qty per pack: 1
  • Colour: Black
  • *Use B-Tech's online configuration tool to automatically calculate the quantity required based on your configuration
  • Designed for use with: BT8390 - Mounting Rail
  • Compatible interface arms: All System X Arms
  • Max load: 100kg
  • Product width: 126mm
  • Product depth: 19mm
  • Product height: 178mm
  • Qty per pack: 1
  • Colour: Black
  • *Use B-Tech's online configuration tool to automatically calculate the quantity required based on your configuration

Ordering & Box Information

Order Code: BT8390-WFK2/B

Barcode: 5019318501272

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 0.67kg

Order Code: BT8390-WFK2/B

Barcode: 5019318501272

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 0.67kg
