BT8390-WFK8

System X

System X Ultra-Slim Rail Mounting Bracket

For use with BT8390 rails

BT8390-WFK8/B

System X

System X Ultra-Slim Rail Mounting Bracket

For use with BT8390 rails

Overview

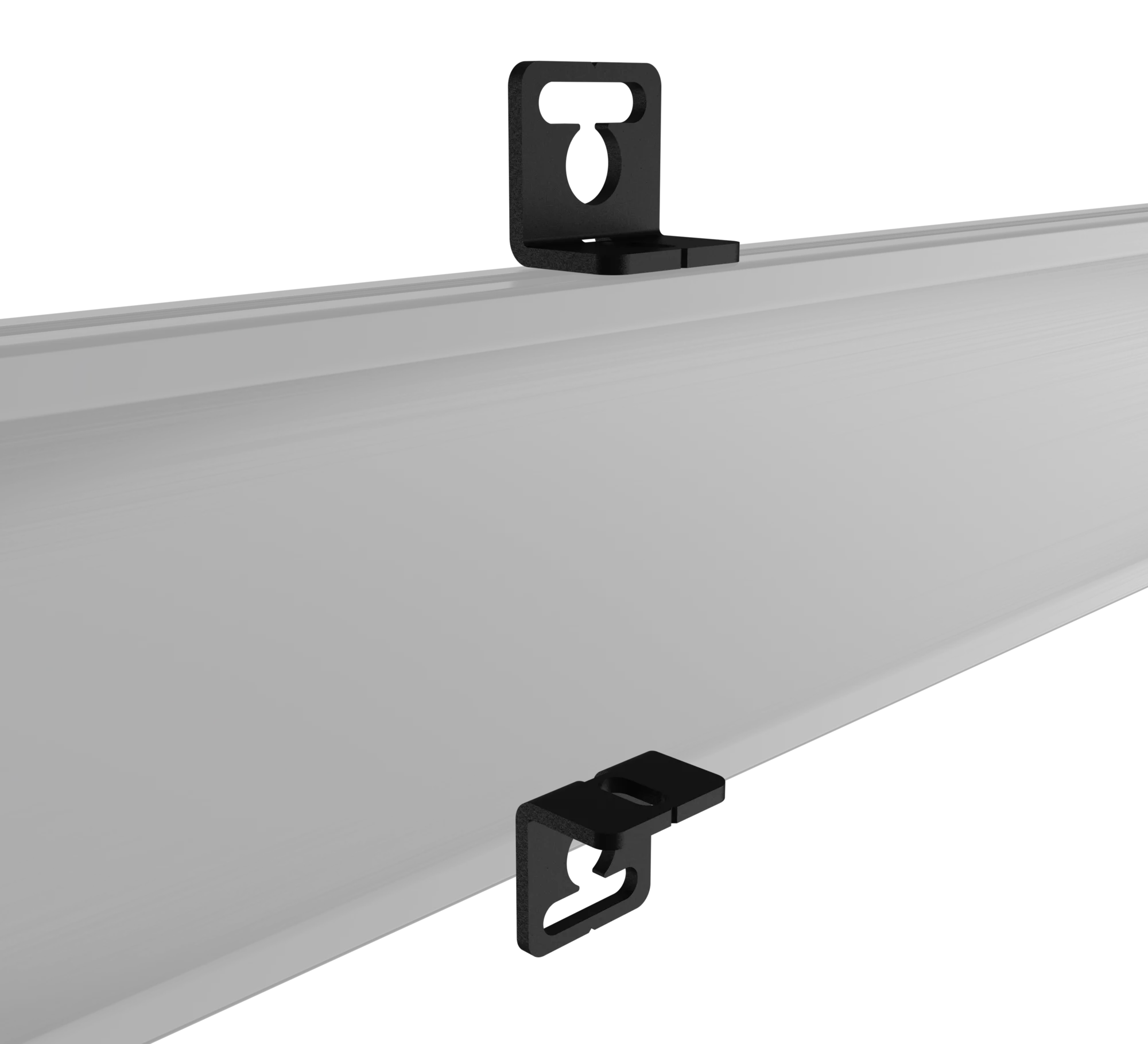

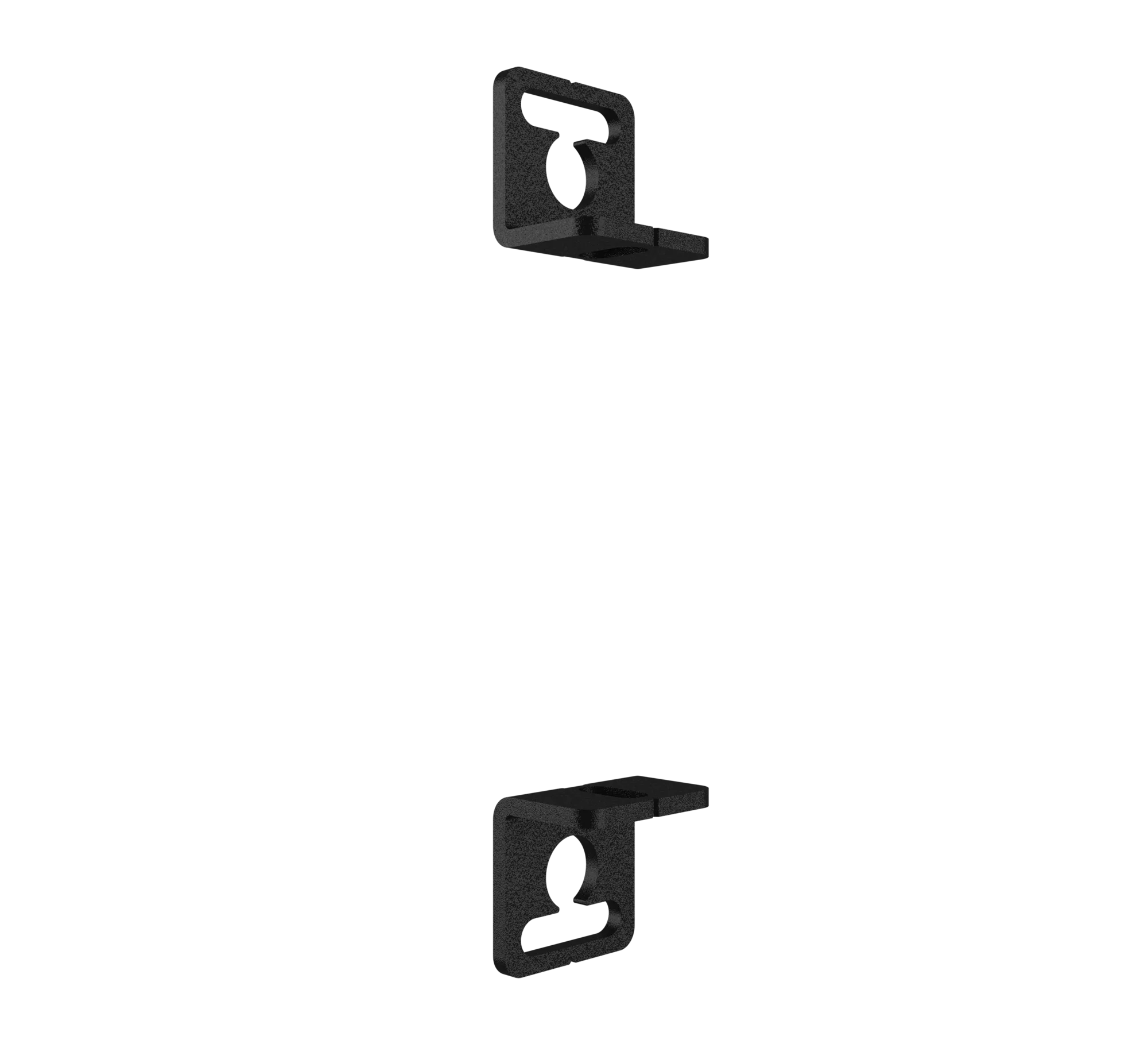

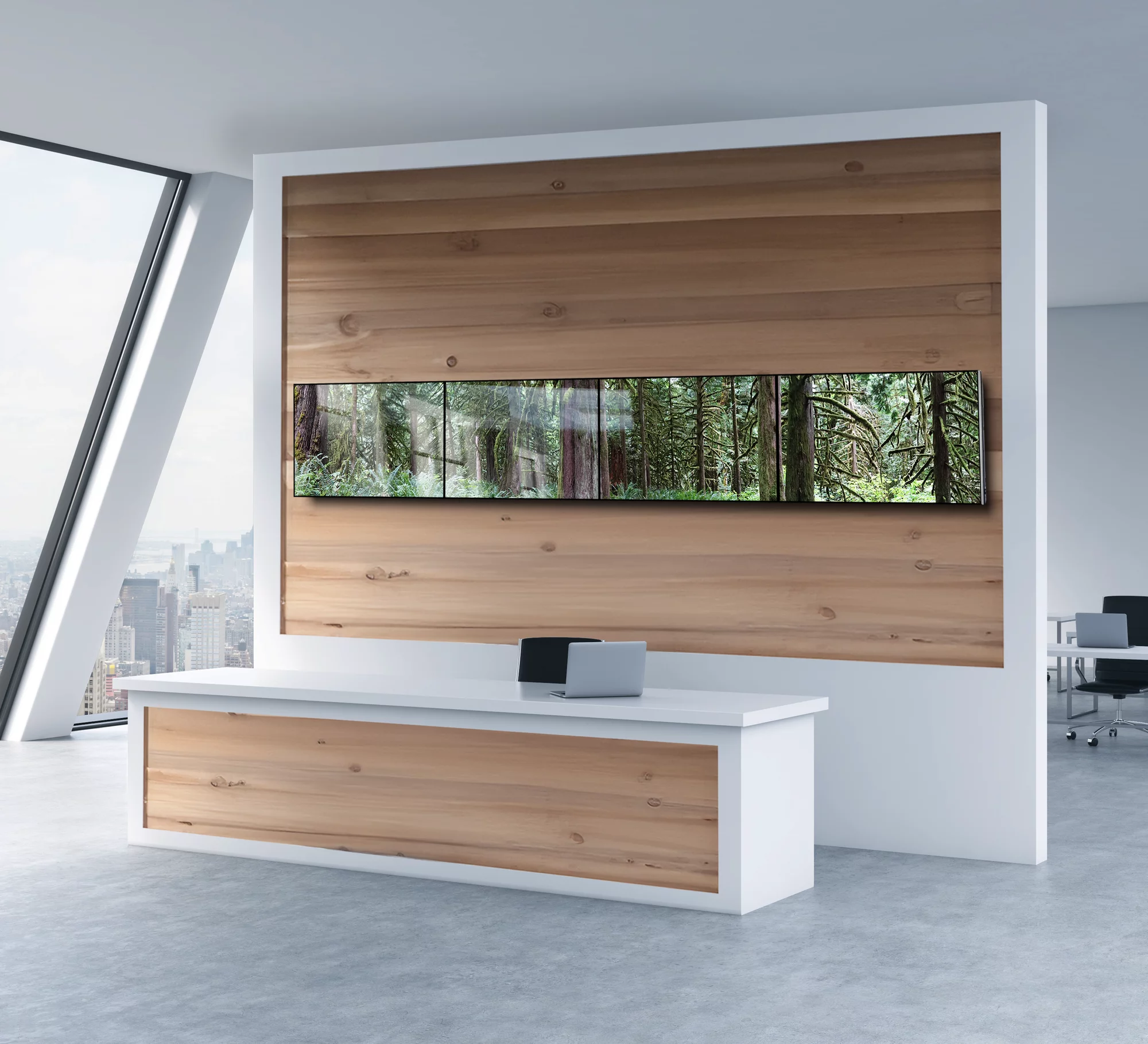

The BT8390-WFK8 is an ultra-slim bracket designed to position BT8390 mounting rails flush against the wall, making it ideal for menu boards and other multi-screen configurations. This versatile bracket is part of the System X range, ensuring a minimal profile for finished installations. It also allows the rail to be mounted facing either forwards or backwards, accommodating various installation requirements.
The BT8390-WFK8 is an ultra-slim bracket designed to position BT8390 mounting rails flush against the wall, making it ideal for menu boards and other multi-screen configurations. This versatile bracket is part of the System X range, ensuring a minimal profile for finished installations. It also allows the rail to be mounted facing either forwards or backwards, accommodating various installation requirements.

Product Features

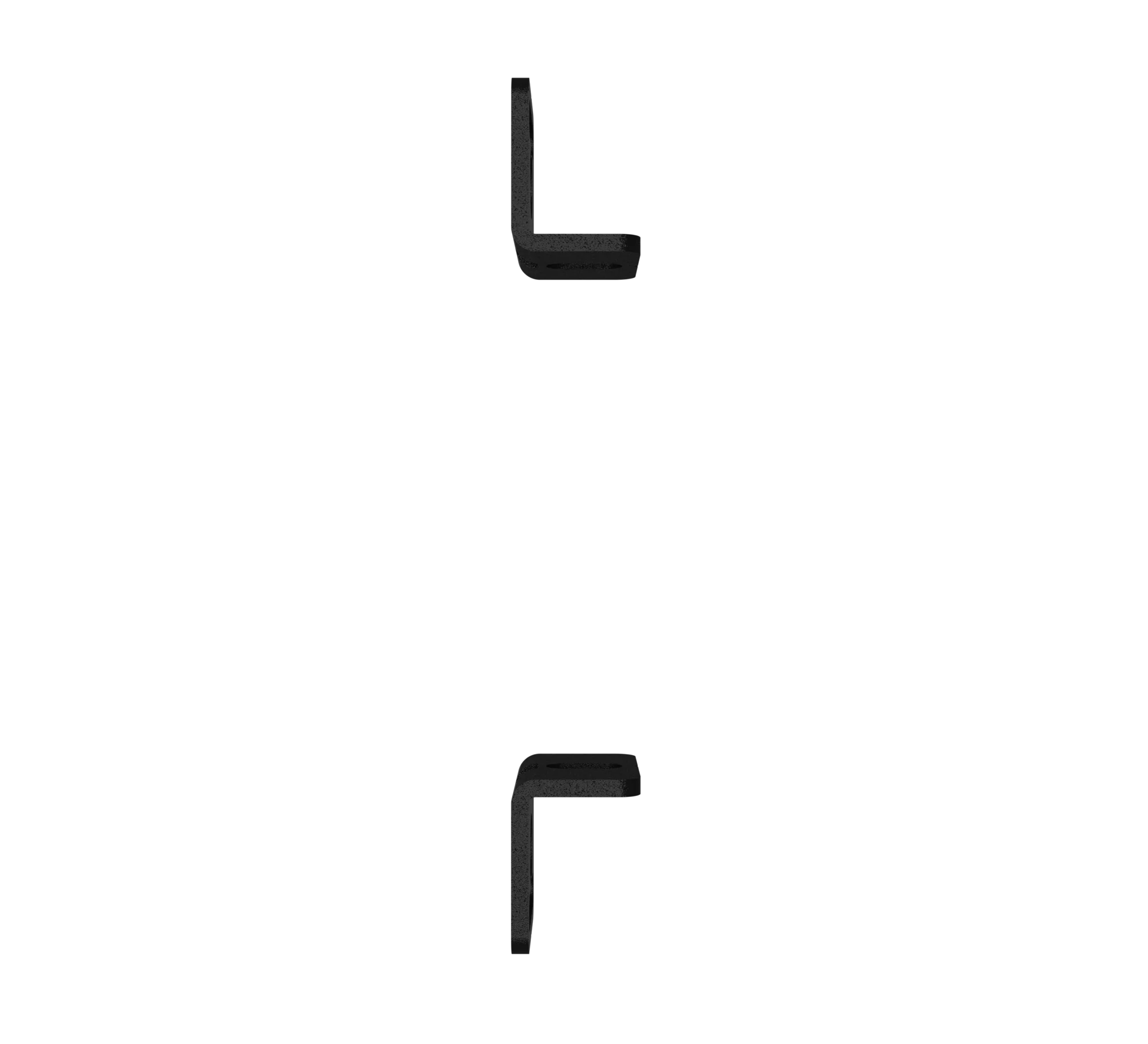

  • Ultra-Slim design mounts BT8390 Rails flush against a wall

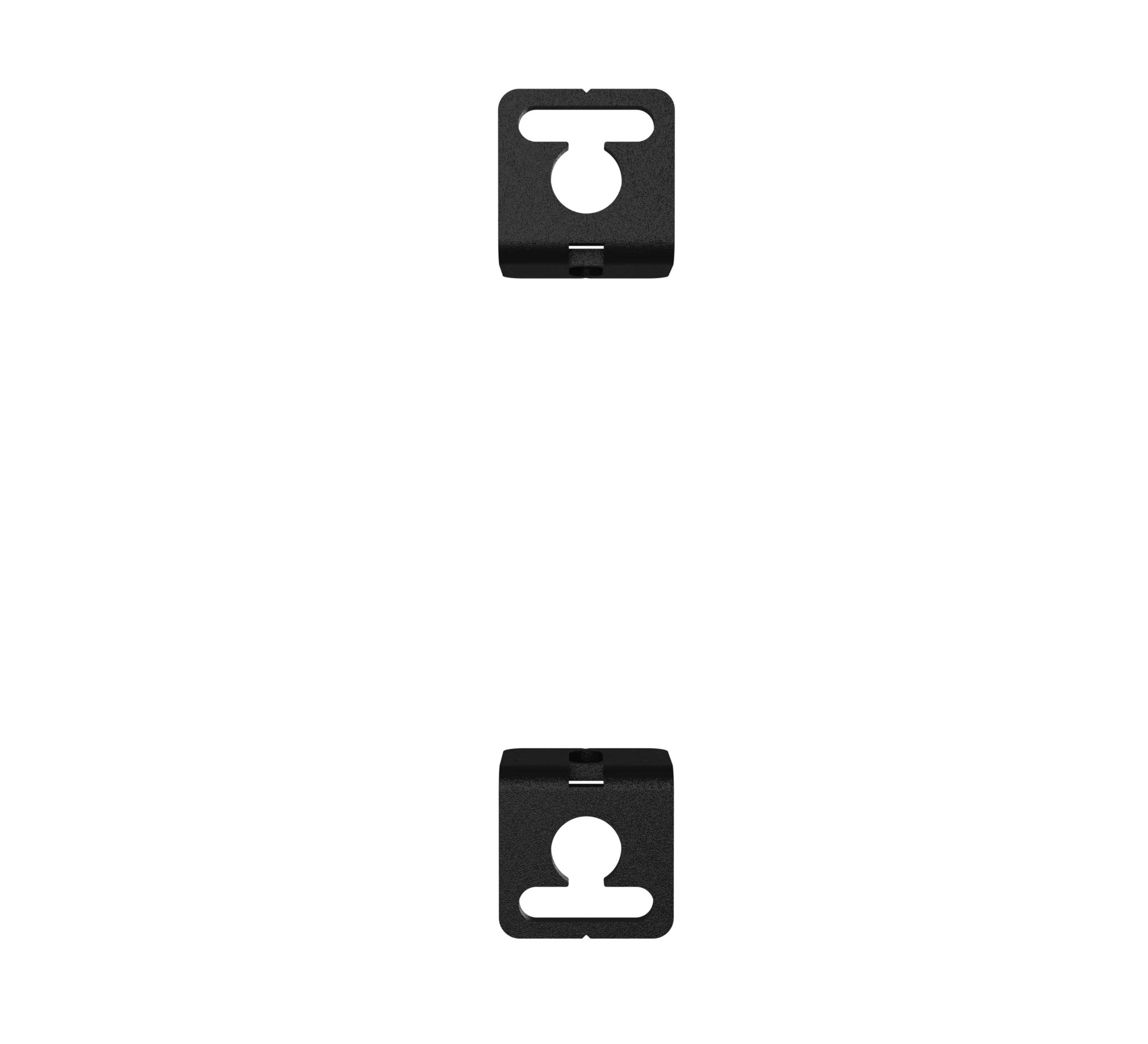

  • Keyhole mounting for easy installation
  • Attaches to B-Tech collars (BT7052 / BT7841) for mounting to poles
  • Vertical Centre Guides make positioning easy
  • Can be used to reverse mount BT8390 rails
  • Can also be fitted directly to BT8380 and BT8381 columns
  • All mounting hardware included
  • Ultra-Slim design mounts BT8390 Rails flush against a wall
  • Keyhole mounting for easy installation
  • Attaches to B-Tech collars (BT7052 / BT7841) for mounting to poles
  • Vertical Centre Guides make positioning easy
  • Can be used to reverse mount BT8390 rails
  • Can also be fitted directly to BT8380 and BT8381 columns
  • All mounting hardware included

Product Specifications

  • Designed for use with: BT8390 - Mounting Rail
  • Max load: 80kg per pair
  • Distance from wall to front of rail: 30mm
  • Product width: 42mm
  • Product depth: 29.8mm
  • Product height: 202mm
  • Colour: Black
  • *Use B-Tech's online configuration tool to automatically calculate the quantity required based on your configuration
  • Designed for use with: BT8390 - Mounting Rail
  • Max load: 80kg per pair
  • Distance from wall to front of rail: 30mm
  • Product width: 42mm
  • Product depth: 29.8mm
  • Product height: 202mm
  • Colour: Black
  • *Use B-Tech's online configuration tool to automatically calculate the quantity required based on your configuration

Ordering & Box Information

Order Code: BT8390-WFK8/B

Barcode: 5019318308987

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 0.24kg

Order Code: BT8390-WFK8/B

Barcode: 5019318308987

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 0.24kg
