BT8390-WFK5

System X

System X Adjustable Depth Rail Mounting Bracket

Ideal for uneven walls

BT8390-WFK5/B V2

System X

System X Adjustable Depth Rail Mounting Bracket

Ideal for uneven walls

Overview

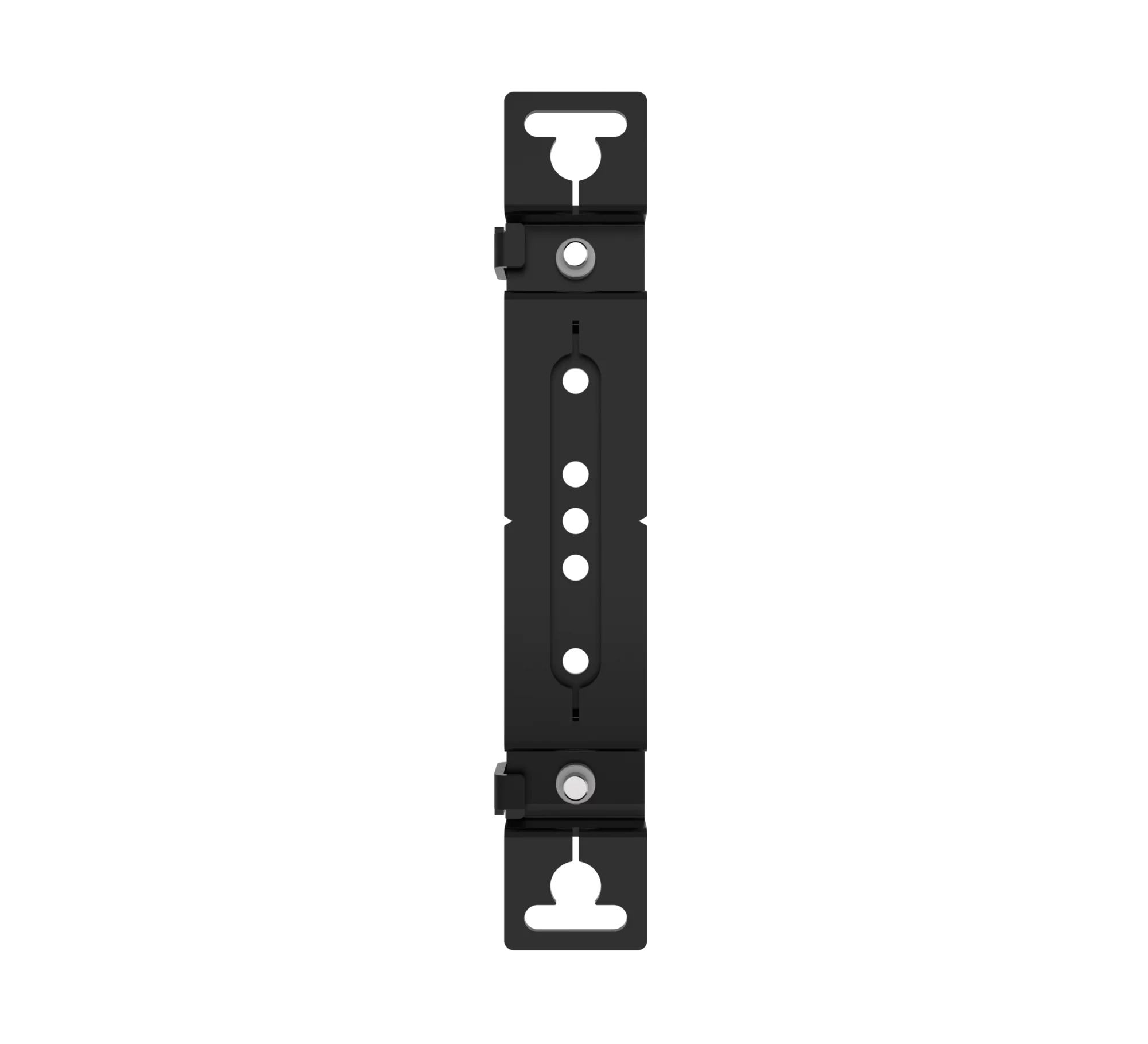

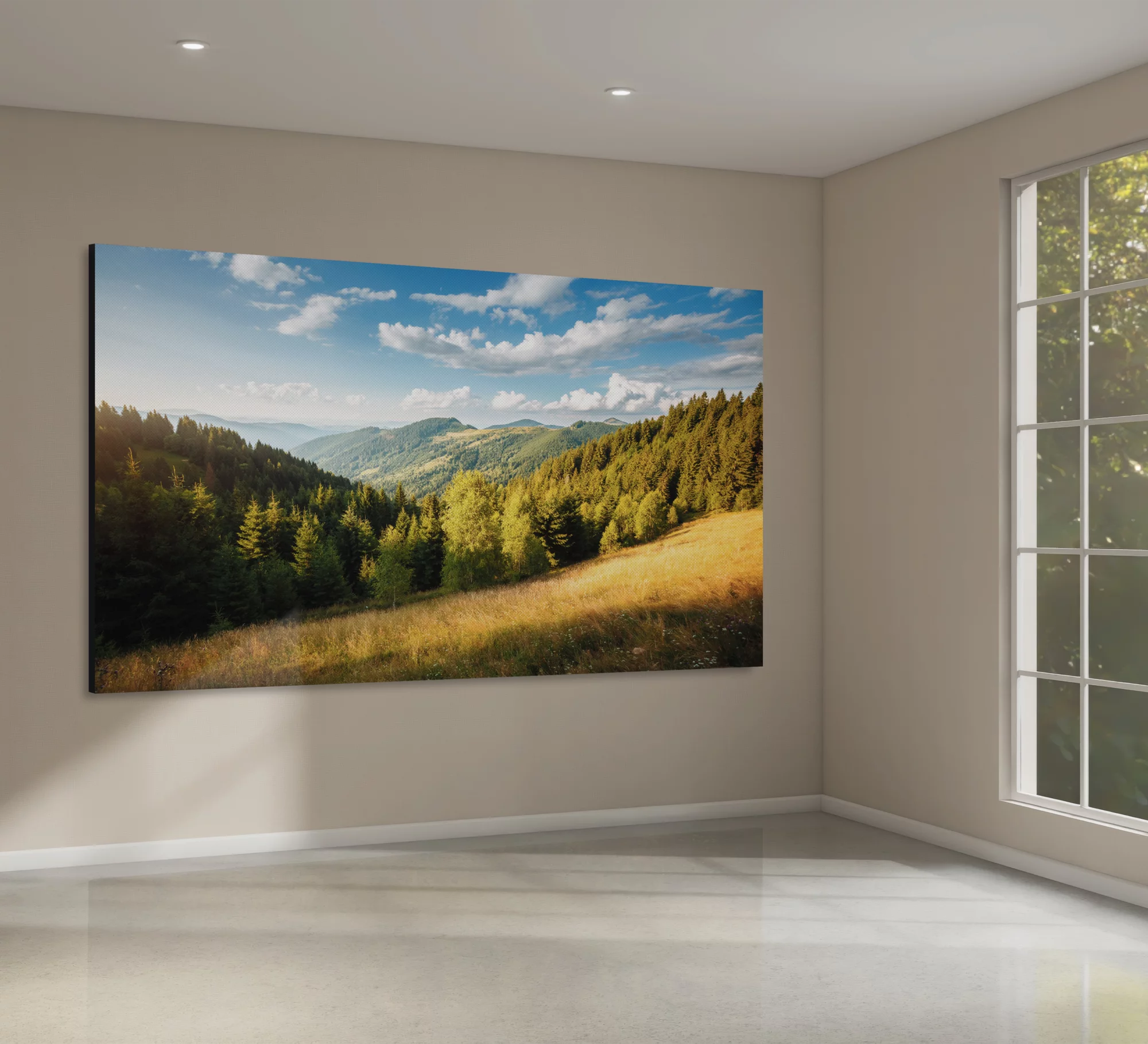

The BT8390-WFK5 is an adjustable bracket designed to fix BT8390 and BT8393 rails to uneven walls for a level installation. The BT8390-WFK5 is also compatible for pole and column mounting using B-Tech's System 2 and System X mounts. Ideal for DVLED mounting, the bracket features keyhole fixings for a quick installation and an easy to use rail depth adjustment.
The BT8390-WFK5 is an adjustable bracket designed to fix BT8390 and BT8393 rails to uneven walls for a level installation. The BT8390-WFK5 is also compatible for pole and column mounting using B-Tech's System 2 and System X mounts. Ideal for DVLED mounting, the bracket features keyhole fixings for a quick installation and an easy to use rail depth adjustment.

Product Features

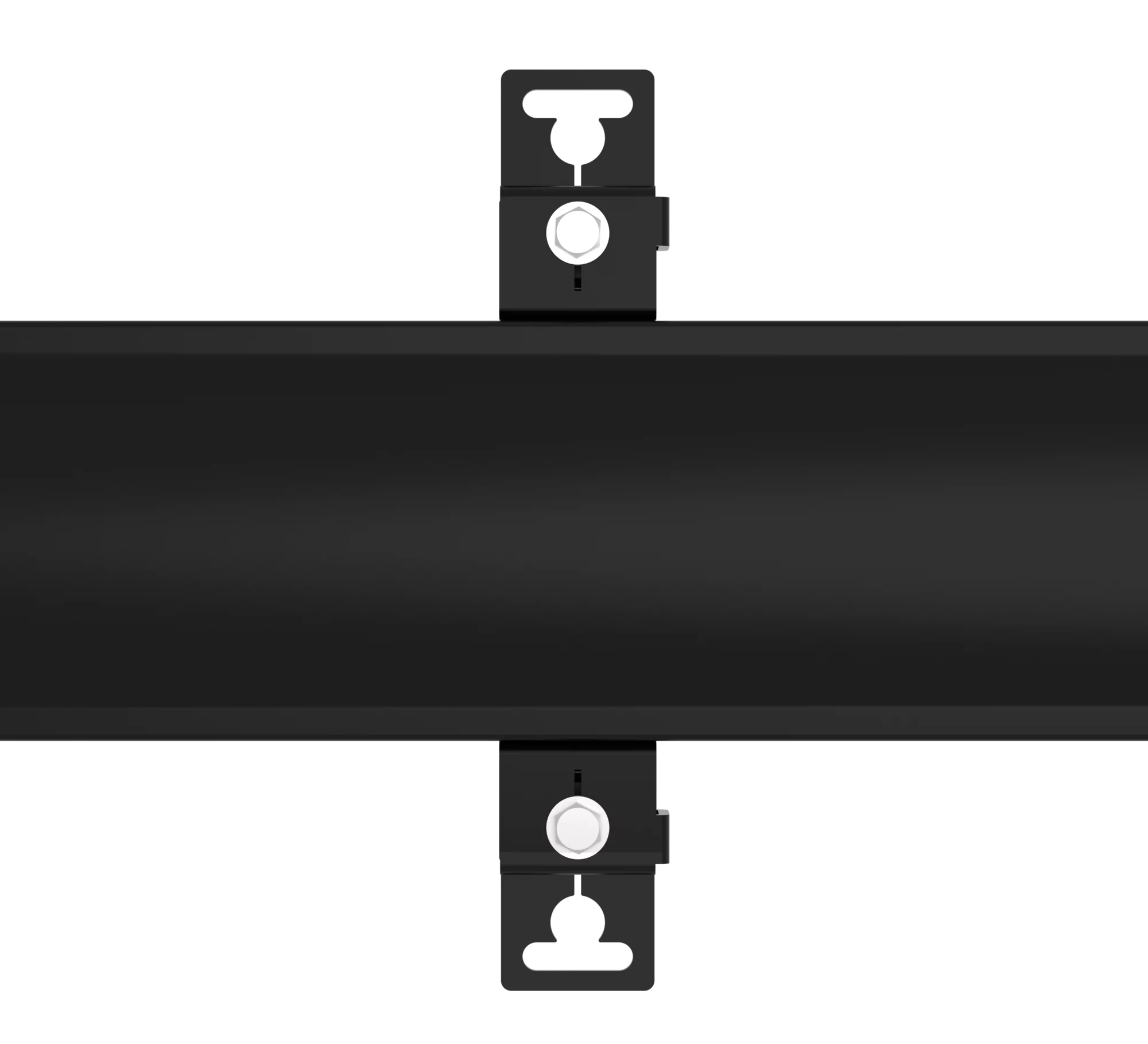

  • Designed to allow BT8390 horizontal and BT8393 vertical rails to be mounted to walls and poles
  • Mounts rail 13mm from the wall with a +/-5mm adjustable depth to ensure a flat to the wall installation
  • Can also be pole mounted using B-Tech accessory collars
  • Keyhole mounting for easy installation
  • Easy adjustment of the depth of the rails with the use of the supplied Hex Key
  • Integrated adjustment guides help align rails
  • All mounting hardware included
  • TUV certified
  • Designed to allow BT8390 horizontal and BT8393 vertical rails to be mounted to walls and poles
  • Mounts rail 13mm from the wall with a +/-5mm adjustable depth to ensure a flat to the wall installation
  • Can also be pole mounted using B-Tech accessory collars
  • Keyhole mounting for easy installation
  • Easy adjustment of the depth of the rails with the use of the supplied Hex Key
  • Integrated adjustment guides help align rails
  • All mounting hardware included
  • TUV certified

Product Specifications

  • Designed for use with: BT8390 - Mounting Rail
  • Max load: 80kg
  • Product width: 45mm
  • Min product depth: 40mm
  • Max product depth: 50mm
  • Product height: 270mm
  • Distance from wall: 40mm
  • Qty per pack: 1
  • Colour: Black
  • Colour: Black
  • *Use B-Tech's online configuration tool to automatically calculate the quantity required based on your configuration
  • Designed for use with: BT8390 - Mounting Rail
  • Max load: 80kg
  • Product width: 45mm
  • Min product depth: 40mm
  • Max product depth: 50mm
  • Product height: 270mm
  • Distance from wall: 40mm
  • Qty per pack: 1
  • Colour: Black
  • Colour: Black
  • *Use B-Tech's online configuration tool to automatically calculate the quantity required based on your configuration

Ordering & Box Information

Order Code: BT8390-WFK5/B V2

Barcode: 5019318305245

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 0.7kg

Order Code: BT8390-WFK5/B V2

Barcode: 5019318305245

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 0.7kg
