BT8521

Universal Twin Screen VC Stand

Includes adjustable VC Shelf

BT8521/BB V2

Universal Twin Screen VC Stand

Includes adjustable VC Shelf

Enquire Today View Downloads

Overview

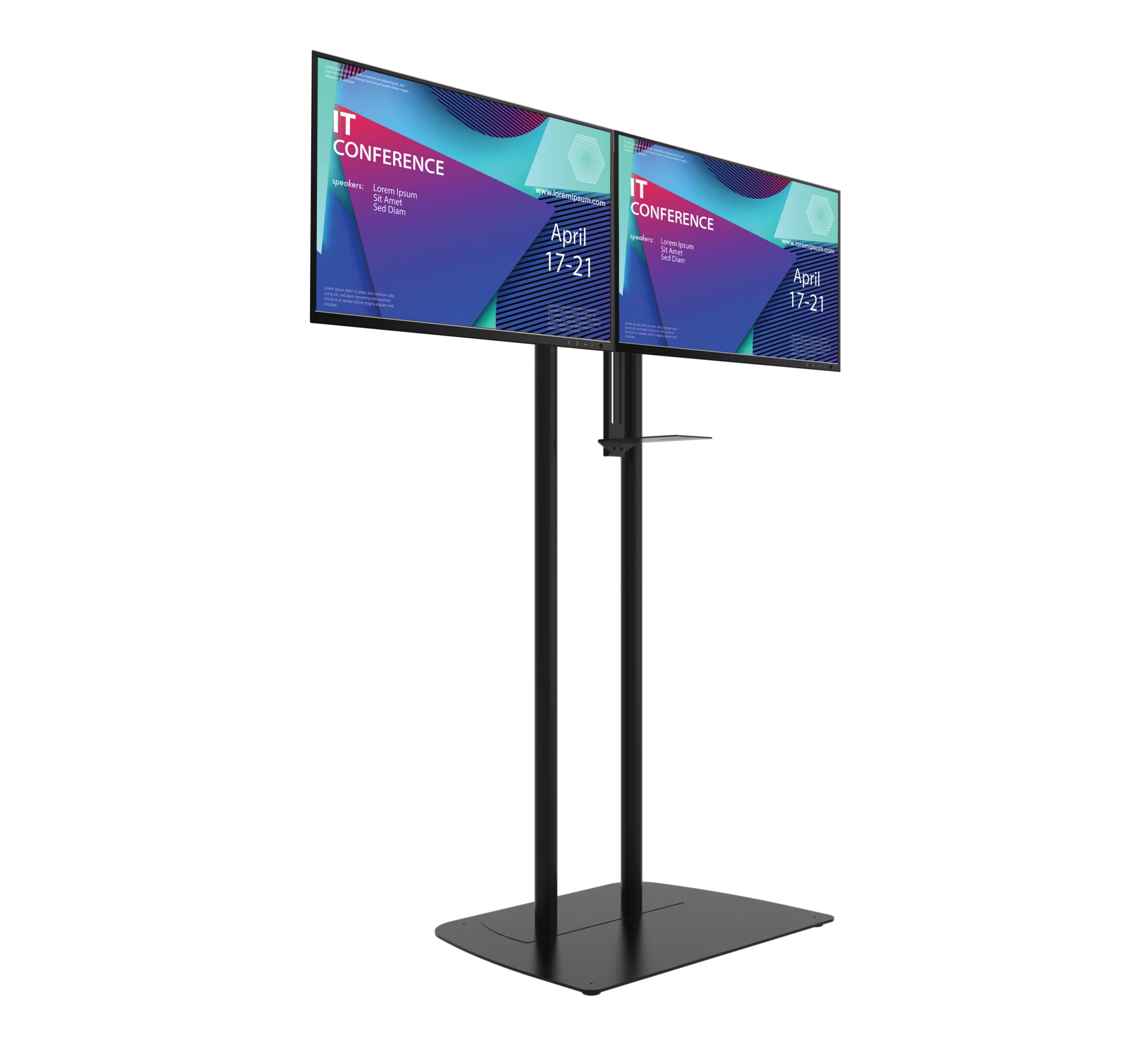

The BT8521 is the ideal freestanding video conferencing solution for twin screens up to 46". The stand is supplied with a shelf for VC cameras which gives the user the flexibility to mount their camera either above or below the screens and integrated cable management keeps finished installations neat and tidy. The low-profile base features include non marking rubber feet, grab handles for easy handling, and a cover plate that hides the grab handles once installed.
The BT8521 is the ideal freestanding video conferencing solution for twin screens up to 46". The stand is supplied with a shelf for VC cameras which gives the user the flexibility to mount their camera either above or below the screens and integrated cable management keeps finished installations neat and tidy. The low-profile base features include non marking rubber feet, grab handles for easy handling, and a cover plate that hides the grab handles once installed.

Product Features

  • Universal design suitable for mounting two medium sized screens side-by-side

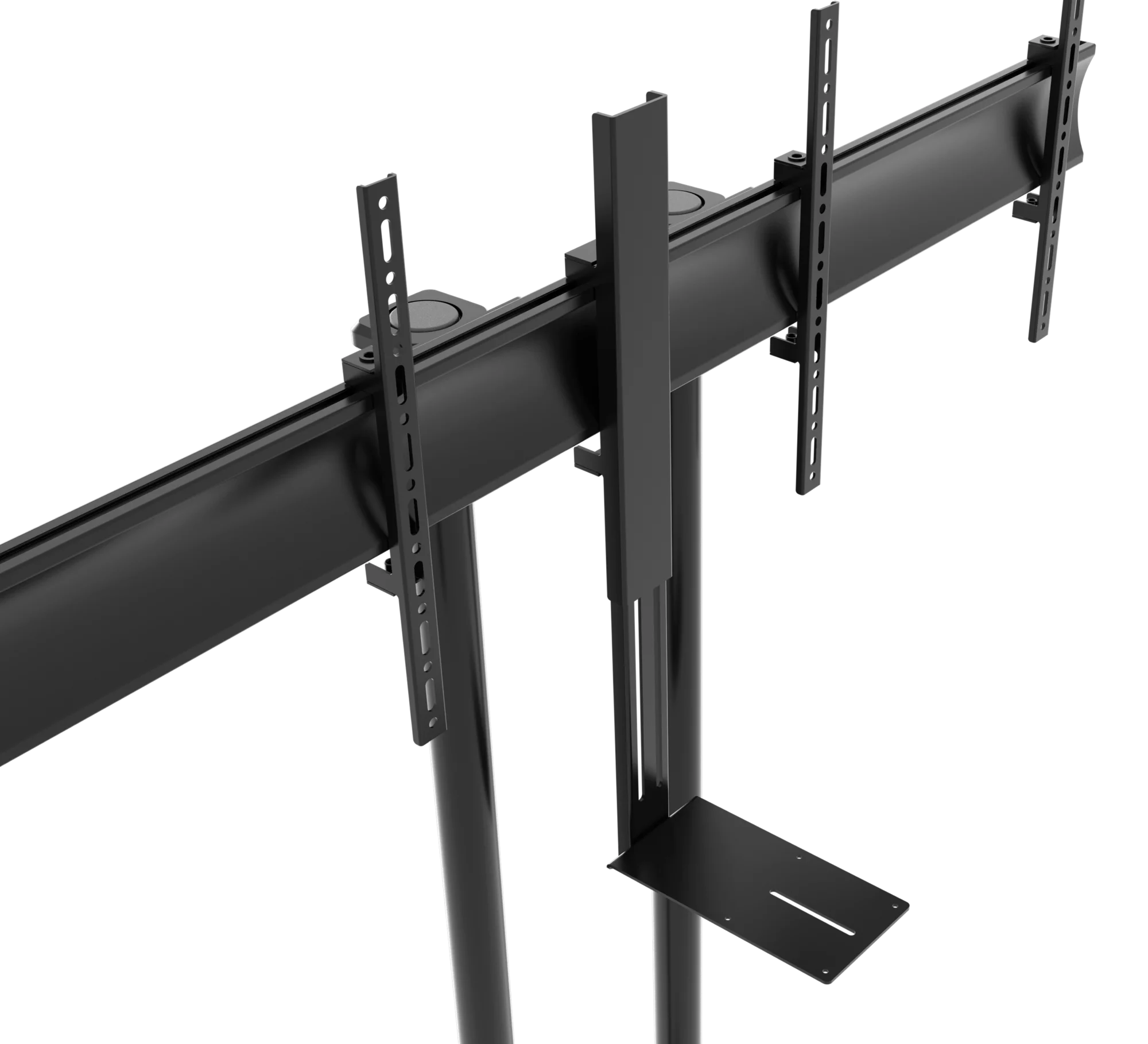

  • Includes VC shelf which can be fixed above or below the screens
  • Supplied with rubber feet to accommodate uneven floor surfaces
  • Includes grab handles for easy handling
  • Arms feature levelling screws to adjust the screen height
  • Collar compatible accessories such as shelves can be attached to the Ø50mm poles
  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Simple 'hook-on' screen installation
  • Universal design suitable for mounting two medium sized screens side-by-side
  • Includes VC shelf which can be fixed above or below the screens
  • Supplied with rubber feet to accommodate uneven floor surfaces
  • Includes grab handles for easy handling
  • Arms feature levelling screws to adjust the screen height
  • Collar compatible accessories such as shelves can be attached to the Ø50mm poles
  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Simple 'hook-on' screen installation

Product Specifications

  • Recommended display size: 39" up to 46"
  • Max load: 20kg (per screen)
  • VESA fixings: up to 400mm (max vertical dimensions)
  • Pole diameter: 50mm
  • Product width: 1500mm
  • Product depth: 600mm
  • Product height: 1625mm
  • Shelf depth: 235mm
  • Shelf width: 120mm
  • Shelf height: 3mm
  • Orientation: Landscape
  • Colour: Black
  • Recommended display size: 39" up to 46"
  • Max load: 20kg (per screen)
  • VESA fixings: up to 400mm (max vertical dimensions)
  • Pole diameter: 50mm
  • Product width: 1500mm
  • Product depth: 600mm
  • Product height: 1625mm
  • Shelf depth: 235mm
  • Shelf width: 120mm
  • Shelf height: 3mm
  • Orientation: Landscape
  • Colour: Black

Ordering & Box Information

Order Code: BT8521/B V2

Barcode: 5019318089282

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 39.59kg

Order Code: BT8521/BB V2

Barcode: 5019318089282

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 39.59kg
