BT8545

Momentum

Interactive Touchscreen Trolley

Ideal for screens up to 86"

BT8545/B

Momentum

Interactive Touchscreen Trolley

Ideal for screens up to 86"

Enquire Today View Downloads

Overview

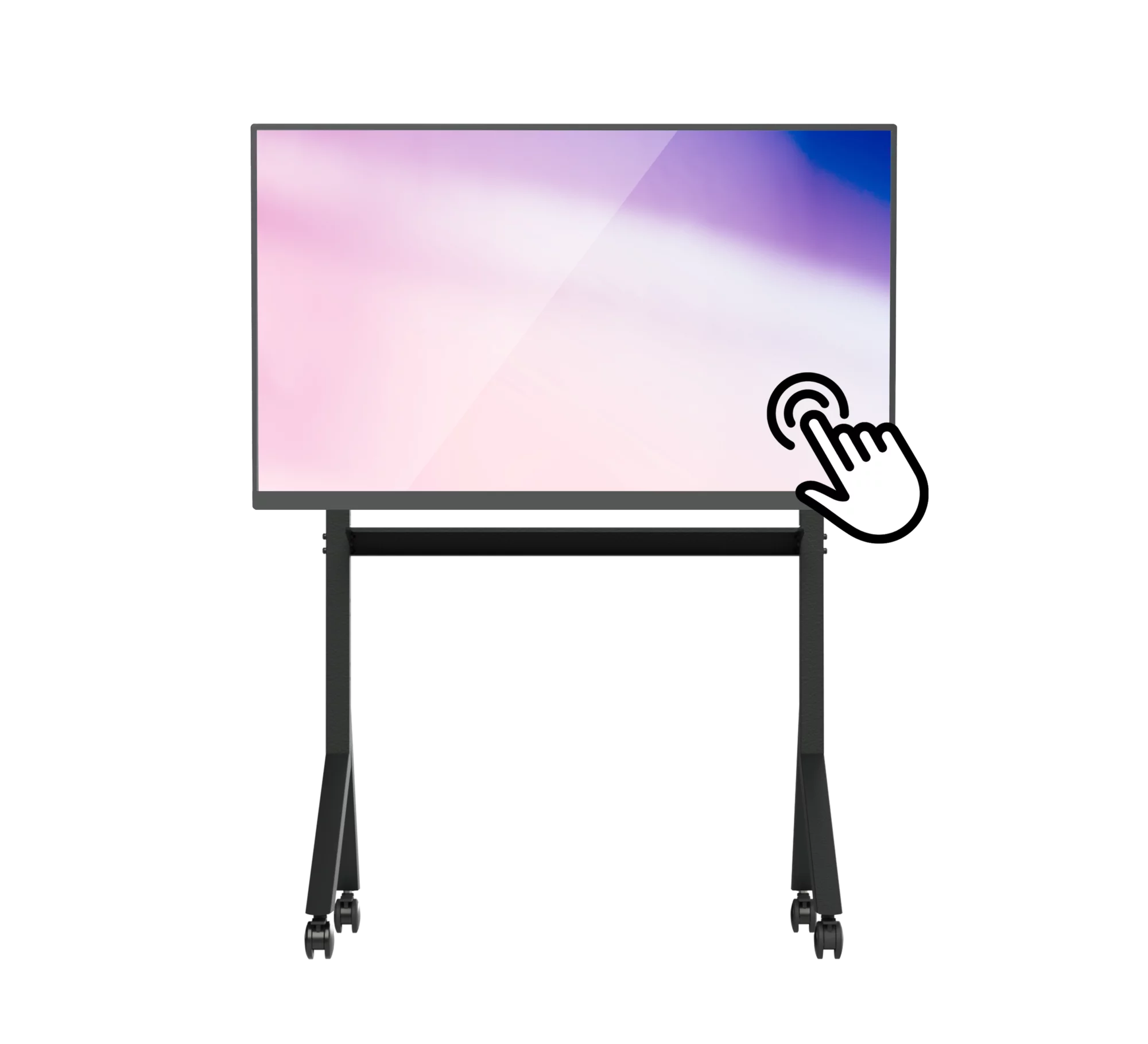

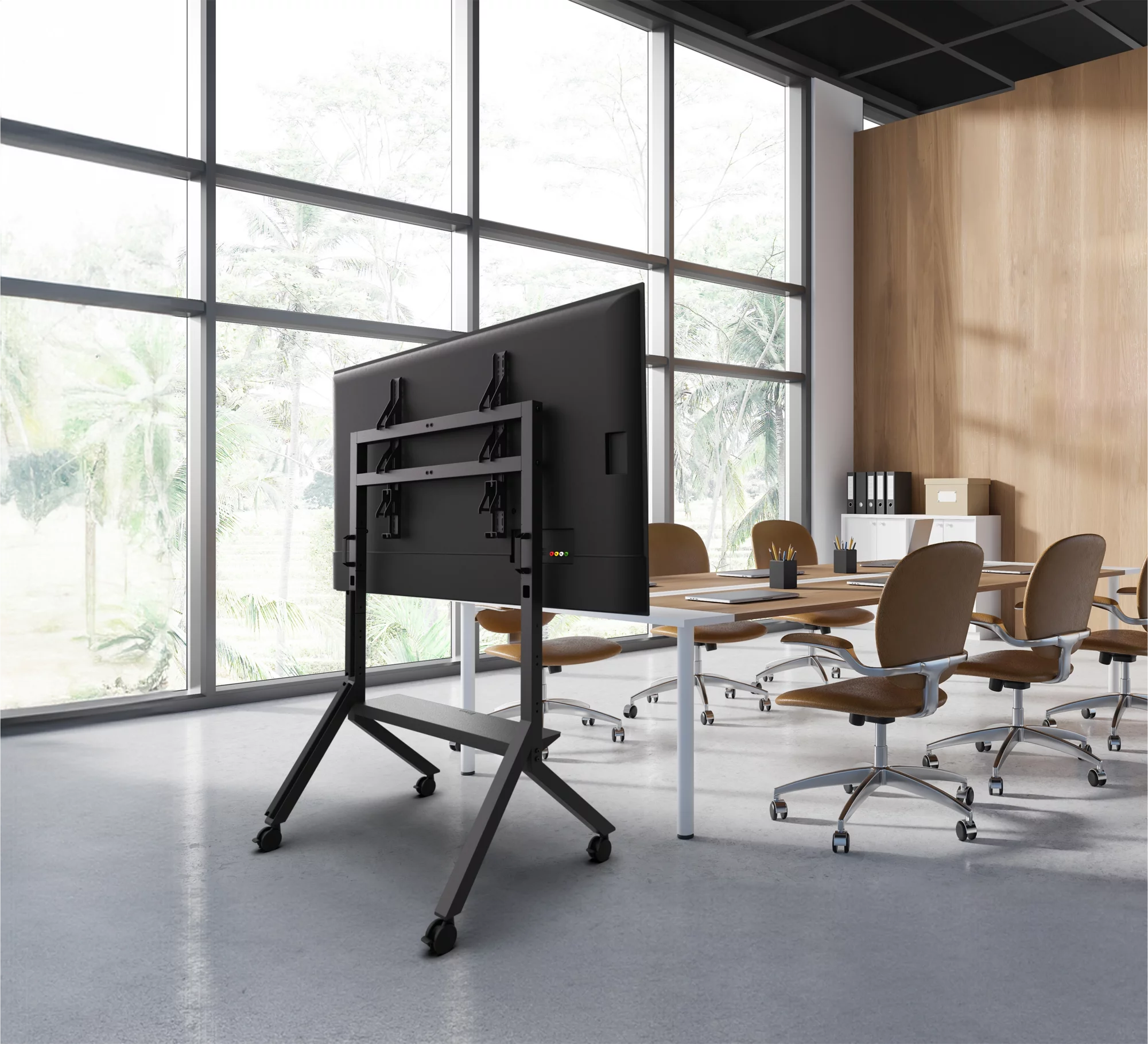

Part of B-Tech's Momentum Range, the BT8545 Momentum Edge is a modern, durable, and easy-to-use flat screen trolley designed to support displays and interactive touchscreens from 55" to 86". The Trolley's braked castors provide smooth, safe mobility, while the sturdy design ensures stable use, preventing unintended movement when using the touchscreen. Capable of holding displays up to 100kg with multiple screen mounting heights available, the BT8545 has versatile display options including an AV equipment shelf, which can also serve as a sleek blanking panel. This versatile solution is ideal for both installers and end users, delivering flexibility and performance across a range of applications.
Part of B-Tech's Momentum Range, the BT8545 Momentum Edge is a modern, durable, and easy-to-use flat screen trolley designed to support displays and interactive touchscreens from 55" to 86". The Trolley's braked castors provide smooth, safe mobility, while the sturdy design ensures stable use, preventing unintended movement when using the touchscreen. Capable of holding displays up to 100kg with multiple screen mounting heights available, the BT8545 has versatile display options including an AV equipment shelf, which can also serve as a sleek blanking panel. This versatile solution is ideal for both installers and end users, delivering flexibility and performance across a range of applications.

Product Features

  • Sturdy steel construction prevents unwanted movement when using a interactive touchscreen display

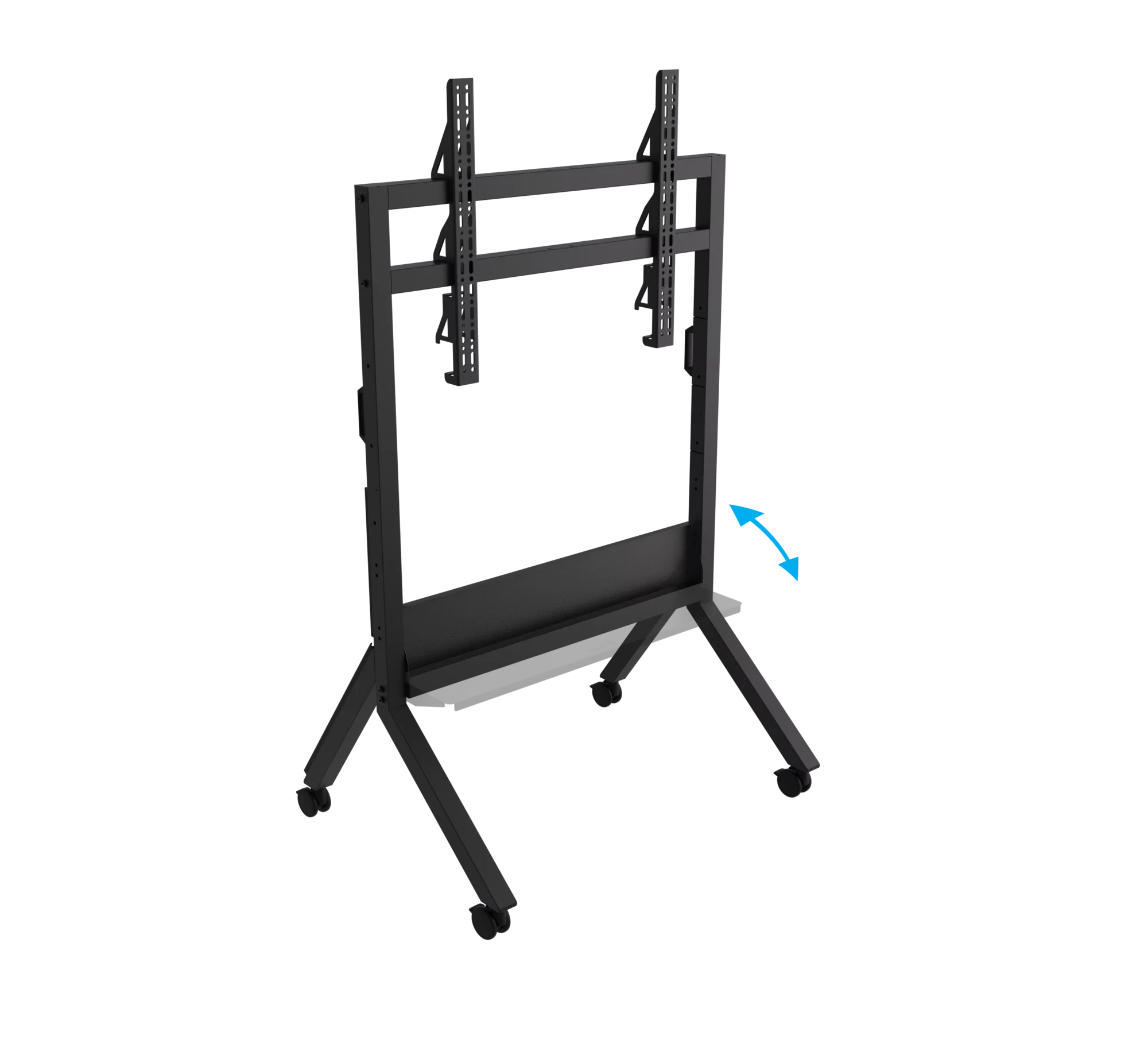

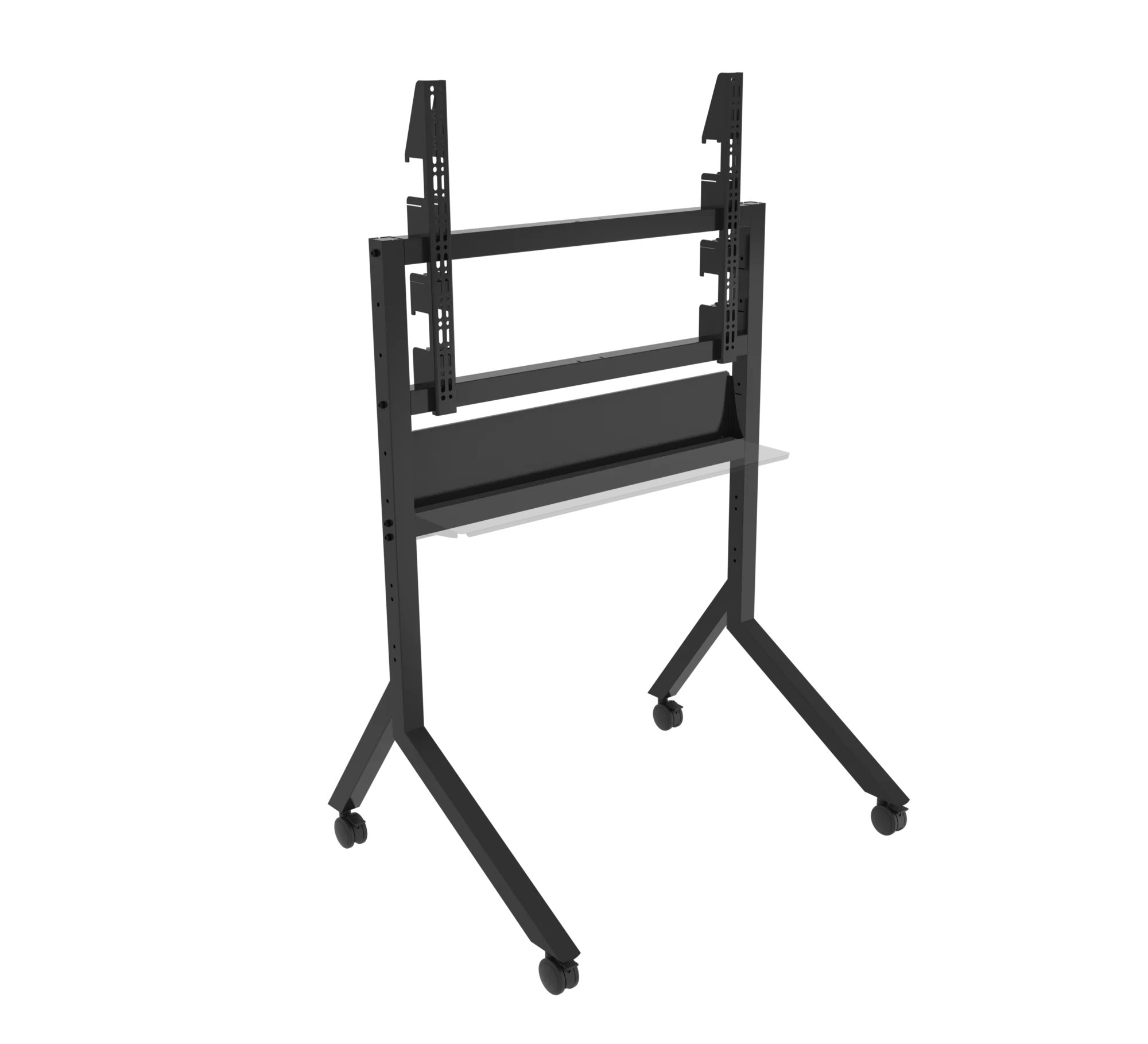

  • Includes an accessory shelf that can be mounted at the front or rear of the trolley
  • The shelf can be installed vertically at the front, or as a blanking panel when fitted vertically at the rear

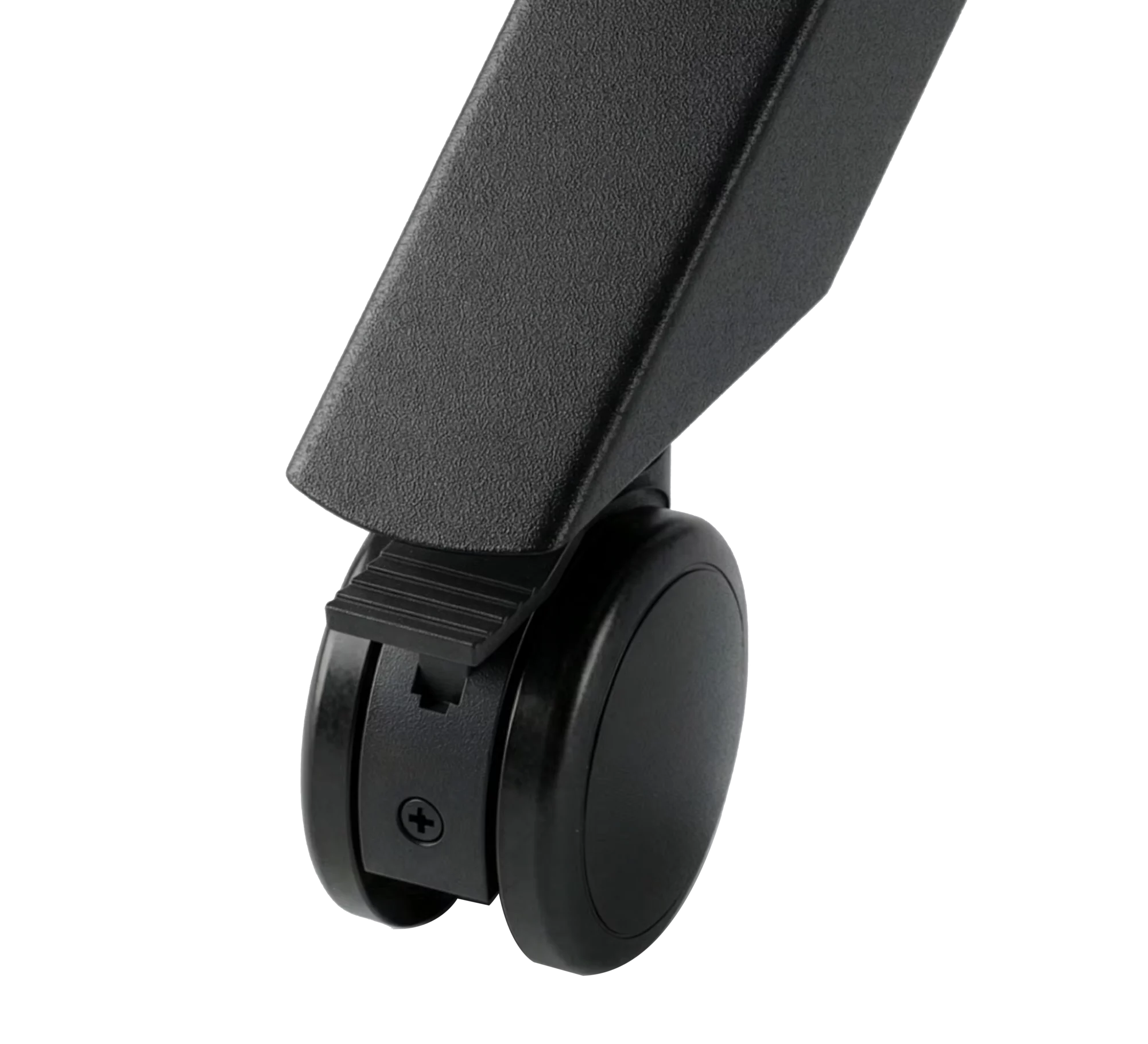

  • Equipped with non-marking, lockable, braked castors for secure mobility
  • Provides six height adjustments for screen mounting and three for the shelf
  • Safety screws help to prevent unauthorised removal of the screen
  • Simple hook-on installation
  • All necessary mounting hardware is included
  • Sturdy steel construction prevents unwanted movement when using a interactive touchscreen display
  • Includes an accessory shelf that can be mounted at the front or rear of the trolley
  • The shelf can be installed vertically at the front, or as a blanking panel when fitted vertically at the rear
  • Equipped with non-marking, lockable, braked castors for secure mobility

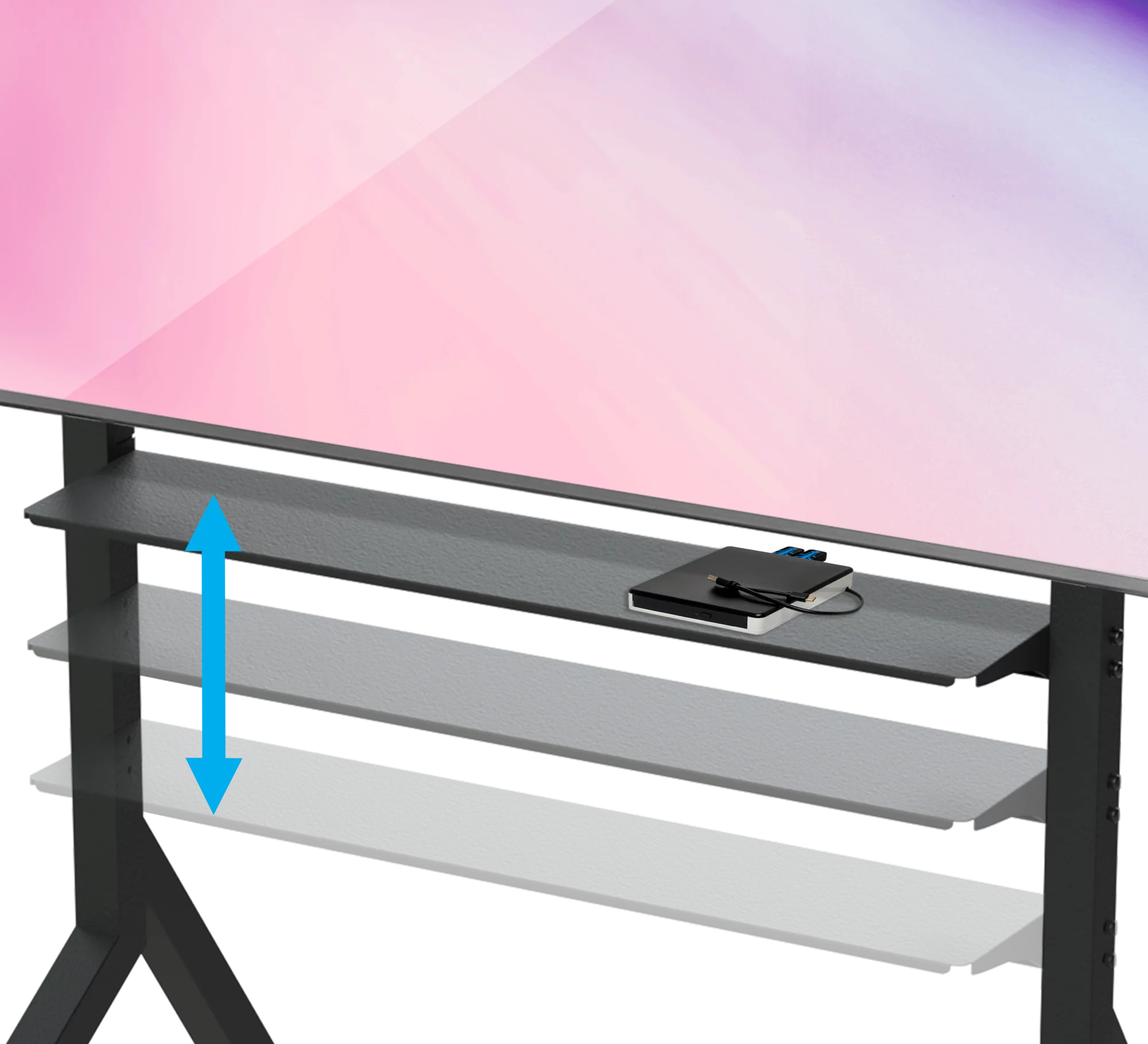

  • Provides six height adjustments for screen mounting and three for the shelf
  • Safety screws help to prevent unauthorised removal of the screen
  • Simple hook-on installation
  • All necessary mounting hardware is included

Product Specifications

  • Recommended display size: 55" up to 86"
  • VESA fixings: up to 900mm x 600mm
  • Max load (Screen): 100kg
  • Max load (Shelf): 5kg
  • Product width: 1050mm
  • Product depth: 882mm
  • Min product height: 1428mm
  • Max product height: 1722mm
  • Storage area width: 950mm
  • Storage area depth: 210mm
  • Orientation: Landscape
  • Colour: Black
  • Recommended display size: 55" up to 86"
  • VESA fixings: up to 900mm x 600mm
  • Max load (Screen): 100kg
  • Max load (Shelf): 5kg
  • Product width: 1050mm
  • Product depth: 882mm
  • Min product height: 1428mm
  • Max product height: 1722mm
  • Storage area width: 950mm
  • Storage area depth: 210mm
  • Orientation: Landscape
  • Colour: Black

Ordering & Box Information

Order Code: BT8545/B

Barcode: 5019318309076

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 31.50kg

Order Code: BT8545/B

Barcode: 5019318309076

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 31.50kg

Downloads

BT8545 - Product Specification Sheet - English

pdf 3.02 MB

BT8545 - Product Specification Sheet - French

pdf 2.60 MB

BT8545 - Product Specification Sheet - Spanish

pdf 2.74 MB

BT8545 - Product Specification Sheet - Dutch

pdf 2.73 MB

BT8545 - Installation Guide

pdf 4.90 MB

BT8545 - Technical Drawings - (DXF)

DXF 63.04 MB

BT8545 - Technical Drawings - (PDF)

pdf 551.36 KB

BT8545-B-2

png 59.54 KB

BT8545-B-12

png 38.75 KB

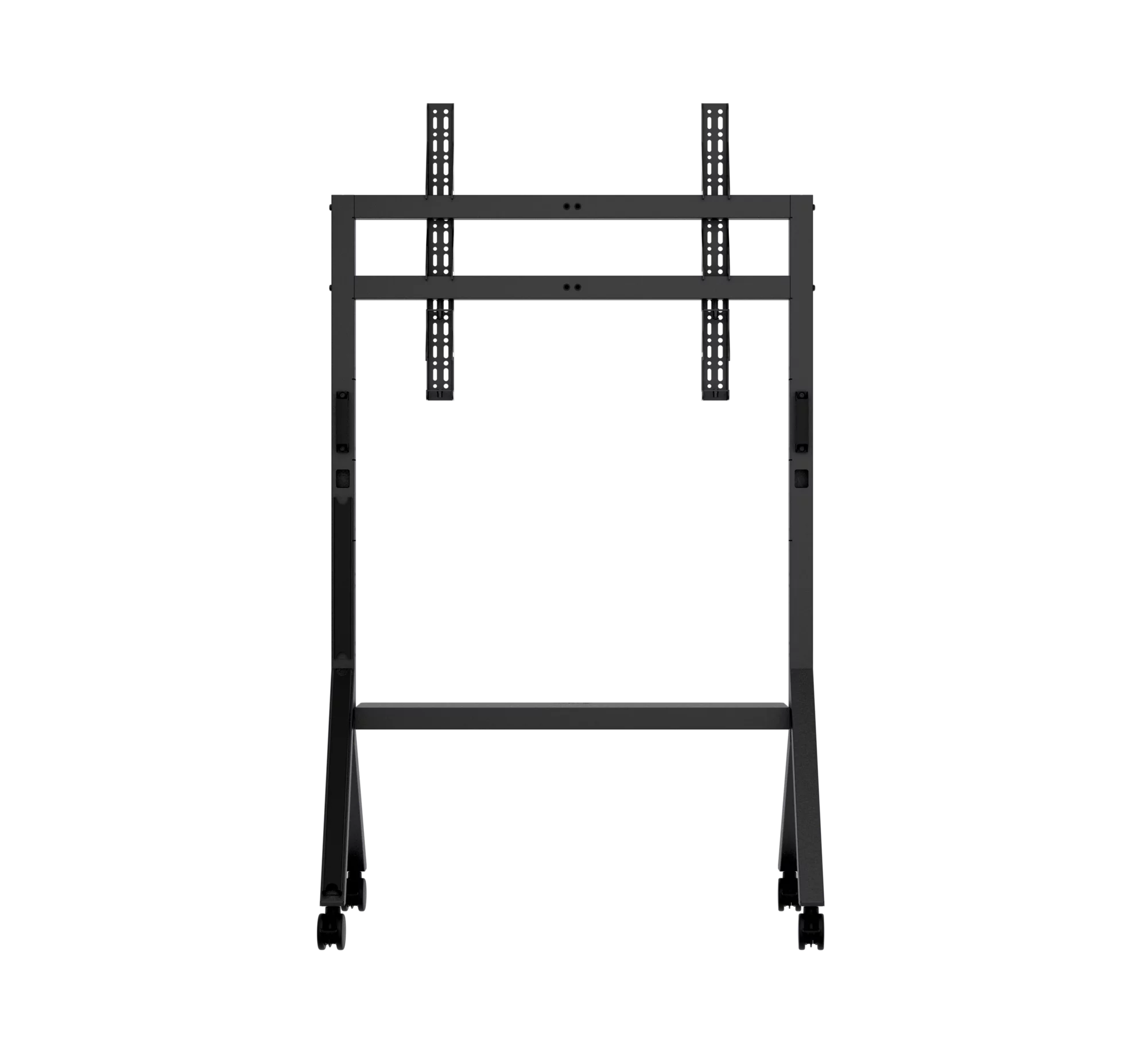

BT8545-B-6

png 40.02 KB

BT8545-B-4

png 34.21 KB

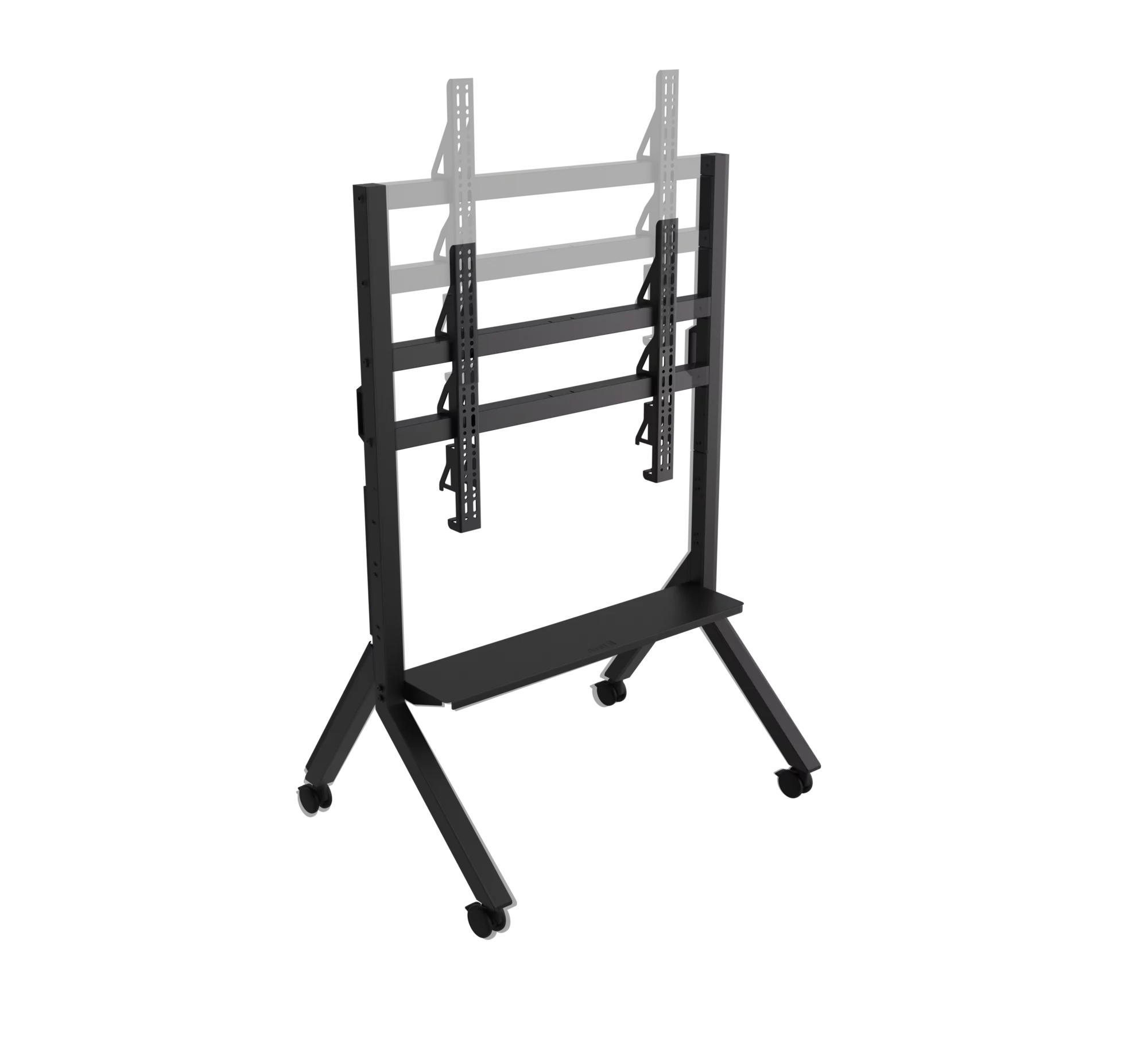

BT8545-B-8

png 85.00 KB

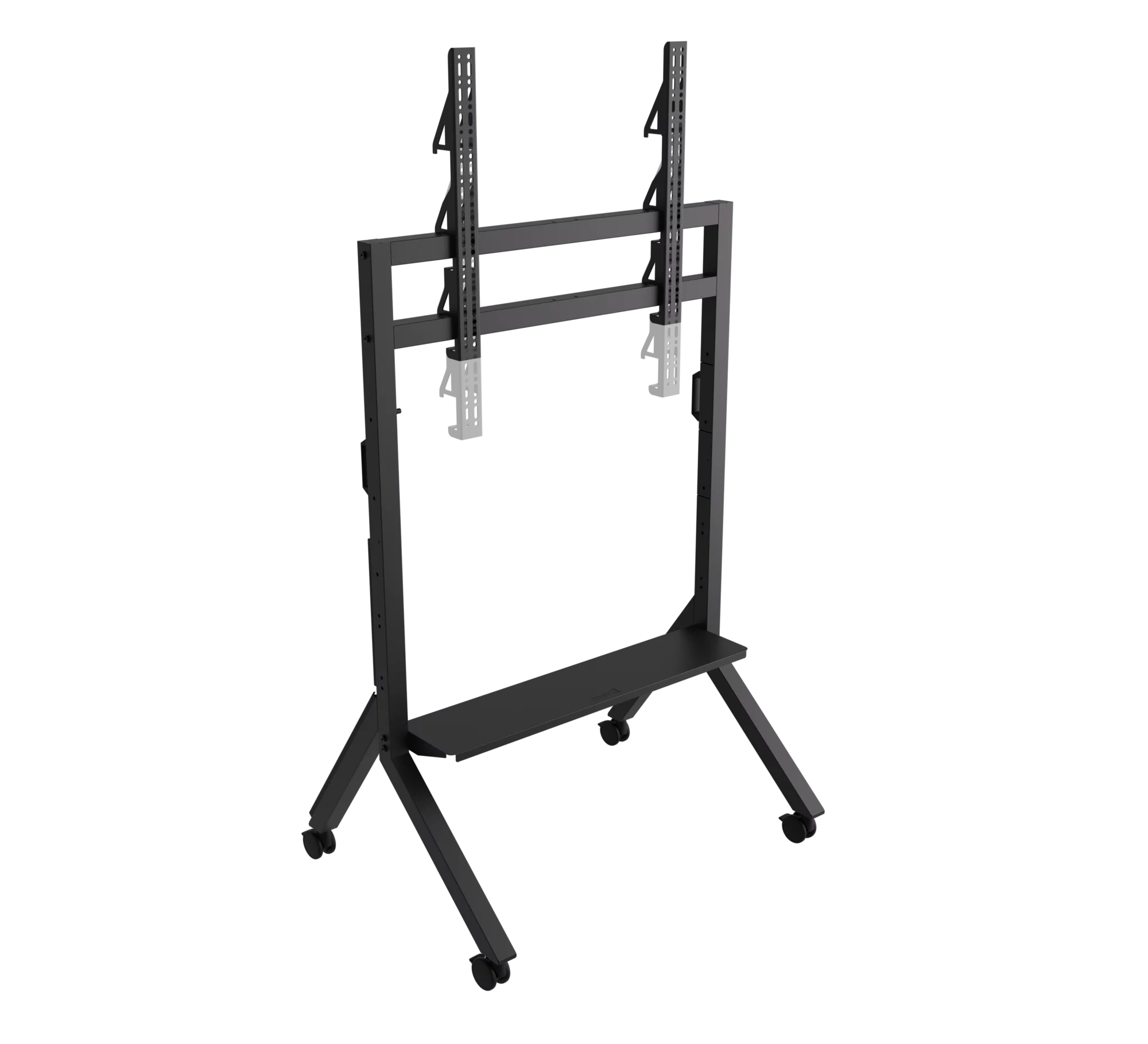

BT8545-B-9

png 72.28 KB

BT8545-B-7

png 72.21 KB

BT8545-B-13

png 69.73 KB

BT8545-B-10

png 153.79 KB

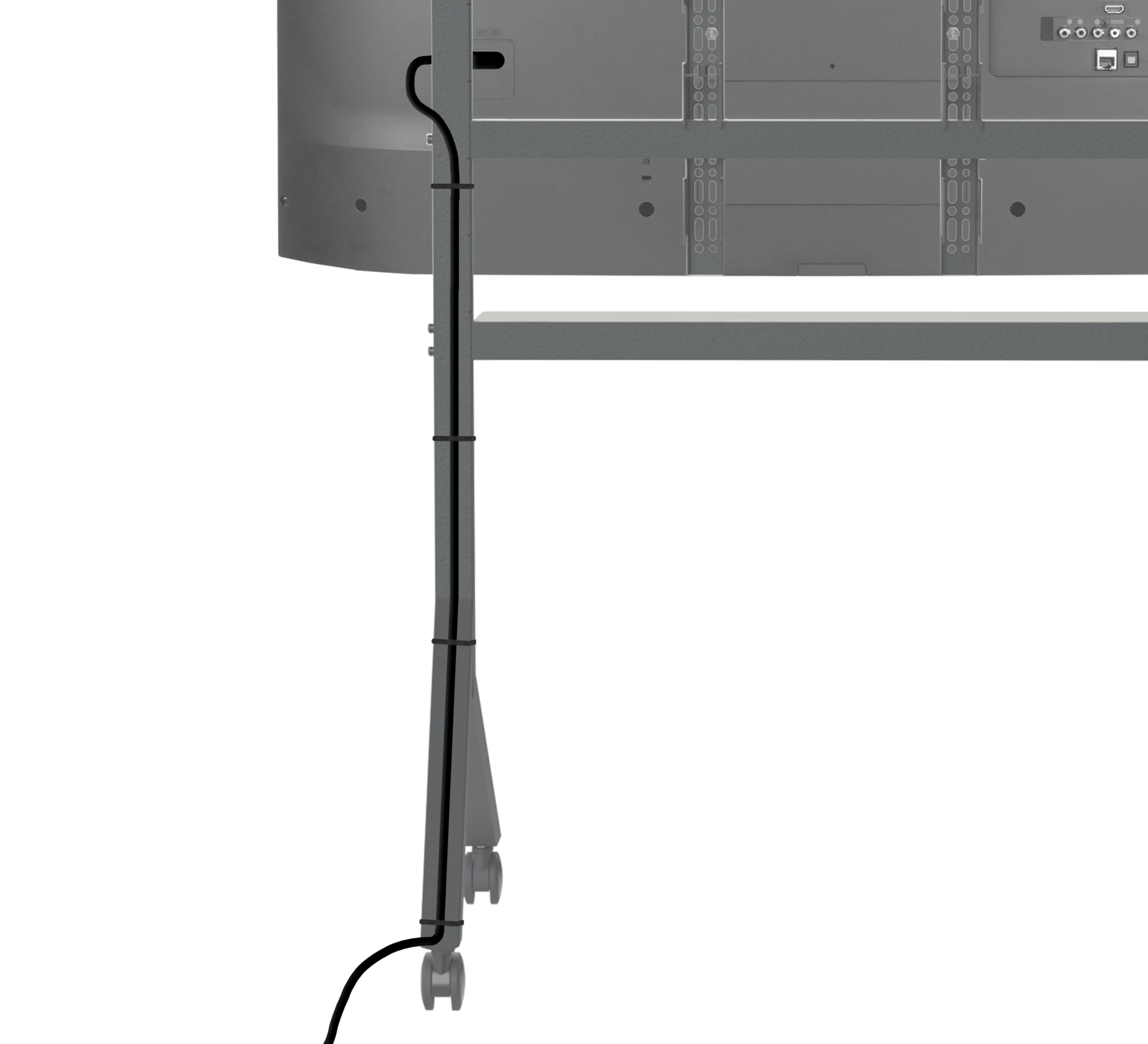

BT8545-B-11
