BT8558

Momentum

Motorised Height Adjustable Flat Screen Trolley

Motorised height adjustment

BT8558/B

Momentum

Motorised Height Adjustable Flat Screen Trolley

Motorised height-adjustment

Enquire Today View Downloads

Overview

Part of B-Tech's Momentum Range of mobile display solutions, the BT8558 Momentum E-Lift is a motorised, height-adjustable trolley designed for displays up to 100" in size. Its electronic height adjustment system allows for effortless raising and lowering of the screen via a wired control panel, with an adjustment range of up to 650mm that makes the display accessible to a variety of users. Capable of mounting interactive touchscreens of up to 100kg and featuring a sleek and modern design aesthetic, quick assembly and ease of use, the BT8558's performance in educational and corporate settings is unmatched. An integrated storage unit at the rear provides convenient space for cable management and AV equipment, making the complete AV set up both neat and practical.
Part of B-Tech's Momentum Range of mobile display solutions, the BT8558 Momentum E-Lift is a motorised, height-adjustable trolley designed for displays up to 100" in size. Its electronic height adjustment system allows for effortless raising and lowering of the screen via a wired control panel, with an adjustment range of up to 650mm that makes the display accessible to a variety of users. Capable of mounting interactive touchscreens of up to 100kg and featuring a sleek and modern design aesthetic, quick assembly and ease of use, the BT8558's performance in educational and corporate settings is unmatched. An integrated storage unit at the rear provides convenient space for cable management and AV equipment, making the complete AV set up both neat and practical.

Product Features

  • Motorised height adjustment for precise screen positioning
  • Supplied with a wired control console for easy height adjustment
  • Non-marking locking / braked castors included
  • Storage compartment on the rear stores cables and AV equipment
  • Ideal for use with large touchscreens and interactive displays
  • Safety screws help prevent unauthorised removal of the screen
  • Auto-stop; prevents screen from moving when resistance is felt
  • Levelling screws for simple post-install alignment
  • Simple hook-on screen installation
  • All mounting hardware included
  • Motorised height adjustment for precise screen positioning
  • Supplied with a wired control console for easy height adjustment
  • Non-marking locking / braked castors included
  • Storage compartment on the rear stores cables and AV equipment
  • Ideal for use with large touchscreens and interactive displays
  • Safety screws help prevent unauthorised removal of the screen
  • Auto-stop; prevents screen from moving when resistance is felt
  • Levelling screws for simple post-install alignment
  • Simple hook-on screen installation
  • All mounting hardware included

Product Specifications

  • Recommended display size: 55" up to 100"
  • Max load: 100kg
  • VESA fixings: up to 900mm x 600mm
  • Product width: 1086mm
  • Product depth: 833mm
  • Min product height: 1415mm
  • Max product height: 2060mm
  • Height adjustment speed - per second: 35mm
  • Height adjustment range: 650mm
  • Storage area width: 257mm
  • Storage area depth: 95.2mm
  • Storage area height: 377mm
  • Colour: Black
  • Orientation: Landscape
  • Recommended display size: 55" up to 100"
  • Max load: 100kg
  • VESA fixings: up to 900mm x 600mm
  • Product width: 1086mm
  • Product depth: 833mm
  • Min product height: 1415mm
  • Max product height: 2060mm
  • Height adjustment speed - per second: 35mm
  • Height adjustment range: 650mm
  • Storage area width: 257mm
  • Storage area depth: 95.2mm
  • Storage area height: 377mm
  • Colour: Black
  • Orientation: Landscape

Ordering & Box Information

Order Code: BT8558/B

Barcode: 5019318308758

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 54.30kg

Order Code: BT8558/B

Barcode: 5019318308758

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 54.30kg

Downloads

BT8558 - Product Specification Sheet - English

pdf 2.25 MB

BT8558 - Installation Guide

pdf 12.87 MB

BT8558 - Technical Drawings - (DXF)

DXF 29.96 MB

BT8558 - Technical Drawings - (PDF)

pdf 258.27 KB

BT8558-B-1

png 37.87 KB

BT8558-B-4

png 197.61 KB

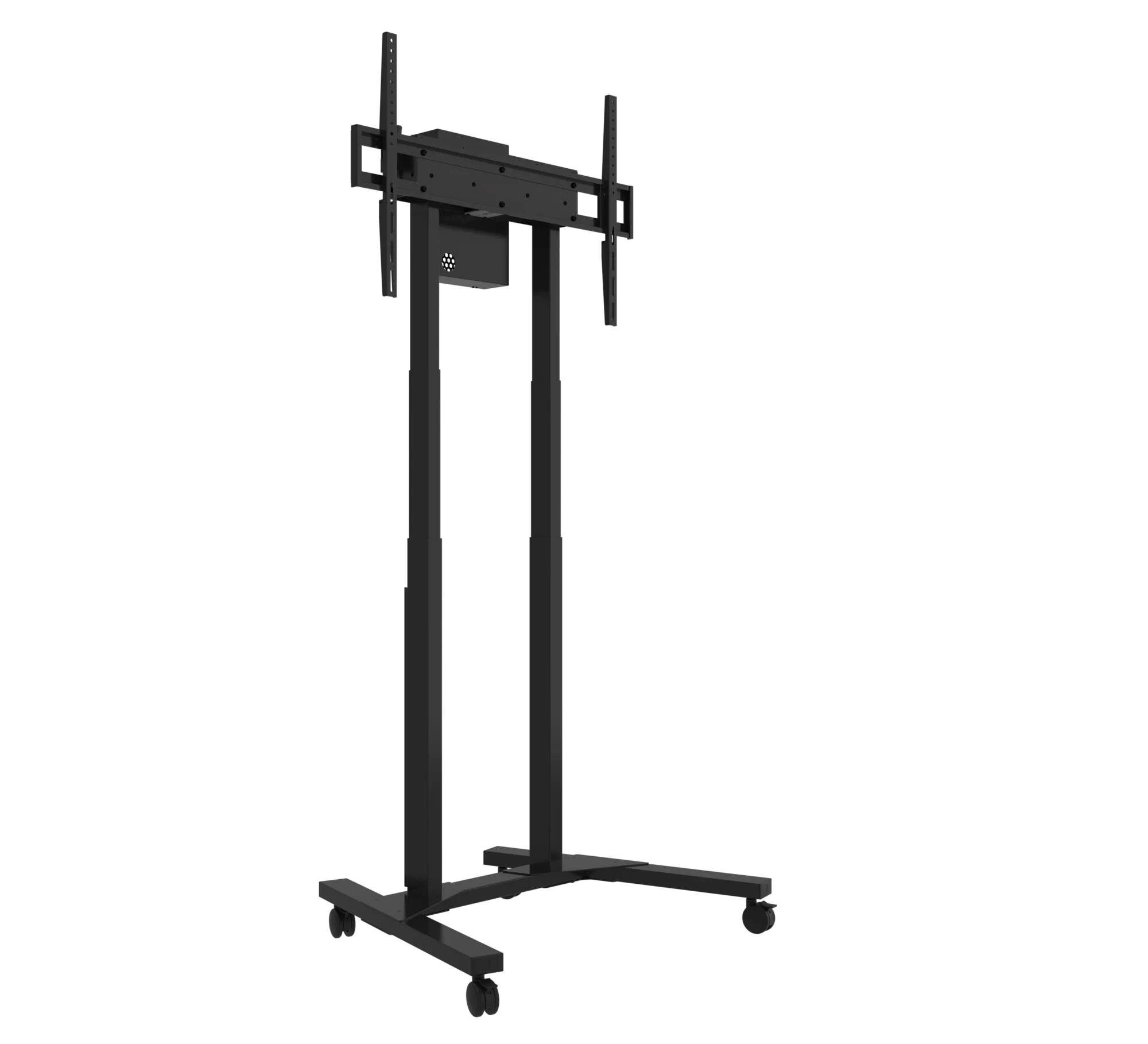

BT8558-B-16

png 31.96 KB

BT8558-B-14

png 26.44 KB

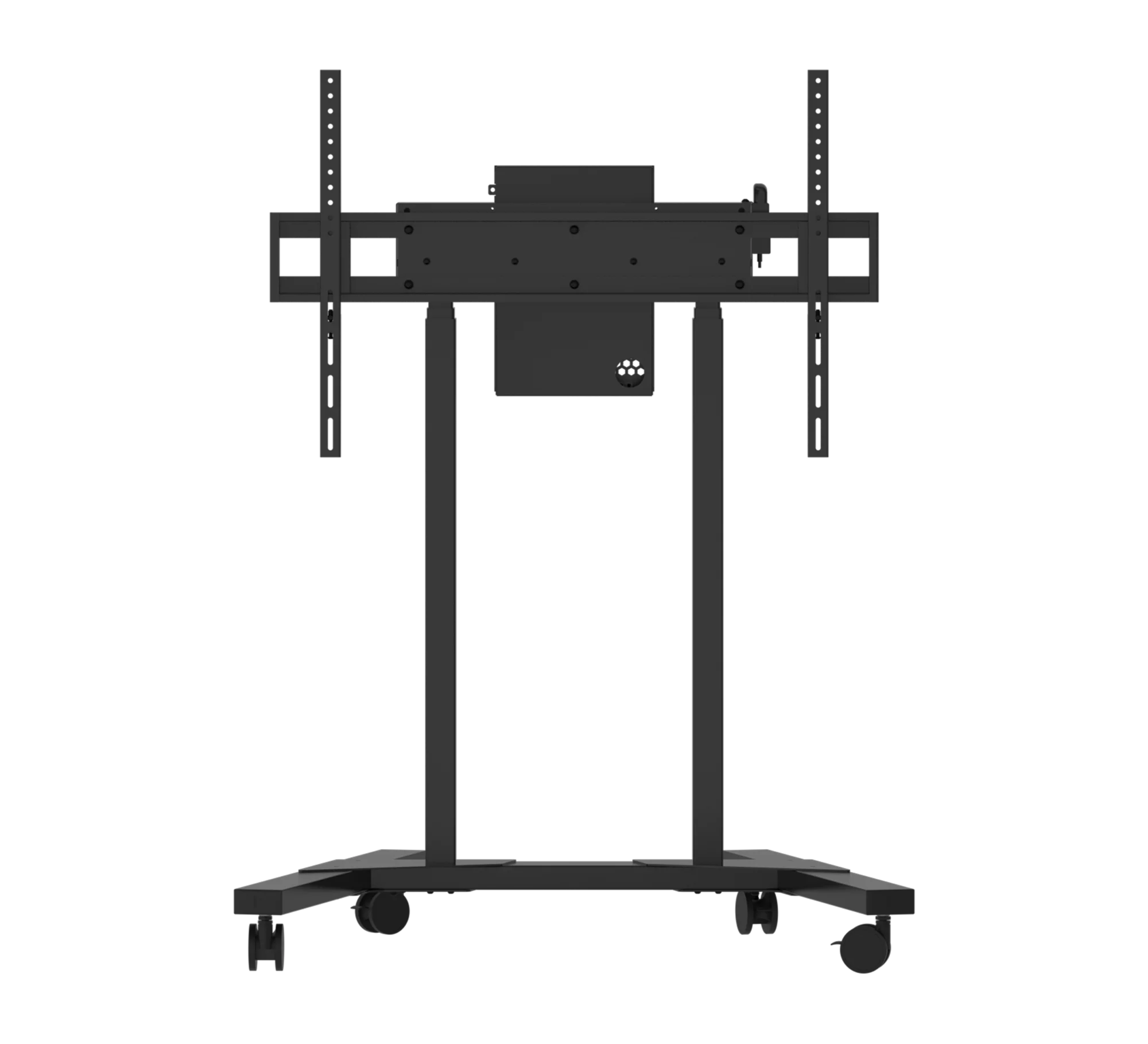

BT8558-B-11

png 36.64 KB

BT8558-B-2

png 29.47 KB

BT8558-B-12

png 31.04 KB

BT8558-B-15

png 22.85 KB

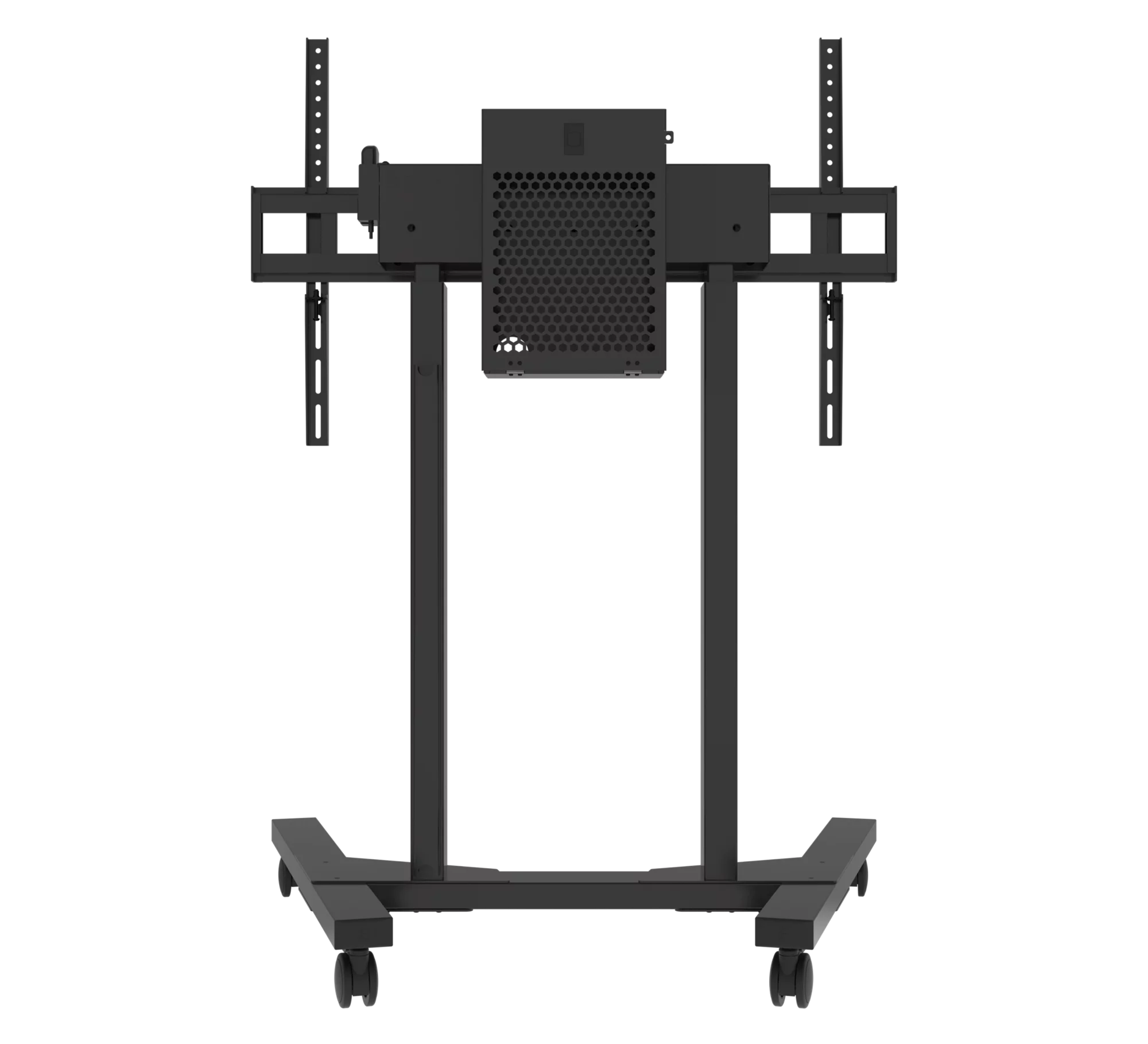

BT8558-B-6

png 42.57 KB

BT8558-B-7

png 39.97 KB

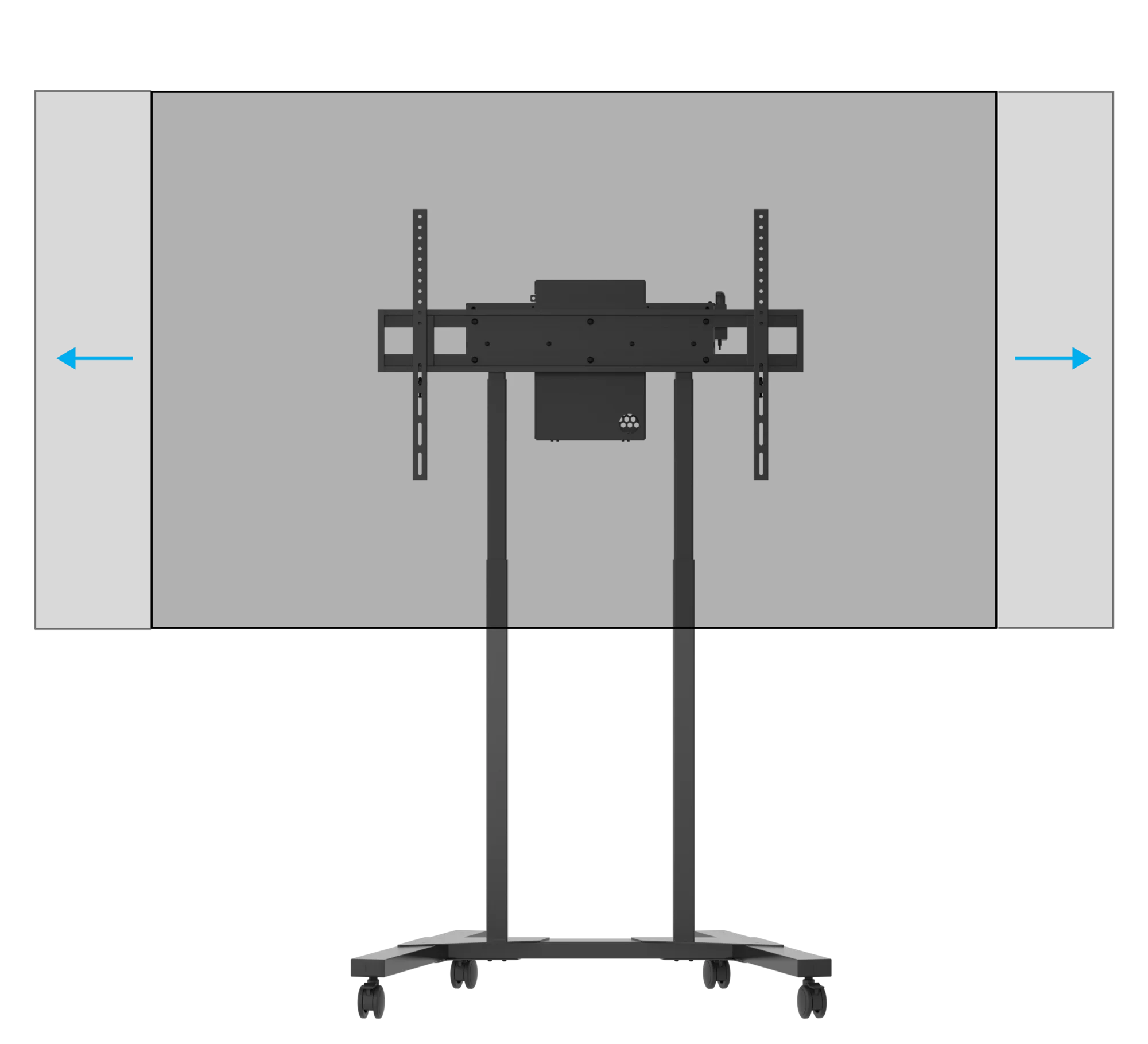

BT8558-B-8

png 29.03 KB

BT8558-B-9

png 105.11 KB

BT8558-B-10

png 86.21 KB

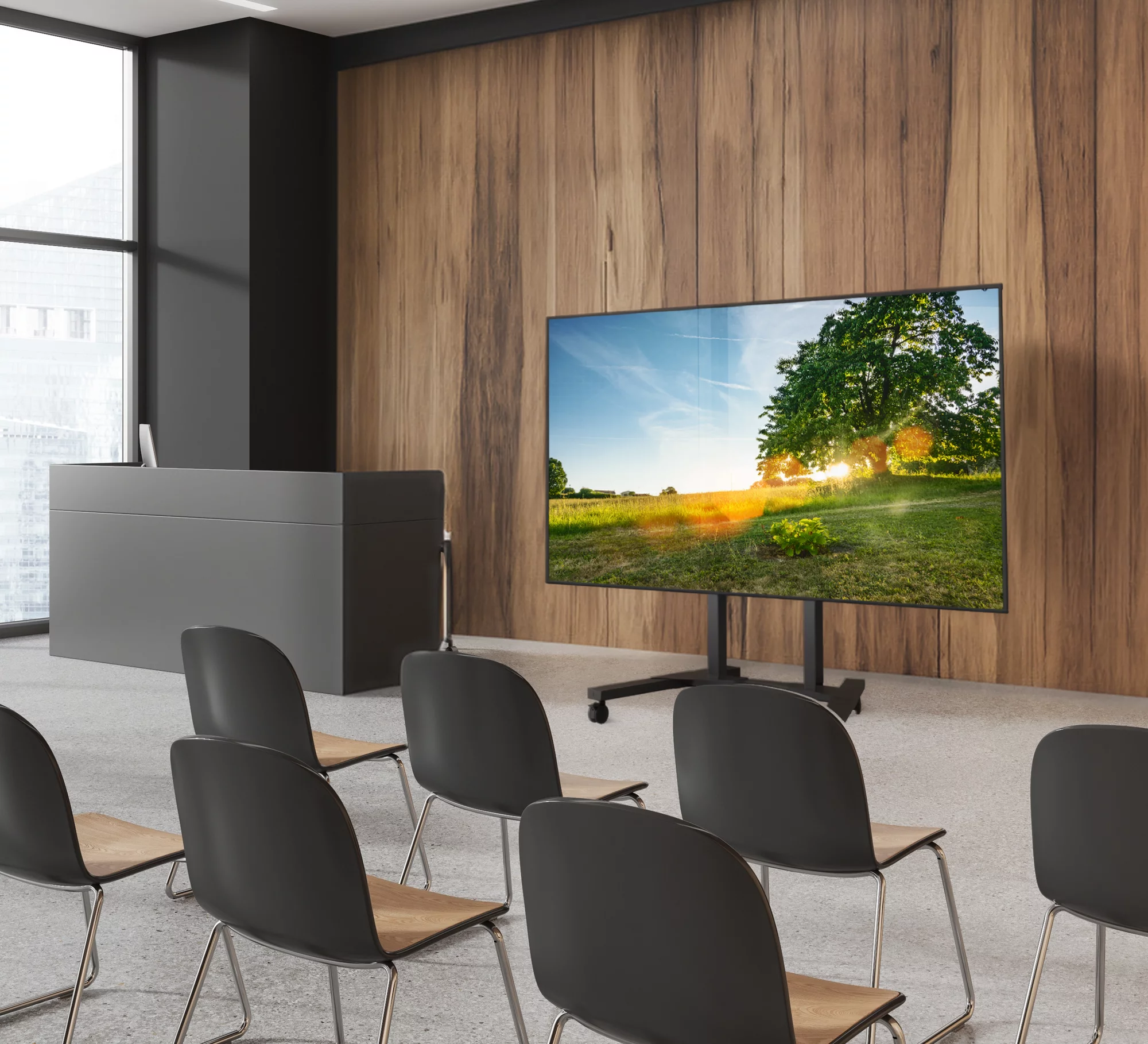

BT8558-B-5

png 357.17 KB

Downloads

BT8558 - Product Specification Sheet - English

pdf 2.25 MB

BT8558 - Installation Guide

pdf 12.87 MB

BT8558 - Technical Drawings - (DXF)

DXF 29.96 MB

BT8558 - Technical Drawings - (PDF)

pdf 258.27 KB

BT8558-B-1

png 37.87 KB

BT8558-B-4

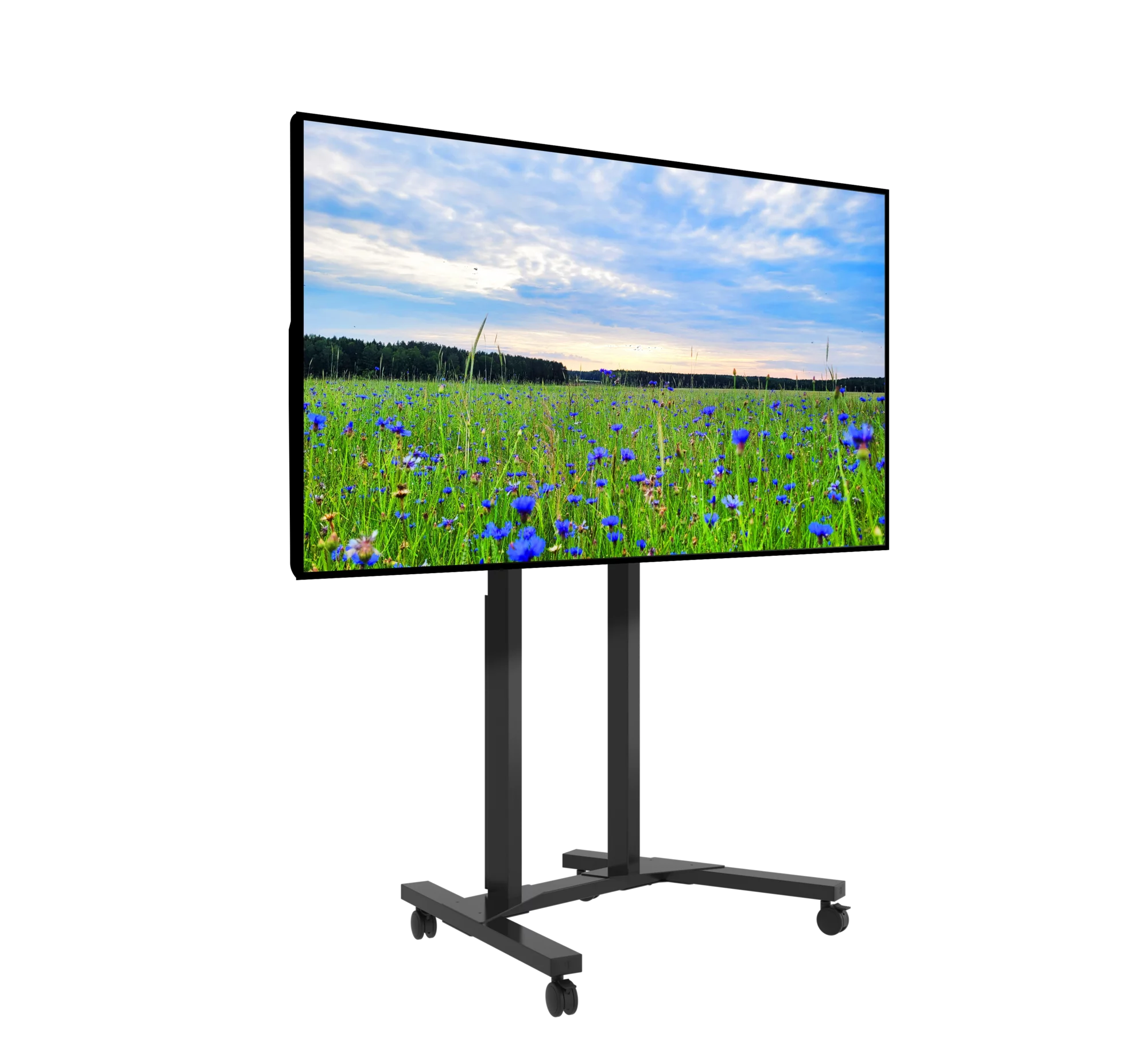

png 197.61 KB

BT8558-B-16

png 31.96 KB

BT8558-B-14

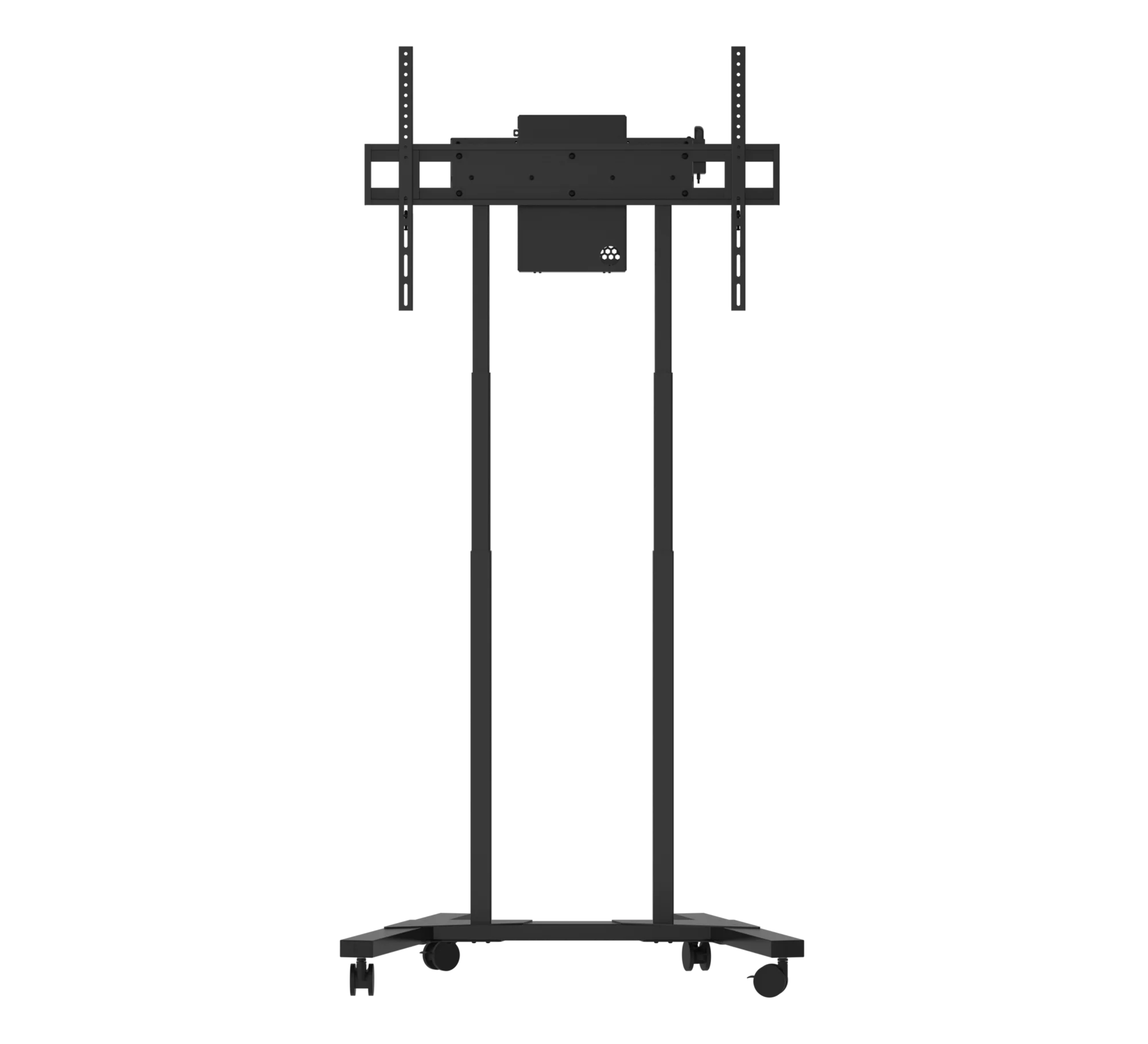

png 26.44 KB

BT8558-B-11

png 36.64 KB

BT8558-B-2

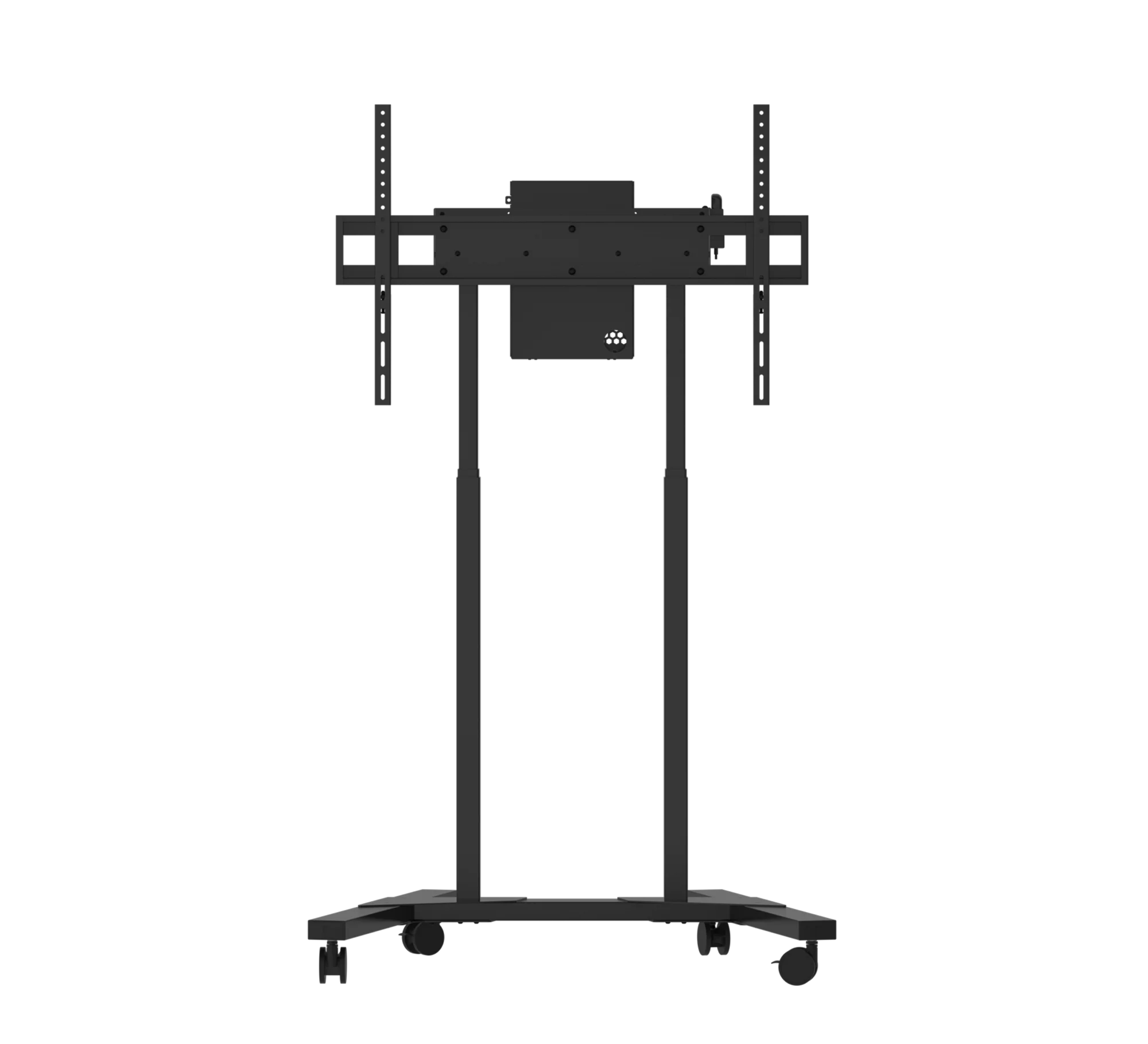

png 29.47 KB

BT8558-B-12

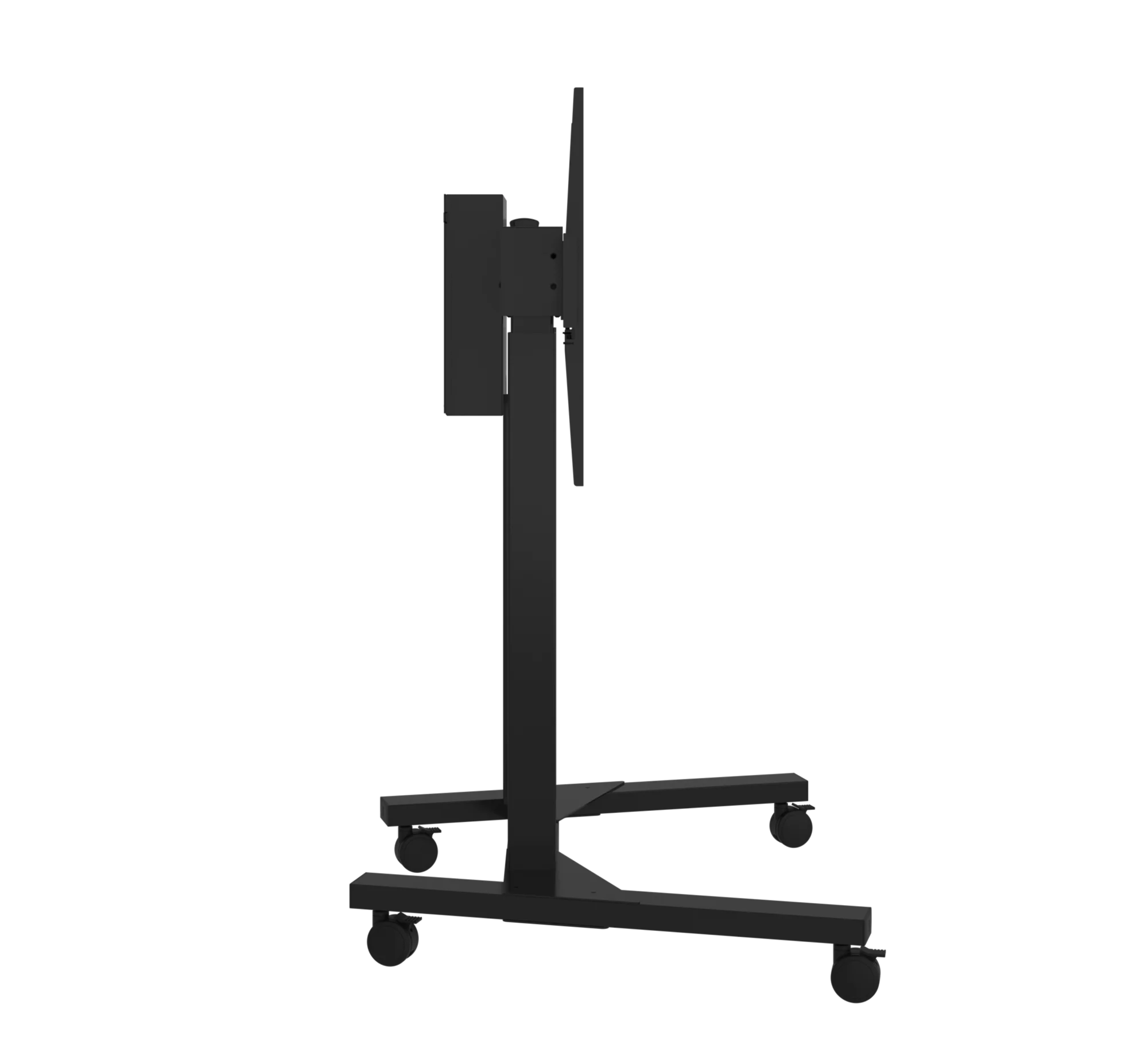

png 31.04 KB

BT8558-B-15

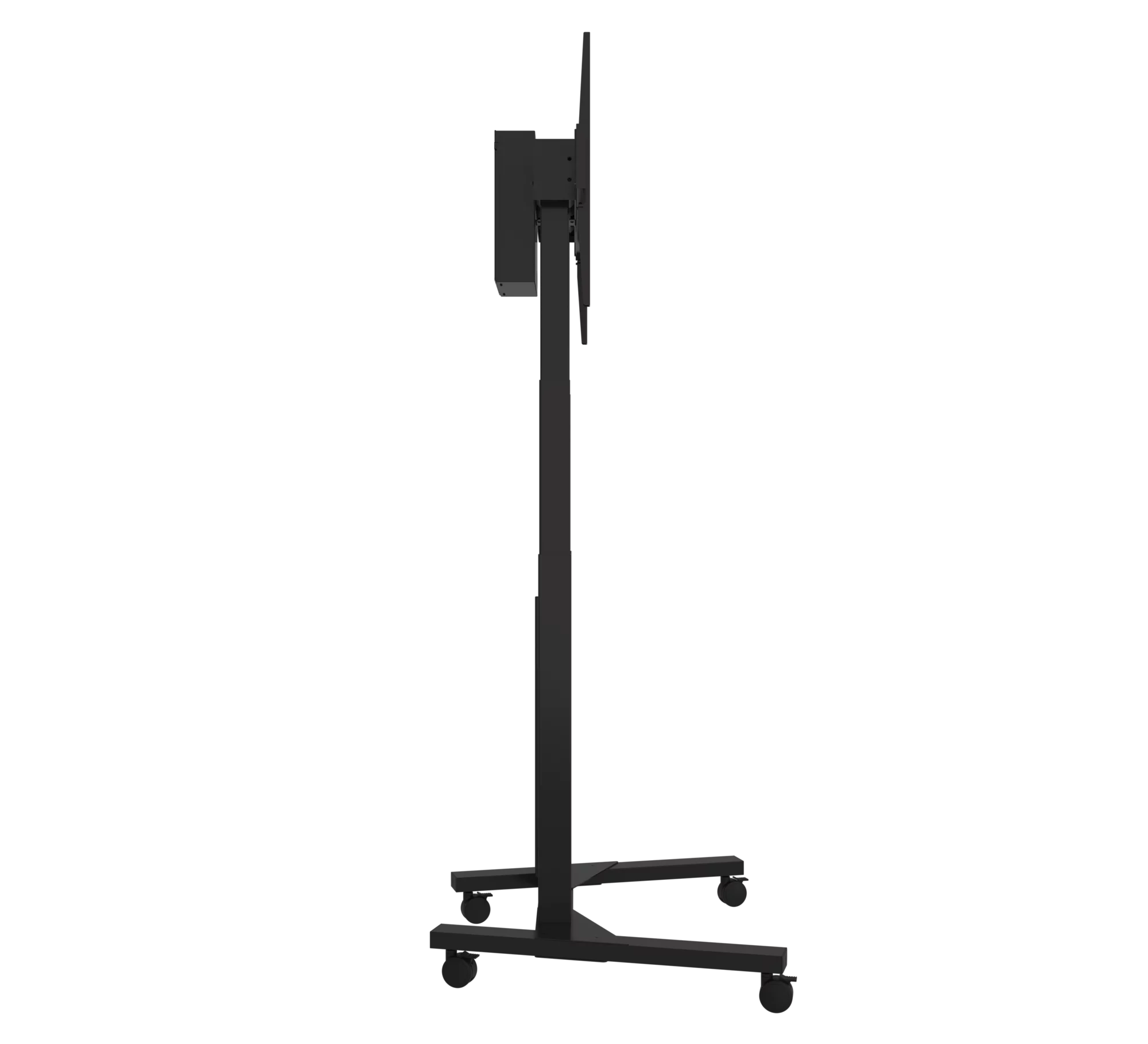

png 22.85 KB

BT8558-B-6

png 42.57 KB

BT8558-B-7

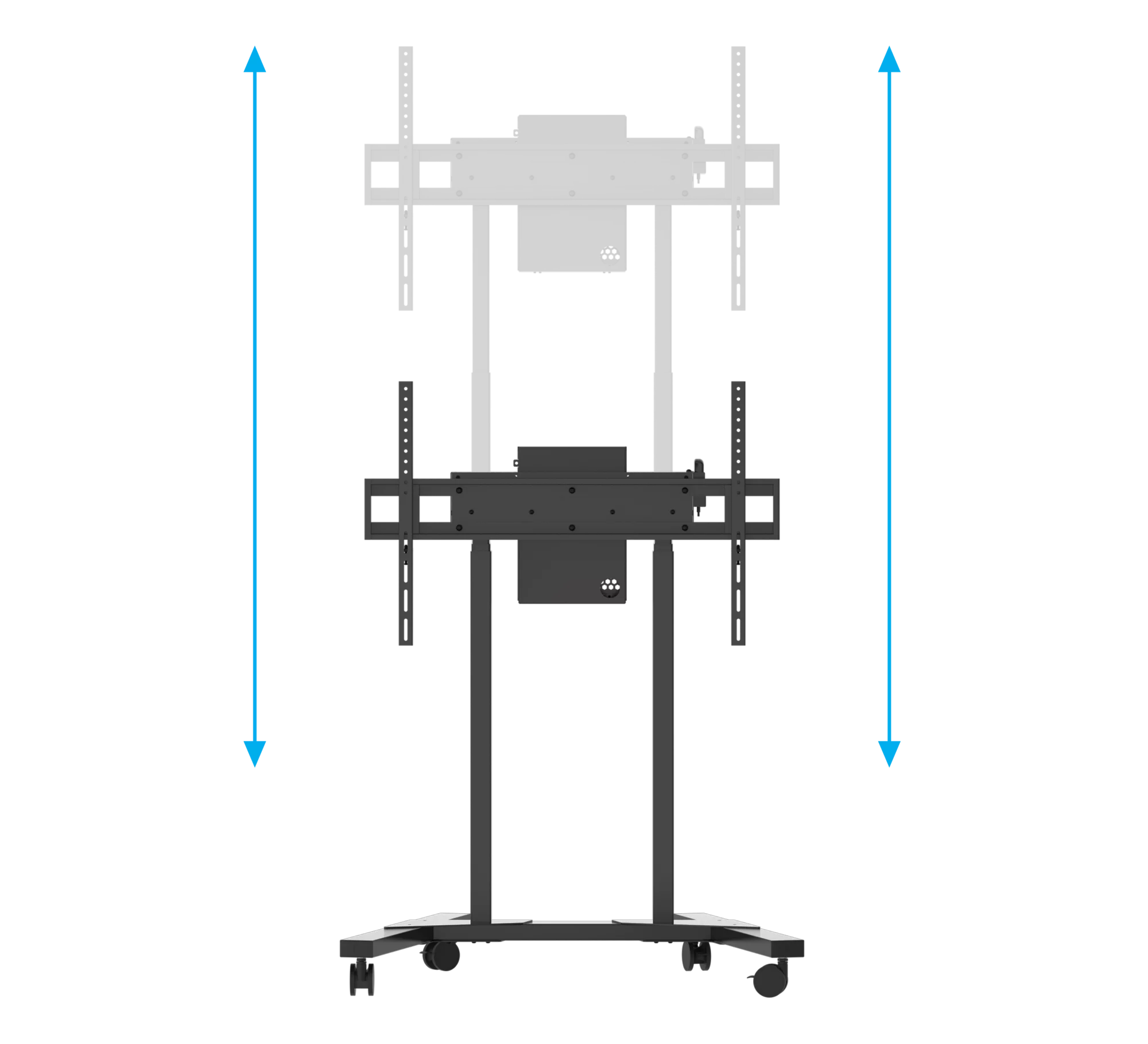

png 39.97 KB

BT8558-B-8

png 29.03 KB

BT8558-B-9

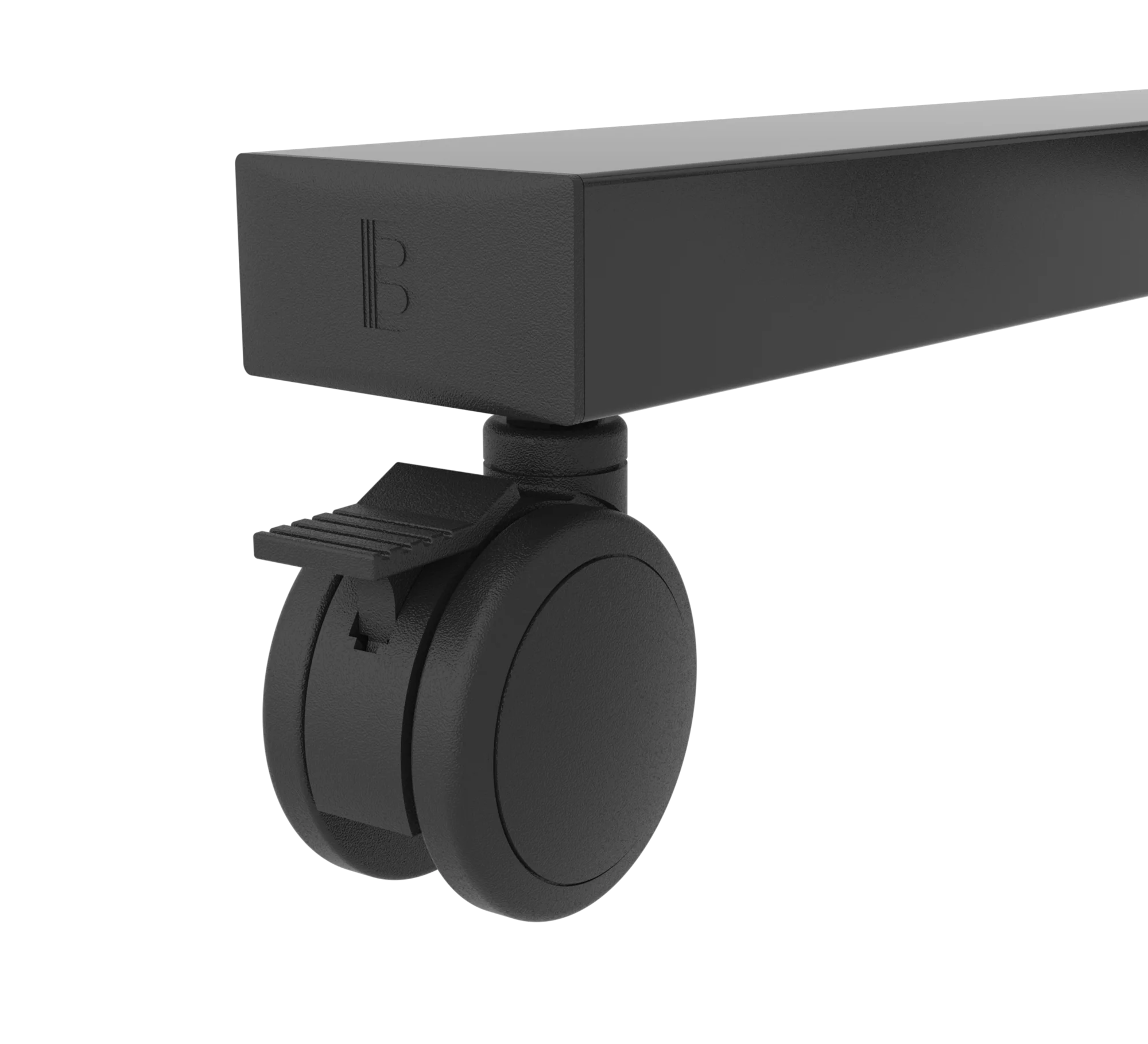

png 105.11 KB

BT8558-B-10

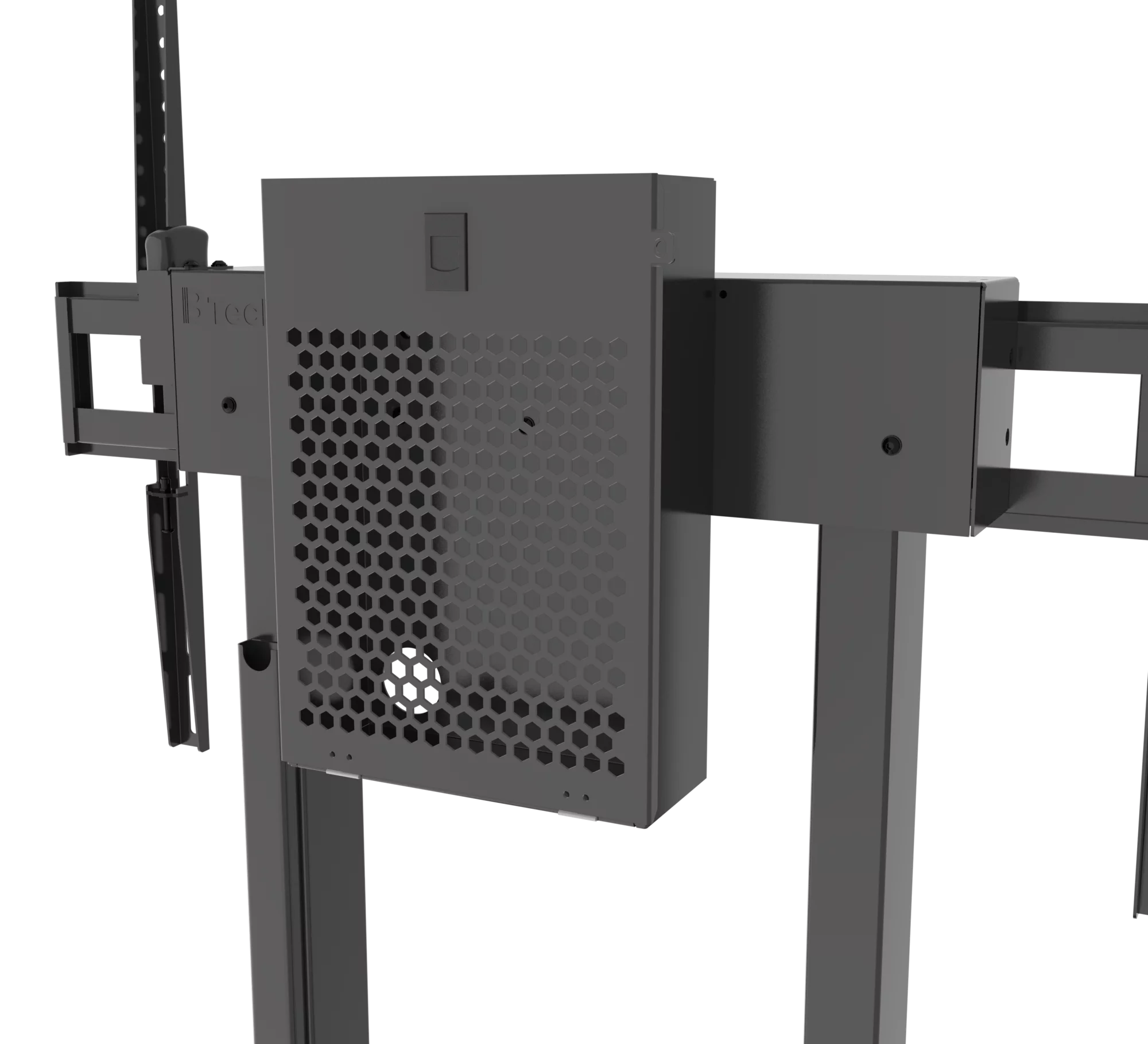

png 86.21 KB

BT8558-B-5

png 357.17 KB
