BT8559

Momentum

XXL Motorised Height Adjustable Floor-To-Wall Stand

Motorised height-adjustment

BT8559/B

Momentum

XXL Motorised Height Adjustable Floor-To-Wall Stand

Motorised height-adjustment

Enquire Today View Downloads

Overview

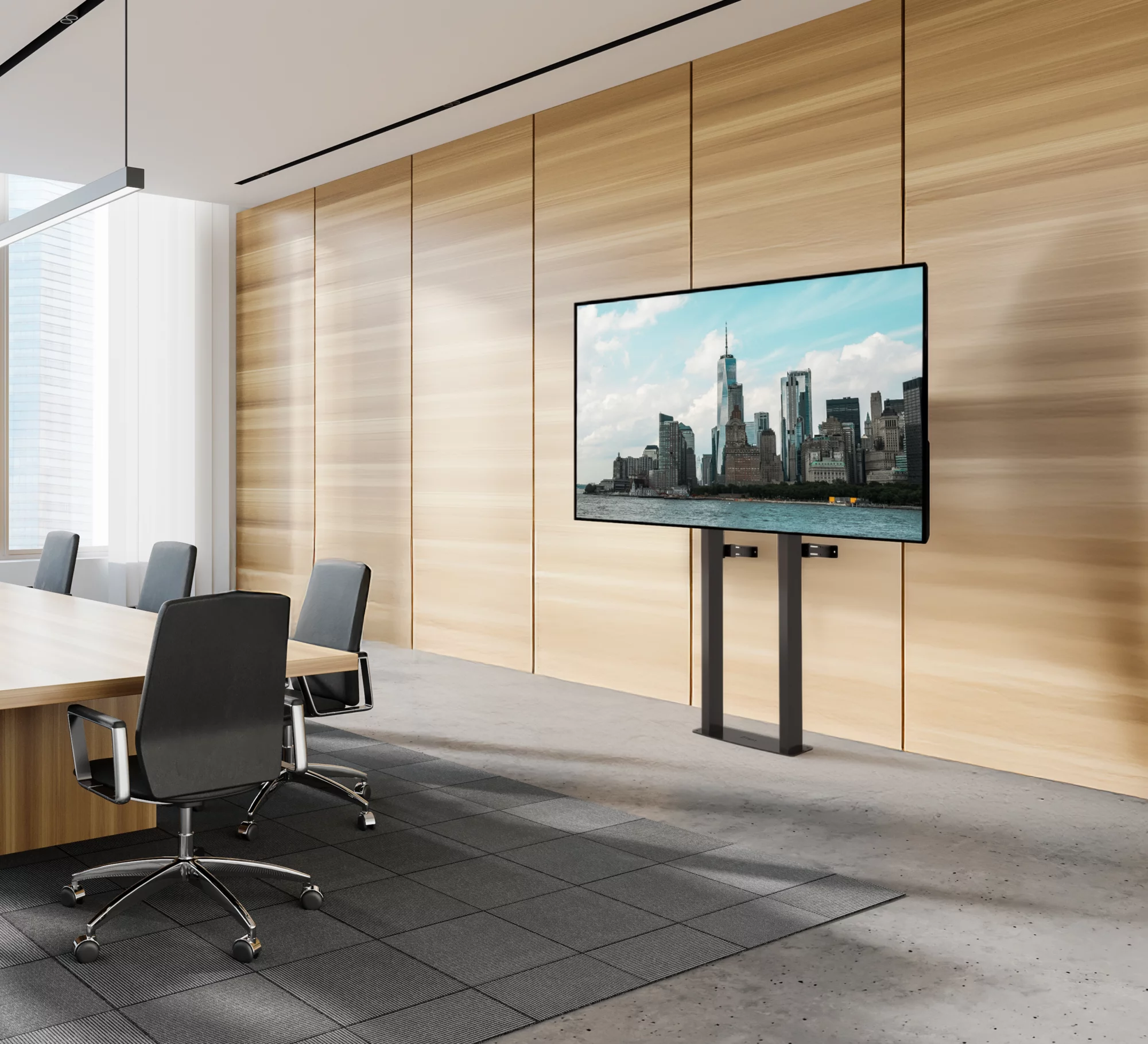

The BT8559 is a motorised, height-adjustable floor-to-wall stand designed for displays up to 100" in size. Its electronic height adjustment system allows for effortless raising and lowering of the screen via a wired control panel, with an adjustment range of up to 650mm that makes the display accessible to a variety of users. Capable of mounting interactive touchscreens of up to 100kg and featuring a sleek and modern design aesthetic, quick assembly and ease of use, the BT8559's performance in educational and corporate settings is unmatched. An integrated storage unit at the rear provides convenient space for cable management and AV equipment, making the complete AV set up both neat and practical
The BT8559 is a motorised, height-adjustable floor-to-wall stand designed for displays up to 100" in size. Its electronic height adjustment system allows for effortless raising and lowering of the screen via a wired control panel, with an adjustment range of up to 650mm that makes the display accessible to a variety of users. Capable of mounting interactive touchscreens of up to 100kg and featuring a sleek and modern design aesthetic, quick assembly and ease of use, the BT8559's performance in educational and corporate settings is unmatched. An integrated storage unit at the rear provides convenient space for cable management and AV equipment, making the complete AV set up both neat and practical

Product Features

  • Motorised height-adjustment for precise screen positioning
  • Supplied with a wired control console
  • Adjustable depth to the wall

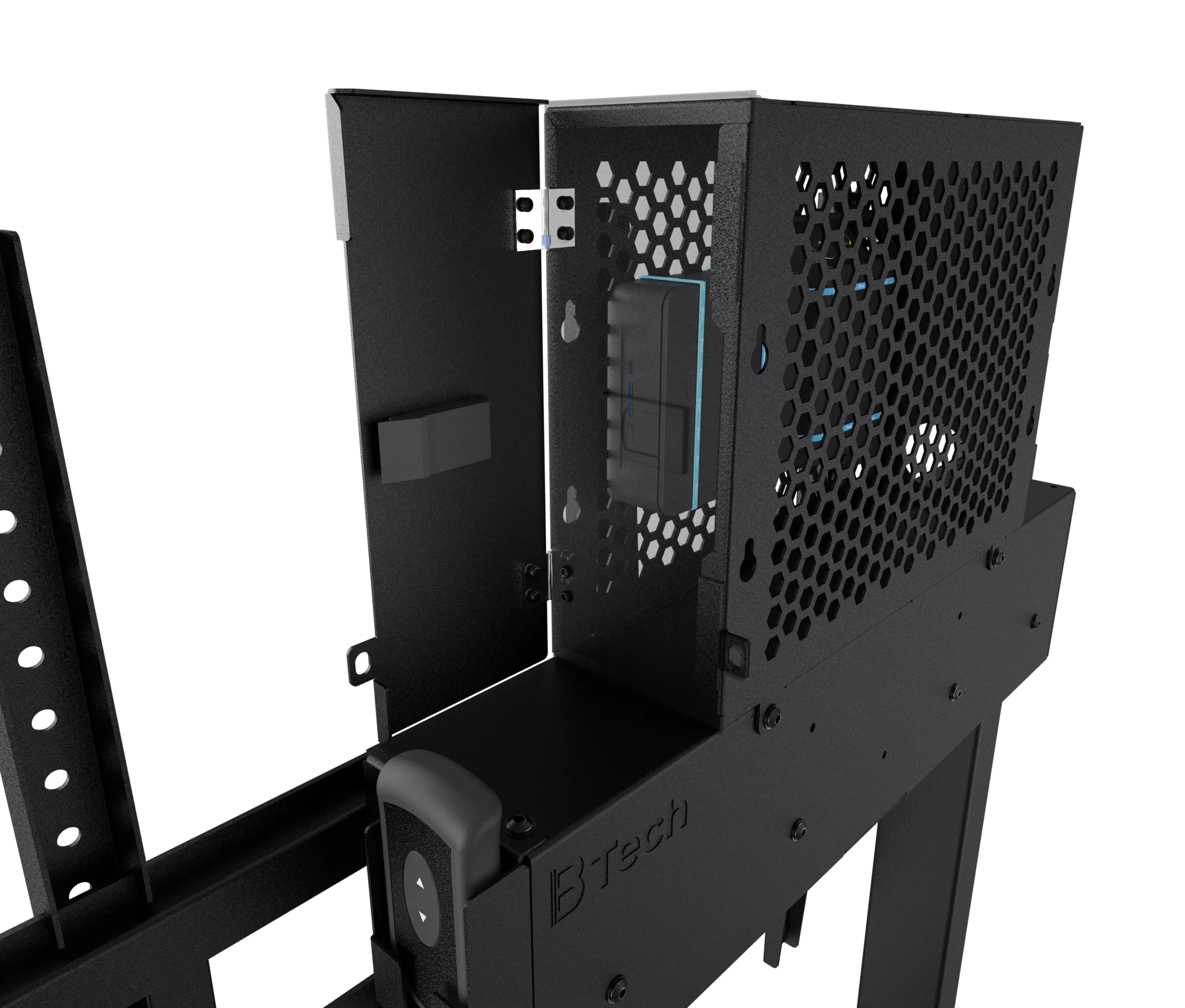

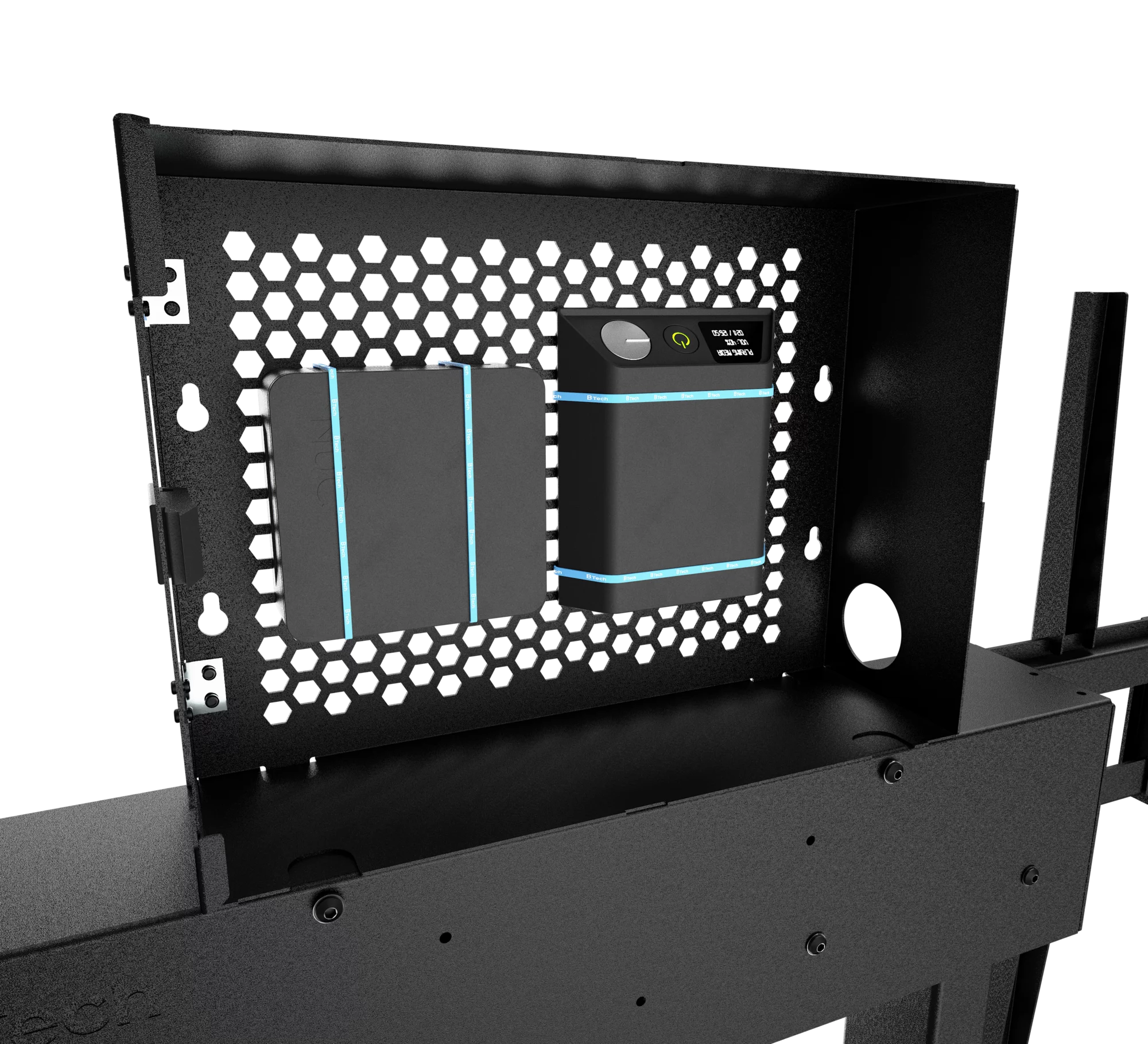

  • Includes storage compartment for cables and AV media equipment
  • Ideal for use with large touchscreens and interactive displays
  • Features auto-stop; screen stops moving when resistance is felt
  • Safety screws help prevent unauthorised removal of the screen
  • Simple hook-on screen installation
  • Integrated cable managment
  • All mounting hardware included
  • Motorised height-adjustment for precise screen positioning
  • Supplied with a wired control console
  • Adjustable depth to the wall
  • Includes storage compartment for cables and AV media equipment
  • Ideal for use with large touchscreens and interactive displays
  • Features auto-stop; screen stops moving when resistance is felt
  • Safety screws help prevent unauthorised removal of the screen
  • Simple hook-on screen installation
  • Integrated cable managment
  • All mounting hardware included

Product Specifications

  • Recommended display size: 55" up to 100"
  • Max load: 100kg
  • VESA fixings: up to 900mm x 600mm
  • Product width: 100mm
  • Min product depth: 202mm
  • Max product depth: 252mm
  • Min product height: 1310mm
  • Max product height: 1960mm
  • Height adjustment speed - per second: 35mm
  • Storage area width: 257mm
  • Storage area depth: 103mm
  • Storage area height: 352.8mm
  • Orientation: Landscape
  • Colour: Black
  • Distance from floor to centre of screen: min. 949mm - max. 1599mm
  • Recommended display size: 55" up to 100"
  • Max load: 100kg
  • VESA fixings: up to 900mm x 600mm
  • Product width: 100mm
  • Min product depth: 202mm
  • Max product depth: 252mm
  • Min product height: 1310mm
  • Max product height: 1960mm
  • Height adjustment speed - per second: 35mm
  • Storage area width: 257mm
  • Storage area depth: 103mm
  • Storage area height: 352.8mm
  • Orientation: Landscape
  • Colour: Black
  • Distance from floor to centre of screen: min. 949mm - max. 1599mm

Ordering & Box Information

Order Code: BT8559/B

Barcode: 5019318309120

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 43.80kg

Order Code: BT8559/B

Barcode: 5019318309120

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 43.80kg

Downloads

BT8559 - Product Specification Sheet - English

pdf 1.23 MB

BT8559 - Installation Guide

pdf 12.04 MB

BT8559 - Technical Drawings - (DXF)

DXF 30.59 MB

BT8559 - Technical Drawings - (PDF)

pdf 271.20 KB
