Home All Products Premium Bolt-Down Twin Screen VC Stand – 2m
Metric Imperial

BT8711

Mode-AL

Premium Bolt-Down Twin Screen VC Stand - 2m

Premium high end aesthetic

BT8711/BS

Mode-AL

Premium Bolt-Down Twin Screen VC Stand - 2m

Premium high end aesthetic

BT8711/B

Mode-AL

Premium Bolt-Down Twin Screen VC Stand - 2m

Premium high end aesthetic

Product variations available. Choose from the below options:

Colour

Black & Silver

Black

Enquire Today View Downloads

Overview

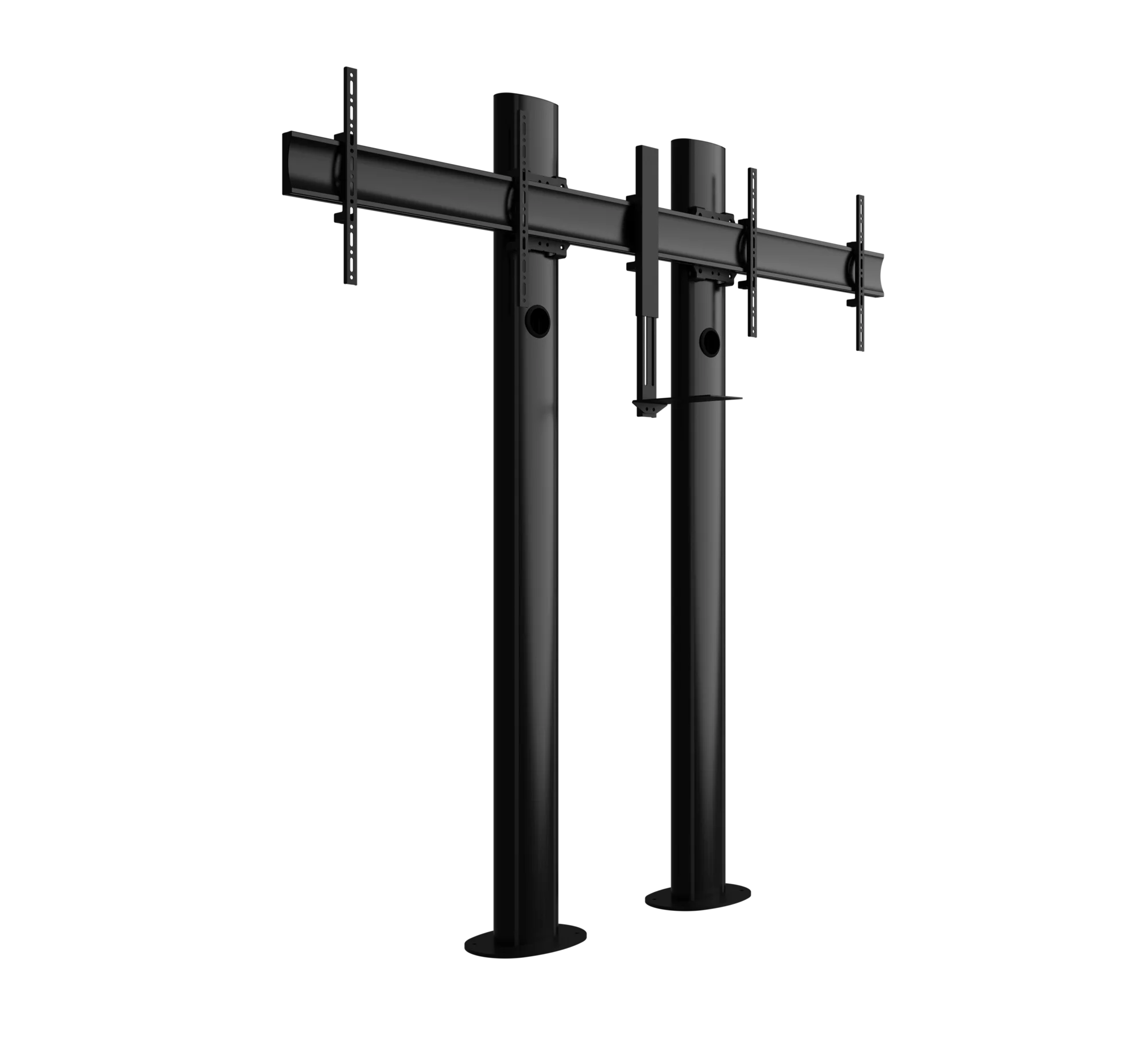

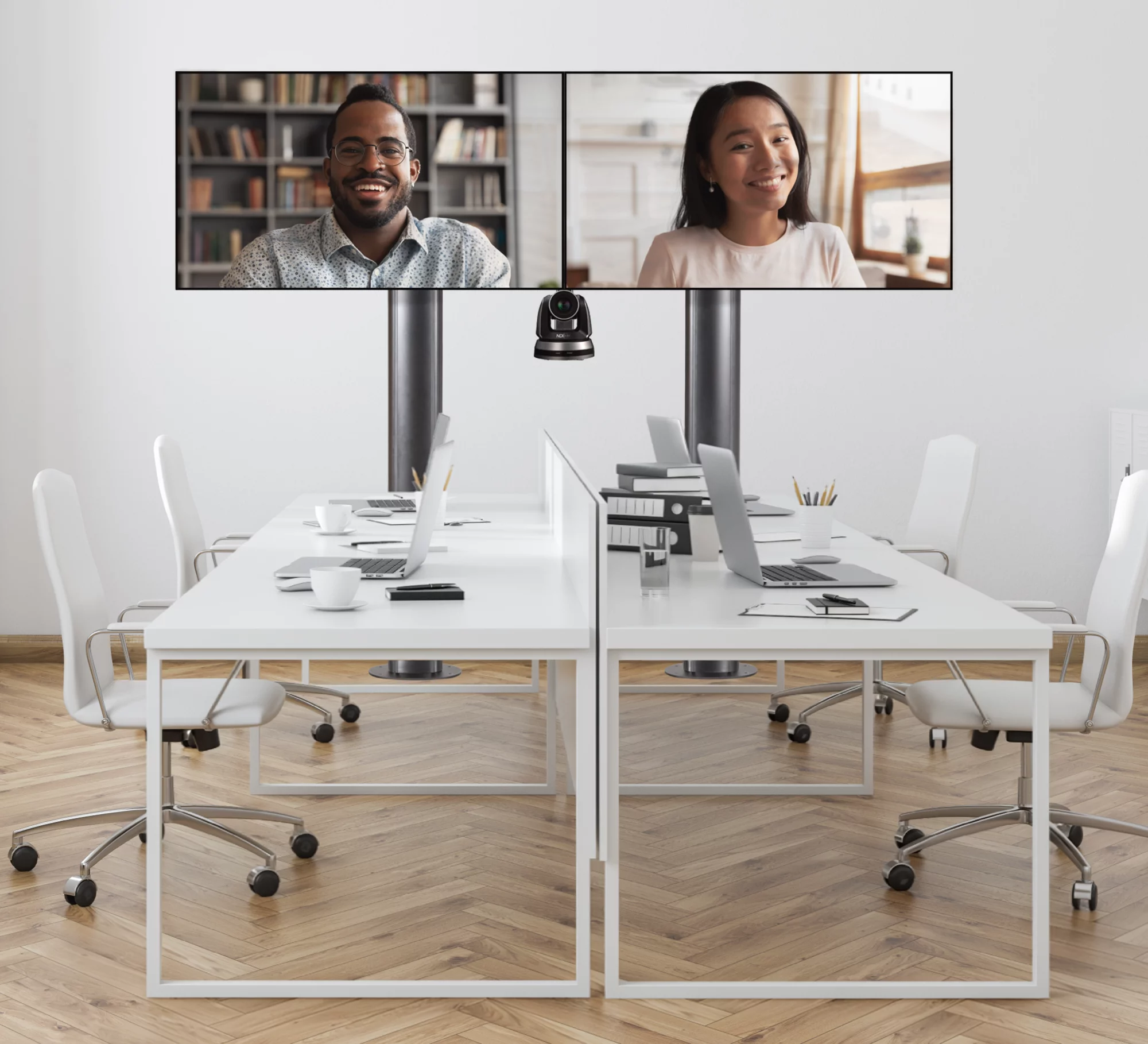

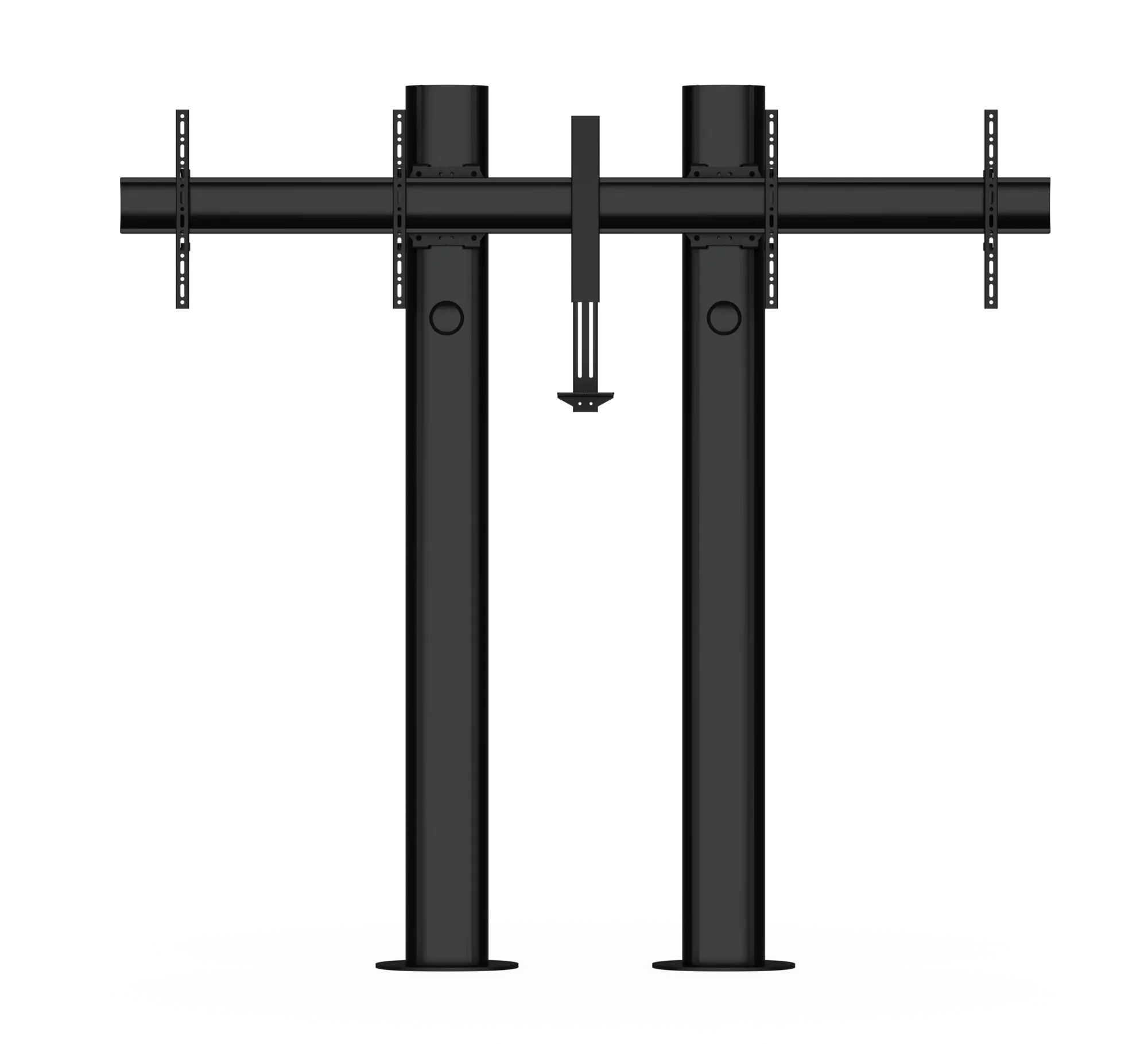

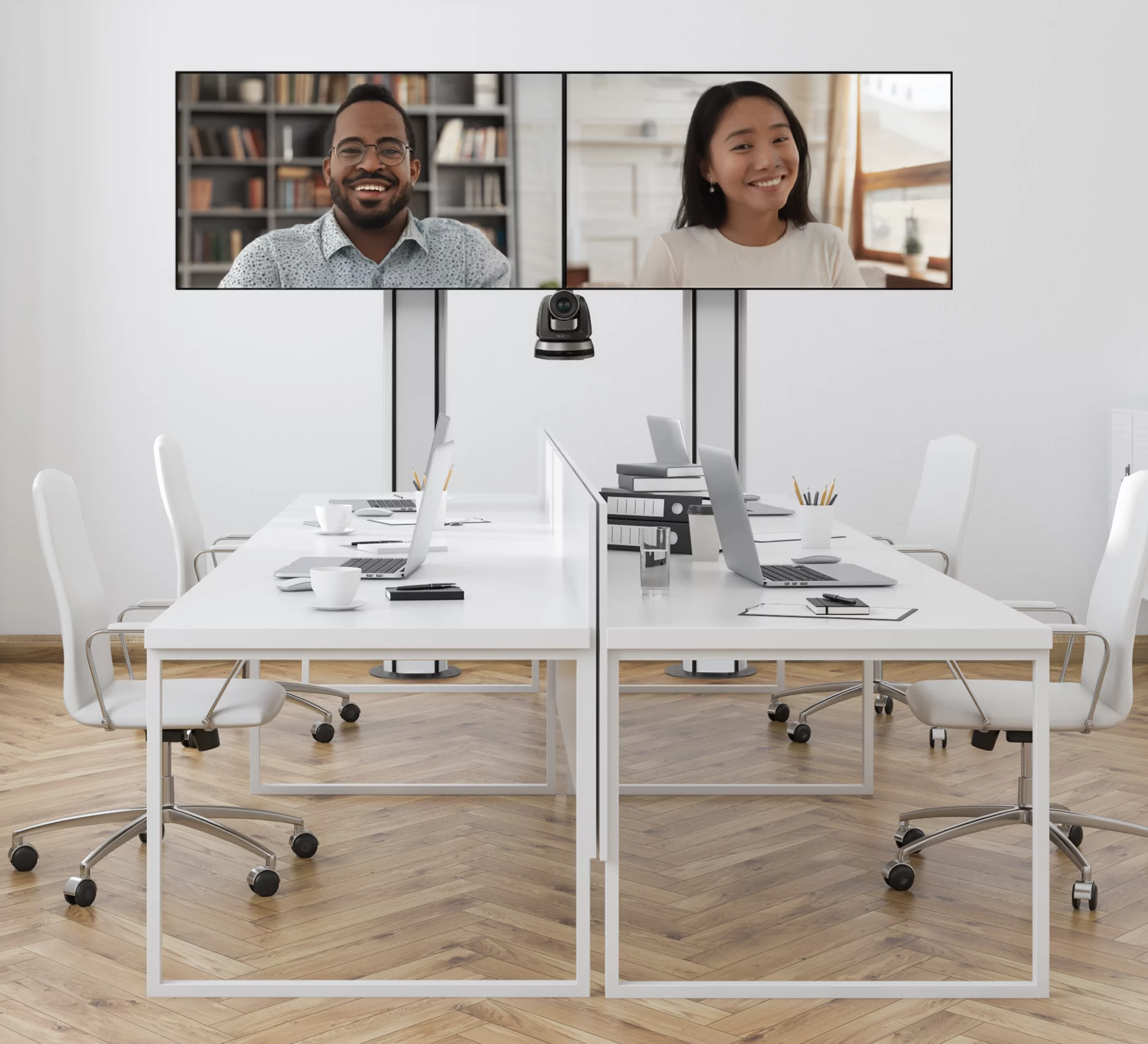

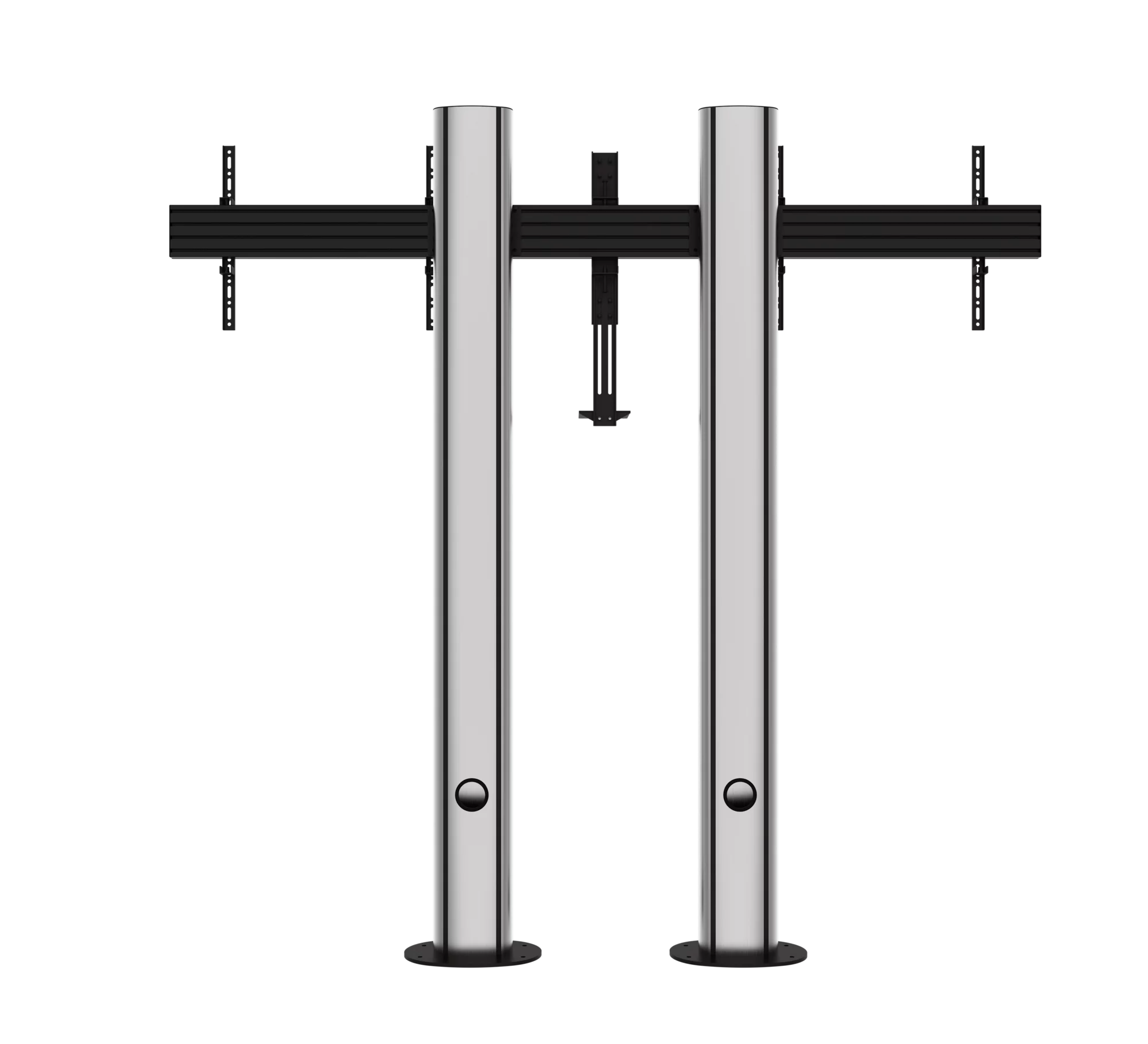

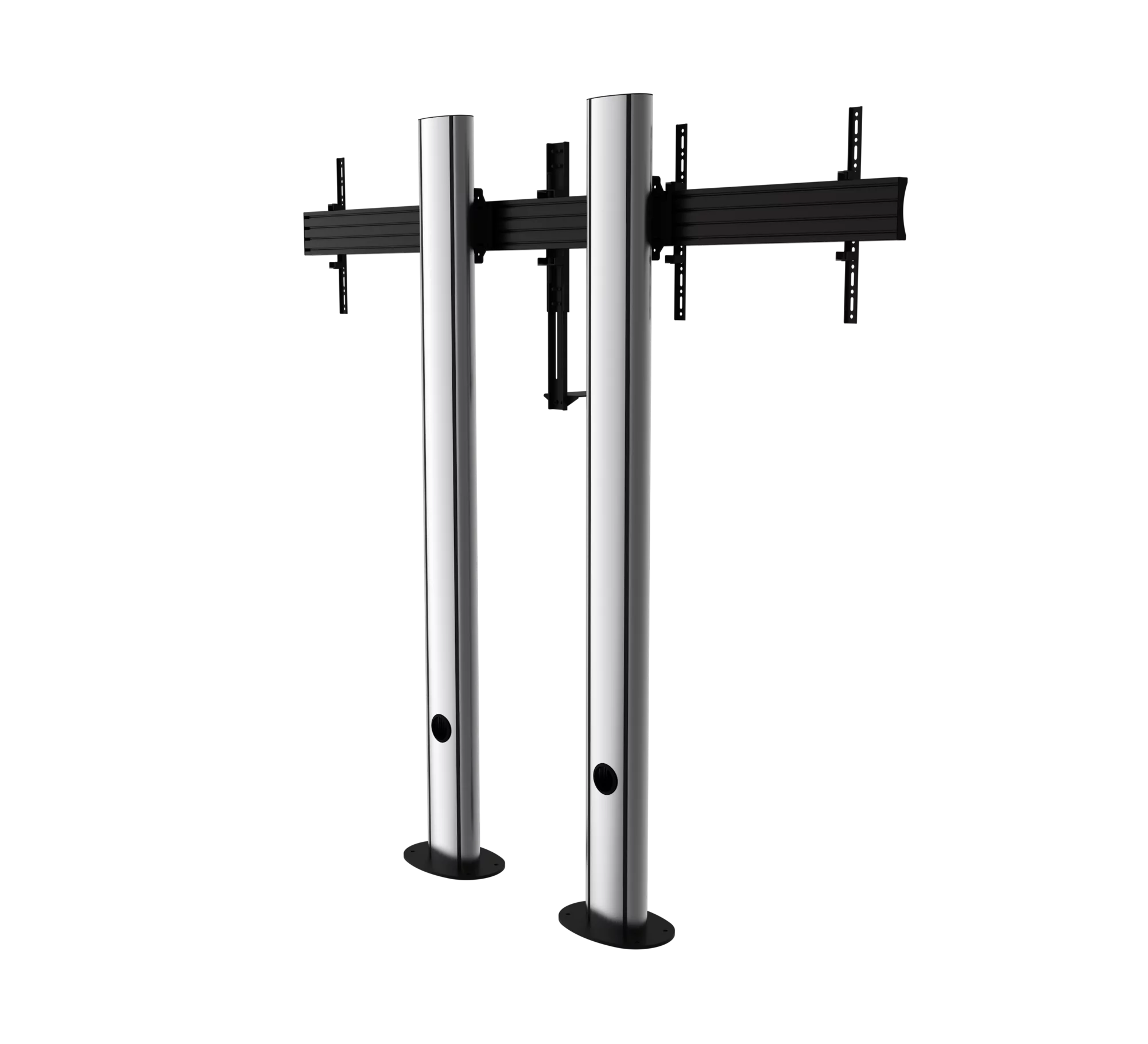

The BT8711 is a 2m tall, premium twin screen video conferencing bolt-down stand which can be customised with optional media storage solutions. As part of B-Tech's Mode-AL brand of high-end display solutions, the BT8711 is supplied with a VC shelf and is perfectly suited to corporate office spaces and UC/VC applications such as in boardrooms or conference facilities. Designed to mount screens close to the wall, the stand bolts to the floor with a minimal footprint and features integrated cable management to ensure a smart and stylish installation which is in keeping with the high-end, contemporary aesthetic.
The BT8711 is a 2m tall, premium twin screen video conferencing bolt-down stand which can be customised with optional media storage solutions. As part of B-Tech's Mode-AL brand of high-end display solutions, the BT8711 is supplied with a VC shelf and is perfectly suited to corporate office spaces and UC/VC applications such as in boardrooms or conference facilities. Designed to mount screens close to the wall, the stand bolts to the floor with a minimal footprint and features integrated cable management to ensure a smart and stylish installation which is in keeping with the high-end, contemporary aesthetic.
The BT8711 is a 2m tall, premium twin screen video conferencing bolt-down stand which can be customised with optional media storage solutions. As part of B-Tech's Mode-AL brand of high-end display solutions, the BT8711 is supplied with a VC shelf and is perfectly suited to corporate office spaces and UC/VC applications such as in boardrooms or conference facilities. Designed to mount screens close to the wall, the stand bolts to the floor with a minimal footprint and features integrated cable management to ensure a smart and stylish installation which is in keeping with the high-end, contemporary aesthetic.

Product Features

  • Designed to mount two screens close to the wall whilst keeping all cables neatly hidden
  • Universal design with a premium high-end aesthetic

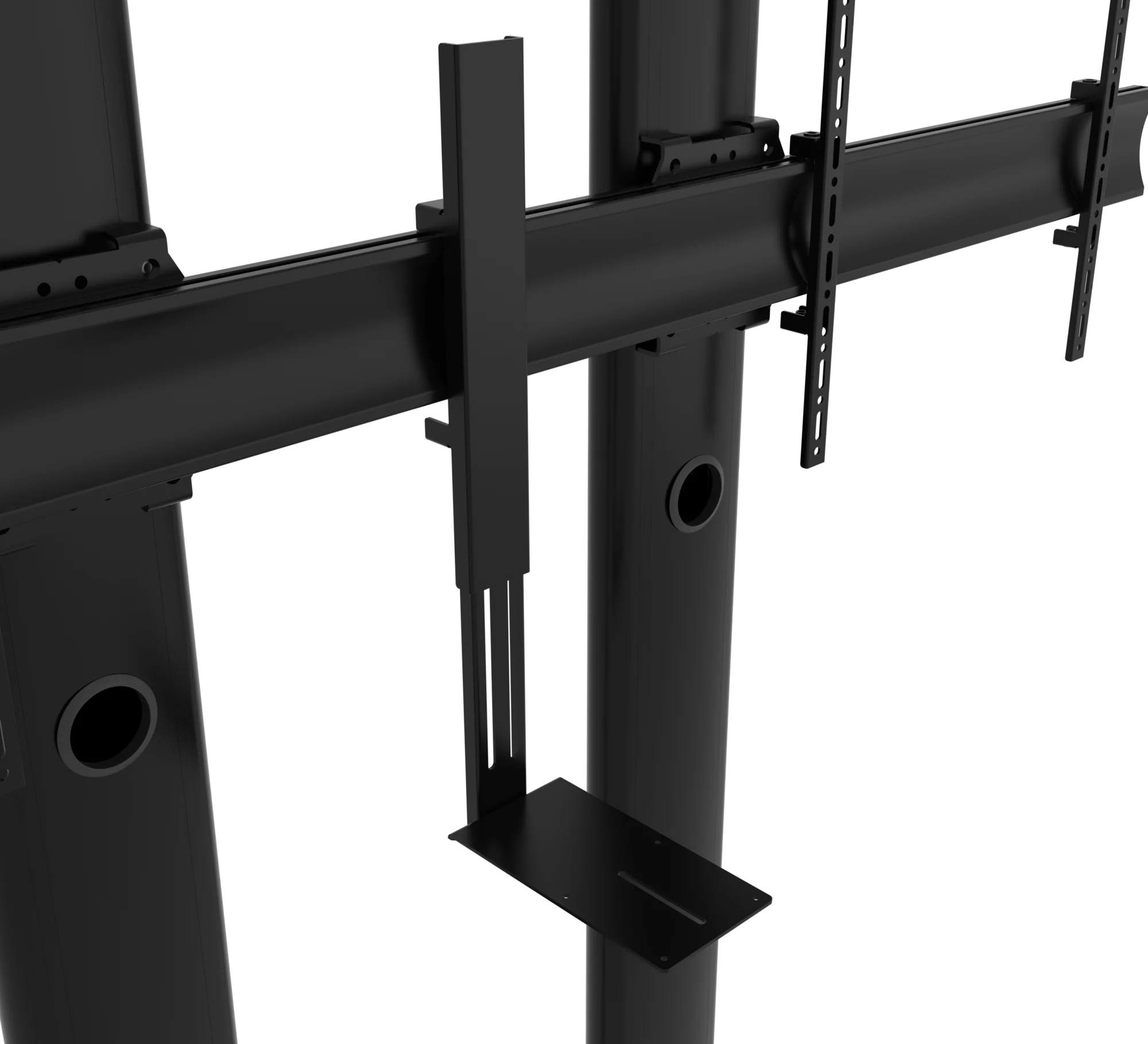

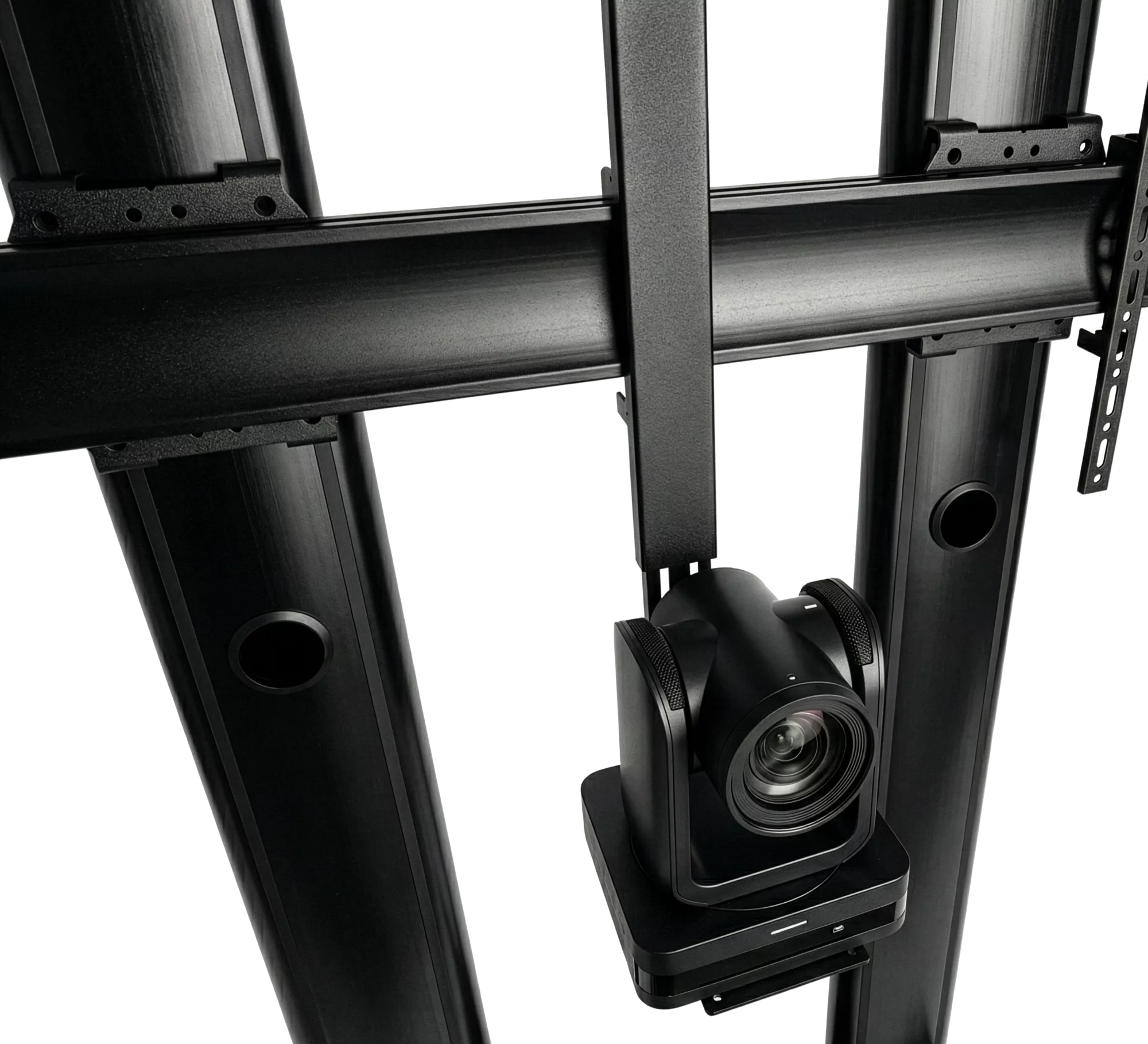

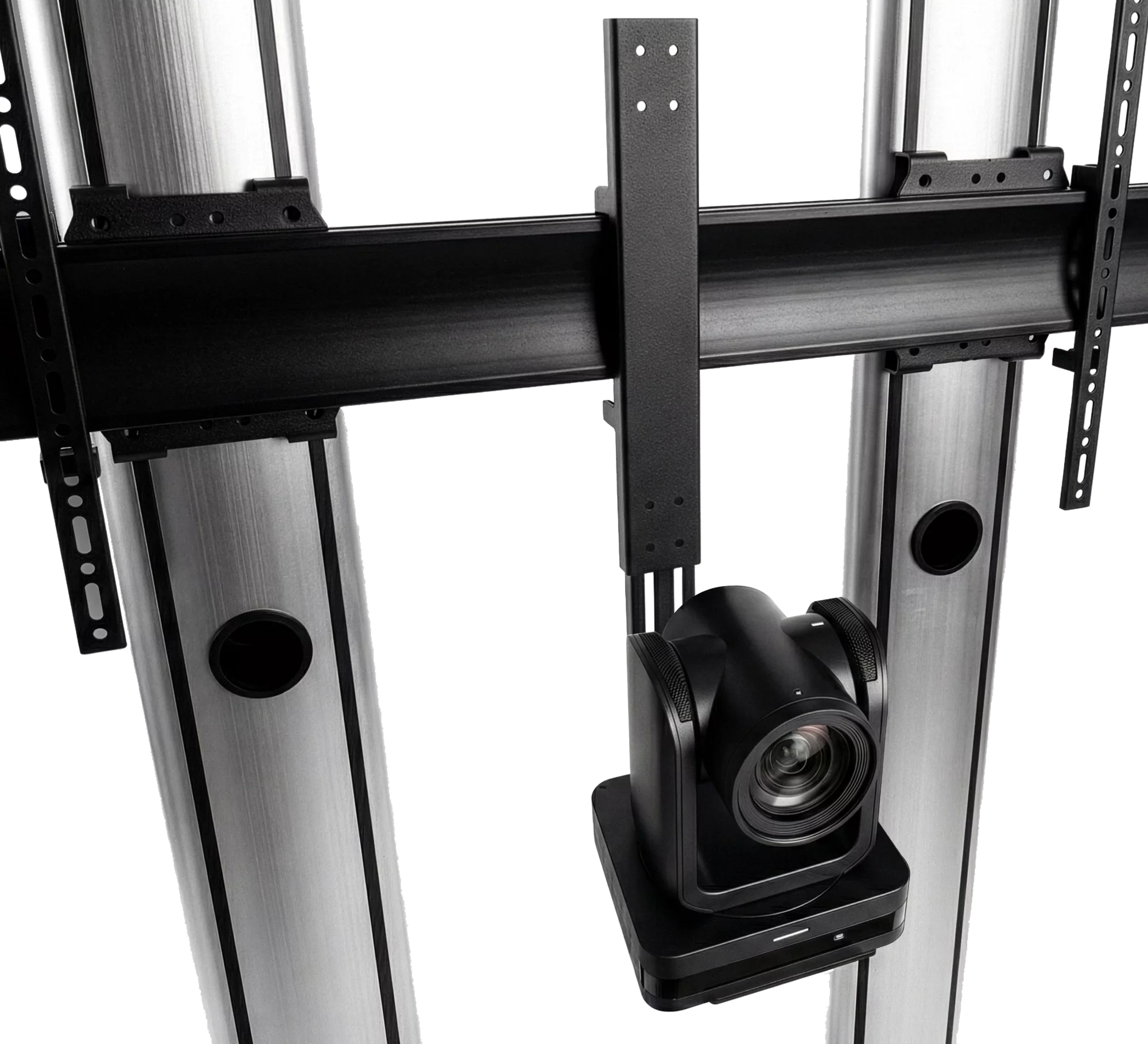

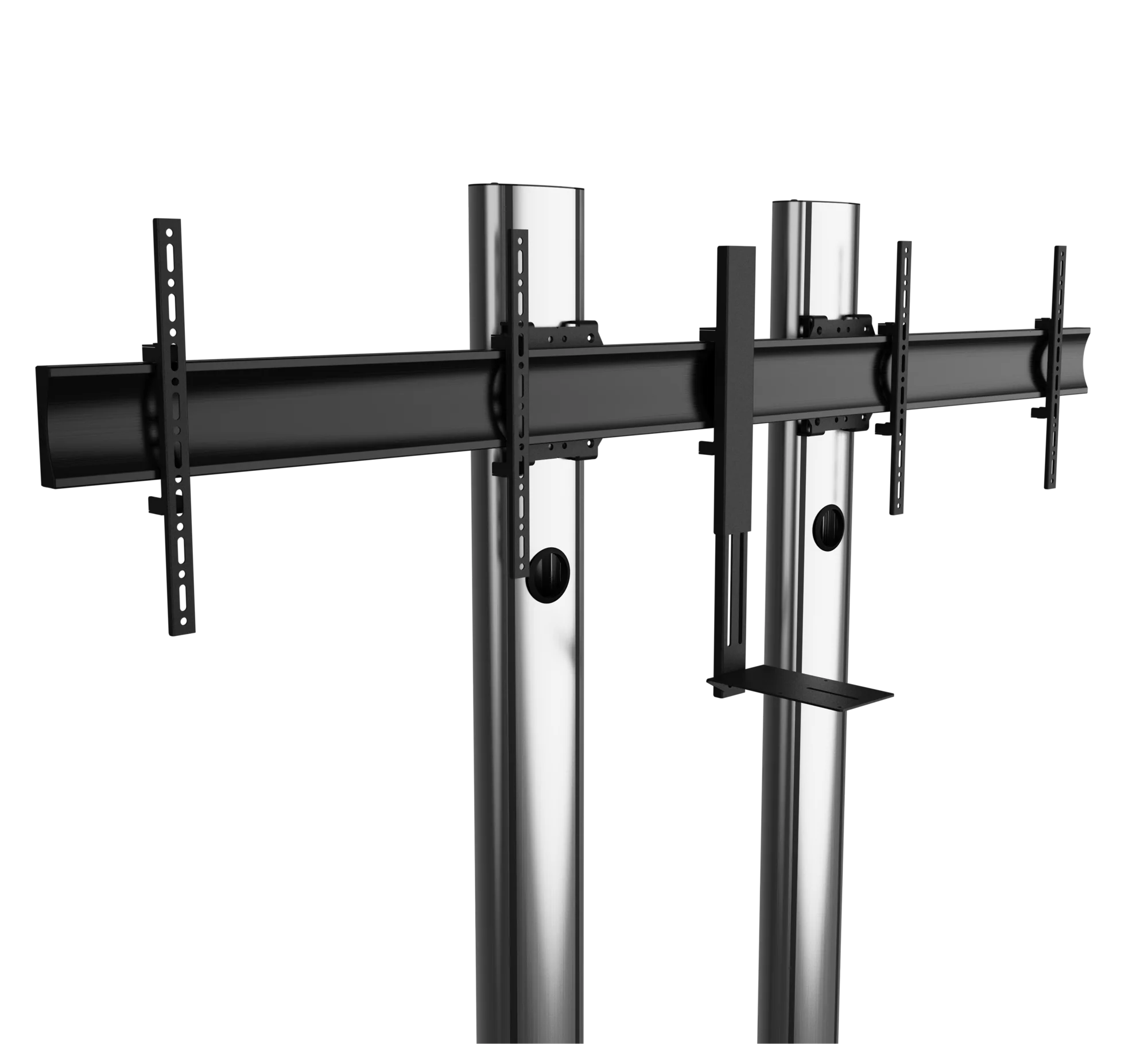

  • Adjustable VC shelf can be fitted above or below the screens
  • VC shelf fits most most cameras with 1/4" thread with 100 x 100mm fixing points
  • Small footprint for an unobtrusive installation into confined areas

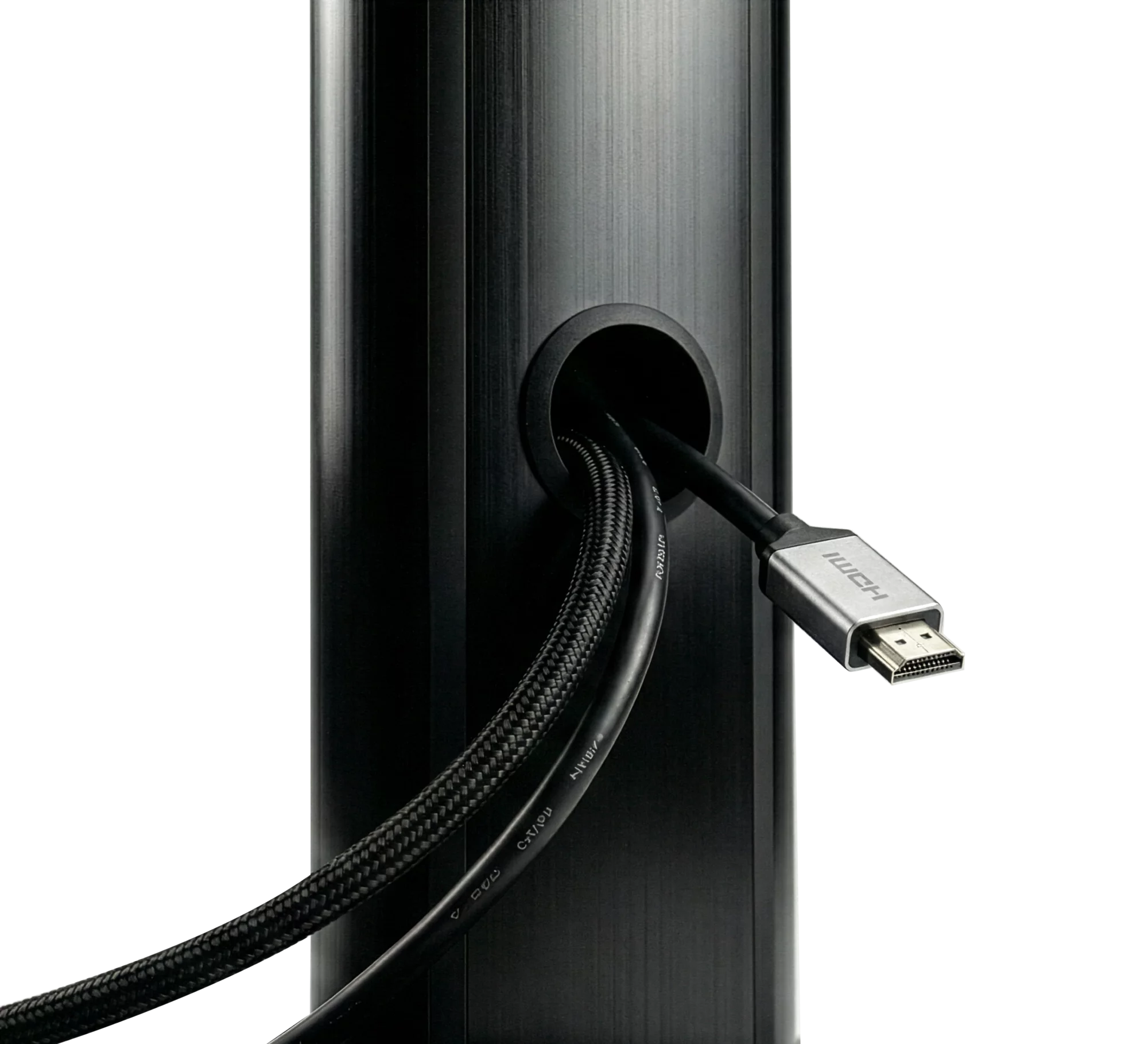

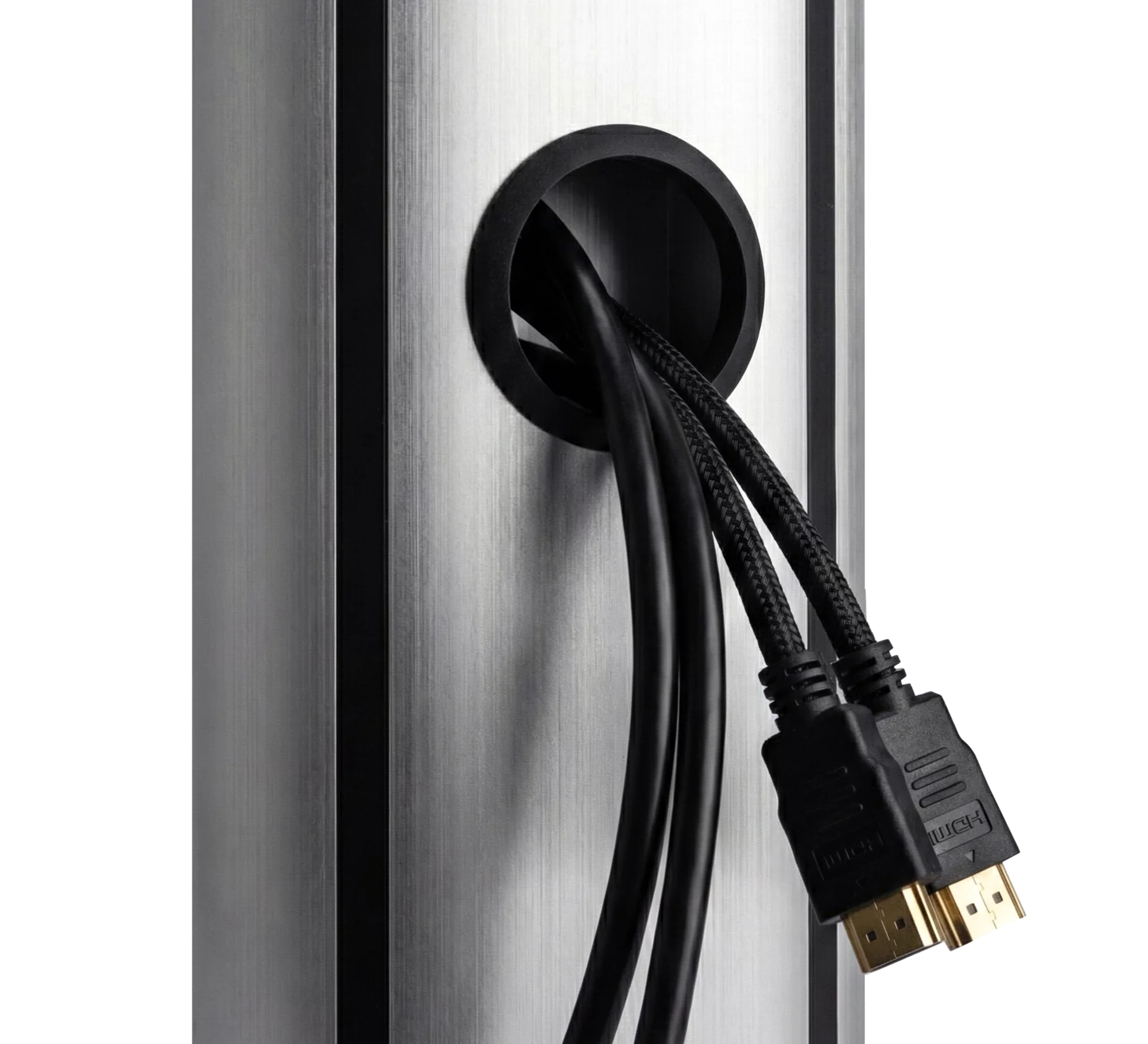

  • Integrated cable management
  • Safety screws help prevent unauthorised removal of screens
  • Easily accessorised with a flip-down media storage tray (available separately)
  • Simple 'hook-on' screen installation
  • Arms feature levelling screws to adjust the screen height
  • Designed to mount two screens close to the wall whilst keeping all cables neatly hidden
  • Universal design with a premium high-end aesthetic
  • Adjustable VC shelf can be fitted above or below the screens
  • VC shelf fits most most cameras with 1/4" thread with 100 x 100mm fixing points
  • Small footprint for an unobtrusive installation into confined areas
  • Integrated cable management
  • Safety screws help prevent unauthorised removal of screens
  • Easily accessorised with a flip-down media storage tray (available separately)
  • Simple 'hook-on' screen installation
  • Arms feature levelling screws to adjust the screen height
  • Designed to mount two screens close to the wall whilst keeping all cables neatly hidden
  • Universal design with a premium high-end aesthetic
  • Adjustable VC shelf can be fitted above or below the screens
  • VC shelf fits most most cameras with 1/4" thread with 100 x 100mm fixing points
  • Small footprint for an unobtrusive installation into confined areas
  • Integrated cable management
  • Safety screws help prevent unauthorised removal of screens
  • Easily accessorised with a flip-down media storage tray (available separately)
  • Simple 'hook-on' screen installation
  • Arms feature levelling screws to adjust the screen height

Product Specifications

  • Recommended display size: 56" - 65"
  • Max load: 70kg (per screen)
  • VESA fixings: up to 600mm x 400mm
  • Max screen centre height: 1807mm
  • Column length: 1.9m
  • Product width: 2005mm
  • Product depth: 165mm
  • Product height: 1969mm
  • Distance from wall: 20.5mm
  • Shelf depth: 235mm
  • Shelf width: 120mm
  • Shelf height: 3mm
  • Colour options: Black or Silver & Black
  • Orientation: Landscape
  • Recommended display size: 56" - 65"
  • Max load: 70kg (per screen)
  • VESA fixings: up to 600mm x 400mm
  • Max screen centre height: 1807mm
  • Column length: 1.9m
  • Product width: 2005mm
  • Product depth: 165mm
  • Product height: 1969mm
  • Distance from wall: 20.5mm
  • Shelf depth: 235mm
  • Shelf width: 120mm
  • Shelf height: 3mm
  • Colour options: Black or Silver & Black
  • Orientation: Landscape
  • Recommended display size: 56" - 65"
  • Max load: 70kg (per screen)
  • VESA fixings: up to 600mm x 400mm
  • Max screen centre height: 1807mm
  • Column length: 1.9m
  • Product width: 2005mm
  • Product depth: 165mm
  • Product height: 1969mm
  • Distance from wall: 20.5mm
  • Shelf depth: 235mm
  • Shelf width: 120mm
  • Shelf height: 3mm
  • Colour: Black
  • Orientation: Landscape

Ordering & Box Information

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 40.35kg

Order Code: BT8711/BS

Barcode: 5019318303692

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 40.35kg

Order Code: BT8711/B

Barcode: 5019318303685

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 40.35kg

Downloads

BT8711 - Product Specification Sheet - English

pdf 1.78 MB

BT8711 - Installation Guide

pdf 20.32 MB

BT8711 - Technical Drawings - (PDF)

pdf 244.84 KB

BT8711-1

png 33.91 KB

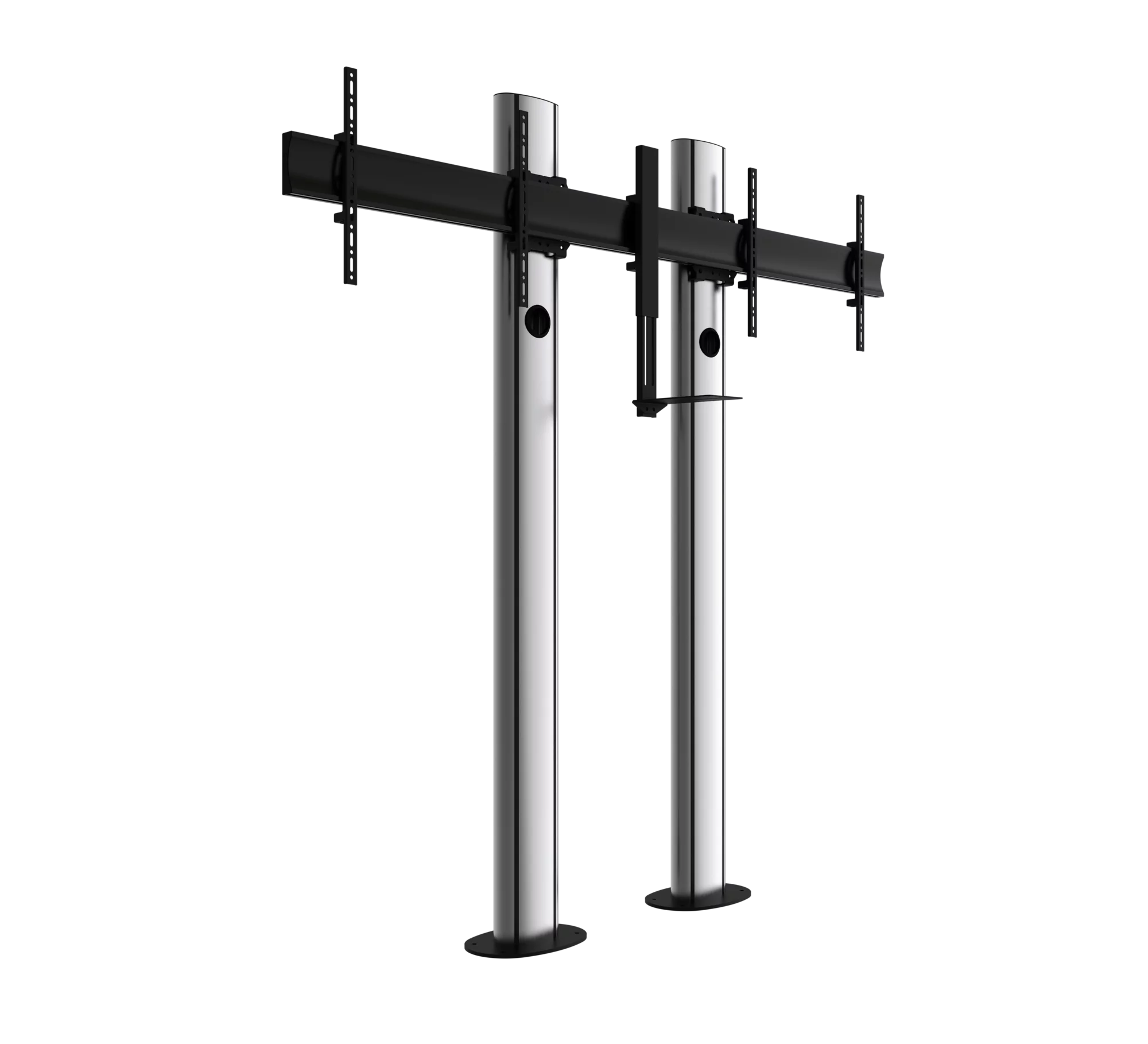

BT8711-2

png 33.44 KB

BT8711-3

png 70.51 KB

BT8711-4

png 86.53 KB

BT8711-5

png 131.99 KB

BT8711-7

png 83.09 KB

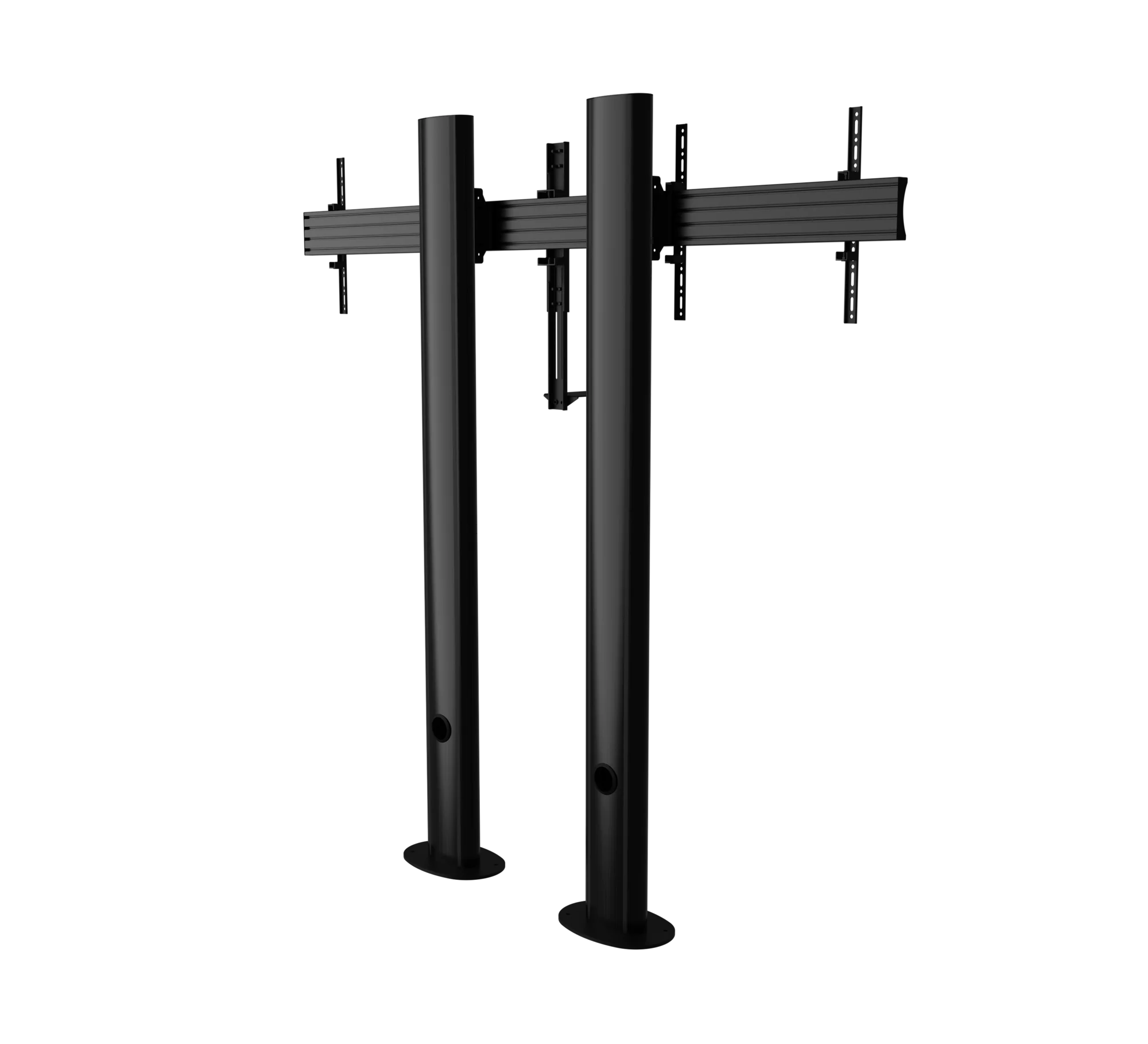

BT8711-8

png 39.11 KB

BT8711-10

png 110.75 KB

BT8711-11

png 233.18 KB

BT8711-9

png 175.20 KB

BT8711 - Green Sheet

pdf 342.50 KB

Downloads

BT8711 - Product Specification Sheet - English

pdf 1.78 MB

BT8711 - Installation Guide

pdf 20.32 MB

BT8711 - Technical Drawings - (PDF)

pdf 244.84 KB

BT8711-BS-1

png 33.44 KB

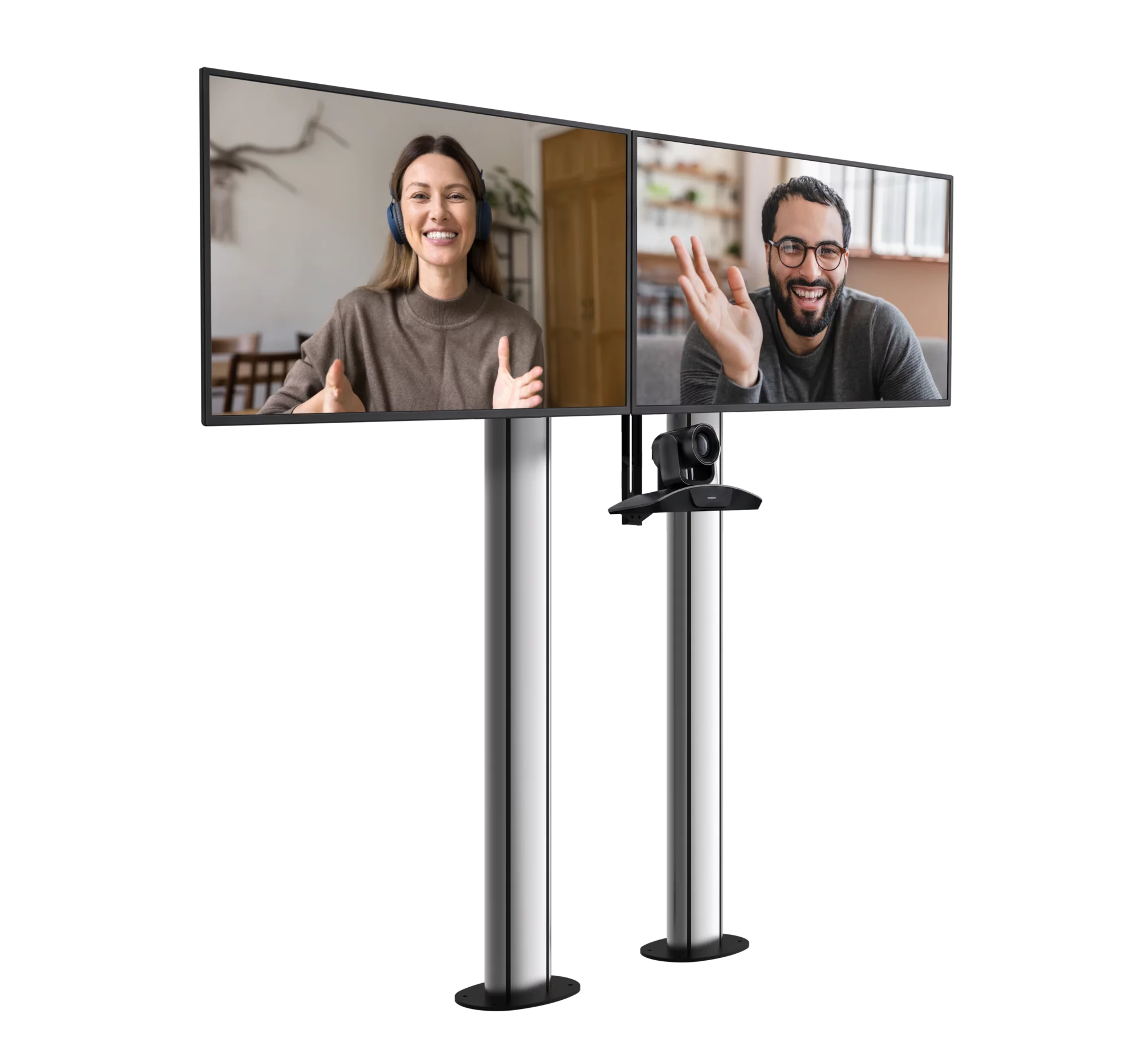

BT8711-BS-2

png 70.87 KB

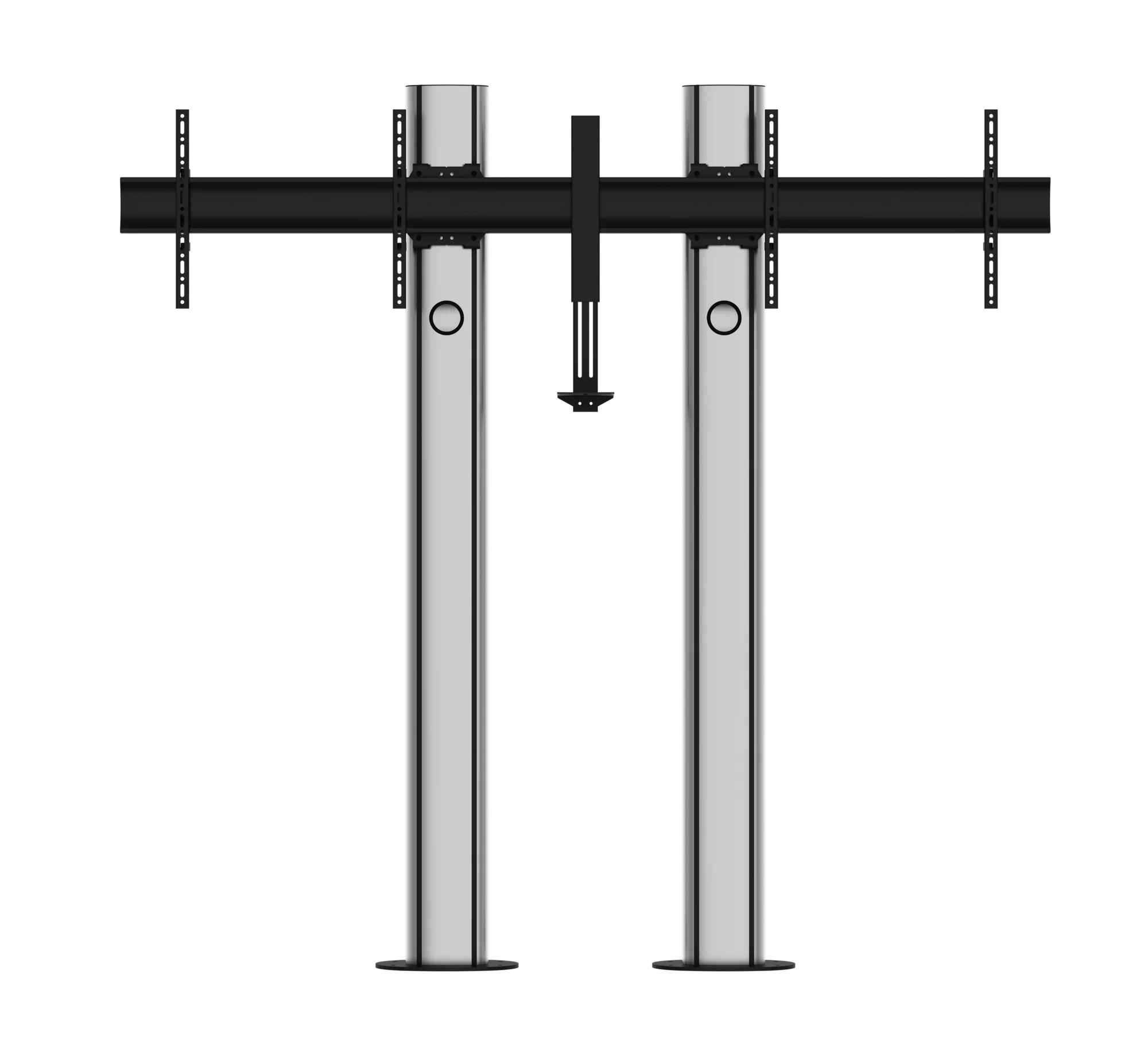

BT8711-BS-3

png 27.19 KB

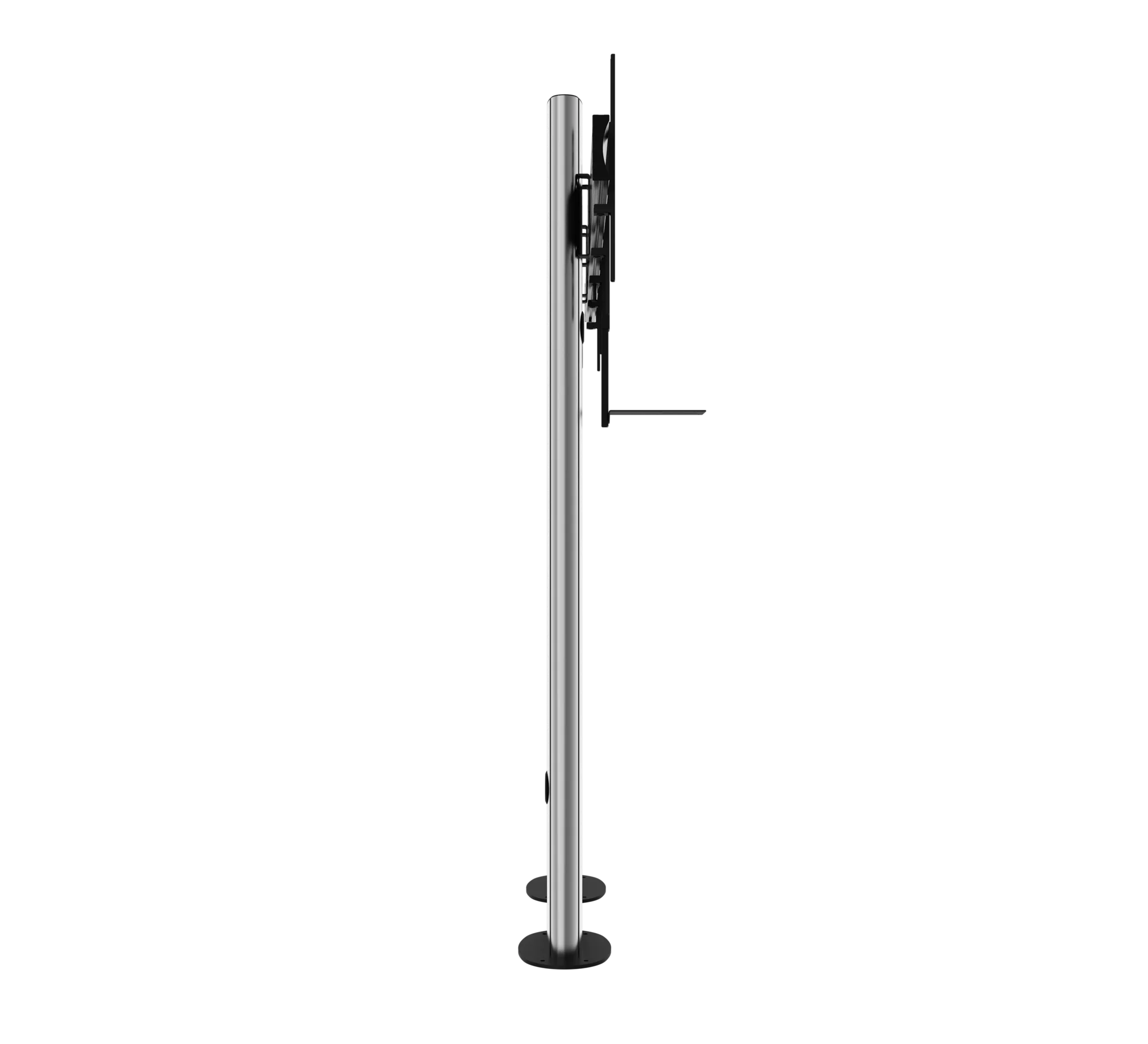

BT8711-BS-4

png 17.64 KB

BT8711-BS-5

png 26.16 KB

BT8711-BS-6

png 42.02 KB

BT8711-BS-7

png 69.01 KB

BT8711-BS-10

png 136.30 KB

BT8711-BS-9

png 229.34 KB

BT8711-BS-8

png 186.72 KB

BT8711 - Green Sheet

pdf 342.50 KB

Downloads

BT8711 - Product Specification Sheet - English

pdf 1.78 MB

BT8711 - Installation Guide

pdf 20.32 MB

BT8711 - Technical Drawings - (PDF)

pdf 244.84 KB

BT8711-B-1

png 33.91 KB

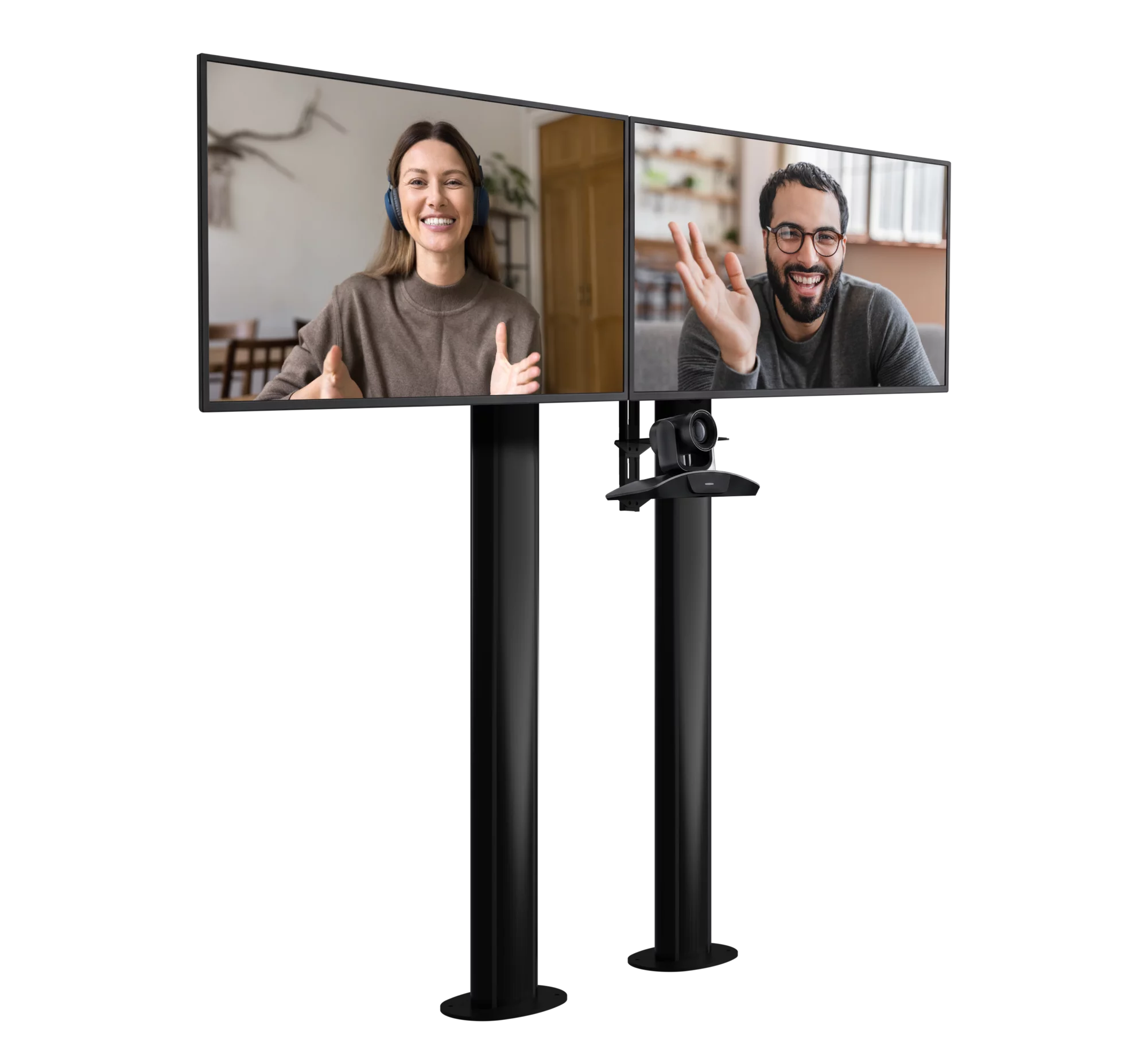

BT8711-B-2
