Home All Products Heavy Duty Projector Ceiling Mount
Metric Imperial

BT893

Heavy Duty Projector Ceiling Mount

With Micro-Adjustment

BT893/W

Heavy Duty Projector Ceiling Mount

With Micro-Adjustment

BT893/B

Heavy Duty Projector Ceiling Mount

With Micro-Adjustment

Product variations available. Choose from the below options:

Colour

White

Black

Enquire Today View Downloads

Overview

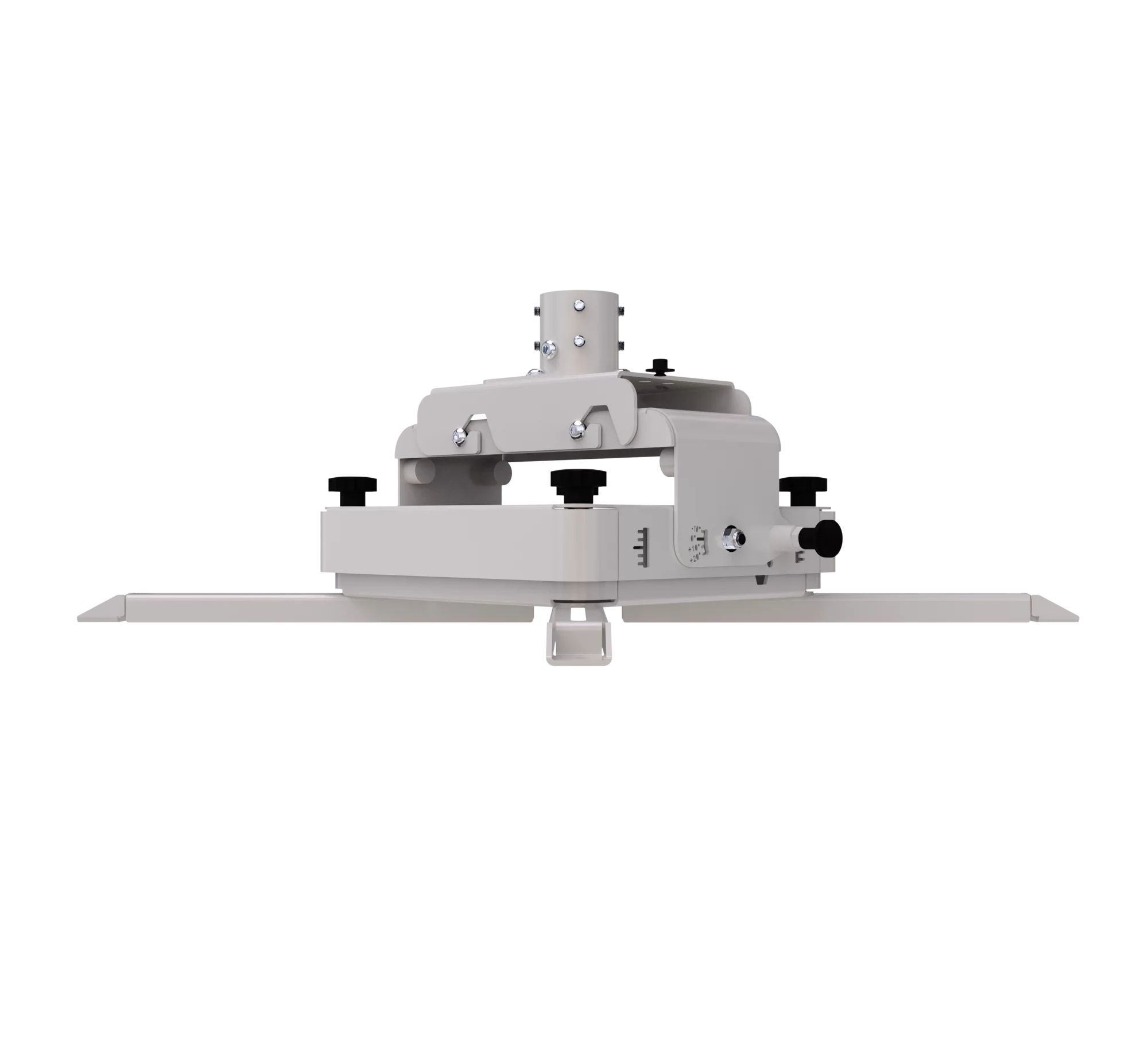

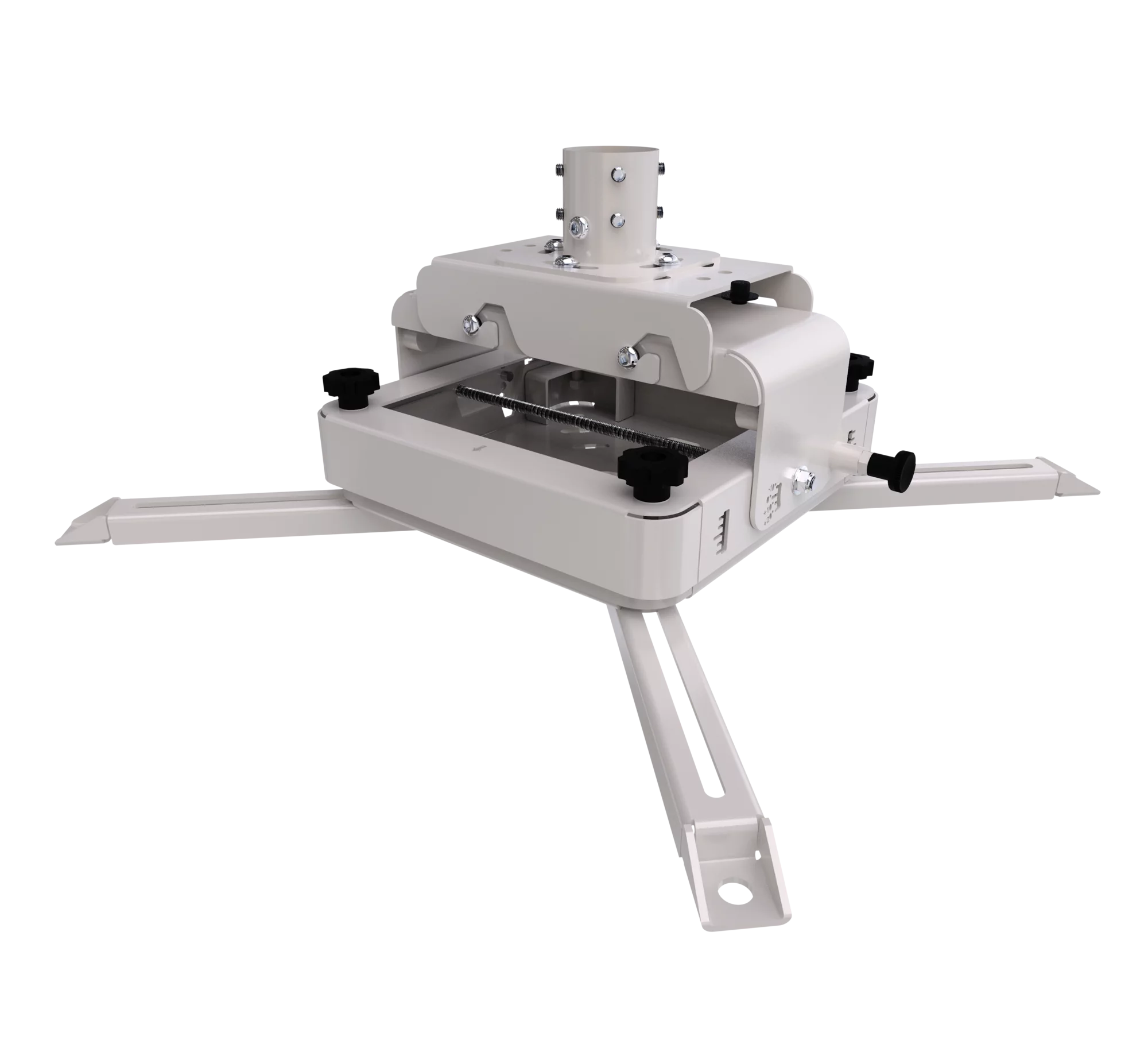

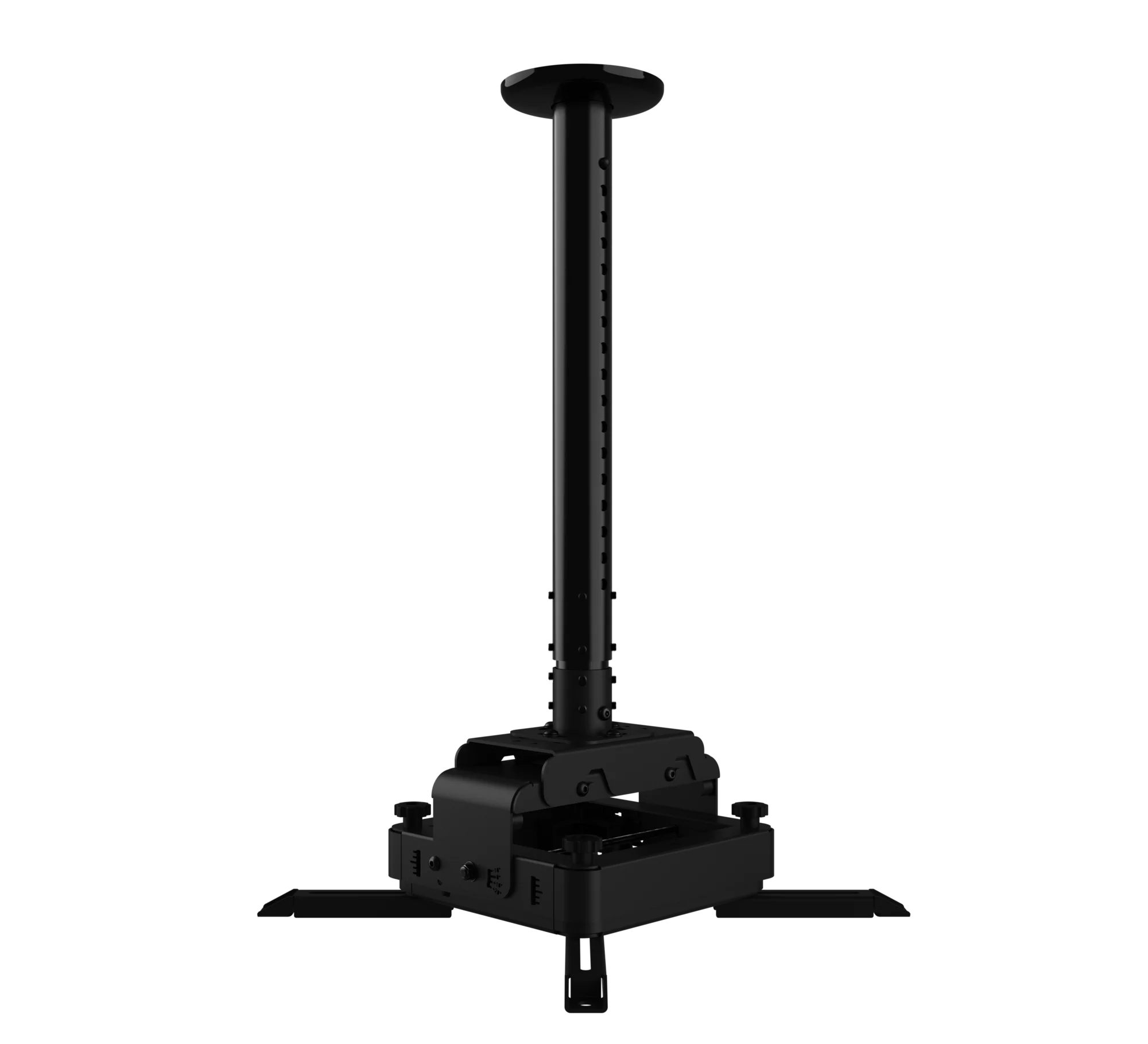

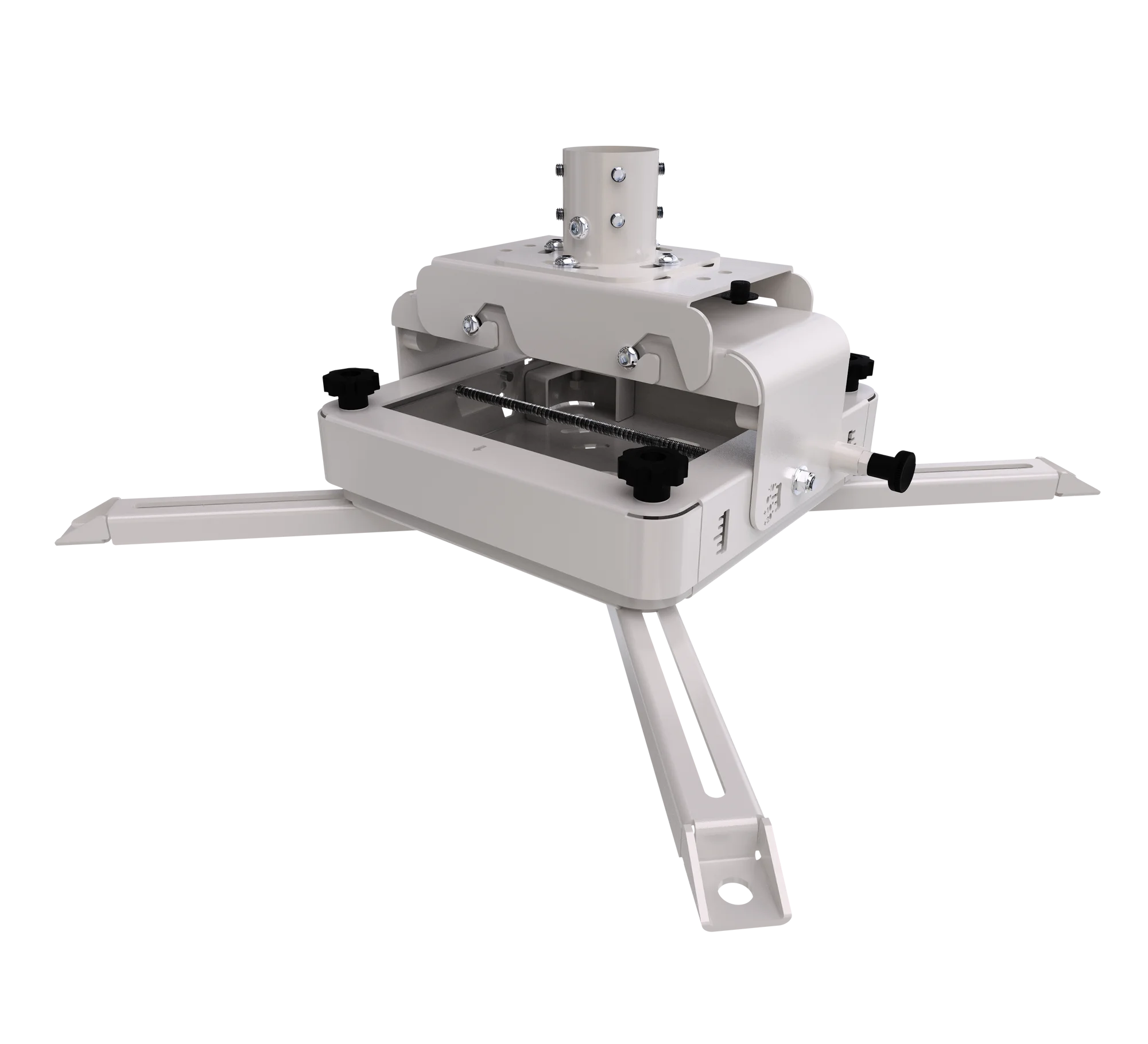

Designed to mount projectors up to 70kg, this heavy duty projector mount can be fixed directly to the ceiling or can be mounted to any B-Tech Ø50mm pole (ideal for installing in areas with high ceilings where a larger ceiling drop is required). The projector fixes to an extendable mounting plate, with optional extension legs included to accommodate larger fixing patterns. The mounting plate of the BT893 uses 4-point micro-adjustment for added flexibility, so that a perfectly aligned projection can be achieved.
Designed to mount projectors up to 70kg, this heavy duty projector mount can be fixed directly to the ceiling or can be mounted to any B-Tech Ø50mm pole (ideal for installing in areas with high ceilings where a larger ceiling drop is required). The projector fixes to an extendable mounting plate, with optional extension legs included to accommodate larger fixing patterns. The mounting plate of the BT893 uses 4-point micro-adjustment for added flexibility, so that a perfectly aligned projection can be achieved.
Designed to mount projectors up to 70kg, this heavy duty projector mount can be fixed directly to the ceiling or can be mounted to any B-Tech Ø50mm pole (ideal for installing in areas with high ceilings where a larger ceiling drop is required). The projector fixes to an extendable mounting plate, with optional extension legs included to accommodate larger fixing patterns. The mounting plate of the BT893 uses 4-point micro-adjustment for added flexibility, so that a perfectly aligned projection can be achieved.

Product Features

  • Designed to mount heavy duty projectors to the ceiling

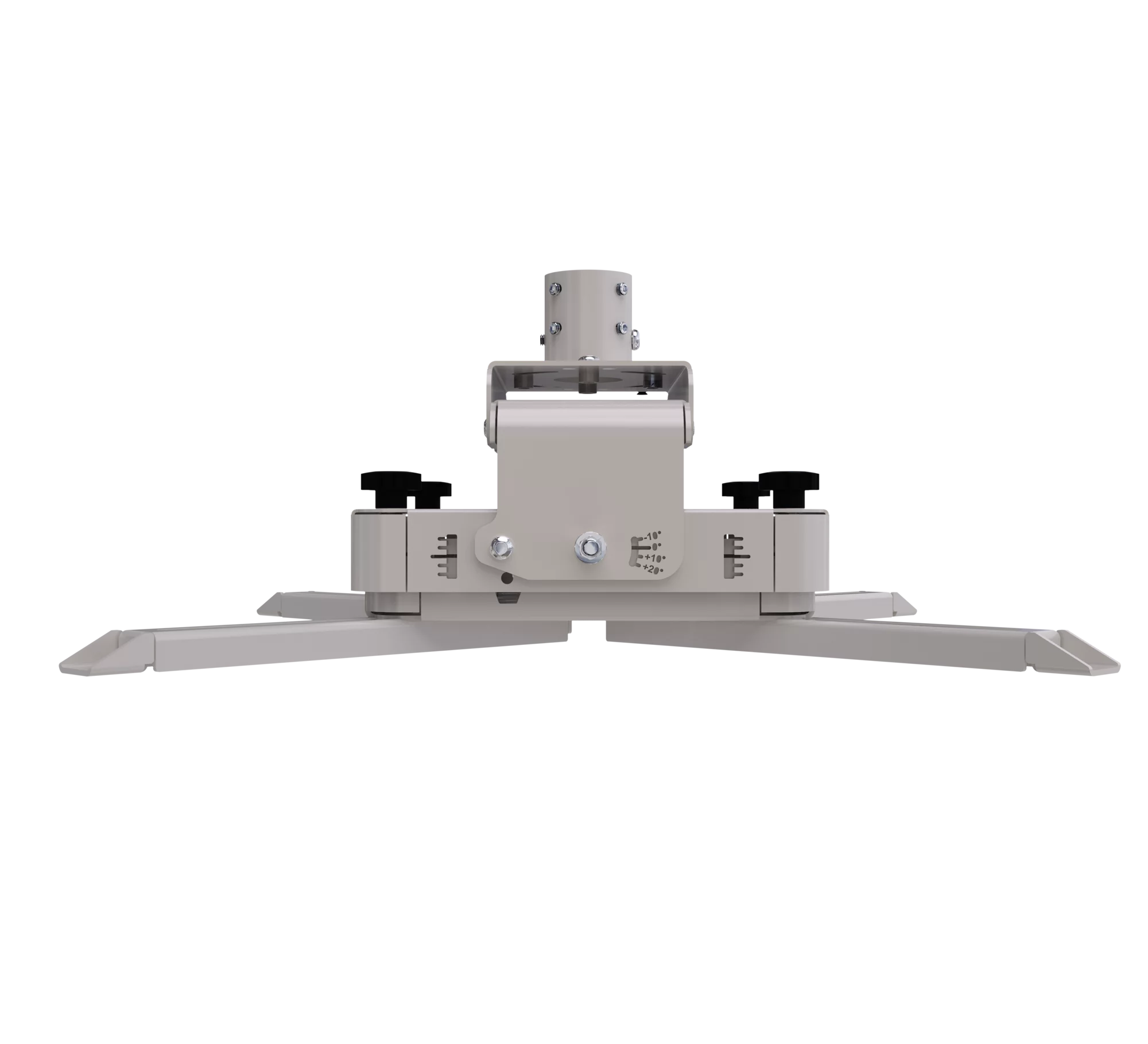

  • Features easy, incremented tilt adjustment

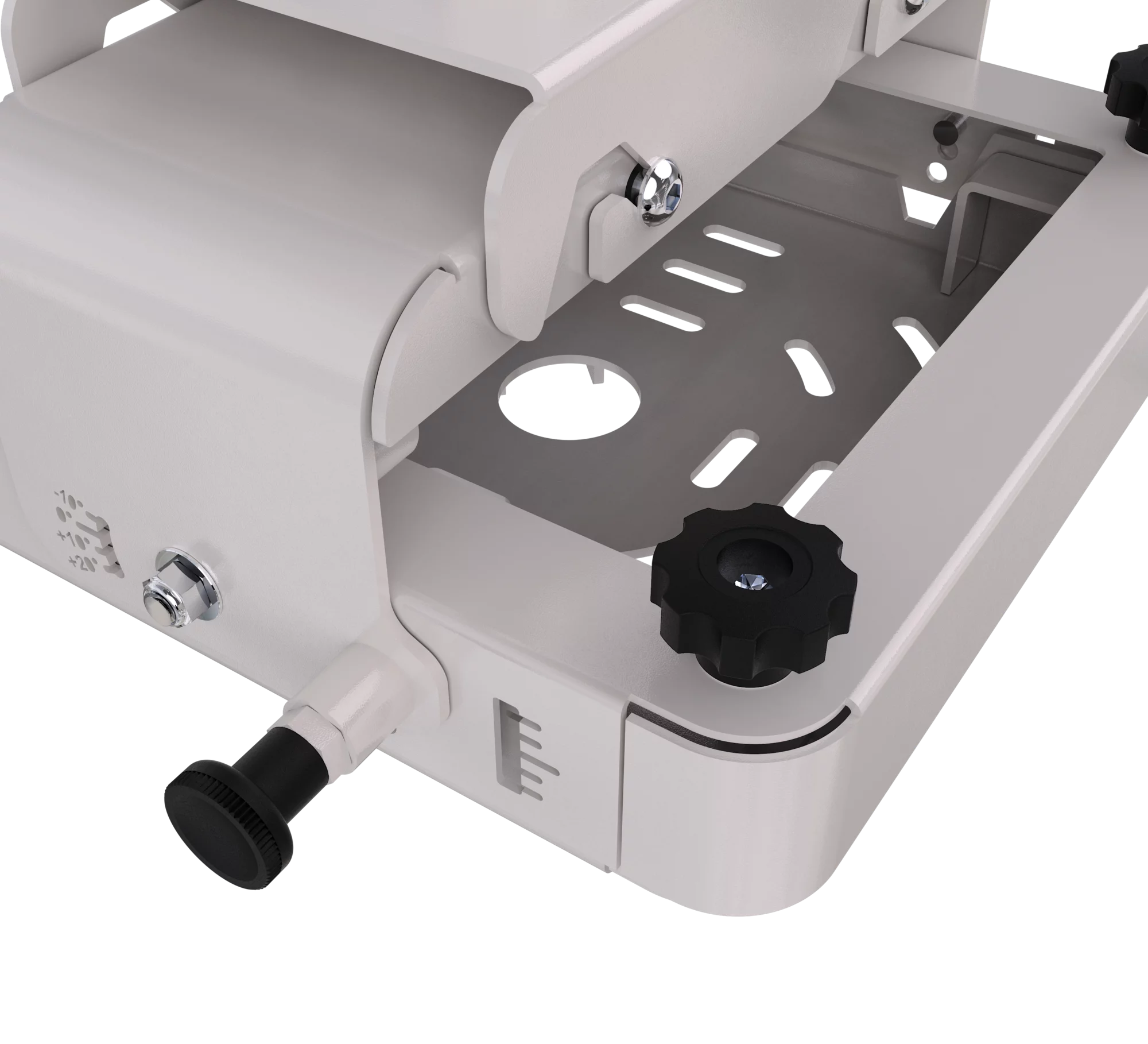

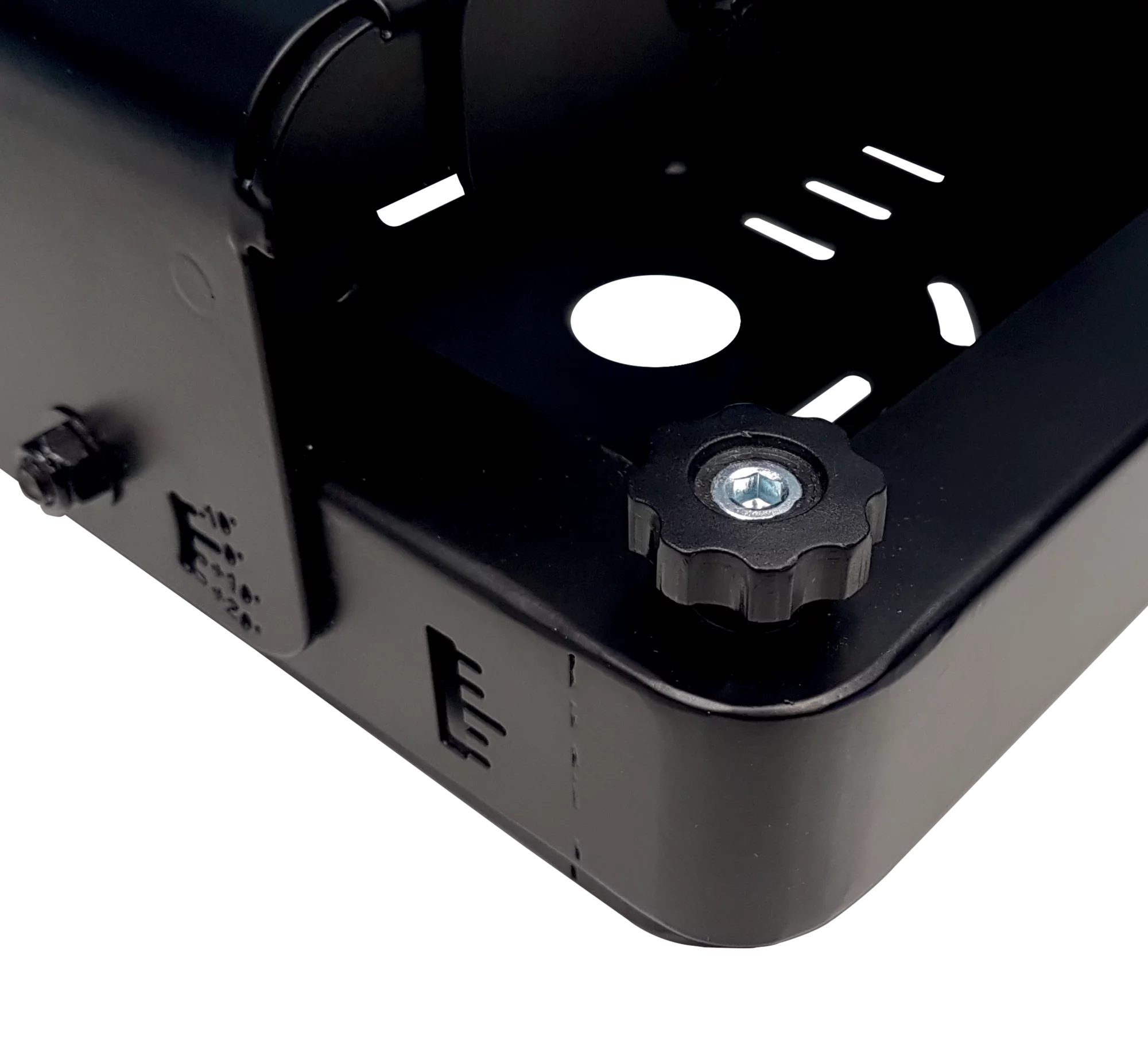

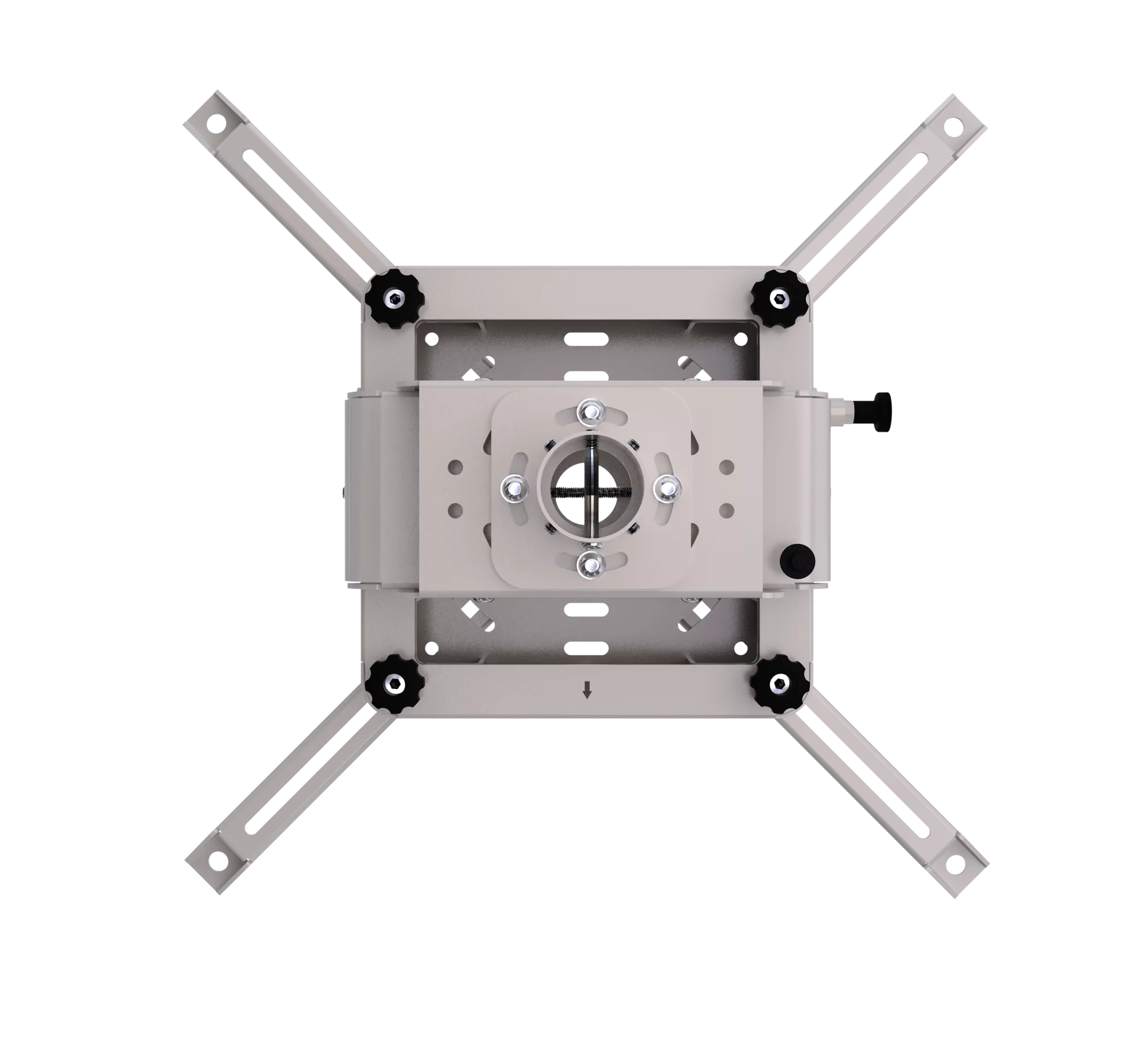

  • Micro-adjustment thumbwheels at 4-points for controlled and precise adjustment of the projector
  • Ideal for use with projection mapping projectors
  • Quick and easy assembly

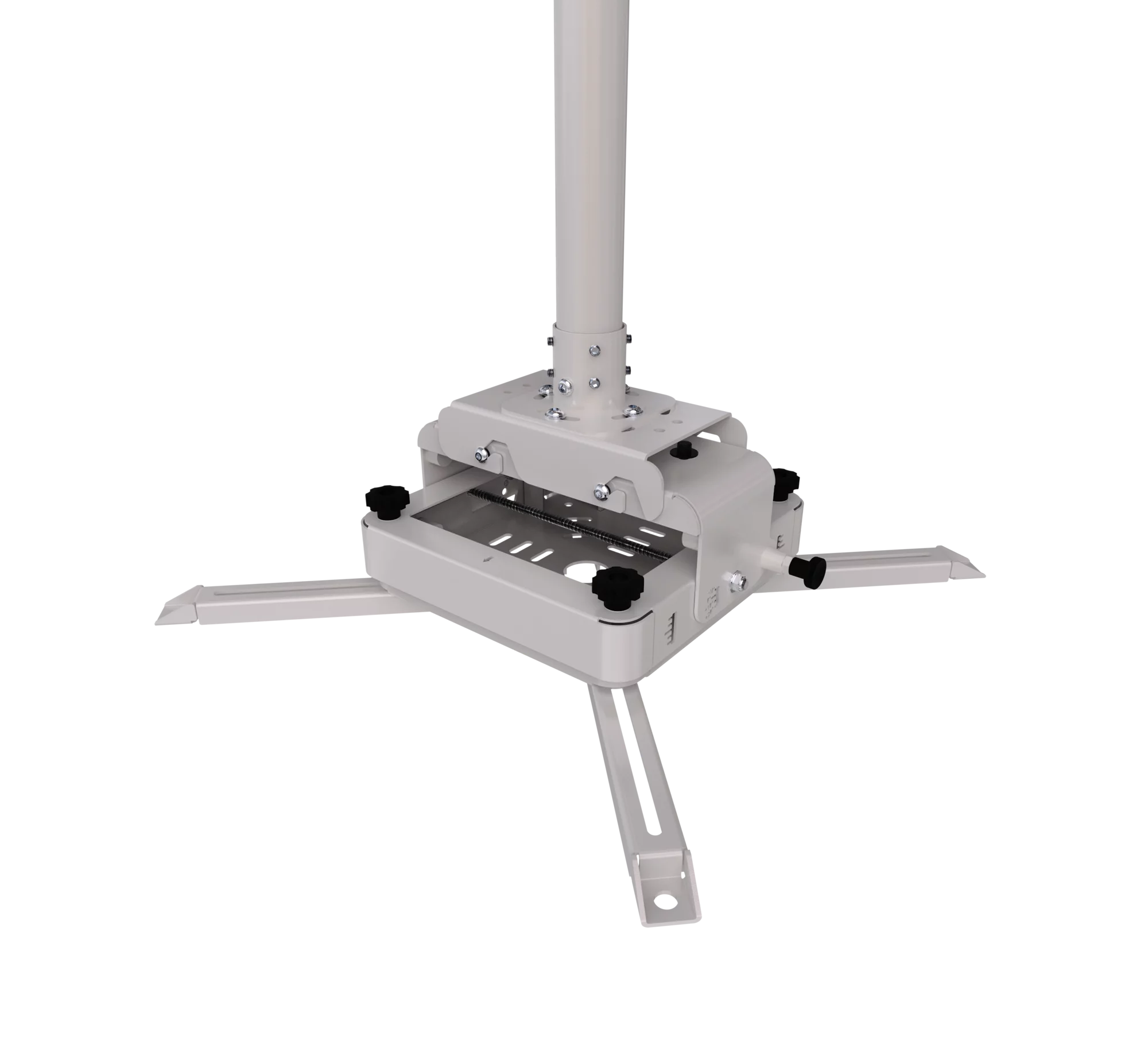

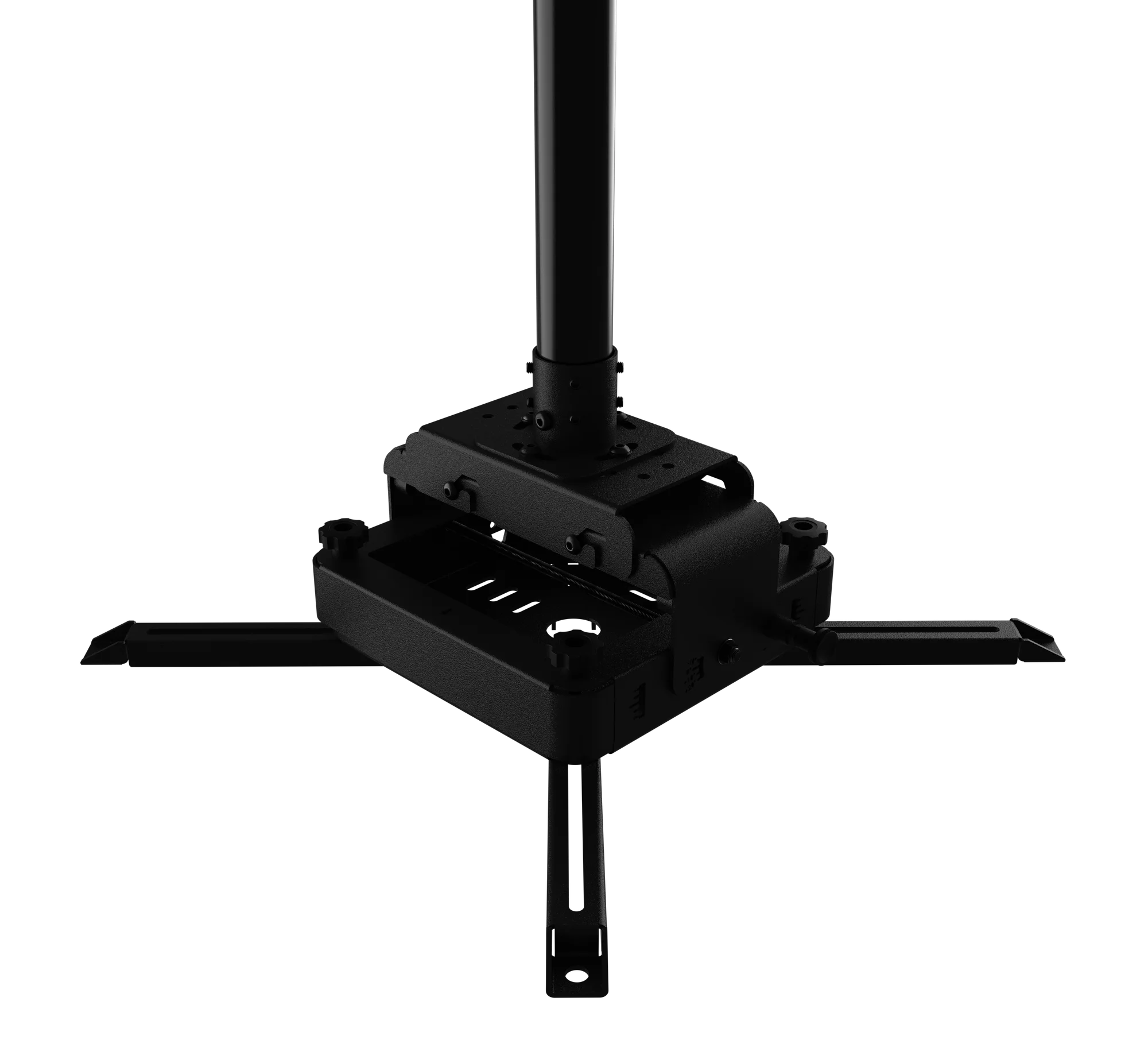

  • Can be mounted to the ceiling directly or to any B-Tech Ø50mm pole

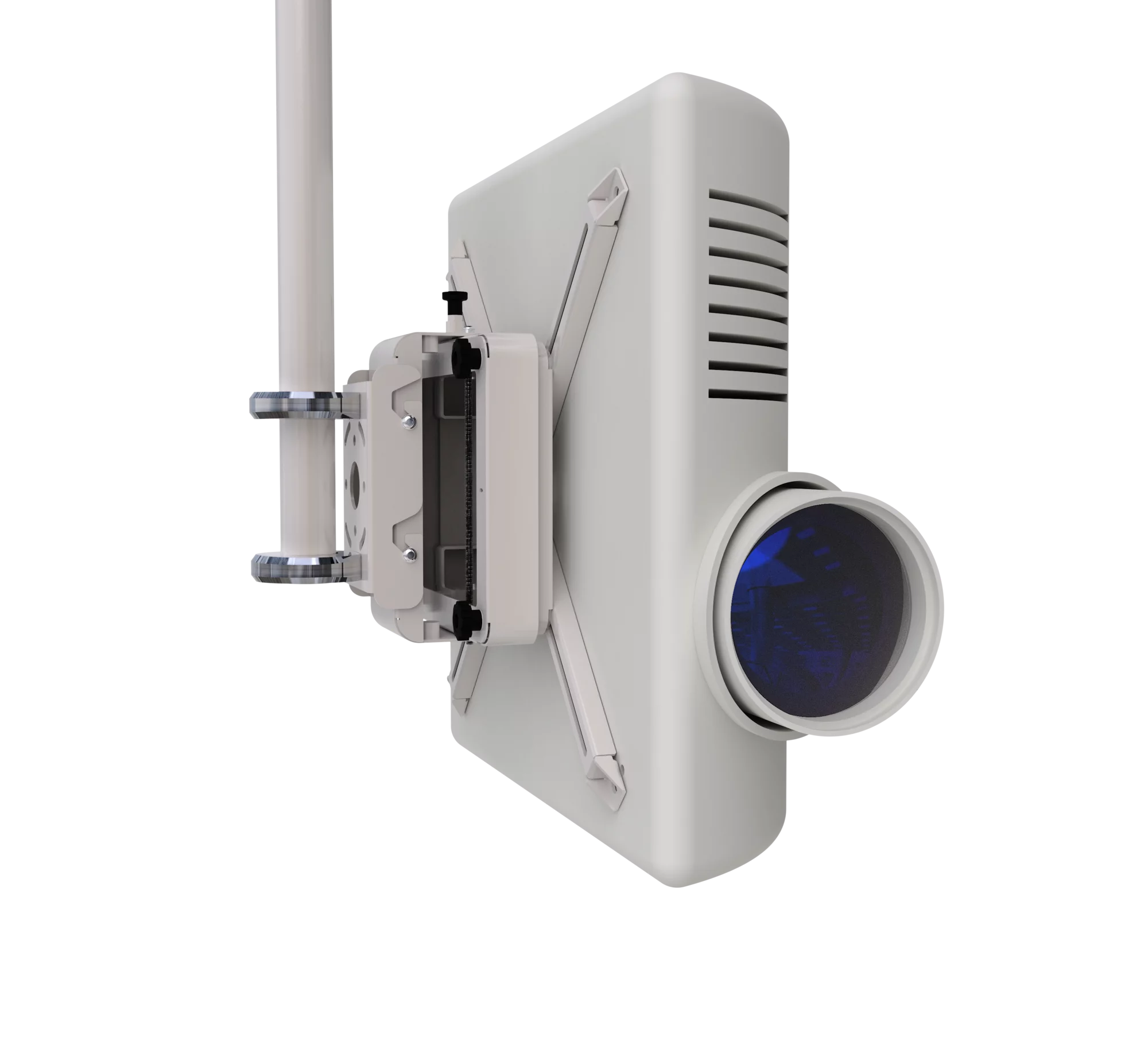

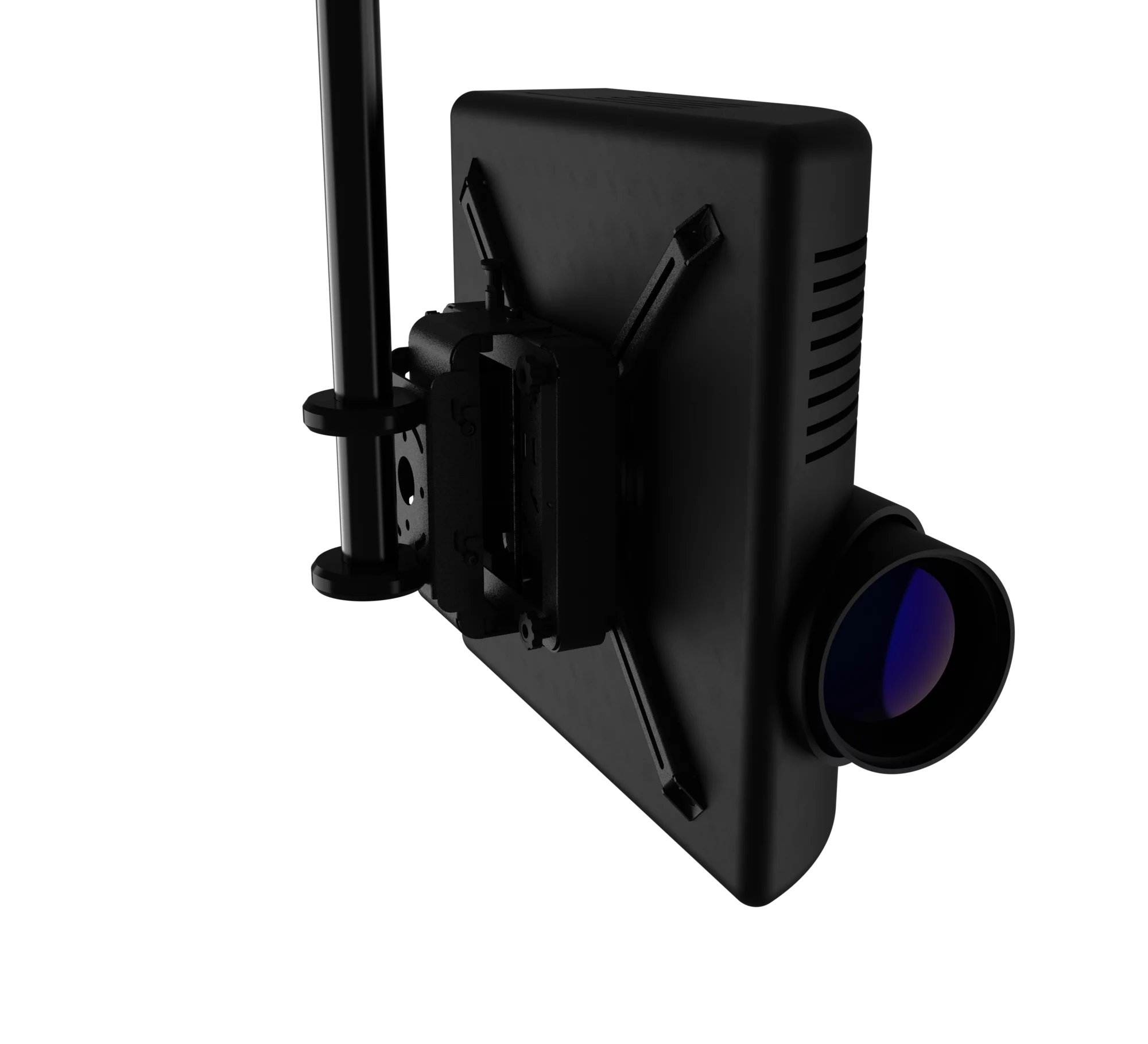

  • Portrait and vertical mounting - Just add x2 BT7052 collars

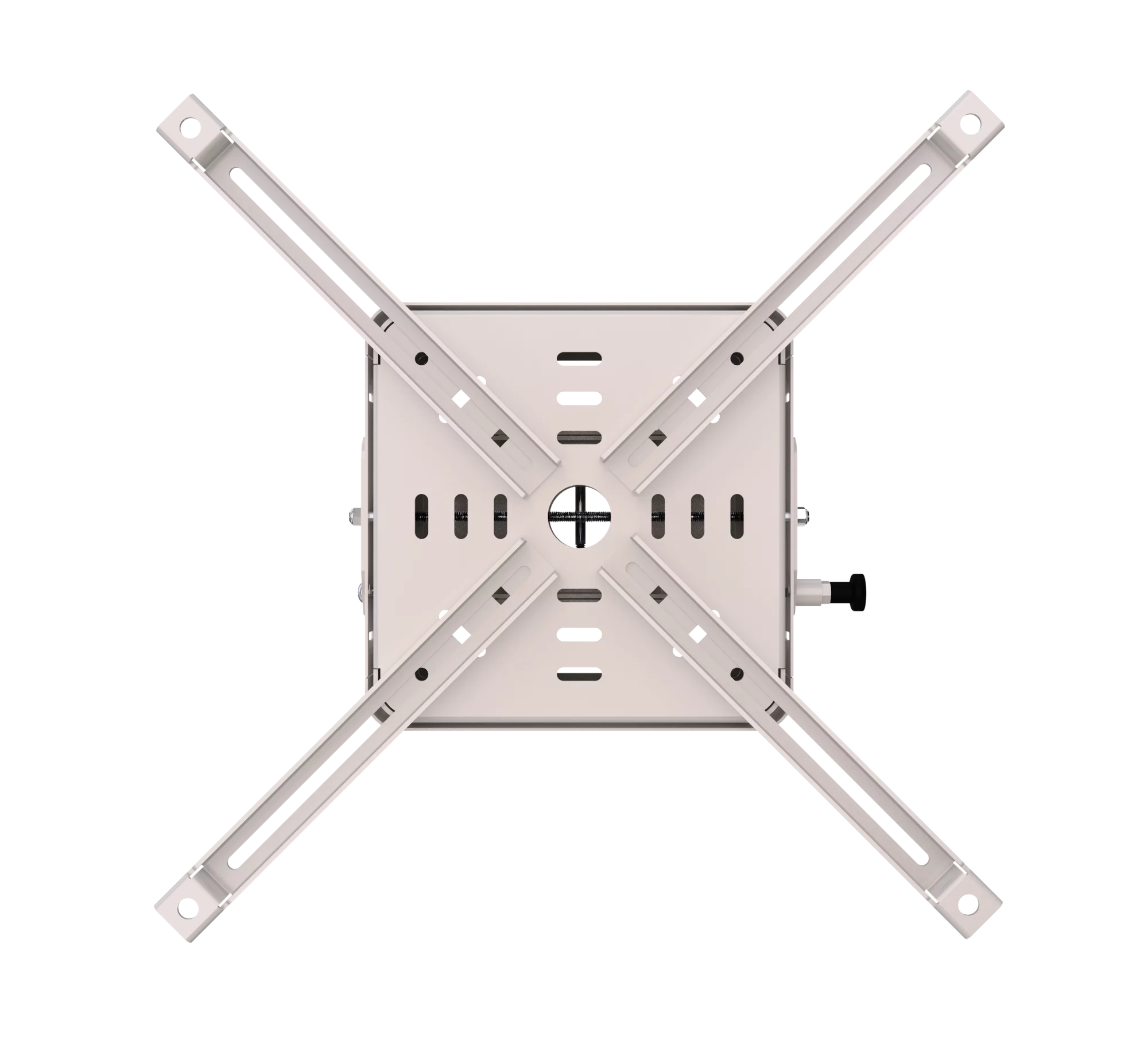

  • Optional extension legs can be used to accommodate larger fixing patterns
  • Suitable for projectors using M6, M8, M10 and M12 fixings
  • All mounting hardware included
  • Designed to mount heavy duty projectors to the ceiling
  • Features easy, incremented tilt adjustment
  • Micro-adjustment thumbwheels at 4-points for controlled and precise adjustment of the projector
  • Ideal for use with projection mapping projectors
  • Quick and easy assembly
  • Can be mounted to the ceiling directly or to any B-Tech Ø50mm pole
  • Portrait and vertical mounting - Just add x2 BT7052 collars
  • Optional extension legs can be used to accommodate larger fixing patterns
  • Suitable for projectors using M6, M8, M10 and M12 fixings
  • All mounting hardware included
  • Designed to mount heavy duty projectors to the ceiling
  • Features easy, incremented tilt adjustment
  • Micro-adjustment thumbwheels at 4-points for controlled and precise adjustment of the projector
  • Ideal for use with projection mapping projectors
  • Quick and easy assembly
  • Can be mounted to the ceiling directly or to any B-Tech Ø50mm pole
  • Portrait and vertical mounting - Just add x2 BT7052 collars
  • Optional extension legs can be used to accommodate larger fixing patterns
  • Suitable for projectors using M6, M8, M10 and M12 fixings
  • All mounting hardware included

Product Specifications

  • Max load: 70kg

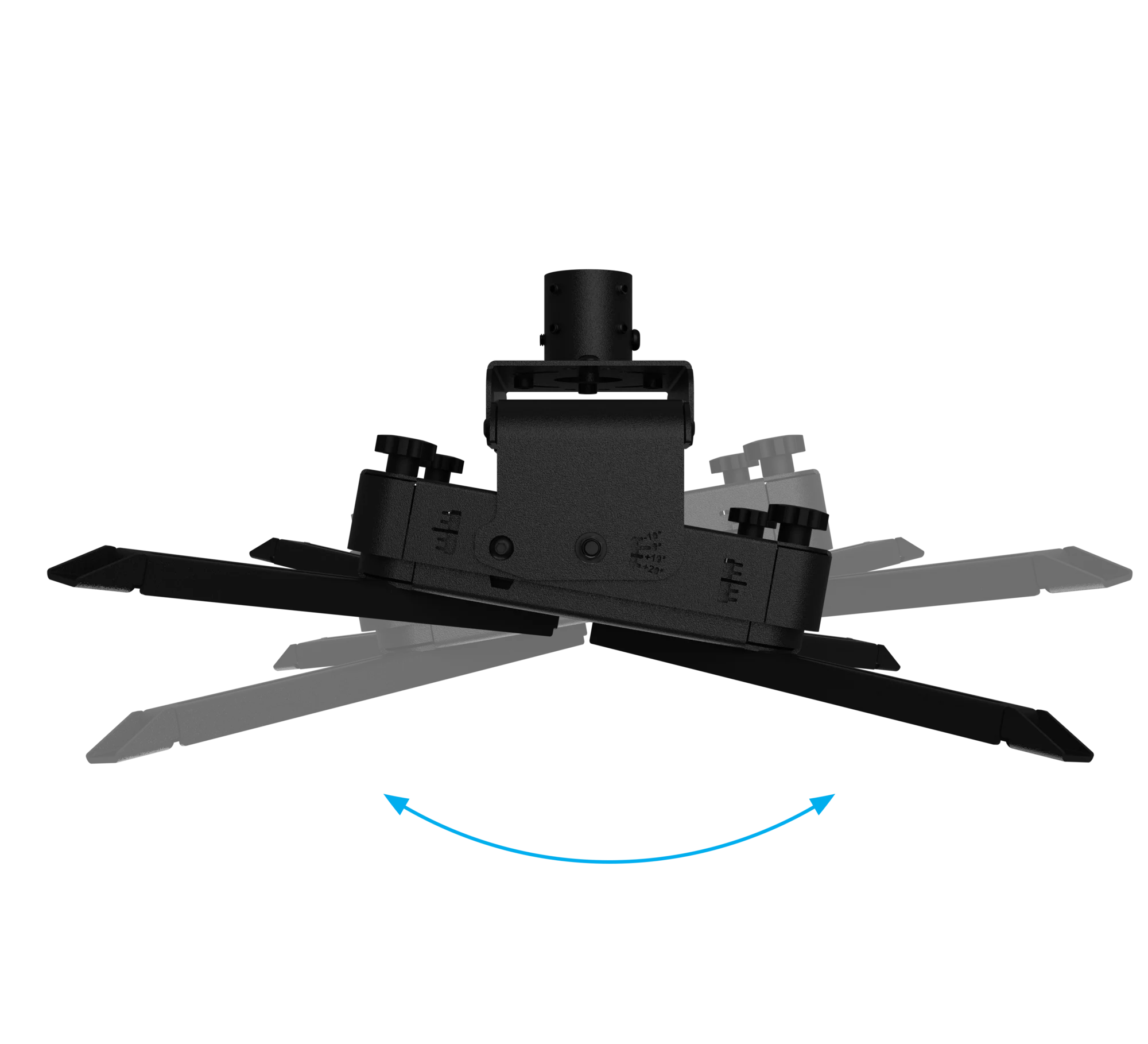

  • Yaw (Ceiling Mounted): 25°
  • Yaw (Pole Mounted): 45°

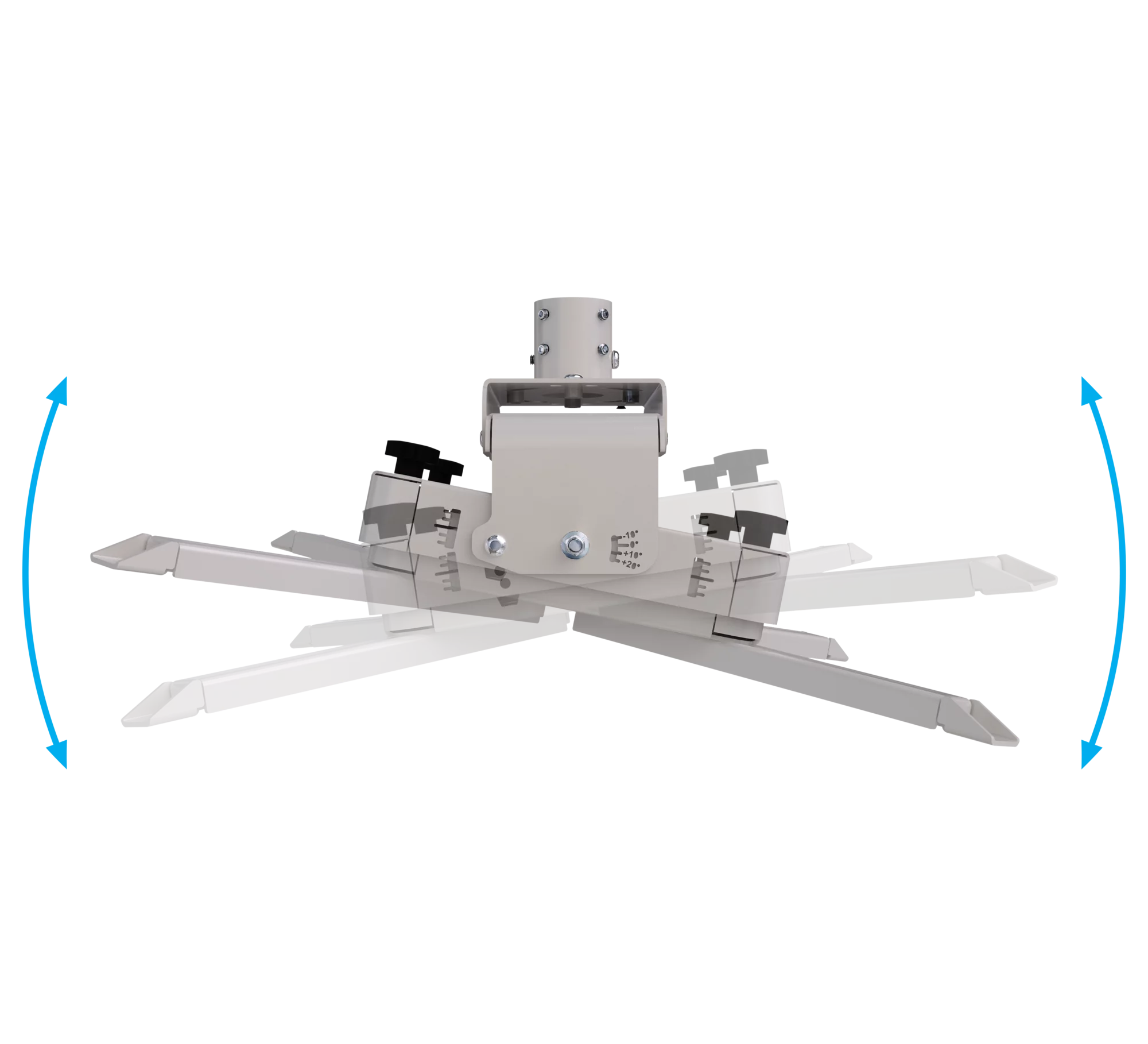

  • Roll: +/- 5°
  • Max distance between fixings: 873mm
  • Max square distance between fixings: 618mm
  • Min product width: 339mm
  • Max product width: 790mm
  • Min product depth: 279mm
  • Max product depth: 790mm
  • Min product height: 143mm
  • Colour options: Black, White
  • Max product height: 183mm
  • Tilt: +20° / -10°
  • Max load: 70kg
  • Yaw (Ceiling Mounted): 25°
  • Yaw (Pole Mounted): 45°
  • Roll: +/- 5°
  • Max distance between fixings: 873mm
  • Max square distance between fixings: 618mm
  • Min product width: 339mm
  • Max product width: 790mm
  • Min product depth: 279mm
  • Max product depth: 790mm
  • Min product height: 143mm
  • Colour: White
  • Max product height: 183mm
  • Tilt: +20° / -10°
  • Max load: 70kg
  • Yaw (Ceiling Mounted): 25°
  • Yaw (Pole Mounted): 45°
  • Roll: +/- 5°
  • Max distance between fixings: 873mm
  • Max square distance between fixings: 618mm
  • Min product width: 339mm
  • Max product width: 790mm
  • Min product depth: 279mm
  • Max product depth: 790mm
  • Min product height: 143mm
  • Max product height: 183mm
  • Colour: Black
  • Tilt: +20° / -10°

Ordering & Box Information

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 11.50kg

Order Code: BT893/W

Barcode: 5019318305740

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 11.50kg

Order Code: BT893/B

Barcode: 5019318759819

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 11.50kg
