BT9906

System X Ultra Stretch Signage Mount

Designed for use with LG 86BH5C

BT9906/B

System X Ultra Stretch Signage Mount

Designed for use with LG 86BH5C

Enquire Today View Downloads

Overview

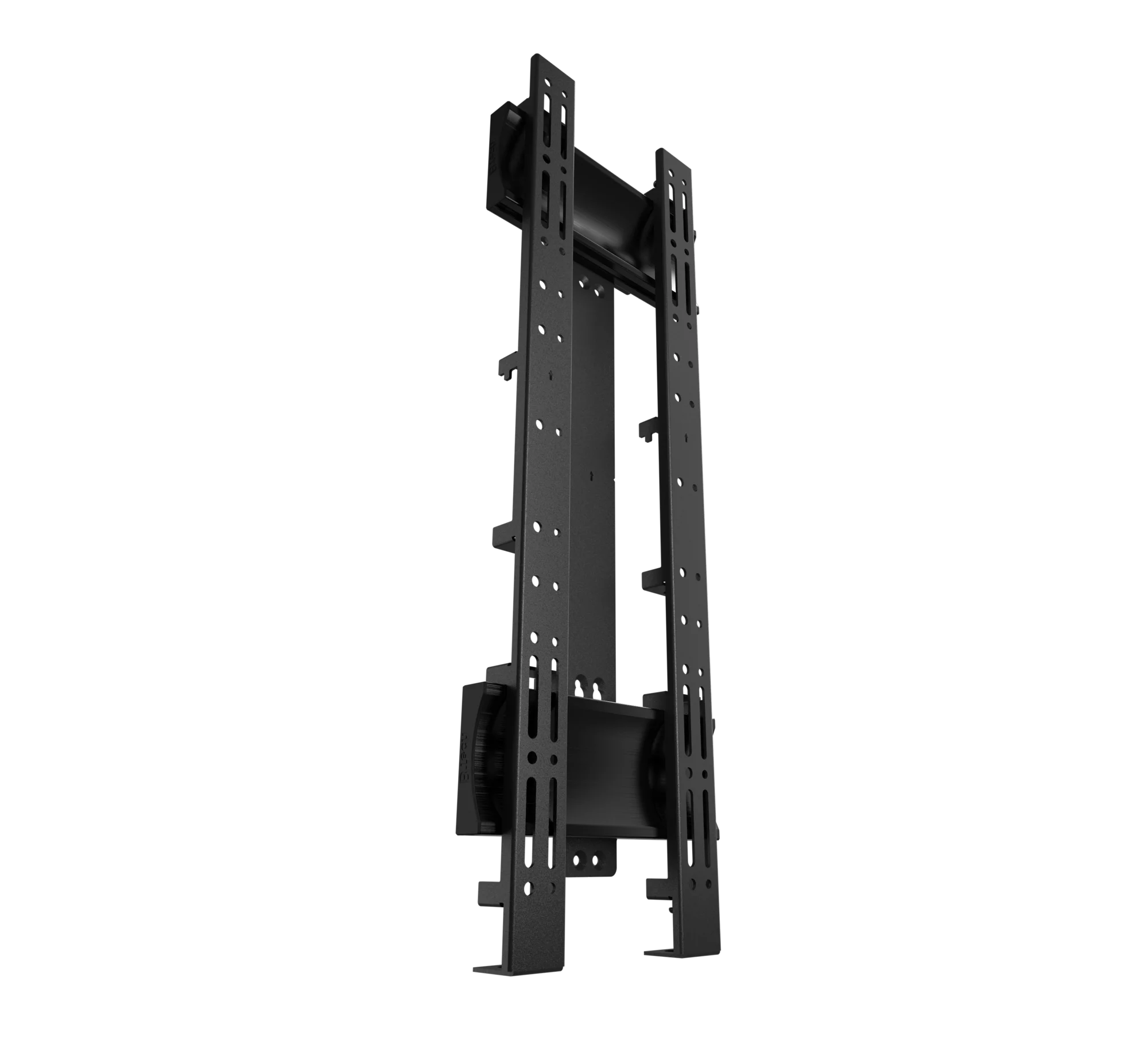

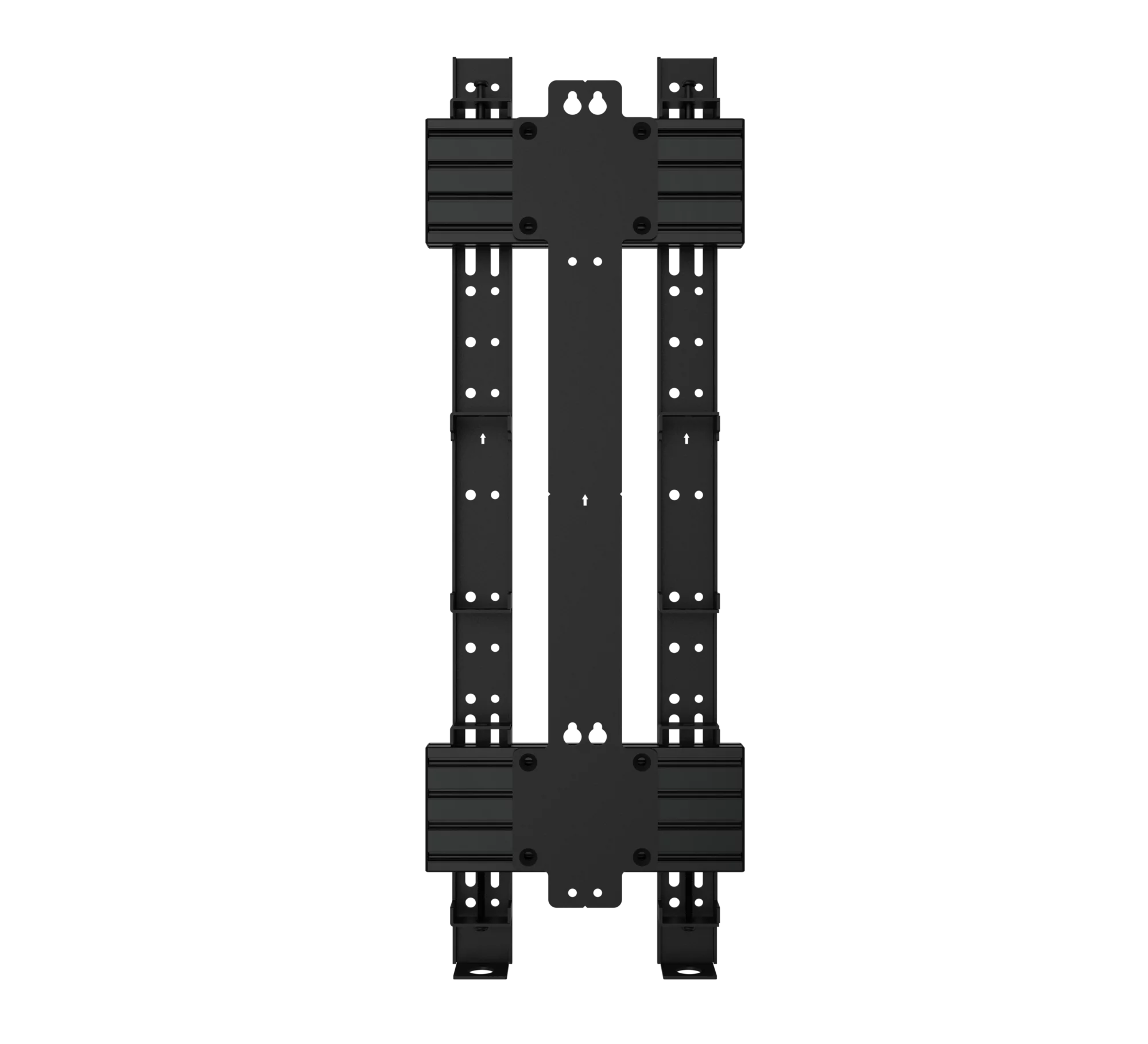

BT9906 is a System X mounting solution that is ideal for portrait mounting LG's 86BH5C Ultra-Stretch Signage to a wall. At a depth of just 65mm, the finished install is close to the wall but still allows enough room for easy access to connectors. Safety screws come as standard to help prevent unauthorised removal of the screen and height adjustment screws allow the screen to be levelled perfectly after installation.
BT9906 is a System X mounting solution that is ideal for portrait mounting LG's 86BH5C Ultra-Stretch Signage to a wall. At a depth of just 65mm, the finished install is close to the wall but still allows enough room for easy access to connectors. Safety screws come as standard to help prevent unauthorised removal of the screen and height adjustment screws allow the screen to be levelled perfectly after installation.

Product Features

  • Designed for use with the LG 86BH5C 86", 58:9 Ultra-Stretch Signage
  • Mounts screen just 65mm from wall whilst still allowing easy access to connectors
  • Ideal for portrait mounting
  • Arms feature levelling screws to adjust the screen height
  • Pole mounted version for ceiling and floor mounting is available on request
  • Safety screws help prevent unauthorised removal of screens
  • High end aesthetic quality with stylish end caps for a neat and tidy install
  • Landscape mounted solution also available, please see BT9905
  • All mounting hardware included
  • Designed for use with the LG 86BH5C 86", 58:9 Ultra-Stretch Signage
  • Mounts screen just 65mm from wall whilst still allowing easy access to connectors
  • Ideal for portrait mounting
  • Arms feature levelling screws to adjust the screen height
  • Pole mounted version for ceiling and floor mounting is available on request
  • Safety screws help prevent unauthorised removal of screens
  • High end aesthetic quality with stylish end caps for a neat and tidy install
  • Landscape mounted solution also available, please see BT9905
  • All mounting hardware included

Product Specifications

  • Ideal for use with: LG's 86BH5C Ultra-Stretch Signage
  • Recommended display size: 42" up to 86"
  • Max load: 50kg
  • Max VESA fixings: 800mm x 200mm
  • VESA fixings when mounting LG's 86BH5: 600mm x 200mm
  • Product width: 305mm
  • Product depth: 51.8mm
  • Product height: 889.5mm
  • Distance from wall: 51.8mm
  • Orientation: Portrait
  • Colour: Black
  • Ideal for use with: LG's 86BH5C Ultra-Stretch Signage
  • Recommended display size: 42" up to 86"
  • Max load: 50kg
  • Max VESA fixings: 800mm x 200mm
  • VESA fixings when mounting LG's 86BH5: 600mm x 200mm
  • Product width: 305mm
  • Product depth: 51.8mm
  • Product height: 889.5mm
  • Distance from wall: 51.8mm
  • Orientation: Portrait
  • Colour: Black

Ordering & Box Information

Order Code: BT9906/B

Barcode: 5019318501548

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 11.49kg

Order Code: BT9906/B

Barcode: 5019318501548

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 11.49kg

Downloads

BT9906 - Product Specification Sheet - English

pdf 1.16 MB

BT9906 - Product Specification Sheet - French

pdf 1.16 MB

BT9906 - Product Specification Sheet - Spanish

pdf 1.47 MB

BT9906 - Product Specification Sheet - Dutch

pdf 1.47 MB

BT9906 - Technical Drawings - (PDF)

pdf 327.18 KB

BT9906-B-1

png 35.38 KB

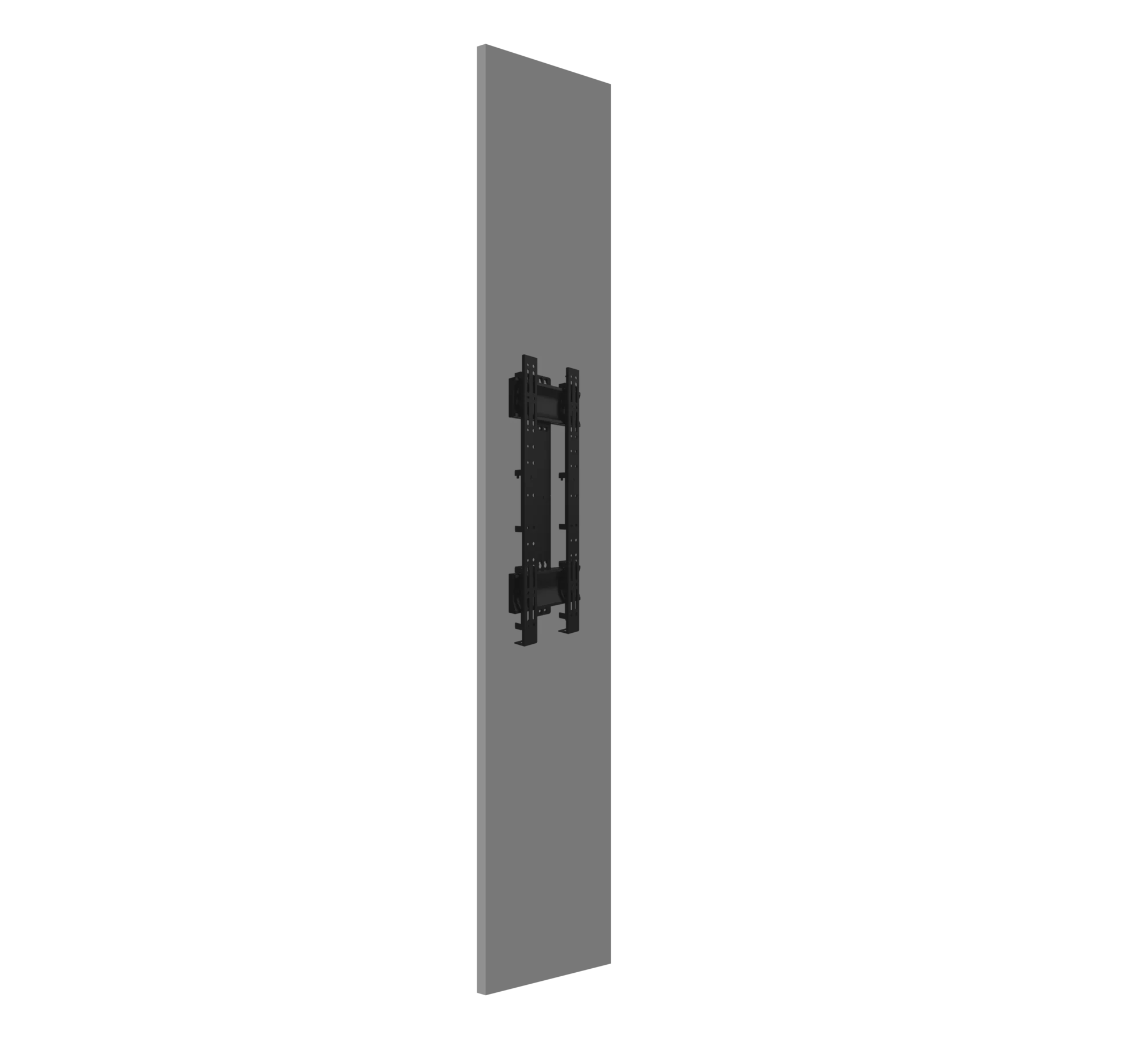

BT9906-B-10

png 15.39 KB

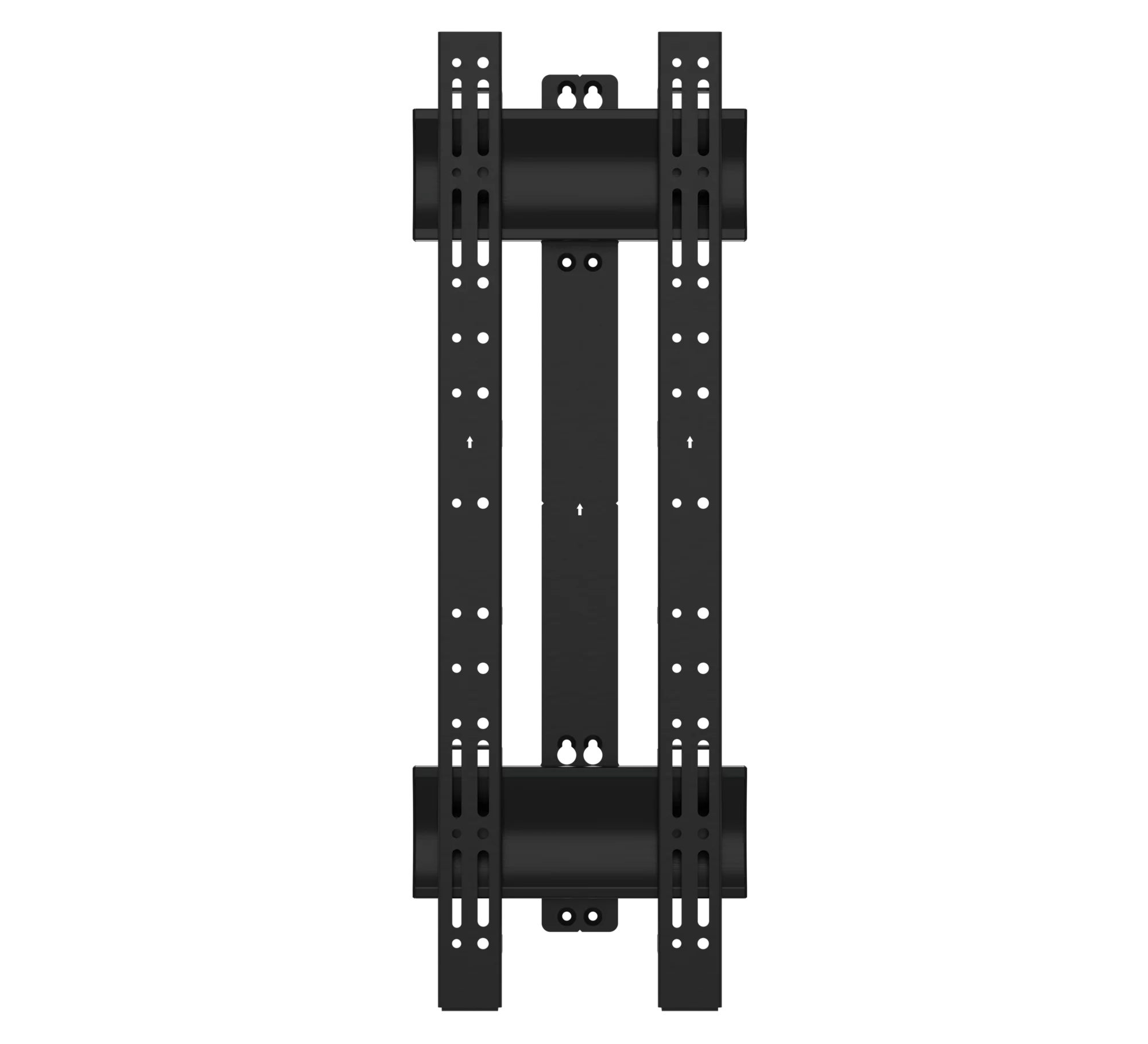

BT9906-B-2

png 36.38 KB

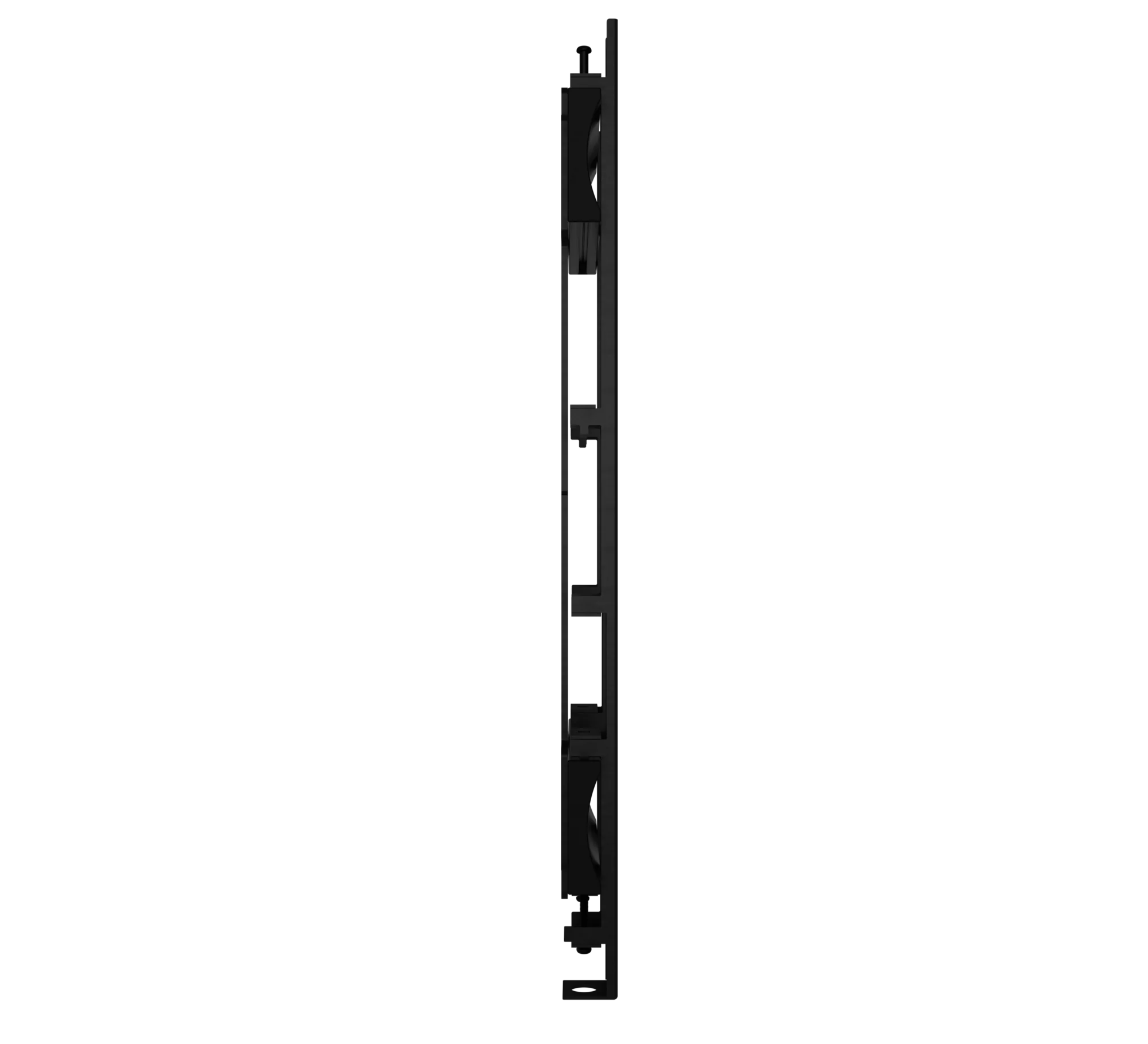

BT9906-B-3

png 14.76 KB

BT9906-B-5

png 59.90 KB

BT9906-B-7

png 35.08 KB

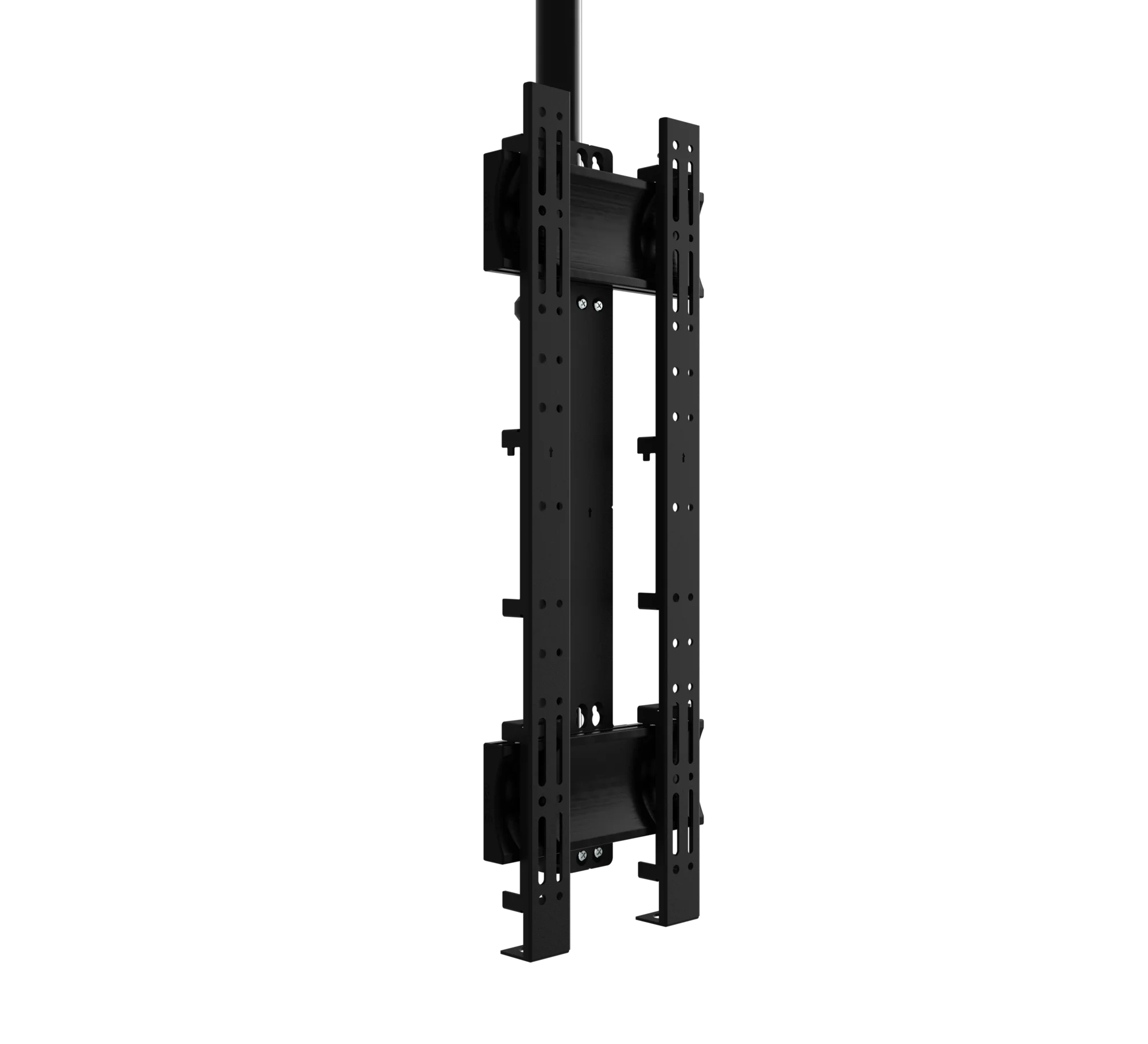

BT9906-B-8

png 29.85 KB

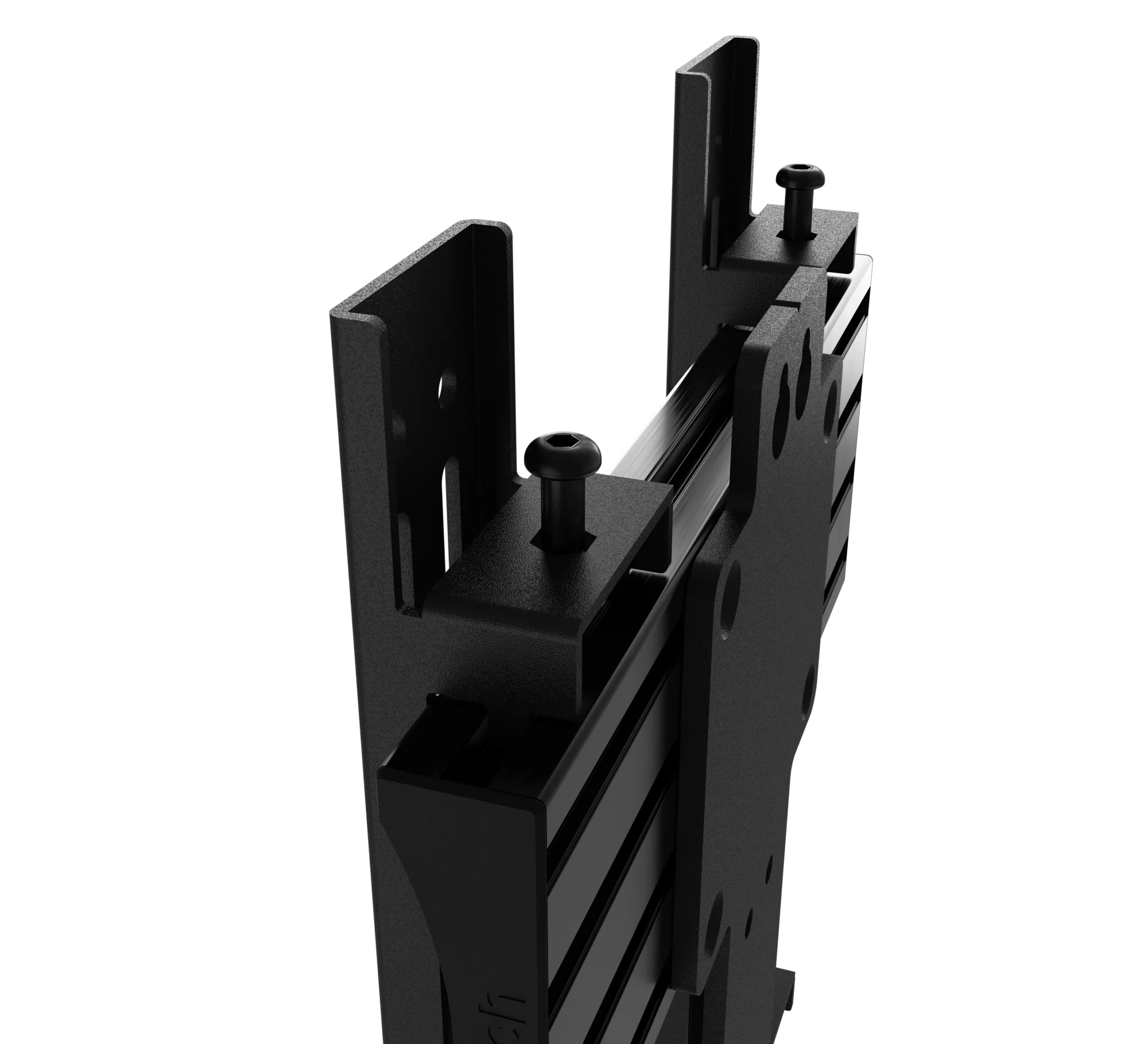

BT9906-B-9

png 133.60 KB

BT9906-B-6

png 162.66 KB
