BT9920

XXL Display Wall Mount

Ideal for LG's 110" 110UM5J-B, Sahara Clevertouch or Microsoft Surface Hub

BT9920/B

XXL Display Wall Mount

Ideal for LG's 110" 110UM5J-B, Sahara Clevertouch or Microsoft Surface Hub

Overview

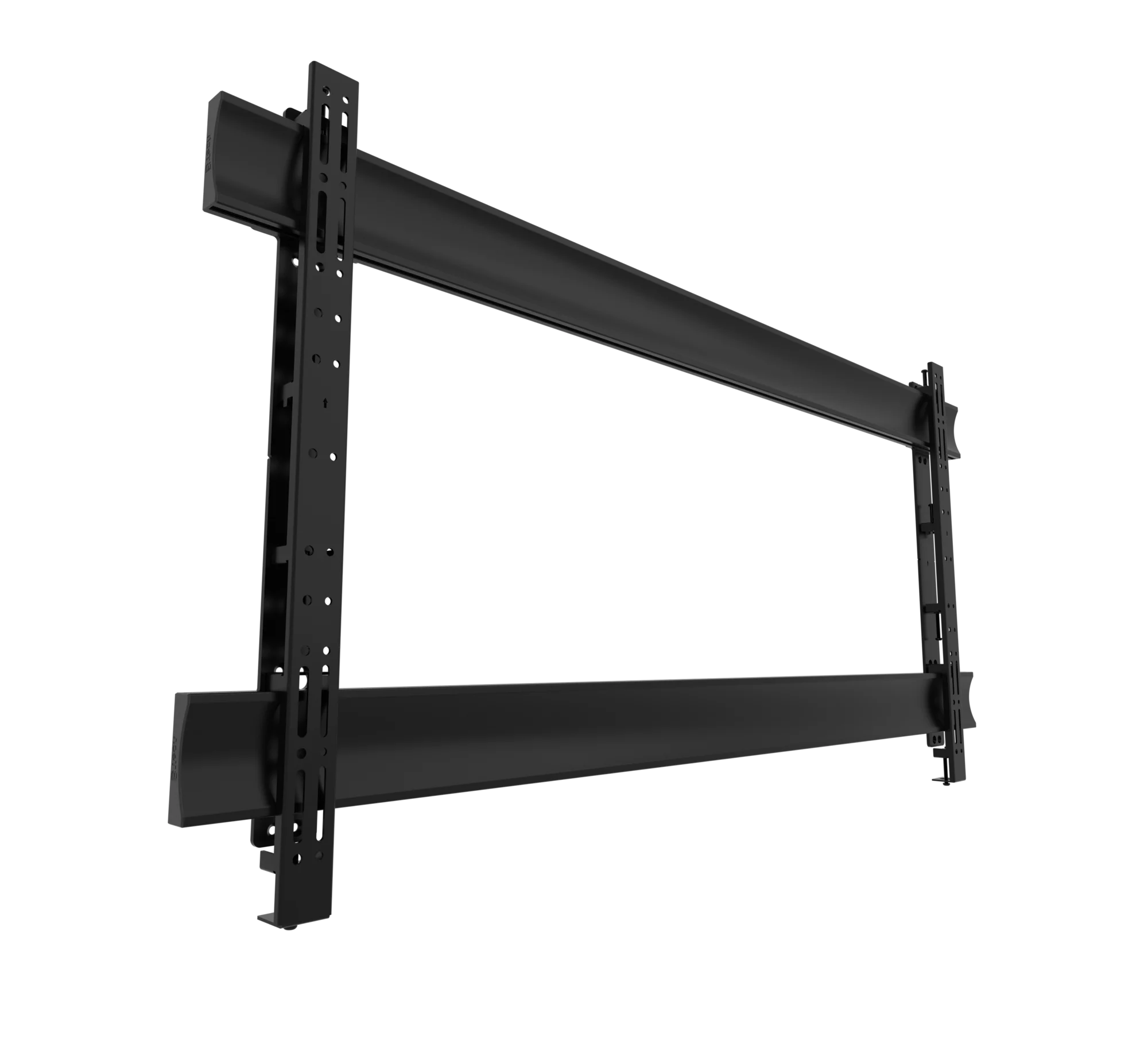

The BT9920 is a dual-rail wall-mounted solution designed to mount extra-large displays over 72" and capable of supporting heavy loads up to 200kg, ideal for mounting sizeable digital signage displays or interactive screens with a simple hook-on installation. BT9920 features height adjustment screws that allow the screen to be levelled once mounted and integrated cable management, keeping the finished installation tidy.
The BT9920 is a dual-rail wall-mounted solution designed to mount extra-large displays over 72" and capable of supporting heavy loads up to 200kg, ideal for mounting sizeable digital signage displays or interactive screens with a simple hook-on installation. BT9920 features height adjustment screws that allow the screen to be levelled once mounted and integrated cable management, keeping the finished installation tidy.

Product Features

  • Designed to wall mount extra-large signage displays such as LG's 110UM5J
  • The universal design is ideal for other standard or interactive screens over 72" (such as Sahara Clevertouchor Microsoft Surace Hub)
  • Slim-line design for a close to the wall installation
  • Keyhole fixings on wall plates for an easier installation
  • Cable management clips (BT8390-CMC) are included to keep the installation tidy
  • Interface arms include levelling screws to adjust the height of the screen
  • Safety screws help prevent unauthorised removal of screens
  • Simple 'hook-on' installation
  • All mounting hardware included
  • Designed to wall mount extra-large signage displays such as LG's 110UM5J
  • The universal design is ideal for other standard or interactive screens over 72" (such as Sahara Clevertouchor Microsoft Surace Hub)
  • Slim-line design for a close to the wall installation
  • Keyhole fixings on wall plates for an easier installation
  • Cable management clips (BT8390-CMC) are included to keep the installation tidy
  • Interface arms include levelling screws to adjust the height of the screen
  • Safety screws help prevent unauthorised removal of screens
  • Simple 'hook-on' installation
  • All mounting hardware included

Product Specifications

  • Recommended display size: 72" up to 120"
  • Max load: 200kg
  • VESA fixings: up to 1600mm x 800mm
  • Product width: 1755mm
  • Product depth: 52mm
  • Product height: 900mm
  • Distance from wall: 51.8mm
  • Orientation: Landscape
  • Colour: Black
  • Recommended display size: 72" up to 120"
  • Max load: 200kg
  • VESA fixings: up to 1600mm x 800mm
  • Product width: 1755mm
  • Product depth: 52mm
  • Product height: 900mm
  • Distance from wall: 51.8mm
  • Orientation: Landscape
  • Colour: Black

Ordering & Box Information

Order Code: BT9920/B

Barcode: 5019318306846

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 20.71kg

Order Code: BT9920/B

Barcode: 5019318306846

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 20.71kg
