Home All Products System X Universal Dual Stack Flat Screen Floor Stand – 2.4m
Metric Imperial
System X Logo - Blue - 170x24px - 72ppi
System X Logo - Blue - 170x24px - 72ppi
System X Logo - Blue - 170x24px - 72ppi

BTF842

System X

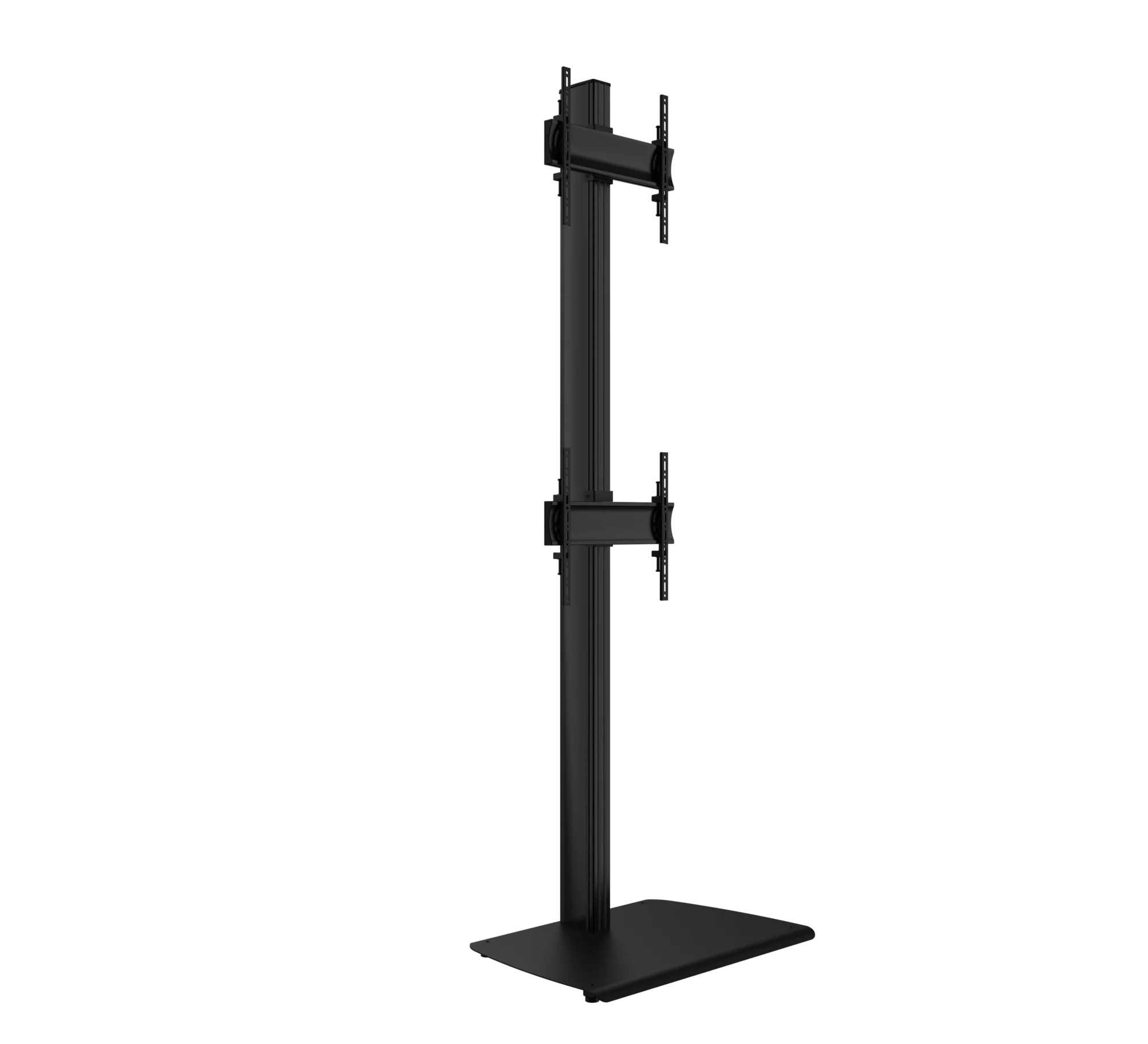

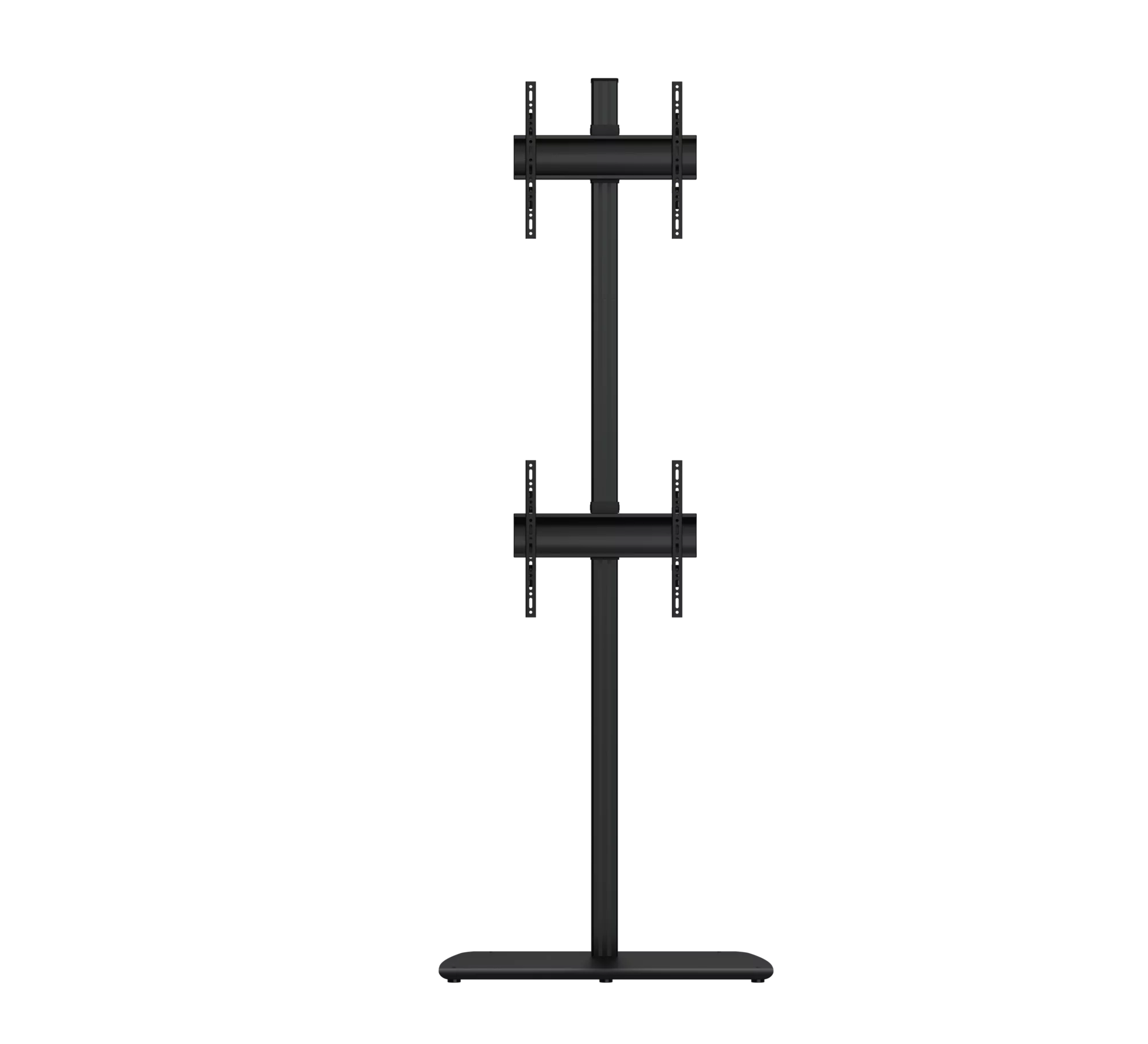

System X Universal Dual Stack Flat Screen Floor Stand - 2.4m

For portrait mounting two screens one above the other

BTF842/BS

System X

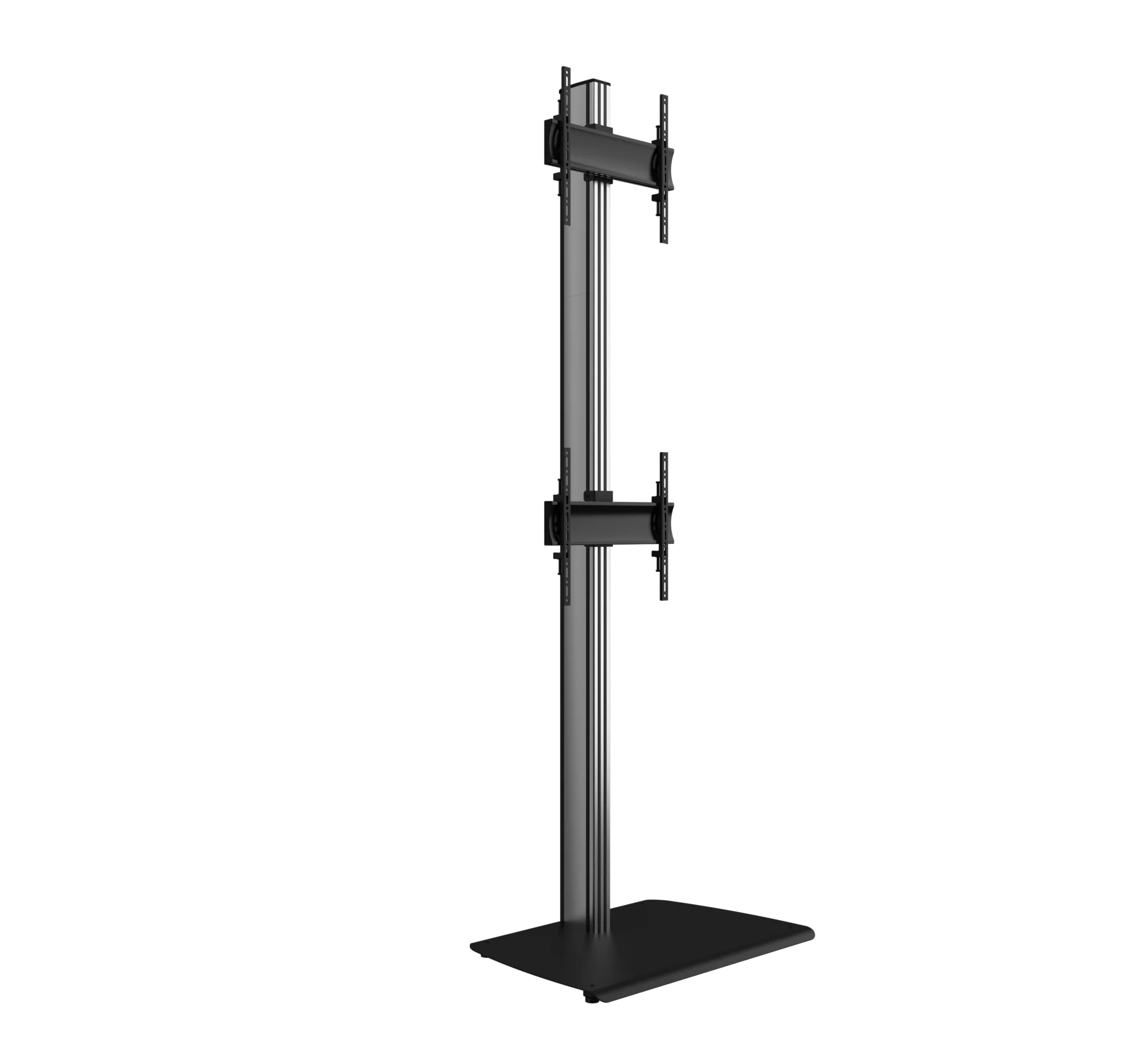

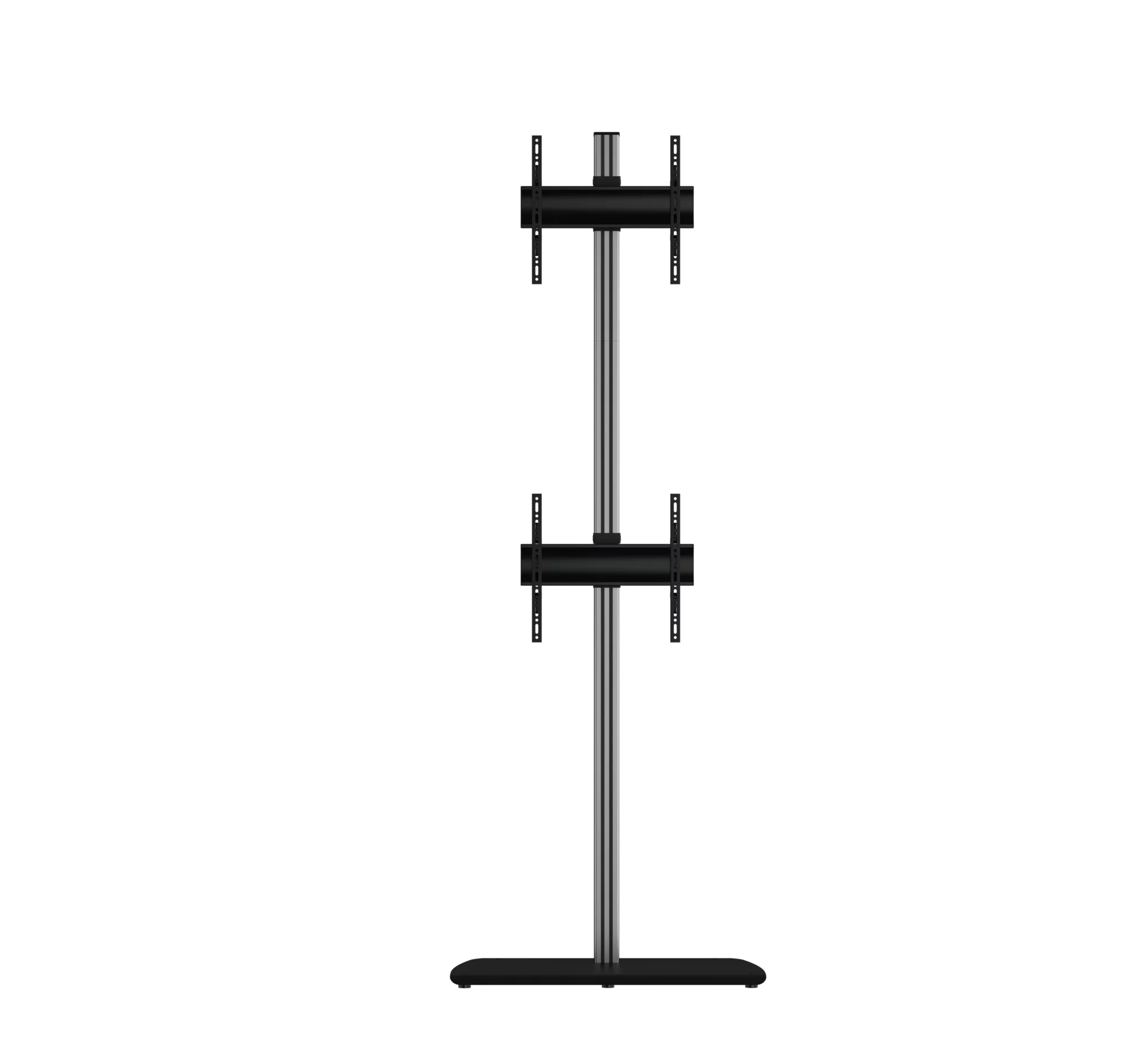

System X Universal Dual Stack Flat Screen Floor Stand - 2.4m

For portrait mounting two screens one above the other

BTF842/BB

System X

System X Universal Dual Stack Flat Screen Floor Stand - 2.4m

For portrait mounting two screens one above the other

Product variations available. Choose from the below options:

Colour

Black & Silver

Black

Enquire Today View Downloads

Overview

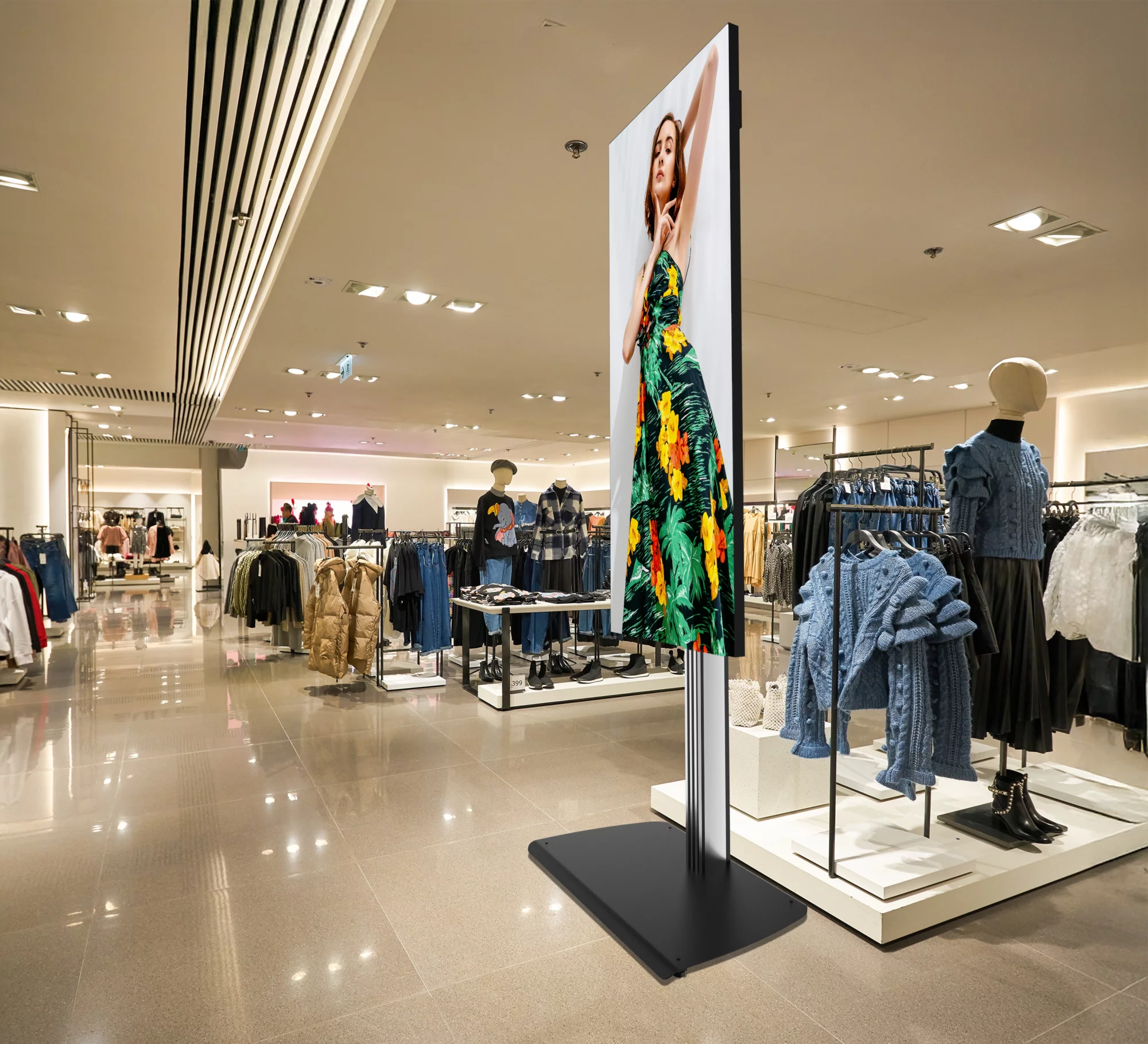

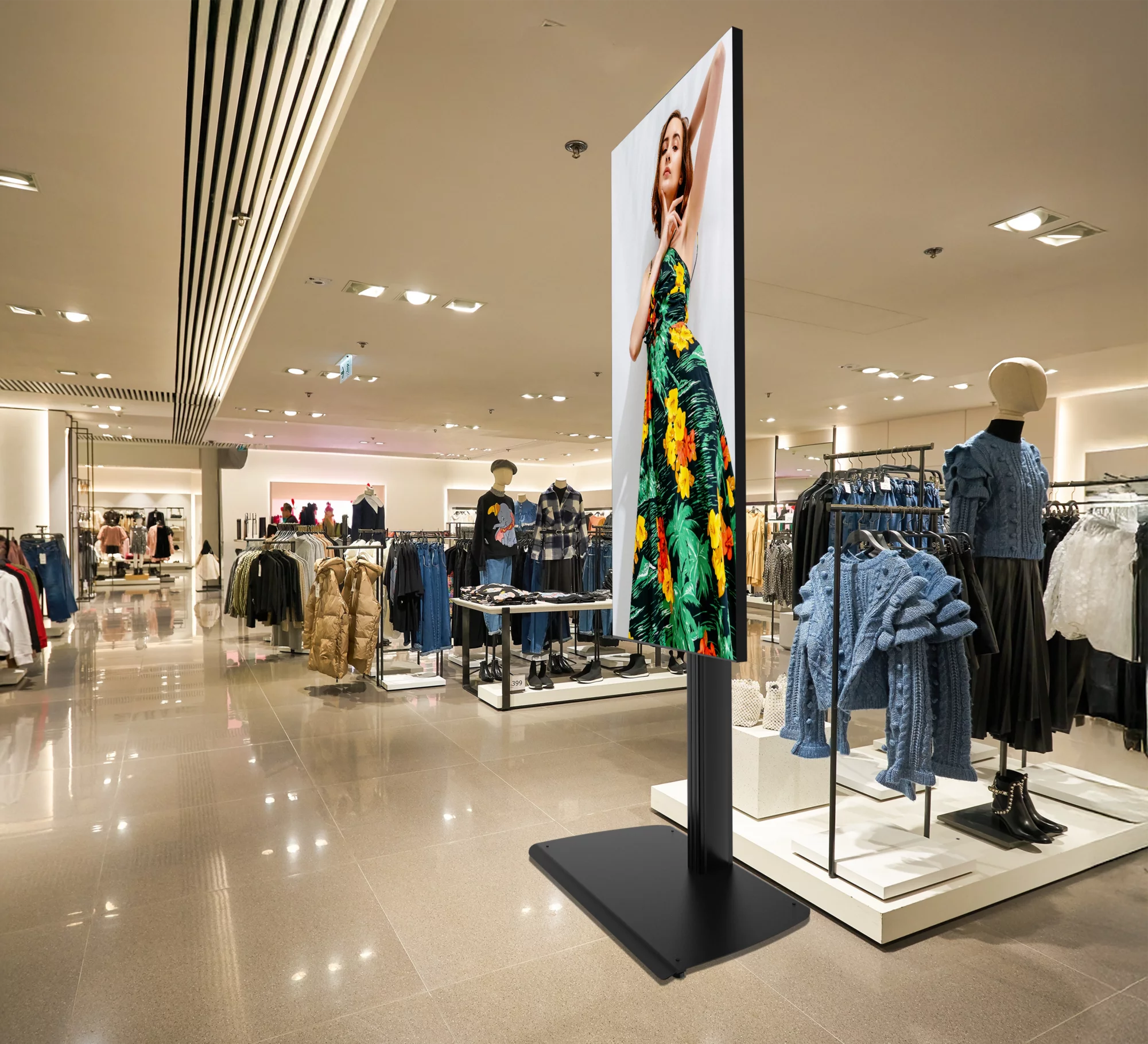

The BTF842 is a premium mounting solution designed to mount two screens in portrait orientation, one above the other. A heavy duty steel base eliminates the need to bolt to the floor and adjustable levelling feet are included to accommodate uneven surfaces. The high-end aesthetic with an anodised aluminium finish and integrated cable management ensures finished installations are neat and tidy, making the BTF842 ideal for use in professional or commercial applications.
The BTF842 is a premium mounting solution designed to mount two screens in portrait orientation, one above the other. A heavy duty steel base eliminates the need to bolt to the floor and adjustable levelling feet are included to accommodate uneven surfaces. The high-end aesthetic with an anodised aluminium finish and integrated cable management ensures finished installations are neat and tidy, making the BTF842 ideal for use in professional or commercial applications.
The BTF842 is a premium mounting solution designed to mount two screens in portrait orientation, one above the other. A heavy duty steel base eliminates the need to bolt to the floor and adjustable levelling feet are included to accommodate uneven surfaces. The high-end aesthetic with an anodised aluminium finish and integrated cable management ensures finished installations are neat and tidy, making the BTF842 ideal for use in professional or commercial applications.

Product Features

  • Universal design suitable for screens in a portrait orientation
  • Heavy duty steel base construction provides stability, eliminating the need to bolt to the floor
  • Can also be bolted to the floor to help prevent unauthorised relocation of the display
  • Supplied with adjustable levelling feet to accommodate uneven floor surfaces
  • Arms feature levelling screws to adjust the screen height
  • Collar compatible accessories such as shelves (available separately) can be fitted directly to the column

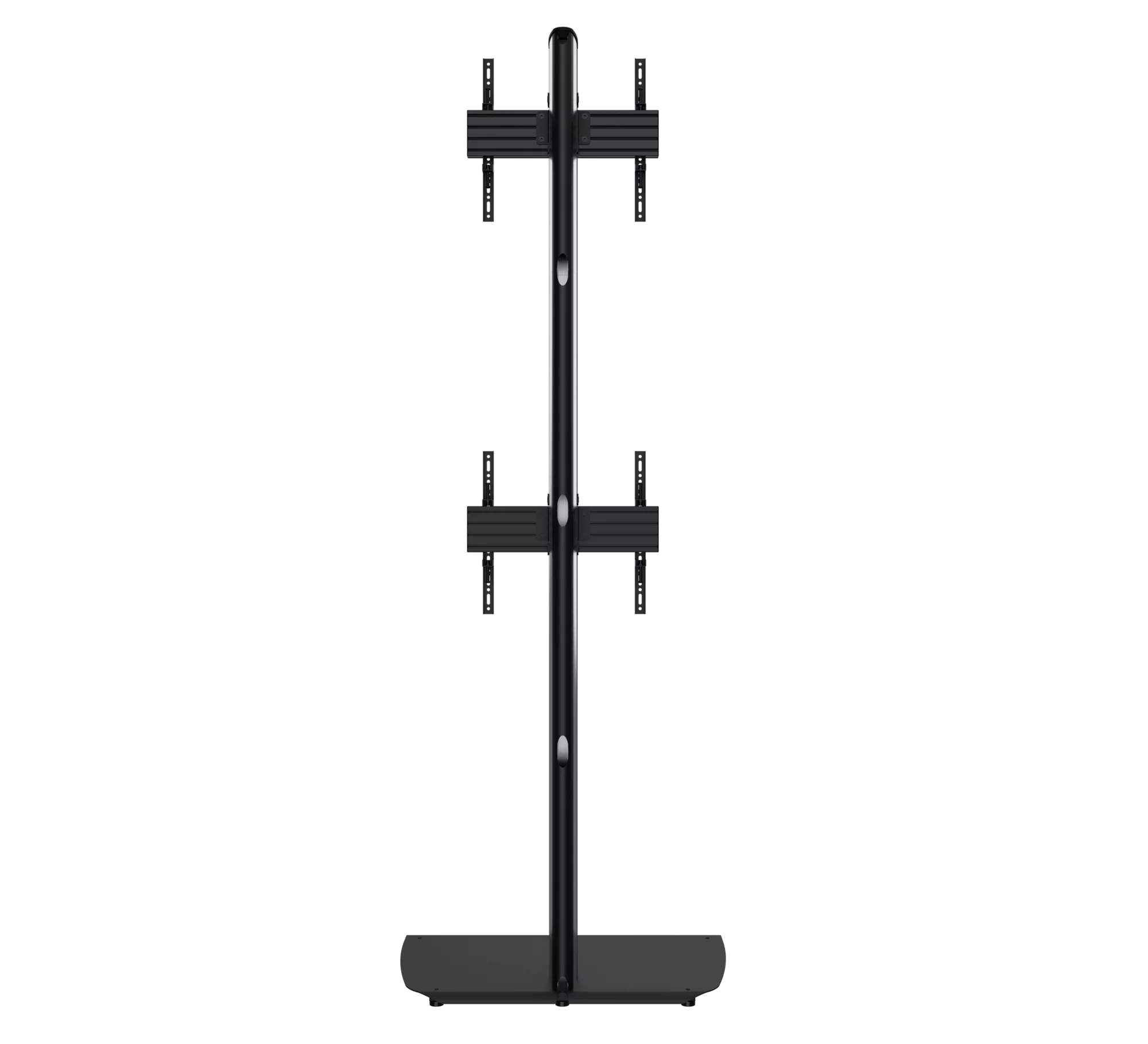

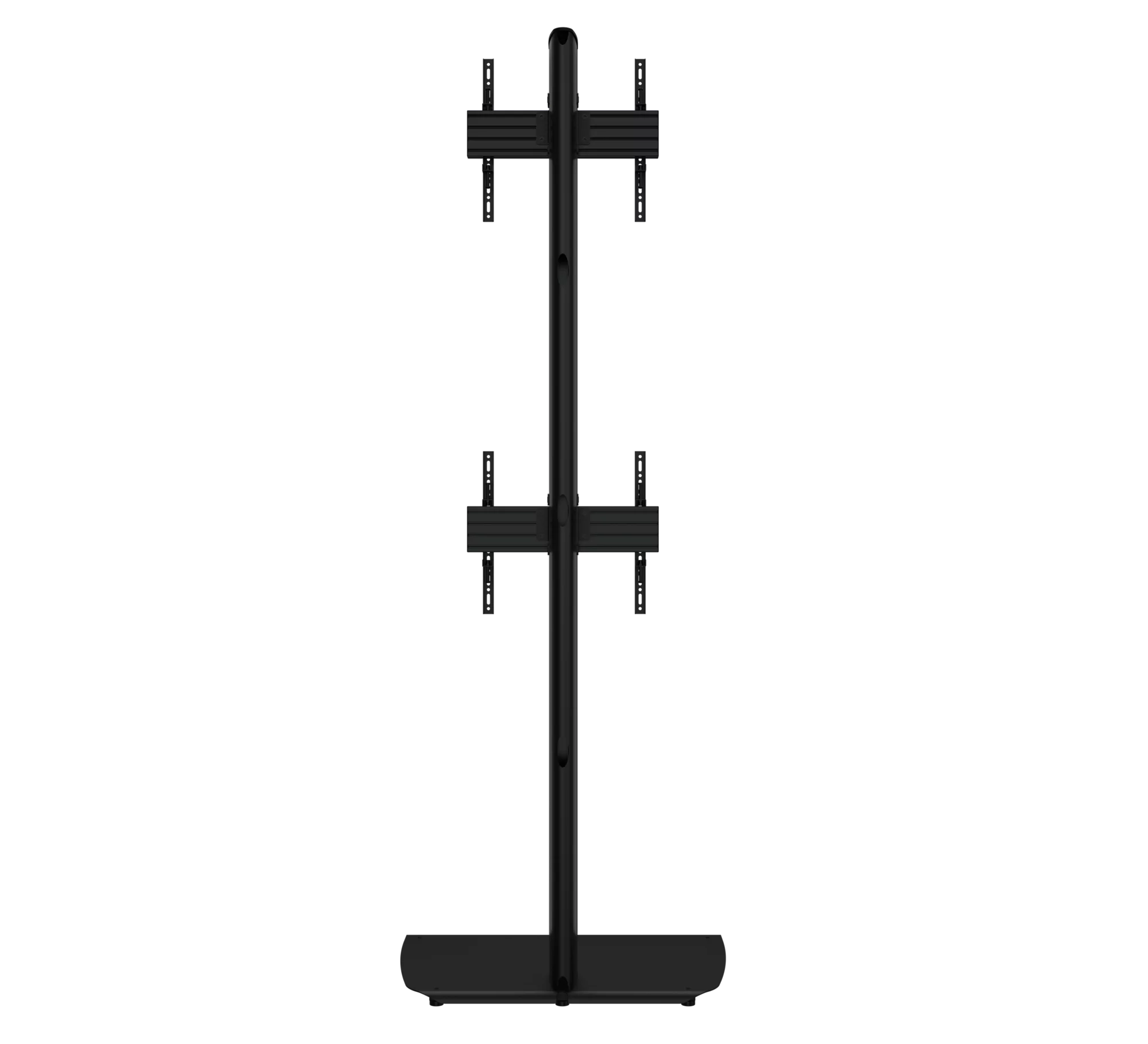

  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Simple 'hook-on' screen installation
  • Universal design suitable for screens in a portrait orientation
  • Heavy duty steel base construction provides stability, eliminating the need to bolt to the floor
  • Can also be bolted to the floor to help prevent unauthorised relocation of the display
  • Supplied with adjustable levelling feet to accommodate uneven floor surfaces
  • Arms feature levelling screws to adjust the screen height
  • Collar compatible accessories such as shelves (available separately) can be fitted directly to the column
  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Simple 'hook-on' screen installation
  • Universal design suitable for screens in a portrait orientation
  • Heavy duty steel base construction provides stability, eliminating the need to bolt to the floor
  • Can also be bolted to the floor to help prevent unauthorised relocation of the display
  • Supplied with adjustable levelling feet to accommodate uneven floor surfaces
  • Arms feature levelling screws to adjust the screen height
  • Collar compatible accessories such as shelves (available separately) can be fitted directly to the column
  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Simple 'hook-on' screen installation

Product Specifications

  • Recommended display size: 47" up to 65"
  • Max load: 35kg per screen
  • VESA fixings as standard: up to 472mm x 400mm*
  • VESA fixings with adaptors: up to 600mm x 400mm*
  • Column length: 2.4m
  • Product width: 890mm
  • Product depth: 604mm
  • Product height: 2441mm
  • Orientation: Landscape, Portrait
  • Colour options: Black or Silver & Black
  • Recommended display size: 47" up to 65"
  • Max load: 35kg per screen
  • Universal fixings as standard: up to 472mm x 400mm
  • VESA fixings with adaptors: up to 600mm x 400mm
  • Column length: 2.4m
  • Product width: 890mm
  • Product depth: 604mm
  • Product height: 2441mm
  • Orientation: Portrait
  • Colour: Silver & Black
  • Recommended display size: 47" up to 65"
  • Max load: 35kg per screen
  • Universal fixings as standard: up to 472mm x 400mm
  • VESA fixings with adaptors: up to 600mm x 400mm
  • Column length: 2.4m
  • Product width: 890mm
  • Product depth: 604mm
  • Product height: 2441mm
  • Orientation: Portrait
  • Colour: Black

Ordering & Box Information

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): Select a product variation to see its total boxed weight.

Order Code: BTF842/BS

Barcode: 5019318087592

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 20.87kg

Order Code: BTF842/BB

Barcode: 5019318087585

HS Code: 94032080

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 21.07kg

Downloads

BTF842 - Product Specification Sheet - English

pdf 1.29 MB

BTF842 - Installation Guide

pdf 8.29 MB

BTF842 - Techinal Drawings - (PDF)

pdf 173.28 KB

BTF842-B-1

png 23.50 KB

BTF842-1

png 23.50 KB

BTF842-2

png 24.63 KB

BTF842-3

png 18.16 KB

BTF842-8

png 19.47 KB

BTF842-10

png 44.21 KB

BTF842-7

png 411.14 KB

Downloads

BTF842 - Product Specification Sheet - English

pdf 1.29 MB

BTF842 - Installation Guide

pdf 8.29 MB

BTF842 - Techinal Drawings - (PDF)

pdf 173.28 KB

BTF842-BS-1

png 24.63 KB

BTF842-BS-2

png 17.70 KB

BTF842-BS-7

png 20.92 KB

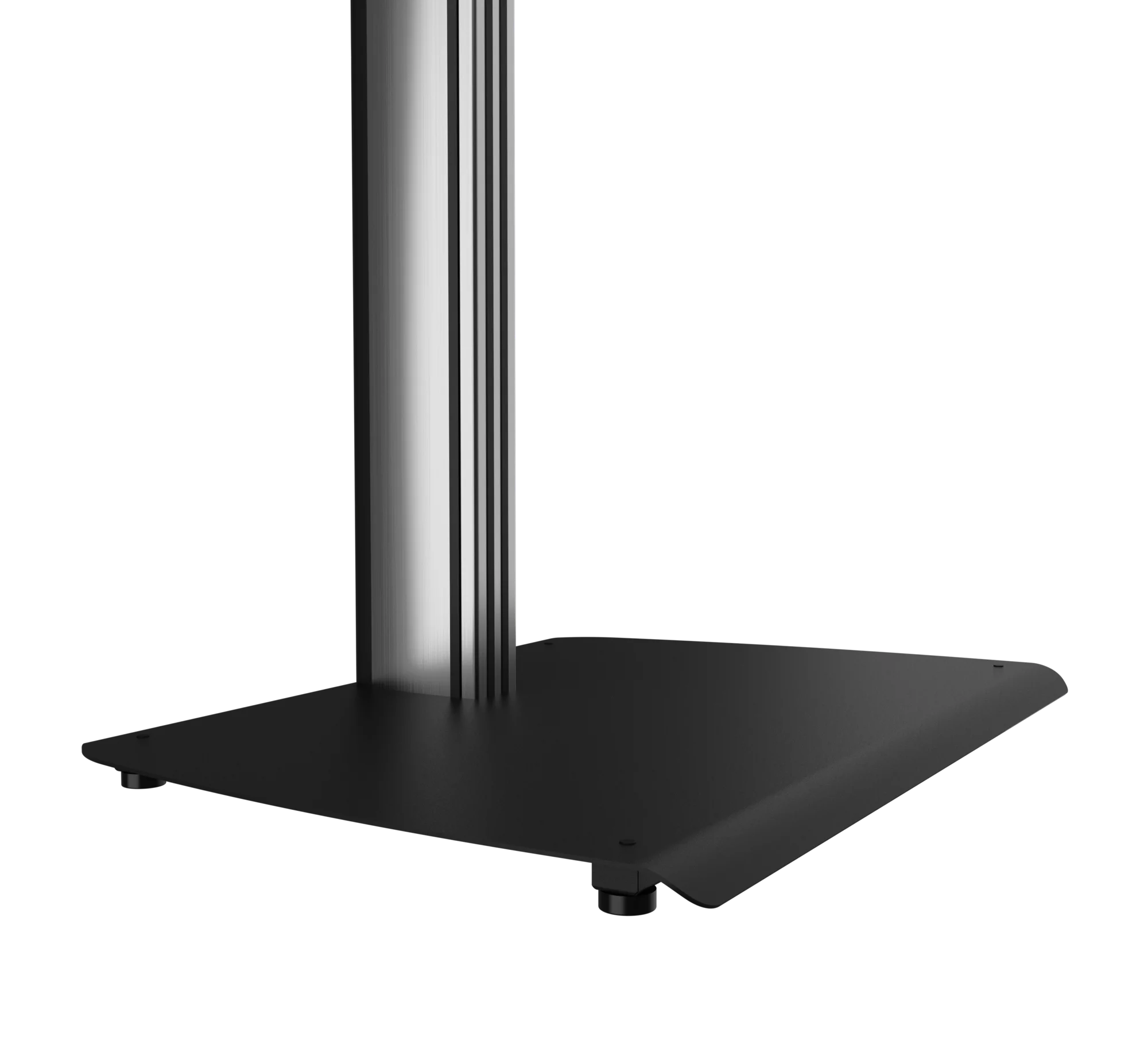

BTF842-BS-9

png 33.41 KB

BTF842-BS-6

png 411.48 KB

Downloads

BTF842 - Product Specification Sheet - English

pdf 1.29 MB

BTF842 - Installation Guide

pdf 8.29 MB

BTF842 - Techinal Drawings - (PDF)

pdf 173.28 KB

BTF842-B-1

png 23.50 KB

BTF842-B-2

png 18.16 KB

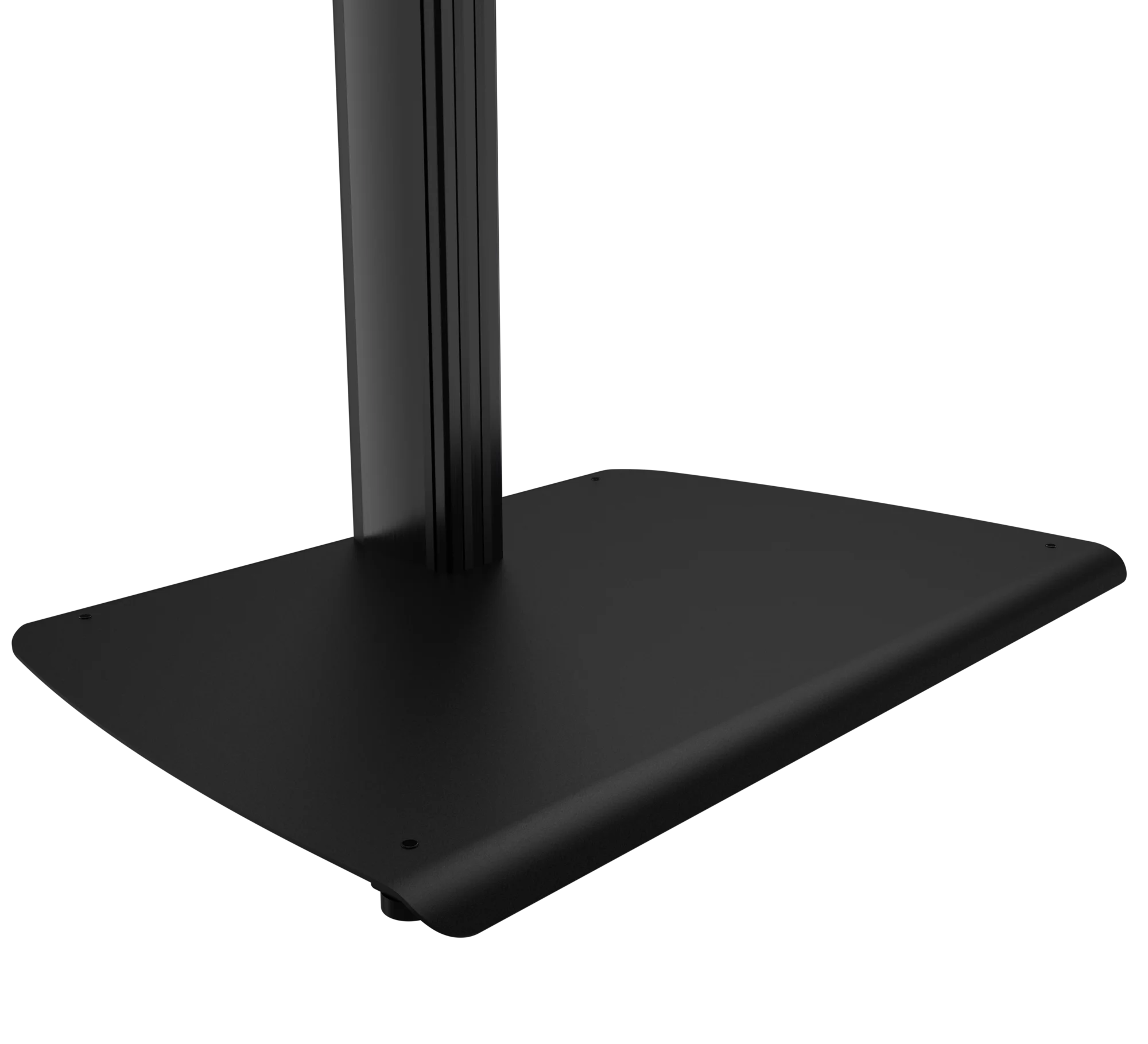

BTF842-B-9

png 44.21 KB

BTF842-B-6

png 411.14 KB
